USER MANUAL KC510.9 KRESS

Exterior view of a Kress brand Commercial optical device (no signage or text beyond branding)

60V Commercial Handheld Blower	EN	P02
60 V Handlaubblasgerät für den gewerblichen Einsatz	D	P15
Souffleur portatif professionnel 60 V	F	P29
Soffiatore portatile commerciale da 60V	I	P42
Soplador de mano Comercial 60V	ES	P55
Soprador portátil comercial de 60V	PT	P68
60V Commerciële handblazer	NL	P81
60 V-os Commercial kézi lombfúvó	HU	P94
Suflantă portabilă comercială de 60 V	RO	P107
Komercyjna dmuchawa ręczna 60 V	PL	P120
60 V Ruční fukar pro komerční použití	CZ	P133
60 V komerčný ručný fúkač	SK	P146
Komercialni ročni puhalnik 60 V	SL	P159
Komercijalno ručno puhalo 60 V	HR	P172
60 V kommerciel håndblæser	DK	P184
60 V kaupallinen käsipuhallin	FIN	P196
60 V kommersiell håndholdt blåser	NOR	P208
60V Kommersiell handhållen lövblås	SV	P220
KC510 KC510.X

TABLE OF CONTENTS

Introduction....2

Component List....3

Product Safety....4

Assembly & Operation....9

Cleaning 10

Storage 11

Troubleshooting....11

Technical Data....12

Environmental Protection....12

Declaration of Conformity....13

EN

INTRODUCTION

Dear Customer,

Thank you for buying this Kress Commercial product. We are dedicated to developing high quality products to meet your commercial landscaping requirements.

The Kress brand is synonymous with premium quality service. Over the years of your product's life, if you have any questions or concerns about your product, please contact your dealer or our Customer Service Team for assistance.

We are confident you will enjoy working with your Kress product for years to come.

INTENDED USE

This machine is intended for blowing leaves, grass, paper products and other similar materials.

Diagram of a handheld device with numbered parts and a close-up of its internal component, likely for assembly or labeling.

Technical line drawing of a mechanical assembly with no visible text or symbols

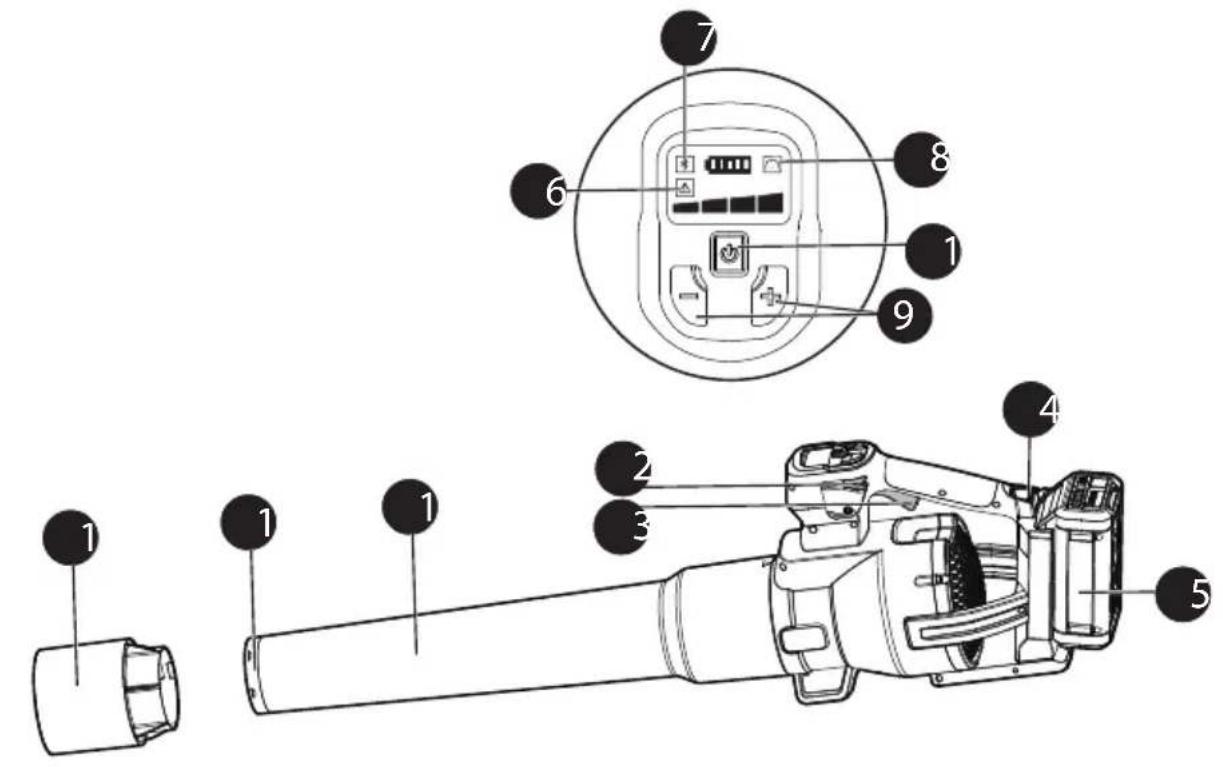

COMPONENT LIST

1. BLOWER TUBE
2. CRUISE CONTROL BUTTON
3. POWER TRIGGER
4. BATTERY RELEASE BUTTON
5. BATTERY *
6. WARNING SYMBOL
7. BLUETOOTH SYMBOL
8. CRUISE CONTROL SYMBOL
9. SPEED CONTROL
10. ON/OFF BUTTON
11. SPREAD NOZZLE
12. METAL SCRAPER TIP

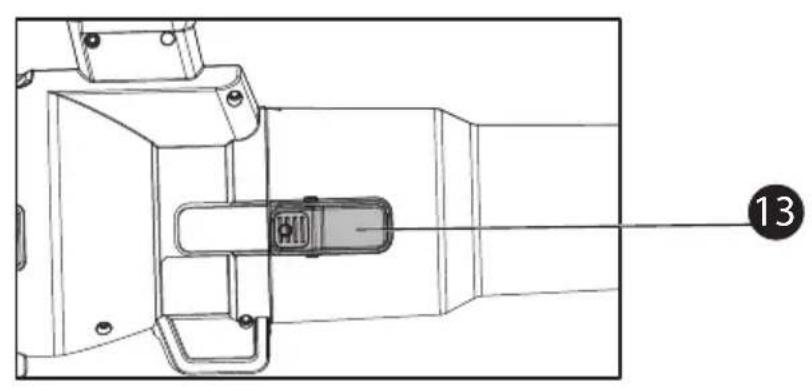

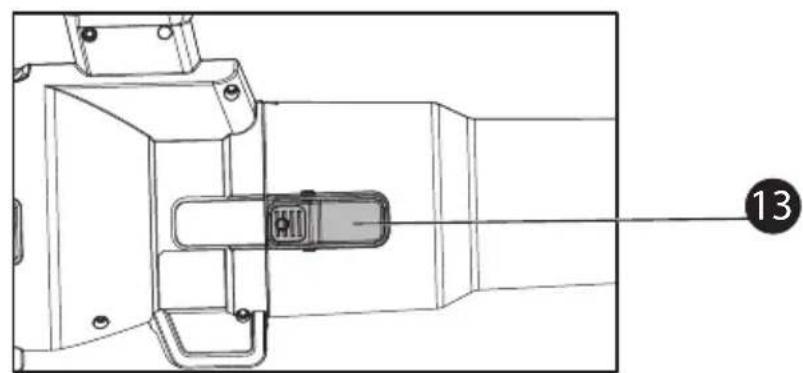

13. TUBE RELEASE BUTTON

ORIGINAL INSTRUCTIONS Users can view the electronic instructions at https://www.kress.com/.

PRODUCT SAFETY

WARNING: Read all

safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The appliance is only to be used with the power supply unit provided with the appliance.

IMPORTANT

READ CAREFULLY BEFORE USE

KEEP FOR FUTURE REFERENCE

Safe operating practices 1) Training

a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
b) Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the

machine, local regulations may restrict the age of the operator.

c) Never operate the machine while people, especially children, or pets are nearby.
d) Keep in mind, that the operator or user is responsible for accidents or hazards occurring to other people or their property.

2) Preparation

a) While operating the machine, always wear substantial footwear and long trousers. Do not operate the machine when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties.
b) Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away from the air inlets.
c) Obtain ear protection and safety glasses. Wear them at all times while operating the machine.
d) Operate the machine in a recommended position and only on a firm, level surface.
e) Do not operate the machine on a paved or gravel surface where ejected material could cause injury.
f) Before using, always

visually inspect to see, that the fasteners are secure, the housing is undamaged and that guards and screens are in place.

Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.

3) Operation

a) Before starting the machine, make certain that the feeding chamber is empty.
b) Keep your face and body away from the feed intake opening.
c) Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part.
d) Keep proper balance and footing at all times. Do not overreach. Never stand at a higher level than the base of the machine when feeding material into it.
e) Always stand clear of the discharge zone when operating this machine.
f) If the machine should start making any unusual noise or vibration, immediately shut off the power source and allow the machine to stop. Remove the battery pack from the machine and take the following

steps before restarting and operating the machine:

i) inspect for damage;

ii)replace or repair any damaged parts;

iii)check for and tighten any loose parts.

g) Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the intake opening.
h) If the machine becomes clogged, shut-off the power source and remove the battery pack from the machine before cleaning debris.
i) Never operate the machine with defective guards or shields, or without safety devices.
j) Keep the power source clean of debris and other accumulations to prevent damage to the power source or possible fire.
k) Do not transport this machine while the power source is running.
I) Always disconnect the machine from the power supply (e.g. remove the battery pack from the machine)

-whenever you leave the machine,

-before clearing blockages

or unclogging chute, -before checking, cleaning or working on the machine.

m) Avoid using the machine in bad weather conditions especially when there is a risk of lightning.

4) Maintenance and storage

a) keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition.
b) Replace worn or damaged parts.
c) Use only genuine replacement parts and accessories.
d) Store the machine in a dry place out of the reach of children.
e) When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source, disconnect the machine from the supply and make sure that all moving parts are come to a complete stop. Allow the machine to cool before making any inspections, adjustments, etc. Maintain the machine with care and keep it clean.
f) Store the machine in a dry place out of the reach of children.
g) Always allow the machine to cool before storing.

h) Never attempt to override the interlocked feature of the guard.

SAFETY WARNINGS FOR BATTERY PACK

a) Do not dismantle, open or shred cells or battery pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or

eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.

f) Keep battery pack clean and dry.

g) Wipe the battery pack terminals with a clean dry cloth if they become dirty.

h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.

i) Do not maintain battery pack on charge when not in use.

j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.

k) Recharge only with the charger specified by Kress. Do not use any charger other than that specifically provided for use with the equipment.

I) Do not use any battery pack which is not designed for use with the equipment.

m) Keep battery pack out of the reach of children.

n) Retain the original

product literature for future reference.

o) Remove the battery from the equipment when not in use.

p) Dispose of properly.

q) Do not use battery packs of different manufacture, size or type.

r) Keep the battery away from microwaves and high pressure

s) Warning! Do not use non-rechargeable batteries.

User manual requirements for wireless product

a) Operation of this device is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

b) Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

c) NOTE: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

SYMBOLS

	Read the operator's manual
	Warning

	Wear ear protection
	Wear eye protection
	Double insulation
	Keep bystanders away
	Warning of hazard
	Remove battery from the socket before carrying out any adjustment, servicing or maintenance.
	Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste.
	Do not burn
	Li-lon battery. This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances.Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

NOTE: Before using the tool, read the instruction book carefully.

BEFORE OPERATION:

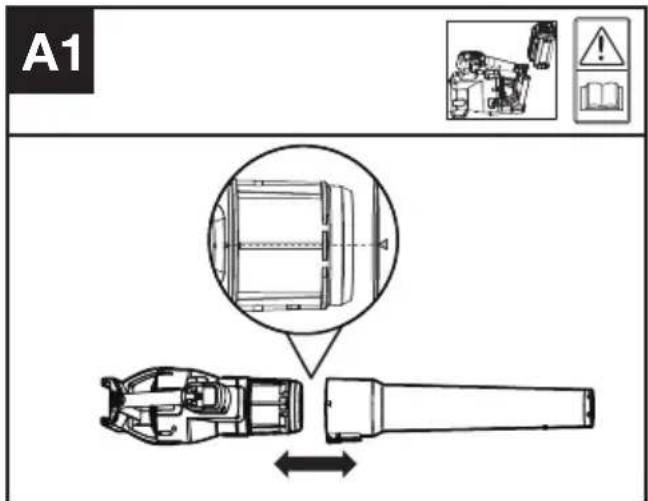

Assemble the blower tube and the spread nozzle (See Fig. A1, A2, A3)

A1

A2 A2

A3

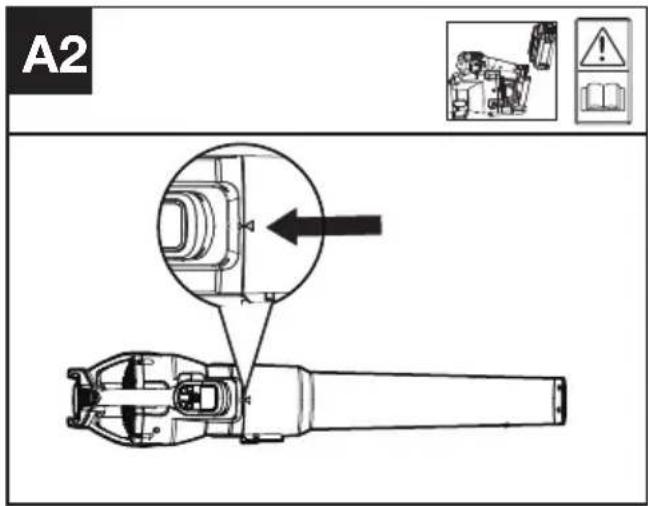

1. Align the "△" on the blower tube and blower nozzle.
2. Push the blower tube onto the housing until the tube release catch fully engages with the tube.

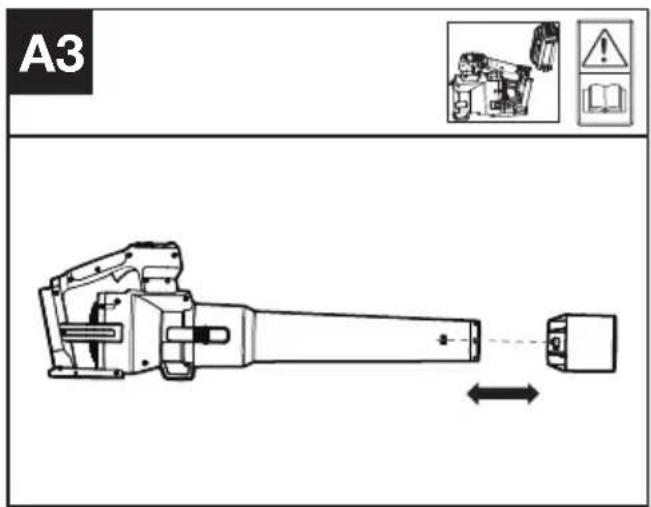

3. Align the hook of the spread nozzle and the blower tube.

OPERATION

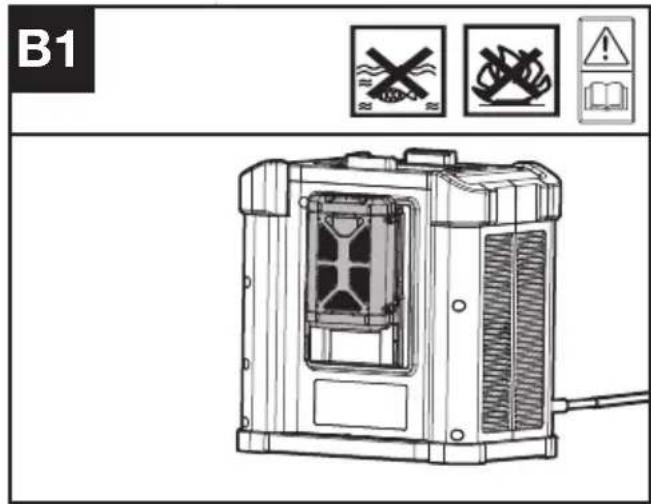

Charge your battery (See Fig. B1)

B1 No No No

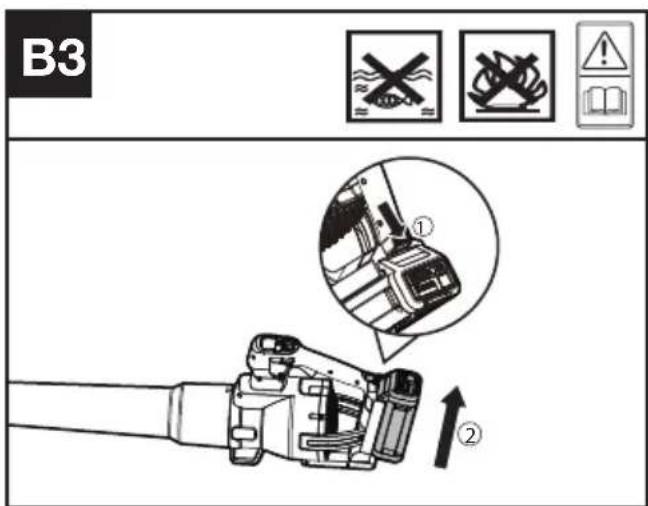

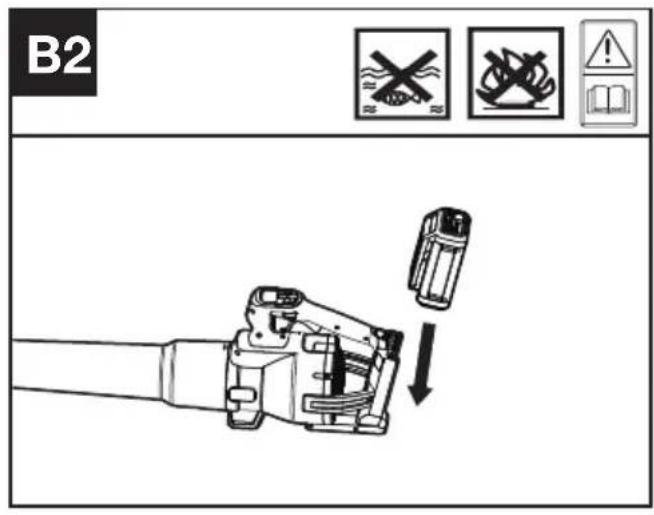

Install /Remove the battery (See Fig. B2, B3)

1. Slide the battery pack into the batter compartment until you hear a click.

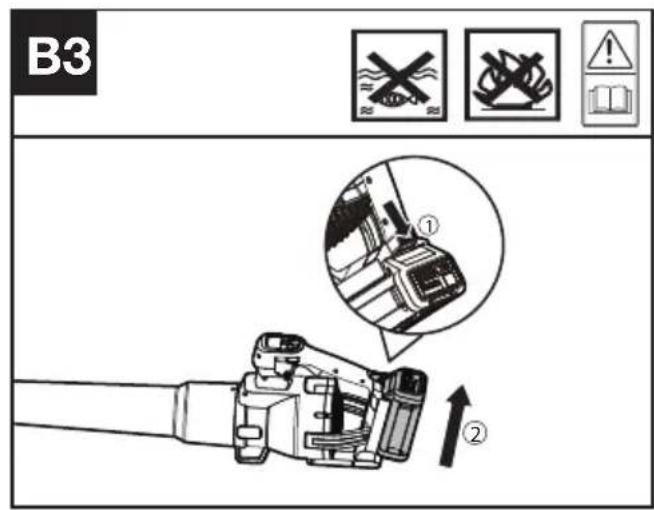

2. Press the battery pack release button and press the battery pack to unlock it more easier.

B2

B3 ① ②

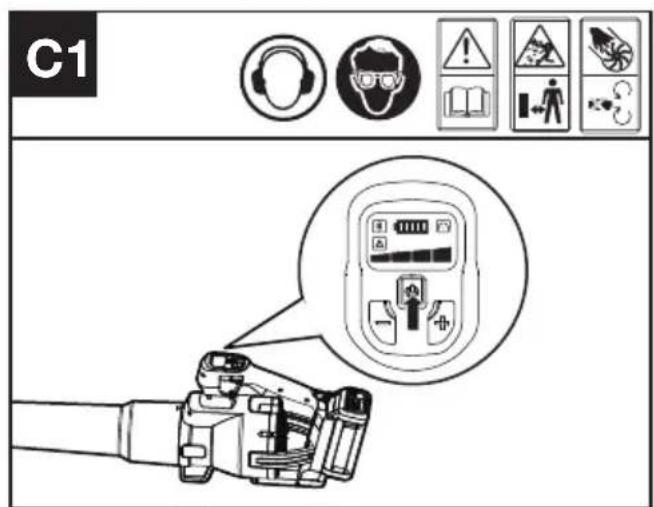

To start (See Fig. C1)

C1

1. Press the ⬤ for 0.5 seconds start the product.
   NOTE: When pressing the power button, please do not press the trigger, otherwise it will result in a fault alarm.

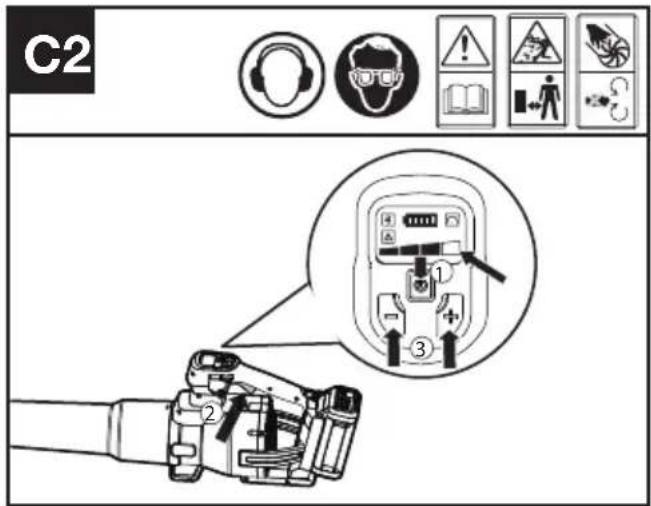

Adjust the speed control (See Fig. C2)

C2 ① ② ③

1. Press on/off button to activate the blower, then press the trigger to operate the blower. Press +/- to choose proper level of air force. The blower will reach the MAX speed when the four lights are illuminated.

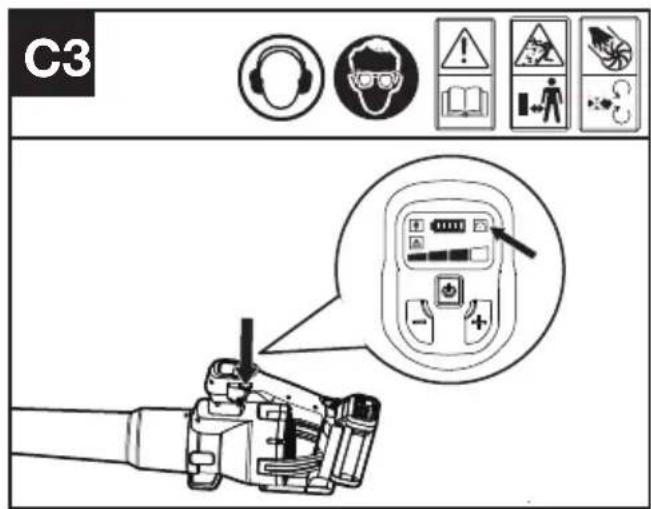

Push the Cruise control button to set the selected airflow, the 📄 will light up (See Fig. C3)

C3

1. Press on/off button to activate the blower, then press the trigger to operate the blower. Press the cruise control button and symbol " lights up, then the blower will be at the current speed even if you release the trigger.
2. You could press trigger to have bigger air force within the chosen level limit and release the trigger, the speed will return to the cuise speed. Press cruise control button to deactivate the cruise function when needed

CLEANING

1. Do not use aggressive detergents or solvents. Clean the machine after use with a damp cloth dipped in mild detergent.
2. Keep battery connection free of dirt and debris, and clean with a soft and dry brush or cloth.

3. Do not spray water onto the motor and electrical components.

4. Do not use pressure washer to clean your machine.

STORAGE

1. Remove the battery pack from the blower before storage.
2. Store the blower and the battery in a dry and secure place that is inaccessible to children and other unauthorized people. Remove the attachment if no use for a long time.
3. Store the battery only within a temperature range between 5°C (41°F) and 25°C (77°F). As an example, do not leave the battery in the car in summer time.
4. Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the ventilation slots.
5. Store the machine in a dry place. Do not place other objects on top of the machine.
6. If the machine becomes wet in the rain during operation, the machine and the battery should be dried before storing or charging. Remove the battery and reinsert it if the machine fails to turn on.

For Battery tools

The recommended ambient temperature range for discharging is -20 °C\~45 °C (-4 °F\~113 °F). The recommended ambient temperature range for the charging system during charging is 5°C\~40 °C (41 °F\~104 °F).

TROUBLESHOOTING

The following table gives problems and actions that you can perform if your machine does not operate correctly.

WARNING: Switch the machine off and remove the battery prior to any troubleshooting.

60V COMMERCIAL HANDHELD BLOWER

Symtom indicator light display	Possible Cause Remedy
Flashing Red Light The machine has failure in operation Charge and replace battery, then restart it. If still not working, please contact service agent.
Flashing Yellow Light Power-On Start/Switch Reset Failure Restart the machine.Press the presence switch first and then pull the throttle trigger.
			Battery pack under-voltage/deep under-voltage	Charge the battery pack before use.
			Battery Pack Overheating Allow the battery to cool down for a while, then restart it.
			Battery Pack Underheating Place the battery pack in a suitable temperature environment for some time to wait for the temperature to stabilize, then restart it.

BATTERY

Problems Possible	Causes Corrective Action
Error LED lit The battery is discharged	Charge the battery and	check the charger for proper operation. If battery fails to charge, contact your Service Agent.
	Temperature issue. Use the battery in surroundings where temperatures are between -20°C to 45°C (-4°F to 113°F) for discharge.
	Others Contact your Service Agent.

TECHNICAL DATA

Type Designation: KC510 KC510.X (5 -designation of machinery, representative of Cordless Blower)

	KC510 KC510.X **
Voltage 60 V	--- MAX ***
Motor type Brushless
Air force 22 N
MAX Air volume 1444 m	^3/h
MAX Air speed 83 m/s
Degree of protection IPX5
Machine weight (Bare tool) 2.6 kg

** X=1-999, A-Z, M1-M9 there are only used for different customers, there are no safe relevant changes between these models.

*** Voltage measured without workload. Initial battery voltage reaches maximum of 60 volts. Nominal voltage is 54 volts.

SUGGESTED BATTERIES AND CHARGERS

Battery	Amp Charger	Amperage
KAC800	4.0 Ah	KAC840	30 A

We recommend that you purchase your accessories from the same Dealer that sold you the tool. Refer to the accessory packaging for further details. Your Dealer can assist you and offer advice.

TECHNICAL DATA FOR BATTERY PACK (OPTIONAL)

Frequency bands for Bluetooth	2400-2483.5 MHz
Maximum Transmitted Power for Bluetooth	8 dBm

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.

NOISE DATA

A weighted sound pressure (With Nozzle)	L_pA = 76.8 dB(A)
K_pA	3 dB(A)
A weighted sound power L	WA=92.9 dB(A)
K_wA	1.09 dB(A)
Wear ear protection.

VIBRATION INFORMATION

Typical weighted vibration a	_h = 1.07 m/s^2
Uncertainty K=1.5 m/s	^2

The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value

during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used:

How the tool is used.

The tool being in good condition and well maintained.

Using the correct accessory for the tool and ensuring it is sharp and in good condition.

The tightness of the grip on the handles and if any anti vibration accessories are used.

And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of exposure level in the actual conditions

of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Helping to minimise your vibration exposure risk. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate)

If the tool is to be used regularly then invest in anti vibration accessories.

Plan your work schedule to spread any high vibration tool use across a number of days.

DECLARATION OF CONFORMITY

We,

Positec Germany GmbH

Postfach 680194, 50704 Cologne, Germany

On behalf of Positec declare that the product,

Description Battery-operated Blower

Type KC510 KC510.X (5 - designation of machinery, representative of battery-operated Blower)

Function blowing and picking up debris into a debris collector

Complies with the following Directives:

2006/42/EC, 2014/30/EU,

2011/65/EU&(EU)2015/863,

2000/14/EC amended by 2005/88/EC

2000/14/EC amended by 2005/88/EC:

- Conformity Assessment Procedure as per

Annex V

- Measured Sound Power Level at highest blowing force 93.1 dB(A)

- Declared Guaranteed Sound Power Level 95 dB(A)

Standards conform to:

EN 60335-1, EN 50636-2-100, EN 62233,

EN ISO 3744, EN IEC 55014-1, EN IEC 55014-2, EN IEC 63000

The person authorized to compile the technical file, Name Marcel Filz

Address Positec Germany GmbH

Postfach 680194, 50704 Cologne, Germany

M C E

2024/12/20

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

DECLARATION OF CONFORMITY

We,

Positec (UK & Ireland) Ltd.

PO Box 6242, Newbury, RG14 9LT, UK

On behalf of Positec declare that the product

Description Battery-operated Blower

Type KC510 KC510.X (5 - designation of machinery, representative of battery-operated Blower)

Function blowing and picking up debris into a debris collector

Complies with the following Directives:

Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous

Substances in Electrical and Electronic Equipment Regulations

Noise Emission in the Environment by Equipment for Use Outdoors Regulations

- Conformity Assessment Procedure as per SCHEDULE 8

- Measured Sound Power Level at highest blowing force 93.1 dB(A)

- Declared Guaranteed Sound Power Level 95 dB(A))

Standards conform to

BS EN 60335-1, BS EN 50636-2-100, BS EN 62233, BS EN ISO 3744, BS EN IEC 55014-1, BS EN IEC 55014-2, BS EN IEC 63000

The person authorized to compile the technical file, Name Jim Kirkwood

Address Positec (UK & Ireland) Ltd., PO Box 6242, Newbury, RG14 9LT, UK

A#

UK CA

2024/12/20

Allen Ding

Deputy Chief Engineer, Testing & Certification

Positec Technology (China) Co., Ltd

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHALTSVERZEICHNIS

Einführung....15

Komponenten....16

Technical diagram of a handheld device with numbered parts and an exploded view showing internal components and wiring.

Technical line drawing of a mechanical assembly with no visible text or symbols

KOMPONENTEN

1. GEBLÄSEROHR
2. GESCHWINDIGKEITSSTEUER-TASTE
3. ABZUGSHEBEL
4. AKKUFREIGABETASTEN
5. AKKU *
6. WARN-SYMBOL
7. BLUETOOTH-SYMBOL
8. GESCHWINDIGKEITSSTEUER-SYMBOL
9. GESCHWINDIGKEITSKONTROLLE
10. EIN/AUS-SCHALTER
11. SPRÜHDÜSE
12. METALLRING
13. KNOPF ZUM LÖSEN DES ROHRES

B1 No. 025 No. 025 No. 025

Introduction......29

Technical diagram of a device with numbered parts and an exploded view showing internal components and wiring.

Technical line drawing of a mechanical assembly with no visible text or symbols

LISTE DES COMPOSANTS

1. TUYAU DE SOUFFLAGE
2. BOUTON D'ACTIVATION MAINTENUE
3. GÂCHETTE
4. BOUTONS DE DÉTACHEMENT DU BLOC DE BATTERIE
5. PACK BATTERIE *
6. SYMBOLE D'AVERTISSEMENT
7. SYMBOLE BLUETOOTH
8. SYMBOLE D'ACTIVATION MAINTENUE
9. CONTRÔLE DE LA PUISSANCE
10. COMMUTATEUR MARCHE/ARRÊT
11. BUSE DE DIFFUSION
12. EMBOUT DE GRATTAGE EN MÉTAL
13. BOUTON DE DÉBLOCAGE DU TUBE

B2 No. 100 No. 100 No. 100 No. 100 No. 100 No. 100 No. 100 No. 100 No. 100 No. 100 No. 100 No. 100 No. 100 No. 100 No. 100 NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO. NO.

B3 ① ②

INFORMATIONS RELATIVES AU BRUIT

INFORMATIONS RELATIVES AUX VIBRATIONS

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INDICE

Introduzione....42

Diagram of a handheld device with numbered parts and a close-up of its internal component, likely for assembly or labeling.

Technical line drawing of a mechanical component with no visible text or symbols

ELENCO COMPONENTI

1. TUBO SOFFIANTE
2. PULSANTE CRUISE CONTROL
3. GRILLETTO DI POTENZA
4. PULSANTI SGANCIO BATTERIA
5. UNITÀ BATTERIA *
6. SIMBOLO DI AVVERTIMENTO
7. SIMBOLO BLUETOOTH
8. SIMBOLO DEL CRUISE CONTROL
9. CONTROLLO DELLA VELOCITÀ
10. INTERRUTTORE DI AVVIO/ARRESTO
11. UGELLO DI DIFFUSIONE
12. PUNTA DEL RASCHIETTO IN METALLO
13. PULSANTE DI SGANCIO DEL TUBO

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

ÍNDICE

Introducción....55

Lista de componentes....56

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

ÍNDICE

Introdução....68

Lista de componentes....69

Diagram of a handheld device with numbered parts and a close-up of its internal component, likely for assembly or labeling.

Technical line drawing of a mechanical assembly with no visible text or symbols

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INHOUDSOPGAVE

Inleiding....81

Technical diagram of a handheld device with numbered components and a close-up view of its internal component.

Technical line drawing of a mechanical assembly with a numbered component (13), no visible text or symbols

ONDERDELENLIJST

1. BLAASPIJP
2. CRUISECONTROL-KNOP
3. STROOMSCHAKELAAR
4. KNOP OM BATTERIJ LOS TE MAKEN
5. ACCUPACK *
6. WAARSCHUWINGSSYMBOOL
7. BLUETOOTH-SYMBOOL
8. CRUISECONTROL-SYMBOOL
9. SNELHEIDSREGELAAR
10. AAN/UIT-SCHAKELAAR
11. SPREIDMONDSTUK
12. PUNT VAN METALEN KRABBER
13. ONTGRENDELKNOP VOOR BUIS

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

TARTALOMJEGYZÉK

Bevezető....94

Diagram of a handheld device with numbered parts and an internal control panel, showing exploded view and exploded view.

Technical line drawing of a mechanical assembly with no visible text or symbols

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

CUPRINS

Introducere....107

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SPIS TREŚCI

Wprowadzenie....120

Diagram of a handheld device with numbered parts and an internal control panel, showing exploded view and exploded view.

Technical line drawing of a mechanical assembly with no visible text or symbols

LISTA KOMPONENTÓW

1. RURA DMUCHAWY
2. PRZYCISK TEMPOMATU
3. WYZWALACZ ZASILANIA
4. ZATRZASK POJEMNIKA BATERYJNEGO
5. POJEMNIK BATERYJNY *
6. SYMBOL OSTRZEGAWCZY
7. SYMBOL BLUETOOTH
8. SYMBOL TEMPOMATU
9. KONTROLA PREDKOŚCI
10. WŁĄCZNIK/WYŁĄCZNIK
11. DYSZA ROZPYLAJĄCA
12. METALOWA KOŃCÓWKA SKROBAKA
13. PRZYCISK ZWOLNIENIA RURY

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

OBSAH

Úvod....133

INFORMACE TÝKAJÍCÍ SE HLUČNOSTI

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

OBSAH

Úvod....146

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

KAZALO VSEBINE

Uvod....159

Sestavni deli....160

Varnost izdelka....161

Sestavljanje in delovanje....166

Čiščenje....168

Shranjevanje....168

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

SADRŽAJ

Uvod....172

Popis komponenti....173

Sigurnost proizvoda....174

Sastavljanje i rad....179

Čišćenje....180

Skladištenje....181

Otklanjanje poteškoća....181

Tehnički podaci....182

Diagram of a handheld device with numbered parts and an internal control panel, showing exploded view and exploded view.

Technical line drawing of a mechanical assembly with no visible text or symbols

POPIS KOMPONENTI

1. CIJEV PUHALA
2. GUMB ZA TEMPOMAT
3. SKLOPKA ZA NAPAJANJE
4. GUMB ZA OTPUŠTANJE BATERIJE
5. BATERIJSKI MODUL *
6. SIMBOL UPOZORENJA
7. SIMBOL BLUETOOTH
8. SIMBOL TEMPOMATA
9. REGULACIJA BRZINE
10. GUMB ZA UKLJUČIVANJE/ISKLJUČIVANJE
11. MLAZNICA ZA RASPRŠIVANJE
12. VRH METALNOG STRUGAČA
13. GUMB ZA OTPUŠTANJE CIJEVI

ORIGINALNE UPUTE ZA RAD

Korisnici mogu pročitati upute u elektroničkom obliku na https://www.kress.com/.

SIGURNOST PROIZVODA

UPOZORENJE:

Pročitajte sva

sigurnosna upozorenja i sve upute. Nepoštivanje svih navedenih uputa može rezultirati strujnim udarom, požarom i/ili ozbiljnim ozljedama.

Sva upozorenja i upute sačuvajte za buduću uporabu.

Uređaj se smije koristiti samo s jedinicom za napajanje koja je isporučena uz uređaj.

VAŽNO

PROČITATI PAŽLJIVO PRIJE UPORABE ČUVAJTE ZA BUDUĆE KORIŠTENJE

Siguran način rada

1) Obuka

a) Pažljivo pročitajte upute. Upoznajte se s kontrolama i ispravnim korištenjem strojem.

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INDHOLDSFORTEGNELSE

Introduktion....184

Lista de componentes....185

Diagram of a handheld device with numbered parts and a close-up of its internal component, likely for assembly or labeling.

Technical line drawing of a mechanical component with no visible text or symbols

BEHOLD TIL SENERE BRUG

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

DK

SISÄLLYSLUETTELO

Johdanto....196

Komponenttiluettelo....197

Diagram of a handheld device with numbered parts and a close-up of its internal component, likely for assembly or labeling.

Technical line drawing of a mechanical component with no visible text or symbols

KOMPONENTTILUETTELO

1. PUHALLUSPUTKI
2. VAKIONOPEUDENSÄÄTÖ-PAINIKE
3. TEHOKYTKIN
4. AKUN VAPAUTUSPAINIKE
5. AKKU *
6. VAROITUSSYMBOLI
7. BLUETOOTH-SYMBOLI
8. VAKIONOPEUDENSÄÄTÖ-SYMBOLI
9. NOPEUDENSÄÄDIN
10. ON/OFF-VIRTAKYTKIN
11. LEVIÖSUUTIN
12. METALLINEN KAAVINKÄRKI
13. PUTKEN VAPAUTUSPAINIKE

ALKUPERÄISET OHJEET

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INNHOLDFORTEGNELSE

Introduksjon....208

Apparatelementer....209

Diagram of a handheld device with numbered parts and a close-up of its internal component, likely for assembly or labeling.

Technical line drawing of a mechanical component with no visible text or symbols

APPARATELEMENTER

1. BLÅSERR∅R
2. HASTIGHETSHOLDER-KNAPP
3. STR∅MUTL∅SER
4. BATTERIPAKKE UTL∅SERKNAPPER
5. BATTERIPAKKE *
6. ADVARSELSSYMBOL
7. BLUETOOTH-SYMBOL
8. HASTIGHETSHOLDER-SYMBOL
9. HASTIGHETSKONTROLL
10. PÅ/AV-BRYTER
11. SPREDDYSE
12. METALLSKRAPERTUPP
13. R∅RUTL∅SNINGSKNOTT

ORIGINAL

DRIFTSINSTRUKS

Rutiner for trygg bruk 1) TRENING

4) VEDLIKEHOLD OG OPPBEVARING

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

INNEHÅLLSFÖRTECKNING

Introduktion....220

Komponenter....221

Produktsäkerhet 222

Diagram of a handheld device with numbered parts and a close-up of its internal component, likely for assembly or labeling.

Technical line drawing of a mechanical component with no visible text or symbols

KOMPONENTER

1. BLÅSRÖRI
2. FARTHÅLLARKNAPP
3. STRÖMAVTRYCKARE
4. KNAPPAR FÖR LÖSGÖRANDE AV BATTERIPACKEN
5. BATTERIPAKET *
6. VARNINGSSYMBOL
7. BLUETOOTH-SYMBOL
8. SYMBOL FÖR FARTHÅLLARE
9. HASTIGHETSKONTROLL
10. TILL/FRÅN-STRÖMBRYTAREN
11. SPRIDARMUNSTYCKE
12. SPETS PÅ METALLSKRAPA
13. RÖRLÅSKNAPP

18, Dongwang Road, Suzhou Industrial

Park, Jiangsu 215123, P. R. China

Kress Commercial

Copyright © 2024, Positec. All Rights Reserved.

AR01767802
