Product type	Multifunctional cordless gardening kit (brushcutter, edger, hedge trimmer, pole pruner)
Brand	ATIKA
Model	AMGS 40
Battery voltage	36 V Li-ion
No-load speed (idle)	7250 rpm (low) / 9300 rpm (high)
Guaranteed sound power level	96 dB(A)
Weight of drive unit	2.2 kg (without battery or tool)
Weight of brushcutter/edger	3.7 kg (without battery)
Weight of hedge trimmer	4.2 kg (without battery)
Weight of pole pruner	4.4 kg (with extension, without battery)
Cutting diameter brushcutter (blade)	255 mm
Cutting diameter edger (line)	330 mm
Cutting length hedge trimmer	395 mm
Blade length hedge trimmer	420 mm
Cutting length pole pruner	203 mm (10 inches)
Chain type of pole	3/8" LP .043x39
Chain oil tank capacity	130 ml
Compatible battery	AP 40-200 (2.0 Ah) or AP 40-4000 (4.0 Ah) - not included
Compatible charger	ALG 40-1800 - not included
Main functions	Brushcutting, edging (line), hedge trimming, pruning (pole pruner)
Speeds	2 selectable speeds (low/high)
Safety	Start lock, automatic stop when battery low, overload protection
Maintenance	Transmission lubrication every 25 h; clean after each use; sharpen blade/chain if necessary
Included accessories	Cutting blade, line spool, guide bar and chain, guards, strap, handle, wrenches
Warranty	Manufacturer's warranty according to attached declaration

Frequently Asked Questions - AMGS 40 ATIKA

What types of batteries can I use with the ATIKA AMGS 40 string trimmer?

The device works with 36 V Li-ion batteries from the AP 40 series. Compatible models are the AP 40-200 (2.0 Ah) and AP 40-4000 (4.0 Ah). The battery is not included with the device and must be purchased separately, as well as the ALG 40-1800 charger.

How do I change the rotation speed?

You can select between two speeds using the speed switch (item 34). Push the switch down for low speed (7250 rpm) and up for high speed (9300 rpm). The operating power is reduced in low speed to save battery.

How do I assemble the brushcutter/cutting blade?

Wear protective gloves. First mount the protective guard (5) on the housing, then place the protective cover (6), the cutting blade (7), the spacer washer (9), and the cap (10). Screw the M10 fixing nut (11) counterclockwise onto the drive shaft. Lock the shaft with the mounting wrench and tighten the nut. Note: left-hand thread.

How do I use the edger with the line?

Assemble the line spool (12) onto the drive shaft. The line extends automatically by lightly tapping the spool on the ground. The built-in line cutter in the protective guard cuts the excess. For optimal results, work with dry grass and avoid hard obstacles.

What are the essential safety instructions for the hedge trimmer?

Always wear gloves, safety goggles, and hearing protection. Hold the device with both hands, keep people and animals at least 5 m away. Do not work above shoulder height or on a ladder. Check that no nesting birds are in the hedge before trimming.

How do I tension the chain of the pole pruner?

Stop the device and remove the battery. Loosen the fixing nut (17a) by a maximum of one turn. Slightly lift the guide bar nose and turn the tensioner adjustment screw (31) clockwise until the chain can be lifted 3 to 4 mm in the middle of the guide bar. Ensure the chain links are properly in the groove, then retighten the nut.

How do I check the chain lubrication?

Start the pole pruner and point the guide bar tip towards a piece of cardboard or paper about 20 cm from the ground. If an oil trace appears, automatic lubrication is working properly. If not, check the oil level in the tank (capacity 130 ml) and clean the oil channel if necessary.

What to do if the device does not start?

First check that the battery is charged and correctly inserted. If the battery is too hot or too cold (>45°C), let it return to room temperature. If the problem persists, the battery, motor, or switch may be defective; contact customer service.

How do I clean the hedge trimmer after use?

Stop the device, remove the battery, and wait for the blades to stop completely. Remove plant residues with a brush or cloth. Do not use water to avoid corrosion. Apply a resin remover if necessary, then oil the cutting device with an eco-friendly maintenance oil.

What accessories are included in the box?

The package contains: the drive unit, handle, strap, cover, cutting blade, line spool, guide bar and chain for the pole pruner, transport guards, hedge trimmer, pole pruner with extension, a bag of accessories (wrenches, screwdriver), mounting sheet, and user manual. Battery and charger are not included.

USER MANUAL AMGS 40 ATIKA

Icon of a person using a laptop inside a circle (no text or symbols)

Original instructions - Battery-powered garden maintenance set

Notice originale - Kit de jardinage sans fil

Product catalog image showing four different types of manual tools including a tool, blade, bucket, and chain (no text or labels visible)

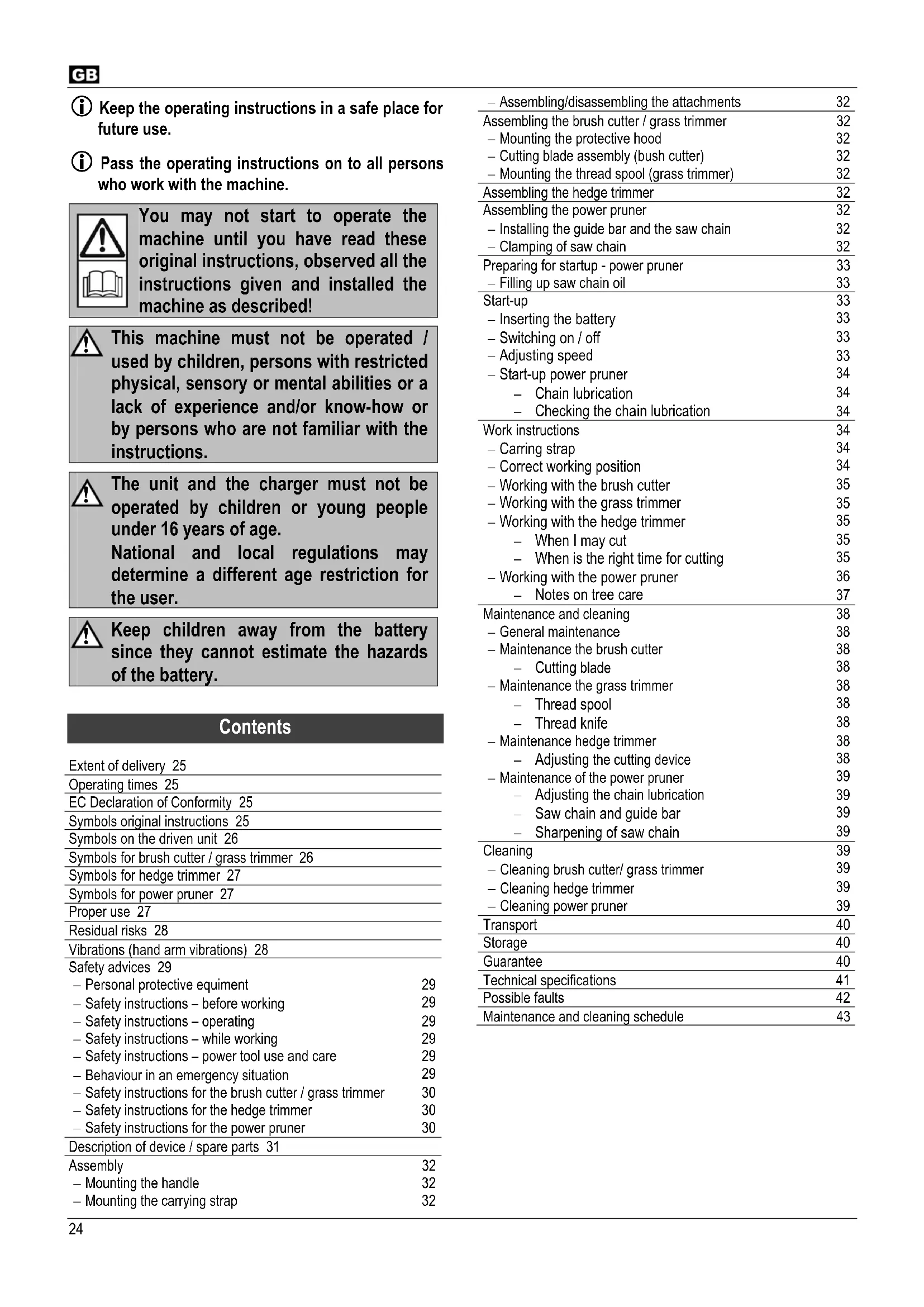

① Keep the operating instructions in a safe place for future use.
① Pass the operating instructions on to all persons who work with the machine.

You may not start to operate the machine until you have read these original instructions, observed all the instructions given and installed the machine as described!

This machine must not be operated / used by children, persons with restricted physical, sensory or mental abilities or a lack of experience and/or know-how or by persons who are not familiar with the instructions.

The unit and the charger must not be operated by children or young people under 16 years of age.

National and local regulations may determine a different age restriction for the user.

Keep children away from the battery since they cannot estimate the hazards of the battery.

Contents

Extent of delivery 25
Operating times 25
EC Declaration of Conformity 25
Symbols original instructions 25
Symbols on the driven unit 26
Symbols for brush cutter / grass trimmer 26
Symbols for hedge trimmer 27
Symbols for power pruner 27
Proper use 27
Residual risks 28
Vibrations (hand arm vibrations) 28
Safety advices 29
– Personal protective equipment	29
– Safety instructions – before working	29
– Safety instructions – operating	29
– Safety instructions – while working	29
– Safety instructions – power tool use and care	29
– Behaviour in an emergency situation	29
– Safety instructions for the brush cutter / grass trimmer	30
– Safety instructions for the hedge trimmer	30
– Safety instructions for the power pruner	30
Description of device / spare parts 31
Assembly	32
– Mounting the handle	32
– Mounting the carrying strap	32

- Assembling/disassembling the attachments	32
Assembling the brush cutter / grass trimmer	32
- Mounting the protective hood	32
- Cutting blade assembly (bush cutter)	32
- Mounting the thread spool (grass trimmer)	32
Assembling the hedge trimmer	32
Assembling the power pruner	32
- Installing the guide bar and the saw chain	32
- Clamping of saw chain	32
Preparing for startup - power pruner	33
- Filling up saw chain oil	33
Start-up	33
- Inserting the battery	33
- Switching on / off	33
- Adjusting speed	33
- Start-up power pruner	34
- Chain lubrication	34
- Checking the chain lubrication	34
Work instructions	34
- Carring strap	34
- Correct working position	34
- Working with the brush cutter	35
- Working with the grass trimmer	35
- Working with the hedge trimmer	35
- When I may cut	35
- When is the right time for cutting	35
- Working with the power pruner	36
- Notes on tree care	37
Maintenance and cleaning	38
- General maintenance	38
- Maintenance the brush cutter	38
- Cutting blade	38
- Maintenance the grass trimmer	38
- Thread spool	38
- Thread knife	38
- Maintenance hedge trimmer	38
- Adjusting the cutting device	38
- Maintenance of the power pruner	39
- Adjusting the chain lubrication	39
- Saw chain and guide bar	39
- Sharpening of saw chain	39
Cleaning	39
- Cleaning brush cutter/ grass trimmer	39
- Cleaning hedge trimmer	39
- Cleaning power pruner	39
Transport	40
Storage	40
Guarantee	40
Technical specifications	41
Possible faults	42
Maintenance and cleaning schedule	43

Extent of delivery

After unpacking, check the contents of the box for

▶ completeness
▶ possible transport damage.

Report any damage or missing items to your dealer or the manufacturer immediately. Complaints made at a later date will not be acknowledged. Notes on tree care Notes on tree care

• Driven unit (1)
• Attachment tool brush cutter/grass trimmer (4)
• Attachment tool hège trimmer (13)
  • Attachment power pruner (16)
  • Extension shaft (15)
• Protective guard (5)
• Cutting blade (8)
• Line spool (12)
• Handle (2
• Carrying strap(3)
• Chain bar (20)
• Saw chain (21)
• Chain protection (22)
  • Transport guard (14)
• Accessories bag (39)
  • Original operating instruction manual
  • Assembly and operating instruction sheet
• Warranty declaration

The following parts are not included in the scope of delivery. These accessories are available from your dealer or manufacturer:

28 Charger ALG 40-1800 (order no.: 365500)

29 Battery AP 40-2000 (order no.: 365501) or:

30 Battery AP 40-4000 (order no.: 365503)

Operating times

Please adhere to the regional regulations. Information on how to avoid noise:

Some noise exposure from this machine is unavoidable. Schedule noisy work to times during which it is allowed. Respect all rest times and restrict the work duration to the minimum. You as the operator and bystanders should wear a suited hearing protection.

EC Declaration of Conformity

No. (S-No.): 13641

according to EC directive: 2006/42 EC

We,

Altrad Lescha Atika GmbH

Josef-Drexler-Str. 8 – 89331 Burgau – Germany

herewith declare under our sole responsibility that the product

Battery-powered garden maintenance set AMGS 40 Serial-Number: 000001 – 020000

is conform with the above mentioned EC directive as well as with the provisions of the guidelines below:

2014/30/EU and 2000/14/EC

Following harmonized standards have been applied:

EN 60335-1:2012+A11:2014+A13:2017;

EN 50636-2-91:2014; EN ISO 11806-1:2011,

EN 60745-1:2009+A11:2010, EN 60745-2-15:2009+A1,

EN ISO 11680-1:2011, EN 55014-1:2017, EN 55014-2:2015

Conformity assessment procedure: 2000/14/EC – Appendix V

Measured sound power level L_WA 95.8 dB (A).

Guaranteed sound power level L_WA 96 dB (A).

Duly authorised person for the compilation of technical documents:

Altrad Lescha Atika GmbH – Technical department

Josef-Drexler-Str. 8 – 89331 Burgau – Germany

Burgau, 26.07.2021

Symbols operating manual

	Potential hazard or hazardous situation. Failure to observe these instructions may lead to injuries or cause damage to property.
	Important information on proper handling. Failure to observe these instructions may lead to malfunction.
	User information. This information helps you to use all the functions optimally.
	Assembly, operation and servicing. Here you are explained exactly what to do.
	Important notes for environmentally compatible conduct. Failure to observe these instructions may lead to environmental damage.
[WX4H]	Please refer to the attached assembly and operating instruction sheet for references to figure numbers in the text.
[###]

Symbols

Memorise the meaning to be able to operate the device more safely and to protect yourself and other from possible injuries.

Refer to the respective "Operating instructions" for the meaning of the "Symbols" of the batteries and the charger.

This product complies with European regulations specifically applicable to it.

Electrical devices do not go into the domestic rubbish.

Give devices, accessories and packaging to an ecofriendly recycling.

According to the European Directive 2012/19/EU on electrical and electronic scrap, electrical devices that are no longer serviceable must be separately collected and brought to a facility for an environmentally compatible recycling.

Symbols driven unit

36V

Speed → slow

Speed → fast

7250 rpm

9300 rpm

Guaranteed sound power level L_WA 96 dB (A), according to regulation 2000/14/EG.

Symbols brush cutter / grass trimmer

Warning! The brushcutter / grass trimmer may cause serious injury.

Carefully read the operating manual and the safety instructions before starting the machine and observe the instructions when operating.

Danger – objects may be thrown out at high speed when motor is running.

Keep people, pets and domestic animals out of the danger area.

Keep children, bystanders and animals at a distance from your working area. Safety distance at least 15 m.

Pull out the battery

⇒ before starting any work (cleaning, maintenance, repair, etc.) on the device.

⇒ when interrupting work, during transport and storage.

Risk by kickback!

Make sure that the cutting head cannot contact any foreign objects during starting and operation

Risk of injury at feet by contact with the cutting tool at a no-covered area.

Wear hard hat if there is a risk of falling parts. Wear eye and ear protection

Wear protective gloves.

Wear safety shoes.

Do not expose to rain. Protect against humidity.

Do not use saw blades.

Idle speed / max. speed of the cutting tool 7000 rpm

Attention! The cutting tool continues to rotate for a few seconds after the unit is switched off. Keep hands and feet at a safe distance from the cutting tool and wait until it has come to a standstill.

Symbols hedge trimmer

Warning! This product may cause serious injury.

Carefully read the operating manual and the safety instructions before starting the machine and observe the instructions when operating.

Wear hard hat if there is a risk of falling parts. Wear eye and ear protection

Wear protective gloves.

Do not touch the moving cutting blades. Only remove jammed material after the unit was switched off.

Keep children, bystanders and animals at a distance from your working area. Safety distance at least 5 m.

Pull out the battery

⇒ before starting any work (cleaning, maintenance, repair, etc.) on the device.

⇒ when interrupting work, during transport and

storage.

Do not expose to rain. Protect against humidity.

Fire, open light and smoking are prohibited.

Cutting length 400 mm

Length of sword 425 mm

Symbols power pruner

Carefully read operator's manual and the safety instructions before starting the machine and observe the instructions when operating.

Wear hardhat, eye and ear protection.

Wear protective gloves.

Wear safety shoes.

Do not expose to rain. Protect against humidity.

Keep other persons away from the work area. Safety distance at least 6 m.

Do not operate the power pruner near cables, power or phone lines. Keep a safety distance of 10 m to overhead power lines when working with the power pruner.

Pull out the battery

before starting any work (cleaning, maintenance, repair, etc.) on the device. when interrupting work, during transport and storage.

Mind the running direction of the chain links

Mind the running direction of the chain links

Chain lubrication

Max. cutting length 203 mm

Proper use

General:

• The intended usage also includes compliance with the operating, servicing and repair conditions prescribed by the manufacturer and following the safety instructions included in the instructions.
• Any other use is deemed not to be use as prescribed. The manufacturer is not liable for any type of damage resulting from this: the user bears the sole risk.
• Unauthorised modifications on the device exclude a liability of the manufacturer for damages of any kind resulting from it.
• Only persons who are familiarised with the device and informed about possible risks are allowed to prepare, operate and service this device. Repair works may only be carried out by us or by a customer service agent nominated by us.

For the brush cutter / grass trimmer:

• The brush cutter is suitable for thinning out and removing tall grass, weeds and undergrowth in private home and hobby gardens.
• This grass trimmer is designed for cutting grass and similar soft vegetation and for trimming lawn edges in private and hobby garden areas which are not accessible with a lawnmower.
• The brush cutter / grass trimmer must not be used
• for cutting and shredding hedges, shrubs, bushes, flowers and in the sense of compost.
• for levelling ground elevations, e.g. Molehills.
• Equipment that is not used in public areas, parks, sports facilities as well as in agriculture and forestry is regarded as brush cutters/ grass trimmers for private home gardens and hobby gardens.
• This machine must not be used in an explosive environment or exposed to rain.

Otherwise, there is a risk of injury.

For the hedge trimmer:

• This hedge trimmer is designed for cutting young shoots and soft branches on hedges and shrubs in house and hobby gardens.
• As hedge shears for the private house and hobby garden are considered such devices that are not applied in public facilities, parks, and sports facilities as well as in the agriculture and silviculture.
• The device shall not be used for cutting grass, grass borders or in order to chop for composting. Otherwise, there is a risk of injury.
• This machine must not be used in an explosive environment or exposed to rain.
• Metallic parts (wires etc.) have unconditionally to be removed from the material to be cut.

For the power pruner:

- The power pruner is only suitable for cutting branches on standing trees..

GB

• The power pruner is not suitable to cut down trees, sapplings or shrubs.
• Do not use the power pruner for sawing building materials and plastics.
• The power pruner is only suitable for private use in gardens and allotments.
• The power pruner is not suitable for forestry works (pruning branches in the forest).

Residual risks

Even if used properly, residual risks can exist even if the relevant safety regulations are complied with due to the design determined by the intended purpose.

Residual risks can be minimised if the "Safety advices" and the "Intended usage" as well as the whole of the operating instructions are observed.

Observing these instructions, and taking proper care, will reduce the risk of personal injury or damage to the equipment.

• Warning! This device generates an electromagnetic field during operation. Such a field may affect active or passive medical implants under certain circumstances. To reduce the risk of serious injuries we recommend persons who carry medical implants to consult their doctor and the manufacturer of the medical implant before operating this device.
• Health impairment resulting from exposure to hand arm vibration if the machine is used too long or is not properly guided and maintained.
• Eye injury when failing to wear safety goggles or visor.
• Touching live parts of opened electrical components.
• Risk of fire

For the brush cutter / grass trimmer:

• Risk of injury at fingers and hands by contact with the cutting tool blade.
• Risk of injury at feet by contact with the cutting tool at a non-covered area.
  • Stones and soil may be thrown off.

For the hedge trimmer:

• Injury by catapulted parts.
• Breaking or catapulting of knife pieces.

For the power pruner:

• Risk of kickback when touching the guide bar tip with a hard object.
• Risk of injuries of fingers and hands by the tool (saw chain).
• Injury by catapulted workpiece parts.

In addition, in spite of all the precautionary measures taken, non-obvious residual risks can still exist.

Vibrations (hand arm vibrations)

Hand arm vibration max ah = 5.7 m/s²

Measuring uncertainty K = 1.5 m/s ^4

The indicated vibration emission level has been measured according to a standardised test method and can be used to compare power tools.

It can also be used for an initial estimate of the vibration exposure.

The actual vibration emission level during the use of the machine may differ from that indicated in the operating instructions or indicated by the manufacturer.

This may be caused by the following factors to be minded before and during the use

– Proper use of the machine
– Correct cutting or machining of material
– Proper condition of the machine for use
- Use of the correct and sharp cutting tool
- Handles and optional anti-vibration handles properly mounted on the machine body

When you feel uncomfortable or notice discoloration of skin on your hands during the use of the machine, stop working immediately. Observe sufficient break times to rest. Failure to have sufficient break times may result in a hand-arm vibration syndrome.

The extent of exposure depending on the type of work or machine use should be estimated and appropriate breaks taken. In this way, the extent of exposure can be considerably reduced over the entire work time. Minimise the risk caused by vibrations. Maintain this machine according to the instructions in the manual. If you intend to use this machine frequently, contact your local authorised dealer and purchase anti-vibration accessories if required. Avoid the use of this machine at temperatures under 10°C. Create a work schedule in order to minimise vibration exposure.

Safety instructions

Observe the following advices in order to protect yourself and other persons against possible injuries.

Before starting this device, read and keep to the following advice. Also observe the preventive regulations of your professional association and the safety provisions applicable in the respective country, in order to protect yourself and others from possible injury.

National regulations can restrict the use of this machine.

sure to observe the separately enclosed "General safety notices for battery operated tools".

Refer to the respective "Operating instructions" for notes on the "Safety" of the battery and the charger.
i Pass the safety instructions on to all persons who work with the machine.
① Keep these safety instructions in a safe place.

• Familiarise yourself with the unit, the adjustment elements and the proper use of the unit before using it by referring to the original operating instructions.
• Do not use the machine for unsuitable purposes (see 'Normal intended use').
• Be attentive. Be careful what you do. Behave sensibly when working. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• The operator is responsible for accidents or risks which occur to other persons or their properties.

Personal protective equipment

- Always wear suitable work clothing when operating the machine:

• no loosely fitting clothing or jewellery, they could be caught by movable parts
• no loose clothing or such with hanging bands or drawstrings
  — Hairnet in case of long hair
• Approved helmet in situations where head injury has to be expected
  — Eye and ear protection
  — Cut-proof trousers and gloves
• Anti-slipping cut-proof boots (safety shoes) with steel-toes

Safety instructions – before working

Carry out the following checks before the initiation and regularly during the working process. Observe the relevant sections in the operating instruction manual:

• Is the device assembled completely and properly?
• Is the device in good and safe condition?
• Is the cutting device undamaged and sharpened?
• Are the handles clean and dry?
• Before starting your work make sure that:

- no other persons, children or animals stay within the working area,

— you can always step back without any barriers,
- your standing area is free from foreign objects, brushwood and branches,
— you have always a secure standing position.

• Is workplace free of risks to stumble? Keep your workplae in an orderly condition! Untidiness can result in accidents - risk of stumbling!
• Before trimming, remove all foreign objects (e.g. stones, branches, wires, etc.). While working watch out for further foreign objects.
  • Takeenvironmental influences into consideration:

- Do not work under inadequate lighting conditions (eg. during fog or dusk) but only in daylight or good artificial

lighting. Otherwise, you will no longer be able to see details within the falling area – risk of accident!

- Do not work in bad weather conditions (e.g. rain, risk of lightning, snow flurry).

- Donot use this machine near inflammable liquids or gases - risk of fire!

Safety instructions – operating

• Never work with only one hand. Firmly hold the machine with both hands when working.
• Never work

— with stretched arms
— on hardly accessible places
— too far bent forward
— above shoulder height
— standing on a ladder, a staging or a tree.

• Always work on nonskid and flat ground
- Avoid abnormal posture. Provide a safe standing position and keep at any time the balance.
- Change your working posture from time to time.
- To have a break stop the machine and place it so that nobody is at risk. Secure the device against unauthorized access.

Safety instructions – while working

• Never work alone. Keep acoustic and visual contact to other persons at all times to allow immediate first aid in emergency cases.
• Immediately stop the device at imminent danger or in emergency cases.
  • Never leave the device running unattended.
• Immediately stop working when you feel unwell (e.g. headache, dizziness, nausea, etc.). Otherwise there is an increased risk of accidents.
• Do not overload the machine! You work better and safer in the given performance range.
• Take breaks when working so that the motor/battery can cool down.
• Do not place a hot machine in dry grass or onto inflammable objects.

Behaviour in an emergency situation

• Initiate all required first aid measures suited for the injury and seek qualified medical advice as quick as possible.
• Protect the injured person against further injuries and immobilise the injured person.

Safety instructions - Power tool use and care

- Maintain the machine carefully:

• Follow the maintenance instructions and the instructions for tool exchange.
• Keep handles dry and free of oil, resin and grease.

- Only mount cutting tools that are designed for this machine.

The use of other tools and other accessories may present a risk of injury to you.

GB

- Switch off the device, wait until the cutting device has stopped and remove the battery in the following cases:

• the cutting tool comes into contact with soil, stones, nails or other foreign objects ( check whether the cutting tool/machine is damaged)
  — strong operating noise
  — unusually strong machine vibration
  – carrying out repair work
  — performing maintenance and cleaning work
• removal of faults (including blocking of knives – hedge trimmer)
  — transporting or storing
  — changing of cutting tool
  — clamping again the chain (power pruner)
  – leaving the product (even in case of short-term interruptions)

- Check the machine for possible damage:

• Before further use of the machine the safety devices must be checked carefully for their proper and intended function. Only operate the device with complete and correctly attached safety equipment and do not alter anything on the device that could impair its safety.
• Check whether movable parts function perfectly and do not stick or whether parts are damaged. All parts must be correctly installed and fulfill all conditions to ensure perfect operation.
• Damaged safety devices and parts must be properly repaired or exchanged by a recognized, specialist workshop; insofar as nothing else is stated in the instructions for use.
  — Damaged or illegible safety labels have to be replaced.

- Do not allow any tool key to be plugged in!

Before switching on, checking always that all tools are removed.

- Store unused equipment in a dry, locked place out of the reach of children.

Do not carry out repair operations on the machine other than those described in section "Maintenance and cleaning" but contact the manufacturer or authorized customer service centers.

Use only original spare parts and accessories parts. Accidents can arise for the user through the use of other spare parts. The manufacturer is not liable for any damage or injury resulting from such action.

Safety instructions – brush cutter / grass trimmer

• Make sure that the cutting tool is free before starting the engine.
• Before starting the engine, make sure that your hands and feet are kept at a safe distance to the cutting tool.
• Start cutting only when the cutting tool has reached the full rotational speed.
• Caution! The cutting tool may after-run. Do not try to slow down it by the hand.

Safety instructions – hedge trimmers

• Keep away all body parts from the cutting blades. Do not attempt to remove cut material or to hold material to be cut while the cutting tool is in operation. Only remove jammed material after the unit was switched off. A single moment of inadvertence when using the hedge shear may result in severe injury.
• Make sure that all protective devices and handles are attached before using the unit. Never attempt to put into service an incomplete unit or a unit that was improperly modified.
• Carry the hedge shear on its handle with the cutting tool stopped. Always install the guard when transporting or storing the hedge shear. A careful handling of the unit minimises the risk of injury by the cutting tool.
• Hold the power tool on the insulated handle surfaces as the cutting blade may come into contact with hidden power lines. Contact of the cutting blade with a live wire may apply hazardous voltage to metallic parts of the unit and cause an electric shock.

Safety instructions – Power pruner

• Persons who work with the power pruner must exhibit on request a training certificate appropriate to the intended use and be familiar with the use of the power pruner and personal protective equipment.
• Persons under the age of 18 may not operate the power pruner.
• Keep all parts of the body away from power pruner when the chain saw is operating. Before you start the power pruner, make sure the saw chain is not contacting anything. A moment of inattention while operating power pruner may cause entanglement of your clothing or body with the saw chain.
• Always hold the power pruner with your right hand on the rear handle and your left hand on the front handle. Holding the power pruner with a reversed hand configuration increases the risk of personal injury and should never be done.

• Hold the power tool on the insulated handle surfaces as the saw chain may come into contact with the unit's mains supply cable. A contact of the saw chain with a live conductor may apply hazardous voltage to metallic parts of the unit and cause electric shock.

• Wear safety glasses and haring protection. Further protective equipment for head, hands, legs and feet is recommended. Adequate protective clothing will reduce personal injury by flying debris or accidental contact with the saw chain.

• Do not operate a power pruner in a tree. Operation of a power pruner while up in a tree may result in personal injury.
• Always keep properfooting and operate power pruner only when standing on fixed, secure and level surface. Slippery or unstable surfaces such as ladders may cause a loss of balance or control of the power pruner.
• When cutting a limb that is under tension be alert for spring back. When the tension in the wood fibres is released the spring loaded limb may strike the operator and/or throw the power pruner out of control.
• Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.
• Carry the power pruner by the front handle with the chain saw switched off and away from your body. When transporting or storing the power pruner always fit the guide bar cover. Proper handling of the power pruner will reduce the likelihood of accidental contact with the moving saw chain.
• Follow instructions for lubricating, chain tensioning and changing accessories. Improperly tensioned or lubricated chain may either break or increase the chance for kickback.
• Keep handles dry, clean and free from oil and grease. Greasy, oily handles are slippery causing loss of control.
• Cut wood only. Do not use power pruner for purposes not intended. For example: do not use power pruner for cutting plastic, masonry or non-wood building materials. Use of the power pruner for operations different than intended could result in a hazardous situation.

1 Description of device / spare parts

Pos.	Designation Order-no.
1	Driven unit
2	Handle complete	386105
2a	Handle upper part
2b	Handle lower part
3	Carrying strap	385805
4	Attachment - brush cutter
5	Safety guard	386215
6	Safety cover	385941
7	Cutting blade	385855
8	Transport guard for brush cutter	385856
9	Spacer washer	386119
10	Protective cover	386120
11	Fixing nut M10	386122
12	Thread spool	386217
13	Attachment hedge trimmer
14	Transport guard for hedge trimmer	386114
15	Extension shaft – power pruner
16	Attachment – power pruner
17	Cover	386163
17a	Nut M10 (for cover)	386164
18	Fuel tank cap	386160
19	Tank (chain oil)
20	Guide bar	386219
21	Saw chain	386218
22	Chain protection	386151
23	Installation wrench
24	Allen key SW 4
25	Screw brewer
26	Open end wrench SW 8/10
27	Charger	365500
28	Battery 2,0 Ah	365501
29	Battery 4,0 Ah	365503
30	Chain wheel
31	Chain stretching screw
32	Trip switch
33	On-/off-switch
34	Speed switch
35	Cutting device
36	Zerk fitting M6	386174
37	Thread knife	386216
38	Protection cap	386184
39	Accessories bag
40	Safety label - pruner 386203
41	Safety label – hedge trimmer 386202
42	Safety label – brush cutter 386201
43	Safety label – protection guard 386200

Assembly

Always start the machine when it is completely assembled.

i Observe the enclosed mounting sheet!

Mounting the handle

3 Plug the upper handle (2a) and the lower handle (2b) onto the rubber sleeve (A).

Secure both parts with the 4 screws [Torx M5x35], washers and spring rings].

Mounting the carrying strap

4 Hook the carrying strap (3) in the suspension eye (B). Make sure that the snap hook (C) of the carrying strap is hooked in as shown in the figure.

Assembling / disassembling attachment tools

5 Pull out the locking pin (D) and push the respective attachment tool [brush cutter (4), hedge trimmer (12) or pruner (14/15)] into the drive unit against the stop (1).

Release the locking pin.

Make sure that it engages with a click.

Firmly tighten the clamping screw (E).

Remove the attachment tool in reverse order.

Assembly brush cutter / grass trimmer

Mounting the cutting blade guard

6 Plug the guard (5) on the seat (F).

Secure it with 3 screws [M5 x 12], washers and spring rings.

Mounting the cutting blade

Risk of injury!

Wear protective gloves during assembling the cutter blade.

7 First plug the guard (6) on the drive shaft (G), then in sequence the cutting blade (7), spacer disc (9) and cap (10). Screw the mounting nut M10 (11) counter clockwise on the drive shaft.

8 Now rotate the hole (H) of the guard (6) over the recess in the seat (F).

Left-hand thread!

Lock the drive shaft (G) → 1

Now tighten the thread head (11) with the mounting tool (23) fest. →②

Mounting the guard extension for the thread head

9 Lock the drive shaft (G) over the gab of the seat (F).

Left-hand thread!

Now tighten the thread head (12) on the drive shaft (G).

Assembly hedge trimmer

18 Install the drive unit (1) and the hedge trimmer attachment (13) as described in the section "Mounting/dismantling the attachment tools".

Assembly power pruner

Installing the guide bar and the saw chain

Risk of injury!

Wear protective gloves when working on the guide bar and the saw chain.

Place the power pruner on a level surface.

25 Remove the securing nut (17a) and remove the cover (17).

26 Turn the chain stretching screw (31) anticlockwise until the chain stretching pin (J) is at the rear end of the thread.

27 Insert the saw chain (21) in the circumferential guiding groove of the guide bar (20). Put the saw chain (21) over the clutch (52) on the chain wheel (30).

⚠️ Attend to the correct running direction of the chain links.

28 Place the guide bar (20).

The chain stretching pin (J) must engage in the provided chain stretching hole (I) in the guide bar.

When assembling, pay attention that the chain links are lying correctly within the guide slot and on the chain wheel (30).

25 Remount the cover (17) and tighten the securing nut (17a) hand-tight.

Stretch the saw chain as described in section „Stretching the saw chain

Assembly power pruner

31 Plug the shaft section together as needed and described in the section "Assembly" Mounting/dismantling the attachment tools.

Long version: parts 1, 15 and 16
Short version: parts 1 and 16.

⚠️ Make sure the plug connections lock properly.

Before starting up

Power Pruner - Chain lubrication

The power pruner is not delivered filled with saw chain adhering oil
① Any use without chain saw oil may result in damage of the saw chain and guide bar.
Avoid eye and skin contact. Wear protective gloves!

The durability and cutting power of the chain depends on the optimal lubrication. During operation the saw chain is automatically wetted with oil.

Charging the oil tank

Put the power pruner on a suitable base

32 Unscrew the oil tank lock (18).

Fill the oil tank with bio-degradable chainsaw oil (order no. 400144).

33 The fill level can be seen on the inspection window. For easier filling use a funnel

When filling observe that no dirt reaches the oil tank

32 Screw on the oil tank lock (18) again

Never use recycled oil or used oil. The guarantee expires when using oil which is not allowed for such devices.

Start up

Caution! Prior to starting the machine learn how to put it out of action in emergency cases.
You may not start to operate the machine until you have read these original instructions, observed all the instructions given and installed the machine as described!

Check the device before each use for

• possible damages,
  – loose fastening elements
  – correctly assembled and faultless covers and protective devices

Battery

2 The lithium ion batteries AP 40-4000 (Article No. 365503) or AP 40-2000 (Article No. 365501) as well
as the charger ALG 40-1800 (Article No. 365500) are not included in the scope of delivery and must be purchased separately.
⚠️ Use only an original battery and the original charger.

Refer to the respective "Operating instructions" for further information on the batteries and the charger.

Insert the battery

34 Insert the battery (28/29) in the device.

i Make sure to slide the battery fully in until it engages with a click.

Switching on / off

Make sure before each startup that the switch lock, the On/Off switch and the chain and motor brake are working properly

Do not use any device where the switch cannot be switched on and off. Damaged switches must be repaired or replaced immediately by the customer service.

Switching on

① Make sure the cutting tool does not lie on the ground when switching the device on.
i 1 / 10 Remove the transport guard (8/14/22).
③ Securely support the device when switching it on and hold it with both hands. The cutting tools must stand free.

36 The device is equipped with a safety circuitry preventing inadvertent switching on.

Press the switch lock (32) and then the ON/OFF switch (33). You can let go of the switch lock (32) during the cutting process.

The stronger the On/Off switch is pressed the faster the chain saw will run.

⚠️ To protect the battery the machine automatically switches off at a low battery.

Never continue operating the ON / OFF switch; this may damage the battery.

① Charge the lithium ion battery (→ ("Battery" operating instructions).

Switching off

36 Release On/Off switch (33).

Speed

The device can be operated at 2 speeds.

Setting the speed

36 Push the switch (34) in position:

Start up - Power Pruner

Saw chain

Before checking/tensioning the saw chain

• switch off the device
• remove the battery
• in order to avoid injuries wear protective gloves.

Check the saw chain tension

→ before start of work
→ after the first steps
→ during sawing regularly all 10 minutes

Only with a correct clamped saw chain and a sufficient lubrication you can influence the durability.

i Please observe the following:

• a new saw chain must be reclamped more often.
• in case of heating of chain to operating temperature it expands and needs to be reclamped.
  After finishing the sawing works release tension of saw chain as in case of cooling too high tensions would emerge in the saw chain.
• if chain flakers or comes out of the guide clamp it again immediately.

Clamping of saw chain

25 Loosen the retaining nut (17a) by max. 1 turn.
29 Slightly lift the guide bar tip and turn the chain stretching screw (31) clockwise until the correct chain tension is reached.
30 The saw chain is correctly stretched when it can be lifted in the centre of the chain guide by appr. 3 – 4 mm.
Turn the chain stretching screw anti-clockwise when the saw chain is stretched too much.
28 Check that the chain links are positioned correctly in the guiding groove of the guide bar.
25 Re-tighten the locking nut (17a).

Checking the chain lubrication (oil-automatic)

⚠️ Never operate the power pruner without functioning chain lubrication.

Check the function of the automatic chain lubrication by switching on the power pruner and holding it with the spike in direction of a carton or paper on the ground.

Checking the chain lubrication

Do not get in contact with the ground with the chain. Keep a safe distance of 20 cm.
If an increasing oil track is caused when checking it the oil automatic works faultless
If there is no oil track despite full oil tank

50 Clean the chain clamping boring (I) and the oil flow channel (K).

If this is not successful please contact the customer service.

Working with the device

You may not start to operate the machine until you have read these original instructions, observed all the instructions given and installed the machine as described!
i Observe the "Safety notices" and the following additional operating notes.
Always keep your hands and feet at a safe distance to the cutting tool.

Carrying strap

35 ⚠️ Always apply the carrying strap (3) when working with this machine. Never wear the carrying strap diagonally over shoulder and chest, but only on one shoulder. In this way, you can quicker remove the machine from your body if you get in a dangerous situation.

Adjusting the carrying strap

4 Make sure the carbine (C) of the carrying strap is correctly assembled and hooked in.

Adjust the carrying strap so that - the carbine is approx. one hand width below the right hip. - ergonomic and secure carrying of the device is guaranteed.

① Immediately replace a damaged carrying strap.

Quick-acting closure

37 There is an easily accessible quick acting closure (Q) on the carrying strap. It ensures that you can quickly remove the machine from the carrying strap in a dangerous situation. To disconnect it jerkily pull on the strap end (L) of the quick acting closure.

Correct working position

Assume a secure stand, hold the device firmly with both hands; the left hand always encloses the guide handle and the right hand the operating handle. This applies also to left-handed persons!
Position the guide handle to allow you guiding the device securely and conveniently.
Hold the device during cutting so that — it is at an adequate distance from the body.
→ Make sure the cutting tool does not lie on the ground when switching the device on.

Working with the brush cutter

Kickback – backstroke

When working with metal blades, a kickback of the whole machine or a sudden pull forwards may occur if fixed objects (trees, branches, stones or the like) are hit. Such a kickback occurs abruptly without advance warning and may result in loss of control of the machine and hazards to the operator. There is a particular hazard in badly visible and overgrown areas.

• To keep the control in case of kickback
- Always hold the machine firmly with both hands when working.
- Always hold the machine that the guide tool is always guided below the waist.
- Make sure that you have a safe stand. Keep your feet conveniently spread and be always alert to a possible kickback.
- Do not overestimate your abilities and always keep your balance when working.
- The cutting blade should have reached its full speed before cutting.

When brushcutting, stones and debris may be thrown up and cause serious injuries. Make sure that the safety guard is safely mounted.

Failure to install rotating parts (cutting blades) correctly may result in severe accidents. Check the cutting tool for secure seating before starting work.

Mowing

• 11 Tilt the device slightly toward the front and guide it with quiet and steady movements in a curve from the right to the left. This way, the cut material falls on the already mowed area.
• 30 Cut higher grass and denser growth in several passes. For this, shorten the upper portion of the material to be cut at first by moving the device to the right. Then, move the device to the left and cut the lower portion of the material to be cut.
• 13 When working on slopes mow in stripes. Mow a stripe parallel to the slope. Move then back on the mowed area and mow the next stripe.
• 14 Larger, level areas are best worked from the outside to the inside. Start mowing at the left outer edge of the area and move in a square spiral movement toward the middle.

Adjust the engine speed and cutting height to the prevailing conditions. If the engine speed is too low, scrub can entangle in the cutting tool or get stuck.

If grass, scrub or other objects entangle in the cutting tool or if the device vibrates abnormally, immediately stop the engine and check the machine.

• Never remove jammed material while the cutting blade is still rotating. Wait until the cutting blade stands still.
• If the cutting blade is dull, broken or bent, replace it by a genuine spare part.

Working with the grass trimmer

Trimming

• Switch on the grass trimmer on a level, already moves area.
• 15 During the cutting process, keep the grass trimmer at a sufficient distance from your body, tilt the machine slightly forward and move it smoothly and evenly from left to right.
• Always hold the machine that the guide tool is always guided below the waist.
• You will get the best trimming results when you cut dry grass.
  ① Wet grass is harder to cut and causes blockages more quickly.
• 16 Cut higher grass and denser growth in several passes to avoid blockages.
• Start along walls, trees, fences, lawn edges or other obstacles at a certain distance from the obstacle and work forward step by step. Do not guide the cutting thread directly at walls and paving stones. Otherwise it will prematurely wear off.
• Guide the product around trees and shrubs so that the plants are not damaged.

Adjust the engine speed and cutting height to the prevailing conditions. If the engine speed is too low, scrub can entangle in the cutting tool or get stuck.

⚠️ If grass, scrub or other objects entangle in the cutting tool or if the device vibrates abnormally, immediately stop the engine and check the machine.

- The cutting thread is after-running once the lawn trimmer has been cut off. Therefore wait until the thread is stationary before you restart the product.

Working with the hedge trimmer

When may I cut?

Follow the country-specific or communal legal regulations for cutting hedges (including hedge banks, shrubbery, reed bed and reeds). It may deviate from the following.

For the protection of animals and breeding birds, the cutting (radical cutting) of hedges, but also bushes, reed bed and reeds is not permitted from 1 March to 30 September.

During this time, gentle shaping and pruning are permitted, in which only the fresh growth of the plants is removed or cuts to maintain the health of trees.

A radical cutback or grubbing-up is only possible from October to March without violating the law.

When is the right time for cutting?

Observe the right time for cutting to prevent harming your hedge unnecessarily.

Depending on the type of your hedge, the time for cutting differs.

Recommendations:

- Deciduous hedges are pruned shortly before winter or until the end of February.

GB

• Evergreen hedges or conifers are pruned before the first shoots in spring (end of March) or in autumn before the first frost.
• Hedges of flowering shrubs should, if trimming is required, be cut immediately after flowering.
• Shaping and pruning can always be carried out between March and September for all varieties.

Observe also the weather conditions:

Spring pruning should not be done at freezing temperatures, since the cuts produced heal very poorly. In addition, branches break off easily at freezing temperatures. A good day for cutting is therefore a dry and sunny day without frost.
Sumner pruning should not be carried out when it is too hot and the sun is too bright; the freshly cut shoots dry out and die off. Cut early in the day therefore, in the late afternoon or on a cloudy day.
Donot cut either during heavy rain; the moisture will promote the growth of fungi and pests.

Simply ask a specialist who can tell you about the right time for cutting your hedge and provide you with useful tips.

Working with the hedge trimmer

Before cutting, make sure that there are no breeding birds or wild animals in the hedge. With breeding animals you should shift the cutting, in order not to drive away the old animals.

Hold the hedge shear with both hands on a safe distance from the body.

• Keep children, bystanders and animals at a distance (15 m min.) from your working area.
• Scare animals off the hedge before starting to cut in order to prevent them from being injured.
• Operate the hedge trimmer only with safe standing position.
• Never work with the hedge trimmer above shoulder height.
• Stop the hedge trimmer when moving to another work place.
• Do not use the hedge trimmer to pick up or remove wood pieces or other objects.
• Start trimming with the cutting device moving.
• Never touch the cutting device with your hands during operation.
• Never get in contact with the running cutting device with metallic fences or the ground.

Adjustments on the hedge trimmer

You can use the hedge trimmer to trim high and wide hedges as well as low hedges.

The hedge trimmer head (35) can be adjusted within a working angle range of 195^ . Adjust the hedge trimmer head to the correct working position before starting your work.

Press the engagement levers at the top (M) and bottom (N) and swivel the head of the hedge trimmer to the desired position.

Release the engagement levers again. The hedge trimmer head engages.

• The maximal diameter to cut depends on the wood's type, age, moisture and hardness.
  Therefore cut very thick branches using branch shears to your desired length before trimming the hedge.

• 23 / 24 Due to its double sided knives the hedge shears can be guided forward and backward or by oscillating movements from one to another side.

• Cut the sides of the hedge first.
  • Cut the hedge from the bottom up.

While cutting, slightly tilt the cutting device in the direction of the cutting movement.

• Move forward slowly and in a controlled manner.
• Cut the hedge in trapezium shape. This prevents the lower hedge area from growing bare due to insufficient light.

① As a rule of thumb: 10 cm inclination per metre hedge height.

For a 2 m high hedge having a width of 80 cm at its base this means that its crown has a width of 40 cm, for example.

• Now cut the top side of the hedge.
- Stretch a guide over the complete length of the hedge when you want to shorten the upper edge of the hedge evenly.
- Trim in several passes if you have to cut down a large portion of the hedge.

i 47 Stop with your work often when cutting hedges for extended periods and oil the cutting device. The oil ensures easy movement of the cutting device.

- After work slide the blade protection (14) again on the cutting device (35).

Working with the power pruner

Keep a safety distance of 10 m to overhead power lines. Do not use the power pruner near inflammable liquids or gases.

Notes on tree care

To protect animals and breeding birds, pruning is prohibited from 01 March to 30 September.

When is the right time for tree care measures?

Observe the right time when pruning to prevent harming your trees unnecessarily.

Recommendations for pruning:

• End of winter (January - March): Removing branches in the fine branch area promotes strong new shoots and is relatively gentle on the trees.
• Spring till start of summer (April - June): During the growth phase, the development of new shoots is favoured by moderate pruning.
• Trimming (cutting of dead wood) can always be done.

Observe also the weather conditions:

Spring pruning should not be done at freezing temperatures, since the cuts produced heal very poorly. In addition, branches break off easily at freezing temperatures. A good day for cutting is therefore a dry day without frost.

Do not cut either during heavy rain; the moisture will promote the growth of fungi and pests.

Simply ask a specialist who can tell you about the right time for tree care and provide you with useful tips.

While working:

⚠ Saw backstroke

What is saw backstroke? Saw backstroke is the sudden strike upwards or backwards of the running power pruner in direction of the operator.

This happens when

• the guide bar tip gets in contact with the sawing material (unintended) or other hard objects.
  — the saw chain is jammed at the guide bar tip.

The power pruner reacts uncontrolled and frequently causes heavy injuries of the operator.

How to avoid saw backstroke?

• Better control saw with the lower edge of the guide bar. Place the power pruner as horizontally as possible when contacting wood.
  • Never saw with the guide bar tip.
• Saving with the upper guide bar edge may cause a saw backstroke if the saw gets jammed or hits a hard object in the wood.
• Start cutting only with running saw chain.
  • 35 Always hold the power pruner firmly with both hands.
• Only work with correctly sharpened and clamped saw chain.

General conduct when pruning

• Plan an escape route from falling branches in advance. This escape route must be free from obstacles to ensure retreating without danger.
• Position yourself outside the range of falling branches.
• Make sure that someone is within calling distance in case of an accident.
• keep other persons away. The safety distance is 2.5-times the length of the branch to be cut, but at least 6 m.
• Avoid abnormal posture. Keep at any time the balance. Do not work with the upper part of the body leaned forward.
• Operate the power pruner only with safe standing position. Hold the power pruner slightly to the right of the own body.
• Frequently change the working position to prevent a one-sided work position.
• Immediately stop working when you feel unwell (e.g. headache, dizziness, nausea, etc.). Otherwise there is an increased risk of accidents. Observe sufficient break times to rest.
• Never work

- with stretched arms - standing on a ladder, a staging or a tree.

• Do not attempt to hit an already existing cut.
• Do not use the power pruner for lifting or moving of wood.
• Saw splintered wood with care. There is risk of injury by wood pieces carried away.

• Make sure that the wood is free of foreign object (nails etc).

• Do not overload the machine! You work better and safer in the given performance range.

• Be careful at the end of a sawing cut. As soon as the power pruner leaves the wood the force of weight changes. There is risk of accident for legs and feet.
• Remove the power pruner only with running saw chain out of the cut.
• If the saw chain gets jammed in the wood, stop it immediately and remove the battery. Use a wedge to free the guide bar.
• Do not use any cracked saw chains or such that have changed their shape.
• Never touch wire fences or the ground with the running saw chain.
• Switch off the power pruner between the cuts when several cuts are carried out.
  • Make breaks when sawing so that the engine can cool down.
• After work slide the chain protection (22) again on the guide bar (21).

Saw techniques

• Do not cut thin branches or bosks. The power pruner is not suitable for those works.
• Cutarger branches into several sections to avoid splintering and breaking.
• Do not cut any branches where their diameter is greater than the cutting length of the device.
• Donot stand directly underneath a branch to be cut.
  • Watchout especially for falling branches.
  • Also look out for branches snapping back.

⚠️ Always wear a helmet in order to protect yourself against perches falling down.

40 Step cut

For horizontal branches without being top heavy The branch section falls down in a controlled manner without tipping over.

① Set the first cut from below, approx. one third of the branch diameter.
② The second cut is made on the same level as the first cut or moved further toward the inside (negative breaking step).
③ Remove the remaining branch section.

41 Attention: Step cut error

If the cut is made offset toward the outside (positive breaking step) and exceeded, the power pruner can be pulled along

Maintenance

Before each maintenance and cleaning work

• Switch off device.
• Wait until the cutting device does not longer move.
• Remove the battery.

Wear protective gloves during maintenance and cleaning work in the area of the cutting tool to avoid possible injuries.

Maintenance and repair work other than those described in this chapter is only allowed to be carried out by service staff.

For maintaining and cleaning, removed security devices must unconditionally be mounted properly and proved again.

Only use genuine spare parts. Other than genuine parts may result in unpredictable damages and injury.

Maintenance - General

To guarantee a long and reliable usage of the product carry out the following maintenance works regularly.

Check the device for obvious defects such as

– loose fastening elements
- worn or damaged components
- bent, broken or damaged cutting tool

Necessary repair works or maintenance have to be carried out before using the machine.

A damaged cutting tool must be replaced by a new one.

The cutting tool will not come to a standstill immediately after cut-off. Before starting any service work wait until all parts are stationary.

Lubricate the gear box

i Lubricate the gearbox every 25 operating hours.

43 45 48

1. Put the grease gun onto the grease filling plug (36). The grease filling plug is located at the gearbox.
2. Force some grease into the zerk fitting.

Use SHELL ALVANIA RL3, for example, or an equivalent grease brand.

Maintenance brush cutter / grass trimmer

Cutting blade (7)

⚠️ Safe and efficient working is only possible with a correctly sharpened and intact cutting blade.

Therefore, check the cutting blade for dull edges, bents, cracks or other damages on a regular basis.

Have dull cutting blades sharpened by a specialist/service workshop.

Both sides of the cutting blade may be used. Turn round the cutting blade once and continue to work with the brush cutter until both sides of the cutting blade are dull-edged.

Replace damaged cutting blade by new one.

Replacing the thread spool (12)

Remove dirt and grass residues.

9 Lock the drive shaft (G) in the holder (G) via the recess.

Left-hand thread!

Unscrew the thread spool (12) (G) →② and screw a new thread spool in place.

Sharpening or replacing the thread knife (37)

Do not use unsharpened or damaged thread knives. A damaged thread knife must be replaced by a new one.
42 Unscrew the thread knife (37).

Clamp the thread knife into a vice and sharpen it with a flat file.

① Make sure not to change the angle of the knife and file only in one direction.

File carefully.

42 Screw down the thread knife again as shown.

Do not over tighten the screws.

Maintenance hedge trimmer

Cutting device (35)

Check the following regularly

• 46 the screw joints of the cutting device for firm fastening. Loose screw joints cause an unsatisfactory cutting result because the blades can no longer close correctly.
  Risk of injury! Loose screw joints may separate during work resulting in cutting injuries.
• the blades for notches. Too many notches make work more difficult because the blades are dull. These notches will also damage the wood. Have the blades sharpened by a specialist.
• the cutting device for deformed, broken or damaged blades.

Necessary repair works or maintenances have to be carried out before using the power tool.

Maintenance Power pruner

Adjusting the chain lubrication

The chain lubrication is factory-set. Depending on the type of wood and working techniques the amount of oil may vary and has to be corrected

Adjust the chain lubrication using the adjusting screw (O) which is located below the product.

Anticlockwise turning large amount of (MAX) Clockwise turning small amount of oil (MIN)

The chain lubrication is correctly adjusted when the saw chain throws off small amounts of oil during operation.

Saw chain and guide bar

Saw chain and guide bar are exposed to a great extent of wearing. Replace the chain saw and the guide bar without any delay if their proper function is no longer ensured

Installing the guide bar and the chain saw".

Sharpening of saw chain

You can only work safely and well with a sharp and clean saw chain. Damaged or incorrectly sharpened saw chains increase the risk of kickbacks.

The saw chain has to be sharpened if

→ only wood dust is thrown out instead of shavings
you have to press the chain saw through the wood during cutting
Inexperienced users: Have the saw chain sharpened by a specialist/service workshop. You can also sharpen your saw chain yourself by using our electric sharpener KSG 220 A (article-no.: 302360).
① Only remove a little amount of material when sharpening.

Saw chain type 3/8" LP.043x39
Depth limiter distance T 0,64 mm (.25")
Sharpening angle α 25°
Breast angle β 60°
Clearing angle 10°

Chain wheel

The demand of the chain wheel (30) is particularly great. Check regularly the teeth of the chain wheel for wear or damages.

A worn or damaged chain wheel reduces the durability of the saw chain and should therefore immediately be exchanged by the customer service

Cleaning

Cleaning - general

i Clean the machine thoroughly after each application so that the faultless function is kept.

Water, solvents and polishing agents shall not be applied.

Make sure the ventilation slots are free from foreign objects (risk of overheating).

• Clean the case with a soft brush or a dry cloth.
• Clean the contact plug in the battery well with a soft brush.
• Do not clean the machine under running water or using a high-pressure cleaner.
• Keep the handles free of oil and grease.
• Do not use solvents (gasoline, alcohol, etc.) for plastic parts, otherwise such parts may be damaged.

Cleaning brush cutter / grass trimmer

- After work, remove grass, dirt, plant residues and moisture (plant sap) with a brush or a damp cloth from the area of the cutting tool and the guard.

Cleaning hedge trimmer

- Remove dirt, plant residues and moisture (plant sap) from the cutting device (36) after finishing work using a brush or a cloth.

i Never clean the knives with water → Risk of corrosion!

• Stuborn dirt and resin residues can be dissolved with a suitable cleaning agent (e.g. resin solvent). Spray the front and back of the cutting device well. Allow the hedge shears to run briefly so that the agent can spread in the gaps. After a short contact time, dry the cutting device with a cloth.
• 47 Then spray environmentally friendly maintenance oil on the front and back of the cutting device. Allow the hedge shears to run briefly so that the oil can spread in the gaps.

The oil ensures easy movement of the cutting device at all times. Oil also prevents rusting at locations you are not able to dry.

- A cutting device that is not cleaned and oiled may become hot and damage the device.

Cleaning power pruner

After a longer operation period (1 - 3 hours) remove the cover (17), the guide bar (20) and the chain (21) and clean them with a brush.

If heavily contaminated, clean the device using a commercial chain cleaner.

Clean the oil flow canal (K) with a clean cloth or a brush Remove all adhering substances with a brush from the chain wheel (30) and chain stretching pin (J).

Cleaning of guide bar

• Regularly inspect and clean
50 the oil outlets (I) and
51 the guiding groove (P) of the guide bar
- Remove any burr using a flat file and emery paper.
- Turn round the guide bar (20) after each chain exchange/sharpening to avoid single-side wearing

① For information on “Maintenance and cleaning” of the battery and the charger, please refer to the respective “Operating Instructions”.

Transport

Before each transport

• Switch off device.
• Wait until the cutting device does not longer move.

• Remove the battery.

• 44 / 47 Secure the cutting tool (7/21/35) with the transport guard (8/14/22) against touching to avoid injuries or damages

• Carry the device balanced on the shaft or hanging from the carrying strap. Hold the cutting tool toward the back at this.
• When transporting the product within a car put it in the boot or on a separate loading area.
• Can also store the device in a space-saving manner by pulling attachments from the drive unit.
• Do not throw the device when loading it. Secure the device against tipping over or damages. Check the device for damages if it was subjected to hard jolts during transport.

Especially for the hedge trimmer:

The cutting device (35) can be folded together to save space.

19 Press the engagement levers (M/N) and fold the head of the hedge trimmer backwards, parallel to the shaft.

① For information on "Transport" of the battery and the charger, please refer to the respective "Operating Instructions".

Storage

Before each storage

• Switch off device.
• Wait until the cutting device does not longer move.
• Remove the battery.

Before a longer period of storage carry out the following to extend the devices service life and ensure an easy operation:

Remove the battery
Carry out a thorough cleaning and maintenance

Oil all moving parts with environmentally compatible oil

• Store machines that are not in use in a dry locked place protected against frost and outside the reach of children and unauthorized persons.
  • Secure the cutting tool (7/21/35)
• You can also store the device in a space-saving manner by by separating the attachment tools from the drive unit.

① Best store the drive unit suspended. An opening for hanging it up is provided in the housing (1).
Place the protective cap (38) over the end of the shaft to prevent dirt from entering it

Especially for the brush cutter / grass trimmer:

• Do not rest the device on the guard when storing it to avoid deformation of the guard.
  i Best store the device suspended.

Especially for the power pruner:

• Remove the oil from the oil tank.
  Some chain oils tend to encrustations after a longer period. For this reason the oil system should be flushed before a longer storing with a chain saw cleaner. Fill the cleaner up to the middle (approx. 50 ml) into the oil tank. Close the tank. Switch on the power pruner without assembled guide bar and chain until the complete cleaner has left the oil opening of the power pruner. Put the saw chain for a short time into an oil bath and enwrap it afterwards in an oil paper.

① For information on "Storage" of the battery and the charger, please refer to the respective "Operating Instructions".

Guarantee

Please note the attached guarantee declaration.

Technical Data

Driven unit Type AMGS-AE 40
Year of construction	See last page
Suitable for battery type Li-Ion 36 V
Suitable for battery capacity 2000 mAh oder 4000 mAh
Idle speed n0	7250 rpm
Idle speed n0	9300 rpm
Measured sound power level LWA 95.8 dB (A) (according to regulation 2000/14/EG)
Guaranteed sound power level LWA 96 dB (A) (according to regulation 2000/14/EG)
Sound pressure level LPA 93.6 dB (A)
Measuring uncertainty K 3.0 dB (A)
Weight (without battery and attachment tools) 2.2 kg

Brush cutter / grass trimmer type AMGS-FG

Max. speed of cutting tool	5450 rpm
Max. speed of cutting tool	7000 rpm
Cutting diameter brush cutter / grass trimmer	255 × 1.4 mm × 3 teeth / 330 mm - double thread
Hand-arm vibration (measuring uncertainty K) Brush cutter 4.13 m/s	^2 (K = 1.5 m/s^2)
Hand-arm vibration (measuring uncertainty K) Grass trimmer 5.7 m/s^2 (K = 1.5 m/s^2 )
Weight (without battery) 3.7 kg

Hedge trimmer type AMGS-HS

Max. speed of cutting tool	1150 rpm
Max. speed of cutting tool	1500 rpm
Max. cutting length	395 mm
Length of sword (Length of the cutting blade)	420 mm
Hand-arm vibration (measuring uncertainty K)	2.5 m/s^2 (K= 1.5 m/s^2 )
Weight (without battery)	4.2 kg

Power pruner type

Max. speed of saw chain	7 m/s
Max. speed of saw chain	9 m/s
Length of guide bar	10 inch
Max. cutting length	203 mm
Type of saw chain	3/8" LP.043x39
Pitch / drive link thickness	9,525 mm (3/8") / 1,1 mm (.043")
Chain wheel	7 x 9,525 mm
Chain oil tank capacity	130 ml
Hand-arm vibration (measuring uncertainty K)	2,5 m/s ^2 (K = 1,5 m/s ^2 )
Weight (with extension shaft, without battery)	4.4 kg

Refer to the respective "Operating instructions" for "Technical specifications" of the batteries and the charger".

Technical modifications reserved!

Possible faults

Before each fault elimination:

• Switch off device.
  — Wait until the cutting device does not longer move.
• Remove the battery.
• Wear protective gloves.

After each fault clearance, put into operation and recheck all security installations.

Fault code - General Possible Cause Corrective action
Device does not start after switching on	Li-lon battery run downLithium-ion battery not inserted correctlyLi-lon battery too cold/ too warmLi-lon battery, motor or switch defect	Charge the Li- ion batteryCheck whether the lithium battery has engaged audibly.Allow the lithium battery to warm up/cool downHave the battery, motor or switch checked / repaired by a licensed electrician or customer service or replaced by original spare parts.
Device does not work with full power	The Li-lon battery charge is lowThe Li-lon battery is defect	Charge the Li-lon battery (manual battery “Charging the battery”Contact the costumer service
Device works with interruptions	external loose connectioninternal loose correctionON / OFF switch defective.	Contact the customer service
Cutting time with fully charged battery too short	Rechargeable battery is lowBattery service life exhausted	Charge the Li-lon battery (Abschnitt „Akkuladen“)Charging the rechargeable battery
Operating mode cannot be selected	Slow / fast mode toggle button defective	Contact the customer service
Device shuts off on its own	Lithium ion batteries too hot (45 °C)Battery charge too low	Allow lithium-ion battery to cool downCharge the lithium ion battery

Fault code – brush cutter Possible Cause Corrective action
The brushcutter does not work with full output	Cutting blade dull or damagedDevice overloaded as grass too high.	Have the cutting blade sharpened or replace itTrim the grass in several passes.
Device does not run quietly, vibrates strongly	Mounting nut of the cutting blade looseCutting blade not properly mounted	Tighten the mounting nutMount the cutting blade properly; make sure the cutting blade is positioned correctly in the recess of the guardReplace the cutting bladeReplace the cutting bladeClean
	Cutting blade damagedCutting thread torn
	Cutting blade / head / device dirty

Fault code – grass trimmer	Possible Cause	Corrective action
The device does not work with full performance	Cutting thread to short/broken.Device overloaded as grass too high	Follow up the cutting thread.Trim the grass in several passes.
Cutting thread is not followed up.	No more thread on the spoolCutting thread entangled	Replace the thread spoolRecoil the cutting thread.
Device does not run quietly, vibrates strongly.	Grass debris between thread spool and protective hood	Remove grass debris
Fault code – hedge trimmer Possible Cause Corrective action
Device does not run quietly, vibrates strongly	Cutting device damagedFastening of cutting device has come loose	Contact the customer service
Knives get hot	Missing lubrication → frictionKnife edges became bluntBlade has notches	Oil the cutting deviceArrange sharpening of knivesCheck blade and have it sharpened

Fault code – power pruner Possible Cause Corrective action
Power pruner picks, vibrates or does not saw correctly	Chain edgeless	Chain must be regrinded or exchanged
	Chain worn	Exchange chain
	Chain tension	Check and adjust chain tension
	Chain not assembled correctly (teeth face to wrong direction)	Assemble chain again
Saw chain gets hot No oil in the tank		Refill oil
	Oil flow canal blocked	Clean oil flow canal
	Chain tension too high	Adjust chain tension
	Chain edgeless	Chain must be regrinded or exchanged
No saw chain lubrication No oil in the tank		Refill oil
	Oil flow canal blocked	Clean oil flow canal

i In case of further faults or inquiries please contact your local dealer.

Maintenance and cleaning schedule

Maintenance work	Before each use	After each use	Every 8 hours	Every 25 hours	If required / damaged	Each season
Check the battery	●
Lubricate the gearbox			●	●
Check the cutting blade		●				●
Replace the cutting blade					●
Check the thread spool		●
Replace the thread spool					●
Replace the thread knife					●
Adjust the cutting device					●
Lubricate the cutting device		●			●
Check the guide bar		●				●
- Clean/turn round		●				●
- Replace					●
Check the chain wheel			●
- Have it replaced					●
Check the saw chain tension	●				●
Check the saw chain	●					●
- Have it sharpened					●
- Replace					●
Check the chain lubrication	●
Clean the oil tank				●		●
Check the device	●					●
Clean the device		●				●
Replace the safety label					●

F

Inden hver transport

— Sluk for apparatet

conform directivei CE:

2006/42/CE

Prin prezenta noi,

Altrad Lescha Atika GmbH

Josef-Drexler-Str. 8, 89331 Burgau - Germany
