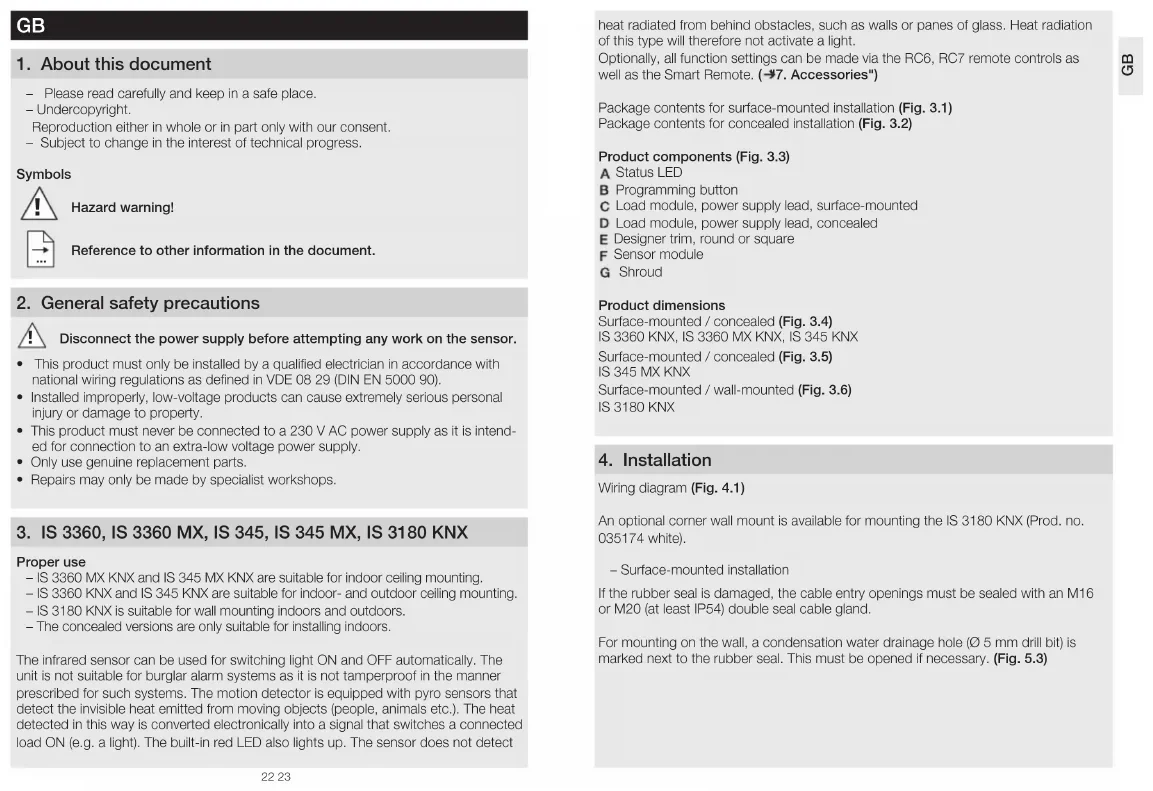

1 About this document – Please read carefully and keep in a safe place. – Under copyright. Reproduction either in whole or in part only with our consent. – Subject to change in the interest of technical progress.Symbols Hazard warning!

Reference to other information in the document 2 General safety precautions Disconnect the power supply before attempting any work on the sensor• This product must only be installed by a qualified electrician in accordance with national wiring regulations as defined in VDE 08 29 (DIN EN 5000 90).• Installed improperly, low-voltage products can cause extremely serious personal injury or damage to property.• This product must never be connected to a 230 V AC power supply as it is intend-ed for connection to an extra-low voltage power supply.• Only use genuine replacement parts.• Repairs may only be made by specialist workshops. 3 IS3360, IS3360 MX, IS345, IS 345 MX, IS3180 KNX Proper use – IS3360MXKNX and IS345MXKNX are suitable for indoor ceiling mounting. – IS3360KNX and IS345KNX are suitable for indoor- and outdoor ceiling mounting. – IS3180KNX is suitable for wall mounting indoors and outdoors. – The concealed versions are only suitable for installing indoors.The infrared sensor can be used for switching light ON and OFF automatically. The unit is not suitable for burglar alarm systems as it is not tamperproof in the manner prescribed for such systems. The motion detector is equipped with pyro sensors that detect the invisible heat emitted from moving objects (people, animals etc.). The heat detected in this way is converted electronically into a signal that switches a connected load ON (e.g. a light). The built-in red LED also lights up. The sensor does not detect

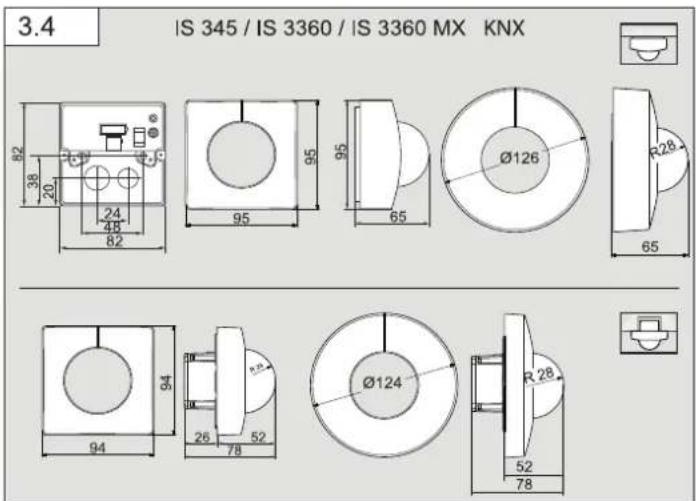

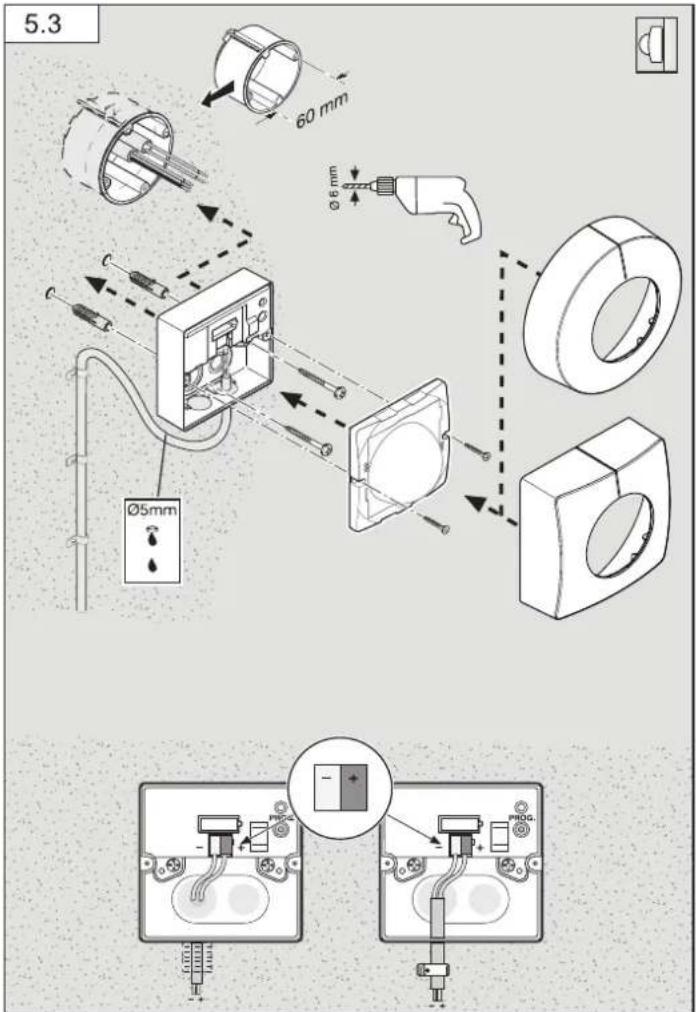

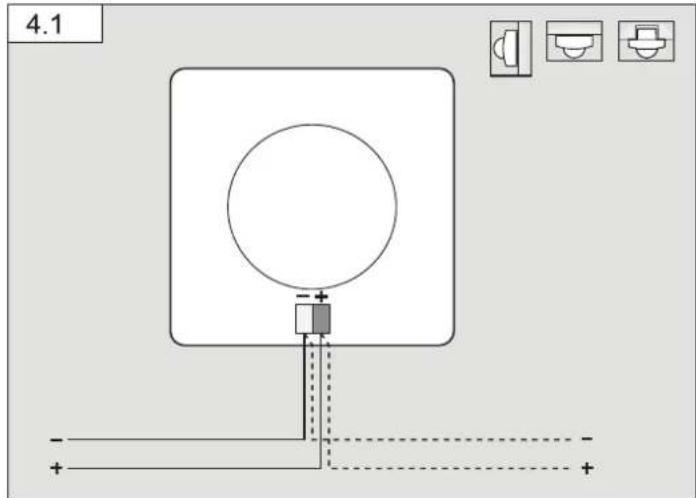

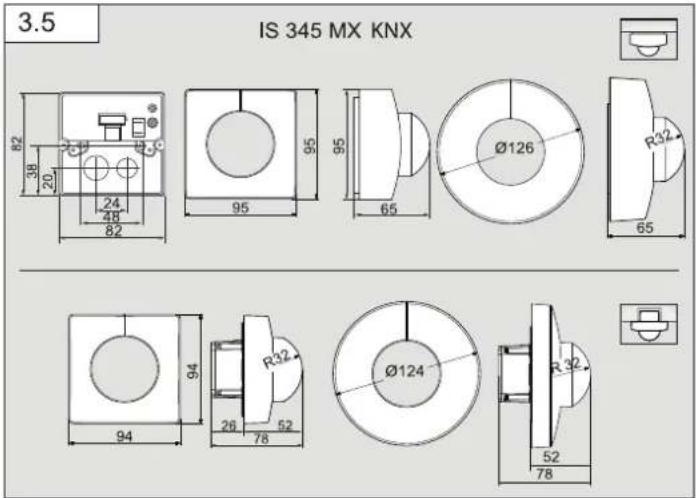

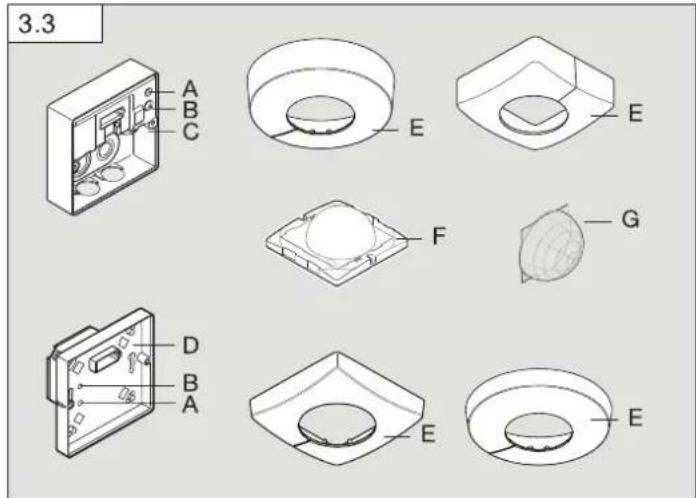

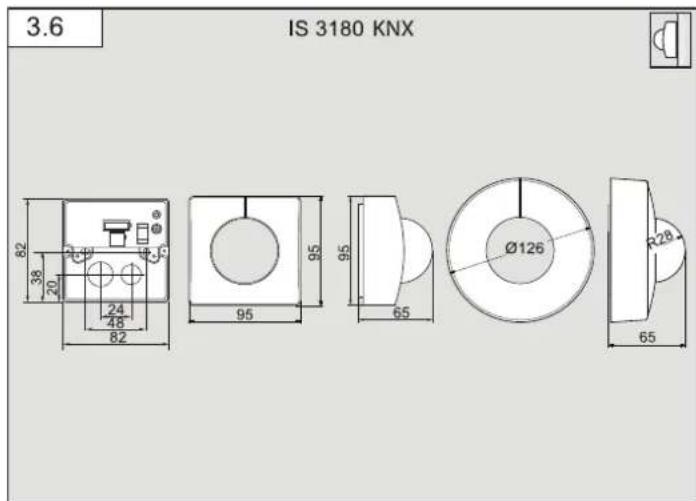

heat radiated from behind obstacles, such as walls or panes of glass. Heat radiation of this type will therefore not activate a light. Optionally, all function settings can be made via the RC6, RC7 remote controls as well as the Smart Remote. ( "7Accessories")Package contents for surface-mounted installation (Fig31)Package contents for concealed installation (Fig32)Product components (Fig 33) Status LED Programming button Load module, power supply lead, surface-mounted Load module, power supply lead, concealed Designer trim, round or square Sensor module ShroudProduct dimensionsSurface-mounted / concealed (Fig34) IS3360 KNX, IS3360 MX KNX, IS345KNXSurface-mounted / concealed (Fig35) IS345 MXKNXSurface-mounted / wall-mounted (Fig36) IS3180KNX 4 Installation Wiring diagram (Fig 41) An optional corner wall mount is available for mounting the IS3180KNX (Prod. no. 035174 white). – Surface-mounted installationIf the rubber seal is damaged, the cable entry openings must be sealed with an M16 or M20 (at least IP54) double seal cable gland.For mounting on the wall, a condensation water drainage hole (Ø 5mm drill bit) is marked next to the rubber seal. This must be opened if necessary. (Fig53) GB24 25 5 Mounting

• Check all components for damage.

• Do not use the product if it is damaged.

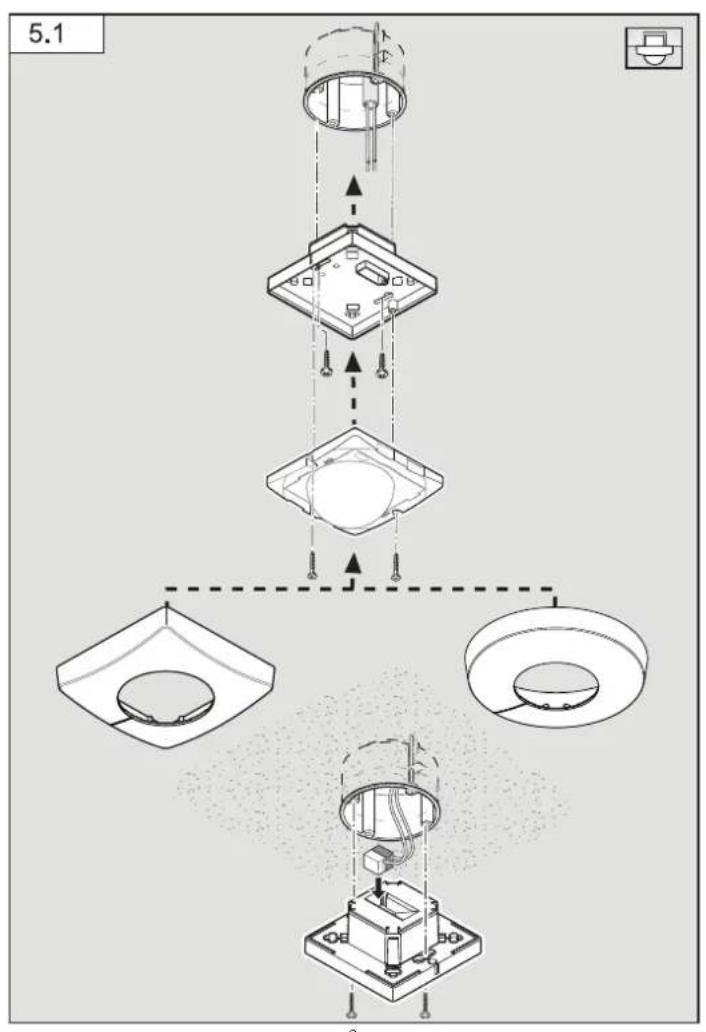

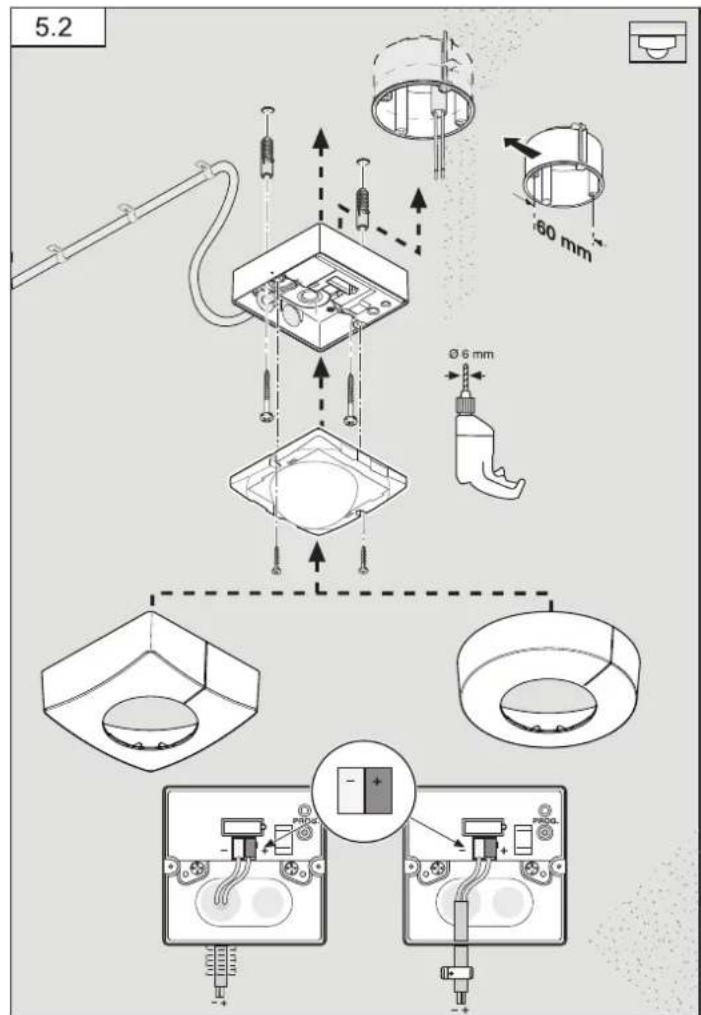

• Select an appropriate mounting location, taking the reach and motion detection into consideration. Procedure for installing concealed power supply lead (Fig51) Procedure for installing surface-mounted power supply lead (Fig 52) IS3360KNX, IS3360MX Highbay KNX, IS345KNX, IS345MXHighbay KNX Procedure for installing surface-mounted power supply lead (wall mounting) IS3180KNX (Fig53)

• Make plug connection.

• Press the programming button (B).

• Insert fastening screws and mount load module.

• Make settings. ( "6Functions and settings") Surface mounting (Fig52 / 53)

• Insert fastening screws and mount load module.

• Make plug connection.

• Press the programming button (B).

• Make settings. ( "6Functions and settings")

• Fit sensor and load module together and screw into place.

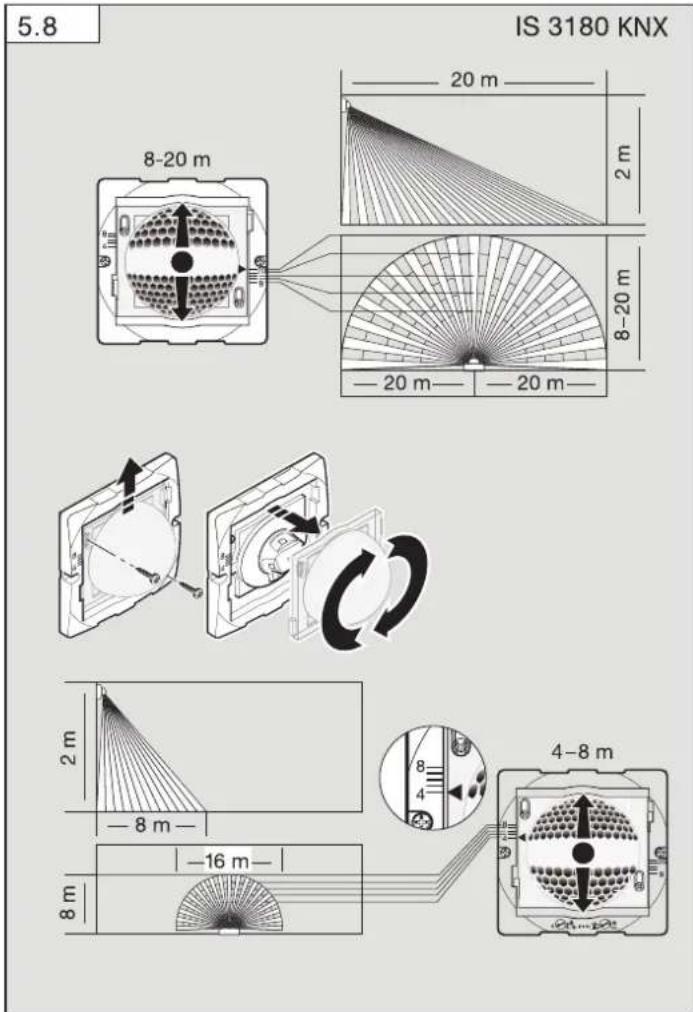

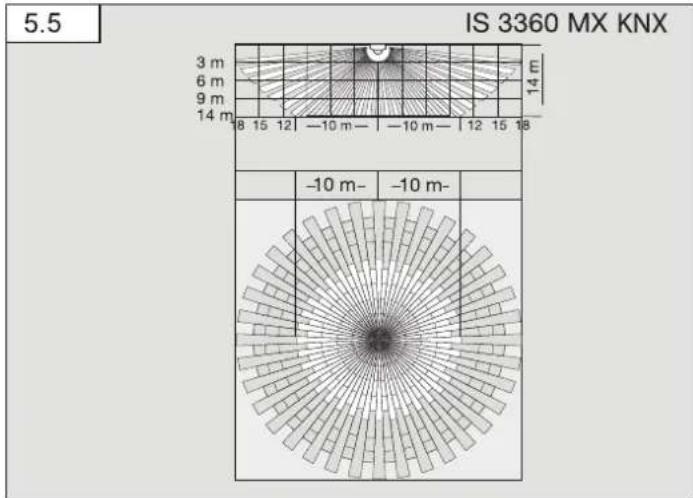

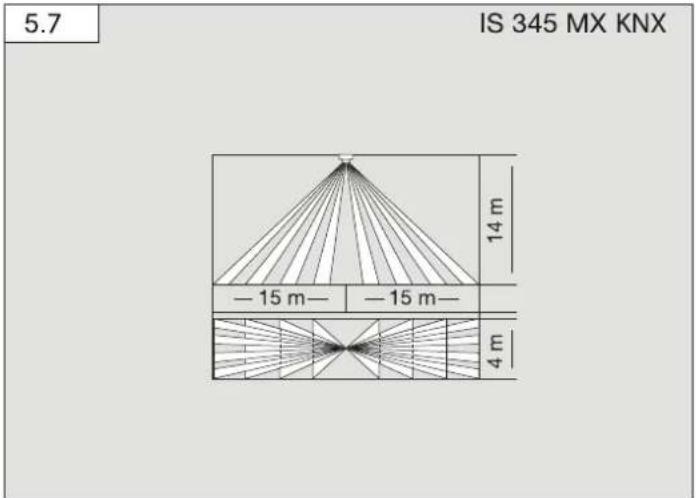

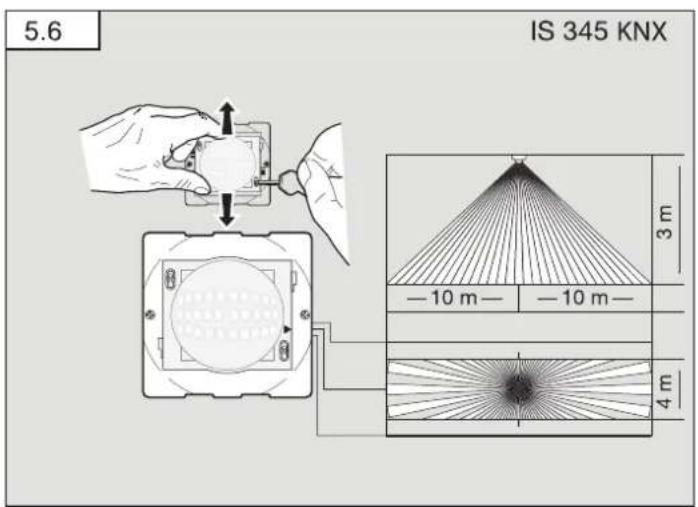

• Fit designer trim. Limiting reach The detection zone can be optimised to suit requirements. – By adjusting the lens. (Fig56 / 58) – By using the half-round clip-on shroud. (Fig59)

• To set the required reach, undo the screws or completely remove them.

• Move lens into required zone.

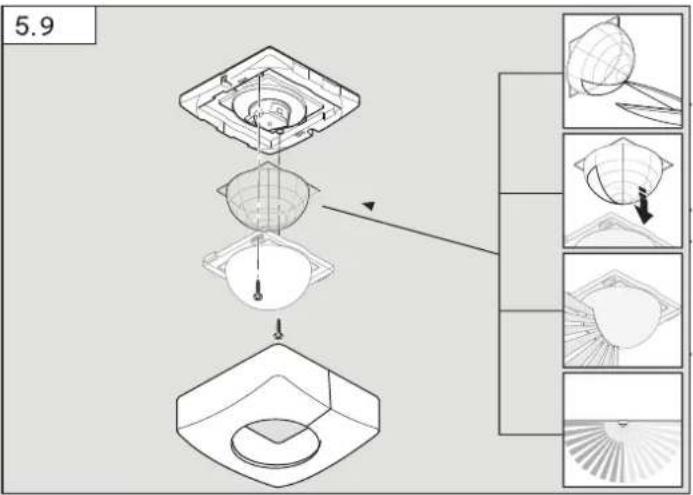

• The shroud provided can be used for masking out any number of lens segments to shorten reach as required.

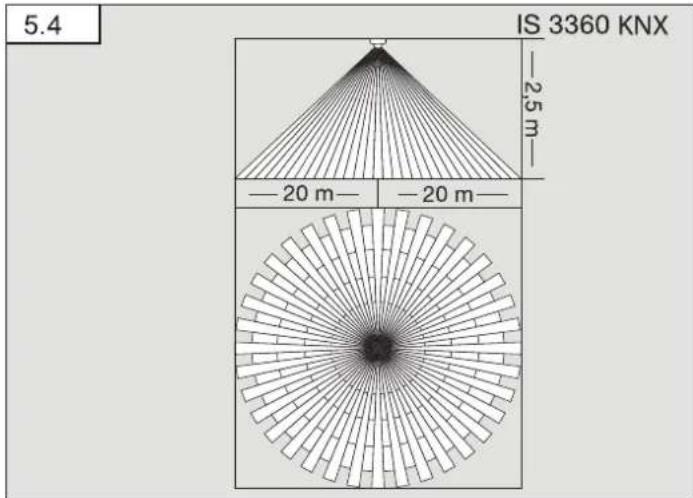

Note: 20 metres is preset at the factory. GB26 27

• Insert fastening screws and mount load module.

• Fit sensor and load module together and screw into place.

• Set functions. ( "6Funtion")

• Fit designer trim. 6 Function You will find an application description at knxsteinelde Functions to be used are selected from the "General Settings" parameter window using the Engineering Tool Software (ETS) from version ETS4.0.

1. Issue physical address and generate application program in the ETS.

2. Load the physical address and application program into the motion detector.

When you are prompted, press programming button .

3. The red LED goes out once programming has been successfully completed.

Functions, RC6 – Service mode – Reach, sensor sensitivity HF – Light level, brightness setting, teach-in – Lighting control stay-ON time – HVAC switch-ON delay, room surveillance, HVAC stay-ON time – Basic lighting stay-ON time, brightness setting, teach-in – Presence- and lighting test mode Functions, RC7 – Dimming function – Light ON/OFF 4h – Saving, activating scene – Reset Smart Remote – Replaces remote controls RC6 and RC7 – Control via smartphone or tablet – Load appropriate app and connect via Bluetooth Additional functions, Smart Remote – Programme mode LED function – Programming mode: LED ON – Normal mode: LED stays OFF – Test mode: LED lights up on detecting movement – Remote control: LED flashes approx. 10 times per second Detailed descriptions are provided in the operating instructions for the particular remote control. 7 Accessories – User remote control RC6 EAN 4007841 593018 – Service remote control RC7 EAN 4007841 592912 – Smart Remote EAN 4007841 009151 8 Operation/maintenance Weather conditions may aect the way the motion detector works. Strong gusts of wind, snow, rain or hail may cause the light to come ON when it is not wanted because the sensor is unable to distinguish between sudden changes of tempera- ture and sources of heat. The detector lens may be cleaned with a damp cloth if it becomes dirty (do not use cleaning agents). 9 Declaration of Warranty As purchaser, you are entitled to your statutory rights against the vendor. If these rights exist in your country, they are neither curtailed nor restricted by our Warranty Declaration. We guarantee that your STEINEL Professional sensor product will remain in perfect condition and proper working order for a period of 5years. We guarantee that this product is free from material-, manufacturing- and design flaws. In addition, we guarantee that all electronic components and cables function in the proper man- ner and that all materials used and their surfaces are without defects. Making Claims If you wish to make a claim, please send your product complete and carriage paid with the original receipt of purchase, which must show the date of purchase and product designation, either to your retailer or contact us at STEINEL (UK) Limited, 25Manasty Road, Axis Park, Orton Southgate, Peterborough, PE2 6UP, for a re- turns number. For this reason, we recommend that you keep your receipt of purchase in a safe place until the warranty period expires. STEINEL shall assume no liability for the costs or risks involved in returning a product. GB2928 For information on making claims under the terms of the warranty, please go to wwwsteinel-professionalde/garantieIf you have a warranty claim or would like to ask any question regarding your product, you are welcome to call us at any time on our Service Hotline [phone] Technical specifications IS3180KNXIS3360 KNX IS3360MX KNXIS345 KNX IS345MX KNXDimensions(L×W×H)126×65mm95×95×65mm124×78mm94×94×78mmPower supply KNX bus voltage, 21 V - 30 V (SELV)Settings via ETS software, remote control or BUSSensor system Passive infraredAngle of coverage180° with 90° angle of aperture360° with 180° angle of aperture180° with 45° angle of aperture180° with 45° angle of apertureReaches Basic setting 1: max. 8 - 20 m tangential; temperature stabilisedBasic setting 2:max. 4 - 8 m;temperaturestabilised+ precision adjustment by re-positioning the lens and using shroudsIS3360 KNXmax. 20 m tangential; temperature- stabilisedIS3360 MX KNX max. 18 m; temperature- stabilised+ precision adjustment using shroudsmax. 20×4m (tangential),max. 12×4 m (radial); temperature- stabilised+ precision adjustment using shroudsmax. 30×4m (radial) mounted at a height of 14 m; temperature- stabilised+ precision adjustment using shroudsSwitching zones448 1416 280 120Twilight setting 2 - 1000lux, teach Surface-mounted installation, round Surface-mounted installation, square Concealed installation, round Concealed installation, squareIS3180KNX IS3360 KNX IS3360MX KNXIS345 KNX IS345MX KNXTwilight setting, basic brightness2 - 1000 lux, teach IP rating Surface-mounted: IP54 Concealed: IP20Temperature zone -20°C to +50°CLight outputLight 1 – Light 2Switching, dimming, basic brightnessFurther outputsIn-operation telegramMalfunction Cause RemedyNo power at the sensor Break in wiring Fuse faulty; not switched ON; break in wiring Short-circuit Check KNX power supply New fuse, turn ON power switch, check wiring with voltage tester Check connectionsSensor will not switch Twilight setting in night-time mode during daytime operation Lamp faulty Mains switch OFF Fuse faulty Detection zone not correctly adjusted Reset Replace lamp Switch ON Replace fuse, check connection if necessary Readjust

WARRANTYMANUFACTURER'S YEAR WARRANTYMANUFACTURER'S YEAR WARRANTY 11 Disposal Electrical and electronic equipment, accessories and packaging must be recycled in an environmentally compatible manner.Do not dispose of electrical and electronic equipment as domestic waste.EU countries only:Under the current European Directive on Waste Electrical and Electronic Equipment and its implementation in national law, electrical and electronic equipment no longer suitable for use must be collected separately and recycled in an environmentally compatible manner. 12 Troubleshooting3130 Sensor will not switch OFF Continued movement within the detection zone Light being operated is located in the detection zone and keeps switching ON as a result of temper-ature changes Light being operated is in the manual override mode (LED ON) Check zone and readjust if necessary or fit shrouds Adjust detection zone or fit shrouds Deactivate manual overrideSensor keeps switching ON/OFF Light being operated is located in the detec-tion zone Animals moving in detection zone Adjust detection zone or fit shrouds, increase distance Adjust zone, or fit hroudsSensor reach change Change in ambient temperatures Use shrouds to define detection zone preciselySensor responds when it should not Wind is moving trees and bushes in the detec-tion zone Cars in the street are being detected Sunlight is shining on the lens Sudden temperature changes due to weath-er (wind, rain, snow) or air expelled from fans, open windows Dazzle guard active Sensor near Wi-Fi or other wireless communi-cation sources Change detection zone Change detection zone Mount sensor in a pro-tected place or change zone Adjust detection zone or install in a different place Operate manually at pushbutton/switch No movement detected within the selected stay-ON time + 60sec. (dazzle guard) install at least 2 m away from the wireless com-munication sourceMalfunction Cause Remedy
