USER MANUAL HMH-E 2440 Hurricane

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

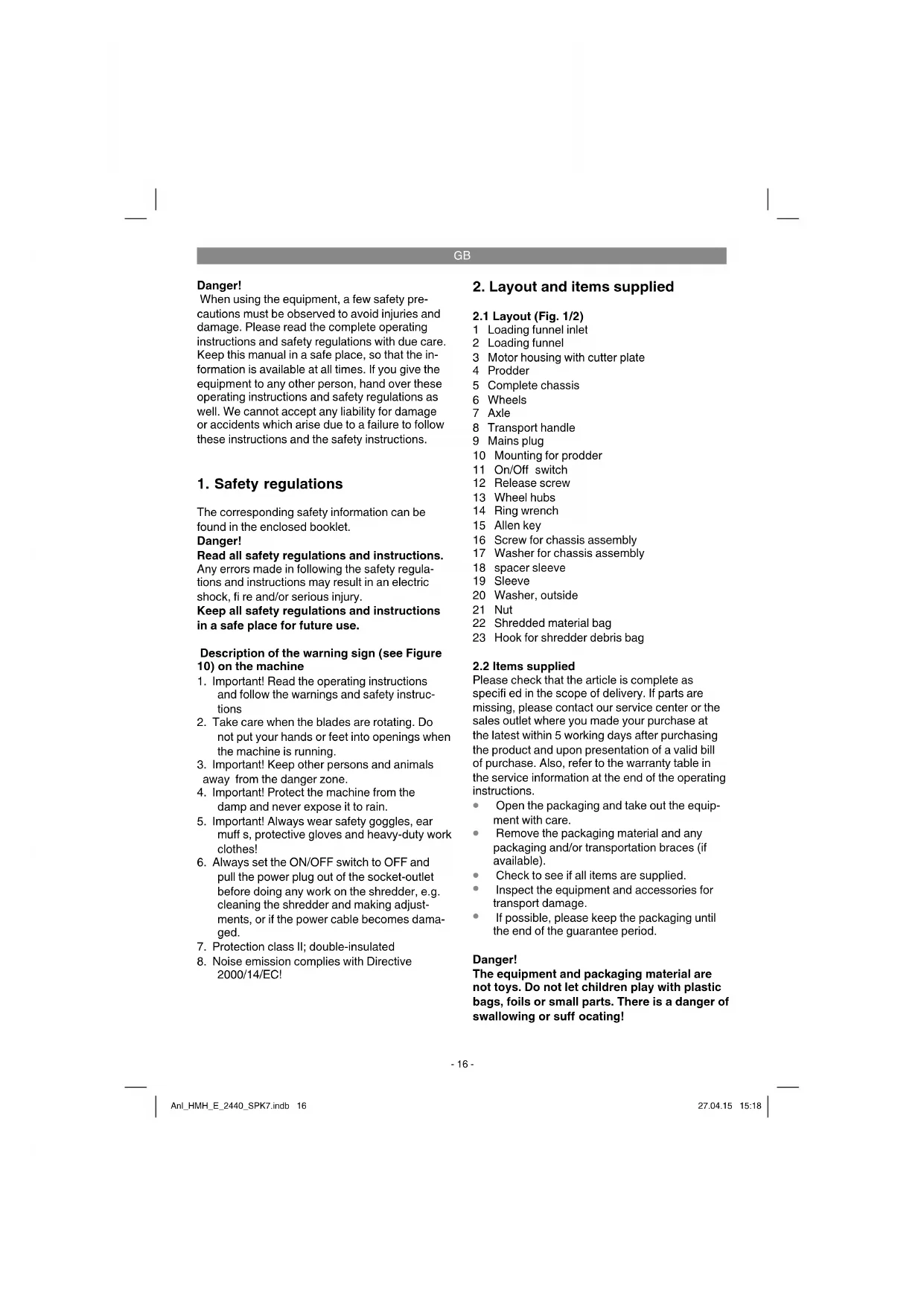

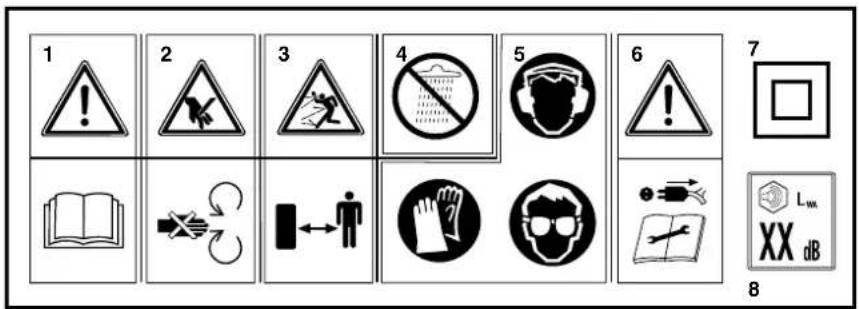

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet. Danger! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use. Description of the warning sign (see Figure

1. Important! Read the operating instructions

and follow the warnings and safety instruc- tions

2. Take care when the blades are rotating. Do

not put your hands or feet into openings when the machine is running.

3. Important! Keep other persons and animals

away from the danger zone.

4. Important! Protect the machine from the

damp and never expose it to rain.

5. Important! Always wear safety goggles, ear

muff s, protective gloves and heavy-duty work clothes!

6. Always set the ON/OFF switch to OFF and

pull the power plug out of the socket-outlet before doing any work on the shredder, e.g. cleaning the shredder and making adjust- ments, or if the power cable becomes dama- ged.

7. Protection class II; double-insulated

8. Noise emission complies with Directive

2. Layout and items supplied

2.1 Layout (Fig. 1/2)

1 Loading funnel inlet 2 Loading funnel 3 Motor housing with cutter plate 4 Prodder 5 Complete chassis 6 Wheels 7 Axle 8 Transport handle 9 Mains plug 10 Mounting for prodder 11 On/Off switch 12 Release screw 13 Wheel hubs 14 Ring wrench 15 Allen key 16 Screw for chassis assembly 17 Washer for chassis assembly 18 spacer sleeve 19 Sleeve 20 Washer, outside 21 Nut 22 Shredded material bag 23 Hook for shredder debris bag

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating! Anl_HMH_E_2440_SPK7.indb 16Anl_HMH_E_2440_SPK7.indb 16 27.04.15 15:1827.04.15 15:18GB

Original operating instructions

This electric garden refuse shredder is designed only for shredding organic garden waste. Place biologi-cally degradable material, e.g. leaves, branches, dead fl owers etc., into the loading fun- nel inlet. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

sound power level: .............................112 dB Weight: ........................................................11 kg Protection class:................................................. II Protection type: ............................................IPX4 Operating mode S6 40%: Continuous operation with idling (cycle time 10 minutes). To ensure that the motor does not become excessively hot, it may only be operated for 40% of the cycle at the specifi ed rating and must then be allowed to idle for 60% of the cycle. Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect wor- king order.

Service and clean the appliance regularly.

Adapt your working style to suit the appliance.

Do not overload the appliance.

Have the appliance serviced whenever ne- cessary.

Switch the appliance off when it is not in use.

Wear protective gloves. Caution! Residual risks Even if you use this electric power tool in accordance with instructions, certain resi- dual risks cannot be rules out. The following hazards may arise in connection with the equipment’s construction and layout:

3. Health damage caused by hand-arm vib-

rations if the equipment is used over a pro- longed period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data. Warning! Always pull the power plug before making adjustments to the equipment. The garden shredder is delivered unassembled. The chassis and the wheels must be fi tted before use. Follow the operating instructions step-by- step and use the pictures provided as a visual guide to easily assemble the machine.

Place the motor housing upside down on the floor.

Insert the chassis into the provided openings as far as it will go.

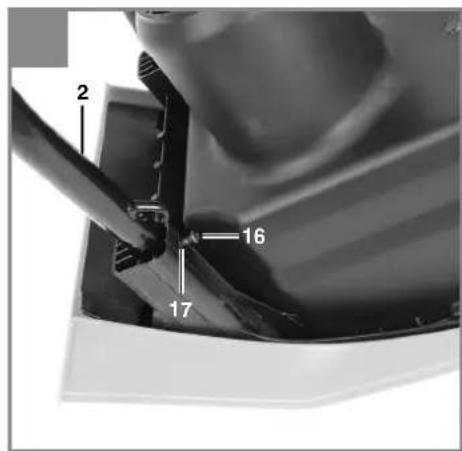

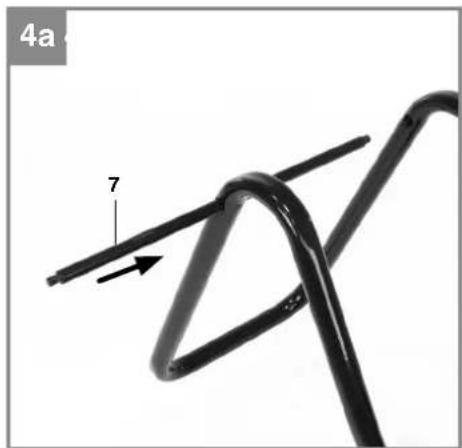

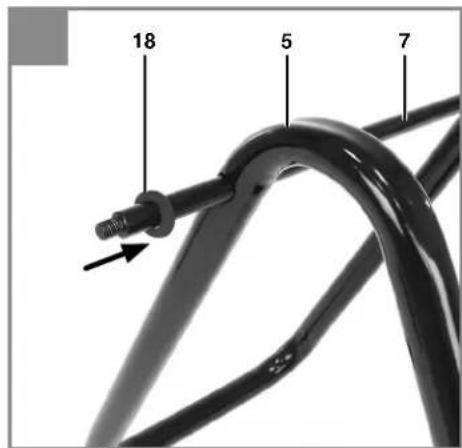

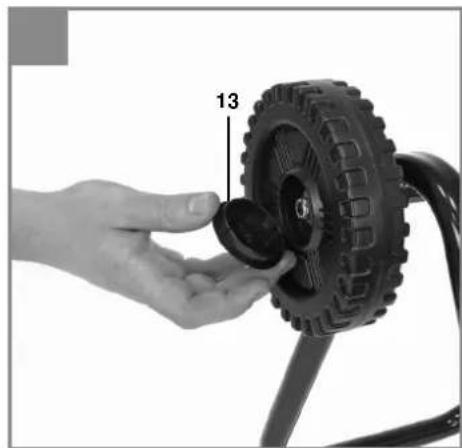

5.2 Assembling the axle and wheels

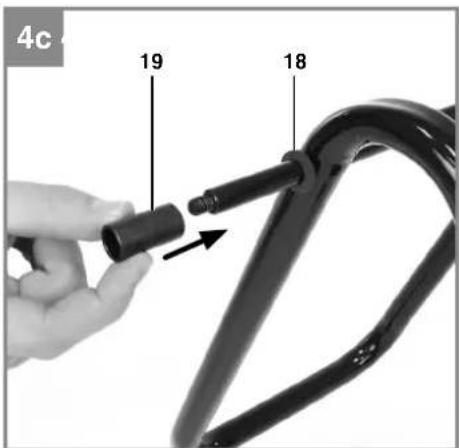

Remove the sleeves, nuts and washers from the axle

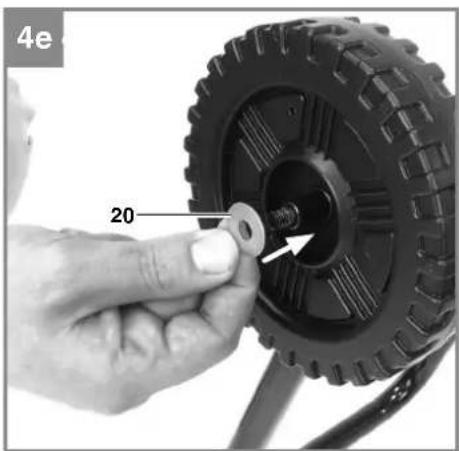

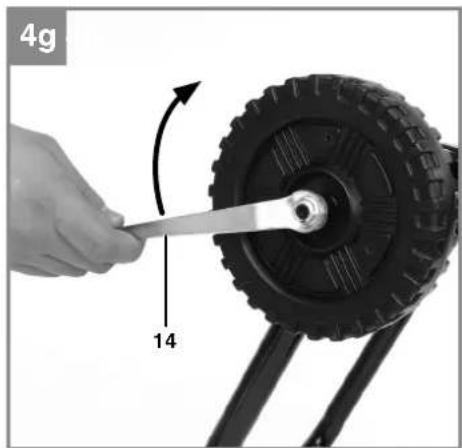

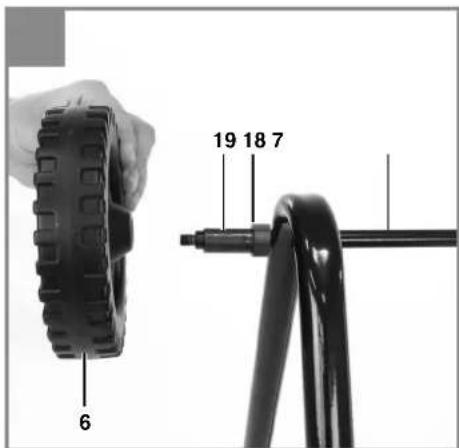

Mount the chassis as shown in Figs. 4a-4h.

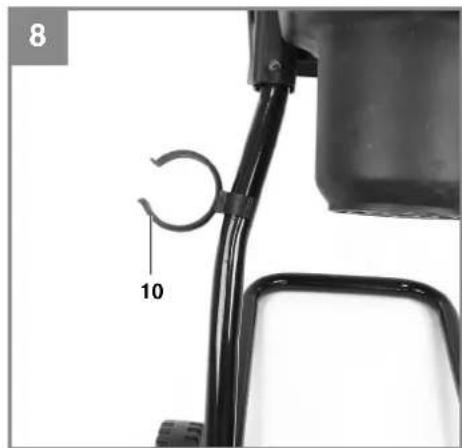

5.3 Fitting the holder for the prodder (Fig. 8)

Press the holder for the prodder onto the chassis as shown in Fig. 8.

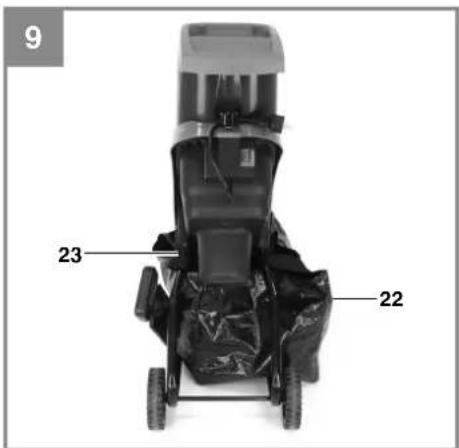

5.4 Fitting the shredder debris bag (Fig. 9)

As an option you can fi t the supplied shredder debris bag to the equipment. To do so, hang the shredder debris bag (Fig. 9 / Item 22) on the hooks provided for the purpose (Fig. 9 / Item 23).

Please observe the statutory regulations gover- ning noise abatement during operating times, which may diff er from town to town.

6.1 Connecting up the machine and swit-

Connect the coupling on the machine con- nection cable (extension) to the power cable (Fig. 1/Item 9).

The machine can be switched ON (switch po- sition “I”) and OFF (switch position “0”) using the ON/OFF switch (Figure 1/Item 11). Note: The machine cannot be switched on if the- re is no voltage being supplied to it. If the power supply is interrupted, the machine will switch off automatically (switch position “0”). The machine cannot be switched on again until the voltage supply has been re-established and the ON/OFF switch has been moved to position “I”.

The motor is protected from overloads by an overload switch.

In case of overloading the equipment will shut down automatically. To restart, set the On/Off switch to the position „I“.

Be sure to observe the safety instructions (see supplied booklet).

The material is drawn into the shredder auto- matically. CAUTION! Long pieces of material projecting out of the funnel inlet may whiplash when it is drawn in – keep a safe distance between yourself and the machine.

Judge the quantity of material which you put into the funnel inlet so that the funnel does not clog.

If you want to shred withered, damp material that has been lying in the garden for several days, alternate between putting in this materi- al and branches. This will help to prevent the loading funnel becoming clogged with materi- al.

Do not shred soft waste (e.g. kitchen waste) – put it straight in the compost box.

Entangled branches and leaves should be tho roughly shredded before loading any more material.

Do not allow the discharge opening to be- come clogged with shredded material – risk of pile-ups.

Do not cover the ventilation slits.

Do not place heavy material or thick bran- ches into the machine continuously. This may cause the blade to jam.

Use the prodder (Fig. 1/Item 4) to remove jammed objects from the funnel inlet, use a hook to remove jammed objects from the ejector opening.

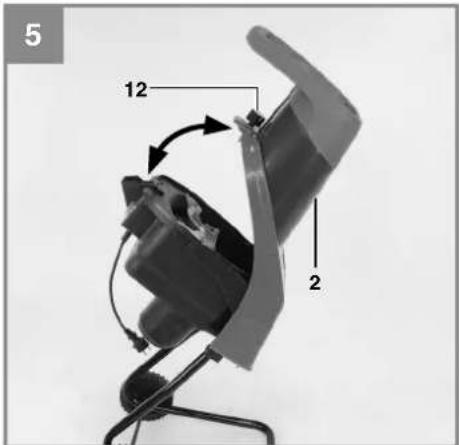

Swing open the loading funnel (Fig. 5/Item

2) by opening the release screw (Fig. 5/ Item

12). You can now remove blockages from the inside of the equipment. Important! Wear work gloves! Risk of injury from the cutters. Anl_HMH_E_2440_SPK7.indb 18Anl_HMH_E_2440_SPK7.indb 18 27.04.15 15:1827.04.15 15:18GB

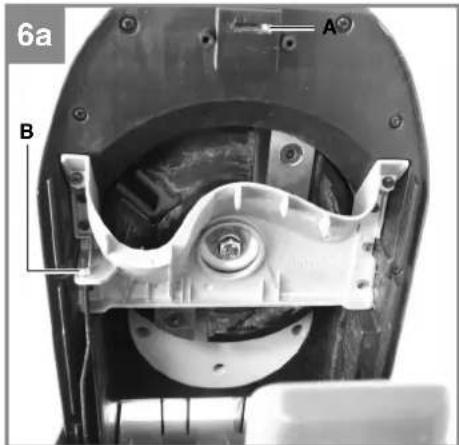

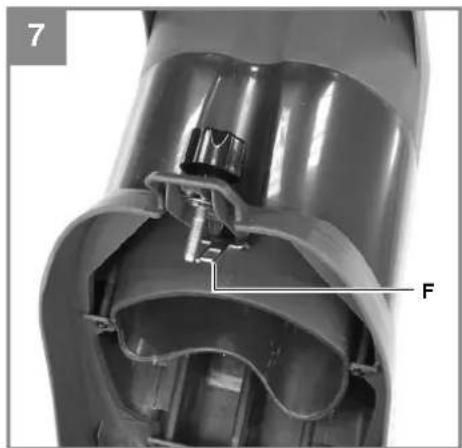

The shredder has a safety switch (Figure 6/Item A) in its interior on the motor housing. The control unit for it (Figure 7/Item F) is located on the loa- ding funnel. If the loading hopping is not perfectly position or if it is not pressed against the motor housing, the safety switch will trip and prevent the motor from working. If this situation occurs, open the loading funnel as described above. Carefully clean the interior. Close the loading funnel again as descri- bed above and ensure that when you switch on the machine again the loading funnel is correctly position and the safety screw is screwed right in. CAUTION! NEVER undo the release screw (Figure 1/Item 12) without fi rst switching off the machine at the ON/OFF switch (Figure 1/Item 11) and disconnecting the coupling on the machine connection cable (extension) from the machine plug.

7. Replacing the power cable

Danger! If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

8. Cleaning, maintenance and

ordering of spare parts Danger! Always pull out the mains power plug before star- ting any cleaning work.

8.1 Maintenance and storage

Clean the machine regularly. This will help to keep the machine in good working order and is the basis for a long working life.

Keep the vent slots clean while you work.

Clean the plastic body and other plastic parts with a mild household cleaning agent and a damp cloth. Do not use any aggressive agents or solvents for cleaning purposes.

Never clean the shredder by spraying with water.

Prevent water getting inside the machine at all cost.

Check the chassis securing screws from time to time to ensure that they are tight.

If you do not intend to use the shredder for a lengthy period, protect it from corrosion using environmentally friendly oil.

Store the device in a dry room.

Store the device out of reach of children.

When you have finished your work, pull the loading funnel forwards and clean the inside. Use a brush to remove deposits from metal parts on the inside. Apply a thin coating of oil to the cleaned blade plate and blades.

When you close the loading funnel, make sure that the safety switch and the release screw are clean.

8.2 Replace, sharp and change blades

The blades on the blade plate are replaceable. If you have to replace any blade, you must only use genuine blades to ensure that they meet the rele- vant quality and safety criteria. Please note: For safety reasons we recommend that you have all sharpening and blade replace- ment work carried out by a specialist workshop. Always wear heavy duty working gloves

Swing open the loading funnel (Fig. 5/Item

2) by opening the release screw (Fig. 5/ Item

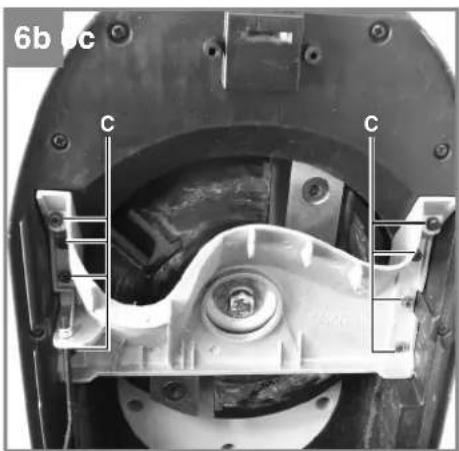

Undo the eight Philips screws (Figure 6b/Item C) and remove the cover plate

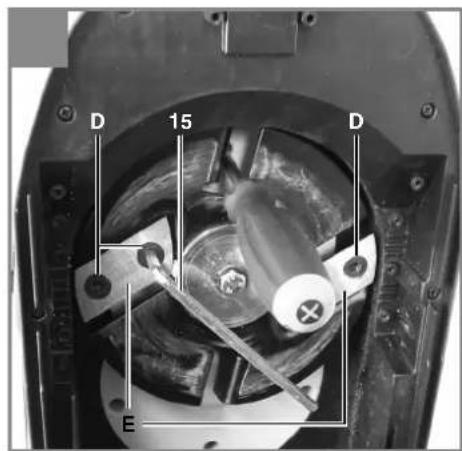

Secure the rotary disk so that it cannot rotate (for example by jamming it with a screwdriver, see Figure 6c)

Each of the blades can be turned once as they are ground sharp on both ends. Then they must be replaced by new blades. To assemble, proceed in reverse order.

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

9. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces. Anl_HMH_E_2440_SPK7.indb 20Anl_HMH_E_2440_SPK7.indb 20 27.04.15 15:1827.04.15 15:18GB

Fault Possible cause Remedy The machine does not work - No power at the plug - Machine is switched off - Overload switch has tripped - Ejector chute is blocked - Loading funnel is not secure on the motor housing - Check the power cable and fuse - Switch on machine - Press control on overload switch - Clean ejector chute - Clean interior and tighten safety screw Shredding perfor- mance unsatisfac- tory - Blades worn - Turn, sharpen or replace blades Anl_HMH_E_2440_SPK7.indb 21Anl_HMH_E_2440_SPK7.indb 21 27.04.15 15:1827.04.15 15:18GB

For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any ac- cessories or aids without electrical components supplied with the old equipment. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes Given unfavorable conditions in the power supply the equipment may cause the voltage to drop tem- porarily. If the supply impedance “Z” at the connection point to the public power supply exceeds 0.391 Ω it may be necessary to take further measures before the equipment can be used as intended from this power supply. If necessary, you can ask your local electricity supply company for the impedance value. Anl_HMH_E_2440_SPK7.indb 22Anl_HMH_E_2440_SPK7.indb 22 27.04.15 15:1827.04.15 15:18GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Consumables* Blade Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Ple- ase ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

What malfunction does the equipment have in your opinion (main symptom)? Describe this malfunction. Anl_HMH_E_2440_SPK7.indb 23Anl_HMH_E_2440_SPK7.indb 23 27.04.15 15:1827.04.15 15:18GB

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card or the sales outlet from where you bought the device. Please note the fol- lowing terms under which guarantee claims can be made:

1. These warranty terms regulate additional warranty services, which the manufacturer mentioned

below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. The warranty services cover only defects due to material or manufacturing faults on a product which

you have bought from the manufacturer mentioned below and are limited to either the rectifi cation of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 60 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies if an on-site service is used.

5. Please report the defective device on the following internet address to register your guarantee claim:

www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_HMH_E_2440_SPK7.indb 24Anl_HMH_E_2440_SPK7.indb 24 27.04.15 15:1827.04.15 15:18FR

Annex V Annex VI Noise: measured L
