USER MANUAL DT5307 Hurricane

Exterior view of a Horizon electric lawn mower (no signage or text visible on the device body)

GB Electric lawn scarifier and raker

Labeled diagram of a lawn mower with numbered parts, showing mechanical components and assembly details.

4

Diagram of a Hadoop lawn mower with labeled parts and warning indicators

5 ⑧

6 ① ⑨

DE

Inhaltsverzeichnis

Merotec Service Center

Ostring 60

D- 66740 Saarlouis

Germany

Elektro-Rasenlüfter/Vertikutierer Modell: DT5307 SAN: 00401AUAO021 [phone] [e-mail] KUNDENSERVICE

Before you begin.... 16

For your safety 16

Your machine at a glance 20

Fitting 20

Operation 20

Cleaning and maintenance 21

Storing, transport 21

Malfunctions and troubleshooting ..... 22

Disposal 22

Technical data 22

CE Declaration of Conformity ..... 25

Before you begin...

Intended use

The machine is intended for scarifying (removal of moss and shallow rooted weed growth) from lawn surfaces in private properties and recreational gardens.

This product is not intended for commercial use. Generally acknowledged accident prevention regulations and enclosed safety instructions must be observed.

Only perform work described in these instructions for use. Any other use is improper. The manufacturer will not assume responsibility for damage resulting from such use.

What are the meanings of the symbols used?

Danger notices and information are clearly marked throughout these instructions for use. The following symbols are used:

DANGER! Direct danger to life and risk of injury! Directly dangerous situation that may lead to death or severe injuries.

WARNING! Probable danger to life and risk of injury! Generally dangerous situation that may lead to death or severe injuries.

CAUTION! Possible risk of injury! Dangerous situation that may lead to injuries.

NOTICE! Risk of damage to the device! Situation that may lead to property damage.

Note: Information to help you reach a better understanding of the processes involved.

These symbols identify the required personal protection equipment:

For your safety General safety instructions

• To operate this device safely, the user must have read and understood these instructions for use before using the device for the first time.

- Observe all safety instructions! Failure to do so may cause harm to you and others.

- Retain all instructions for use, and safety instructions for future reference.

- If you sell or pass the device on, you must also hand over these operating instructions.

- The device must only be used when it functions properly. If the device or part of the device is defective, have it repaired by a specialist.

- Never use the device in a room where there is a danger of explosion or in the vicinity of flammable liquids or gases.

• Always ensure that a device which has been switched off cannot be restarted unintentionally.

- Do not use devices with an on/off switch that does not function correctly.

- Keep children away from the device! Keep the device out of

the way of children and other unauthorised persons.

• Do not overload the device. Do not use the device for purposes for which it is not intended.
• Make sure to always wear the required personal protective equipment.
• Exercise caution and only work when in good condition: If you are tired, ill, if you have ingested alcohol, medication or illegal drugs, do not use the device, as you are not in a condition to use it safely.
• This product is not intended to be used by persons (including children) or who are limited in their physical, sensory or mental capacities or who lack experience and/or knowledge of the product unless they are supervised, or have been instructed on how to use the product, by a person responsible for their safety.
• Ensure that children are not able to play with the device.
  • Always comply with all applicable domestic and international safety, health, and working regulations.

Risks caused by vibrations

CAUTION! Risk of injury due to vibrations!

Vibrations may, in particular for persons with circulation problems, cause damage to blood vessels and/or nerves. If you notice any of the following symptoms, stop working immediately and consult a doctor. Numbness of body parts, loss of sense of feeling, itching, pins and needles, pain, changes in skin colour.

The vibration values specified in the technical data represent the main uses of the device. The actual existing vibrations during use may deviate from these as a result of the following factors:

• Incorrect use of the product;
• Unsuitable tools inserted;
• Unsuitable material;
  • Insufficient maintenance.

You can reduce the risks considerably by following the tips below:

- Maintain the device in accordance with the instructions in the operating instructions.

GB

• Avoid working at low temperatures.
• When it is cold, make sure your body and your hands, in particular, are kept warm.
  • Take regular breaks and move your hands at the same time to promote circulation.

Electrical safety

• The device may only be connected to a socket that is correctly installed and grounded.
• The fuse must be a residual current circuitbreaker with a measured residual current of no more than 30 mA.
• Make sure that the power supply corresponds with the connection specifications of the device before it is connected.
• The tool may only be used within the specified limitations for voltage and power (see type plate).
• Do not touch the mains plug with wet hands! Always pull out the mains plug at the plug and not by the cable.
• Do not bend, crush, pull or drive over the power cable, protect from sharp edges, oil and heat.
• Do not lift the device using the cable or use the cable for

purposes other than intended.

• Check the plug and cable before each use.
• If the power cable is damaged immediately disconnect the plug. Never use the device if the power cable is damaged. Only customer service or qualified person may change the cable.
• If the device is not in use make sure the plug is pulled out.
• Make sure that the device is switched off before plugging in the mains cable.
• Make sure that the device is switched off before unplugging it.
• Disconnect the power supply before transporting the device.

Maintenance

• Before conducting any maintenance on the device, disconnect the mains plug.
• Only those maintenance and fault elimination tasks described here may be carried out. Any other tasks must be completed by a specialist.
• Only use original replacement parts. Only these replacement parts are designed and suitable for the device. Other replacement parts will not only lead to an invalidation

of the warranty, they may also endanger you and your environment.

Device-specific safety instructions

• Young adults under 16 as well as users who are not sufficiently familiar with its operation may not operate this machine.
• Regularly check that all threaded connections are tight.
• Always keep the connecting lead out of the machine's working area. Guide the mains cable backwards away from the machine.
• Ensure a secure and natural distance when working with the machine.
  • Always hold the machine with both hands.
• Before starting work, always check the ground and remove all objects which could be thrown by the machine.
  • Always maintain a sufficient distance from the working (de-thatching) roller.
• Guide the de-thatcher only at walking pace.
  • Work only under good conditions of light and visibility.
  • The user must wear tightly fitting

clothing. Avoid loose clothing. Wear robust footwear and long work trousers.

• Make sure that no other people or animals are close to the working area.
- When changing direction on a slope, be especially careful.
- Never work adjacent to garden ponds or swimming pools.
- Observe local regulations relating to rest periods.
• Take care when going backwards. Danger of tripping!
- Remember that moving parts may also be located behind ventilation and venting slots.

Symbols appearing on your product may not be removed or covered. Information on the product that are no longer legible must be replaced immediately.

Be careful when handling the device! Observe all safety instructions in the instructions for use!

Read the instructions for use before commissioning.

Danger due to foreign bodies being thrown out.

Always maintain a sufficiently safe distance.

Danger of injury from electric current!

Risk of damage to the mains cable!

Always keep the mains cable away from the machine.

Beware of sharp tines, keep fingers and toes away!

Disconnect the mains plug before all cleaning and maintenance work. Tines continue to rotate after the motor is switched off.

GB

If the mains cable is damaged, pull out the plug.

Do not expose the machine to moisture.

Double insulation.

Waste electrical products should not be disposed of with household waste.

The product complies with the applicable European directives and an evaluation method of conformity for these directives was done.

Protected against splashing water from any direction.

DANGER! Risk of cutting hands and feet by tool.

Guaranteed sound power level.

Personal safety equipment

Wear ear defenders

Wear safety shoes

Wear safety goggles

Wear protective gloves

Your machine at a glance

▶ P. 3, item 1

1. Trigger
2. Handle bar
3. Handle bar, middle part
4. Handle bar, bottom part
5. Protective flap
6. Knob for working depth adjustment
7. Bag for cuttings
8. Strain relief mechanism for extension cable
9. Operating safety lock

What is included

• Instructions for use

• Scarifier

• Handle bar

• Handle bar, middle part (2×)
• Handle bar, bottom part (2×)
• Collection sack
  • Mains plug strain reliever
• Bag with small parts

Fitting

Mounting the handle

▶ P. 3. item 2

-Insert the lower handle into the mounting holes. Then insert the fix bolt and tighten.
-Position the middle part of the handle bar (3) onto the bottom part of the handle bar and push through the carriage bolts (11).
-Apply the wing nuts (12) and tighten.

▶ P. 4, item 3

-Push the cable grip (8) onto the handle bar (2).
-Position the handle bar (2) onto the middle part of the handle bar and push through the carriage bolts (13).
-Apply the wing nuts (14) and tighten.

Operation

Check before use!

DANGER! Danger of injury! Do not operate the machine unless you did not find any faults. If a part has become defective, make sure to replace it before you use the machine again.

Check the safe condition of the machine:

-Check it for visual defects.
-Check that all parts of the machine have been securely fitted.

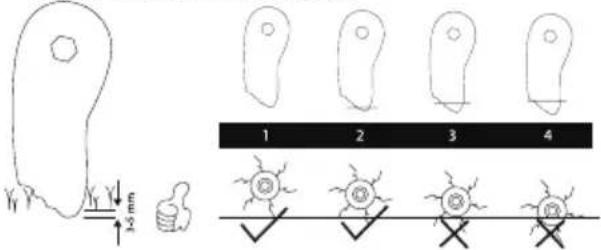

Adjusting the working depth

Depending on the wear on the working roller, the setting can be modified (working depths: ▶

Technical data - p. 21).

▶ P. 3, item 1

-Switch the machine off.
-Raise the machine at the front.
-Adjust the desired depth of the working roller using the knob (6).
-Lower the machine again.

3-5 mm 1 2 3 4

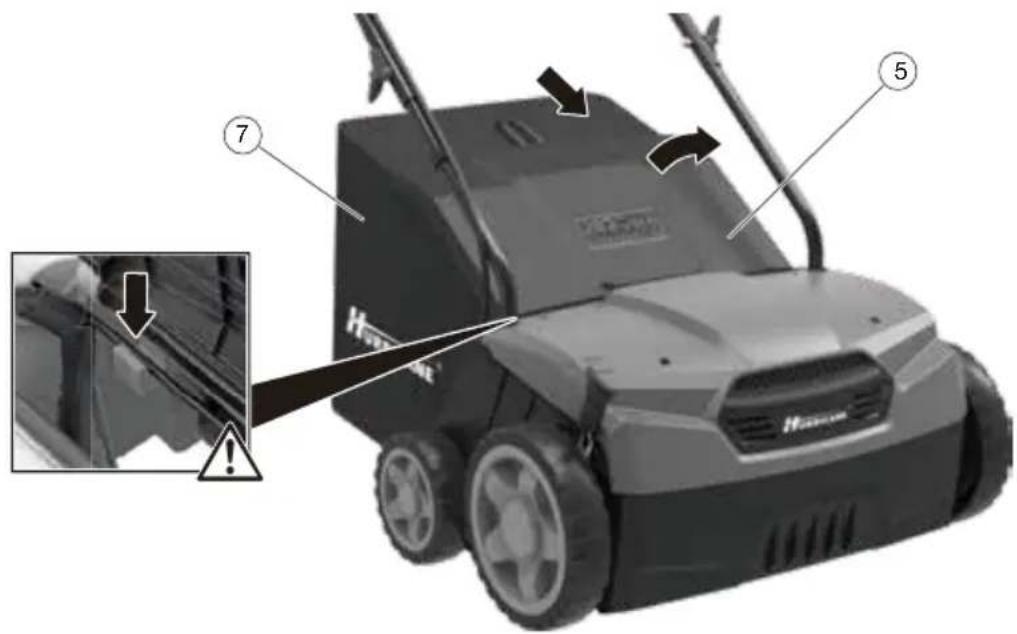

Attaching the cuttings bag

▶ P. 4, item 4

-Lift the protective flap (5) and hold.
-Slot the cuttings bag (7) into place.
-Ensure that the bag has slotted into place securely.

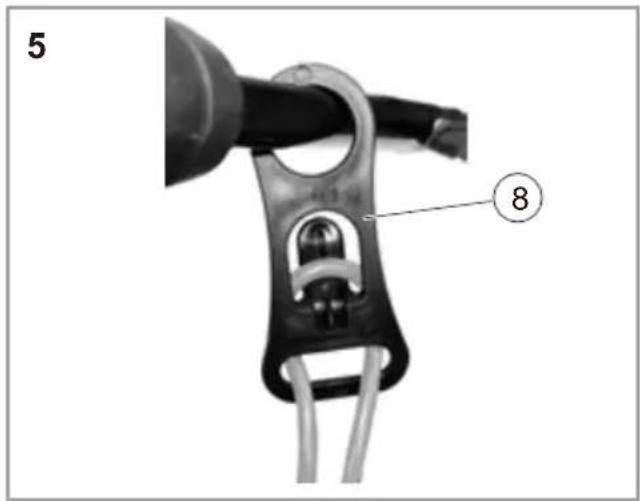

Connecting the product

▶ P. 5, item 5

-Pull the extension cable through the cable grip (8) as illustrated.
-Insert the extension cable coupling into the mains.

De-thatching/aerating

DANGER! Danger of injury! Before starting work, always check the ground and remove all objects which could be thrown by the machine.

DANGER! Danger of injury! Never release the trigger while working.

Note: The shorter the lawn has been cut, the better it can be de-thatched/aerated.

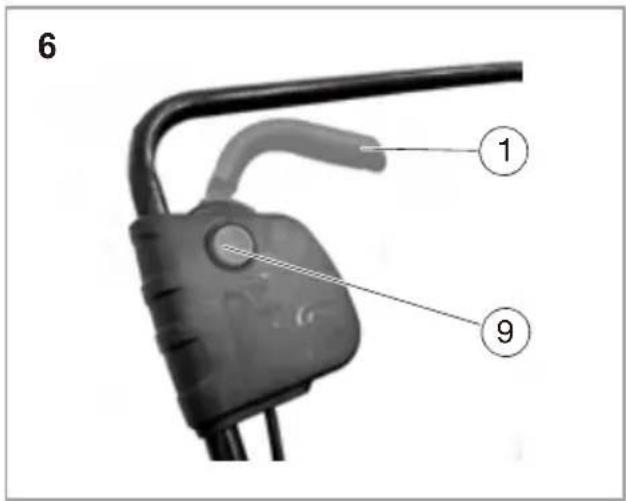

▶ P. 5, item 6

-Position the machine on a level lawn surface.
-Press the operating safety lock (9) and hold down.
-Pull and keep hold of the trigger (1).
-Release the operating safety lock.
-Wait until the motor has reached its maximum speed.
-Guide the machine at an even slow speed (walking pace) in a straight line wherever possible.

Important information

DANGER! Danger of injury!

-Always keep the extension cable away from the machine.
-Wherever possible, work across the slope.
- Never start the machine on a solid surface.
-If the working roller becomes blocked by a solid object, release the trigger immediately.
-If a foreign body was picked up, check the machine and have it repaired if necessary.

• For an improved result, and to lengthen the machine's working life, the lawn should be cut as short as possible.
• Staying for too long in one place can damage the lawn surface.

Cleaning and maintenance

DANGER! Danger of injury! Prior to any maintenance and/or cleaning:

-Switch the machine off.
-Pull out the plug.

WARNING! Danger of injury! The working roller runs on!

• Never turn the machine over, or lift or carry it when the motor is running.
  -Prior to any maintenance and/or cleaning, wait until the machine has come to a stop.

WARNING! Danger of injury! Perform only the maintenance steps described here.

Have all other work, in particular motor maintenance and repairs, conducted by a trained technician. Improperly performed work may cause damage to the machine and may result in injury.

Cleaning and maintenance overview Prior to every start

What? How?

Check mains plug and cable for damage.

Inspect visually and, if necessary, have the parts replaced by a trained electrician.

Check all screwed connections and tighten them if necessary.

Remove all grass and moss from the ventilation slits of the motor.

Remove them with a vacuum cleaner or a brush.

Cleaning the machine

The machine should be cleaned immediately after each use. Grass residue which dries in place is very hard, and can be removed only with difficulty.

-Empty the collecting sack.
-Remove grass residue with a brush and a plastic scraper if necessary (do not use sharp equipment).
-Remove deposits from the wheels.
-Wipe the machine with a slightly damp cloth.
-Never clean with water or a high pressure jet.

Storing, transport

Storing

DANGER! Attention, danger of injury!

Store the machine in such a way that it cannot be started by unauthorised people and that it is inaccessible to children.

Ensure that no-one can be injured by the machine when stationary.

NOTICE! Risk of machine damage!

Do not store the machine in damp areas without protection.

- Store the machine where it is dry and well ventilated.

Transport

- If shipping, use the original packaging wherever possible.

Malfunctions and troubleshooting In the event of a malfunction...

DANGER! Danger of injury!

Improperly conducted repairs may prevent your machine from working safely. Such repairs will endanger you and your surroundings.

Malfunctions are often caused by minor faults. You can easily remedy most of these yourself. Please consult the following table before contacting the vendor. You will save yourself a lot of trouble and possibly money too.

Technische Daten

Item number 27730254

Rated voltage 220-240 V\~, 50 Hz

Rated power 1400 W

Protection class II

Grade of protection IPX4

Idling speed 5000 min -1

Working width 320 mm

Working height -10, -5, 0, 5 mm

Number of steps 4

Volume of cutting bag 40 l

Acoustic power (LWA) ^* 103 dB(A)

Acoustic pressure (LPA) ^* 82.7 dB(A) (K = 3 dB(A))

Vibration** < 4.5m / s^2 (K = 1,5m / s^2)

Weight 11.8 kg

Fault/malfunction	Cause	Remedy
Motor does not run.	No mains voltage?	Check cables, plug, socket and fuse.
	Connection cable defective?	Contact your local vendor.
Chattering noise.	Foreign body in the working roller?	Switch the machine off, remove the foreign body.
Whistling noise.	Drive belt slipping? Contact your local vendor.
Insufficient performance.	Grass too long?	Mow the grass before de-thatching.
	Drive belts defective?	Contact your local vendor.
	Is the working roller worn?	Adjusting the working depth

If you can't fix the fault yourself, contact your nearest vendor. Please be aware that any improper repairs will also invalidate the warranty and additional costs may be incurred.

Disposal

Disposal of the appliance

Appliances which are labelled with the adjacent symbol must not be disposed of in household

waste. You must dispose of such old electrical and electronic equipment separately.

– Please check with your local authority about the possibilities for correct disposal.

Disposal of the packaging

The packaging consists of cardboard and correspondingly marked plastics that can be recycled.

- Make these materials available for recycling.

*) The specified values are emission values and do not necessarily represent safe workplace values. Although there is a correlation between emission and immission levels, this cannot be used to infer whether additional safety measures are necessary or not. Factors which affect the current immission levels at the workplace, include the type of room, other sources of noise, e. g. the number of machines operating and other processes taking place in the vicinity. Permitted workplace values can differ from country to country. This information is designed to help the user to better assess the dangers and risks. Determination of noise emission values in accordance with EN 60745-1.

**) The specified vibration emission value was measured in accordance with a normed test procedure and can be used in order to compare one tool with another. The specified vibration emission value can also be used for an introductory evaluation of the exposure. The vibration emission value may fluctuate from the specified value during actual use of the power tool. These fluctuations will depend on the way in which the power tool is used. Try to keep vibrations to a minimum. One method of

reducing the vibration load is, for example, limiting the length of time you work with the tool. All parts of the operating cycle must be taken into account for this purpose (for example, also including times in which the power tool is switched off and times in which it is switched on, but is running without load). Determination of vibration emission values in accordance with EN EN 60335-1.

Warranty conditions

Dear Customer,

The Hurricane warranty offers you extensive benefits:

Warranty period:

2 years from date of purchase.

6 months for wear and consumables at normal and regular intervals (e.g. Grass bag and cutting blades)

ADVICE: Please contact our service hotline by phone, this allows us to provide support in the event of possible operator errors.

The warranty does not cover damage caused by:

• Accident or unanticipated events (e.g. lightning, water, fire).
• Improper use or transport.
• Disregard of the safety and maintenance instructions.
• Other improper treatment or modification.

After expiry of the warranty period, you also have the option of having repairs carried out at a charge in the service center. If the repair or the estimate is not free of charge for you, you will be informed in advance. The statutory warranty obligation of the transferor is not limited by this guarantee. The warranty period can only be extended if required by a statutory standard. In countries where a (mandatory) guarantee and / or spare parts storage and / or a compensation scheme are required by law, the statutory minimum conditions apply. The service company and the seller accept no liability for any data or settings stored on the product by the customer.

Service address:

Sertronics GmbH

Merotec Service Center

Ostring 60

D- 66740 Saarlouis

Germany

Electric lawn scarifier and raker Modell: DT5307 SAN: 00401AUAO021

[phone]

[e-mail]

AFTER SALES SERVICE

CE Declaration of Conformity

MEROTEC GmbH

Otto-Brenner-Str. 8

47877 Willich

Germany

Declare that the Product detailed below:

Electric Lawn Scarifier and Raker

DT5307

Satisfy the requirement of the Council Directives:

ROHS Directive 2011/65/EU

Machinery Directive 2006/42/EC

EMC Directive 2014/30/EU

NOISE Directive 2000/14/EC & 2005/88/EC

Measured sound power level: 98.2 dB(A), Guaranteed sound power level: 103 dB(A)

Measured sound press level: 82.7 dB(A)

And conforms with the Standards:

EN 60335-1:2012+A11:2014+A13:2017

EN 50636-2-92:2014

EN 55014-1:2017

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

EN 50581:2012

Authorized documentation representative:

Dirk Wohlrab

MEROTEC GmbH

Signature:

Poland Huelon

Date: 9/16/2020

The manufacturer bears sole responsibility for issuing this declaration of conformity.

The subject of the declaration described above complies with the provisions of Directive 2011/65 / EU of the European Parliament and of the Council of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

CZ

Obsah

Risks caused by vibrations

3.5 mm 1 2 3 4

Merotec Service Center

Ostring 60

D- 66740 Saarlouis

Germany

3.5 mm 1 2 3 4

Merotec Service Center

Ostring 60

D- 66740 Saarlouis

Germany

Elektrický prevzdušňovač trávnika/vertikutátor Model: DT5307 SAN: 00401AUAO021 [phone] [e-mail] POPREDAJNÝ SERVIS

Four safety warning symbols: warning triangle, open book, pictogram with running figure, disconnection with person, and lightning bolt.

Pri delu z napravo bodite previdni! Upoštevajtevsva varnostna navodila v navodilih zauporabo! Pred zagonom prebrati navodilo za uporabo.

Diagram illustrating a hand gesture with labeled parts and a sequence of hand gestures, including checkmarks and crosses.

SI

Merotec Service Center

Ostring 60

D- 66740 Saarlouis

Germany

Električni prezračevalnik trate/ vertikulator Model: DT5307 SAN: 00401AUAO021 [phone] [e-mail] POPRODAJNA STORITEV

SI

Izjava CE o skladnosti

MEROTEC GmbH

Otto-Brenner-Str. 8

47877 Willich

Germany

Izjavite izdelek:

Merotec Service Center

Ostring 60

D- 66740 Saarlouis

Germany

Električni "prozračivač" trave/ aerifikator Model: DT5307 SAN: 00401AUAO021

[phone]

[e-mail]

NAKON PRODAJNOG SERVISA

Izjava o sukladnosti CE

MEROTEC GmbH

Otto-Brenner-Str. 8

47877 Willich

Germany

Deklarirajte proizvod:

Električni "prozračivač" trave/aerifikator

DT5307

Entreposage, transport ..... 71

Entreposage, transport

Entreposage

DANGER! Attention, risque de blessure!

Merotec Service Center

Ostring 60

D- 66740 Saarlouis

Germany

Directive RoHS (LdSD) 2011/65/EU

Directive CE Machines 2006/42/EC

Directive CEM 2014/30/EU

Merotec Service Center

Ostring 60

D- 66740 Saarlouis

Germany

3.5 mm 1 2 3 4

Opvangzak plaatsen

▶ P. 4, punt 4

-Beschermingsklep (5) opheffen en vasthouden.

-Opvangzak (7) inhaken.

WAARSCHUWING! Risico op letsels!

WAARSCHUWING! Risico op letsels!

If you can't fix the fault yourself, contact your nearest vendor. Please be aware that any improper repairs will also invalidate the warranty and additional costs may be incurred.

Fout/storing Oorzaak Oplossing

The warranty does not cover damage caused by:

Merotec Service Center

Ostring 60

D- 66740 Saarlouis

Germany

Elektrische gazon verticuteerder/raker

Model: DT5307

SAN: 00401AUA0021

[phone]

[e-mail]

SERVICE NA VERKOOP

-Switch the machine off.
-Pull out the plug.

- Make these materials available for recycling.

Datos técnicos
