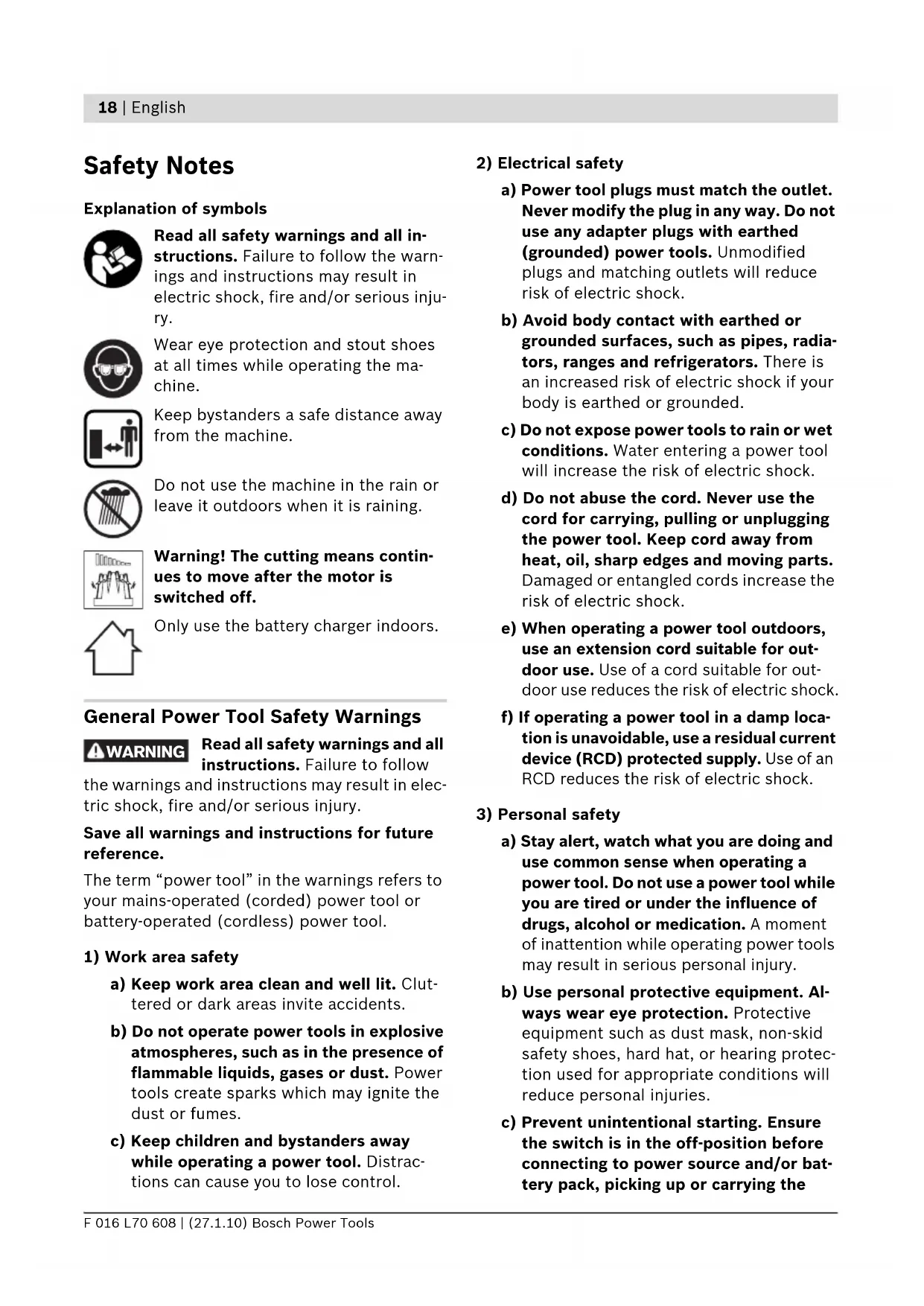

Safety Notes Explanation of symbols Read all safety warnings and all in- structions. Failure to follow the warn- ings and instructions may result in electric shock, fire and/or serious inju- ry. Wear eye protection and stout shoes at all times while operating the ma- chine. Keep bystanders a safe distance away from the machine. Do not use the machine in the rain or leave it outdoors when it is raining. Warning! The cutting means contin- ues to move after the motor is switched off. Only use the battery charger indoors. General Power Tool Safety Warnings Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in elec- tric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Clut- tered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distrac- tions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radia- tors, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for out- door use. Use of a cord suitable for out- door use reduces the risk of electric shock. f) If operating a power tool in a damp loca- tion is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Al- ways wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protec- tion used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or bat- tery pack, picking up or carrying the WARNING OBJ_BUCH-1077-002.book Page 18 Wednesday, January 27, 2010 4:40 PMEnglish | 19 Bosch Power Tools F 016 L70 608 | (27.1.10) tool. Carrying power tools with your fin- ger on the switch or energising power tools that have the switch on invites acci- dents. d) Remove any adjusting key or wrench be- fore turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal inju- ry. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unex- pected situations. f) Dress properly. Do not wear loose cloth- ing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connec- tion of dust extraction and collection fa- cilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the cor- rect power tool for your application. The correct power tool will do the job better and safer at the rate for which it was de- signed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be re- paired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust- ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfa- miliar with the power tool or these in- structions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for mis- alignment or binding of moving parts, breakage of parts and any other condi- tion that may affect the power tool’s op- eration. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Prop- erly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these in- structions, taking into account the work- ing conditions and the work to be per- formed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with anoth- er battery pack. b) Use power tools only with specifically designated battery packs. Use of any oth- er battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects, like pa- per clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to anoth- er. Shorting the battery terminals togeth- er may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additional- ly seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a qual- ified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. OBJ_BUCH-1077-002.book Page 19 Wednesday, January 27, 2010 4:40 PM20 | English F 016 L70 608 | (27.1.10) Bosch Power Tools Hedge trimmer safety warnings f Keep all parts of the body away from the cutter blade. Do not remove cut material nor hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inat- tention while operating the hedge trimmer may result in serious personal injury. f Carry the hedge trimmer by the handle with the cutter blade stopped. When transport- ing or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible per- sonal injury from the cutter blades. f Hold power tool by insulated gripping sur- faces only, because the cutter blade may contact hidden wiring. Cutting blades con- tacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. f Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the blade. Safety Warnings for Shrub/Grass Shears f This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of ex- perience and knowledge, unless they have been given supervision or instruction con- cerning use of the appliance by a person re- sponsible for their safety. Children should be supervised to ensure that they do not play with the appliance. f Never allow children or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator. When not in use store the machine out of reach of children. f The operator or user is responsible for acci- dents or hazards occurring to other people or their property. f Never operate the machine while people, es- pecially children or pets, are nearby. f Keep supply flexible cord away from cutting means. f Wear eye protection and stout shoes at all times while operating the machine. f Avoid trimming in bad weather conditions es- pecially when there is a risk of lightening. f Use the machine only in daylight or good ar- tificial light. f Check if guards and protective devices are undamaged and properly mounted. Before using, carry out possibly necessary mainte- nance and repairs. f Switch on the motor only when the hands and feet are away from the cutting means. f Always disconnect the machine from the power supply (i. e. remove the plug from the mains or remove the disabling device): – whenever you leave the machine, – before clearing a blockage, – before checking, cleaning or working on the machine, – after striking a foreign object. Inspect the machine for damage and make repairs as necessary, – if the machine starts to vibrate abnormal- ly (check immediately). f Take care against injury to feet and hands from the cutting means. f Before any work on the machine (e. g. main- tenance, changing the tool, etc.) as well as during its transport and storage, lock the On/Off switch in the off position. There is danger of injury when the On/Off switch is unintentionally actuated. Protect the power tool against heat, e. g., also against continuous sun irra- diation and fire. There is danger of ex- plosion. f Do not open the battery. Danger of short- circuiting. f Do not short-circuit the battery. There is danger of explosion. f In case of damage and improper use of the battery, vapours may be emitted. Provide for fresh air and seek medical help in case of complaints. The vapours can irritate the respiratory system. OBJ_BUCH-1077-002.book Page 20 Wednesday, January 27, 2010 4:40 PMEnglish | 21 Bosch Power Tools F 016 L70 608 | (27.1.10) f When the battery is defective, liquid can es- cape and come into contact with adjacent components. Check any parts concerned. Clean such parts or replace them, if required. Safety Warnings for battery chargers Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock. f Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. f Do not charge other batteries. The battery charger is suitable only for charging Bosch lithi- um ion batteries within the listed voltage range. Otherwise there is danger of fire and explosion. f Do not charge non-rechargeable batteries. There is a danger of explosion. f Keep the battery charger clean. Contamina- tion can lead to danger of an electric shock. f Before each use, check the battery charger. If damage is detected, battery charger should be changed to new one. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Dam- aged battery chargers, cables and plugs in- crease the risk of an electric shock. f Do not operate the battery charger on easi- ly inflammable surfaces (e. g., paper, tex- tiles, etc.) or surroundings. The heating of the battery charger during the charging proc- ess can pose a fire hazard. f Children should be supervised to ensure that they do not play with the battery charger. Functional Description Read all safety warnings and all in- structions. Failure to follow the warnings and instructions may re- sult in electric shock, fire and/or se- rious injury. While reading the operating instructions, unfold the graphics page for the garden product and leave it open. Intended Use The garden product is intended for light trim- ming of shrubs and lawn edges in domestic use. Delivery Scope Carefully remove the garden product from its packaging and check if the following parts are complete: – Shrub shear or grass shear – Grass shear blade (not for ASB 10,8 LI) – Shrub shear blade (not for grass shears) – Additional shrub shear blade (120 mm) (only with “shrub/grass shear” set) – Blade guard(s) (fitted to all blades supplied) – Pole cart (only with “grass shear & pole cart” set) – Battery Charger – Operating instructions When parts are missing or damaged, please con- tact your dealer. Product Features The numbering of the garden product features refers to the illustration of the garden product on the graphics page. 1 Grass shear blade 2 Battery charge-control indicator 3 Safety lock 4 Handle 5 Battery charger 6 Plug connector for charger 7 On/Off switch 8 SDS release button 9 Shrub shear blade 10 Telescopic pipe 11 Adjusting collar 12 Handle connector 13 Wheels 14 Wheel cart 15 Socket for charge plug 16 SDS drive cover 17 Blade guard Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our acces- sories program. OBJ_BUCH-1077-002.book Page 21 Wednesday, January 27, 2010 4:40 PM22 | English F 016 L70 608 | (27.1.10) Bosch Power Tools Technical Data Grass Shear (*with pole cart) Shrub Shear Shrub/Grass Shear Set AGS 7,2 LI AGS 10,8 LI ASB 10,8 LI ASB 10,8 LI Article number 3 600 ... H56 0.. H56 1.. H56 3.. H56 3.. Grass shear blade z z – z Blade width mm 80 100 – 100 Shrub shear blade – – z z Blade length

Anti Blocking – – z z Weight according to EPTA-Procedure 01/2003 kg 0.75 (1.4*) 0.775 (1.5*) 0.9

Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary. **approx. run time OBJ_BUCH-1077-002.book Page 22 Wednesday, January 27, 2010 4:40 PMEnglish | 23 Bosch Power Tools F 016 L70 608 | (27.1.10) Noise/Vibration Information Grass Shear Measured sound values determined according to EN 60745. Typically the A-weighted sound pressure level of the product is less than 70 dB(A). Vibration total values (triax vector sum) deter- mined according to EN 60335: Vibration emission value a

Shrub Shear Measured sound values determined according to 2000/14/EC. Typically the A-weighted noise levels of the product are: Sound pressure level 66 dB(A); sound power level 76 dB(A). Uncertainty K=1dB. Vibration total values (triax vector sum) deter- mined according to EN 60745: Vibration emission value a

The vibration emission level given in this infor- mation sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level repre- sents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may signifi- cantly increase the exposure level over the total working period. An estimation of the level of exposure to vibra- tion should also take into account the times when the tool is switched off or when it is run- ning but not actually doing the job. This may sig- nificantly reduce the exposure level over the to- tal working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns. Declaration of Conformity Grass Shear We declare under our sole responsibility that the product described under “Technical data” is in conformity with the following standards or standardization documents: EN 60335 (battery powered product) and EN 60335 (battery charg- er) according to the provisions of the directives 2006/95/EC, 2004/108/EC, 2006/42/EC. Shrub Shear We declare under our sole responsibility that the product described under “Technical Data” is in conformity with the following standards or stand- ardization documents: EN 60745 (battery powered product) and EN 60335 (battery charger) accord- ing to the provisions of the directives 2006/95/EC, 2004/108/EC, 2006/42/EC, 2000/14/EC. 2000/14/EC: Guaranteed sound power level 77 dB(A). Conformity assessment procedure ac- cording to Annex V. Equipment category: 25 Technical file at: Bosch Lawn and Garden Ltd., PT-LG/EAE, Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider Senior Vice President Engineering Dr. Eckerhard Strötgen Head of Product Certification OBJ_BUCH-1077-002.book Page 23 Wednesday, January 27, 2010 4:40 PM24 | English F 016 L70 608 | (27.1.10) Bosch Power Tools Assembly For Your Safety f Warning! Switch off before adjusting or cleaning. The blades continue to move for a few seconds after the garden product is switched off. Caution! Do not touch the moving blades. Battery Charging (see figure A) f Do not use other battery chargers. The sup- plied battery charger is designed for the Lith- ium-Ion battery in your garden product. f Observe the mains voltage! The voltage of the power supply must correspond with the data given on the nameplate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V. f The voltage range of the charger is 100–240 V. Ensure that the plug matchs the outlet. Note: The battery is supplied partially charged. To ensure full capacity of the battery, complete- ly charge the battery in the battery charger be- fore using your power tool for the first time. The lithium ion battery can be charged at any time without reducing its service life. Interrupt- ing the charging procedure does not damage the battery. The “Electronic Cell Protection (ECP)” protects the lithium ion battery against deep discharging. When the battery is run down or discharged, the garden product is shut off by means of a protec- tive circuit: The blade no longer moves. Do not continue to press the On/Off switch after the garden product has been automatically switched off. The battery can be damaged. Plug the mains plug of the battery charger into a socket outlet and the charger plug 6 into the socket 15 on the rear side of the handle, in one way only. The charging procedure starts as soon as the charger plug 6 of the battery charger is inserted into the socket 15. The battery charge-control indicator 2 indicates the charging progress. During the charging proc- ess, the indicator flashes green. When the bat- tery charge-control indicator 2 lights up green continuously, the battery is fully charged. During the charging procedure, the handle of the garden product warms up. This is normal. Disconnect the battery charger from the mains supply when not using it for longer periods. The garden product cannot be used during the charge procedure; it is not defective when inop- erative during the charging procedure. f Protect the battery charger against mois- ture! Pole cart (accessory or supplied with “Grass Shear & Pole Cart”) f The pole cart is designed only for use with the grass shear at ground level. f Do not use the pole cart with the shrub shear or above ground level. Removing Pole Cart (see figure B) n Unplug the handle connector 12. o To release the garden product from wheel cart 14, pull the garden product in the direc- tion shown. Fitting Pole Cart (grass shear only) Align the grooves on the garden product with fixing on the wheel cart 14. Plug in the handle connector 12. Adjusting Handle Length (see figure C) n Loosen the adjustment collar 11. o Pull the telescopic pipe 10 out to increase the height, or push it in to decrease the height. p Re-tighten adjustment collar 11. Adjusting for Edging Mode (see figure D) Turn the garden product 90 °, in either direction to position the garden product in the vertical edging mode.

• OBJ_BUCH-1077-002.book Page 24 Wednesday, January 27, 2010 4:40 PMEnglish | 25 Bosch Power Tools F 016 L70 608 | (27.1.10) Operation Initial Operation Switching On (see figure E) n Dis-engage the safety lock 3 by moving the button as shown. o Then press the On/Off switch 7 and keep it pressed. Switching Off Release the On/Off switch 7. Engage the safety lock 3 by moving the button as shown. Battery Charge-control Indication The battery charge-control indicator 2 indicates the charge condition of the battery for a few sec- onds when the On/Off switch 7 is pressed through halfway of fully. Working Advice f Hold the garden product away from your- self. Stand in a secure and stable position. f For more tips on cutting please refer to website www.bosch-pt.com. Anti Blocking (shrub shear only) The garden product has a patented feature which works as follows: If the blade stalls on a tough material, the load of the motor increases. The intelligent micro- electronics senses this overload condition and repeatedly reverses the motor, in order to pre- vent stalling and to cut the material through. This audible reversing cut action continues for up to 3 s. After cutting through, the garden product con- tinues in its normal mode, or in case the over- load condition continues the blades automati- cally stop in the open position (e. g. in case a piece of metal fence accidentally blocks the gar- den product). Cutting Hedges (shrub shear only) Before cutting check the hedge for foreign ob- jects e. g. wire fences. Cut stems up to 8 mm in thickness. When cut- ting, move steadily along the line of cut, so that stems are fed directly into the cutter blades. The double edge of the cutting blade enables cutting to either direction, or with a side to side motion. After use replace the blade transport guard. Recommended times – Cut hedges with deciduous leaves in June and October. – Cut evergreen hedges in April and August. – Cut conifer and other fast growing shrubs ap- prox. every six weeks from May onwards. Edging (grass shear only) (see figure D) Guide the garden product along the edge of the lawn. Do not allow the blade to contact paved surfaces, stones or garden walls, since this will wear the blade rapidly. For larger lawn it is advisable to use the pole cart (available as an accessory or supplier with “grass shear & pole cart” set). After use replace the blade transport guard. Maintenance and Service Maintenance and Cleaning f Warning! Switch off before adjusting or cleaning. The blades continue to move for a few seconds after the garden product is switched off. Caution! Do not touch the moving blades. f For safe and proper working, always keep the garden product clean. f Always wear protective gloves when using, adjusting or cleaning the garden product. LED Capacity Continuous lighting, green ≥ 35% Flashing light, green 15 – 35% Flashing light, red 5 – 15% Continuous lighting, red ≤ 5% OBJ_BUCH-1077-002.book Page 25 Wednesday, January 27, 2010 4:40 PM26 | English F 016 L70 608 | (27.1.10) Bosch Power Tools Note: To ensure long and reliable service, carry out the following maintenance regularly. Regularly check for obvious defects such as loose fixings, and worn or damaged components. Check if guards and protective devices are un- damaged and properly mounted. Before using, carry out possibly necessary maintenance and repairs. If the garden product should happen to fail de- spite the care taken in manufacture and testing, repair should be carried out by an authorised customer service agent for Bosch garden prod- ucts. In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product. Blade Maintenance Always clean the cutting blades after operation and lubricate with Bosch Maintenance spray. During longer cutting jobs, we recommend peri- odically lubricating the cutting blade with Bosch Maintenance spray. Visually check the condition of the cutting edges of the cutting blade. Ensure that the cutting blade is covered with the blade guard supplied when not in use. Changing the Blade (see figures F1 – F5) f Warning! Switch off before adjusting or cleaning. The blades continue to move for a few seconds after the garden product is switched off. Caution! Do not touch the moving blades. f Always wear protective gloves when using, adjusting or cleaning the garden product. f Do not do the blade change without blade covers. Blade Removal (see figures F1–F3) Blade Fitting (see figures F4– F5) After Use/Storage f Warning! Switch off before adjusting or cleaning. The blades continue to move for a few seconds after the garden product is switched off. Caution! Do not touch the moving blades. f Always wear protective gloves when using, adjusting or cleaning the garden product. Clean the exterior of the garden product thor- oughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all debris. Ensure that the cutting blade is covered with the blade guard supplied when not in use. Store the garden product in a secure, dry place out of the reach of children. Do not place other objects on top of the garden product. Accessories f Grass shear blade with 80 mm width is not recommended for garden product AGS 10,8 LI. Grass shear blade, 80 mm p. 2
• 609 003 884 Grass shear blade, 100 mm p. 2
• 609 003 867 Shrub shear blade, 110 mm p. 2
• 609 003 885 Shrub shear blade, 200 mm p. 2
• 609 003 868 Pole cart p. 2
• 609 003 869 Lubricant spray, 250 ml 609 200 399 n Push the SDS release button 8 on both sides. o The SDS drive cover 16 opens. p Pull out the blade 1. q Push the blade 9 in till it clicks in position. r Push the SDS drive cover 16 towards the garden product till the SDS release button 8 clicks in position. OBJ_BUCH-1077-002.book Page 26 Wednesday, January 27, 2010 4:40 PMEnglish | 27 Bosch Power Tools F 016 L70 608 | (27.1.10) After-sales Service and Customer Assistance Our after-sales service responds to your ques- tions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under: www.bosch-pt.com Our customer service representatives can an- swer your questions concerning possible appli- cations and adjustment of products and acces- sories. Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ Tel. Service: [phone] Fax: [phone] E-Mail: [e-mail] Ireland Origo Ltd. Unit 23 Magna Drive Magna Business Park City West Dublin 24 Tel. Service: [phone] Fax: [phone] Australia, New Zealand and Pacific Islands Robert Bosch Australia Pty. Ltd. Power Tools Locked Bag 66 Clayton South VIC 3169 Customer Contact Center Inside Australia: Phone: [phone] Fax: [phone] Inside New Zealand: Phone: [phone] Fax: [phone] Outside AU and NZ: Phone: [phone] www.bosch.com.au Republic of South Africa Customer service Hotline: [phone] Gauteng – BSC Service Centre 35 Roper Street, New Centre Johannesburg Tel.: [phone] Fax: [phone] E-Mail: [e-mail] KZN – BSC Service Centre Unit E, Almar Centre 143 Crompton Street Pinetown Tel.: [phone] Fax: [phone] E-Mail: [e-mail] Western Cape – BSC Service Centre Democracy Way, Prosperity Park Milnerton Tel.: [phone] Fax: [phone] E-Mail: [e-mail] Bosch Headquarters Midrand, Gauteng Tel.: [phone] Fax: [phone] E-Mail: [e-mail] Transport Dispatch batteries only when the housing is un- damaged. Tape or mask off open contacts and pack up the battery in such a manner that it can- not move around in the packaging. When dispatching lithium-ion batteries, compul- sory labeling may be required. Please observe the respective national regulations. OBJ_BUCH-1077-002.book Page 27 Wednesday, January 27, 2010 4:40 PM28 | English F 016 L70 608 | (27.1.10) Bosch Power Tools Disposal The garden product, accessories and packaging should be sorted for environmental-friendly re- cycling. Only for EC countries: Do not dispose of garden prod- ucts into household waste! According the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, garden products that are no longer usable must be collected separately and disposed of in an environmentally correct manner. Battery packs/batteries: Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should, if possi- ble, be discharged, collected, recycled or disposed of in an en- vironmental-friendly manner. Only for EC countries: Defective or dead out battery packs/batteries must be recycled according the guideline 2006/66/EC. Batteries no longer suitable for use can be directly returned at: Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ Tel. Service: [phone] Fax: [phone] E-Mail: [e-mail] When removing the battery from the garden product, actuate the On/Off switch 7 until the battery is completely discharged. Unscrew the screw in the casing and take off the casing shell. Disconnect the connections on the battery and remove the battery. Subject to change without notice. OBJ_BUCH-1077-002.book Page 28 Wednesday, January 27, 2010 4:40 PMFrançais | 29 Bosch Power Tools F 016 L70 608 | (27.1.10) p. 1
