USER MANUAL CT 15 E FESTOOL

(T-Nr.) CT 15 E 201944, 10766198 CT 25 E 10664965, 10792066 We as the manufacturer declare under our sole responsibility that the product(s) fulfill(s) all the relevant provisions of the following UK Regulations and are manufactured in accordance with the following desig- nated standards: S.I. 2008/1597 Supply of Machinery [Safety] Regulations 2008 S.I. 2016/1091 Electromagnetic Compatibility Regulations 2016 S.I. 2012/3032 Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 BS EN 60335-1:2012 + A2:2019 BS EN 60335-2-69:2012 BS EN 62233:2008 BS EN 55014-1:2017 BS EN 55014-2:2015

Signed on behalf of and in name of

EU Declaration of Conformity. We declare under sole responsibility that this product complies with all the relevant requirments in the following EU Directi- ves, and following standards or normative documents were applied:

/ valid for machines with Bluetooth

• 10 Umwelt Gerät nicht in den Hausmüll werfen! Geräte, Zubehör und Verpackungen ei ner umweltgerechten Wiederverwertung zuführen. Geltende nationale Vorschriften be achten. Gemäß Europäischer Richtlinie über Elektro- und Elektronik-Altgeräte und Umsetzung in na tionales Recht, müssen verbrauchte Elektro werkzeuge getrennt gesammelt und einer um weltgerechten Wiederverwertung zugeführt werden. Informationen zu den Rücknahmestellen für ei ne ordnungsgemäße Entsorgung sind unter www.festool.de/recycling einsehbar. Informationen zur REACH: www.festool.de/ reach Deutsch 13Contents 1 Safety warnings p. 14
• 2 Symbols p. 15

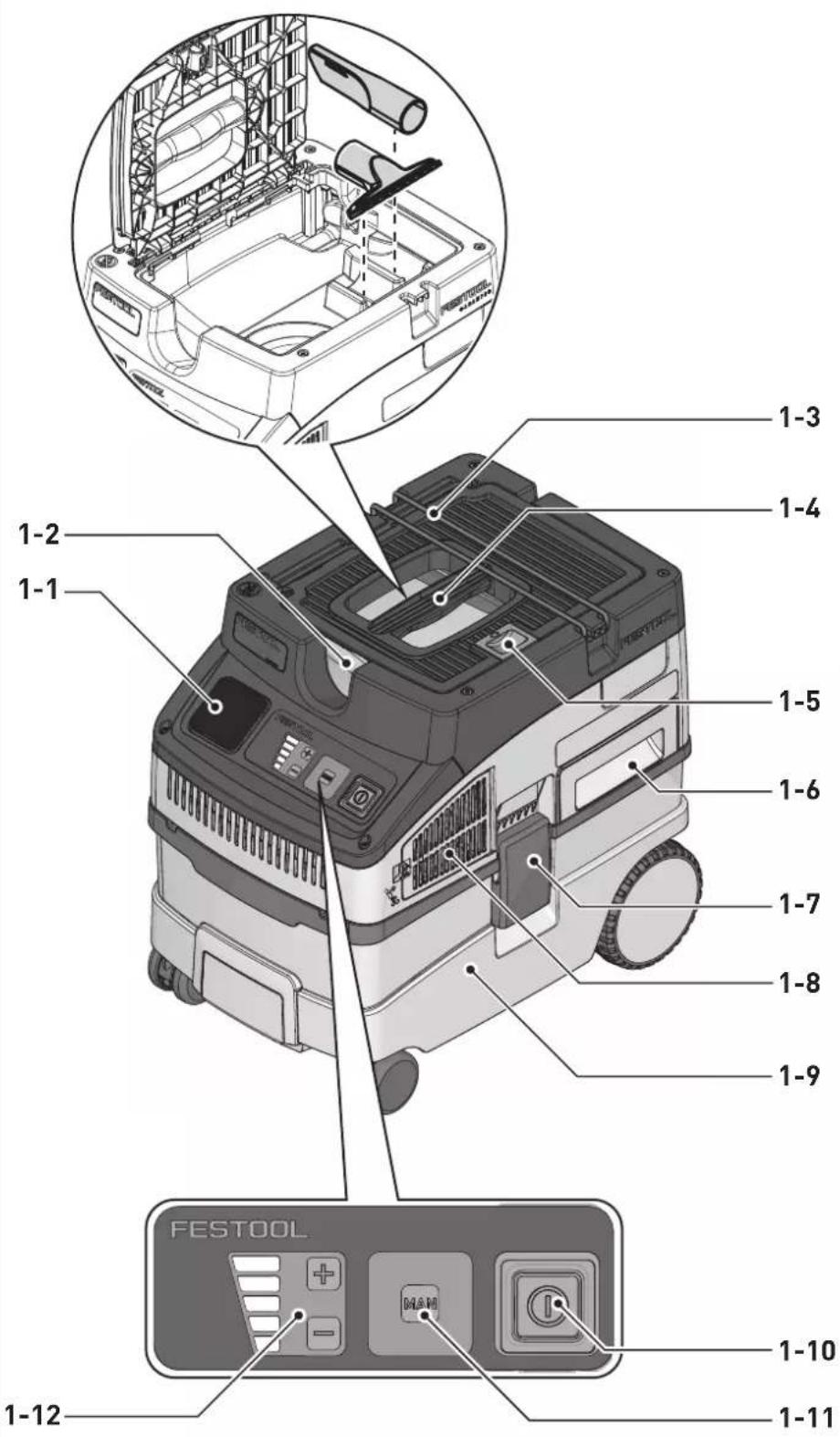

• 3 Parts of the machine p. 15
• 4 Technical data p. 16
• 5 Intended use p. 16
• 6 Commissioning p. 16
• 7 Settings p. 17
• 8 Working p. 17
• 9 Service and maintenance p. 18
• 10 Environment p. 19

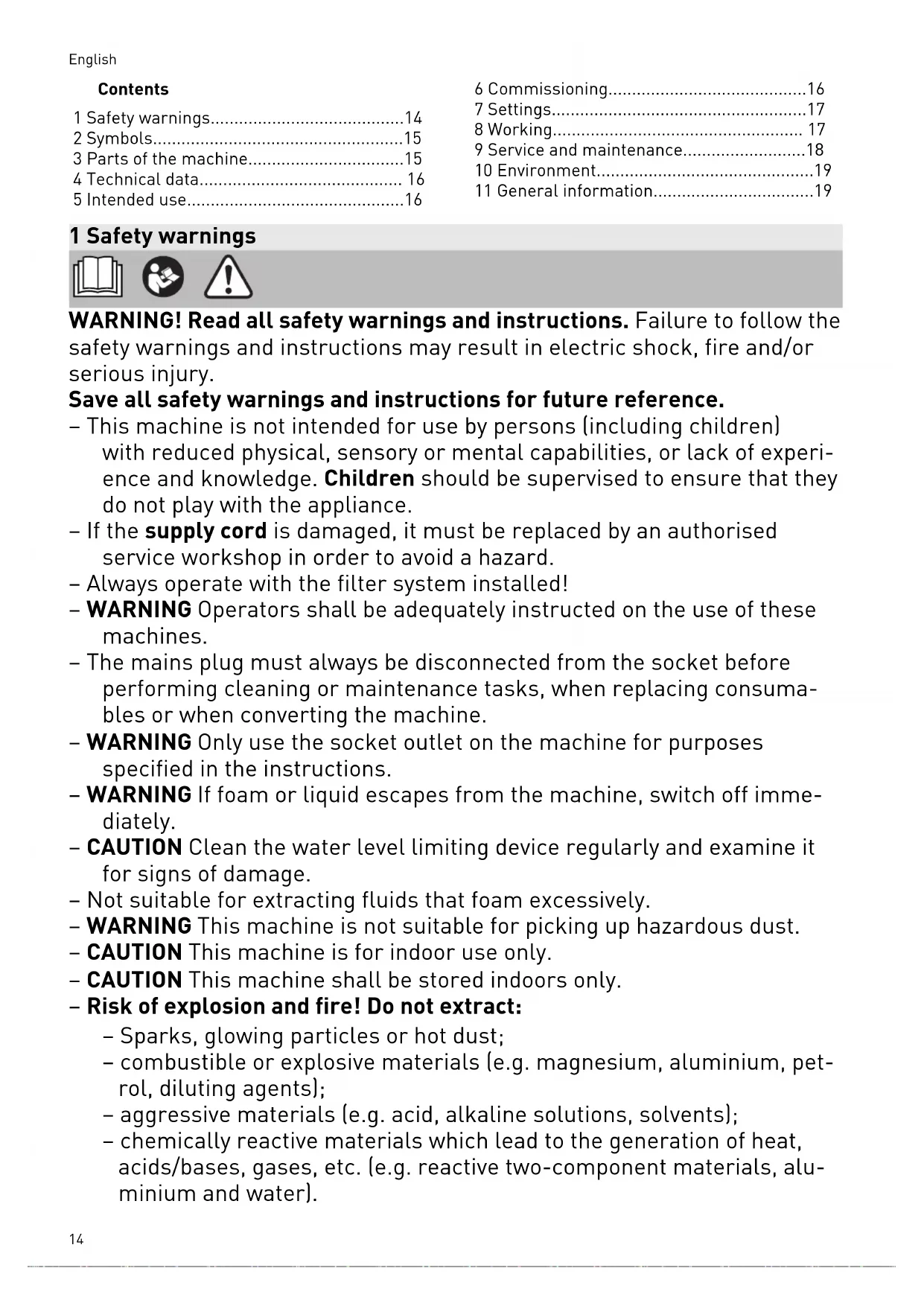

• 11 General information 1 Safety warnings WARNING! Read all safety warnings and instructions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury. Save all safety warnings and instructions for future reference. – This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experi ence and knowledge. Children should be supervised to ensure that they do not play with the appliance. – If the supply cord is damaged, it must be replaced by an authorised service workshop in order to avoid a hazard. – Always operate with the filter system installed! – WARNING Operators shall be adequately instructed on the use of these machines. – The mains plug must always be disconnected from the socket before performing cleaning or maintenance tasks, when replacing consuma bles or when converting the machine. – WARNING Only use the socket outlet on the machine for purposes specified in the instructions. – WARNING If foam or liquid escapes from the machine, switch off imme diately. – CAUTION Clean the water level limiting device regularly and examine it for signs of damage. – Not suitable for extracting fluids that foam excessively. – WARNING This machine is not suitable for picking up hazardous dust. – CAUTION This machine is for indoor use only. – CAUTION This machine shall be stored indoors only. – Risk of explosion and fire! Do not extract: – Sparks, glowing particles or hot dust; – combustible or explosive materials (e.g. magnesium, aluminium, pet rol, diluting agents); – aggressive materials (e.g. acid, alkaline solutions, solvents); – chemically reactive materials which lead to the generation of heat, acids/bases, gases, etc. (e.g. reactive two-component materials, alu minium and water). English 14– Observe all national safety regulations as well as the material manufac turer's specifications! – Always use suitable protective equipment! – If intact following a visual inspection, work in a dry environment accord ing to instructions! – Check the plug, the electrical outlet module, the cable and the filter regularly in order to prevent a hazard. Damaged electrical components must be replaced by an authorised service workshop only. – Do not lift or transport using a crane hook or lifting gear. – The mobile dust extractor must not be carried by the suction hose mount [1-3]. – Only place the tool on level ground and secure it against rolling away. – This machine must not be used by people who might have a particularly adverse reaction to an electric shock (e.g. people with cardiac pace makers), because the possibility of the machine building up a static charge cannot be excluded. – Use only the original Festool suction hose. – Pay attention to the work environment and watch out for your own safety and the safety of others when transporting or working with the machine. In this way, you can for example prevent tripping hazards caused by the suction hose or mains cable. – Keep packaging film away from children. There is a risk of suffocation. 2 Symbols Warning of general danger Warning of electric shock Read the operating manual and safety warnings. Read the operating manual and safety warnings. Do not dispose of it with domestic waste. Pull out the mains plug Wear a dust mask. Do not climb on the unit CE marking: Confirms the conformity of the power tool with the European Community directives. UKCA marking: Confirms the conform ity of the product with UK regulations. Tip or advice Handling instruction 3 Parts of the machine [1-1] Electrical outlet module [1-2] Cable and accessory holder [1-3] Suction hose mount [1-4] Handle [1-5] Lock [1-6] Filter drawer [1-7] Locking clip English 15[1-8] Exhaust opening [1-9] Dirt trap [1-10] On/off switch [1-11] MAN button [1-12] Suction power adjustment The specified illustrations appear at the begin ning of the Operating Instructions. 4 Technical data Mobile dust extractors Power consumption 350 - 1200 W Max. electrical outlet module connected load EU CH, DK p. 19

2200 W 1150 W 1610 W Max. suction capacity (air), extractor/turbine 130 m³/h / 222 m³/h Max. vacuum, turbine 24,000 Pa Filter surface area 3508 cm² Suction hose D 27/32 mm x 3,5 m-RAS/CT Mains power cable length 5.5 m Sound pressure level as per EN 60335-2-69/ uncertainty K 70 dB(A)/ 3 dB Hand-arm vibration value as per EN 60335-2-69/ uncertainty K <2.5 m/s²/ 1.5 m/s² Type of protection IP X4 Container capacity CT 15 E 15 l CT 25 E 25 l Dimensions (LxWxH) CT 15 E 470x320x430 mm CT 25 E 470x320x510 mm Weight CT 15 E 11.2 kg CT 25 E 12 kg 5 Intended use Mobile dust extractor suitable for – Extracting non-hazardous dust, dirt, sand and chips, – extracting water, – for increased loads during commercial use, according to IEC/EN 60335-2-69. The mobile dust extractor is only suitable for indoor use. The user is liable for improper or non-in tended use. 6 Commissioning WARNING Unauthorised voltage or frequency! Risk of accidents ► Observe the specifications on the ma chine's name plate. ► Observe country-specific regulations.

6.1 Initial commissioning

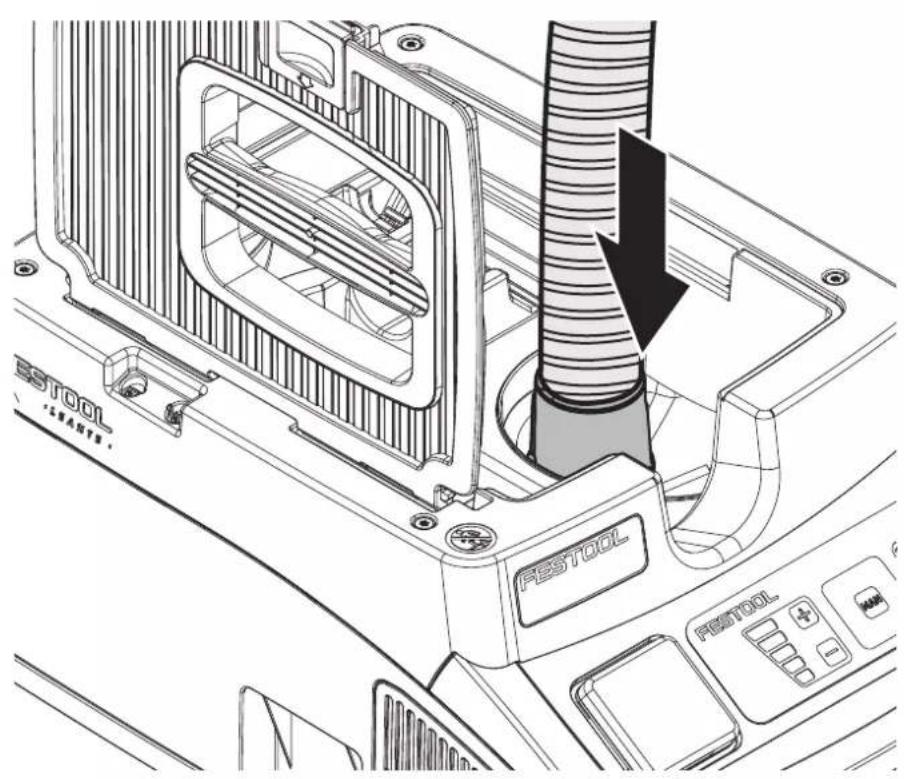

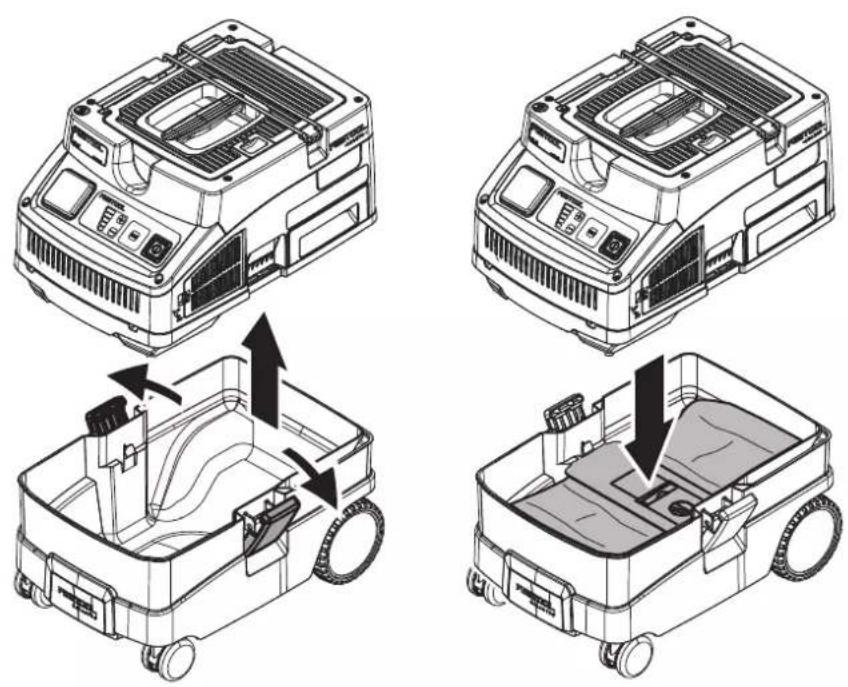

► Insert the filter bag [2]. ► Connect the suction hose [3]. English

166.2 Connecting the mobile dust extractor

WARNING Risk of injury from uncontrolled tool start-

► Before switching on ensure that the con nected tool is switched off. WARNING Risk of injury from electric current ► Insert the mains plug into an earthed sock et. ► Do not reach into the electrical outlet mod ule on the mobile dust extractor. While the mobile dust extractor is connec ted to the mains socket, an electric cur rent is running through electrical outlet module on the mobile dust extractor at all times. Connecting the mobile dust extractor to a mains socket The mobile dust extractor is switched off. ► Connect the power cable to a mains socket. The electrical outlet module [1-1] is live. Switching the mobile dust extractor to standby mode ► Press the on/off switch [1-10]. The electrical outlet module [1-1] is live. The green LED [1-12] indicates standby mode. Starting the mobile dust extractor automati cally The mobile dust extractor is in standby mode. ► To start the mobile dust extractor automati cally: Switch on the connected tool. Starting the mobile dust extractor manually The mobile dust extractor is in standby mode. ► Press the MAN button [1-11]. Pull the mains plug from the socket when you are not using the mobile dust extractor and before performing any cleaning and maintenance work.

6.3 Connecting power tools

WARNING Risk of injury ► Observe the maximum electrical outlet module connected load (see section "Tech nical data"). ► Switch off the power tool. Connecting a mains-powered power tool to the mobile dust extractor ► Connect the power tool to the electrical out let module [1-1]. The power tool is connected to the mobile dust extractor via the power cable. 7 Settings

7.1 Adjusting the suction power

► Press the plus or minus button [1-12] while extracting.

7.2 Connecting sleeve

The bypass function of the connecting sleeve prevents strong suction from sanding machines and floor nozzles on smooth surfaces. Open ► Turn the adjusting ring to the "OPEN" posi tion. Close ► Turn the adjusting ring to the "CLOSE" posi tion.

7.3 Temperature cut-out

A temperature cut-out switches the mobile dust extractor off when it reaches a critical tempera ture to prevent overheating. The bottom LED [1-12] indicates a fault. LED lights up red Excessive temperature ► Switch off the mobile dust extractor, let it cool down. ► Switch on the mobile dust extractor again after approx. five minutes. 8 Working

Extracting dry materials Always use a filter bag. English

178.2 Extracting wet materials/liquids

Remove the filter bag! Use a special wet filter. The dust extraction stops automatically when the maximum fill level is reached. The bottom LED [1-12] lights up red. ► Switch off the mobile dust extractor [1-10]. ► Open the locking clips [1-7] and remove the top section of the machine. ► Empty the dirt trap [1-9]. After wet extraction, allow the wet filter to dry! Dry the mobile dust extractor and dirt trap be fore extracting dry dust and before storing them. CAUTION Hazardous dust Damage to the respiratory passage ► After extracting wet materials, remove the wet filter and replace it with the main filter for dry materials. CAUTION Escaping foam and liquids ► Switch off and empty the machine immedi ately.

8.3 Exhaust-air outlet

CAUTION Hazardous dust Damage to the respiratory passage ► Do not blow off any dust! The exhaust-air outlet offers the option of di verting the exhaust air outside a building using the suction hose. ► Open the grille in front of the exhaust open ing [1-8]. ► Insert the suction hose in the exhaust open ing [1-8].

8.4 Changing the filter bag with minimal

dust ► Open the locking clips and remove the top section of the machine [2]. ► Pull the tab on the filter bag until the filter bag opening is fully closed. The filter bag is now securely closed and can be removed. ► Fit the top section of the machine and close the locking clips.

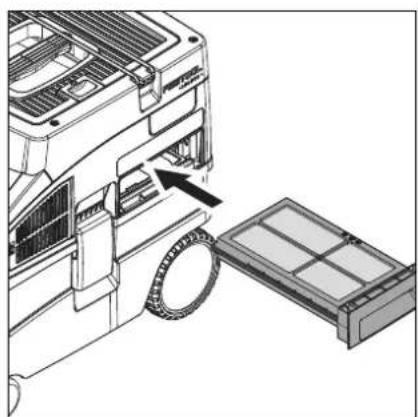

8.5 Changing the filter element [6]

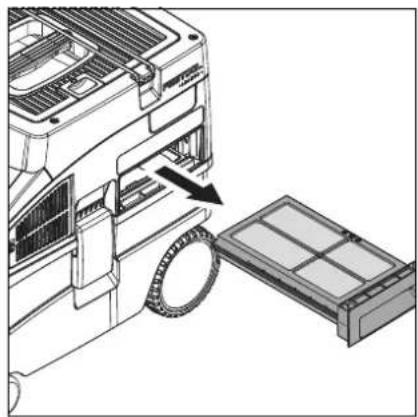

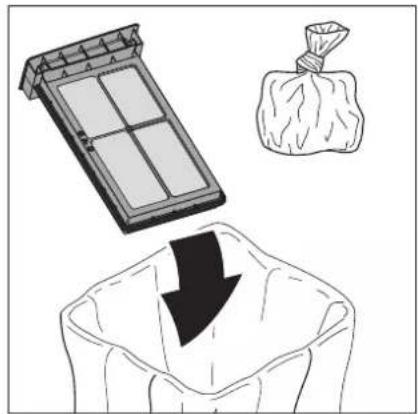

► Pull out the used filter drawer [1-6]. ► Dispose of the used filter drawer in accord ance with statutory regulations. ► Insert the new filter drawer [1-6]. Order numbers for accessories, filters and consumables in the Festool catalogue or online at "www.festool.com". – Only use original Festool accessories and consumables. Only accessories tested and approved by Festool are safe and perfectly adapted to the machine and application. NOTICE Damage to the motor ► Never extract material without a main filter or with a damaged main filter, as this can damage the motor.

8.6 After finishing work

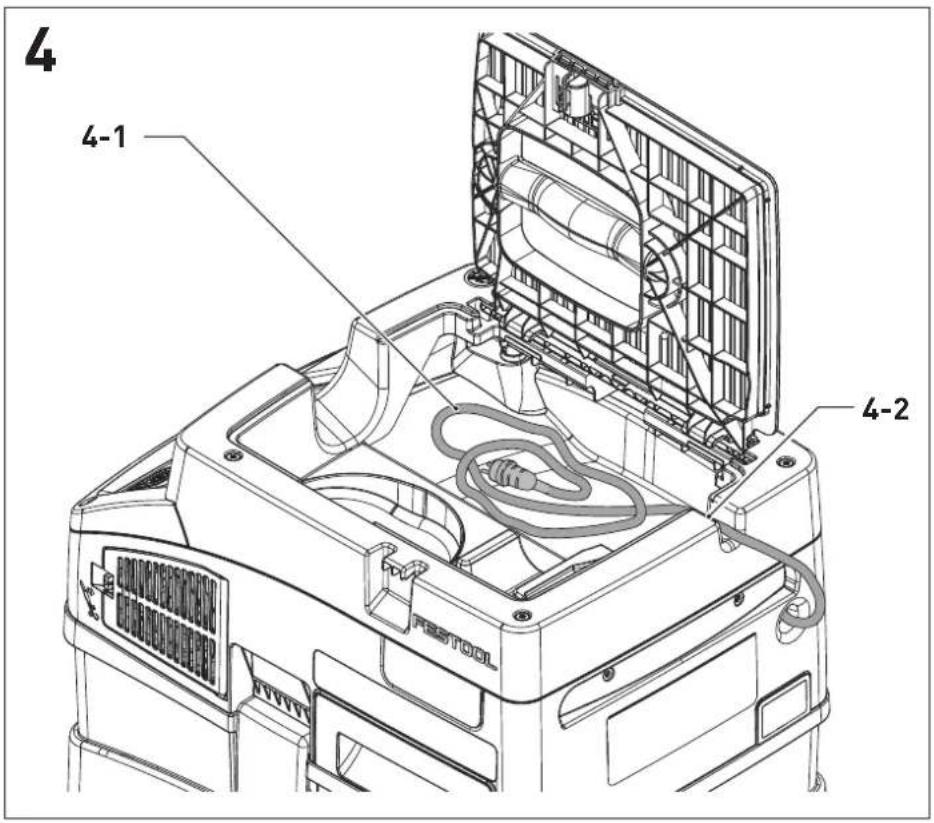

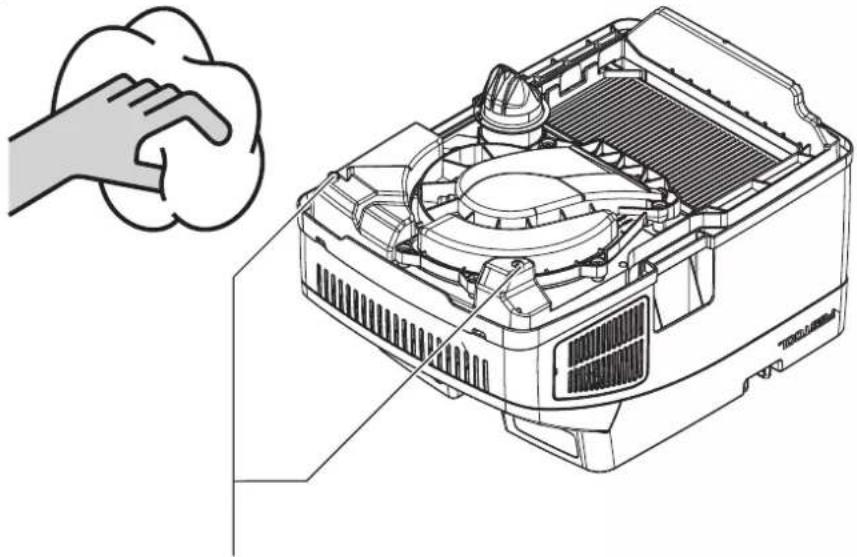

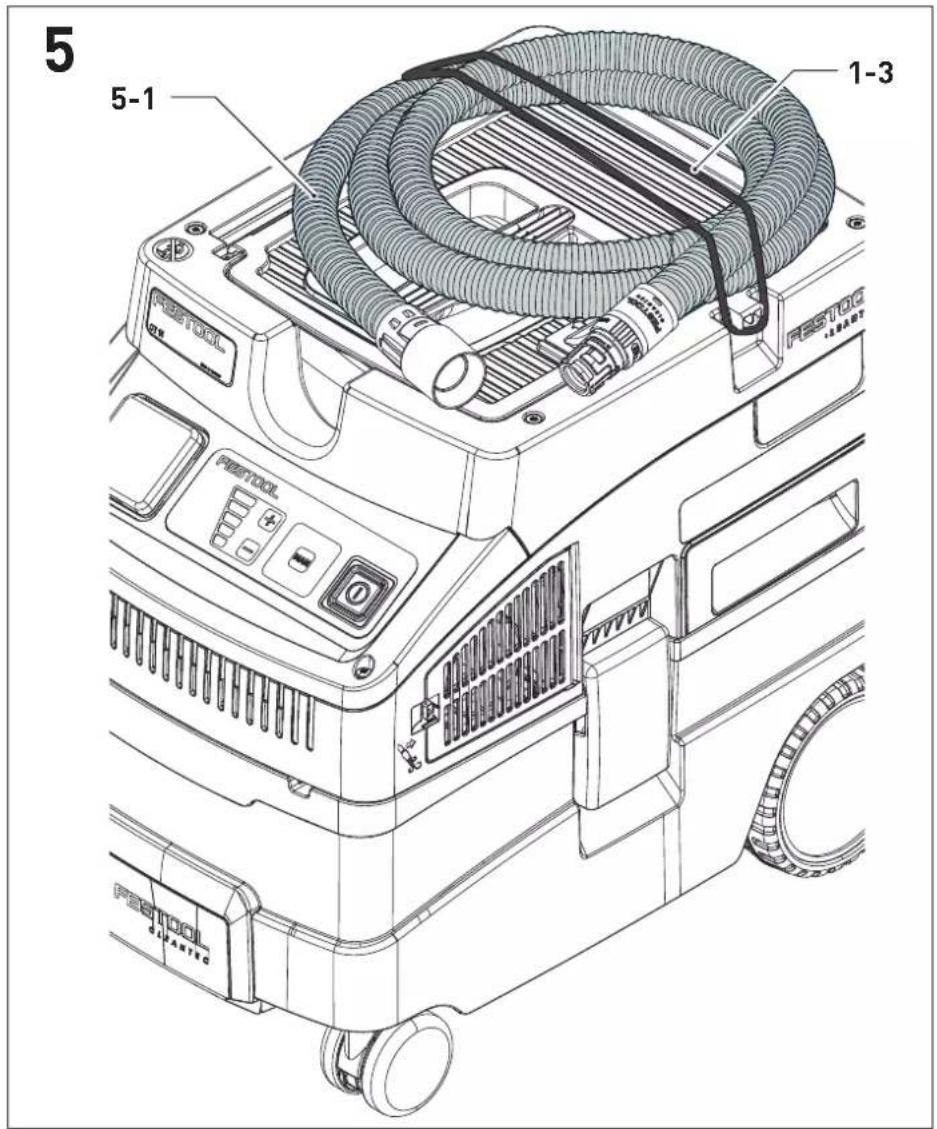

► Switch off the mobile dust extractor and pull out the mains plug. ► Empty the dirt trap. ► Vacuum and wipe the inside and outside of the mobile dust extractor to clean it. ► Wind up the mains power cable. ► Place the mains power cable [4-1] in the sealable holder. To do so, lay the power ca ble through the recess [4-2]. ► Disconnect the suction hose [5-1] and se cure it to the mobile dust extractor with the suction hose mount [1-3]. ► Clean the fill level sensors [7-1] and in spect them for damage at regular intervals. ► Place the mobile dust extractor in a dry room inaccessible to unauthorised users. The lid of the holder also serves as a stor age area for tools. 9 Service and maintenance WARNING Risk of injury, electric shock ► Always pull the mains plug from the socket before performing any servicing and main tenance work. ► All maintenance and repair work which re quires the motor housing to be opened should always be carried out by an author ised service workshop. English 18Customer service and repairs must only be carried out by the manufac turer or service workshops. Find the nearest address at: www.festool.co.uk/service Always use original Festool spare parts. Order no. at: www.festool.co.uk/service EKAT
