USER MANUAL AD 7917 ADLER

PICTURE 1 PICTURE 2 PICTURE 3

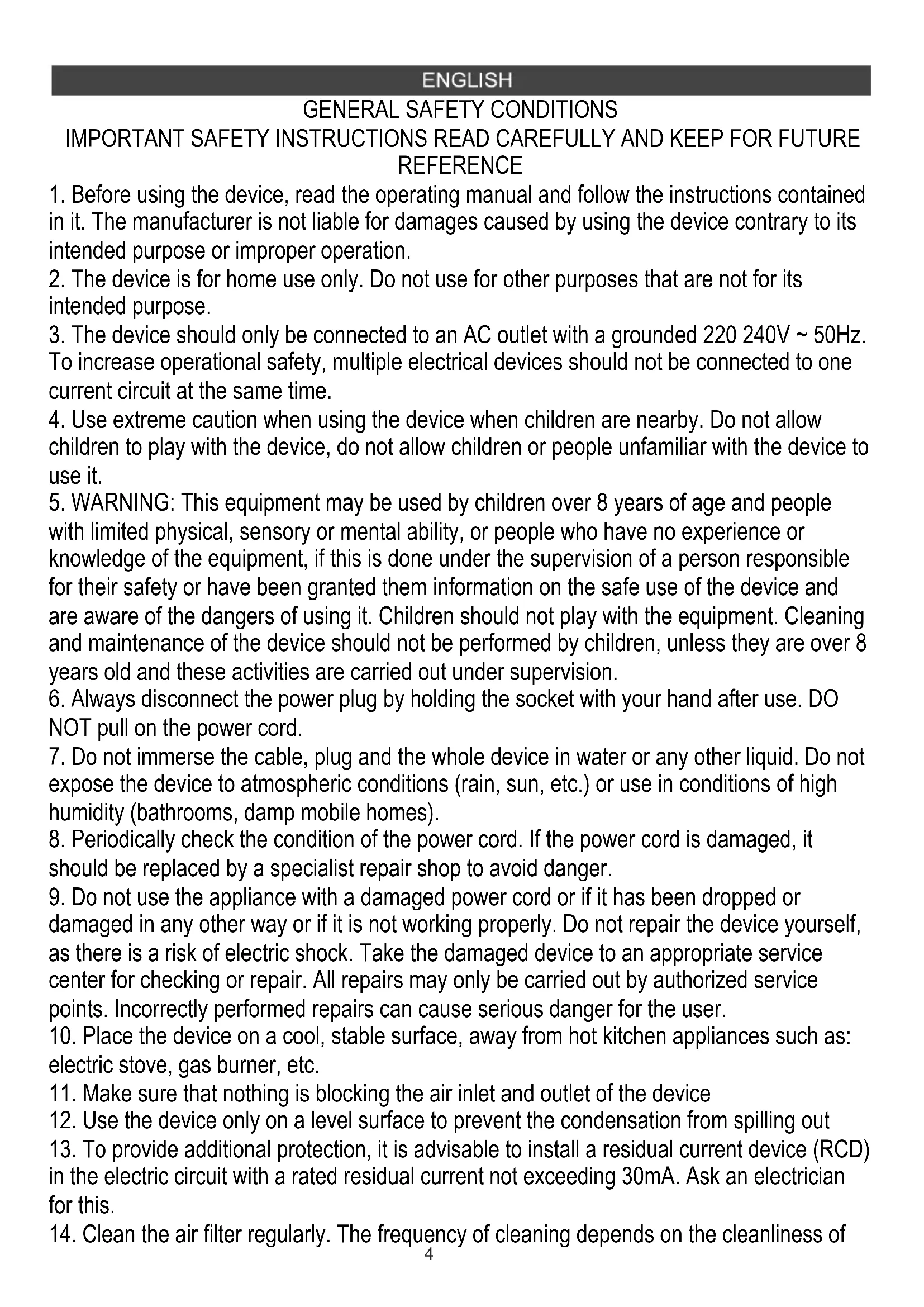

GENERAL SAFETY CONDITIONS

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. Before using the device, read the operating manual and follow the instructions contained

in it. The manufacturer is not liable for damages caused by using the device contrary to its intended purpose or improper operation.

2. The device is for home use only. Do not use for other purposes that are not for its

3. The device should only be connected to an AC outlet with a grounded 220 240V ~ 50Hz.

To increase operational safety, multiple electrical devices should not be connected to one current circuit at the same time.

4. Use extreme caution when using the device when children are nearby. Do not allow

children to play with the device, do not allow children or people unfamiliar with the device to use it.

5. WARNING: This equipment may be used by children over 8 years of age and people

with limited physical, sensory or mental ability, or people who have no experience or knowledge of the equipment, if this is done under the supervision of a person responsible for their safety or have been granted them information on the safe use of the device and are aware of the dangers of using it. Children should not play with the equipment. Cleaning and maintenance of the device should not be performed by children, unless they are over 8 years old and these activities are carried out under supervision.

6. Always disconnect the power plug by holding the socket with your hand after use. DO

NOT pull on the power cord.

7. Do not immerse the cable, plug and the whole device in water or any other liquid. Do not

expose the device to atmospheric conditions (rain, sun, etc.) or use in conditions of high humidity (bathrooms, damp mobile homes).

8. Periodically check the condition of the power cord. If the power cord is damaged, it

should be replaced by a specialist repair shop to avoid danger.

9. Do not use the appliance with a damaged power cord or if it has been dropped or

damaged in any other way or if it is not working properly. Do not repair the device yourself, as there is a risk of electric shock. Take the damaged device to an appropriate service center for checking or repair. All repairs may only be carried out by authorized service points. Incorrectly performed repairs can cause serious danger for the user.

10. Place the device on a cool, stable surface, away from hot kitchen appliances such as:

electric stove, gas burner, etc.

11. Make sure that nothing is blocking the air inlet and outlet of the device

12. Use the device only on a level surface to prevent the condensation from spilling out

13. To provide additional protection, it is advisable to install a residual current device (RCD)

in the electric circuit with a rated residual current not exceeding 30mA. Ask an electrician for this.

14. Clean the air filter regularly. The frequency of cleaning depends on the cleanliness of5

15. After turning off the machine, wait at least 5 minutes before turning it back on.

16. For effective dehumidification, a gap of at least 20 cm should be used between the side

walls of the devices and the compressed furniture or curtains.

17. To avoid the risk of fire or explosion, do not spray the dryer

18. To use the housing parts, do not place the dehumidifier near heating devices.

19. Remove the water collected in the tank. Accidentally drinking water or using it with other

people may cause illness.

20. Does not support devices with the back cover removed due to moving and hot parts.

21. Do not use any means to carry out the thawing or operating process other than those

recommended by the manufacturer.

22. The device should be available as part of a permanent list of ignition sources, i.e. without

open flame, without a working gas device or without a working device heater.

23. Do not pierce or smoke.

24. Please note that refrigeration manufacturers may not contain fragrance.

Before first use: 1. The dehumidifier must be used on a level and stable surface, keep distances between unit and other objects according to picture 1 to ensure suitable efficiency. Close all windows and doors of room you want to dehumidify the air.

2. To prevent the water from freezing, do not use the dehumidifier and the drain hose at ambient temperature below 0°C

3. Do not use the dehumidifier outside. Exposure to direct sunlight or rain may result in overheating, electric shock and fire. 4. Do not put water tank on the dehumidifier to avoid any spill of water into the unit inside and deteriorates the insulation. 5. Never attempt to use the dehumidifier for special uses, such as food dehumidification or preservation of art objects, or the like. 6. Do not use the dehumidifier where any leakage of oil or flammable gas may take place. Do not use the unit in places subject to chemicals.

7. For continuous draining, make sure that the drain hose is set properly with slope.

8. Be careful that a heating appliance is not exposed to the wind from the dehumidifier.

9. Do not use the dehumidifier as a chair or a footstool.

10. Do not remove the float lever from the water tank.

11. Do not block up the air intakes and the air outlets.

12. Do not cover the unit with washed clothes.

Prior to continuous operation for a long duration, periodical checking is required especially for the air clean filter, the drain hose, or the like. Product description: AD7917 dehumidifier

9. Filter’s housing 10. Full water tank indicator light 11. Rubber plug for drainage function

Operation and efficiency

1. The appliance automatically performs defrosting in regular intervals according to the room temperature.

a) If room temperature is equal or exceed 24°C, the defrosting is stopped. b) If room temperature is 18°C -24°C, the defrosting is turned on for 5 minutes after every 120 minutes of dehumidification. c) If room temperature is 12°C -18°C, the defrosting is turned on for 5 minutes after every 25 minutes of dehumidification. d) If room temperature is 5°C -12°C, the defrosting is turned on for 3 minutes after every 8 minutes of dehumidification.

2. During the defrosting operation, the dehumidification function and air purification function may be intermitted.

3. Please don't turn off the switch or pull out the power plug of the dehumidifier during the defrosting operation.

4. This dehumidifier can't be applicable to keep extreme low temperature. The function of this dehumidifier is to pump off the unpleasant, high humidity. Dehumidifying capacity 1. This dehumidifier doesn't have cooling function. It will produce heat during the operation and increase the room temperature by 1-4°C. 2. The daily dehumidifying capacity of the dehumidifier depends on room temperature and relative humidity. At different temperatures and relative humidity, it may have different dehumidifying capacity. 3. In the same room temperature, the dehumidifying capacity is higher in higher relative humidity and the dehumidifying capacity is lower in lower relative humidity. In the same relative humidity, the dehumidifying capacity is higher in higher temperature and the dehumidifying capacity is lower in lower temperature.6 4. If the dehumidifier is placed in the cabinet, its dehumidifying capacity may highly reduce in a short period after operating due to the humidity in the cabinet has been highly reduced. 5. For 5°C / 10°C / 15°C /20°C /25°C / 30°C of room temperature and 80% of relative humidity the dehumidifying capacity is respectively around 2 / 4 / 6 / 8 /10 liters of water when the air outlet is fully open. Operation

1. Please place the machine unit upright to avoid misoperation and unusual sound.

2. Plug in the device.

3. Press the power switch (1) to turn on the device. The full water tank indication light (10) starts to illuminate continuously. The fan begins to operate. 4. If the water tank (3) is full or the water tank (3) isn't installed in correct position then, the full water tank indication light (10) starts to flashing. 5. When the full water tank indicator light (10) is flashing, the compressor installed inside the machine stops so that it does not condense water until the water tank is empty or set in the correct position, but the fan continues to run.

6. To remove the water tank (3) please do hold the water tank sides and pull out. Look at picture 3.

7. To empty the water tank (3), tilt it as shown at picture 5 and drain the water slowly. Then reinstall the water tank (3) in the dehumidifier.

8. Press the power switch (1) again to turn off the device, the unit machine stops running.

Continuous drainage function

1. If you need to dehumidify the air for a long time, you can use the continuous drainage function.

2. Pull the rubber plug (11), then insert the attached continuous drain hose (7) as on picture 2.

3. After ending the continuous draining, replace the rubber plug (11) and switch off the device.

Continuous drain hose: length: 30 cm, internal diameter: 17 mm, external diameter: 19 mm. Cleaning and Maintenance

1. Turn off the unit and disconnect the power plug before starting any cleaning or other routine maintenance.

2. To avoid the risk of electric shock, never sprinkle or spill water on the dehumidifier when cleaning.

3. Turn off the unit and empty the water out of the water tank when moving the device. Be sure to hold the handle while moving.

4. Wipe up the dehumidifier with wet cloth (put it into the water and wring it out).

5. Don't dismantle the floater (6) from the water tank (3).

6. Prior to continuous operation for a long duration, periodical checking is required especially for the net air filter (8), the drain hose (7), or the like. 7. Clean net air filter (8) and filter’s housing (9) every two weeks by vacuum cleaner. Look at picture 4. The dehumidify capacity may reduce when the filter net is clogged with defilement.

8. Don't clean the device with gasoline, thinner or liquid detergent.
