KE4912 - Remote control ONE FOR ALL - Free user manual and instructions

Product Type	Universal remote
Brand	One for All
Model	KE4912
Dimensions (estimated)	Approximately 20 cm × 5 cm × 2 cm
Weight (estimated)	Approximately 100 g
Power supply	2 AAA batteries (not included)
Main functions	Control of TV, soundbar and audio receiver; learning; macros; app shortcuts
Keys	Power (PWR), navigation (UP/DOWN/LEFT/RIGHT/OK), volume (VOL+/VOL-), channels (CH+/CH-), mute, audio, subtitles, guide, info, list, sleep, input, exit, text, app shortcuts (YouTube, Netflix, Google Play), color keys (red, green, yellow, blue), last, format, num/analog, sync, help, playback control (REW, PLAY, FF, REC, PAUSE, STOP)
Configuration methods	SimpleSet for TV and audio; 4-digit code entry; infrared learning
Shortcut programming	Yes, via recorded macro
Reset	Via green+yellow keys then code 977
Safety	Use alkaline batteries; risk of explosion if wrong type; do not dispose with household waste
Maintenance and cleaning	Clean with a soft dry cloth; avoid humidity
Warranty	2 years (parts and labor)
Spare parts and repairability	Contact Universal Electronics (www.oneforall.com); no spare parts specified

Frequently Asked Questions - KE4912 ONE FOR ALL

How to set up the remote for my Sony TV?

For most recent Sony TVs, the remote is ready after inserting batteries. If necessary, press and hold the red and blue keys until the indicator flashes twice, then press and hold the PWR button until the TV turns off. Release, and check other keys.

How to learn a function from my original remote?

Place the two remotes facing each other. Press and hold the green and yellow keys until two flashes. Press 975. On the One For All remote, press the key to program (e.g., VOL+). On the original remote, press the key to copy. Two flashes confirm success. Press and hold OK for 3 seconds to finish.

How to control the volume of my soundbar?

Use the SimpleSet method: press and hold VOL+ and VOL- until two flashes. Point at the soundbar and press and hold the number corresponding to the brand (e.g., 4 for LG). As soon as sound is cut, release. Or use a 4-digit code from the audio code list.

How to program a shortcut to Netflix?

Make sure the remote controls the TV. Press and hold the APP 1 (default YouTube) or APP 2 (Netflix) key until two flashes. Then press the key sequence that opens Netflix on your TV (e.g., HOME, then arrows, then OK). Once the service is launched, press and hold the shortcut key again until two flashes.

How to reset the remote?

Press and hold the green and yellow keys until two flashes. Press 977. The indicator flashes 4 times, the remote is reset.

What to do if some keys do not work?

If step 1 (automatic setup) does not solve the problem, go to step 2: press and hold red and blue until two flashes, then press and hold the defective key (e.g., HOME) until the function appears. Release and check.

How to turn on/off both the TV and soundbar?

After configuring the soundbar, press and hold the PWR button for 3 seconds to turn on/off both devices. A simple press only controls the TV.

How to delete a learned function?

Press and hold green and yellow until two flashes. Press 976. Press twice on the key to reset. The indicator flashes twice, the key returns to its original function.

Where to find the code for my audio device?

Check the 'Audio code list' section of the manual, sorted by brand and popularity. If the brand is missing, use the SimpleSet method or learning.

How to use the learning function?

Place the One For All remote and the original remote facing each other. Press and hold green and yellow until two flashes, press 975. Press the One For All key to program, then the corresponding original key. Two flashes confirm. Press and hold OK for 3 seconds to finish.

USER MANUAL KE4912 ONE FOR ALL

ENGLISH 3 | DEUTSCH 7 | FRANÇAIS 11 | ESPAÑOL 15 | PORTUGUÊS 19 | ITALIANO 23 | NEDERLANDS 27 | DANSK 31 | NORSK 35 | SVERIGE 39 | SUOMI 43 | ЕЛАННИКА 47 | РУССКИЙ 51 | TÜRKÇE 55 | POLSKI 59 | ČESKY 63 | MAGYAR 67 | БЪЛГАРСКИ 71 | ROMÂNĂ 75 | SLOVENSKY 79 | HRVATSKI 83 |

AUDIO CODELIST93

OPEN 1 2 3 4 5 6 7 8 9 EXIT 0 APPS > - i LIST SLEEP GUIDE HACK ACCESS HOME VOL LAST PROG - AUDIO SUB HELP D/A SYNC DISPLANLOG ONE FOR ALL

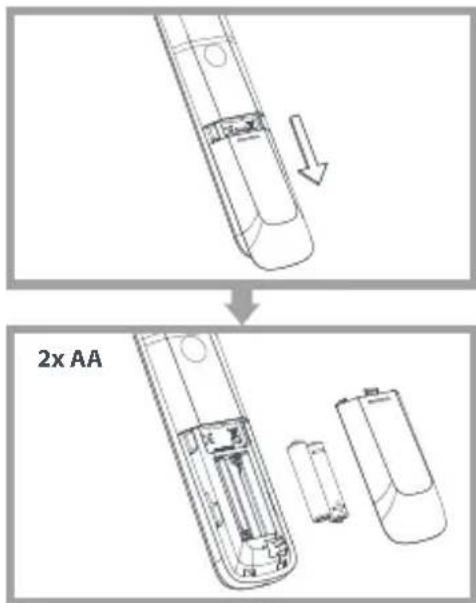

2x AA

AUTION: Risk of explosion if battery is replaced by an incorrect type. Use quality Alkaline batteries.

1. AUDIO Audio / Language

2. SUB Subtitles

3. HELP Help

4. REW, PLAY, FF, PAUSE, REC, STOP Playback control

26.FORMAT Screen Format

1. DIGI/ANALOG Digital / Analog

2. SYNC Sync, Bravia Sync

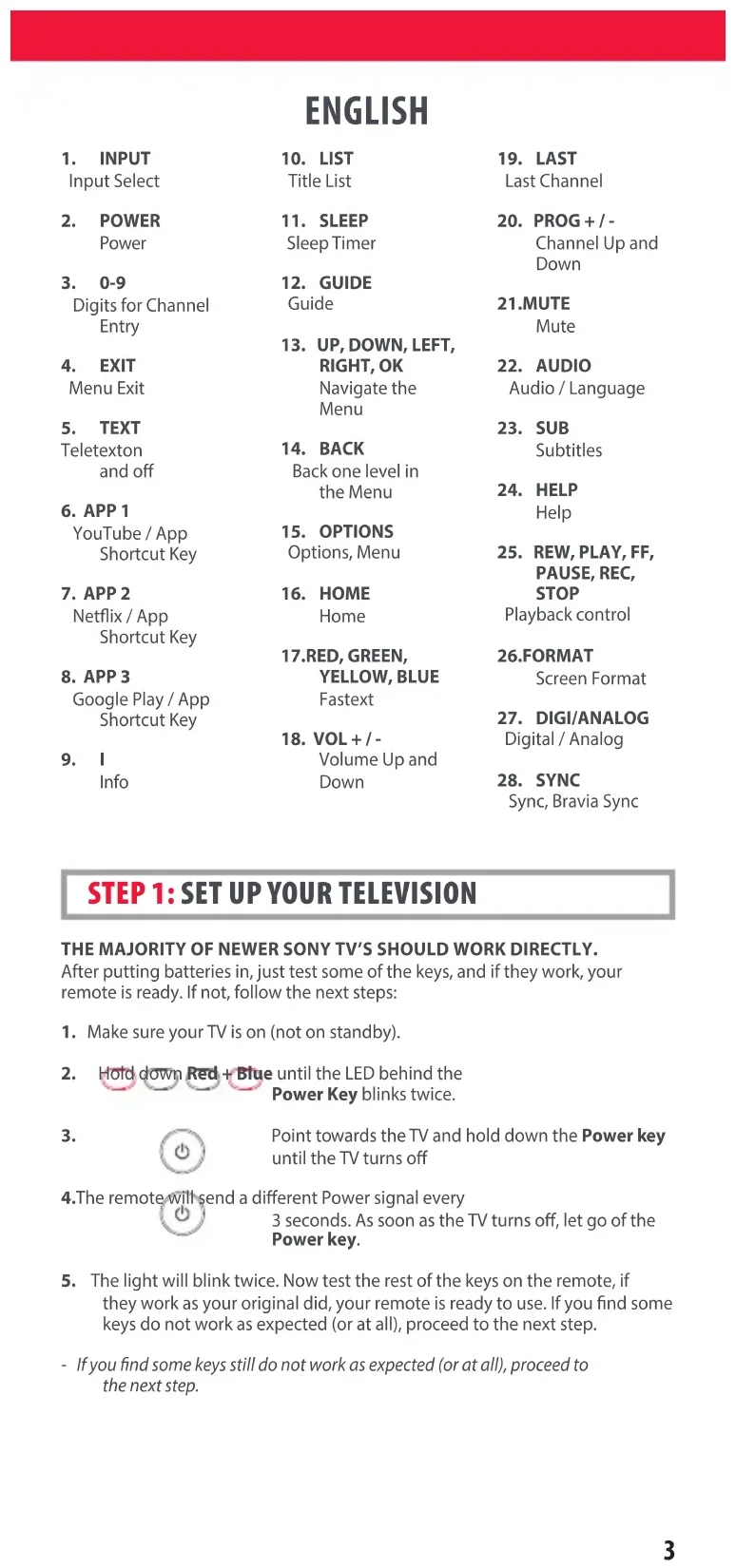

STEP 1: SET UP YOUR TELEVISION

THE MAJORITY OF NEWER SONY TV'S SHOULD WORK DIRECTLY.

After putting batteries in, just test some of the keys, and if they work, your remote is ready. If not, follow the next steps:

1. Make sure your TV is on (not on standby).

2. Hold down Red + Blue until the LED behind the Power Key blinks twice.

3.

Point towards the TV and hold down the Power key until the TV turns off

1. The remote will send a different Power signal every

3 seconds. As soon as the TV turns off, let go of the Power key.

1. The light will blink twice. Now test the rest of the keys on the remote, if they work as your original did, your remote is ready to use. If you find some keys do not work as expected (or at all), proceed to the next step.

- If you find some keys still do not work as expected (or at all), proceed to the next step.

ENGLISH

STEP 2: IF STEP 1 DOES NOT WORK AS EXPECTED

ARE SOME KEYS NOT WORKING AS EXPECTED?

If you find some keys do not work as expected (or at all), proceed to the next step.

1. Make sure your TV is on (not on standby).
2. Hold down RED + BLUE until the LED behind the Power Key blinks twice
3. Point towards the TV and hold one of the keys that is not working correctly (for example HOME).
4. The remote will send a signal every 3 seconds.
5. When the correct function is shown on the screen (in this case the HOME), let go of the key.
6. The LED will blink twice - your remote is ready to use.

LEARNING

LEARN A NEW FUNCTION TO YOUR REMOTE

Your One For All remote can learn any function from your original (working) remote.

2-5cm

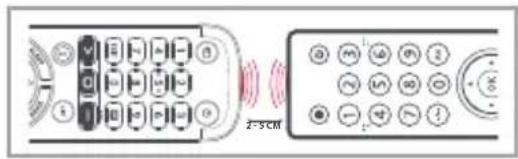

1. Place the original remote facing the One For All remote on a flat surface.

2. To learn: Hold down GREEN + YELLOW until the LED blinks twice.

3. Press 975 The LED will blink twice.

4. Press the key on the One For All remote you want to learn on, for Example: the VOL + key. The LED will blink rapidly.

5. Press the key on the Original remote you want to learn, for Example: the VOL + key of your Audio Device

6.Twoblinks:ok. Repeat from step 4 for any more keys to learn. Long blink: try again from step 4.

1. When you have learned all the keys you need, press and hold the OK key for 3 seconds. The LED will blink twice.

HOW TO DELETE A LEARNED FUNCTION!

1. Hold down GREEN + YELLOW until the LED blinks twice.
2. Press 976.
3. Press the key to reset twice.
4. The LED flashes twice and the key will revert to the original function.

ENGLISH

SOUND BAR / AUDIO RECEIVER VOLUME CONTROL

SOUND BAR / AUDIO RECEIVER VOLUME CONTROL

If you have your TV connected to a Sound Bar or Audio Receiver, it's possible to set up your One For All remote to control the Volume and Mute of this device.

There are two ways to do this:

AUDIO SIMPLESET

If you have a Sound Bar or Audio Device from one of the brands listed in the table below, you can use the SimpleSet method to program your remote to control it. If you do not have one of the below brands, please proceed to the next section.

Digit	Brand
1	Bose
2	Denon
3	Samsung / Harman/Kardon / JBL
4	LG / JVC
5	Marantz / Philips
6	Onkyo
7	Panasonic / Technics
8	Pioneer
9	Sony
0	Yamaha

Note that each of the brands has a digit associated with it, for example 4 for LG (and JVC).

To set up your remote to control your Sound Bar / Audio Device, first make sure your TV and Sound Bar / Audio Device are both powered on, and that there is something playing that you can hear (this procedure will test the Mute function). Next:

1. Hold down the VOLUME UP and VOLUME DOWN buttons together until the LED under the POWER key blinks twice.

2. Now point the remote towards your Sound Bar / Audio Devices and hold down the digit key for your brand (for example 4 for LG). The remote will send the Mute function to your device every 3 seconds.

3. As soon as your Sound Bar / Audio Device mutes the volume, release the digit key. The LED under the Power key will blink twice, and the Volume Up, Down and Mute keys should now control your Sound Bar / Audio Device.

AUDIO CODE SETUP

If your Sound Bar / Audio Device is not one of the brands listed above, you can also set up the remote to control it by entering a 4 digit code. The codes are listed in the Audio Codelist section of this manual, and are listed by brand and then popularity. Locate the brand of your Sound Bar / Audio Device in this code list and then the procedure is:

ENGLISH

1. Hold down the VOLUME UP and VOLUME DOWN keys until the LED under the Power key blinks twice.
2. Enter the first 4 digit code for your Sound Bar / Audio Device. The LED should blink twice on the last digit.
3. Now try the Volume Up, Down and Mute and see if they control your Sound Bar or Audio Device.
4. If they work, your remote is set up. If not try again from step 1 using the next code in the list.

POWER MACRO

If you have set up your Sound Bar or Audio Device using SimpleSet or Code Setup, you can now turn your TV and Audio Device both on and off using a single key. Simply hold down the Power key for 3 seconds and the remote will send the Power function to both the TV and the Audio Device / Sound Bar. If you press and release the key, it will only control the TV.

APP SHORTCUT KEYS

The One For All remote features three App Shortcut Keys which can be used to open apps on your TV. If your original remote control has a YouTube, Netflix, or Google Play key, these keys will perform the same function.

However if you try these keys and they do not work, but your TV still has the ability to watch a streaming service, you can use this key as a shortcut by programming a macro (a series of button presses) on it. You could also program the keys to access other apps on your TV.

To program the macro, you first need to know the sequence keys you use to access the service. For example, some TVs will start Netflix by pressing the Home key, then Menu Right twice, and finally the Enter key. Once you have determined the sequence for the app you want on your TV, follow these steps:

1. Sit in front of your device with It switched on (not on standby)
2. Hold down the App Shortcut key until the LED blinks twice.
3. Now perform the sequence of keys exactly as would normally. The remote will operate your TV and the macro is recorded in real time - so if it normally takes a few seconds for your device to react don't worry.
4. Once you have finished the sequence - and the Streaming Service has started on your device - hold down the App Shortcut key until the LED blinks twice and goes out. The macro is now stored.

Tips

• Make sure the OFA remote Is operating the TV before programming
- If you find the Macro doesn't work as expected, you can just repeat the same sequence to reprogram
- When programming, wait for your TV to respond first, the remote will remember the timing

RESET

If you would like to reset your remote back to its default settings, please do the following:

1. Hold down the Green and Yellow keys until the LED blinks twice
2. Press 977
3. The LED will blink 4 times and the remote is now reset.

DEUTSCH

1. EINGANG

Eingangs- auswahl

Diagram showing two connected devices with labeled buttons and a sensor icon, likely representing a remote control or signal interface.

Diagram of two electronic device modules with labeled ports and control buttons (no readable text or symbols)

MACRO ASSOCIÉE AU BOUTON D'ALIMENTATION

Diagram showing two electronic device ports with labeled ports and a sensor icon connected to the right port.

SNELTOETSEN VOOR APPS

Diagram showing two remote control panels with keypad, display, and function buttons labeled in Chinese

INDSTILLING AF LYDKODE

TRINN 1: SETTE OPP TV-APPARATET

FLESTEPARTEN AV NYERE TV-APPARATER FRA SONY VIL VIRKE DIREKTE.

Diagram showing two mobile phone modules with keypad and control buttons, one connected to a red signal icon labeled '20-5000'.

Diagram showing two electronic device modules with labeled ports and signal icons, including a 2-5cm scale indicator.

25. REW, PLAY, FF, REC, PAUSE, STOP

1. SUS, JOS, STÂNGA, DREAPTA, OK

Navigare prin meniu

22. AUDIO

Audio / Limbă

23. SUB

Subtitrări

5. TEXT

The crossed out wheeled bin symbol on this product ensures that this product is manufactured using high quality components that can be recycled and reused according European Directive 2012/19/EU. Please do not dispose of this product with your normal household waste, refer to local regulations for the proper collection or disposal of electrical and electronic products. This will help this will help in preventing negative effects on the environment and/or human health.

BATTERY DISPOSAL (EUROPEAN DIRECTIVE 2006/66/EC)

Please do not dispose of your batteries with your normal household waste, refer to local regulations for the proper collection or disposal. This will help preventing potential negative effects on the environment and/or human health.

GUARANTEE TERMS AND CONDITIONS UNIVERSAL ELECTRONICS warrants to the original purchaser that this product will be free from defects in materials and workmanship under normal and correct use for a period of two (2) years from the date of original purchase. This product will be repaired or if necessary, replaced free of charge if it has been proven to be defective within the two(2) year warranty period. The forwarding costs are on the account of the owner; the costs of returning the product are on the account of UNIVERSAL ELECTRONICS.

This warranty does not cover damage or failures caused by products or services not supplied by UNIVERSAL ELECTRONICS, or which result from not mounting the product according to manual instructions. This also applies when the product has been modified / repaired by others than UNIVERSAL ELECTRONICS or if a fault is the result of accident, misuse, abuse, neglect, mishandling, misapplication, faulty installation, improper maintenance, alteration, modifications, fire, water, lightning, natural disasters, wrong use or carelessness.

To obtain warranty service during the warranty period contact [...], and please note that we need your original purchase receipt so that we may establish your eligibility for service. If you have bought this product for purposes which are not related to your trade, business or profession, you may have legal rights under your national legislation governing the sale of consumer goods. This guarantee does not affect those rights. www.oneforall.com

UTYLIZACJA BATERII (DYREKTYWA EUROPEJSKA 2006/66/WE)

Dutch Originals 5070

Energy Sistem 3654

Epworth 0121,0406,0158,0159

Goodmans 4146,0609,2151,1199

Grundig 0189, 0269, 5174, 1199

Harman/Kardon 1304, 0110, 1004, 3756, 4197, 0189, 0269

HIFIAkademie 0269,0189

Hitachi 4590,3050,5130, 1199

Horizon 4411

IKEA 4050

Inkel 0027

Insten 2151

Integra 1805, 2989, 2993, 1320, 3992, 0135

Jay-tech 4146

JBL 3756,4575,5070, 0110

JTC 4146

JVC 1400,0074,0464, 4411,1199

Kenwood 0313,0027,1400

Kogan 3654

LG 2676,4043,4667

Linn 0269,0189

Loewe 0269,0189

Logik 4242

Logitech 2436, 1408, 3561

Magnat 4485

Magnavox 0189, 1269, 3282, 0269

Majority 4146

Marantz 2117,0189,0269, 4673,0039,0641, 1269,3347,4556

Maxell 3997

MCS 0039

Medion 4242

Meridian 0715

Micromega 0269,0189

Musical Fidelity 0688

Myryad 0189,0269

NAD 0320, 1093, 1743, 0609

Naim 1895

Nakamichi 3296

New Acoustic

Dimension 0320, 1093, 1743, 0609

Nikko 0609

Nubert 4331

Onkyo 1805, 0135, 1320, 2989, 2993, 3050, 4533, 3992

Optimus 0300,0013

Orbitsound 4098

Otone 4242

Panasonic 0309,1779,4007,3425,0308,0367,0039

Philips 1269,0189,2459, 4105,3289,2986, 1673,0269,3282, 0641

Philips Magnavox 0189

Pioneer 1935,0013,1459, 3742,0300,1284, 3629,3631

Polk Audio 0269,0189

Proficient 0609

Proson 0609

AUDIO CODELIST

Pyle 4242

Quasar 0039

RCA 0300, 1459, 0082

Restek 0189

Revox 0140, 0189, 0269

Rotel 0793

Samsung 2660, 2809, 1199, 2137, 3822, 1304

Sansui 0189,0609

Sanyo 3282

Schaub Lorenz 4242

Sentra 0688

Sharp 3096, 5070

Siemens 0609

Sonos 3919

Sony 0158,0159,2522, 1758

Soundwave 0609

Sunfire 0313

Sungpo 3096,5070

T+A 2302,1270

Teac 0609,1199,3253,4242

Technics 0309, 0308, 0039, 0208

TechniSat 4134,4486

Techwood 0609

Teufel 4051, 3296, 3574, 4477, 2322, 4159, 4460, 4559

Thomson 1194, 3654

Thorens 0269,0189

Toshiba 3627,5070

Universum 0609, 0269, 0189

Victor 0074

Wards 0013, 0158, 0189

Yamaha 0176, 1276, 2061,

2467, 3283, 2469,

0082, 0848, 1176,

1949,0354,3267,

3602, 2342
