Product type	Kitchen faucet
Brand	Livarno Lux
Model	IAN 385535
Supply	Hot and cold water, compatible with any pressure-resistant hot water system (central heating, instantaneous water heater, pressure water heater)
Max. hot water temperature	85 °C
Connections	G 3/8 (approx. 17 mm), water connection nut approx. 19 mm
Main functions	Lever mixer, pull-out shower head, water-saving function (flow limitation up to 50%), energy-saving function (cold water in the middle), adjustable temperature limitation
Included parts	Shower head (1), aerator (2), plastic triangle (3), hot/cold connection hoses (4,5), gasket (6), metal washer (7), metal bar (8), synthetic nut (9), counterweight (10), screw (11), connection hose (12), protective cap (13), shower hose (14), adjustment ring (15), mixer body (16), control lever (17), small plastic cover (18), locking screw (19), cartridge cover ring (20), cartridge (21)
Maintenance and cleaning	Clean with clear water and a neutral detergent and a soft cloth; regularly unscrew the aerator to remove limescale; do not use corrosive or alcohol-based products
Safety	Choking hazard for children (packaging); risk of electrocution in case of leakage; risk of burns (high temperature); check the tightness of all connections
Installation	Installation by a qualified technician; shut off the main water supply before assembly; rinse the faucet before first use
Repairability	Wear parts: gaskets, washers; replaceable cartridge; removable aerator
Warranty	Manufacturer warranty under conditions (non-compliance with maintenance instructions excludes warranty)

Frequently Asked Questions - IAN 385535 Livarno Lux

How to install the IAN 385535 faucet?

Cut the main water supply, then install the faucet following illustrations A to G in the manual. Ensure the hoses are not twisted. After assembly, rinse the faucet by removing the aerator and letting water run for two minutes.

Can I use this faucet with a low-pressure water heater?

No, the faucet is designed for pressure-resistant hot water systems (central heating, instantaneous water heater, etc.). It is not suitable for low-pressure water heaters such as wood or gas water heaters without pressure.

How to adjust the temperature limitation?

After mounting the faucet, remove the small plastic cover, loosen the locking screw, remove the control lever, unscrew the cover ring, then adjust the adjustment ring to the desired position (see ill. J). Reassemble everything and check the temperature.

What to do if the water flow is low?

The aerator may be clogged with limescale or impurities. Unscrew the aerator, clean it under running water or descale if necessary. If the problem persists, check that the water-saving function is not activated (the lever must overcome the resistance).

How to use the water-saving function?

Lift the control lever until you feel a slight resistance: water flows at reduced flow (about 50% savings). For normal flow, apply additional pressure to overcome this resistance.

Hot water does not flow, what to check?

Make sure the hot water supply is open and the hot hose is properly connected. Check that the cartridge is not blocked. If the problem persists, contact a technician.

How to clean the faucet without damaging it?

Use a soft cloth and a neutral detergent (mild soap). Never use corrosive, alcohol-based or abrasive powder products. For chrome parts, a stainless steel cleaner may be suitable. Descale the aerator regularly.

Can I replace the cartridge myself?

Yes, the cartridge (21) is accessible after removing the lever and the cover ring. Unscrew the adjustment ring, remove the cartridge and install the new one. Make sure to reassemble all parts correctly.

What types of gaskets are used?

The faucet comes with gaskets and washers (parts 6, 7). The gaskets are rubber or silicone. It is recommended to replace them periodically or in case of leakage.

What to do in case of water leakage under the sink?

First check that all connections are tight (nuts of the hoses). Inspect the gaskets and replace them if necessary. If the leak persists, there may be a crack in the faucet body; contact customer service.

USER MANUAL IAN 385535 Livarno Lux

PDF ONLINE www.lidl-service.com

EINHEBEL-KÜCHENMISCHER / KITCHEN MIXER TAP / MITIGEUR DE CUISINE À LEVIER

DE AT CH

Diagram showing information icon and open book with text and rotation arrows, likely illustrating a digital interface or document layout.

Three types of wrenches and a hexagonal bolt symbol, no text or labels present

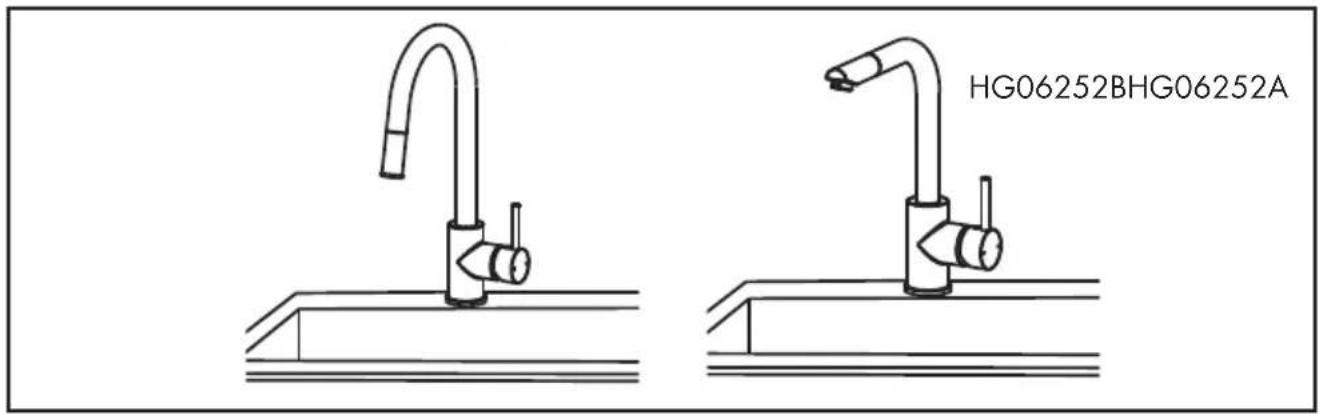

HG06252BHG06252A

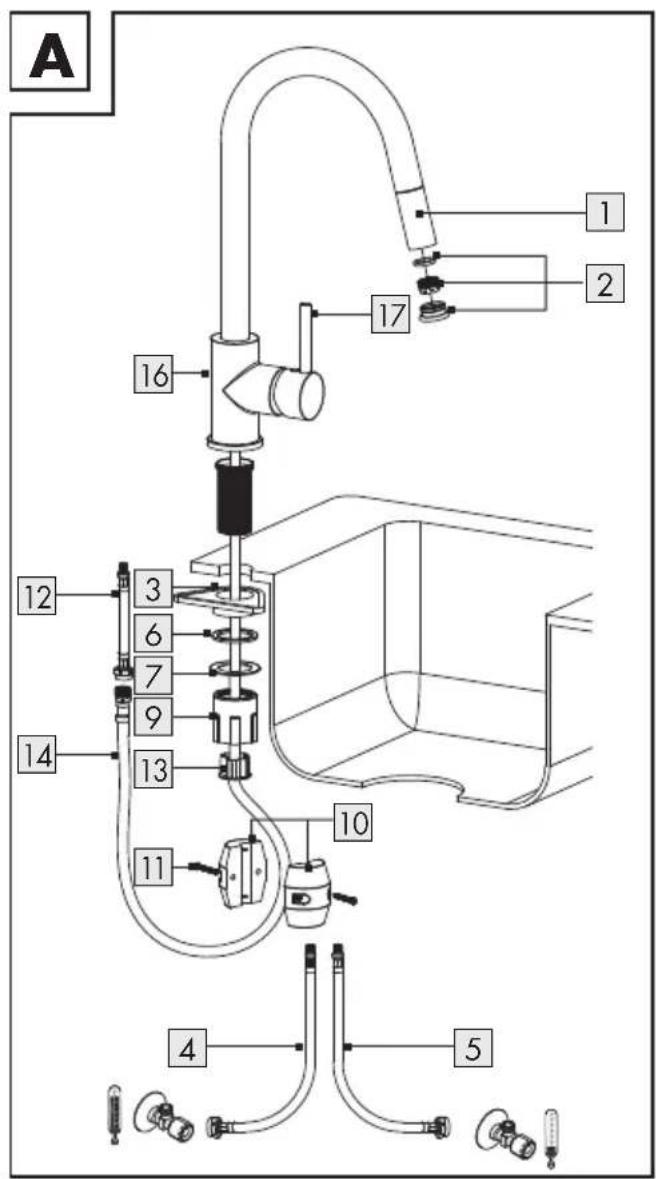

A 1 2 17 16 12 3 6 7 9 14 13 11 10 4 5

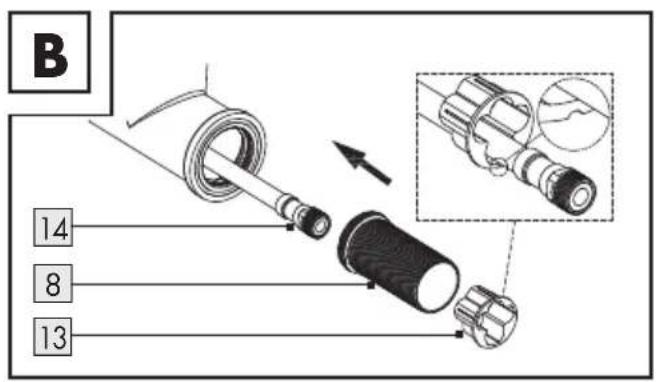

B 14 8 13

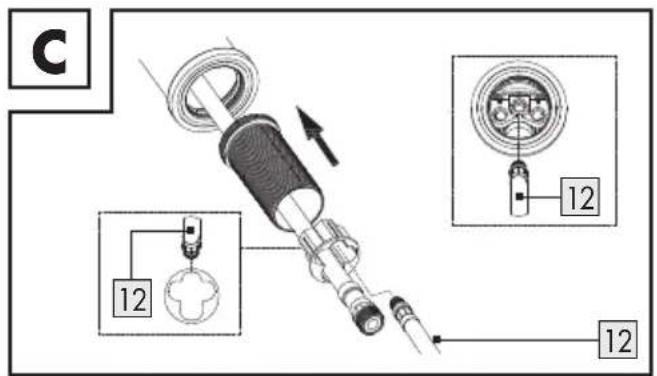

C 12 12 12

D

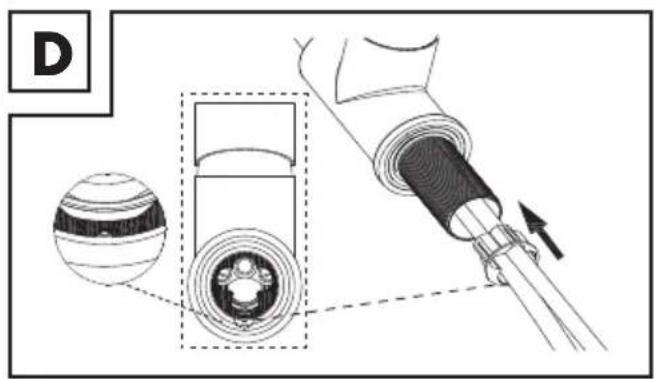

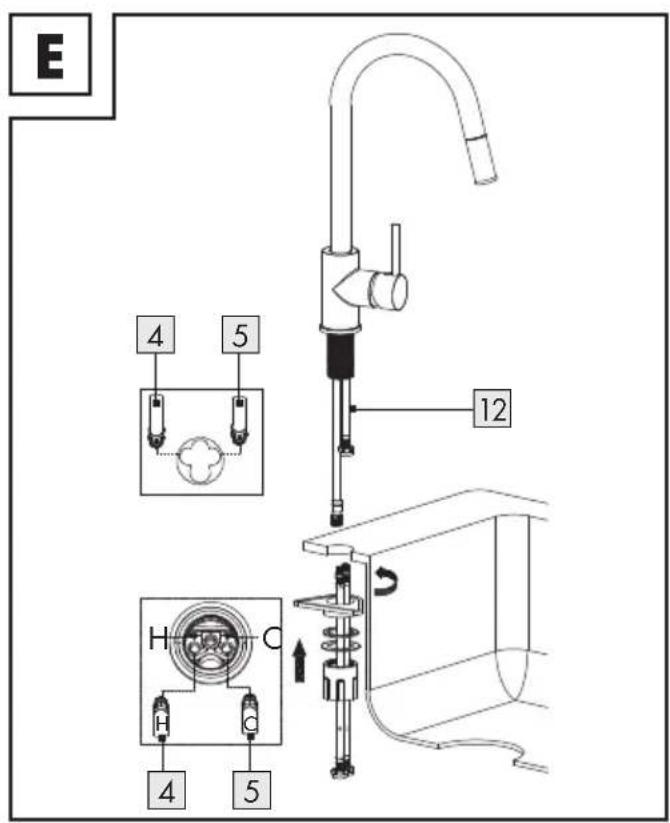

E 4 5 12 H C H C 4 5

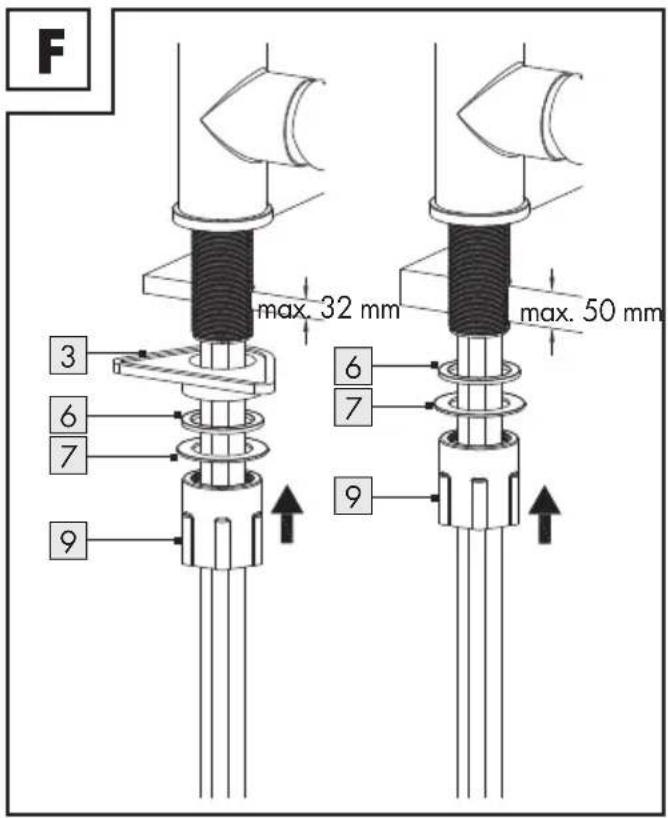

F max. 32 mm max. 50 mm 3 6 7 9 6 7 9

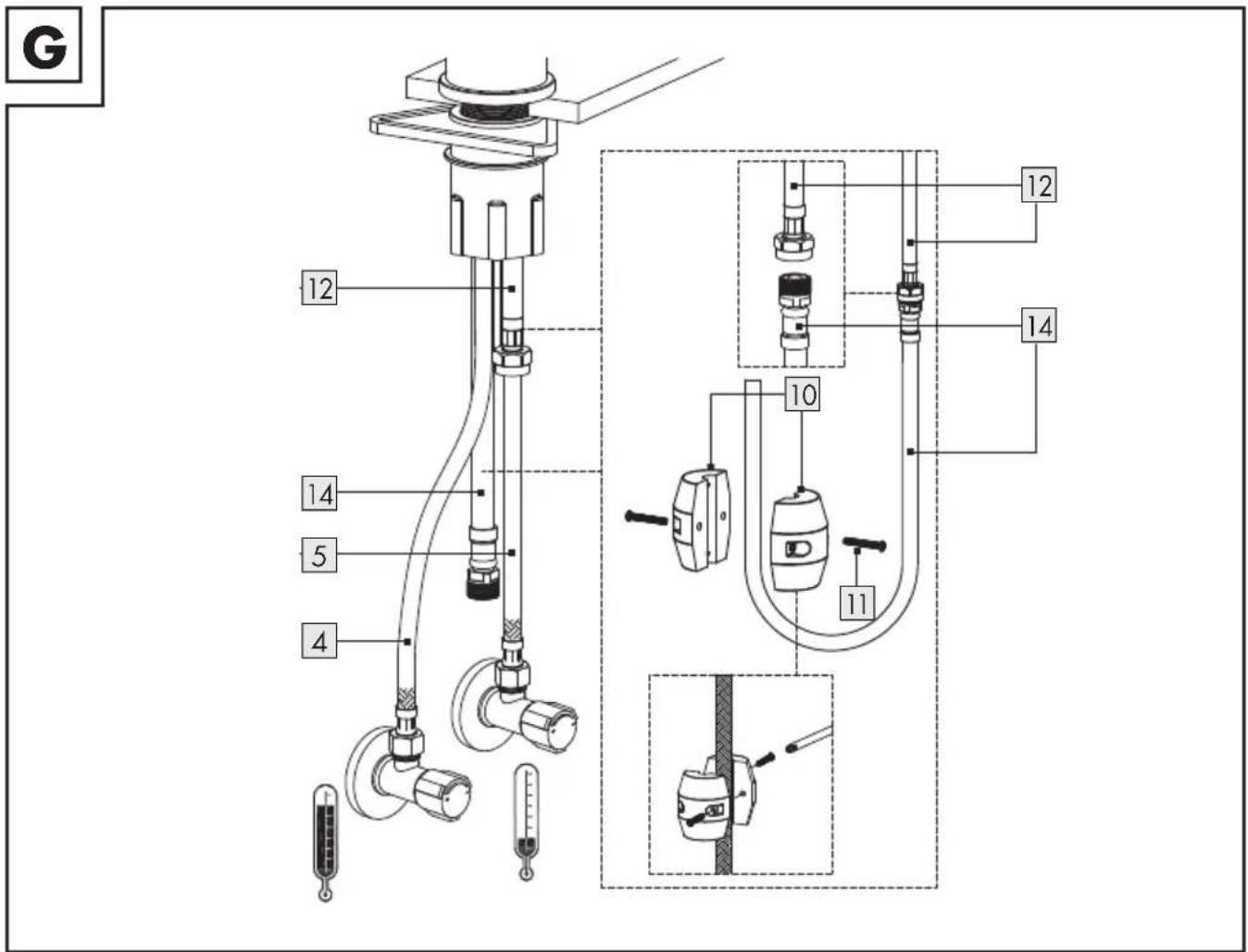

G 12 14 5 4 10 11 12 14

H 15 20 18 19 17

Diagram illustrating a laboratory procedure with labeled components and an inset showing hand cleaning steps

J 15 21

K 2 1 0 0 1 2

L 80° 30°

Anschlüsse: G^3/8 " (ca. 17 mm)

Mutter

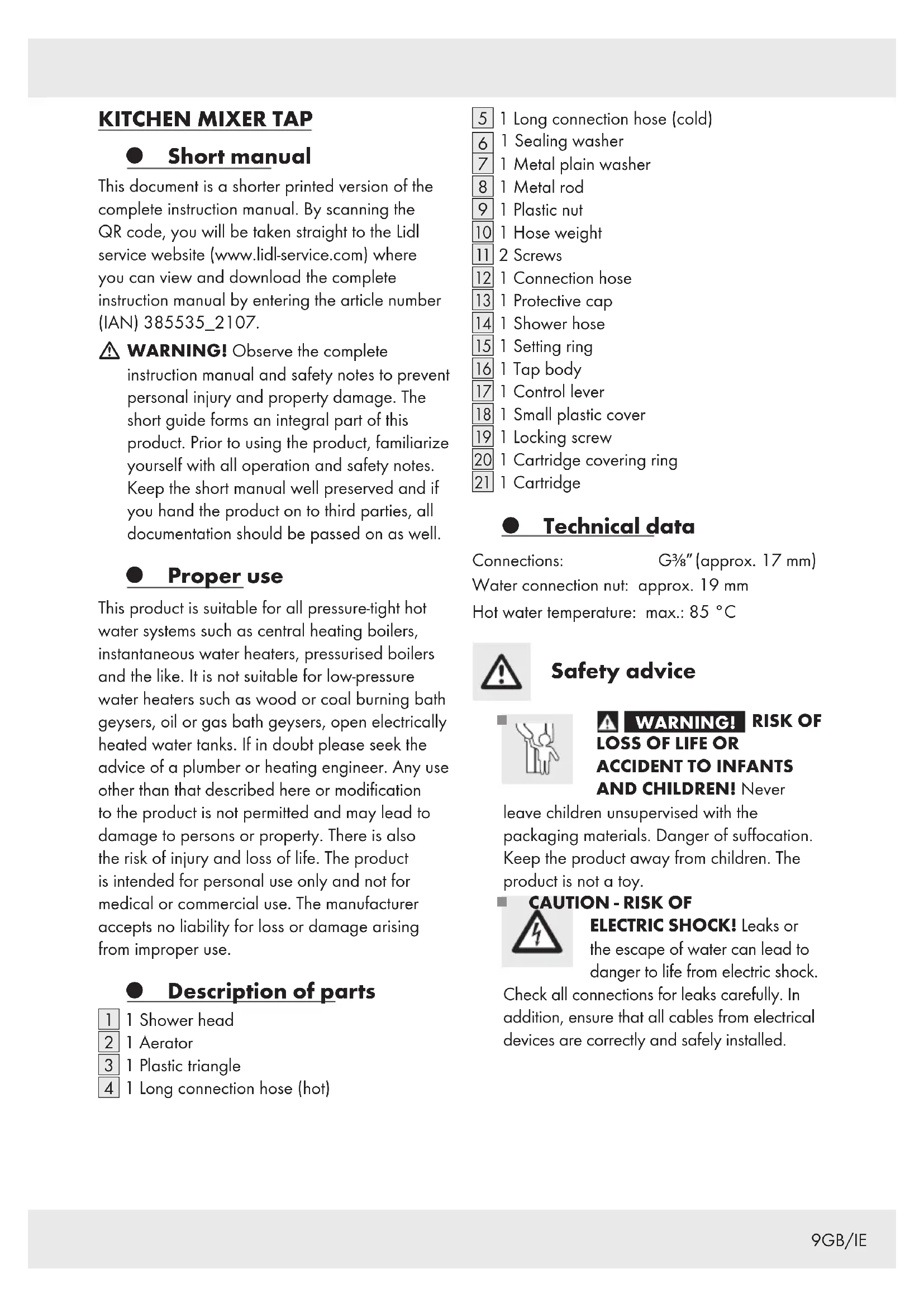

This document is a shorter printed version of the complete instruction manual. By scanning the QR code, you will be taken straight to the Lidl service website (www.lidl-service.com) where you can view and download the complete instruction manual by entering the article number (IAN) 385535_2107.

⚠ WARNING! Observe the complete instruction manual and safety notes to prevent personal injury and property damage. The short guide forms an integral part of this product. Prior to using the product, familiarize yourself with all operation and safety notes. Keep the short manual well preserved and if you hand the product on to third parties, all documentation should be passed on as well.

● Proper use

This product is suitable for all pressure-tight hot water systems such as central heating boilers, instantaneous water heaters, pressurised boilers and the like. It is not suitable for low-pressure water heaters such as wood or coal burning bath geysers, oil or gas bath geysers, open electrically heated water tanks. If in doubt please seek the advice of a plumber or heating engineer. Any use other than that described here or modification to the product is not permitted and may lead to damage to persons or property. There is also the risk of injury and loss of life. The product is intended for personal use only and not for medical or commercial use. The manufacturer accepts no liability for loss or damage arising from improper use.

● Description of parts

1 1 Shower head
2 1 Aerator
3 1 Plastic triangle
4 1 Long connection hose (hot)

5 1 Long connection hose (cold)
6 1 Sealing washer
7 1 Metal plain washer
8 1 Metal rod
9 1 Plastic nut
10 1 Hose weight
11 2 Screws
12 1 Connection hose
13 1 Protective cap
14 1 Shower hose
15 1 Setting ring
16 1 Tap body
17 1 Control lever
18 1 Small plastic cover
19 1 Locking screw
20 1 Cartridge covering ring
21 1 Cartridge

● Technical data

Connections: G^3/8 (approx. 17 mm)

Water connection nut: approx. 19 mm

Hot water temperature: max.: 85 °C

Safety advice

WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN! Never

leave children unsupervised with the packaging materials. Danger of suffocation. Keep the product away from children. The product is not a toy.

CAUTION - RISK OF

ELECTRIC SHOCK! Leaks or the escape of water can lead to danger to life from electric shock.

Check all connections for leaks carefully. In addition, ensure that all cables from electrical devices are correctly and safely installed.

■ CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury. Please note that seals are wear parts and therefore will require to be replaced from time to time. Damaged parts could adversely affect safety and proper function.

■ ATTENTION! RISK OF DAMAGE TO

PROPERTY! Have the installation done by experienced persons only. Leaks or escape of water can lead to serious damage to buildings or household fittings and furniture. Check all connections for leaks carefully.

• Ensure that all seals are correctly seated to prevent leakage of water.
  The spout can be swiveled to your desired position. Make sure the spout is always positioned within the area of the sink, otherwise escape of water can lead to serious flooding to your house or building.

■ CAUTION! DANGER OF SCALDING!

When making the hot water setting please ensure that the temperature of the water is not too high.

Before installation, make yourself familiar with all the existing services, e.g. water connection and stopcocks.
Please read carefully through these operating instructions before installing and using the product. Keep all the safety advice and instructions in a safe place for future reference!

● Installation

- Installing the tap

■ Turn off the main water supply to prevent serious leakage of water. Allow any remaining water in the pipework to drain.

■ Install the tap as shown in Figs. A to G.

⚠️ CAUTION! Do not bend the hoses or place them under tension. Otherwise material damage could result.

Flushing the tap

The tap must be flushed through before first use to remove any dirt. To do this, follow these steps (see Fig. 1):

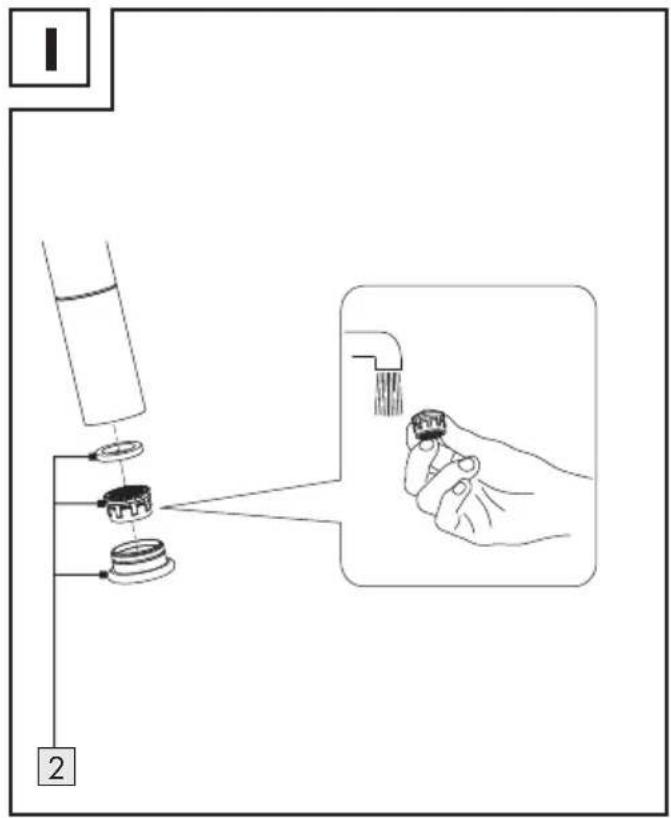

■ Screw the aerator 2 off.

- Open the main water supply and allow the water to run for two minutes.

■ Then screw the aerator 2 on again.

- Setting the temperature limiter

The cartridge 21 in this product has a temperature limiter. This function is not activated in the factory (neutral setting).

⚠️ CAUTION! Change the temperature limiter setting only after the tap has been installed.

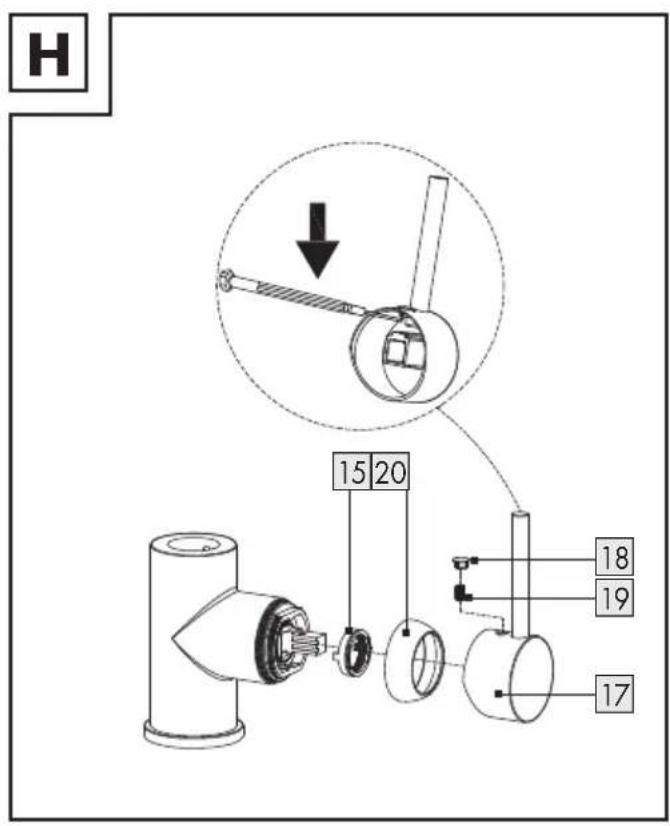

■ Follow Fig. H & Fig. J to set the temperature limitation.
■ Turn off the main water supply.
■ Remove the small plastic cover 18 carefully by a small flat screwdriver.
■ Release the locking screw 19 by turning it anticlockwise using a hexagonal key.

⚠️ CAUTION! Do not take the screw completely out; just loosen it until the control lever 17 can be easily taken off.

Take off the control lever 17.
■ Loosen the cartridge covering ring 20 by hand.
Now pull the setting ring 15 upwards with the help of a screwdriver.

Note: Do not remove the cartridge 21.

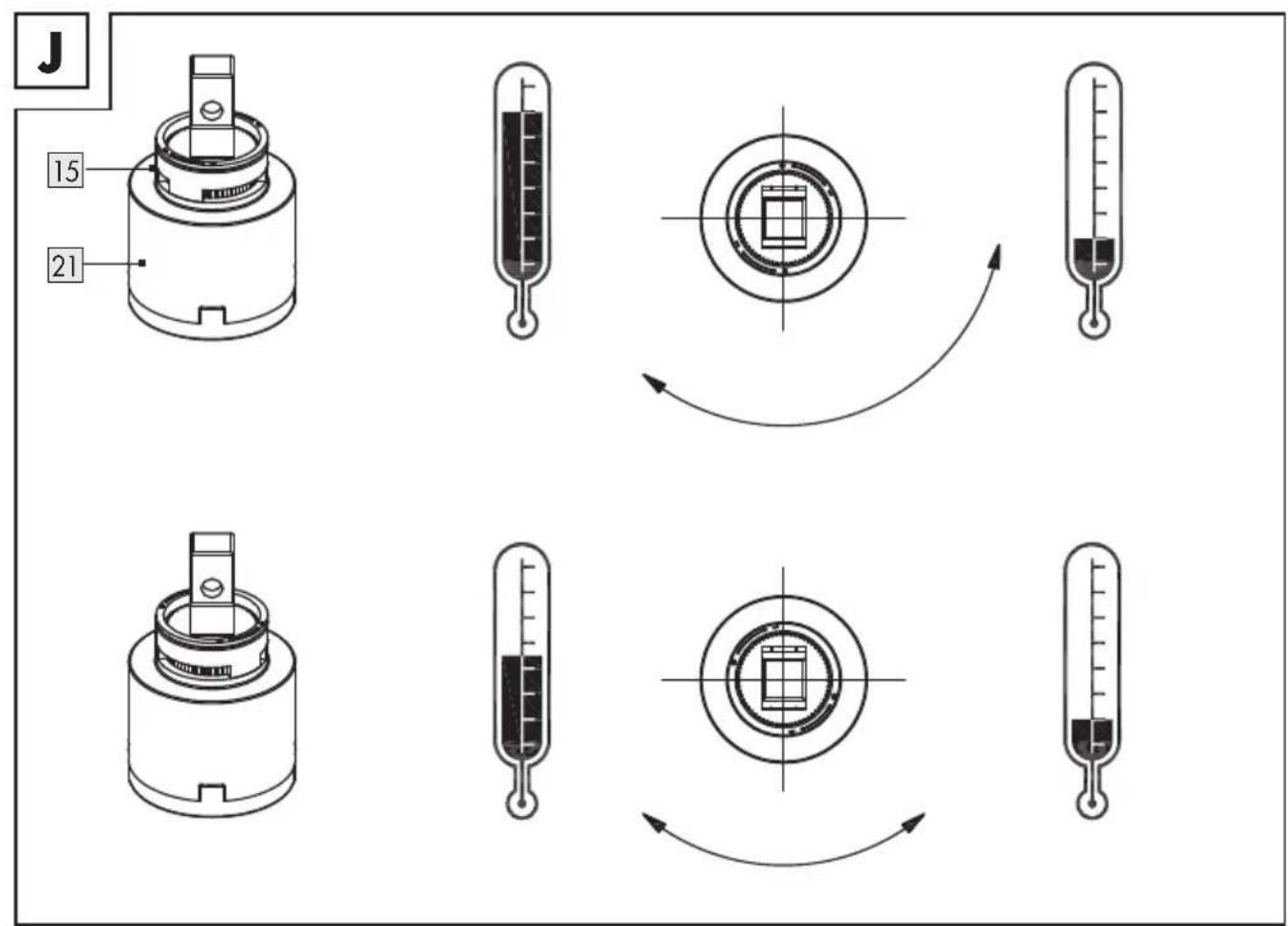

Place the setting ring 15 in the desired position (see Fig. J).

- Tighten the cartridge covering ring 20 by hand.

Place the control lever 17 back on to the tap body 16. Tighten the locking screw 19 by turning it clockwise using a hexagonal key.

- Press the small plastic cover 18 into the opening.

■ Turn on the main water supply and check the temperature limiter.

Operation

● Bringing into use

Note: If the fitting has not been used for a long period flush the pipes through thoroughly in order to avoid stagnation and build-up of residues in the drinking water supply.

■ Open the main water supply.
■ Lift the control lever 17 and swing it to the right or left in order to regulate the speed or temperature of the water flow.
- Check operation of the mixer. For this purpose move the control lever 17 in all possible positions. Please regularly check all connections to ensure that they are tight.

Water-saving function

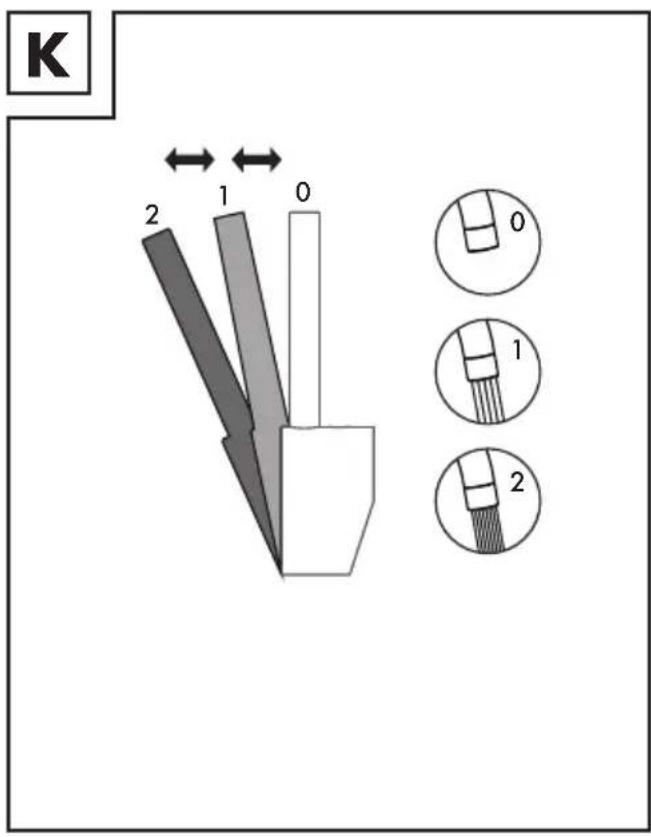

The cartridge 21 in this tap has an water saving function. This feature limits the water flow through the tap. This means you can save up to 50% water (see Fig. K)
■ Lift the lever 17 until you notice a slight resistance. This resistance will cause a stop in case of partial opening and will therefore simply limit the flow of water.
If you want to increase the flow rate, exert slight pressure on the lever 17 until you overcome the resistance.

● Energy-saving function

The cartridge 21 in this tap has an energy saving function.

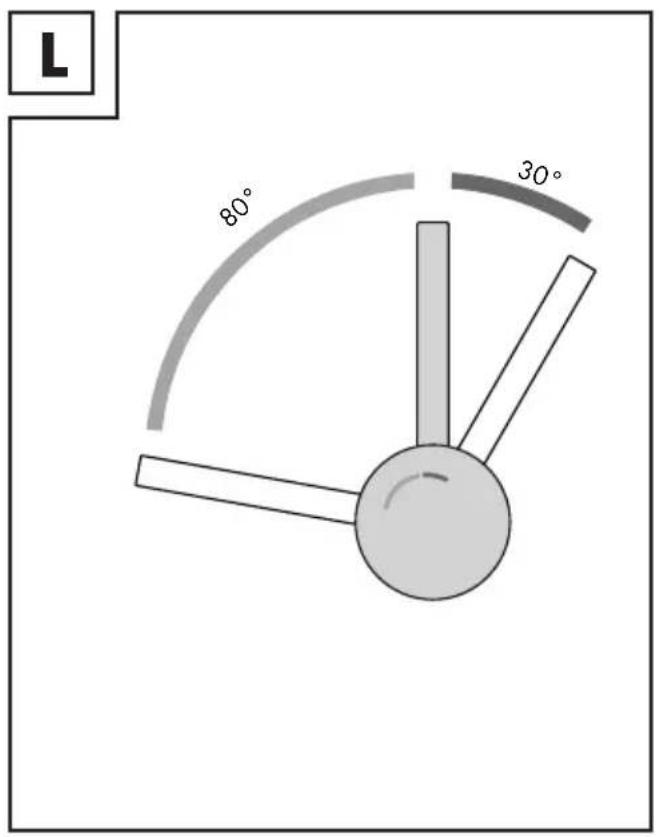

Only cold water will flow out when the lever 17 is set to the middle position, and thus reduces the energy consumption (see Fig. L).

● Maintenance and cleaning

Tap care and cleaning

Please note that sanitary fittings require special care and attention. Therefore you should follow the following advice:

• Never use corrosive or alcohol-based materials for cleaning, as these could damage the product.
• Clean your fittings with clean water, mild detergent and a soft cloth or leather only.
  Screw out the aerator 2 at regular intervals and remove lime deposits or foreign bodies.

Non-observance of the above care advice can be expected to result in damage to the surface of the fittings. In this event your rights under the warranty may be invalidated.

● Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Information

- Potability of mains water

- Find out about the potability of your mains water supply. Your local water authority or water supply company will be able to inform you.

The following general recommendations apply to the potability of the water from your pipework:

Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Failure to observe this advice may result in risks to health. Fresh water can be readily distinguished from stagnant as fresh water is noticeably cooler.

Do not use stagnant water from chromium-plated pipework for the preparation of food or for drinking or for personal hygiene if you are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction.

Do not use water from lead pipework for preparing food or drink for babies or infants. Do not use it for preparing food or drink during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children.
