USER MANUAL IAN 373134 Livarno Lux

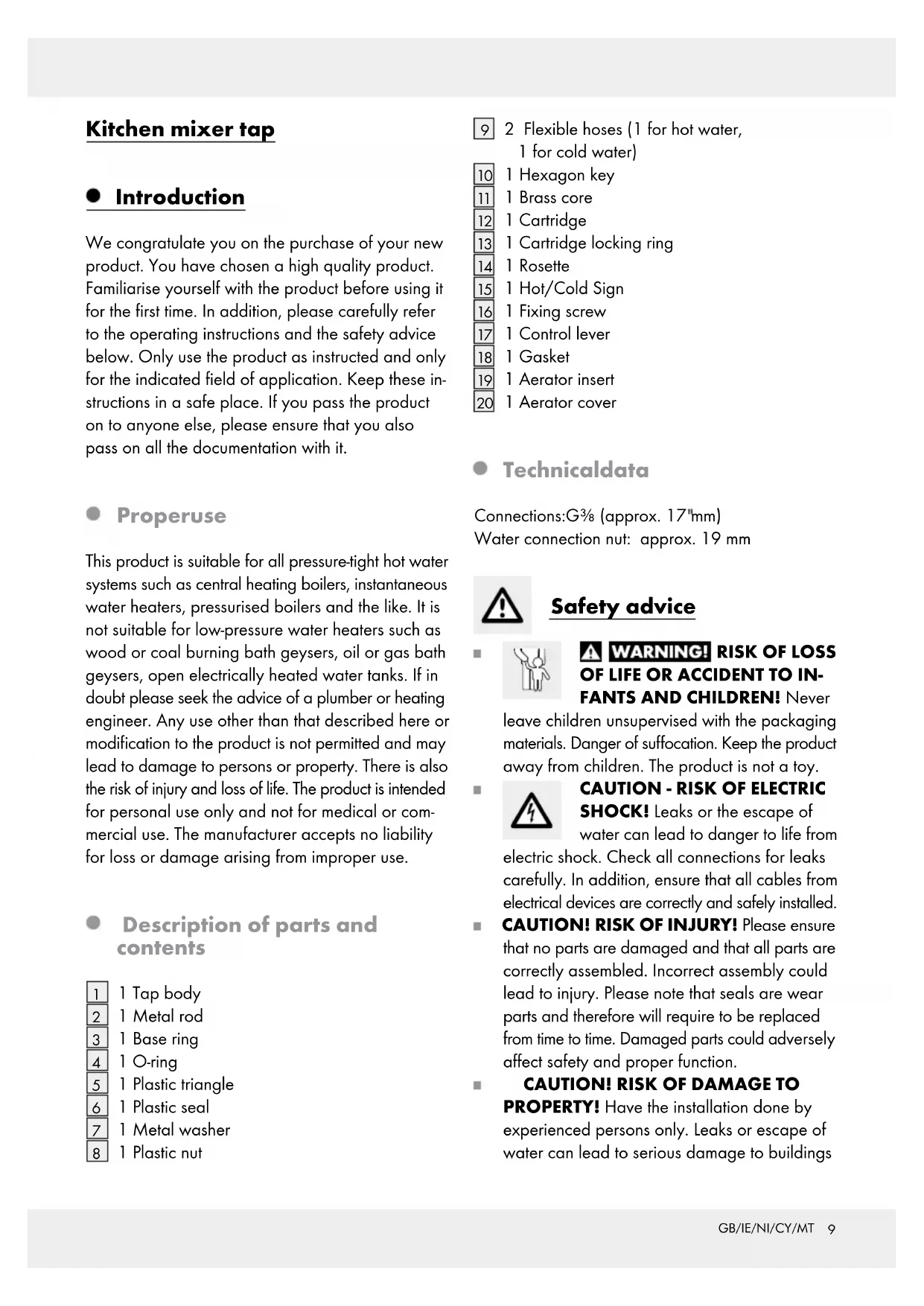

Kitchen mixer tap Introduction We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these in- structions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it. Proper use This product is suitable for all pressure-tight hot water systems such as central heating boilers, instantaneous water heaters, pressurised boilers and the like. It is not suitable for low-pressure water heaters such as wood or coal burning bath geysers, oil or gas bath geysers, open electrically heated water tanks. If in doubt please seek the advice of a plumber or heating engineer. Any use other than that described here or modification to the product is not permitted and may lead to damage to persons or property. There is also the risk of injury and loss of life. The product is intended for personal use only and not for medical or com- mercial use. The manufacturer accepts no liability for loss or damage arising from improper use. Description of parts and contents

2 Flexible hoses (1 for hot water, 1 for cold water)

1 Aerator cover Technical data Connections: G⅜ (approx. 17 mm) Water connection nut: approx. 19 mm Safety advice

FANTS AND CHILDREN! Never leave children unsupervised with the packaging materials. Danger of suffocation. Keep the product away from children. The product is not a toy.

CAUTION - RISK OF ELECTRIC

SHOCK! Leaks or the escape of water can lead to danger to life from electric shock. Check all connections for leaks carefully. In addition, ensure that all cables from electrical devices are correctly and safely installed. CAUTION! RISK OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly could lead to injury. Please note that seals are wear parts and therefore will require to be replaced from time to time. Damaged parts could ad versely affect safety and proper function.

CAUTION! RISK OF DAMAGE TO

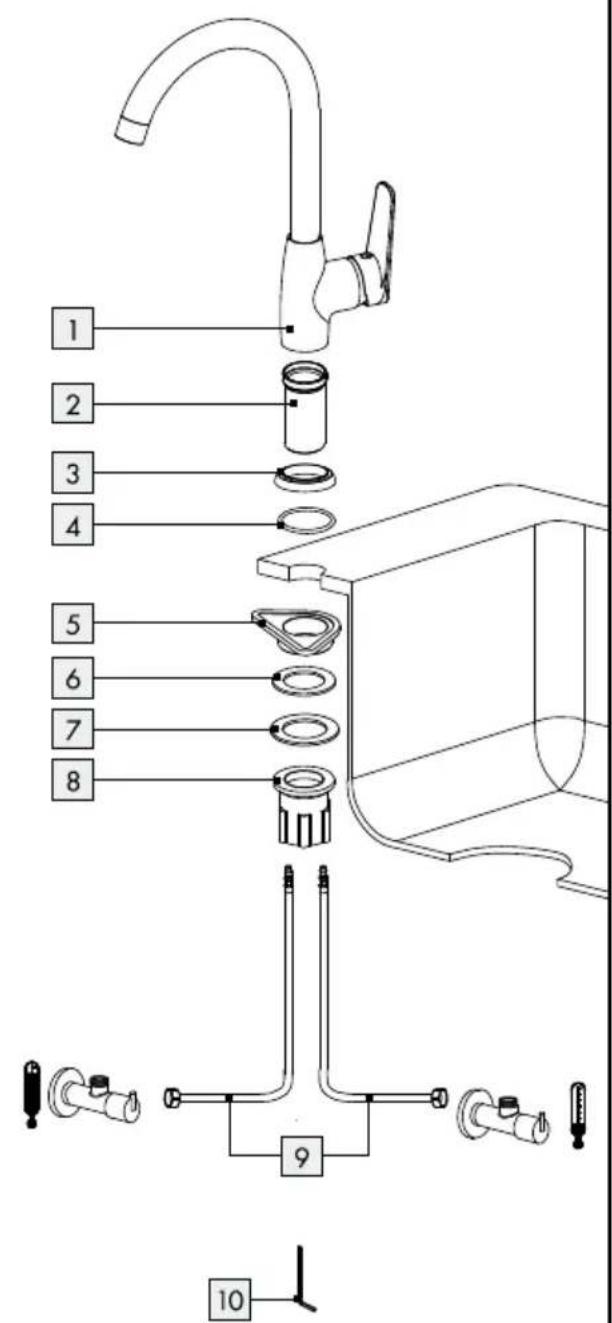

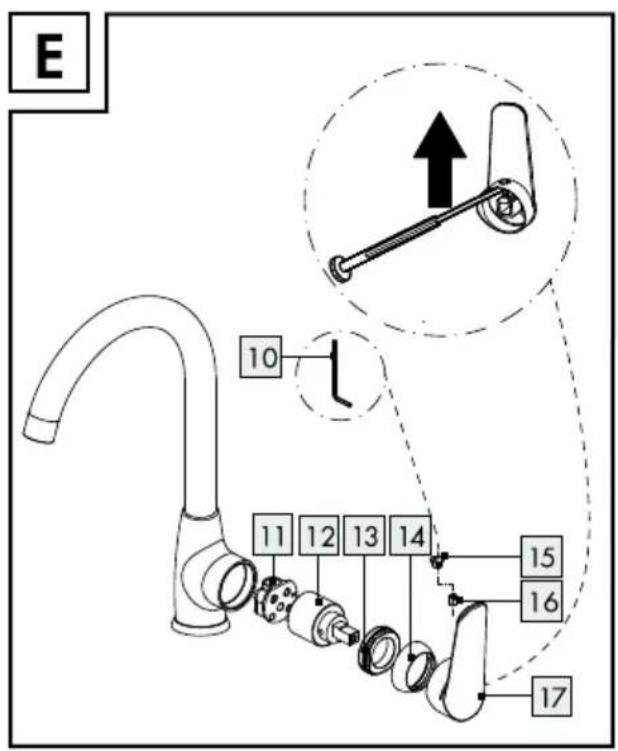

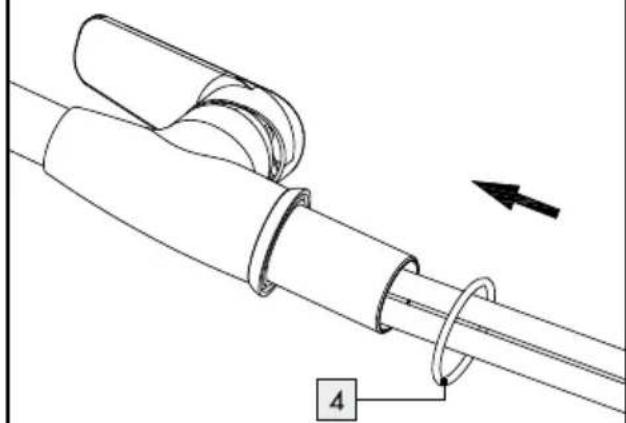

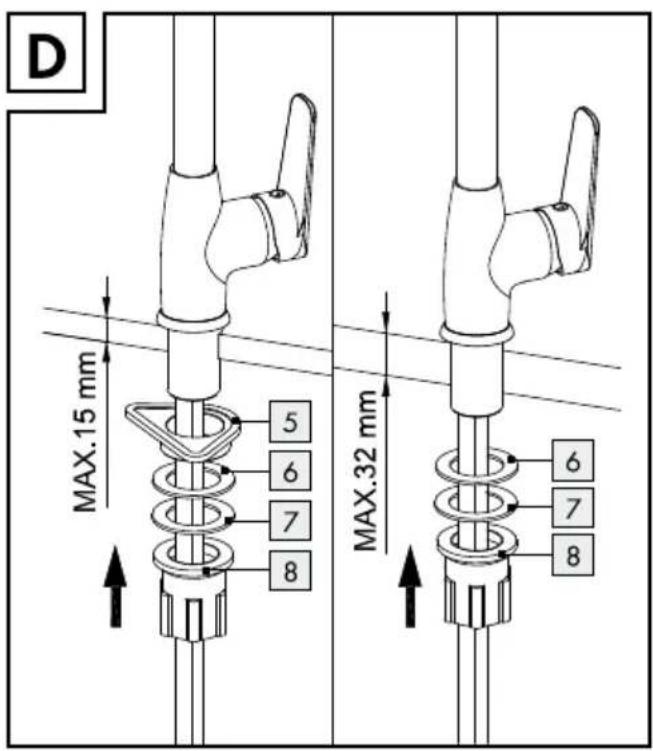

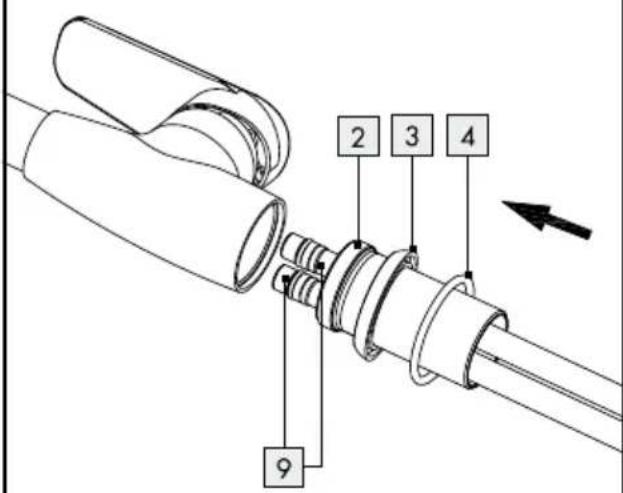

PROPERTY! Have the installation done by experienced persons only. Leaks or escape of water can lead to serious damage to buildings GB/IE/NI/CY/MT10 or household fittings and furniture. Check all connections for leaks carefully. Ensure that all seals are correctly seated to pre- vent leakage of water. The spout can be swiveled to your desired position. Make sure the spout is always posi- tioned within the area of the sink, otherwise escape of water can lead to serious flooding to your house or building. CAUTION! DANGER OF SCALDING! When making the hot water setting please ensure that the temperature of the water is not too high. Before installation, make yourself familiar with all the existing services, e.g. water connection and stopcocks. Please read carefully through these operating instructions before installing and using the product. Keep all the safety advice and instruc- tions in a safe place for future reference! Installation Installing the tap Turn off the main water supply to prevent serious leakage of water. Allow any remaining water in the pipework to drain. Install the tap as shown in Fig. A‒E. CAUTION! Do not bend the hoses or place them under tension. Otherwise material dam- age could result. Flushing the tap The tap must be flushed through before first use to remove any dirt. To do this, follow these steps (see Fig. F): Screw the gasket

off. Open the main water supply and allow the water to run for two minutes. Then screw the gasket

on again. Water-saving function The cartridge

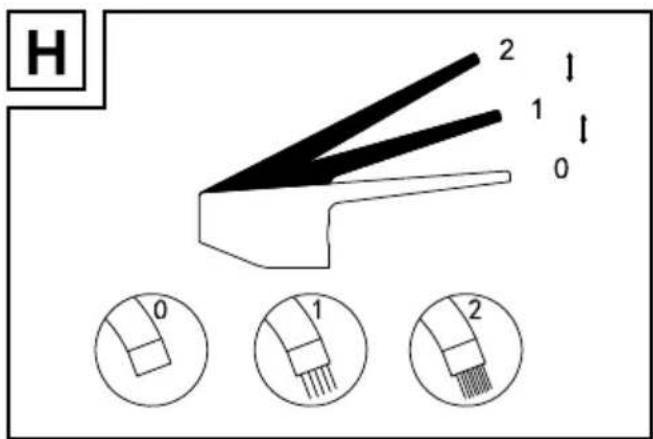

in this tap has an Eco-Click function. This feature limits the water flow through the tap (see Fig. H). Lift the lever

until you notice a slight resist- ance. This resistance will cause a stop in case of partial opening and will therefore simply limit the flow of water. If you want to increase the flow rate, exert slight pressure on the lever

until you overcome the resistance. Operation Bringing into use Note: If the tap has not been used for a long pe- riod flush the pipes through thoroughly in order to avoid stagnation and build-up of residues in the drinking water supply. Open the main water supply. Lift the control lever

and swing it to the right or left in order to regulate the speed or temper- ature of the water flow. Maintenance and cleaning Tap care and cleaning Please note that sanitary fittings require special care and attention. Therefore you should follow the following advice: Never use corrosive or alcohol-based materials for cleaning, as these could damage the product. Clean your fittings with clean water, mild deter- gent and a soft cloth or leather only. Screw out the gasket

at regular intervals and re- move lime deposits or foreign bodies. Non-observance of the above care advice can be expected to result in damage to the surface of the fittings. In this event your rights under the warranty may be invalidated. GB/IE/NI/CY/MT11 Disposal The packaging is wholly composed of environmen- tally friendly materials that can be disposed of at a local recycling centre. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product. Information Potability of mains water Find out about the potability of your mains water supply. Your local water authority or water supply company will be able to inform you. The following general recommendations apply to the potability of the water from your pipework: Let the water run freely for a short time if it has been stagnating in the pipework for more than four hours. Do not use any of this stagnant water in the preparation of food or for drinking. This applies particularly as far as babies and infants are concerned. Failure to observe this advice may result in risks to health. Fresh water can be readily distinguished from stagnant as fresh water is noticeably cooler. Do not use stagnant water from chromium-plated pipework for the preparation of food or for drink- ing or for personal hygiene if you are allergic to nickel. This water may contain high quantities of nickel and trigger an allergic reaction. Do not use water from lead pipework for pre- paring food or drink for babies or infants. Do not use it for preparing food or drink during pregnancy. Lead dissolves in drinking water and is particularly damaging to the health of babies and young children. Warranty The product has been manufactured to strict quality guidelines and meticulously examined before deliv- ery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below. The warranty for this product is 5 years from the d ate of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. Should this product show any fault in materials or manufacture within 5 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly. The warranty applies to defects in material or manu- facture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to frag- ile parts, e.g. switches, rechargeable batteries or glass parts. Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase. You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product. If functional or other defects occur, please contact the service department listed either by telephone or by e -mail. You can return a defective product to us free of charge to the service address that will be provided GB/IE/NI/CY/MT12 to you. Ensure that you enclose the proof of pur- chase (till receipt) and information about what the defect is and when it occurred. Service Service Great Britain Tel.: E-Mail: [e-mail] Tel.: [phone] E-Mail: [e-mail]
