Product Type	Kitchen Faucet
Brand	Livarno Lux
Model	IAN 353652
Material	Chrome-plated Brass
Finish	Polished Chrome
Height	Approximately 35 cm
Spout Reach	Approximately 20 cm
Base Diameter	Approximately 5 cm
Installation Type	On sink (1 hole)
Minimum Water Pressure	1.5 bar
Maximum Water Pressure	6 bar
Maximum Water Temperature	80 °C
Connection	Thread G 1/2
Hoses Included	2 hoses of 50 cm
Main Function	Mechanical lever mixer
Additional Functions	Swivel spout, aerator
Spout Rotation	360°
Cleaning and Maintenance	Clean with a soft cloth and non-abrasive cleaner
Descaling	Use a standard descaler
Warranty	3 years
Spare Parts	Available during warranty period
Repairability	Repairable by a professional
Standards	Compliant with European standards
Weight	Approximately 1.2 kg

Frequently Asked Questions - IAN 353652 Livarno Lux

How to install the Livarno Lux IAN 353652 kitchen faucet?

Installation must be carried out by a competent person. Make sure the water supply is turned off. Connect the hoses to the water outlets and fix the faucet to the sink using the supplied fixing nut. Use sealing tape if necessary.

What is the minimum required water pressure?

The minimum water pressure is 1.5 bar for optimal operation.

Can I install this faucet on a pressureless water heater?

No, this faucet is designed for pressure-resistant hot water systems (boiler, tankless water heater, etc.). It is not suitable for pressureless water heaters.

How to clean and maintain the faucet?

Clean it with a soft, damp cloth, possibly with a mild cleaning product. Remove limescale deposits with a standard commercial descaler. Avoid abrasive products.

What to do if the faucet leaks?

Check that all connections are tightened. If the leak persists, contact customer service. Do not attempt to disassemble the faucet yourself.

What is the warranty period?

This product has a warranty of 3 years from the date of purchase. Keep the receipt as proof of purchase.

How to obtain spare parts?

The spare parts essential for the use of the product are available during the warranty period. Contact customer service with the reference IAN 353652.

Can the faucet spout swivel?

Yes, the swivel spout allows rotation of 360° for convenient use.

What type of connection is required?

The faucet is equipped with hoses with standard G 1/2 connections. Make sure your water supplies are compatible.

How to descale the faucet?

Use a commercial descaler following the product instructions. Rinse thoroughly after application. For the aerator, unscrew it and soak it in white vinegar if necessary.

USER MANUAL IAN 353652 Livarno Lux

Assembly and safety advice

FR BE

DOUCHETTE MULTIFONCTION

Line drawing of a showerhead with spherical button and handle (no text or symbols)

HG00678A

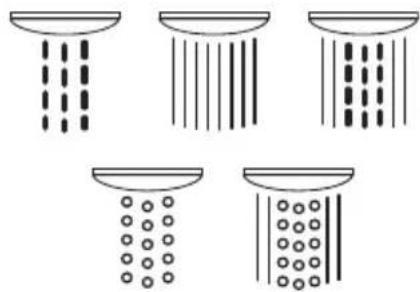

Five identical illustrations of a bowl with vertical bars and circular patterns, no text or symbols present.

Line drawing of a showerhead with no text or symbols

HG00678B

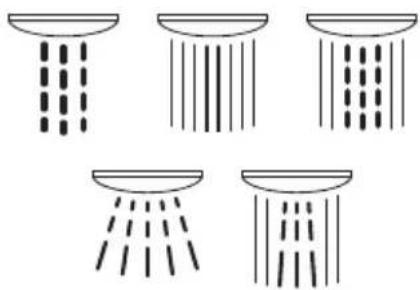

Five identical line drawings of a showerhead with raindrops falling from each other (no text or symbols)

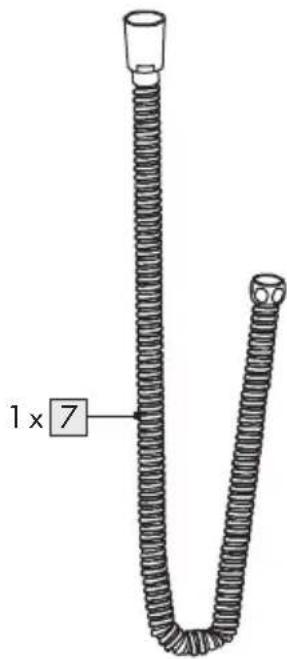

1 x 7

1 2 1 × 3 4 5 8 6 7 5 ↑

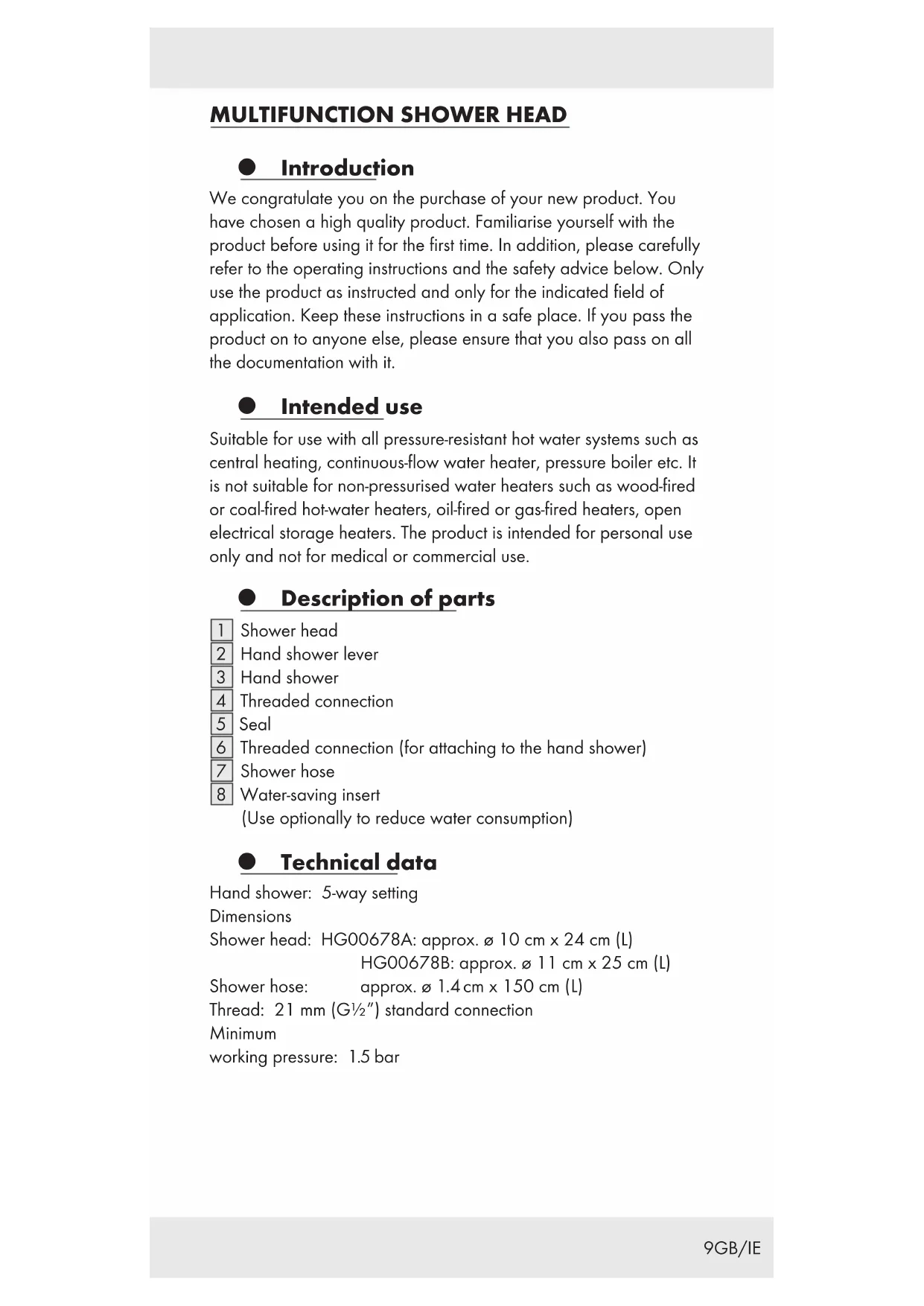

MULTIFUNKTIONSDUSCHKOPF

Einleitung

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

Suitable for use with all pressure-resistant hot water systems such as central heating, continuous-flow water heater, pressure boiler etc. It is not suitable for non-pressurised water heaters such as wood-fired or coal-fired hot-water heaters, oil-fired or gas-fired heaters, open electrical storage heaters. The product is intended for personal use only and not for medical or commercial use.

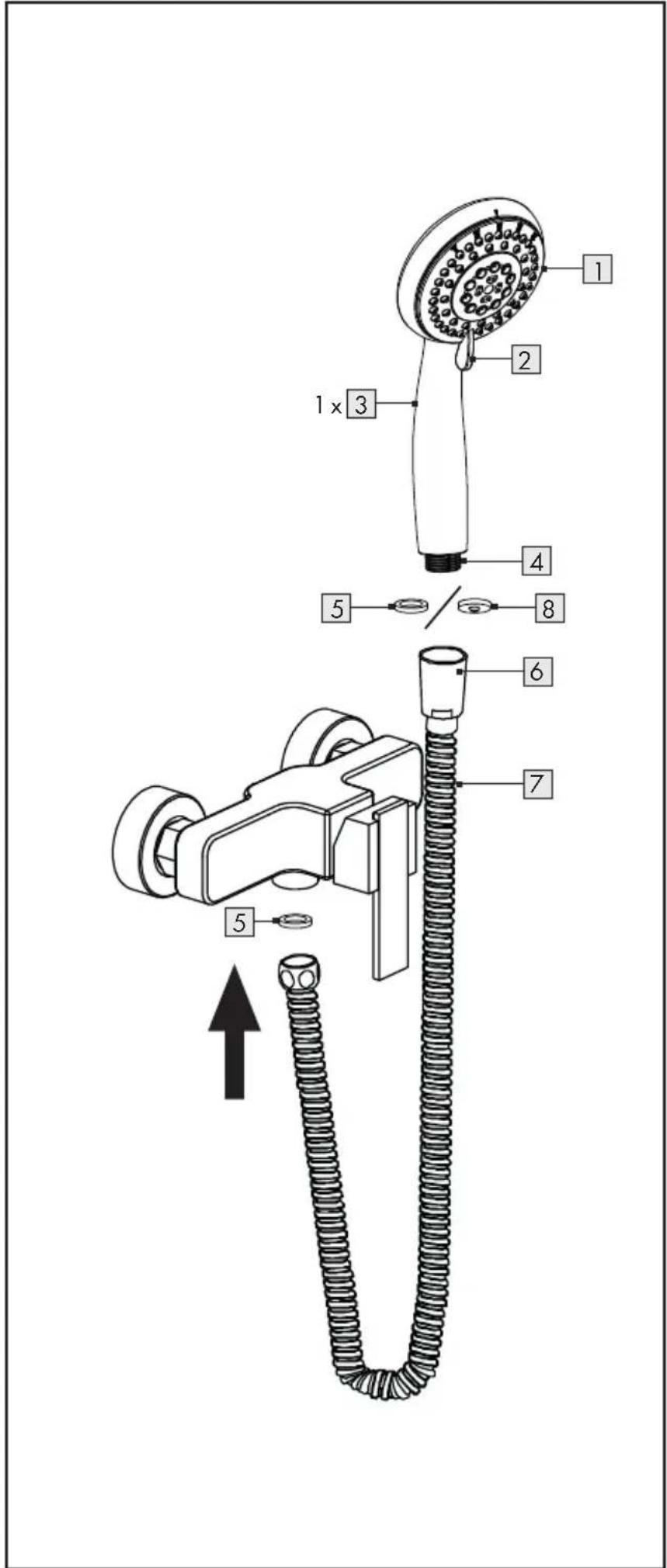

● Description of parts

1 Shower head
2 Hand shower lever
3 Hand shower
4 Threaded connection
5 Seal
6 Threaded connection (for attaching to the hand shower)
7 Shower hose
8 Water-saving insert
(Use optionally to reduce water consumption)

● Technical data

Hand shower: 5-way setting

Dimensions

Shower head: HG00678A: approx. 10 cm x 24 cm (L)

HG00678B: approx. 11 cm x 25 cm (L)

Shower hose: approx. 1.4 cm x 150 cm (L)

Thread: 21 mm (G½") standard connection

Minimum

working pressure: 1.5 bar

Safety instructions

KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!

⚠️ To avoid the risk of injury!

■ Never leave children unsupervised with the packaging materials. It is not a toy.

CAUTION! DANGER OF INJURY! Please ensure that no parts are damaged and that all parts are correctly assembled. Incorrect assembly or fitting may lead to injury. Damaged parts can adversely affect safety and proper function.

CAUTION! RISK OF SCALDING! Adjusting the hand shower may change the temperature of the water coming out. Check the water temperature before stepping into the shower.

WARNING! Suitable for use with all pressure resistant hot water systems such as central heating, continuous-flow water heater, pressure boiler, etc. Not suitable for use with non-pressurised water heaters such as boilers, nonpressurised reservoirs, etc. In case of doubt, consult a professional plumber or technical consultant.

■ Make sure that the product is only installed by capable persons. ■ Please check the product regularly for leakage.

Note: For fittings with 26.4 mm (G ^3/4 ") connections use an adapter with a 26.4 mm (G ^3/4 ") internal thread and a 21 mm (G ^1/2 ") external thread. This adapter can be obtained from any good builder's or plumber's merchant.

● Cleaning and care

• Clean the product with a soft, damp cloth and use a mild cleaning agent if necessary.
  Use an ordinary lime scale cleaner to remove lime scale deposits from the product. Observe the instructions for use of your cleaner.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving, on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

Service Ireland

Tel.:[phone]

E-Mail:[e-mail]
