Simply Invents ZE811D - Juicer TEFAL - Free user manual and instructions

Product type	Juice extractor (centrifugal)
Brand	Tefal
Model	Simply Invents ZE811D
Speeds	2 (speed 1 and 2)
Pulp collector capacity	Approximately 2 L (estimation)
Juice jug capacity	Approximately 1 L (estimation)
Filter material	Stainless steel mesh
Included accessories	Pusher, cleaning brush, foam separator, juice jug with lid, stainless steel mesh, drip tray
Safety	Cover locking buckles with automatic stop if opened
Cleaning of removable parts	Dishwasher safe (except motor unit)
Cleaning of the motor unit	Damp cloth only
Cord storage	Under the appliance (cord wrap)
Non-slip feet	Not specified
Warranty	Standard manufacturer warranty (refer to manual)
After-sales service	Tefal Authorized Service Centers
Spare parts available	Filter (spare part reference), collectors, etc. (contact after-sales service)
Repairability index	Not communicated
Power consumption	Not specified
Weight	Not specified
Dimensions (L x W x H)	Not specified

Frequently Asked Questions - Simply Invents ZE811D TEFAL

How to set up the appliance before first use?

Wash the removable parts (pusher, feed chute, lid, filter, collectors, jug) with soapy water or in the dishwasher. Place the juice collector on the motor unit, insert the filter by clipping onto the shaft, put the lid on and lock the two buckles. Attach the pulp collector at the back and place the jug under the spout.

Which speed to choose for fruits and vegetables?

Use speed 1 for soft fruits (tomatoes, grapes) and speed 2 for hard fruits and vegetables (apples, carrots). A wrong choice may cause abnormal vibrations.

The appliance does not start, what to do?

Check that the plug is connected and the control knob is set to 1 or 2. Make sure the lid is properly locked with the two buckles: the appliance only works when the buckles are correctly clipped.

How to clean the filter after use?

Clean the filter immediately after use with the provided brush under running water. Avoid scouring pads. The filter can also go in the dishwasher, but handle it with care (risk of cuts).

The juice flow slows down, what to do?

Turn off the appliance and clean the feed chute and filter. If the filter is clogged, remove the residues. Also check that the pulp collector is not full.

Can I juice hard fruits or vegetables without peeling?

In general, it is not necessary to remove skins, except for citrus fruits and pineapple (thick or bitter peel). For hard fruits (apples, carrots), simply cut into pieces suitable for the chute.

What to do if the appliance emits an odor or becomes very hot?

Immediately stop the appliance. Check that the filter is correctly clipped onto the drive shaft. Let the appliance cool down and reduce the quantities processed. If the problem persists, contact an Authorized Service Center.

Can I use accessories not supplied?

No, use only original accessories. Using non-compliant parts may cause risks and void the warranty.

How to store the power cord?

The appliance is equipped with a cord wrap located under the motor unit. Wind the cord around this device to adjust the length and avoid trailing.

The filter is damaged, what to do?

Never use the appliance with a cracked or torn filter. Contact an Authorized Service Center to obtain a replacement filter. Handle the filter with care to avoid cuts.

USER MANUAL Simply Invents ZE811D TEFAL

FGBDNL EIPDKNSSFINGRTRARAIR

fig.1fig.3fig.2

fig.4fig.6afig.5

fig.6fig.7

Système de sécurité

This appliance has a built-in safety system. To turn the juicer on, the lid (C) must be locked by the two locking clips (H). If just one of the locking clips (H) is open, the juicer will stop. At the end of the cycle, turn the control button (I) to "0" and wait for the filter to stop completely (D) before removing the lid (C). An inappropriate choice of speed can lead to abnormal vibration of the unit.

Safety instructions

• Always check the filter (D) is not damaged before use.
• Never use the juicer if the filter is broken, if it is defective, if you see cracks or breaks if the filter is torn. If the filter is visibly damaged, contact an Authorised Service Centre Handle the filter with care as it is sharp (risk of cutting).

• For your safety, this appliance is compliant with applicable standards and regulations:

• Low Voltage Directive

• Electromagnetic compatibility

• Materials in contact with food

• Check that the power voltage indicated on the nameplate of the appliance corresponds to that of your mains installation. Any connection error renders the guarantee invalid.

• Do not place or use this appliance on a hotplate or near to a naked flame (gas cooker
• Do not immerse the Motor unit in water, do not run it under water.
• If the power cord is damaged, it must be replaced by the manufacturer, an approved after-sales service or a similarly qualified person, in order to avoid any danger.
• Only use the appliance on a stable work surface away from water splashes. Do not turn it over.

• Never disassemble the appliance. All repair work other than cleaning and basic maintenance by the customer must be done by an approved centre.
  The appliance must be unplugged:

• if there is a malfunction during operation

• each time it is cleaned, disassembled or maintained

• Never unplug the appliance by pulling on the cable.

• Only use an extension lead after checking that it is in perfect working order.

• No domestic appliance should be used if:

• it has been dropped on the floor;

• it has been damaged or is incomplete.

• In these cases, as for all other repairs, it is necessary to send it to an Authorised Service Centre.

• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children must be supervised to ensure that they do not play with the appliance.

• Never use any accessories or spare parts designed for your appliance, bought from an approved centre. We disclaim any liability if this is not the case.
• Never place your fingers or any other object in the feeder tube (B) while the appliance is working. Only use the food pusher (A) provided for this purpose.
• Do not remove the lid (C) until the filter (D) has completely stopped.
• Do not remove the pulp collector (G) while the appliance is working.
• Always unplug the appliance from the mains each time after you have used it.
• If you are using the juicer with hard fruit or vegetables, it is recommended that you use it for a quantity less than 3kg and no more than 2 minutes continuously. Some fruits and vegetables which are too hard can cause a malfunction of the device. If so, turn off the device and check that the filter (D) is correctly positioned.

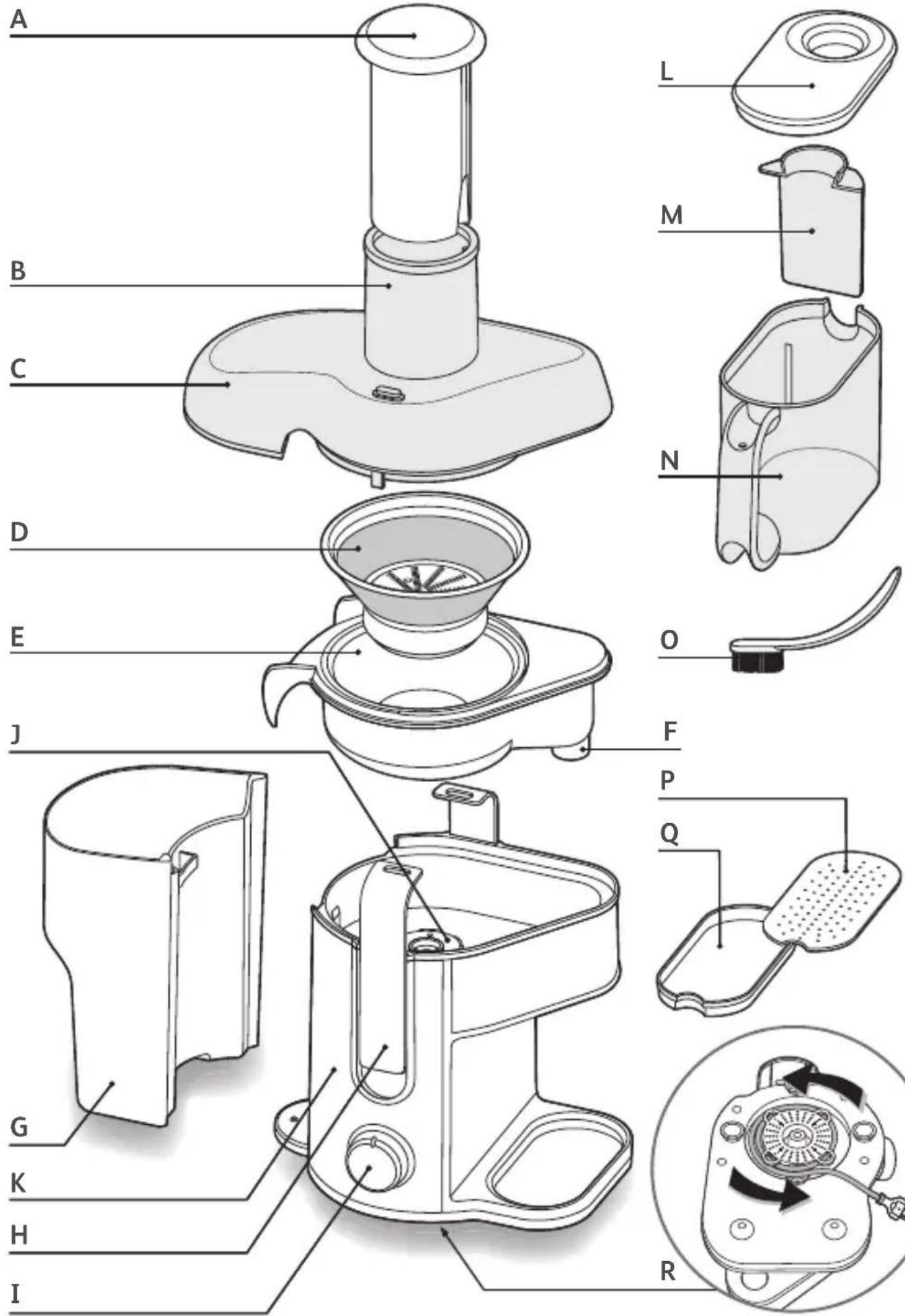

Description

A Food pusher
B Feeder tube
C Lid
D Filter
E Juice collector
F Spout
G Pulp collector
H Locking clip
I Control button (2 speeds)

Driving shaft
K Motor unit
L Jug lid
M Froth separator
N Juice Jug
0 Brush
P Stainless steel grid
Q Drip tray
R Cord storage

Before using for the first time

• We recommend you wash the parts (A, B, C, D, E, G, L, M and N) before the first use (see cleaning).

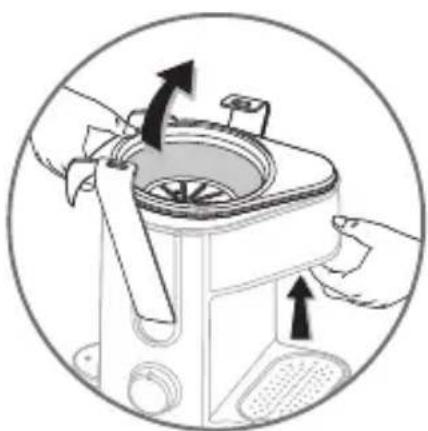

• Unpack the appliance and place it on a stable work surface, loosen the two locking clip (H), remove the lid (C), remove the protective cardboard on the filter (D) then take out the filter (D) and the juice collector (E).

Switching it on.

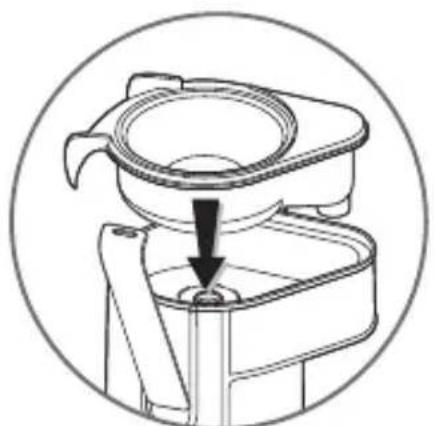

• Place the juice collector (E) on the motor unit (K). (see Fig. 1)

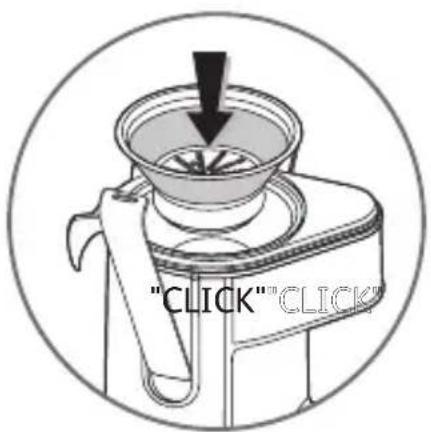

• Place the filter (D) in the juice collector (E). Make sure the filter is properly clipped to the driving shaft (J) (you hear a "click"). (see Fig. 2)

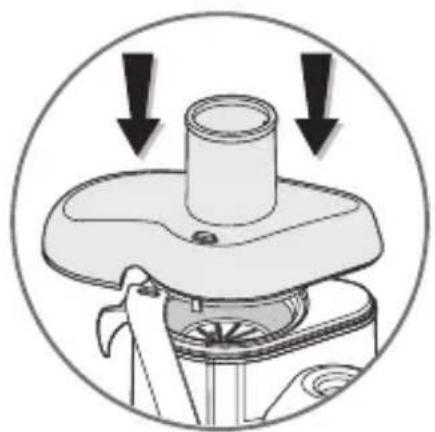

• Place the lid (C) on the juice collector (E) (pulp outlet to the rear). (see Fig. 3)

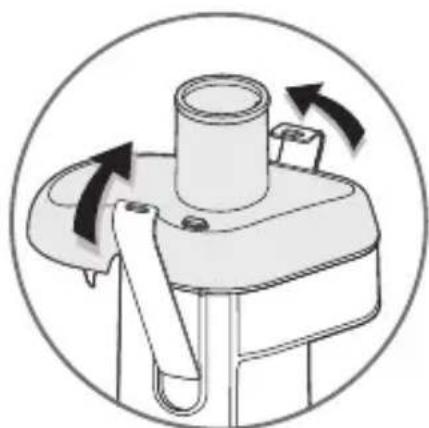

• Fit the 2 locking clips (H) on the lid (C). Make sure the 2 locking clips are properly clipped to the lid. (see Fig. 4)

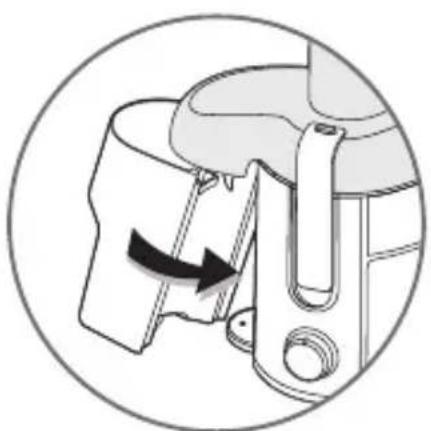

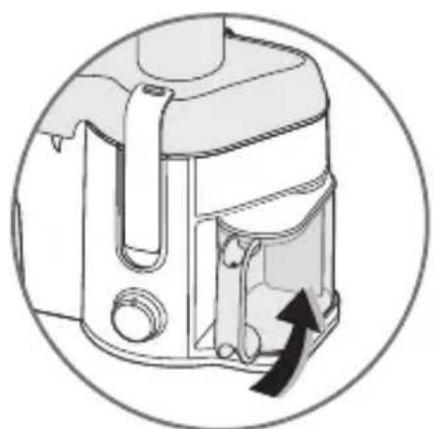

• Place the pulp collector (G) at the back of the appliance by tilting it forward slightly and then sliding it under the lid (C). (see Fig. 5)

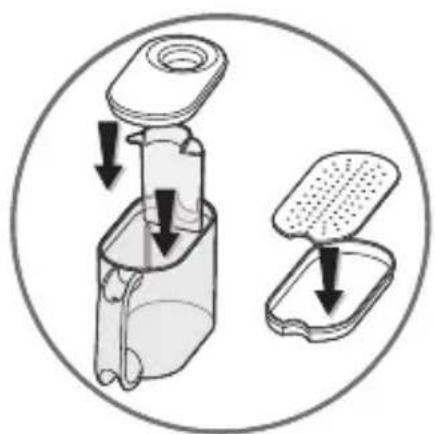

• If you want to separate the juice from the froth, insert the froth separator (M) in the juice jug (N). Place the lid (L) on the juice jug (N). (see Fig.6a)
• Place the stainless steel grid (P) on the drip tray (Q). Place the assembled drip tray on the Motor unit in the appropriate slot.
• Place the juice jug (N) under the spout at the front of the appliance. (see Fig. 6b)
• Plug the juicer in. The cord storage (R) lets you adjust the length of the cord.

What speed to use?

Ingredients Speed		Approximate weight (kg)	Quantity of juice obtained in ml (*) 1 glass = 200 ml (approximately)
Apples	2	1	650
Pears	2	1	600
Carrots	2	1	600
Cucumbers	1	1 (about 2 cucumbers)	650
Pineapple	2	1	600
Grapes	1	1	600
Tomatoes	1	1.5	650
Celery	2	1.5	600
An inappropriate choice of speed can lead to the abnormal vibration of the u

(*) The quality and quantity of juice varies widely depending on the harvest date and variety of each vegetable or fruit. The quantities above are therefore approximate.

• Turn on using the control button (I) and select the required speed.
• Introduce the prepared fruit or vegetables through the feeder tube (B).

Fruits and vegetables should be introduced with the motor running.

• Slide the food pusher (A) in the feeder tube (B) by aligning the groove with the small notch on the side.

Do not push down on the food pusher too hard. Do not use any other utensil. Do NOT push with your fingers.

• When you have finished, stop the appliance using the control button (I) and wait for the filter to stop completely (D).

• When the pulp collector (G) is full or when the juice starts to flow more slowly, empty the pulp collector (G) and clean the filter (D).

• Wash fruit thoroughly before removing any hard stones or hard pips such as peaches, apricots, etc. Remove any hard stalks or stems.

• In general it is not necessary to peel the fruits or vegetables. You only need to peel the thick-skinned fruit: citrus fruit (as the pith and peel are too bitter), pineapples (remove the core and inedible thick skin), melon, guava and mangoes (remove the inedible thick skin).
• Small size of apples, pears, tomatoes, etc. go into the feeder tube in one piece and do not need to be cut beforehand. Choose the type of fruit or vegetable accordingly.
• It is difficult to extract juice from bananas, avocados, blackcurrants, figs, aubergines, strawberries and raspberries.
• Do not use the juicer for sugar cane or fruit and vegetables which are too hard or too fibrous.
• Choose fruits and vegetables which are fresh and ripe, they will give you more juice. This appliance is suitable for fruits like apples, pears, oranges, grapes, pomegranates, pineapples, etc. and vegetables such as carrots, cucumbers, tomatoes, beetroot, celery, etc.
• If you use over-ripe fruit, the filter may get blocked up more quickly.
• Important: All juices should be drunk immediately. This is because when they come into contact with the air, they oxidize very quickly, which can affect their taste, their colour and above all their nutritional value. Apple and pear juice quickly becomes brown, so add a few drops of lemon juice to slow this process down.

Cleaning and maintenance

• All the removable parts (A, B, C, D, E, G, L, M, N, P and Q) can be cleaned in the dishwasher.
  This appliance is easier to clean if you do it immediately after use.
• Do not use scouring pads, acetone, alcohol (white spirit) etc. to clean your appliance.
• The filter must be handled with care. Avoid any improper handling which may cause damage. The filter can be cleaned with the brush (O).

Replace the filter as soon as it shows signs of wear or tear.

• Wipe the motor unit down with a damp cloth. Dry it carefully.
• Never place the motor unit under a running tap.

What do I do if my appliance doesn't work?

PROBLEMS CAUSES	SOLUTIONS
The product does not work.	The plug is not in the socket properly, the control button (I) is not on "1" or "2".	Connect the appliance to another socket with the same voltage, turn the control button to "1" or "2".
	The lid (C) is not properly locked.	Position the 2 locking clips (H) on the lid (C) to ensure that it is properly locked.
The product is giving off a smell or is very hot to the touch, is giving off smoke or making an abnormal noise.	The filter (D) has not been properly positioned.	Disconnect the appliance, remove the lid and reposition the filter.
	Too much food is being processed at the same time.	Leave the appliance to cool down and then reduce the quantities.
The flow of juice is slow.	The filter (D) is blocked	Turn off the appliance, clear the feeder tube (B) and the filter (D).
For any other defect or problem, contact your nearest after sales service.

DISPOSAL OF ELECTRICAL OR ELECTRONIC PRODUCTS

Environmental protection first!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

HELPLINE:

If you have any product problems or queries, please contact our Customer Relations Team first for expert help and advice:

0845 602 1454 - UK

[phone] - ROI

or consult our website - www.moulinex.co.uk
