Product Type	Masticating Juicer
Model	Ultra Juice ZC605D
Brand	Tefal
Power Supply	220-240 V, 50-60 Hz
Motor Power	200 W
Continuous Operation	Max 15 minutes
Programs	5 automatic programs: Soft Fruits & Vegetables, Hard Fruits & Vegetables, Ice Cream, Jam & Puree, EasyClean
Reverse Function	Yes, for unblocking
Display	Electronic touch display
Feeding Tube	Large and small opening
Pulp Control	Adjustable lever for soft/hard produce
Anti-Drip	Yes, integrated
Included Accessories	Pusher, cleaning brush, juice jug, pulp collector, On The Go bottle, ice cream filter
Dishwasher Safe Parts	Yes, parts in contact with food except motor unit
Safety Features	Safety stop, automatic shutoff when overloaded, child safety (not for children)
Material	Plastic body, stainless steel filter and screw
Weight	Approx. 4.5 kg
Dimensions (H x W x D)	Approx. 40 x 20 x 20 cm
Cord Length	Approx. 1.2 m

Frequently Asked Questions - Ultra Juice ZC605D TEFAL

How do I unblock the juicer if it stops and beeps?

Press the Reverse function button (3) for 5 seconds to unblock. If still blocked, open the feeding tube, clean the pressing screw and filter, then reassemble and cut ingredients smaller.

Can I make ice cream with this juicer?

Yes, use the Ice-cream program (button 2). Only use thawed fruits (banana, mango, strawberry) and never insert frozen fruit through the large feeding tube. Let fruit thaw for 5 minutes before starting.

What fruits and vegetables can I juice?

This machine juices high-water content produce: hard ones like apples, carrots, celery (cut 2-4 cm pieces) and soft ones like oranges, tomatoes, kiwis. Remove thick skins, pits, and seeds. Avoid bananas, sugar cane, and high-oil fruits.

How do I clean the juicer?

Disassemble parts and rinse immediately after use. Use the EasyClean function (button 6) for quick cleaning. Most parts are dishwasher safe. Clean the filter and rubber scraper with the provided brush.

Why is the juicer not starting and the indicator light flashing?

Check that the juicing bowl and safety lid are properly aligned and fitted. Ensure the juice jug is correctly placed. If still not starting, refer to the troubleshooting section.

How long can I use the juicer continuously?

Do not use for more than 15 minutes at a time. If it stops after longer use, allow it to rest for 30 minutes before restarting.

What is the pulp lever for?

Adjust the pulp lever control (F) to ‘Closed’ for soft fruits (more pulp) or ‘Open’ for hard fruits (less pulp). This optimizes juice extraction.

Can I juice frozen fruits?

Frozen fruits must be thawed before juicing. For ice cream, use thawed fruits only. Do not use ice in the machine.

What should I do if the rubber scraper does not rotate?

Check the gear (L) at the base of the juice bowl. If it is worn, contact customer service. The scraper should rotate during operation.

Is the juicer suitable for commercial use?

No, this appliance is designed for indoor and domestic use only at altitudes below 2000 m. Commercial use voids the warranty.

USER MANUAL Ultra Juice ZC605D TEFAL

Line drawing of a modern kitchen blender with three cups and a side dish (no text or symbols)

ULTRA JUICE

Illustration of kitchen utensils and a baking pan with a crossed-out cake (no text or symbols)

Illustration of three kitchen appliances: a toaster, a side table with a cup, and a blender (no text or symbols)

Two-step diagram showing a kitchen mixer being inserted, with no text or symbols present.

Illustration of hands slicing a fruit with a knife, accompanied by a magnified inset showing dried fruit and a crossed tool (no text or symbols)

Line drawing of a multi-stage food blender with two cups, no text or symbols present

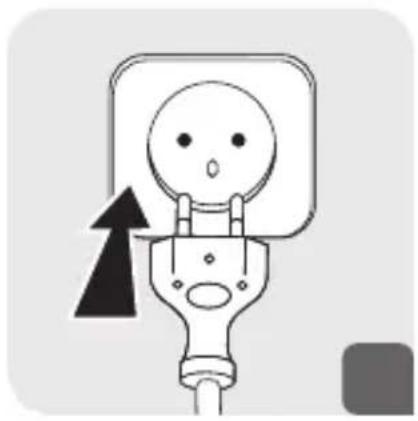

Simple line drawing of a plug with a circular head and arrow indicating direction (no text or symbols)

3a

Illustration of a hand pointing at a black rectangular device with circular buttons, next to a simple tomato icon (no text or symbols on the device itself)

Line drawing of a tomato being mixed in a container with a straw (no text or symbols)

3b

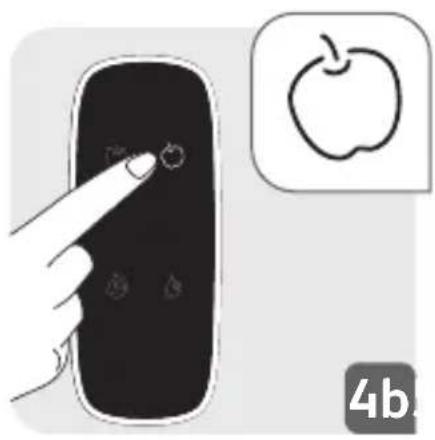

Hand pointing at a touchscreen device with an apple icon nearby (no text or symbols on the device)

Line drawing of a cartoon character holding an apple, with no text or symbols present

Line drawing of a coffee maker with a handle and spout (no text or symbols)

Line drawing of a kitchen appliance with a lid and base, showing a downward step from top to bottom (no text or symbols)

Line drawing of a kitchen mixer with a stand mixer and fan (no text or symbols)

Line drawing of a kitchen mixer with a hand operating the cup (no text or symbols)

Diagram of a kitchen appliance with a hand operating a valve, showing internal components and a directional arrow (no text or symbols)

Line drawing of a kitchen mixer with a downward arrow indicating compression (no text or symbols)

Diagram of a plug with a circular head and arrow indicating direction (no text or symbols)

Illustration of a hand interacting with a touchscreen device next to an ice cream cone (no text or symbols on the device itself)

Illustration of a blender with a checkmark indicating selection (no text or symbols present)

Illustration of a hand interacting with a smartphone displaying a small battery icon, next to a simple line drawing of a jar (no text or symbols on the device)

Line drawing of a steamer with tomato and grape clusters (no text or symbols)

Line drawing of a cooking pot with a handle and a cylindrical container, no text or symbols present

Hand pointing at a remote control with a water droplet icon (no text or symbols on the device)

Simple line drawing of a plug with a downward arrow indicating compression or disassembly (no text or symbols)

	×	×	×	√
	√	√	√	√
	√	√	√	√
	√	√	√	√
	√	√	√	√

NUMAI PENTRU PIETELE EUROPENE

BEZBEDNOSNA UPUTSTVA

Before using your appliance for the first time, read the booklet carefully and keep it in a safe place.

• Do not use the appliance if it has been dropped and there is visible damage to it (e.g. the protection panel), or if it fails to function normally. In this case, it must be sent to an approved service centre.
• Do not use the appliance if the power cord or plug is damaged. The power cord must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid danger.
• This product has been designed for indoor and domestic use only, and at an altitude below 2000m. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

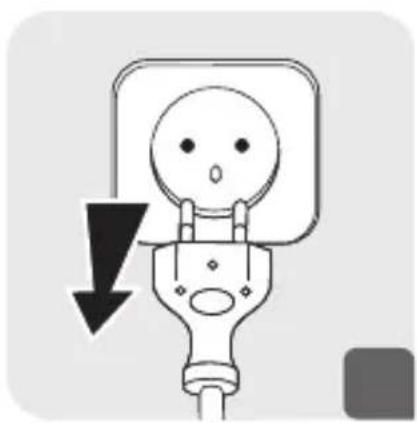

• Always unplug the appliance when not in use, if left unattended, during assembly, disassembly and cleaning.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance and do not use it as a toy.

- Do not allow children to use the appliance without supervision.

- Never push food with your fingers, always use the pusher.

- Your appliance is for domestic culinary use only (for use inside the home only). It has not been designed to be used in the following circumstances, which are not covered by the guarantee: in kitchen areas reserved for staff in shops, offices and other professional environments, on farms, by clients of hotels, motels and other residential environments and in guest rooms or similar accommodation.

- The parts in contact with food should be cleaned with a sponge and soapy water or in the dishwasher; please consult the instruction manual for the complete cleaning and maintenance of your appliance.

- This appliance should not be used for more than 15 minutes at a time.

• To protect your appliance, there is a safety stop. If the contents are too much or the pieces are too large, the appliance stops and beeps 10 times. Use the reverse function to unblock the appliance, and cut the pieces smaller.
• Cleaning and user maintenance shall not be made by children without supervision.
• The instructions for appliances warn against misuse.
• In the case that, an additional accessory would be proposed, it would be accompanied with its own safety instructions.
• Do not immerse the appliance, power cord or plug in water or any other liquid.
• Do not allow long hair, scarves, ties, etc. to hang over the appliance when it is in use.

EUROPEAN MARKETS ONLY

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
• Children shall not play with the appliance.
• This appliance may be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, provided they are supervised or have received instruction to use the appliance safely and understand the dangers.

EN

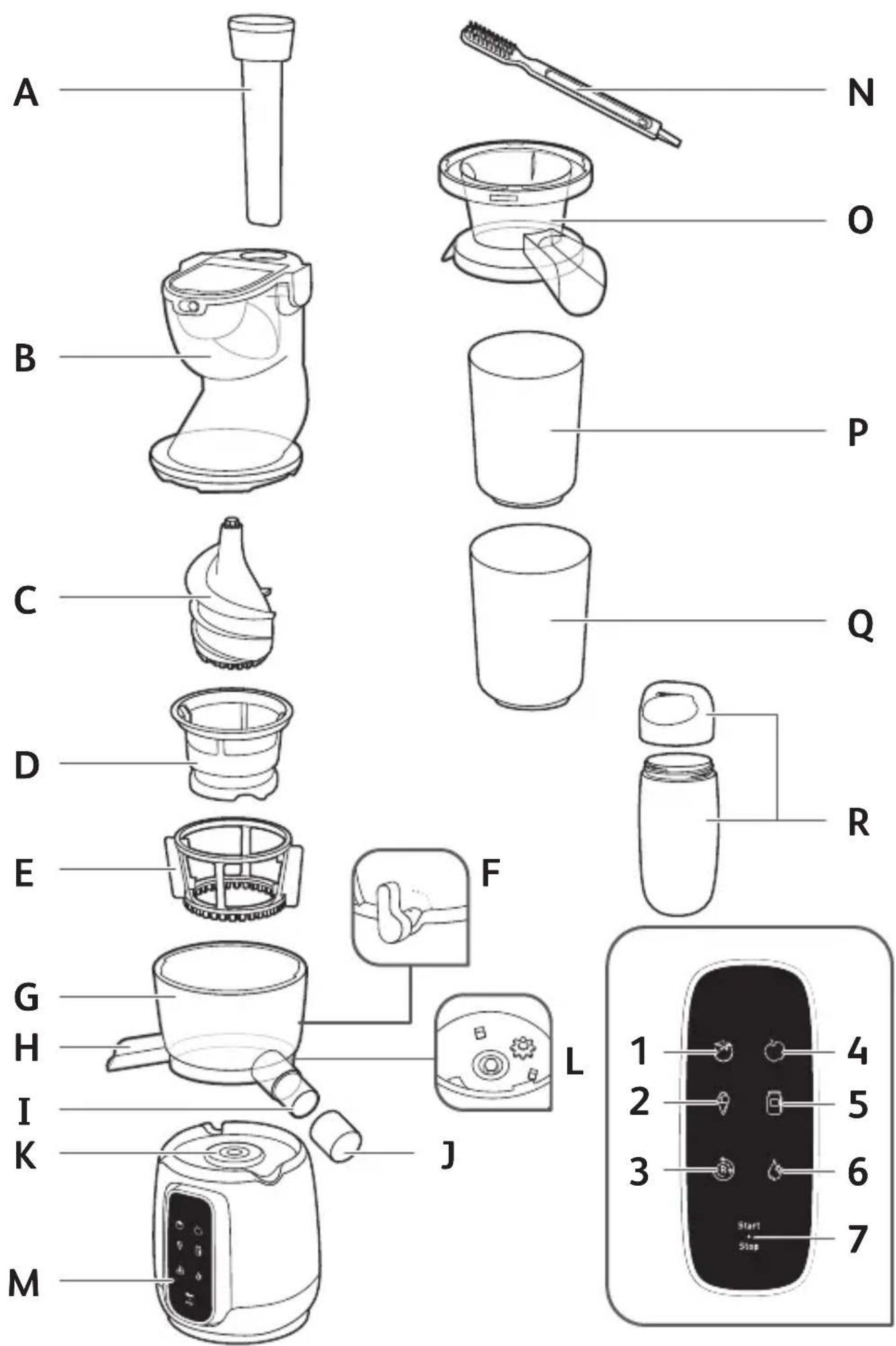

DESCRIPTION

A Pusher
B Feeding tube
C Pressing screw
D Filter
E Rubber scraper
F Pulp lever control
G Bowl
H Dry residue exit
I Juice exit

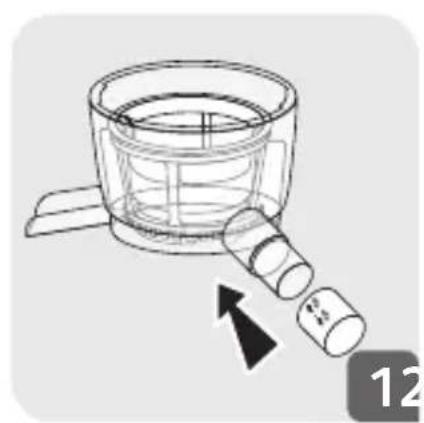

J Anti-drip
K Motor unit
L Gear
M Electronic display
N Cleaning brush
0 Ice cream filter
P Pulp Collector
Q Juice jug
R On The Go Bottle

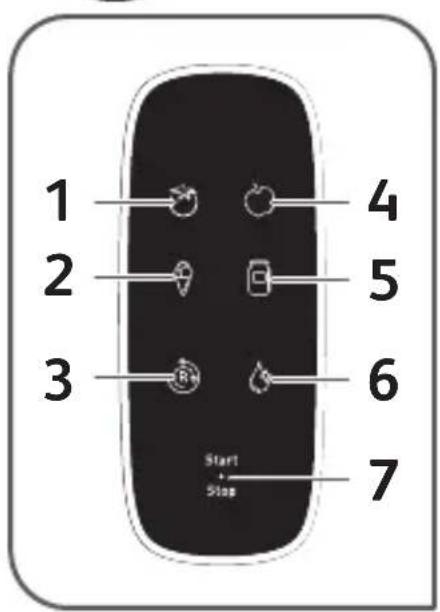

DESCRIPTION

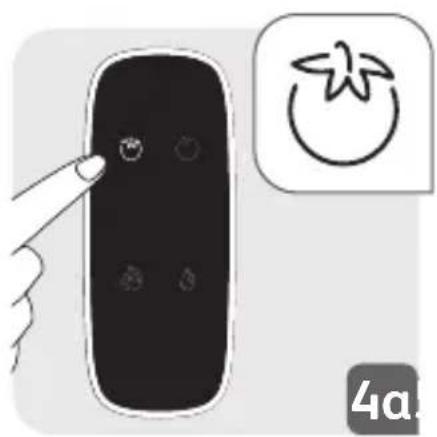

1 Soft fruits and vegetables program touch button

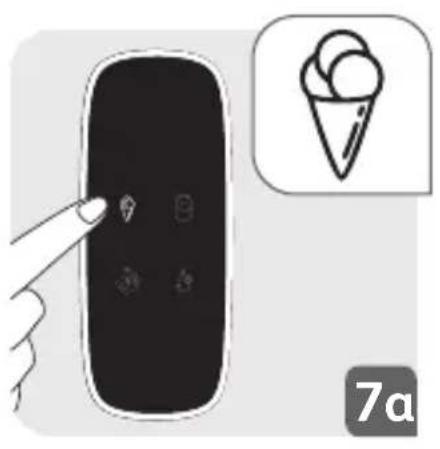

2 Ice-cream program touch button
3 Reverse function touch button
4 Hard fruits and vegetables program touch button

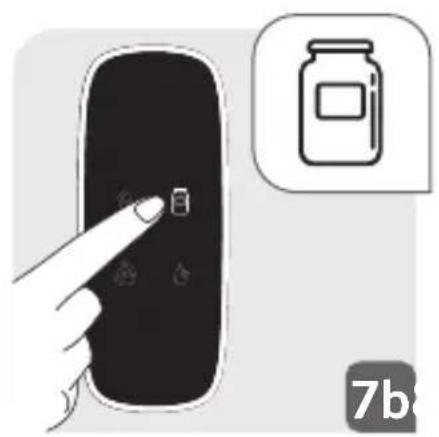

5 Jam and Puree program touch button
6 EasyClean function touch button

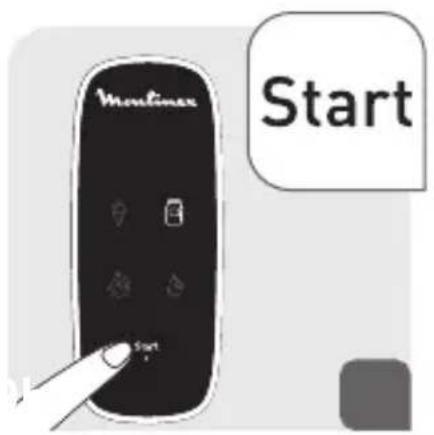

7 ON/OFF button

PRACTICAL TIPS

1- Choose fresh fruits and vegetables and wash them thoroughly.

This machine has been designed to juice fruits and vegetables with high water content, such as:

Hard fruits and vegetables: apples, pears, carrots, celery, pineapples, peaches, etc.

Soft fruits and vegetables: mandarin oranges, tomatoes, kiwis, oranges, grapes, watermelon, etc.

–Hard, fibrous fruits and vegetables must be cut into pieces within 2 to 4 cm in size, and between 1 to 2 cm thick.

-For hard fruits and vegetables with long fibres and leafy vegetables (such as celery), stems should be cut into pieces within 2 to 4cm long, and leaves should be rolled up before juicing.

- For fruits and vegetables with thick skins, or hard pits or seeds, the skins, pits and seeds should be removed before juicing.

–Frozen fruits and vegetables must be thawed before juicing.

2- For Ice Cream and Coulis functions :

–Fruits that can be made into ice-cream in this machine: banana, mango, strawberry, red berries...

-Fruits that can be made into jams and purees in this machine strawberries, tomatoes, chillies...

For Ice Cream, never insert frozen fruit through the big feeding tube. Always use the small one to avoid overload or safety break. Please let the fruit thaw for 5 min before starting to make the ice cream. Never use this function to make crushed ice.

3- For best juicing results, adjust the juicing strength according to the hardness of the fruits and vegetables by turning the adjustment lever.

For soft fruits and vegetables, turn the lever (F) to the “Closed” position. For hard fruits and vegetables, turn the lever (F) to the “Open” position.

4- Inserting hard ingredients can block the appliance. If this happens, use the Reverse function for a few seconds.

To use Reverse function, push Reverse button (3) for 5 seconds.

If it stays blocked:

- Open the cover (B), clean the juicing screw (C) and the filter (D) and then re-assemble

-Cut the ingredients into smaller pieces.

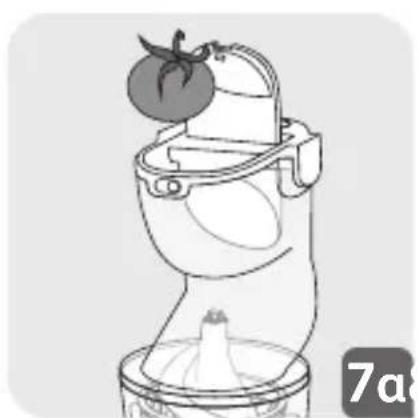

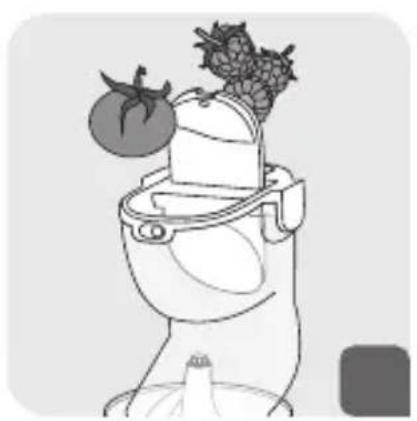

5- Add the fruits and vegetables into the juicer sequentially. Add the next batch only after the previous batch has been processed.

- For better juicing effect, juice low-fibre fruits and vegetables like carrots together with fibrous fruits and vegetables like celery.

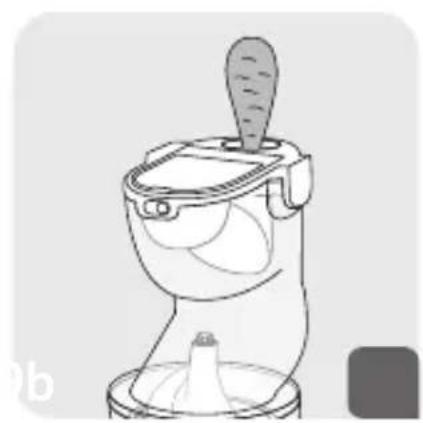

- When juicing carrots, cut each carrot lengthwise into 4 pieces.

- Fruits and vegetables that are not entirely fresh have lower water contents, and will produce less juice.

- When juicing fruits and vegetables that have been left in the refrigerator for a few days, soak them in water to allow them to absorb an adequate amount of water before juicing.

- Kudzu, sugar canes and other fruits and vegetables with especially hard fibres cannot be juiced.

- Do not use ice in this machine.

- Do not use this machine for juicing fruits and vegetables with high oil contents.

- Bananas, soft mangoes and other fruits and vegetables that are soft and mushy do not juice well with this machine.

- For better juicing effect, juice soft fruits with high sugar contents together with hard fruits with high water contents. For example, you can juice apples together with pears. Not only does this add a new flavour to the juice, it also makes juicing more effective.

6- For better juicing performance, we advise to regularly clean the filter and the juice bowl.

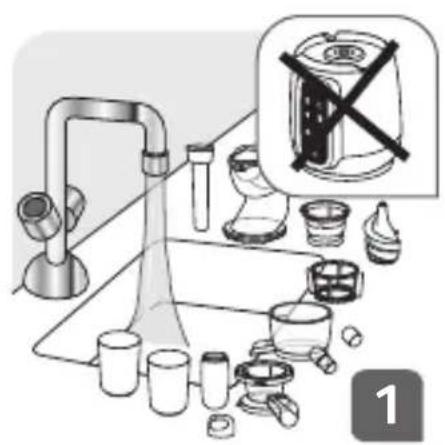

7- After use, it is advisable to clean the appliance as quickly as possible to avoid the accumulation of dried food in the appliance. To make cleaning easier, you can first rinse it by pouring a glass of water through the feed tube during operation.

Common faults Handling method
The appliance cannot be turned on Check if the plug has been plugged in properly.Check if the juicing jug has been fitted properly.
The appliance will not start, and the indicator lamp flashes	Check if the juicing or jam bowl has been fitted properly, and check if the safety lid is properly aligned.
The appliance stopped suddenly during operation, and is beeping	Is the appliance is clogged from excessive feeding (too many pieces or pieces too large)?Put the appliance into “Reverse” mode and let it run for 5 seconds.Has the appliance entered its safety mode after working continuously for more than 20 minutes?Solution: Allow the appliance to rest for 30 minutes, then try again.If you are unable to restart the appliance, get in touch with our customer service.
The filter has been scratched The gap between the filter and the rubber scraper is very small; do not run the appliance when empty.
Very little juice is extracted Water content varies between different fruits and vegetables.Fruits and vegetables also produce less juice when they lose their freshness.
There is a lot of water in the pulp When juicing soft fruits and vegetables, check that the pulp lever control is in the “Closed” position.
The rubber scraper does not rotate during operation	Check if the gear (L) at the base of the juice bowl has not deteriorated, if so contact your customer service
The juicing bowl shakes slightly when the machine is turned on	Slight shaking of the juicing bowl during operation is normal.
The safety lid cannot be opened after juicing	There could be too much residual pulp in the machine. Turn the lever (F) in open position, press the reverse button and allow the machine to run in reverse mode for 5 seconds.If you are unable to resolve the problem after trying the above, get in touch with our customer service.

RECYCLING

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

End-of-life electrical and electronic products:

Your appliance is designed to operate for many years. However, the day you plan to replace it, do not throw it away with normal household rubbish or in a landfill but take it to a suitable collection point provided by your local authority (or to a recycling center if applicable).

Environnemental protection first!

Your appliance contains numerous materials that can be recovered or recycled.

Take it to a collection point for processing.
