USER MANUAL GCEC 7520 T EINHELL

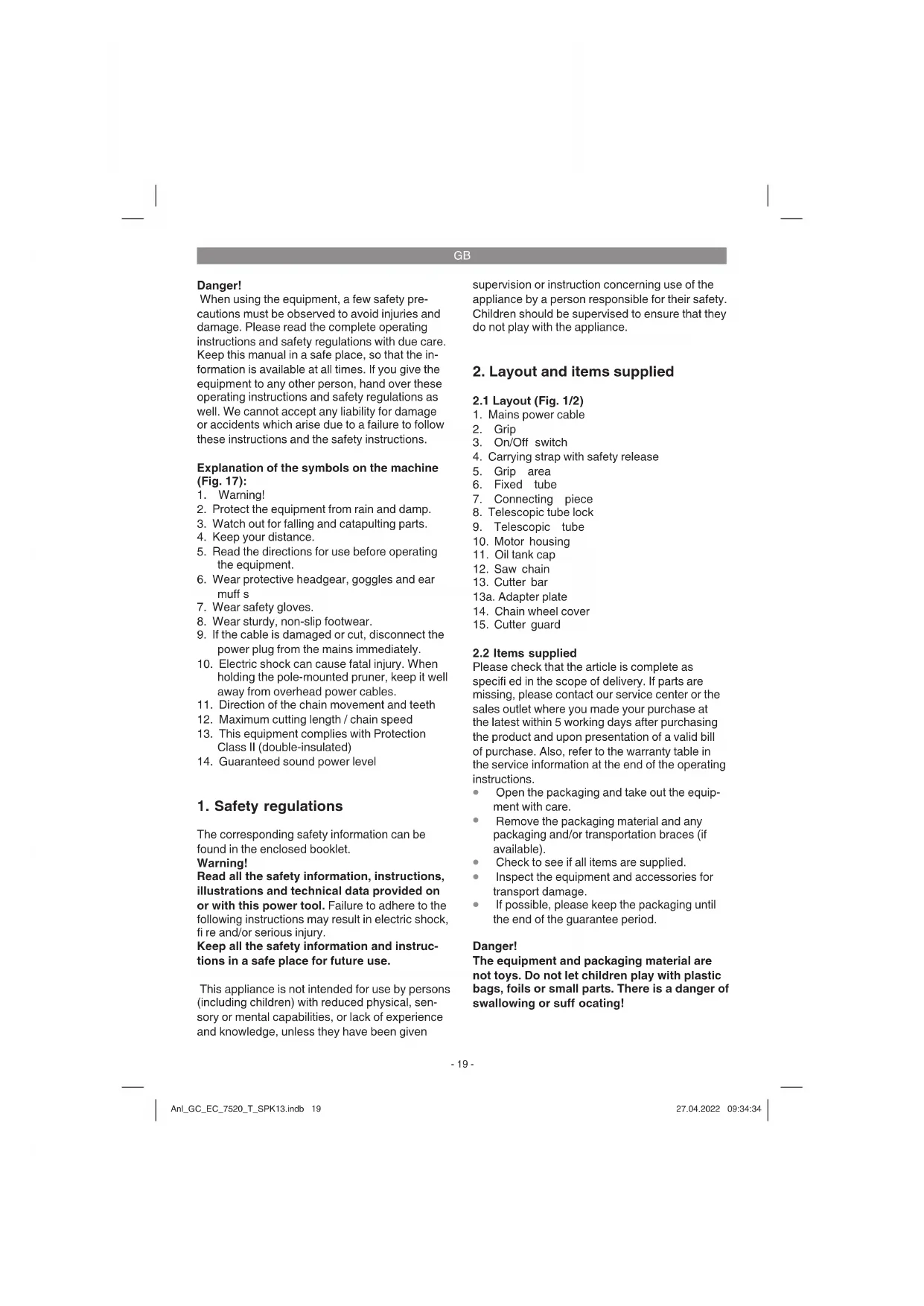

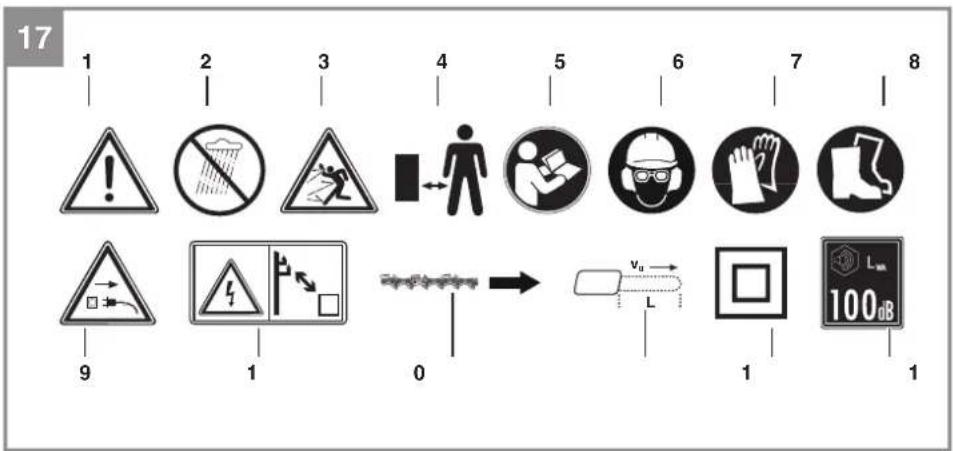

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions. Explanation of the symbols on the machine (Fig. 17):

2. Protect the equipment from rain and damp.

3. Watch out for falling and catapulting parts.

4. Keep your distance.

5. Read the directions for use before operating

6. Wear protective headgear, goggles and ear

7. Wear safety gloves.

8. Wear sturdy, non-slip footwear.

9. If the cable is damaged or cut, disconnect the

power plug from the mains immediately.

10. Electric shock can cause fatal injury. When

holding the pole-mounted pruner, keep it well away from overhead power cables.

11. Direction of the chain movement and teeth

12. Maximum cutting length / chain speed

13. This equipment complies with Protection

Class II (double-insulated)

14. Guaranteed sound power level

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet. Warning! Read all the safety information, instructions, illustrations and technical data provided on or with this power tool. Failure to adhere to the following instructions may result in electric shock, fi re and/or serious injury. Keep all the safety information and instruc- tions in a safe place for future use. This appliance is not intended for use by persons (including children) with reduced physical, sen- sory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

2. Layout and items supplied

4. Carrying strap with safety release

14. Chain wheel cover

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating! Anl_GC_EC_7520_T_SPK13.indb 19Anl_GC_EC_7520_T_SPK13.indb 19 27.04.2022 09:34:3427.04.2022 09:34:34GB

Electric Pole-Operated Pruner

Original operating instructions

The electric pole pruner is designed for cutting off branches from trees. It is not suitable for extensi- ve sawing work, cutting down trees or sawing any materials other than wood. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Danger! Sound and vibration Sound and vibration values were measured in accordance with EN ISO 11680-1.

sound power level guaranteed ....... 100 dB(A) Wear ear-muff s. The impact of noise can cause damage to hea- ring. Total vibration values (vector sum of three direc- tions) determined in accordance with EN ISO 11680-1. Handle under load Vibration emission value a

The stated vibration emission levels and stated noise emission values were measured in ac- cordance with a set of standardized criteria and can be used to compare one power tool with another. The stated vibration emission levels and stated noise emission values can also be used to make an initial assessment of exposure.

The vibration and noise emission levels may vary from the level specifi ed during actual use, depen- ding on the way in which the power tool is used, especially the type of workpiece it is used for. Take appropriate measures to protect yourself against vibration stress. Take the entire work sequence into consideration including times at which the device is not working under load or is switched off . Appropriate measures include among other things regular care and maintenance of the device and tool attachments, keeping your hands warm, taking regular breaks and good work sequence planning. Keep the noise emissions and vibrations to a minimum.

Only use appliances which are in perfect wor- king order.

Service and clean the appliance regularly.

Adapt your working style to suit the appliance.

Do not overload the appliance.

Have the appliance serviced whenever ne- cessary.

Switch the appliance off when it is not in use.

Caution! Residual risks Even if you use this electric power tool in accordance with instructions, certain resi- dual risks cannot be rules out. The following hazards may arise in connection with the equipment’s construction and layout:

1. Cut injuries are possible if no safety clothing

4. Health damage caused by hand-arm vib-

rations if the equipment is used over a pro- longed period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data. Warning! Always pull the power plug before making adjustments to the equipment. Warning! Do not connect the electric pole pruner to the power supply until it has been fully assem- bled and the chain tension has been adjusted. To protect yourself against injury, always wear pro- tective gloves when working on the electric pole pruner. Carefully unpack all parts and check that they are complete (Fig. 2).

5.1 Fitting the shoulder strap

Fig. 3a/3b: Hook the carry strap with safety release onto the shoulder strap holders (Item 4a/4b).

5.2 Fitting the cutter rail and saw chain

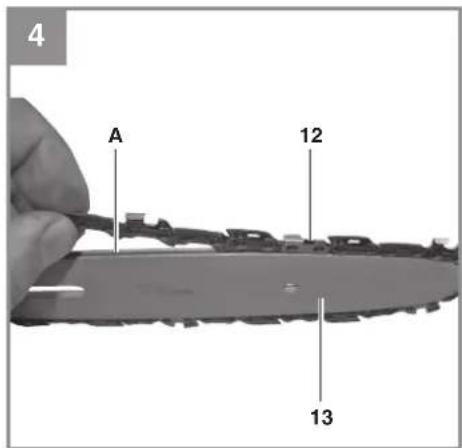

Lay the saw chain as shown in the groove which runs around the cutter rail (Fig. 4/Item A).

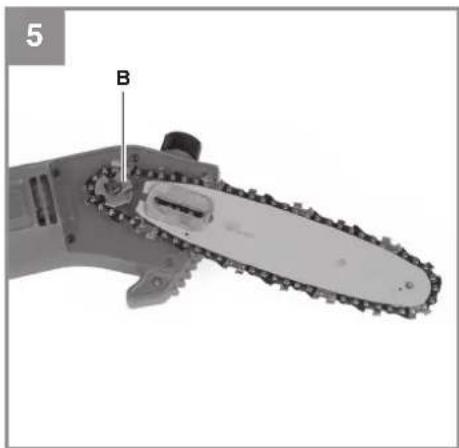

Insert the cutter rail (13) and the saw chain (12) in the mounting of the electric pole pru- ner (Fig. 5) as shown. At the same time guide the chain around the sprocket wheel (Fig. 5/ Item B).

Attach the chain wheel cover (Fig. 6/Item 14) and fasten it hand-tight with the fastening screw (Fig. 6/Item 14a). Important! Do not fully tighten the fastening screw until after you have adjusted the chain ten- sion (see section 5.3).

5.3 Tensioning the saw chain

Warning! Always disconnect the mains plug before performing any checks or adjustments. To protect yourself against injury, always wear pro- tective gloves when working on the electric pole pruner.

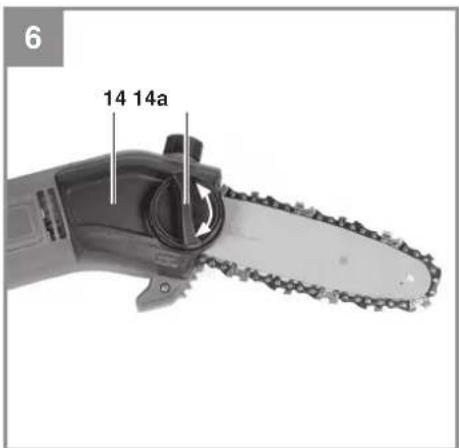

Slacken the fastening screw (Fig. 6/Item 14a) of the chain wheel cover by several turns (counter-clockwise).

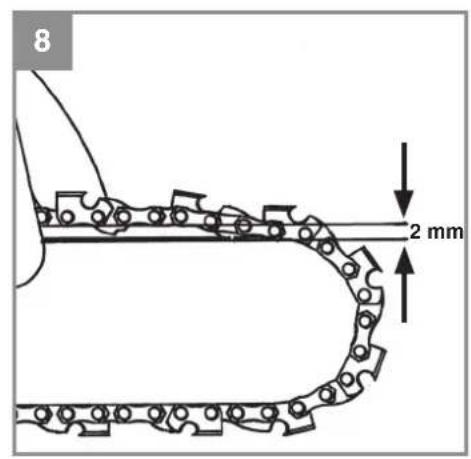

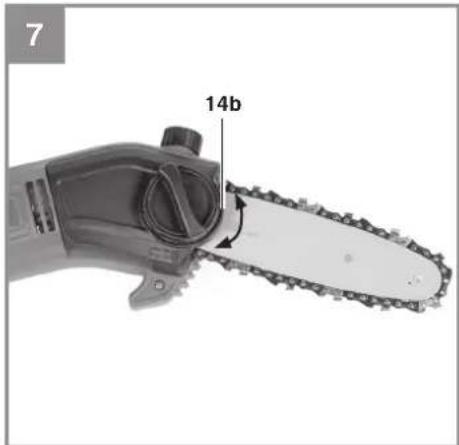

Set the chain tension with the chain tensi- oning screw (Fig. 7/Item 14b). Turning the screw clockwise increases the chain tension, turning it counter-clockwise decreases the chain tension. The chain tension is correct when the chain can be lifted by about 2 mm at the center of the cutter rail (Fig. 8).

Tighten the fastening screw (Fig. 6/Item 14a) for the chain wheel cover (clockwise). Important! All of the chain links must lie properly in the guide groove of the cutter rail. Notes on tensioning the chain: The saw chain must be properly tensioned to ensure safe operation. You can tell that the chain tension is perfect if the saw chain can be lifted by around 2 mm in the middle of the cutter rail. As the saw chain heats up during cutting and thus changes in length, check the chain tension no less than every 10 minutes and adjust it again as required. This applies in particular to new saw chains. When you have fi nished working slacken the chain again, as the chain will shorten when it cools down. This will prevent the chain from being damaged.

5.4 Saw chain lubrication

Warning! Always disconnect the mains plug before performing any checks or adjustments. To protect yourself against injury, always wear pro- tective gloves when working on the electric pole pruner. Important! Never operate the chain if it is not lubricated with saw chain oil. Use of the electric pole pruner without any saw chain oil or with the oil level below the fi ll-level window will result in damage to the electric pole pruner. Anl_GC_EC_7520_T_SPK13.indb 21Anl_GC_EC_7520_T_SPK13.indb 21 27.04.2022 09:34:3527.04.2022 09:34:35GB

Notice! Be aware of the temperature conditions: diff erent lubricants with completely diff erent viscosities are required at diff erent ambient tem- peratures. At lower temperatures you will need low viscosity oils in order to achieve a suffi cient lubricating fi lm. However, if the same low viscosity oil is used during the summer it will become even thinner due to the ambient temperatures alone, and as a result the lubricating fi lm could break down, causing the chain to overheat and become damaged. In addition, the chain oil would burn and produce unnecessary pollutants. Filling the oil tank (Fig. 9): Warning! Fill in the oil outdoors and do not smoke while fi lling.

Place the electric pole pruner on a flat sur- face.

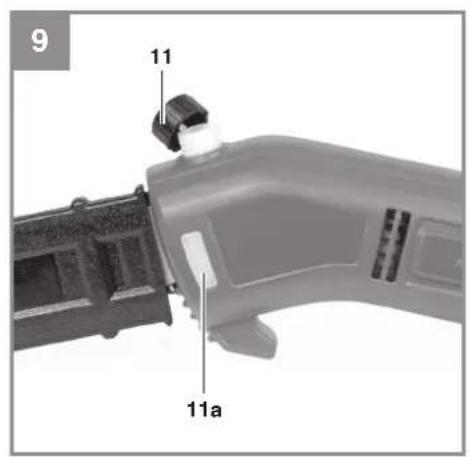

Clean the area around the oil tank cover (Item

11) and then open the oil tank cover.

Fill the tank (Item 11a) with saw chain oil. In the process, make sure that no dirt enters the tank, as this could cause the oil nozzle to become blocked.

Close the oil tank cover (Item 11).

Please note that the statutory regulations gover- ning noise abatement may diff er from one loca- tion to another.

6.1 Using the shoulder strap

Warning! Always use the shoulder strap when working with the equipment. Switch off the equipment before you take off the shoulder strap (Otherwise there is a risk of injury.)

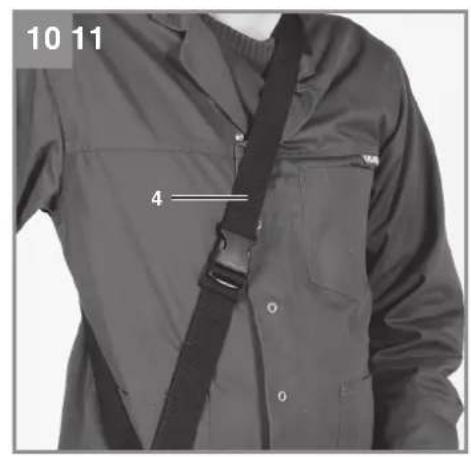

1. Fig. 10: Place the carry strap (Item 4) over

your shoulder and adjust the length of the strap so that the strap holder is at waist level.

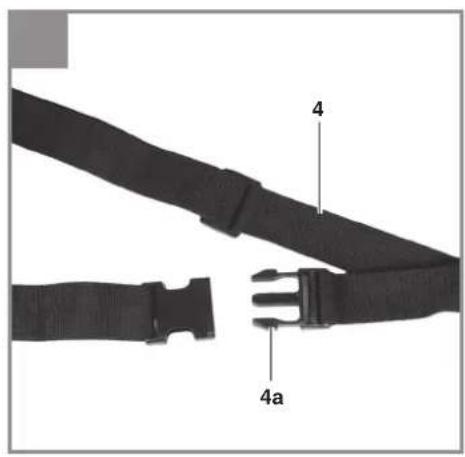

2. Fig. 11: The shoulder strap is equipped with a

buckle. Press the hooks (Item 4a) together if you need to put down the equipment quickly.

6.2 Adjusting the telescoping pole (Fig. 12)

1. Open (a) the telescoping tube lock (Item 8) by

turning it counter-clockwise.

2. Pull out the telescoping tube (Item 9) until it

reaches the required working height.

3. Close (b) the telescoping tube lock (Item 8)

again by turning it clockwise.

6.3 Connecting to the power supply

Connect the power cable to a suitable ex- tension cable. Make sure that the extension cable is designed for the power rating of the electric pole pruner.

Secure the extension cable (Item C) as shown in Fig. 13 to protect it against pulling forces and accidental disconnection.

Connect the extension cable to a profes- sionally installed safety mains socket with ground contact. We recommend using a cable with a bright and highly visible color (red or yellow). This will reduce the risk of accidentally damaging it with the electric pole pruner.

Fig. 1: Hold the electric pole pruner firmly with one hand on the handle (Item 2) and with the other hand on the grip area (Item 5).

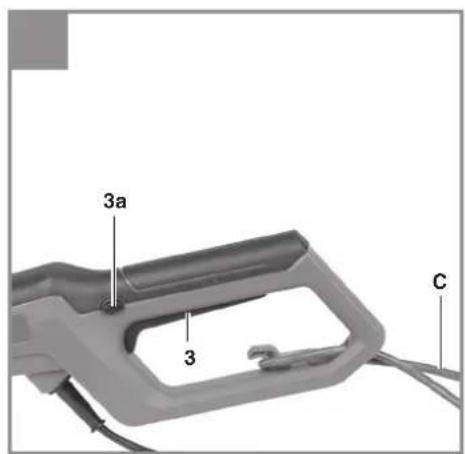

Press and hold the safety lock-off (Fig. 13 / Item 3a).

Switch on the electric pole pruner with the On/Off switch (Fig. 13/Item 3). You can then release the safety lock-off. Switching off Release the On/Off switch (Fig. 13/Item 3). Al- ways disconnect the mains plug when you stop working, even if it is only for a short time.

7. Working with the electric pole

pruner Preparations To ensure that you can work safely, check the following points before every use and in the event of any damage: Condition of the electric pole pruner Before you start work, inspect the electric pole pruner for damage to the housing, to the power cable, to the saw chain and to the cutter rail. Ne- ver use equipment which is obviously damaged. - Danger of accident! Danger! The protective devices must not be re- moved or modifi ed. - Danger of accident! Never use the saw if the safety equipment is not working properly. Never try to repair safety-rele- vant protection systems yourself but get in touch with our service department or with a similarly Anl_GC_EC_7520_T_SPK13.indb 22Anl_GC_EC_7520_T_SPK13.indb 22 27.04.2022 09:34:3527.04.2022 09:34:35GB

qualifi ed workshop. Use only the accessories and spare parts appro- ved by the manufacturer, otherwise there is a risk of accidents or damage to the equipment. Oil container Level of oil in the oil container: Both before and during your work, make sure that there is always suffi cient oil in the system. To avoid damaging the electric pole pruner, never operate the saw if there is no oil in the system or if the oil level drops below the „min“ mark. On average, a single fi lling will last around 15 minutes depending on the number of pauses in cutting and the loads involved. Saw chain Tension of the chain, condition of the cutting edges: The sharper the saw chain, the easier and more controllable it is to operate the electric pole pruner. The same also applies to the chain tension. Also while working you should check the chain tension no less than every 10 minutes in order to increase your safety. New saw chains in particular often tend to expand more. Do not touch the saw chain while the device is switched on. If the saw chain is blocked by an object, switch off the equipment at once – then remove the object – Danger of injury! Safety clothing Always wear appropriate tight-fi tting safety clothing like special trousers which protect against cuts, protective gloves and safety shoes. Hearing protection and protective goggles. Wear a protective helmet with integral face and hearing protection. This will off er protection against falling branches and any branches if they spring back. Safe working

To ensure that you can work in safety you must use the equipment at a working angle of max. 60°.

Never stand under the branch you want to saw.

Use special caution when working with bran- ches under tension and splintered wood.

Possible risk of injury caused by falling bran- ches and catapulting pieces of wood.

When the equipment is in operation keep other persons and animals away from the danger zone.

The equipment is not protected from electric shock through contact with high-voltage cables. Keep a minimum distance of 10 m from live cables. Electric shock can cause fatal injury.

When working on slopes always stand to the upper or left or right side of the branch you wish to cut.

Hold the equipment as close as possible to your body. This will help you to keep your ba- lance. Cutting techniques

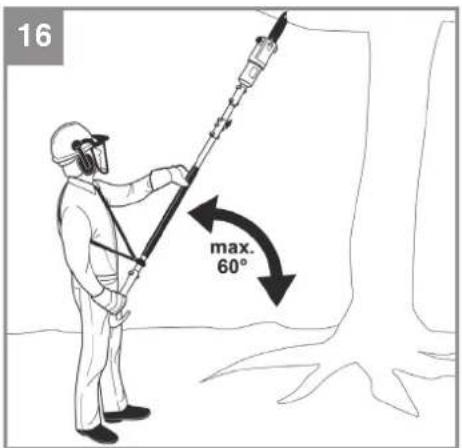

When removing branches, hold the equip- ment at an angle of max. 60° to the horizontal to avoid being hit by a falling branch (Fig. 16).

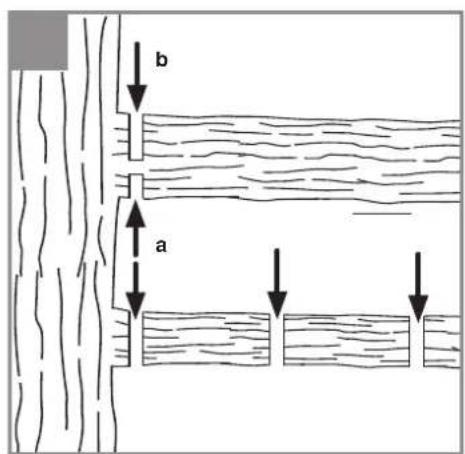

Start with the bottom branches on the tree. This will make it easier for the cut branches to drop. WARNING! Never stand underneath the branch you are sawing – always keep out of the range of falling branches! – Branches landing on the ground could bounce up again – Danger of injury

After completing a cut, the weight of the saw will abruptly increase for the operator as the saw is no longer supported by the branch. This can result in you losing control over the saw.

Remove the saw from the cut only with the saw chain still running. This will prevent the saw from getting jammed.

Never cut with the tip of the saw.

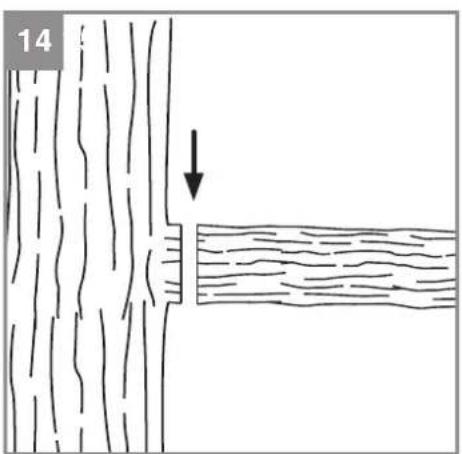

Never cut into the bulging branch collar. This will prevent the tree from healing. Sawing off smaller branches (Fig. 14): Place the contact surface of the saw onto the branch. This will prevent the saw from making jerky movements when you begin a cut. Exerting slight pressure, guide the saw from the top to the bottom through the branch. Sawing off larger and longer branches (Fig. 15): Carry out a relief cut when working on larger branches. Start by sawing through 1/3 of the branch diame- ter (a) from the bottom to the top with the top side of the cutter rail. Then saw towards the fi rst cut (b) from the top to the bottom with the bottom side of the cutter rail. Saw off longer branches in several steps to keep control over the impact location. Anl_GC_EC_7520_T_SPK13.indb 23Anl_GC_EC_7520_T_SPK13.indb 23 27.04.2022 09:34:3527.04.2022 09:34:35GB

Kickback The term „kickback“ describes what happens when the running electric pole pruner sudden- ly kicks upward and backward. Usually this is caused by contact between the tip of the cutter rail and the workpiece or by the saw chain be- coming trapped. In the event of kickback, large forces occur suddenly and violently. This usually results in the electric pole pruner reacting out of control. Warning!

Make sure that the chain tension is always correctly adjusted.

Only use an electric pole pruner that is in per- fect working order!

Only work with a saw chain that has been properly sharpened in accordance with the instructions.

Never cut with the upper edge or the tip of the cutter rail.

Always hold the electric pole pruner firmly with both hands! Cutting wood which is under tension Danger! Special care is required when cutting wood which is under tension. Wood which is under tension from which it is released by cutting may in some cases react completely unpredictably and un- controllably. In the worst case this could result in extremely severe or even fatal injuries. This type of work must only be performed by persons who have been specially trained.

There are no other parts inside the equipment which require maintenance. To keep the tool in good working order, carry out regular maintenance in accordance with the following instructions. Use only the accessories and spare parts approved by the manufacturer, Details can be found in section 10.3 “Ordering spare parts”. Incorrect maintenance and the use of non-approved accessories or spare parts can result in very serious injuries.

8.1 Replacing the saw chain and the cutter

rail The cutter rail needs to be replaced if the guide groove of the cutter rail is worn. Unscrew the ad- apter plate (Fig. 2 / Item 13a) from the old cutter rail and screw it on the new cutter rail. Proceed as described in the section “Fitting the cutter rail and saw chain”. Use only saw chains and cutter rails approved by the manufacturer. These are listed in section 4 “Technical data” or are available as accessories (see section 10.3 “Ordering spare parts”). The use of spare parts which are not approved by the manufacturer could result in very serious injuries.

8.2 Checking the automatic chain lubrication

You should check the operation of the automa- tic chain lubrication system on a regular basis in order to guard against overheating and the damage this can cause to the cutter rail and the chain. Point the tip of the cutter rail at a smooth surface (a board or a cut tree face) and allow the electric pole pruner to run. If you see a growing oil stain on the smooth surface, the automatic chain lubrication system is working properly. If there is no clear trace of oil to be seen, please refer to the corresponding instructions in the section “Troub- leshooting”. If the information contained there fails to help, please contact our service department or a similarly qualifi ed workshop. Warning! Do not actually touch the surface with the tip of the cutter rail when performing this test. Keep a safe distance (approx. 20 cm).

8.3 Sharpening the saw chain

Working eff ectively with the electric pole pruner is possible only if the saw chain is in good condition and sharp. This also reduces the risk of kickback. The saw chain can be re-sharpened by any dea- ler. Do not attempt to sharpen the saw chain your- self unless you have the necessary special tools and experience.

9. Replacing the power cable

Danger! If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger. Anl_GC_EC_7520_T_SPK13.indb 24Anl_GC_EC_7520_T_SPK13.indb 24 27.04.2022 09:34:3627.04.2022 09:34:36GB

10. Cleaning, storage and ordering

of spare parts Carry out the cleaning and maintenance work be- fore putting into storage.

Regularly clean the tensioning mechanism by blowing it out with compressed air or cleaning it with a brush. Do not use any tools for cleaning.

Keep the handles free of oil so that you can maintain a firm grip.

Clean the equipment as required with a damp cloth and, if necessary, with mild washing up liquid. Danger!

Always disconnect the mains plug before cleaning the equipment.

Never immerse the equipment in water or other liquids in order to clean it.

10.2 Storage and transportation

If you are not going to use the electric pole pruner for an extended period of time, remove the chain oil from the tank. Briefly immerse the saw chain and the cutter rail into an oil bath and then wrap them in oil paper.

Store the equipment and its accessories out of the reach of children in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30°C.

Always carry the equipment with one hand on the handle and with the other hand on the grip area.

Do not carry the tool by its motor housing.

Secure the tool against slipping if you trans- port it in a vehicle.

Clean the electric pole pruner and carry out its maintenance before you put it into storage.

During storage or transportation, use the supplied safety guards for the cutter rail/saw chain.

10.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com Spare cutter rail Art. No.: 45.001.54 Spare chain Art. No.: 45.001.24

11. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces. Anl_GC_EC_7520_T_SPK13.indb 25Anl_GC_EC_7520_T_SPK13.indb 25 27.04.2022 09:34:3627.04.2022 09:34:36GB

Caution! Before troubleshooting, switch off the tool and disconnect the mains plug. The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your tool fails to work properly. If the problem still persists after working through the list then please con- tact your nearest service workshop. Cause Fault Remedy The electric pole pruner does not work - No power supply - Defective mains outlet - Power extension cable damaged - Defective fuse - Check the power supply. - Try an alternative source of electri- cal power, replace if necessary. - Check the cable and replace as required. - Replace the fuse. The electric pole pruner operates intermittently - Loose connection (external) - Loose connection (internal) - ON/OFF switch defective - Consult a specialist workshop. - Consult a specialist workshop. - Consult a specialist workshop. Saw chain dry - No oil in the tank - Oil tank cap breather blocked - Oil outlet blocked - Fill up with oil. - Clean the oil tank cap. - Clear the oil outlet. Chain/guide rail hot - No oil in the tank - Oil tank cap breather blocked - Oil outlet blocked - Blunt chain - Fill up with oil. - Clean the oil tank cap. - Clear the oil outlet - Re-sharpen or replace the chain. The electric pole pruner judders, vi- brates, or does not saw properly - Chain tension too loose - Blunt chain - Worn chain - Saw teeth pointing in the wrong direction - Adjust the chain tension. - Re-sharpen or replace the chain. - Replace the chain. - Reinstall the saw chain with the teeth facing in the correct direction. Anl_GC_EC_7520_T_SPK13.indb 26Anl_GC_EC_7520_T_SPK13.indb 26 27.04.2022 09:34:3627.04.2022 09:34:36GB

For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any ac- cessories or aids without electrical components supplied with the old equipment. Please note that batteries and lamps (e.g. light bulbs) must be removed from the tool before it is dispo- sed of. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers ac- companying products is permitted only with the express consent of the Einhell Germany AG. Subject to technical changes Anl_GC_EC_7520_T_SPK13.indb 27Anl_GC_EC_7520_T_SPK13.indb 27 27.04.2022 09:34:3627.04.2022 09:34:36GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Saw chain, cutter rail Consumables* Chainsaw oil Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product

neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. The warranty services cover only defects due to material or manufacturing faults on a product which

you have bought from the manufacturer mentioned below and are limited to either the rectifi cation of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies if an on-site service is used.

5. To make a claim under the guarantee, please register the defective device at:

www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identifi cation will not be possible. If the defect is co- vered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement. Of course, we are also happy off er a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_GC_EC_7520_T_SPK13.indb 29Anl_GC_EC_7520_T_SPK13.indb 29 27.04.2022 09:34:3727.04.2022 09:34:37F

II (double isolation)

Annex V Annex VI Noise: measured L
