Product Type	Circular Saw Table
Brand	Einhell
Model	TE-TS 2231 U
Supply Voltage	230 V ~ 50 Hz
Power (S6 20%)	2200 W
No-load Speed	2800 rpm
Saw Blade (diameter × bore × thickness)	∅ 315 × ∅ 30 × 3.0 mm
Number of Teeth	24
Table Size (W × D)	550 × 800 mm
Table Extension (W × D)	550 × 650 mm
Max. Cutting Height (0°/45°)	83 mm / 50 mm
Height Adjustment	Continuous 0 - 83 mm
Blade Tilt	Continuous 0° - 45°
Dust Extraction Connection (machine)	Ø 100 mm
Dust Extraction Connection (hood)	Ø 36 mm
Riving Knife Thickness	2.5 mm
Weight	Approx. 46 kg
Weight of Sliding Carriage (accessory)	Approx. 6 kg
Protection Class	IP54
Table Height	Approx. 85 cm
Sound Pressure Level (LpA)	98.4 dB(A)
Sound Power Level (LWA)	113.8 dB(A)
Main Functions	Rip cuts, cross cuts, bevel cuts; parallel and miter fence; overload protection
Maintenance and Cleaning	Unplug before cleaning; use a damp cloth with soap; do not use aggressive agents
Safety	Blade guard, riving knife, safety switch, overload protection
Spare Parts and Repairability	Wear parts: V-belt, carbon brushes, table insert, push stick; blade is consumable

Frequently Asked Questions - TE-TS 2231 U EINHELL

How to assemble the stand for the table saw TE-TS 2231 U?

Turn the saw over and place it on the floor. Lightly screw the front and rear support legs using hex screws (41), washers (36), and nuts (33). Attach the rubber feet, then firmly screw the dust extraction connection and the switch/connector combination. Mount the cross and longitudinal struts, then the frame and table extension. Refer to figures 5-11 in the manual.

How to adjust the cutting height?

Turn the crank (13) located under the table. Counterclockwise reduces cutting height; clockwise increases it. The adjustment range is continuous from 0 to 83 mm (0°) and up to 50 mm at a 45° tilt.

How to replace the saw blade?

Unplug the saw. Remove the table insert by unscrewing the two countersunk screws. Use the wrench (30) and fork wrench (31) to unscrew the nut in the direction of blade rotation. Remove the outer flange and the old blade. Clean the flanges, place the new blade (teeth must point forward), then retighten the nut. Reinstall the table insert, riving knife, and blade guard.

How to use the parallel fence?

Insert the universal fence (7) into the front guide rail (8). Set the angle to 0° and tighten the handle (10). Position the fence to the desired cutting width and tighten the handle (11). For thin workpieces (<120 mm), use the provided push stick; for very thin pieces (<30 mm), use a push block.

How to make a crosscut or miter cut?

Use the universal fence (7) in the side guide rail (9) or the optional sliding carriage. Loosen the handle (10), turn the fence rail to the desired angle (0° for 90°, other angles for bevel cuts), then retighten. Ensure a gap of about 2 cm between the rail and blade. Push the workpiece and fence together toward the blade.

What to do in case of motor overload?

The motor is protected by an overload switch that automatically cuts off the device if limits are exceeded. Press the red '0' button, let the device cool down for several minutes, then restart with the green 'I' button.

How to connect a vacuum cleaner?

Remove the cover (3) from the blade guard. Connect the hood's suction hose (38) (Ø36 mm) to the dust extraction connection (42) under the table (Ø100 mm). Connect the vacuum to the 100 mm outlet of the connection (42). Always use extraction to reduce dust.

How to transport the saw?

Lift the device by the transport handles (23) mounted on the front legs. Transport the machine only with safety devices installed (blade guard, etc.). Respect the weight of approx. 46 kg. For air transport, secure the device against sliding.

How to maintain the saw?

Always unplug before cleaning. Regularly clean safety devices, ventilation slots, and housing with a damp cloth and mild soap. Do not use aggressive agents. Check that the blade guard lowers properly and that blade braking time is less than 10 seconds.

Where can I order spare parts?

To order, provide the device type (TE-TS 2231 U), article number, identification number, and spare part number. Wear parts include V-belt, carbon brushes, table insert, and push stick; the blade is a consumable. Visit www.isc-gmbh.info for prices.

USER MANUAL TE-TS 2231 U EINHELL

GB Original operating instructions Bench-type circular saw

Two metal frame structures with a labeled dimension of 25 (no text or symbols on the structures themselves)

100 101 102 115

4b 106 105 103 107 104 108 113 109 110 111 112

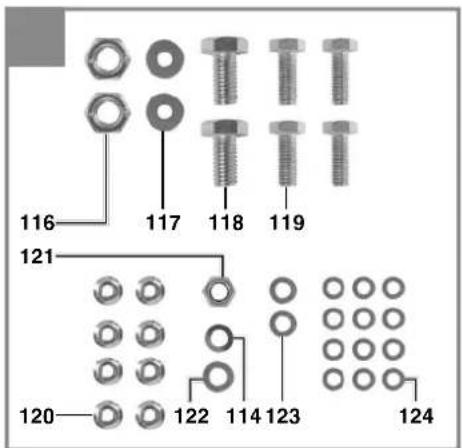

116 121 120 117 118 119 122 114 123 124

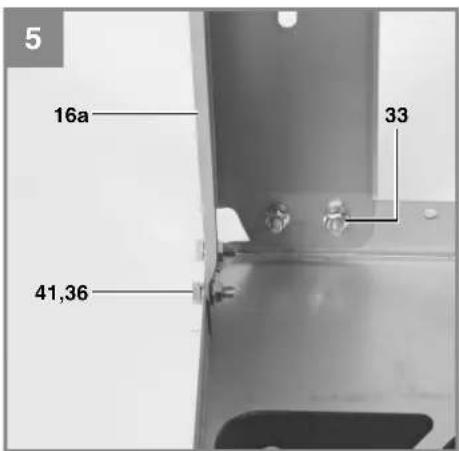

5 16a 33 41,36

6 42 40,37,39

7 16a 16b 20 20 18 18 44 1 16a16b

8 17/21 16a,b

9 19 41 36 36 41

10 24 49,32 22b 41 33

11 12 25

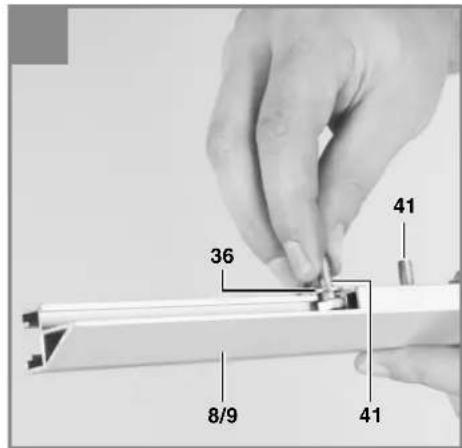

36 8/9 41 41 41

Close-up of a mechanical assembly with visible wiring and mounting brackets (no text or symbols)

9 47 8

15 16 41,36 48

34,36 34,36 27

17 18 41,36 23

3 4 x y

19 20 43 15

30 2 z 5

21 22 30 31

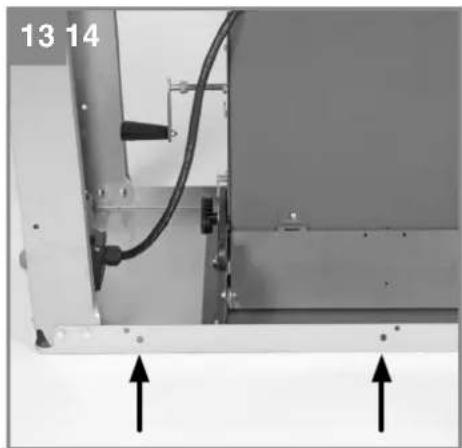

12 14 46 13

23 24a 9 6 11 10 78

6 29

24b 25 9 6

Mechanical testing setup with a cutting tool and labeled component '29' (no readable text or symbols beyond label)

Close-up of a hand using a tool to cut a saw blade on a workbench, with part number 28 labeled (no text or symbols beyond numbers)

103 102 105

-7-

28 29 124112 112 124 105 102 107

113117 115 113 117

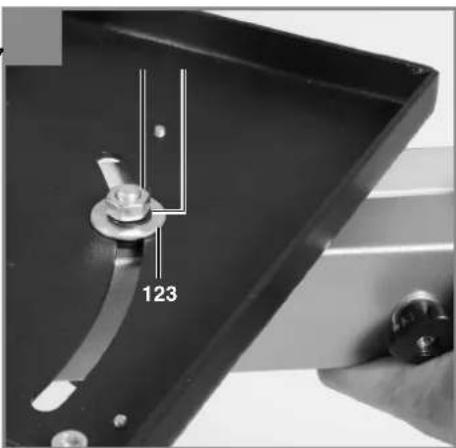

30 31 104 122123 108 121 114 117115117 110-110

123

32 33 123,116,118

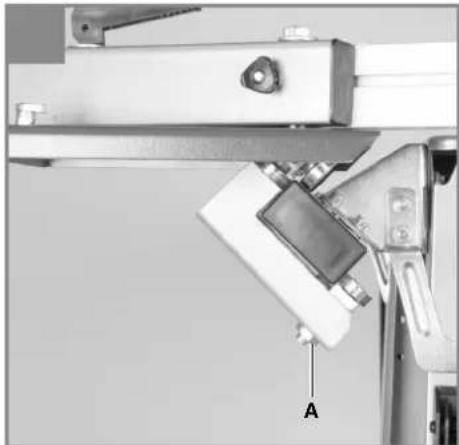

Mechanical assembly with metal frame and labeled component A (no readable text or symbols)

34 35 111 113 117 102

101 104

D

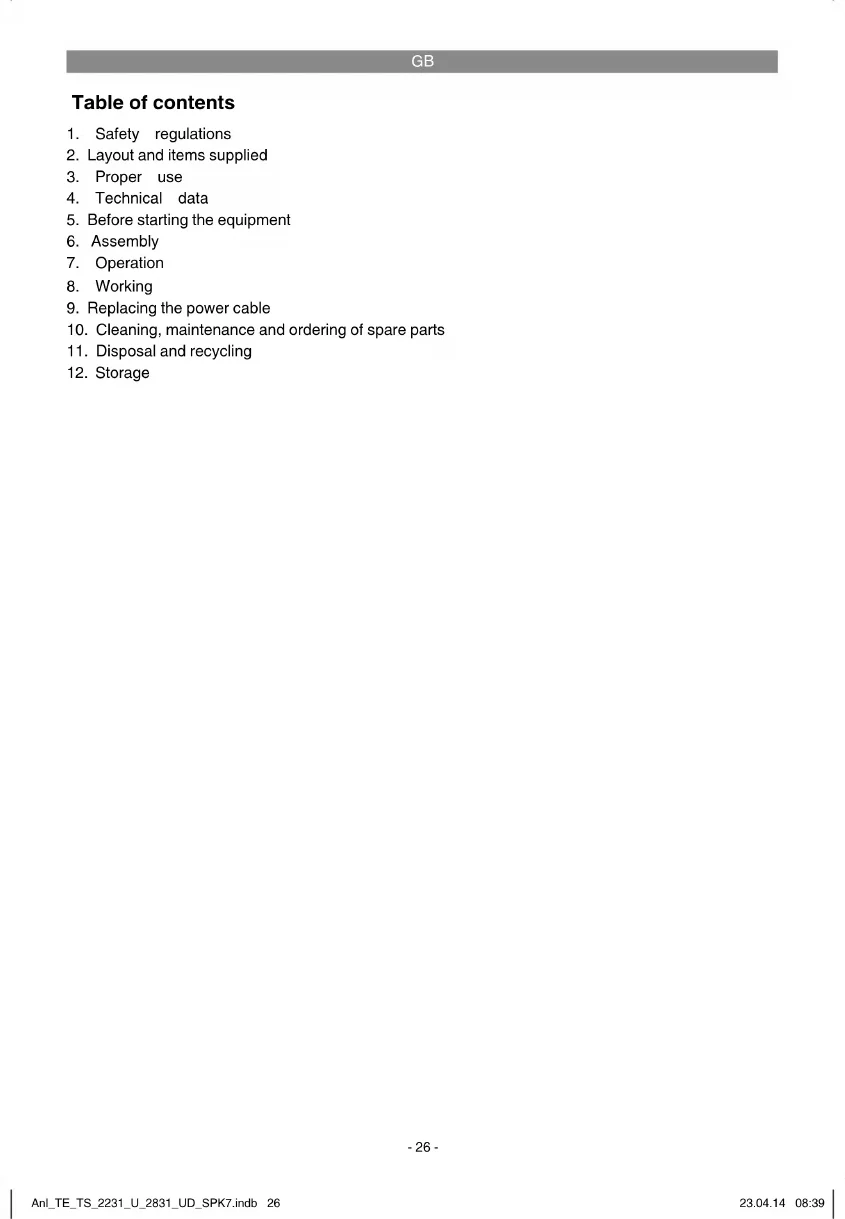

Inhaltsverzeichnis

1. Safety regulations
2. Layout and items supplied
3. Proper use
4. Technical data
5. Before starting the equipment
6. Assembly
7. Operation
8. Working
9. Replacing the power cable
10. Cleaning, maintenance and ordering of spare parts
11. Disposal and recycling
12. Storage

GB

Danger! - Read the operating instructions to reduce the risk of inquiry

Caution! Wear ear-muffs. The impact of noise can cause damage to hearing.

Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!

Caution! Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.

Caution! Risk of injury! Do not reach into the running saw blade.

Note! Make sure the motor is rotating in the correct direction! If the direction of rotation is wrong, correct it by using the phase converter in the connection plug. (For TE-TS 2831 UD 400 V 3\~ three-phase a.c. model)

GB

Danger!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Danger!

Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

2. Layout and items supplied

2.1 Layout (Fig. 1-4)

2.1.1. Bench-type circular saw

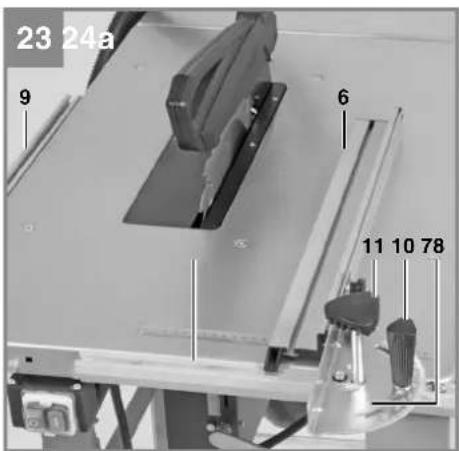

1. Saw table

2. Splitter

3. Cover for extractor connection

4. Saw blade guard

5. Saw blade

6. Stop rail

7. Universal stop

8. Guide rail for universal stop (front)

9. Guide rail for universal stop (left)

10. Locking grip - angle setting

11. Locking grip - position

12. Scale for saw blade angle

13. Crank handle for cutting height

14. Fixing handle for saw blade angle

15. Table insert

16a. Leg (front right/back left)

16b. Leg (front left/back right)

1. Rubber foot (type A)

2. Cross strut

3. Chassis

4. Longitudinal strut

5. Rubber foot (type B)

22a. Lug (left, length extension table)

22b. Lug (right, length extension table)

1. Transport handle

2. Folding length extension table

3. Strut for length extension table

4. Locking grip for length extension table

5. Holder (for push stick, push block)

6. Push block handle

7. Push stick

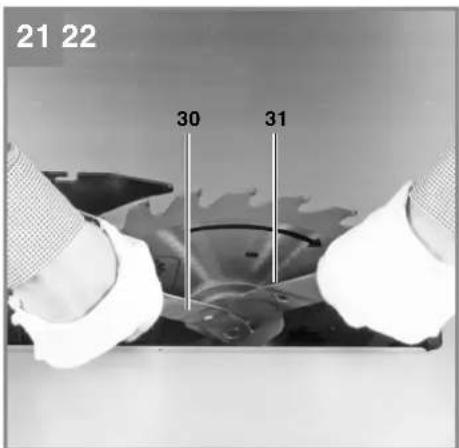

8. Key for changing the saw blade

9. Open-ended wrench for blade change

10. Self-locking nut size M8

11. Self-locking nut size M6

12. Nut M6

13. Washer, large

14. Washer, medium

15. Washer, small

16. Extraction hose

17. Spring washer, small

18. Hex screw (M4 x 10)

19. Hex screw (M6 x 16)

20. Extractor connection (housing)

21. Screw (for table insert)

22. Switch/plug block

23. On/Off switch

24. Scale (cutting height)

25. Scale (parallel stop)

26. Lug (foot)

27. Allen screw (for length extension table)

2.1.2 Slide

(special accessories – not supplied):

1. Slide plate with scale

2. Stop rail

3. Guide rail

4. Angle (rear)

5. Clamping lever for angle setting

6. Angle (front)

7. Strut (rear)

8. Strut (front)

9. Hex screw M10 x 65

10. Washer 8mm

11. Spacer ring (plastic)

12. Allen screw (long)

13. Allen screw (short)

14. Button

15. Spring washer

16. Profi le

17. Nut size M8, self-locking

18. Washer 6 mm (large)

19. Hex screw (M8 x 16)

20. Hex screw (M6 x 16)

21. Nut size M6, self-locking

22. Nut size M8, self-locking (plastic lock)

23. Washer 10 mm

24. Washer 8 mm, small

GB

124. Washer 6mm, small

2.2 Items supplied

Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
  • Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
  • If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

2.2.1 Bench-type circular saw:

• Saw blade guard
• Stop rail (universal stop)
• Universal stop
  • Guide rail for universal stop, front
  • Guide rail for universal stop, left
  • Leg front right/back left (2x)
  • Leg front left/back right (2x)
  • Rubber foot, type A (2x)
  • Rubber foot, type B (2x)
  • Longitudinal strut (2x)
  Cross strut (2x)
  • Table support (4x)
  • Length extension table
  • Strut for length extension table (2x)
  • Chassis, ready-assembled
  • Transport handle (2x)
• Push stick
• Push block
  • Holder for push stick
  • Key for changing the saw blade
  • Open-ended wrench for blade change
  • Lug for length extension table, left
  • Lug for length extension table, right

• Self-locking nut size M6 (44x)
• Self-locking nut size M8 (4x)
- Nut size M6 (6x)
- Washer, large (4x)
- Washer, medium (50x)
- Washer, small (4x)
Allen screw (4x)
• Hex screw size M6 x 16 (52x)
• Hex screw size M4 x 10 (4x)
• Extractor connection for housing
- Lug for foot (4x)
• Spring washer, small (4x)
• Original operating instructions
• Safety information

2.2.2 Items supplied

Special accessories - slide:

• Slide plate with scale
• Stop rail
  • Guide rail
  Angle (rear)
  • Clamping lever for angle setting
  Angle (front)
  Strut (rear)
  Strut (front)
  • Hex screw (M10 x 65)
• Washer 8 mm (2x)
  • Spacer ring (plastic), 2x
  • Allen screw, long, 2x
  • Allen screw, short, 8x
• Button, 2x
• Spring washer
  Profile
  • Nut size M8, self-locking, 2x
• Washer 6 mm, large, 4x
  • Hex screw M8 x 16, 2x
  • Hex screw M6 x 16, 4x
  • Nut size M6, self-locking, 8x
  • Nut size M8, self-locking (plastic lock)
• Washer 10 mm
• Washer 8 mm, small, 2x
  • Washer 6 mm, small, 12x

3. Proper use

The bench-type circular saw is designed for the slitting and cross-cutting (only with the cross stop) of all types of timber commensurate with the machine's size. The equipment is not to be used for cutting any type of round wood.

GB

The equipment is allowed to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user/operator and not the manufacturer will be liable for any damage or injuries of any kind resulting from such misuse.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

The equipment is to be operated only with suitable saw blades (saw blades made of HM or CV). It is prohibited to use any type of HSS saw blade and cutting-off wheel.

To use the equipment properly you must also observe the safety information, the assembly instructions and the operating instructions to be found in this manual.

All persons who use and service the equipment have to be acquainted with these operating instructions and must be informed about the equipment's potential hazards. It is also imperative to observe the accident prevention regulations in force in your area. The same applies for the general rules of health and safety at work.

The manufacturer will not be liable for any changes made to the equipment nor for any damage resulting from such changes. Even when the equipment is used as prescribed it is still impossible to eliminate certain residual risk factors.

The following hazards may arise in connection with the machine's construction and design:

• Contact with the saw blade in the uncovered saw zone.
• Reaching into the running saw blade (cut injuries).
• Kick-back of workpieces and parts of workpieces.
• Saw blade fracturing.
• Catapulting of faulty carbide tips from the saw blade.
• Damage to hearing if essential ear-muffs are not used.
• Harmful emissions of wood dust when used in closed rooms.

4. Technical data

4.1 Technical data of the TE-TS 2231 U

Mains voltage: 230 V \~ 50Hz

Power P S6 20% 2200 W

Idle speed n_0 .....2,800 min ^-1

Carbide blade ....∅ 315 x ∅ 30 x 3.0 mm

Carbide saw blade

(alternative) ∅ 315 x ∅ 30 x 3.6 mm

Number of teeth 24

Table size 550 x 800mm

Table length extension ....550 x 650mm

Cutting height max. 83 mm / 0°

50 mm / 45°

Height adjustment .... infinite 0 - 83 mm

Tilting saw blade ....infinite 0° - 45°

Extractor connection

(machine housing) ....∅ 100 mm

Extractor connection (saw blade guard) ∅ 36 mm

Thickness of the splitter 2.5mm

Weight approx. 46 kg

Weight of slide

(special accessories): .... approx. 6 kg

Protection class: IP54

Table height .... approx. 85 cm

4.2 Technical data of the TE-TS 2831 UD

Mains voltage: 400 V 3\~50Hz

Power P S6 20% 2800 W

Idle speed n_0 .....2,800 min ^-1

Carbide blade ....∅ 315 x ∅ 30 x 3.0 mm

Carbide saw blade

(alternative) ∅ 315 x ∅ 30 x 3.6 mm

Number of teeth 24

Table size 550 x 800mm

Table length extension ....550 x 650mm

Cutting height max. 83 mm / 0°

50 mm / 45°

Height adjustment .... infinite 0 - 83 mm

Tilting saw blade ....infinite 0° - 45°

Extractor connection

(machine housing) 0 100 mm

Extractor connection (saw blade guard) ∅ 36 mm

Thickness of the splitter 2.5mm

Weight approx. 46 kg

Weight of slide

(special accessories): .... approx. 6 kg

Protection class: IP54

Table height .... approx. 85 cm

GB

Danger!

Sound and vibration

Sound and vibration values were measured in accordance with EN 1870-19.

Operation

L_pA sound pressure level ..... 113.8 dB(A)

K_ uncertainty 3 dB

L_WA sound power level 98.4 dB(A)

K_WA uncertainty 3 dB

The quoted values are emission values and not necessarily reliable workplace values. Although there is a correlation between emission and immission levels it is impossible to draw any certain conclusions as to the need for additional precautions. Factors with a potential influence on the actual immission level at the workplace include the duration of impact, the type of room, and other sources of noise etc., e.g. the number of machines and other neighboring operations. Reliable workplace values may also vary from country to country. With this information the user should at least be able to make a better assessment of the dangers and risks involved.

Wear ear-muff s.

The impact of noise can cause damage to hearing.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
  • Adapt your working style to suit the appliance.
  • Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.

Caution!

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.

2. Damage to hearing if no suitable ear protection is used.

3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

5. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Warning!

Always pull the power plug before making adjustments to the equipment.

• Unpack the bench-type circular saw and check it for damage which may have occurred in transit.
  • Make sure the machine stands securely, i.e. bolt it to a workbench or solid base.
• All covers and safety devices have to be properly fitted before the equipment is switched on.
• It must be possible for the blade to run freely.
• When working with wood that has been processed before, watch out for foreign bodies such as nails or screws, etc.
• Before you actuate the On/Off switch, make sure that the saw blade is correctly fitted and that the equipment's moving parts run smoothly.

6. Assembly

Caution! Always screw together the connections which have self-locking nuts by turning the hex screw while holding the self-locking nut firmly to fasten tightly.

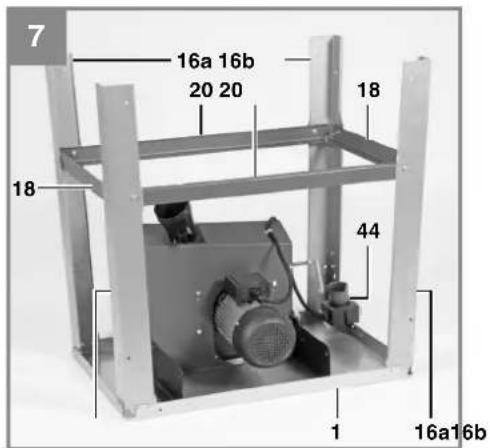

6.1 Assembling the base frame (Fig. 5-8)

• Turn the saw upside down and place it on the floor.
• Use the packaging material, for example, as an underlay to prevent the table (1) getting scratched or the splitter (2) getting damaged
• Use the hex screws (41), washers (36) and nuts (33) to fasten the two front legs (16a,b) loosely to the front of the saw.
• Use the hex screws (41), washers (36) and nuts (33) to fasten the two back legs (16a,b) loosely to the back of the saw (lateral drill holes only).
  • Do not yet screw any screws into the drill

GB

holes at the back, as this is where the struts for the length extension table are to be fastened later.

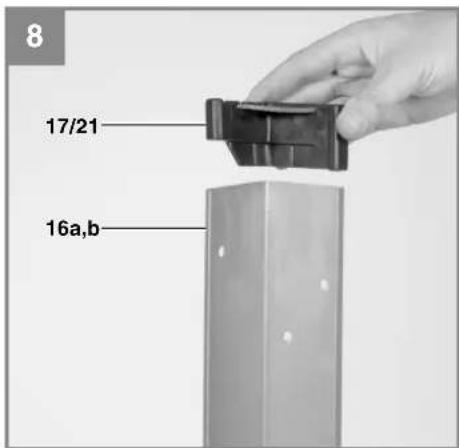

• Mount the rubber feet (17, 21) on the legs.

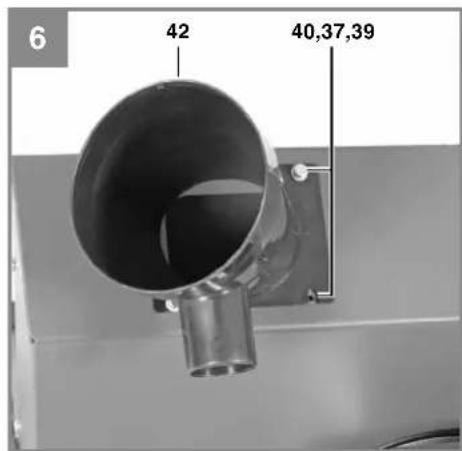

- Use the hex screws (40), spring washers (39) and washers (37) to screw the extractor connection (42) securely to the bottom of the saw table.
- Use the hex screws (41), washers (36) and nuts (33) to screw the switch/plug block (44) securely to the front side of the saw table.
- Use the hex screws (41), washers (36) and nuts (33) to screw the cross struts (18) and longitudinal struts (20) loosely to the legs.

6.2 Chassis (Fig. 9, 11)

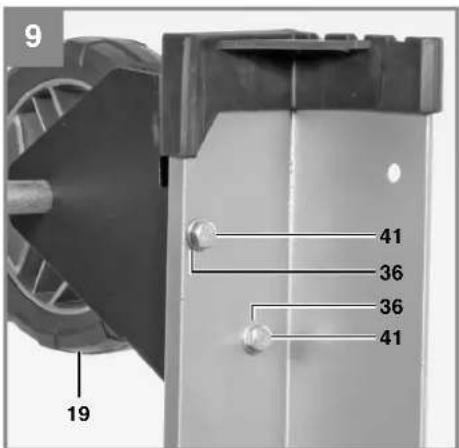

Use the hex screws (41) and washers (36) to screw the chassis (19) to the rear legs.

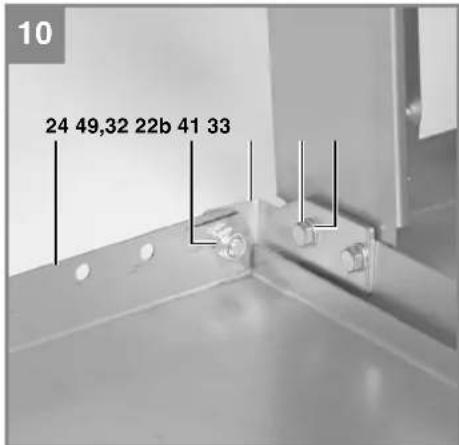

6.3 Length extension table (Fig. 10-11)

• Use the hex screws (41), washers (36) and nuts (33) to fasten the lugs (22a,b) loosely to the rear of the saw table.
• Use the Allen screws (49) and nuts (32) to fasten the length extension table (24) securely to the lugs.

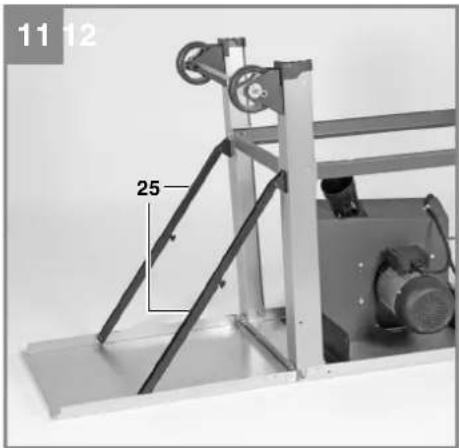

• Use the Allen screws (49) and nuts (32) to fasten the struts (25) securely to the length extension table.
• Use the screws (41), large washers (35) and nuts (33) to screw the struts (25) and loosely to the rear legs.
• Align the length extension table with the saw table so that it is flat and then tighten all the fixing points on the length extension table (24) and the struts (25).
• Caution! There is a risk of pinching when folding down the length extension table (24). Only hold the length extension table at the rear end to fold it.

6.4 Guide rail for universal stop (Fig. 12-14)

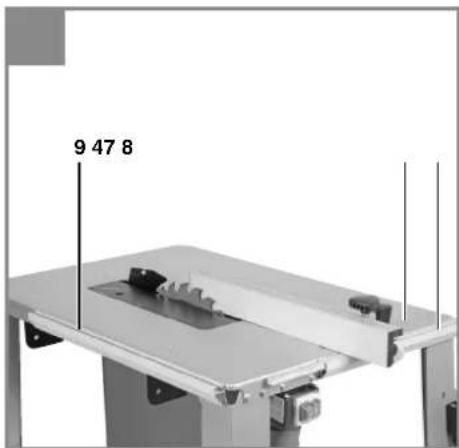

• Insert two screws (41) into each of the guide rails (8,9).
• Use nuts (34) to fasten one guide rail (8) to the front of the saw table and another guide rail (9) to the side of the saw table. Fit washers (36) to each screw between the guide rails and saw table when you do this.
• Now stand the table on its feet. Align the table so that it is level and then tighten all the screws.

6.5 Fastening to the surface (Fig. 15)

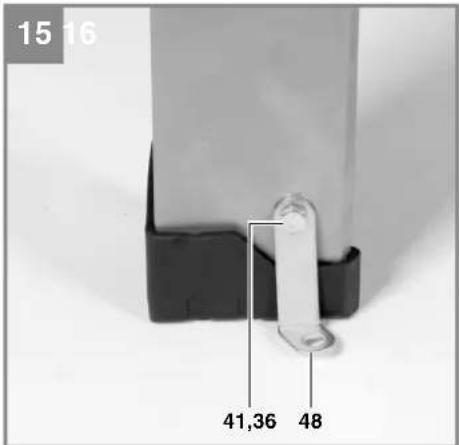

• For greater stability, the saw needs to be secured to a suitable surface.
• Use the screws (41), washers (36) and nuts (33) to fit the lugs (48) to the legs.
• Afterwards connect the machine to the surface using the holes in the lugs (connecting material, e.g. screws/dowels are not included in the scope of delivery – the connecting material must be suitable for the surface and is available at retail stores).

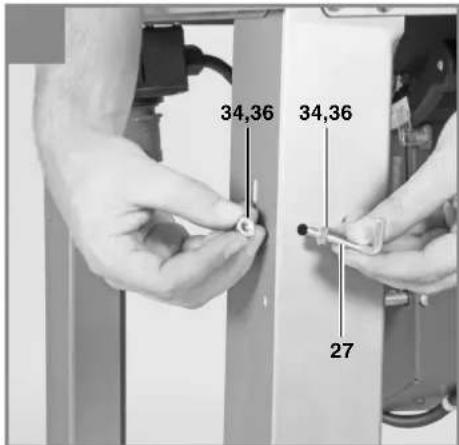

6.6 Holder for push stick/push block (Fig. 16)

Use two nuts (34) and washers (36) to fasten the holder (27) to the hole in the front right leg.

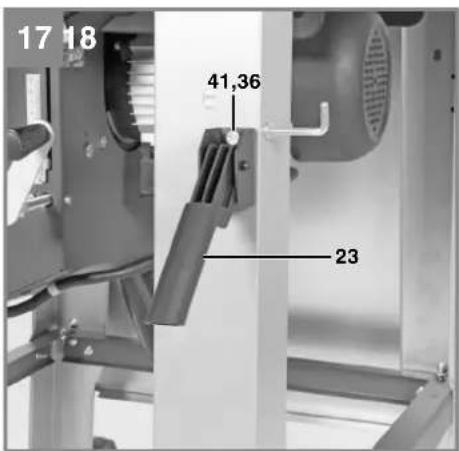

6.7 Transport handles (Fig. 17)

Use the screws (41), washers (36) and nuts (33) to fit the transport handles (23) to the front legs.

6.8 Fitting the saw blade guard (Fig. 1, 18)

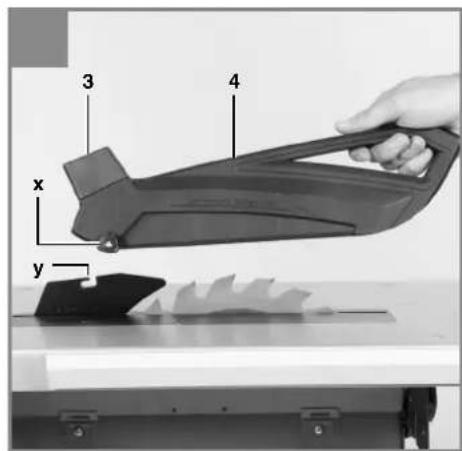

• Fit the saw blade guard (4) in the oval hole (y) in the splitter. Fasten the saw blade guard using the screw (x) and tighten the screw only enough to allow the saw blade guard to move still.
• Warning! The saw blade guard must always be lowered over the workpiece before you begin to cut.
• To connect the suction hose of an extraction system with a 100 mm connection, the cover (3) on the saw blade guard can be removed (extraction system not included).
• If you use an extraction system: Connect the 36 mm extractor connection on the saw blade guard to the extractor connection (42) with the help of the suction hose (38). Connect the vacuum extraction system to the 100 mm of the extractor connection (42).
• The machine is not allowed to be used without the saw blade guard.

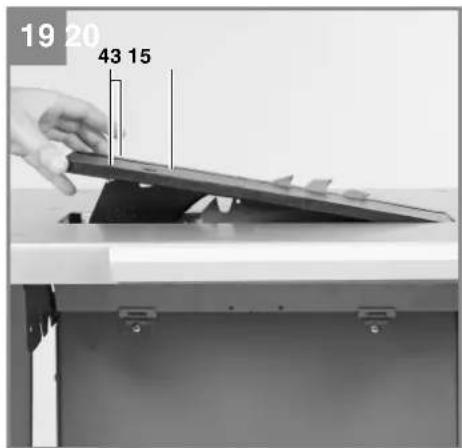

6.9 Replacing the table insert (Fig. 19)

• The table insert has to be opened if you need to replace it if it gets damaged and whenever you change the blade or set the splitter.
• To prevent increased likelihood of injury, you should replace the table insert whenever it is worn or damaged.
  • Important. Pull out the power plug.
• Remove the saw blade guard (4).
• Open the countersunk head screws (43) on the table insert.
  • Take out the table insert (15).

GB

- Fit the replacement table insert by following the above in reverse.

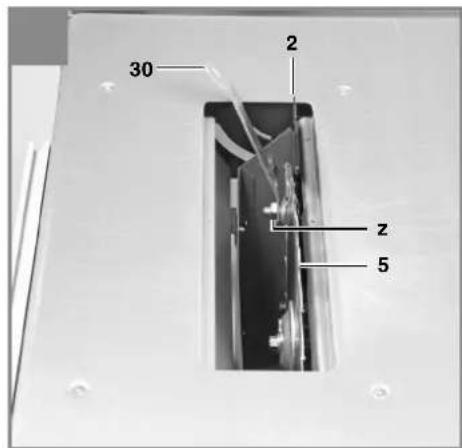

6.10 Fitting and setting the splitter (Fig. 20)

• Danger! Pull out the power plug.
• Take out the table insert (see 6.9).
- Set the blade (5) to max. cutting depth, move to 0° position and lock in place.
- Push the splitter (2) upwards.
- The distance between the blade (5) and the splitter (2) should be 3-5 mm.
- Tighten the screw (z) and mount the table insert.

6.11 Fitting/replacing the saw blade (Fig. 21) Danger! Pull out the power plug.

Caution! Always wear gloves when handling saw blades. Risk of injury!

• Remove the table insert by undoing the countersunk head screws (see 6.9).
• Undo the nut with the one wrench (30) on the nut itself and an open-ended wrench (31) on the flange to apply counter-pressure.
• Important. Turn the nut in the direction of rotation of the saw blade.
  Take off the outer flange and pull the old saw blade off the inner flange by dropping the blade at an angle.
• Clean the blade flange thoroughly before fitting the new blade.
• Mount and fasten the new saw blade in reverse order.
• Warning! Note the running direction. The cutting angle of the teeth must point in running direction, i.e. forwards (see the arrow on the blade guard).
• Refit and set the splitter (2) and the saw blade guard (4) (see 6.8.-6.10.)
• Check to make sure that all safety devices are properly mounted and in good working condition before you begin working with the saw again.

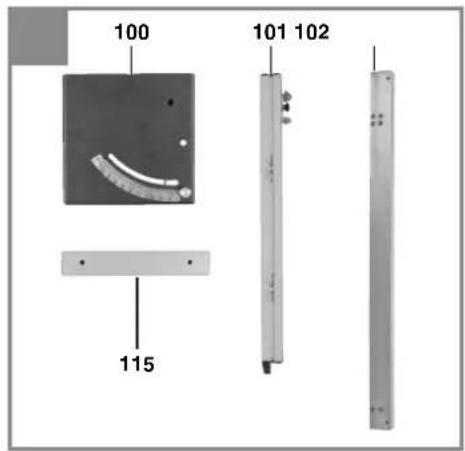

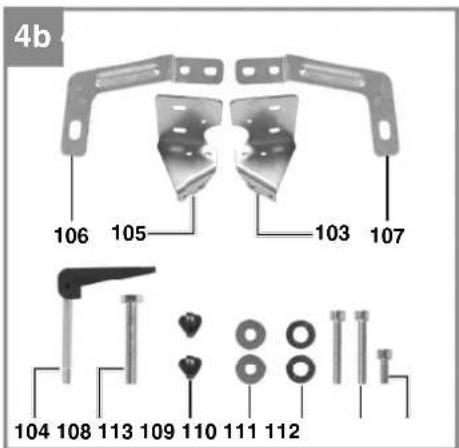

6.12 Fitting the accessory slide (Fig. 1, 2, 27-34)

• The slide is available from retail stores as a special accessory for this machine – it is not included in the scope of this delivery.
• On the bench-type circular saw: Remove the guide rail for the universal stop (8).

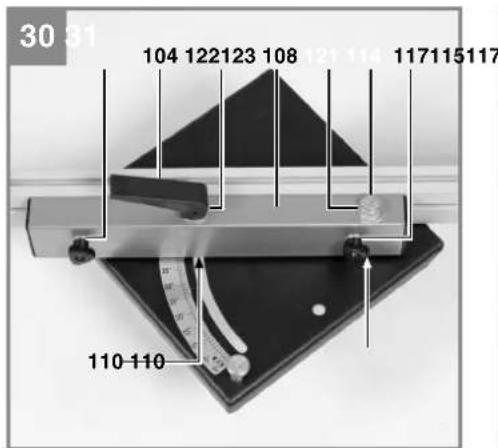

• Assemble the slide as shown in Figs. 27-32. In doing so, make sure that both spacers (110) are inserted between the profile (115) and the slide plate (100). Allen key: Not sup-

plied – available at retail stores.
- Important: Do not screw the screw (108) in too tightly. The stop must remain free moving on the plate for the purposes of angle adjustment.
- The clamping lever (104) must be mounted in such a way that the stop can be moved when the clamping lever is released and is locked when the clamping lever is secured. During assembly, make sure that the spring washer (114) is placed between the self-locking nut (121) and the washer (123) (Fig. 31).

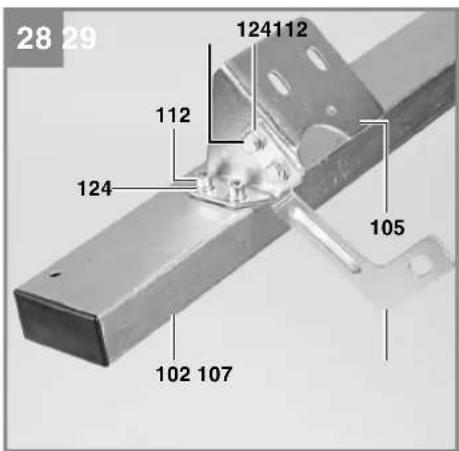

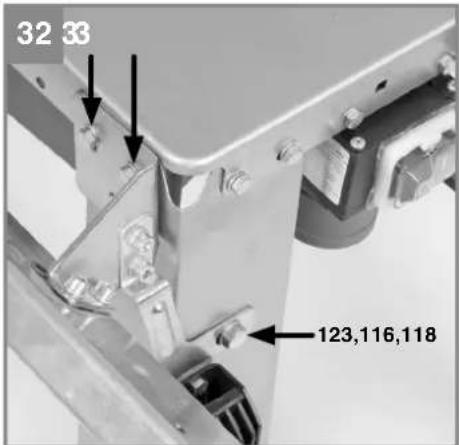

- Screw the angles (103, 105) and struts (106, 107) to the bench-type circular saw (Fig. 32).

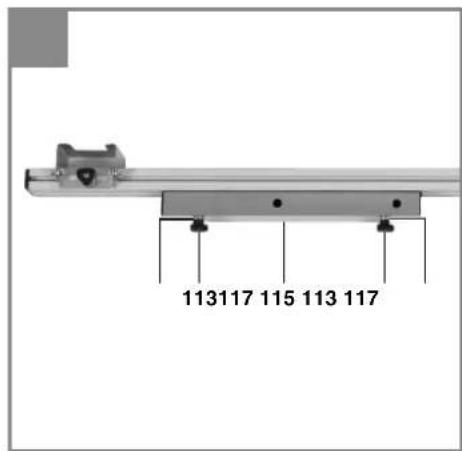

- Place the slide on the guide rail (102) from the front (Fig. 33).
- If there is any slackness between the guide rail and the running bearings of the slide plate, then the lower bearing must be adjusted using the screw (A), so that the slide can glide freely.

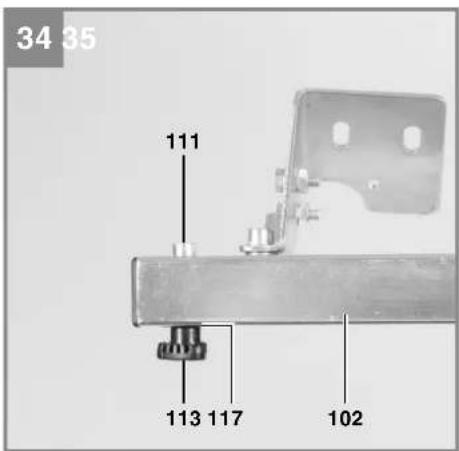

- Fit the Allen screws (111) to the front and rear of the rail (102) together with the button (113) and washer (117) (Fig. 34); they serve as a limit stop.
- The stop rail must move parallel to the saw table at a distance of 1 mm. To achieve this, loosely tighten the screws for the angles (103, 105) and struts (106, 107), then adjust the rail in such a way that there is a 1 mm gap between the rail and the saw table in every position. Now re-tighten the mountings.
- Please note that for technical reasons relating to delivery, some loose screws/washers may be left over even if the slide is assembled and fitted correctly (special accessory), because, e.g. they may already be provided on the bench-type circular saw.

7. Operation

7.1 ON/OFF switch and overload cut-out (Fig. 1)

• To turn the saw on, press the green button „I“. Wait for the blade to reach its maximum speed of rotation before commencing with the cut.
• To turn the equipment off again, press the red button „0“.

GB

Overload cut-out

The motor of this equipment is protected against overheating by an overload switch in the motor. If the load and temperature limit is exceeded, the overload switch will shut down the equipment. Press the "0" button and let the equipment cool down for several minutes.

Then press the green button „I“ to switch on the equipment again.

7.2 Cutting depth (Fig. 1, 22)

Turn the hand crank (13) to set the blade (5) to the required cutting depth.

Turn anti-clockwise:

smaller cutting depth

Turn clockwise:

larger cutting depth

7.3 Parallel stop

7.3.1 Stop height (Fig. 3a, 23)

• The universal stop (7) supplied with the bench-type circular saw has two different guide faces.
• To change over the stop rail (6) you have to slacken the two knurled screws (w) in order to disconnect the stop rail (6) from the universal stop (7).
• Depending on the required cutting height, the stop rail can be slid into two different grooves on the universal stop and secured with the knurled screws.
• The L-shaped stop rail (6) can be fastened to the universal stop (7) either lying flat or stood on edge, depending on the thickness of the material to be cut.

7.3.2 Cutting width (Fig. 1, 23)

• The universal stop (7) has to be used with the stop rail (6) when making longitudinal cuts in wooden workpieces.
• The universal stop has to be mounted in the guide rail (8) on the saw table (1).
• Set the angle of the universal stop (7) to the 0^ position and secure the locking grip (10) an.
• Push the universal stop to the required cutting width and secure the locking grip (11).
• Check the cutting width by carrying out a trial cut (see 8. Working).

7.3.3. Setting the stop length (Fig. 23)

• The stop rail (6) can be moved in longitudinal direction in order to prevent the workpiece from becoming jammed.
• Rule of thumb: The rear end of the stop comes up against an imaginary line that begins roughly at the center of the blade and runs at an angle of 45^ to the rear.
• Set the required cutting width.
• Slacken the knurled screws (w) and push the stop rail (6) forward until it touches the imaginary 45° line.
• Retighten the knurled screws (w).

7.4 Universal stop used as an angle stop/cross stop (Fig. 1, 23, 24b)

• Slide the universal stop (7) into the guide rail (9).
  • Undo the locking grip (10).
• Turn the stop rail (6) until the arrow points to the angle required. 0^ for use as a cross stop (90^ cuts) - a different angle for angle cuts.
• Re-tighten the locking grip (10); locking grip 11 stays loose.
• Important. Do not push the stop rail too far to the right toward the blade (4). The distance between the stop rail and the blade should be approx. 2 cm.

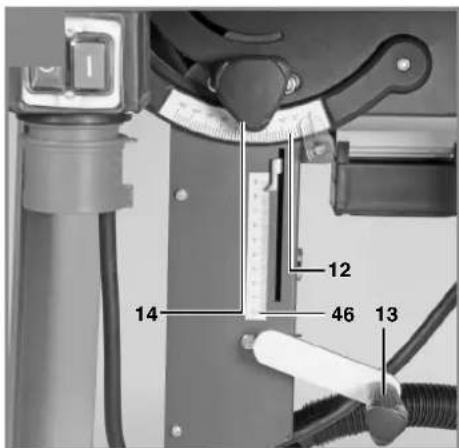

7.5 Setting the angle (Fig. 22)

• Slacken the locking grips (14) at the front and rear of the equipment.
  • Set the desired angle on the angle scale (12).
• Re-tighten the locking grips (14) at the front and rear of the equipment.

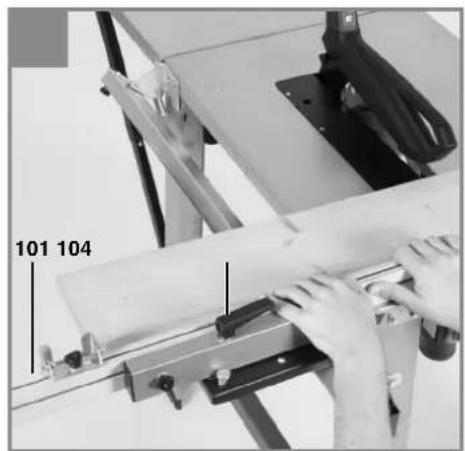

7.6 Accessory slide used as an angle stop/cross stop (Fig. 36)

• The slide can be used as an angle stop/cross stop in the same way as the universal stop (see 6.12).
  • Slacken the clamping lever (104).
• Turn the stop rail (101) until the arrow points to the angle required. 0^ for use as a cross stop ( 90^ cuts) – a different angle for angle cuts.
  • Re-tighten the locking grip (104).
  Note! Do not push the stop rail too far toward the blade (4). The distance between the stop rail and the blade should be approx. 2 cm.

GB

8. Working

Warning!

• After every new adjustment we recommend you to make a trial cut in order to check the new settings.
- After switching on the saw, wait for the blade to reach its maximum speed of rotation before commencing with the cut.
• Take extra care when starting the cut!
- Never use the equipment without the suction function.
- Regularly check and clean the suction channels.
- Check that the saw blade guard can be lowered onto the workpiece each time before use and that the braking time of the blade is less than 10 seconds. Do not use the equipment if the braking time is longer, and contact the customer services team.

8.1 Making longitudinal cuts (Fig. 24a)

Longitudinal cutting (also known as slitting) is when you use the saw to cut along the grain of the wood. Press one edge of the workpiece against the universal stop (7) while the fl at side lies on the saw table (1). The blade guard (4) must always be lowered over the workpiece. When you make a longitudinal cut, never adopt a working position that is in line with the cutting direction.

• Set the universal stop (7) in accordance with the workpiece height and the desired width (see 7.3).
• Switch on the saw.
• Place your hands (with fingers closed) flat on the workpiece and push the workpiece along the universal stop (7) and into the blade (5).
• Guide at the side with your left or right hand (depending on the position of the universal stop) only as far as the front edge of the guard hood.
  • Always push the workpiece through to the end of the splitter (2).
• The offcut piece remains on the saw table (1) until the blade (5) is back in its position of rest.
• Secure long workpieces against falling off at the end of the cut (e.g. with a roller stand etc.)

8.1.2 Cutting narrow workpieces (Fig. 25)

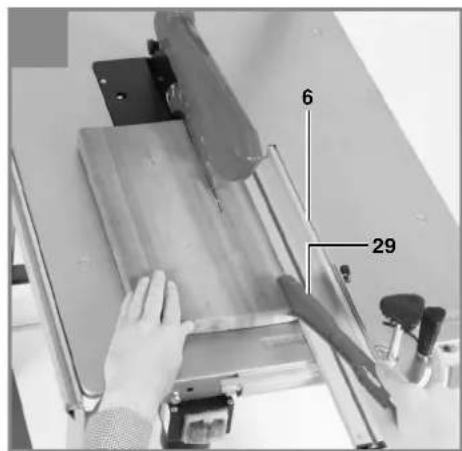

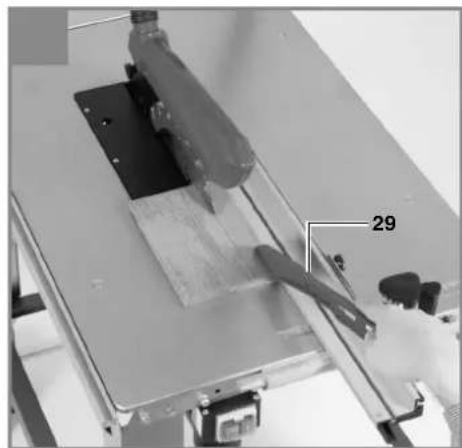

Be sure to use a push stick (29) when making longitudinal cuts in workpieces smaller than 120 mm in width. A push stick is supplied with the saw! Replace a worn or damaged push stick immediately.

8.1.3 Cutting very narrow workpieces (Fig. 26)

• Be sure to use a push block when making longitudinal cuts in very narrow workpieces with a width of 30 mm and less.
• The low guide face of the parallel stop is best used in this case.

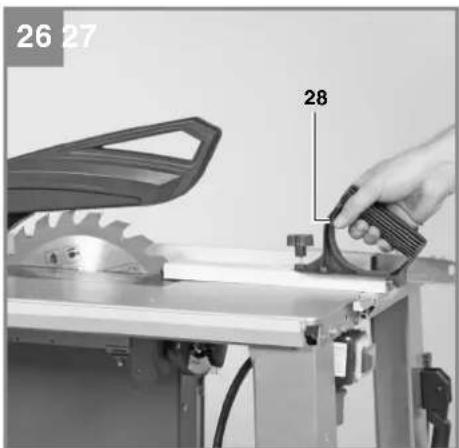

• A suitable push block device (28) is included in delivery. Replace the push block without delay when it becomes worn.

8.1.4 Making angular cuts (Fig. 22)

Angular cuts must always be made using the universal stop as a parallel stop (7).

• Set the blade (5) to the desired angle (see 7.5).
• Set the parallel stop (7) in accordance with the workpiece width and height (see 7.3.1).
• Carry out the cut in accordance with the workpiece width (see 8.1.1., 8.1.2 and 8.1.3.).

8.1.5 Making cross cuts (Fig. 24b)

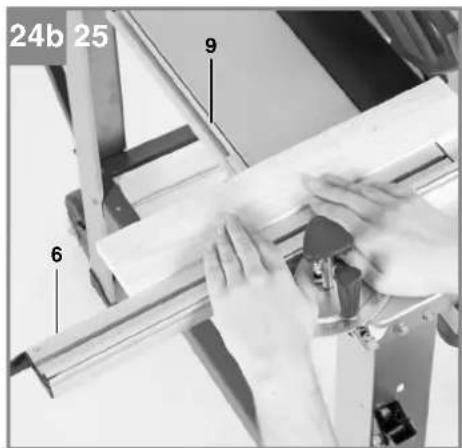

• Set the universal stop (7) or accessory slide to the desired angle (see 7.4 or 7.6).
• If necessary, position the stop rail (6/101) so that it cannot collide with the saw blade when you make your cut.
• Switch on the saw.
• Press the workpiece firmly against the stop rail (6 or 101).
• Push the universal stop or accessory slide and the workpiece toward the blade in order to make the cut.
• Warning! Always hold the guided part of the workpiece. Never hold the part which is to be cut off.
• Push the universal stop or accessory slide forward until the workpiece is cut all the way through.
• Switch off the saw again. Do not remove the offcut until the blade has stopped rotating.

GB

9. Replacing the power cable

Danger!

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

10. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

10.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  • We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

10.2 Maintenance

There are no parts inside the equipment which require additional maintenance.

10.3 Transport

• For transporting, lift the equipment by the transport handles so that it can be moved on the rollers.
• Transport the equipment only when the safety devices and blade guard are fitted.
• For transport in vehicles: Secure the equipment against slipping; tie it down securely.
  • Note the machine weight when transporting the equipment (see Technical Data).

10.4 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

• Type of machine
• Article number of the machine
• Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

11. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offices.

12. Storage

Store the equipment and accessories in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30°C. Store the electric tool in its original packaging.

GB

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH.

Subject to technical changes

TE-TS 2231 U:

The product meets the requirements of EN 61000-3-11 and is subject to special connection conditions. This means that use of the product at any freely selectable connection point is not allowed.
- Given unfavorable conditions in the power supply the product can cause the voltage to fluctuate temporarily.
- The product is intended solely for use at connection points that a) do not exceed a maximum permitted mains system impedance of Z sys = 0.398 Ω, or b) have a continuous current-carrying capacity of the mains of at least 100 A per phase.
- As the user, you are required to ensure, in consultation with your electric power company if necessary, that the connection point at which you wish to operate the product meets one of the two requirements, a) or b), named above.

GB

Service information

We have competent service partners in all countries named on the guarantee certificate whose contact details can also be found on the guarantee certificate. These partners will help you with all service requests such as repairs, spare and wearing part orders or the purchase of consumables.

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Category Example
Wear parts* V-belt, carbon brushes, table insert, push stick
Consumables* Saw blade
Missing parts

* Not necessarily included in the scope of delivery!

In the effect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.

GB

Warranty certifi cate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee conditions regulate additional guarantee services. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.

2. Our guarantee only covers defects suffered by the device which have been verifiably caused by a material or manufacturing fault and is limited to the rectification of such defects or the replacement of the device at our discretion.
   Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

- Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

1. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

2. Please report the defective device on the following internet address to register your guarantee claim: www.isc-gmbh.info. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

Sommaire

1. Distansbricka 8 mm, liten
2. Distansbricka 6 mm, liten

metala ....∅ 315 x ∅ 30 x 3,0 mm

List testere od tvrdog

metala (alternativno) .....∅ 315 x ∅ 30 x 3,6 mm

Broj zubaca 24

Veličina stola 550 x 800 mm

Produženje stola ....550 x 650 mm

Visina rezanja maks 83 mm / 0° 50 mm / 45°

Podešavanje visine rezanja ..... kontinualno 0 - 83 mm

Zakretanje lista testere .... kontinualno 0° - 45°

Negotovost K_WA .....3 dB

X 2006/42/EC
x Annex IV
Notified Body: TUEV Rheinland LGA Products GmbH
Notified Body No.: 0197
Reg. No.: BM 50274256 0001
□ 2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured L_ = dB (A); guaranteed L_ = dB (A)
P = KW; L/∅ = cm
Notified Body:
2004/26/EC
Emission No.:

Standard references: EN 60204-1; EN 1870-19; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-11

Subject to change without notice

Archive-File/Record: NAPR005272

Documents registrar: Siegfried Roider

Wiesenweg 22, D-94405 Landau/Isar

Subject to change without notice

Archive-File/Record: NAPR005275

Documents registrar: Siegfried Roider

Wiesenweg 22, D-94405 Landau/Isar

EH 04/2014 (01)
