| Brand | Einhell |
| Model | BT-AP 650 E |
| Product type | Electric reciprocating saw (sabre saw) |
| Mains voltage | 230-240 V ~ 50 Hz |
| Power consumption | 650 W |
| Stroke rate | 500-3000 min⁻¹ (electronically adjustable) |
| Stroke length | 20 mm |
| Cutting depth in wood | 150 mm |
| Cutting depth in metal | 10 mm |
| Maximum blade width | 1.4 mm |
| Weight | 2.8 kg |
| Sound pressure level (LpA) | 86.8 dB(A) (uncertainty K=3 dB) |
| Sound power level (LWA) | 97.8 dB(A) (uncertainty K=3 dB) |
| Vibration (front handle, cutting wood panels) | ah = 16.083 m/s² (K=1.5 m/s²) |
| Vibration (rear handle, cutting wood panels) | ah = 13.588 m/s² (K=1.5 m/s²) |
| Protection class | II / double insulation |
| Delivery contents | Saw, 1 wood blade, 1 metal blade, instruction manual, safety instructions |
| Blade change | Tool-free, by rotating the ring |
| Shoe adjustment | Yes, with fixing button (unlock/lock) |
| Switch with lock | Yes, integrated stop button |
| Electronic speed control | Yes, by thumbwheel |
| Hearing protection recommended | Yes |
| Eye protection recommended | Yes |
| Dust mask recommended | Yes |
| Maintenance | Regular cleaning, carbon brushes checkable by specialist |
| Spare parts available | Yes, via article number and identification code |
| Warranty | 2 years (excluding professional use) |
Frequently Asked Questions - BT-AP 650 E EINHELL
User questions about BT-AP 650 E EINHELL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric saw in PDF format for free! Find your manual BT-AP 650 E - EINHELL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BT-AP 650 E by EINHELL.
USER MANUAL BT-AP 650 E EINHELL
-3
06.02.12 12:44
(vorderer Handgriff)
(hinterer Handgriff)
(vorderer Handgriff)
(hinterer Handgriff)

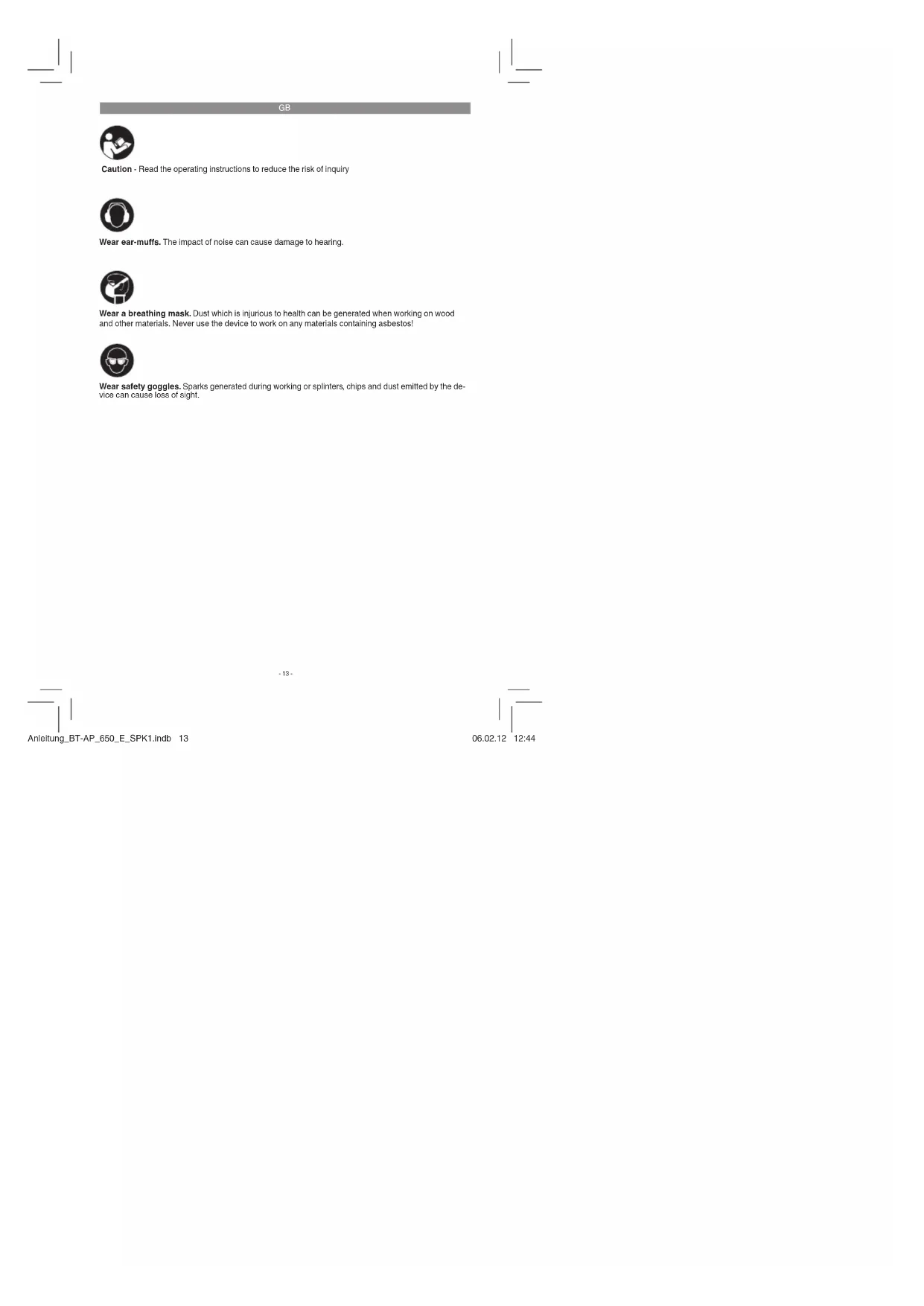

Caution - Read the operating instructions to reduce the risk of inquiry
Wear ear-muffs. The impact of noise can cause damage to hearing.
Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
Wear safety goggles. Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
-13
Anleitung_BT-AP_650_E_SPK1.indb 13
06.02.12 12:44
GB
⚠️ Important!
When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.
1. Safety regulations
The corresponding safety information can be found in the enclosed booklet.
Caution!
Read all safety regulations and instructions. Any errors made in following the safety regulations and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.
2. Layout and items supplied
2.1 Layout (Fig. 1+2)
1 On/Off switch
2 Button catch
3 Wood saw blade
4 Metal saw blade
5 Soleplate
6. Blade holder
7. Locking button for soleplate
8 Wheel selector for selecting the blade speed
2.2 Items supplied
- Open the packaging and take out the equipment with care.
- Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage. - If possible, please keep the packaging until the end of the guarantee period.
Important!
The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!
• Universal saw
• Saw blade for wood (1x)
• Saw blade for metal (1x)
• Original operating instructions
• Safety information
3. Proper use
The multi-saw is designed for sawing wood, iron, non-ferrous metals and plastic. It should only be used with the appropriate saw blade.
The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.
4. Technical data
Mains voltage: 230-240 V–50 Hz
Power: 650 W
Stroke rate: 500-3000 min ^1
Stroke height: 20 mm
Cutting depth in wood: 150 mm
Cutting depth in iron: 10 mm
Maximum saw blade width: 1.4 mm
Protection class: .....II/10
Weight: 2.8 kg
Sound and vibration
Sound and vibration values were measured in accordance with EN 60745.
L_w sound pressure level 86.8 dB(A)
K_v uncertainty 3 dB
L_w sound power level 97.8 dB(A)
K_w uncertainty 3 dB
GB
Wear ear-muff s.
The impact of noise can cause damage to hearing.
Total vibration values (vector sum of three directions) determined in accordance with EN 60745.
Cutting wooden boards (front handle)
Vibration emission value ah = 16.083 m/s ^2 Uncertainty K = 1.5 m/s ^2
Cutting wooden boards (rear handle)
Vibration emission value ah = 13.588 m/s ^2 Uncertainty K = 1.5 m/s ^2
Cutting wooden beams (front handle)
Vibration emission value ah = 16.345 m/s ^2 Uncertainty K = 1.5 m/s ^2
Cutting wooden beams (rear handle)
Vibration emission value ah = 13.813 m/s ^2 Uncertainty K = 1.5 m/s ^2
Warning!
The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.
The specified vibration value can be used to compare the equipment with other electric power tools.
The specified vibration value can be used for initial assessment of a harmful effect.
Keep the noise emissions and vibrations to a minimum.
- Only use appliances which are in perfect working order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary. - Switch the appliance off when it is not in use.
• Wear protective gloves.
Residual risks
Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:
-
Lung damage if no suitable protective dust mask is used.
-
Damage to hearing if no suitable ear protection is used.
-
Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.
5. Before starting the equipment
Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.
Always pull the power plug before making adjustments to the equipment.
5.1 Changing the saw blade (Fig. 2)
Always switch off and unplug the multi-saw before working on the machine or changing the saw blade.
Turn the ring (a) on the blade holder (6) as shown in Fig. 2 until the blade (b) lets itself be slipped into the slot of the blade holder (6).
When you now let go of the ring (a) again, the ring (a) should return to its starting position.
If this fails to happen, try turning the ring (a) by hand into its starting position.
Pull on the blade to check whether it slts tightly in the holder.
5.2 Adjusting the soleplate (Fig. 3)
Important.
Pull out the power plug.
To adjust the soleplate, press the soleplate locking button (7) on the right-hand side (looking from the bottom) in order to unlock the soleplate (5). Set the required distance and press the soleplate locking button (7) on the left-hand side (looking from the bottom) in order to lock the soleplate again. Check that the soleplate is secure.
Check that the soleplate is secure.
-15-
GB
6. Operation
6.1 ON/OFF switch (Fig. 1/Item 1)
To switch on:
Press the ON/OFF switch
To switch off :
Release the ON/OFF switch
6.2 Locking button (Fig. 1/Item 2)
You can lock the ON/OFF switch (1) using the locking button (2) when the equipment is in operation. To switch off the equipment briefly hold down the ON/OFF switch (1).
6.3 Electronic stroke rate control
Use the wheel selector (8) to set the required blade speed.
The general rules for cutting speeds for cutting work apply.
6.4 Use as a jigsaw (Fig. 4)
Place the multi-saw on the material to be cut as shown in Fig. 4. Switch on the multi-saw and push it along against the material to be cut. Adapt your cutting speed to the material.
7. Replacing the power cable
If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.
8. Cleaning, maintenance and ordering of spare parts
Always pull out the mains power plug before starting any cleaning work.
8.1 Cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use
cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.
8.2 Carbon brushes
In case of excessive sparking, have the carbon brushes checked only by a qualified electrician. Important! The carbon brushes should not be replaced by anyone but a qualified electrician.
8.3 Maintenance
There are no parts inside the equipment which require additional maintenance.
8.4 Ordering replacement parts:
Please quote the following data when ordering replacement parts:
• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info
9. Disposal and recycling
The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.
The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.
10. Storage
Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.
16
GB
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any accessories or aids without electrical components supplied with the old equipment.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the ISC GmbH.
Subject to technical changes
Anleitung_BT-AP_650_E_SPK1.indb 17
06.02.12 12:44
Warranty certifi cate
Dear Customer,
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:
- These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
- Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months. The guarantee is rendered null and void if any attempt is made to tamper with the device.
- The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
- In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.
Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.
