USER MANUAL TV 335 Testboy

TV 335 Operating instructions

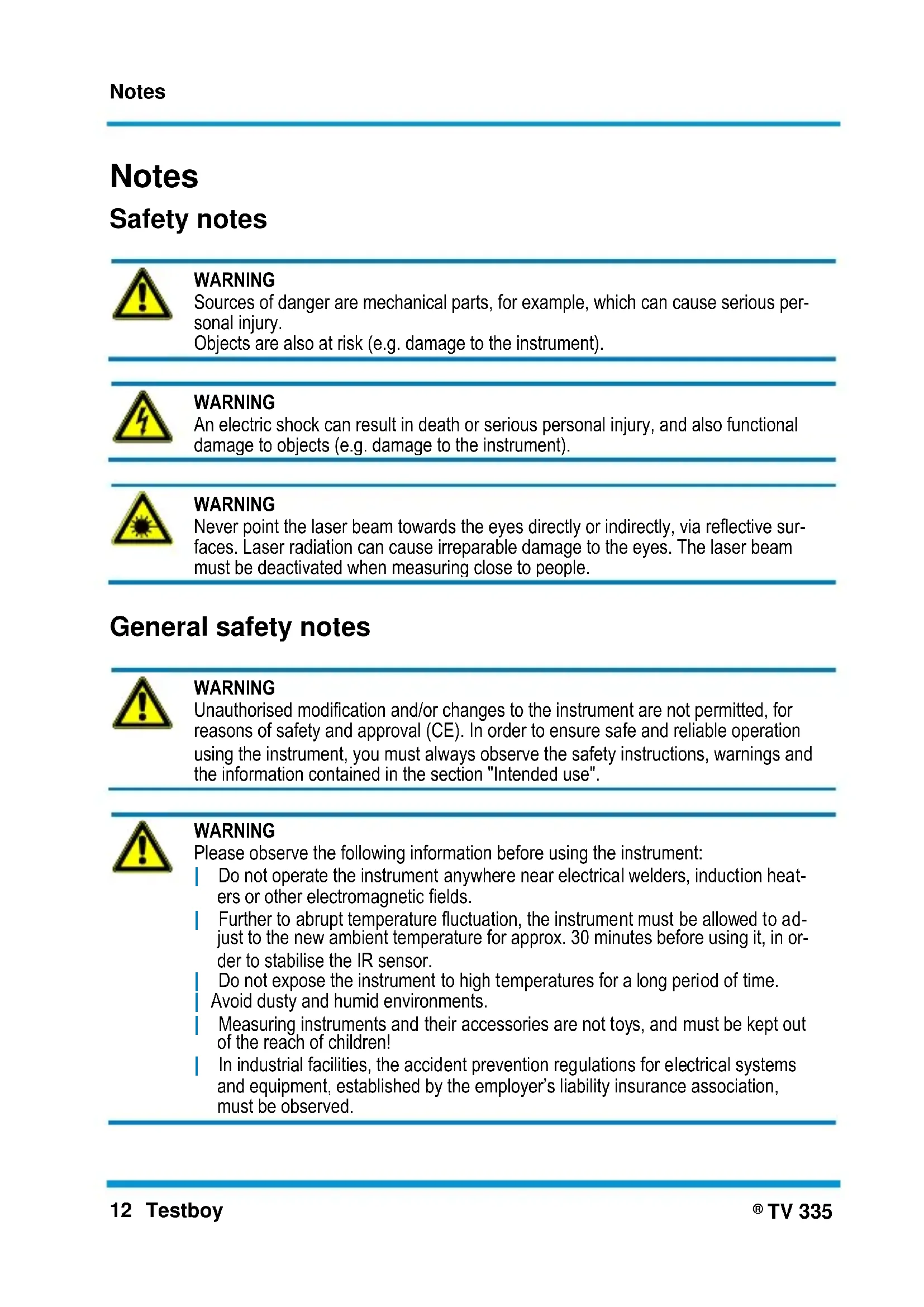

WARNING Sources of danger are mechanical parts, for example, which can cause serious per- sonal injury. Objects are also at risk (e.g. damage to the instrument).

WARNING An electric shock can result in death or serious personal injury, and also functional damage to objects (e.g. damage to the instrument).

WARNING Never point the laser beam towards the eyes directly or indirectly, via reflective sur- faces. Laser radiation can cause irreparable damage to the eyes. The laser beam must be deactivated when measuring close to people.

General safety notes

WARNING Unauthorised modification and/or changes to the instrument are not permitted, for reasons of safety and approval (CE). In order to ensure safe and reliable operation using the instrument, you must always observe the safety instructions, warnings and the information contained in the section "Intended use".

WARNING Please observe the following information before using the instrument: | Do not operate the instrument anywhere near electrical welders, induction heat- ers or other electromagnetic fields. | Further to abrupt temperature fluctuation, the instrument must be allowed to ad- just to the new ambient temperature for approx. 30 minutes before using it, in or- der to stabilise the IR sensor. | Do not expose the instrument to high temperatures for a long period of time. | Avoid dusty and humid environments. | Measuring instruments and their accessories are not toys, and must be kept out of the reach of children! | In industrial facilities, the accident prevention regulations for electrical systems and equipment, established by the employer’s liability insurance association, must be observed.Notes

Please observe the five safety rules: 1 Disconnect 2 Ensure that the instrument cannot be switched back on again 3 Ensure isolation from the power supply (check that there is no voltage on both poles) 4 Earth and short-circuit 5 Cover adjacent live parts

Intended use The instrument is intended strictly for use in applications described in the operating instructions. Any other usage is considered improper and forbidden, and can result in accidents or the destruc- tion of the instrument. Any such application will result in the immediate expiry of all guarantee and warranty claims on the part of the operator against the manufacturer.

Remove the batteries if the instrument is not in use for a long period of time, in order to protect the instrument from damage.

We assume no liability for damages to property or personal injury caused by improp- er handling or failure to observe the safety instructions. Any warranty claim expires in such cases. An exclamation mark in a triangle indicates safety notices in the operat- ing instructions. Read the instructions completely before beginning the initial com- missioning. This instrument is CE-approved and thus fulfils the required guidelines.

All rights reserved to alter specifications without prior notice © 2014 Testboy GmbH, Germany. Disclaimer

The warranty claim expires in cases of damages caused by failure to observe the in- structions! We assume no liability for any resulting damage!

Testboy is not responsible for damage resulting from | failure to observe the instructions, | changes to the product that have not been approved by Testboy or | the use of spare parts that have not been manufactured or approved by Testboy | the use of alcohol, drugs or medication. Accuracy of the operating instructions These operating instructions have been compiled with due care and attention. No guarantee is given that the data, illustrations and drawings are complete or correct. All rights reserved with re- gard to changes, printing mistakes and errors.Notes

TV 335 DEUTSCH DEUTSCH Disposal Dear Testboy customer: purchasing our product gives you the option of returning the instrument to suitable collection points for waste electrical equipment at the end of its lifespan.

The WEEE directive regulates the return and recycling of electrical appliances. Manufacturers of electrical appliances are obliged to take back and recycle all electrical appliances free of charge. Electrical devices may then no longer be dis- posed of through conventional waste disposal channels. Electrical appliances must be recycled and disposed of separately. All equipment subject to this di- rective is marked with this logo.

Disposal of used batteries

As an end user, you are legally obliged (battery law) to return all used batteries; disposalwith normal domestic waste is prohibited! Batteries containing contaminant material are labelled with adjacent symbols indi- cating the prohibition of disposal with normal domestic waste. The abbreviations used for the respective heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. You can return your used batteries free of charge to collection points in your community or anywhere where batteries are sold!

Certificate of quality All activities and processes carried out within Testboy GmbH relating to quality are monitored permanently within the framework of a Quality Management System. Furthermore, Testboy GmbH confirms that the testing equipment and instruments used during the calibration process are subject to a permanent inspection process. Declaration of conformity The product conforms to the present directives. For more detailed information, go to www.testboy.deOperation

TV 335 15 ENGLISH DEUTSCH DEUTSCH Operation Dear Customer, We thank you for purchasing the digital LED Luxmeter Testboy TV 335. With this product, you have acquired an instrument that has been manufactured in accordance with the present state-of-the-art technology. In order to maintain this condition and ensure safe operation, you must observe these operating instructions! Intended use The digital LED luxmeter Testboy TV 335 luxmeter is a measuring instrument for accurate deter- mination of the light intensity and incidence of light on a given surface. The measurement is made by means of a photo element; the measurement result is displayed on the LC display in four measuring ranges. The voltage supply is provided by a 9 V alkaline battery, Type 6F22. It is imperative to prevent direct contact with water and moisture, because the housing is not wa- tertight! It is recommended to use a dry, lint-free cloth, the use of cleaning agents is forbidden. Other use than previously described results in damage to the product. Furthermore, this is associated with risks, e.g. short-circuit, fire etc. The complete product must not be opened, modified or converted! Scope of delivery: | Digital LED luxmeter Testboy TV 335 with fixed sensor | Carrying and storage bag | Operating instructions | Battery (9 V 6F22) Safety notes The warranty claim expires in cases of damages caused by failure to observe the instruc- tions! We assume no liability for any resulting damage! We assume no liability for damag- es to property or personal injury caused by improper handling or failure to observe the safety instructions. Any warranty claim expires in such cases. Unauthorised modification and/or changes to the instrument are not permitted, for reasons of safety and approval (CE). The instrument is not a child’s toy. Keep it away from children. Do not subject the instrument to mechanical stresses, it is imperative to prevent contact with moisture and fluids. The instrument must only be used outside in suitable weather or with appro- priate protection. The light sensor or instrument must not be strongly heated by the source of light. If the source of light develops strong heat, maintain sufficient distance.Operation

TV 335 DEUTSCH DEUTSCH Information about the correct light intensity The intensity of light is measured in Lux. The adaptation capability of the human eye is practically unrestricted. This can result in that the eye requires major visual performance also if the lighting is insufficient. If there is no, or insufficient light present, the eye can only fulfil its viewing tasks by straining, or possibly not at all. Affliction to the eyes is often the result. Accidents become more frequent. Using the digital luxmeter Testboy TV 335, you now have acquired a product with which to check everywhere, whether sufficient light intensities are actually available for the normal viewing tasks that are carried out daily. Seeing is the detection of the difference between brightness and col- ours, shapes, movement and distances. Only with the correct intensity of light can the eye fulfil its tasks. Therefore, good light is important. Saving is often incorrectly made with light. Dark zones attune to being unfriendly. Allow more light. The type of lighting influences the information that the eye transmits to the brain. Direct more light to there where accurate vision is important. There is a risk of an accident in rooms that are darker than 30 Lux! Older persons require more light because their visual acuity has reduced. A 60 year old person requires approximately twice the amount of light as a 30 year old. Carrying out measurements Before commissioning, observe the intended use as well as the safety instructions and technical data. Use the On/Off switch to switch on the instrument. Remove the protective cap from the light sensor and align this so that the light strikes the light sensor, aligned horizontally, vertically. Thereby, prevent shading the light sensor by your own body. Once the measurement is complete, switch off the instrument (On/Off switch) and install the pro- tective cap on the sensor. Measurement range (manual / automatic) After switching on the instrument, the measurement device is always in the automatic measure- ment range. By pressing the button “RAN”, the measurement range switches to manual. By again pressing the pushbutton, the measurement range and the decimal point (20.00; 200.0; 2000; 20.000; 200.000) changes. If the measurement value is outside the measurement range, “OL” appears on the display. Keep the button “WRAN” pressed until the corresponding manual measurement range is set, or until “AUTO” appears on the display and the automatic measure- ment range is reset. Relative measurement After switching on the instrument, the relative measurement can be activated by pressing the but- ton “REL/PEAK”. The value last indicated is set as the reference value and now indicates the dif- ferential values to the reference value set. The relative measurement can be carried out in the a u- tomatic and manual measurement range. This function can be deactivated by pressing the button “REL/PEAK” for a longer period.Operation

TV 335 17 ENGLISH DEUTSCH DEUTSCH Peak measurement After switching on the instrument, the peak measurement can be activated by pressing the button “REL/PEAK” for a longer period. This function increases the response time of the sensor, with which quicker changes in light can be recorded. The peak measurement can only be carried out in the manual measurement range. This function can be deactivated by pressing the button “REL/PEAK” for a longer period. Measurement units The measurement values can be indicated in Lux, FC (foot candle) and Candela. To change the unit, press the button “Lx/Fc/CD”. To change to Candela, press the button “Lx/Fc/CD” for a longer period. The distance setting for the source of light is possible using the buttons “UP” and “DOWN” To switch back, also keep the button “Lx/Fc/CD” pressed for a longer period.

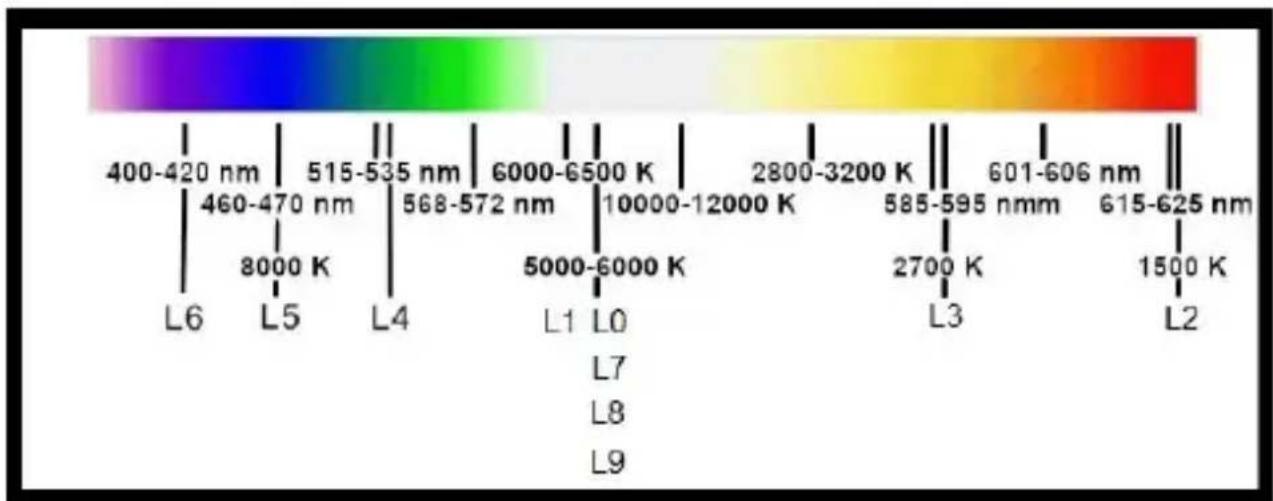

Using the MAX/MIN function, the respective largest and smallest measurement value can be indi- cated. In order to deactivate the function, press the button “MAX/MIN” as often as required until the function required appears on the display, or until “MAX“ or "MIN“ is no longer visible. By pressing for a longer period, "LS L X“ (light source) appears and the different sources of light (flashing character) can be selected using the "Up and Down" arrows and can also be confirmed by pressing for a longer period.

TV 335 DEUTSCH DEUTSCH Zero adjustment function The zero point of the sensor curve can be adjusted by low intensities of light for optimum meas- urement results. After switching on the instrument, install the protective cap in order to cover the complete sensor. By pressing the button “HOLD/ZERO” for an extended period, the adjustment is started. Wait until the instrument is successfully adjusted, indicated by an acoustic signal. The value 0.00 Lux appears on the display. During adjustment, avoid strong solar radiation. Data hold function By momentary activation of the button “Hold/Zero”, the measurement value is saved until the but- ton is again activated.Operation

TV 335 19 ENGLISH DEUTSCH DEUTSCH Replacing the battery In the delivery condition, the instrument is already equipped with a 9 V alkaline battery, Type 6F22. As soon as the Low-Bat indication appears on the LC display, the battery must be re- placed, because the correctness of the indication is no longer be ensured. To replace the battery, proceed as follows: | Use a screwdriver to open the battery compartment and remove the old battery. | Insert a new battery of the same type. | Thereby, make sure that the polarity is correct | Make sure that the battery is firm and secure. | Install the battery compartment cover on the instrument. | Firmly attach the battery compartment cover The end user is legally obliged (battery law) to return all used batteries and battery packs (button cell to lead battery); disposal in the normal domestic waste is prohibited. Used batteries and bat- tery packs can be disposed of in community disposers (recycling depot), which are obliged to ac- cept them. Make a contribution to environmental protection! Reference values for light intensities Stairs, cellar, loft 30 Lux Garages, hall, store room 60 Lux Kitchen, hobby room, living and dining room, domestic room, waiting room 250 Lux Eating, kitchen and hobby activity, offices and laboratories 500 Lux Hall, cloakroom, WC, bath, children’s room, larder 720 Lux Reading, writing, homework and craft activities, handicrafts, painting, cosmetics 750 Lux Technical drawing, precision work, accurate tests, evaluating colours 7000 LuxTechnical data
