SM 3583 - Milk frother SEVERIN - Free user manual and instructions

Product type	Milk frother
Brand	Severin
Model	SM 3583
Minimum capacity	120 ml
Maximum capacity (frothing)	350 ml
Maximum capacity (heating)	700 ml
Functions	Heating, hot frothing, cold frothing, hot chocolate
Adjustable temperatures	45°C, 65°C, cold milk function
Included attachments	2 (smooth for heating, serrated for frothing)
Reservoir material	Stainless steel
Power supply	220-240 V ~ 50/60 Hz
Power	500 W
Weight	1.2 kg
Dimensions (L × W × H)	15 × 15 × 25 cm
Cord length	80 cm
Cleaning	Removable parts dishwasher-safe; wipe base with a damp cloth
Safety	Automatic shut-off when running empty, hot surface
Warranty	2 years
Usage	Domestic

Frequently Asked Questions - SM 3583 SEVERIN

What type of milk should be used to obtain a good froth?

It is recommended to use long-life skimmed milk (1.5% fat) for best results. The milk should be taken from the refrigerator just before operation.

How to choose between the smooth and serrated attachment?

Use the smooth attachment to simply heat the milk. Use the serrated attachment to froth the milk, either hot or cold.

What are the minimum and maximum capacities of the reservoir?

The reservoir must contain at least 120 ml of milk. For frothing, do not exceed 350 ml (lower mark); for heating, do not exceed 700 ml (upper mark).

How to prepare hot chocolate with this appliance?

Attach the smooth attachment, select temperature 45°C. Once the milk is at 45°C, remove the lid, add cocoa powder, then select 65°C and restart. Do not use chocolate pieces.

Can I interrupt a running cycle?

Yes, press the on/off switch. The indicator will flash and the motor will cool. To resume, press the same switch again.

How to clean the milk frother?

Unplug the appliance and let it cool down. The reservoir, attachments and lid can be washed with warm soapy water or in the dishwasher. The base should be wiped with a damp cloth. Never immerse the base in water.

What to do if the appliance does not start?

Check that the reservoir contains at least 120 ml of milk and that the drive shaft is covered. The appliance shuts off automatically if switched on while empty. Also make sure the lid is properly in place.

Can I use this appliance to heat other liquids besides milk?

No, the appliance is designed only for milk. Do not put any other liquid or solid food in the reservoir.

How to get a thicker froth?

First froth the milk cold with the serrated attachment, then run a hot frothing cycle. This gives a denser froth.

The appliance emits a beep at the end of the cycle, what should I do?

When the cycle is finished, beeps sound and the indicator flashes. You can then remove the reservoir from the base. The cooling system continues to run for a few moments. Then unplug the appliance.

USER MANUAL SM 3583 SEVERIN

Before using the appliance, please read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label of the appliance. This product complies with all binding CE labelling directives.

Familiarisation

1. Base
2. Milk container
3. Lid with insert
4. Handle
5. Temperature selection display
6. Temperature selection button
7. On/Off switch
8. Power cord and storage (on underside of appliance
9. Stirring head - smooth (for heating milk)
10. Stirring head - serrated (for frothing milk)

Important safety instructions

In order to avoid hazards, and to comply with safety requirements, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are

needed, please send the appliance to our customer service department (see appendix).

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely. For detailed information on cleaning the appliance, please refer to the section Cleaning and care.
• To avoid the risk of electric shock, do not clean the appliance with liquids or immerse it.
• Caution: The milk container heats up during operation and will remain hot some time afterwards. Do not touch hot surfaces.

• Hold the container only by its handle.
  This appliance is intended for domestic or similar applications, such as the

• staff kitchens in shops, offices and other similar working environments,

• agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,

• in bed-and breakfast type environments.

• This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.
  Children must not be permitted to play with the appliance.
  Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.
  The appliance and its power cord must be kept well away from children under 8 at all times.

• Caution: Keep any packaging materials well away from children – these materials are a potential source of danger, e.g. of suffocation.
  Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used:

even invisible damage may have adverse effects on the operational safety of the appliance.

• This appliance is solely designed for heating up and frothing milk. Do not put any other type of liquid or solid food in the container.
  Do not leave the milk frother unattended while in use.
  Always observe the minimum and maximum level marks inside the container for each application.
  The protrusion in the bottom of the container (min. level mark) must be covered by the milk. If there is not enough milk, the appliance may overheat.
• To prevent such overheating, the appliance will automatically switch off if it is operated when empty.
  Overfilling the container may cause danger if frothing milk is forced out.
• Caution: The lid must be fitted during operation. To add ingredients during operation, always use the opening in the lid.
  The appliance may only be used with the original accessory parts provided by the manufacturer.
• The appliance must always be set on a firm, level surface.
• Do not allow the appliance or its power cord to come into contact with open flames or any hot surfaces such as hot-plates.

• Do not allow the power cord to hang free; the cord must be kept well away from hot parts of the appliance.
  Always remove the plug from the wall socket - in case of any malfunction, - after use,

• before cleaning the appliance.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

• No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

Before using for the first time

Remove any packaging materials and check that all components are present.

Before the appliance is used for the first time, or after extended periods of non-use, it should be thoroughly cleaned as described in the section Cleaning and care.

Operation

We recommend the use of long-life low-fat milk (UTF, 1.5% fat content). For best results, the milk should be taken from the refrigerator immediately before frothing.

The underside of the container and the contact area on the inside of the base must be clean and dry.

Choosing the stirring head

Use the smooth stirring head to heat up milk.
- For frothing and heating milk at the same time, use the serrated head.
- For cold-frothing milk, also use the serrated head.
- When not in use, the stirring heads may be safely stored at the rear of the housing.

Fill amounts

Always observe the minimum mark and ensure the container is filled with at least 120ml milk.

• For frothing, fill the container to a maximum of 350ml (lower max mark
• For heating, fill the container to a maximum of 700ml (upper max mark

Heating up or frothing milk

1. Place the container onto the base.
2. Remove the lid from the milk container.
3. Place the appropriate head onto the mounting protrusion inside the bottom of the container.
4. Put the required amount of milk into the container.
5. Place the lid and insert on the container.
6. Insert the plug into a suitable wall socket. A beep signal is heard and the 65^ C indicator starts flashing.
7. Use the temperature selection button to set the desired temperature or the cold-frothing function (blue dot symbol). Then press the On/Off switch.

After a beep signal is heard, the indicator light for the selected temperature function shows a steady light and the cooling system of the motor is heard to start up.
A moment later, the appliance starts to stir the milk. Once the milk is suffi cientsly hot or the cold-frothing process is complete, both heating and stirring processes stop automatically.
The indicator light for the selected temperature function flashes, and a number of beep signals are heard.
8. You can now remove the milk container from the base. Use a suitable spoon to take off the milk froth.
The cooling system continues to run for a brief period.
The temperature indicator lamp stops flashing after about three minutes. The

power cord can now be disconnected from the socket.

Remarks

If the appliance has not been disconnected from the mains, the On/Off switch must be pressed twice to start a new operating cycle.

After a heating cycle, the appliance cannot start a new stirring and heating cycle immediately, but must be allowed to cool down first.

After a cold-frothing cycle, a new stirring and heating cycle may be started immediately.

Making cocoa

The appliance is also suitable for preparing cocoa drinks. Proceed as described in the section Heating up or frothing milk. Fit the smooth stirring head and set the temperature selector to 45^ C. As soon as the milk has been heated to 45^ C (as indicated by the corresponding beep signals), take off the lid insert and add the required amount of cocoa powder. Now set the temperature selector to 65^ C and press the On/Off switch again.

To prevent any blockage or congestion, do not use grated chocolate or chocolate flakes when making cocoa.

Interrupting or ending a cycle

Press the On/Off switch to stop the heating and stirring process: The main indicator lamp starts fl ashing and the motor cooling system can be heard.

To continue the heating and stirring process, Press the On/Off switch again.

Hint

To achieve a thicker froth, go through a cold-frothing cycle first, followed by a

hot-frothing cycle.

Cleaning and care

Always remove the plug from the wall socket and wait until the motor has come to a complete standstill before cleaning the appliance.
- To avoid the risk of electric shock, do not clean the base or the power cord with water and do not immerse them.
- The container, stirring heads and lid should be cleaned after each cycle of use with hot water and a little detergent, or in a dishwasher. If necessary, the serrated stirring head may be cleaned with a suitable brush.
Wipe all parts thoroughly dry.
- The base may be cleaned with a damp cloth and a little detergent.
- Do not use abrasives or harsh cleaning solutions.

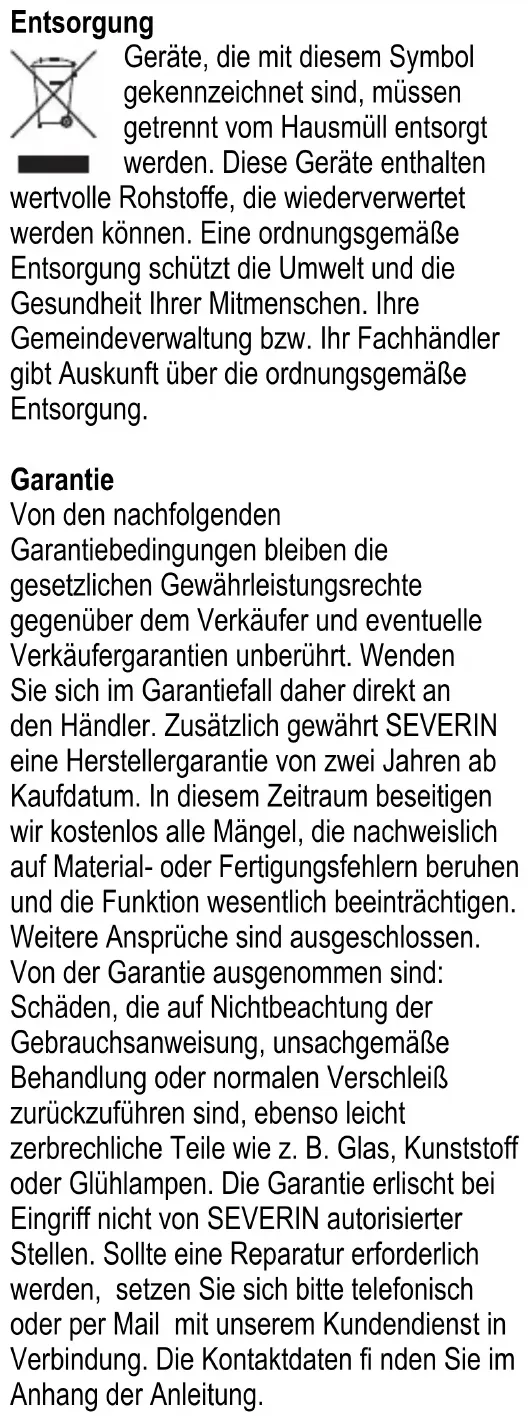

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials

which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the

appliance has been used in accordance with the instructions, and provided that it has not been modifi ed, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
