SM 3588 - Milk frother SEVERIN - Free user manual and instructions

Product type	Milk frother
Brand	Severin
Model	SM 3588
Maximum capacity (froth)	150 ml
Maximum capacity (heating/mixing)	300 ml
Minimum capacity	75 ml
Functions	Thick milk froth, creamy froth, heat only, cold froth
Power supply	220-240 V ~ 50-60 Hz (earthed plug)
Power	Approx. 500 W (estimate)
Tank material	Stainless steel (likely)
Cleaning tank and lid	Dishwasher or warm soapy water
Cleaning base	Damp cloth, do not immerse
Safety	Automatic shut-off after 3 minutes inactivity, overflow protection, missing mixing attachment detection
Included accessories	Base, milk tank, lid, 1 mixing attachment
Weight	Approx. 1 kg (estimate)
Dimensions (L x l x H)	Approx. 15 x 15 x 20 cm (estimate)
Repairability	Contact Severin customer service for any repairs
Warranty	See separate warranty booklet

Frequently Asked Questions - SM 3588 SEVERIN

What types of milk can I use with the SM 3588 frother?

For best froth, use high-protein milk taken from the refrigerator just before use. Cold milk produces thicker froth.

How to prepare hot chocolate with this device?

Finely grate the chocolate (10-15 g for 150 ml milk, 25-30 g for 300 ml). Add it after the program starts while the milk is being mixed to avoid clogging the attachment.

What are the filling marks to observe?

The MIN mark corresponds to 75 ml (the protruding part must be covered). For frothing, do not exceed the MAX froth mark (150 ml). For mixing and heating, do not exceed the MAX mix and heat mark (300 ml).

How to clean the milk frother?

Unplug and let cool. The tank, lid, and mixing attachment can be washed in the dishwasher or with warm soapy water. The base should be wiped with a damp cloth, never immersed.

What to do if the milk does not froth and beeps sound?

Check that the mixing attachment is properly placed in the tank and that the tank is correctly positioned on the base. Insert the attachment, then restart.

The light ring flashes quickly after plugging in the device, what to do?

If the device has been used five times in a row without a break, unplug it and let it cool for 20 minutes. If the problem persists, contact customer service.

Can I use accessories other than the original ones?

No, the device must only be used with the original accessories supplied by the manufacturer to ensure safety and proper operation.

How to interrupt a running cycle?

Press the ⏻ (on/off) button to immediately stop the heating or mixing cycle.

What is the length of the power cord?

The cord is approximately 80 cm (estimate) and can be shortened by winding the excess under the base using the cable limit.

The device turns off by itself, is that normal?

Yes, the device has an automatic shut-off after 3 minutes of inactivity to save energy and ensure safety.

USER MANUAL SM 3588 SEVERIN

Exterior view of a SEVERIN water heater with black and silver casing (no text or symbols on the device itself)

ART.-NO. SM 3588

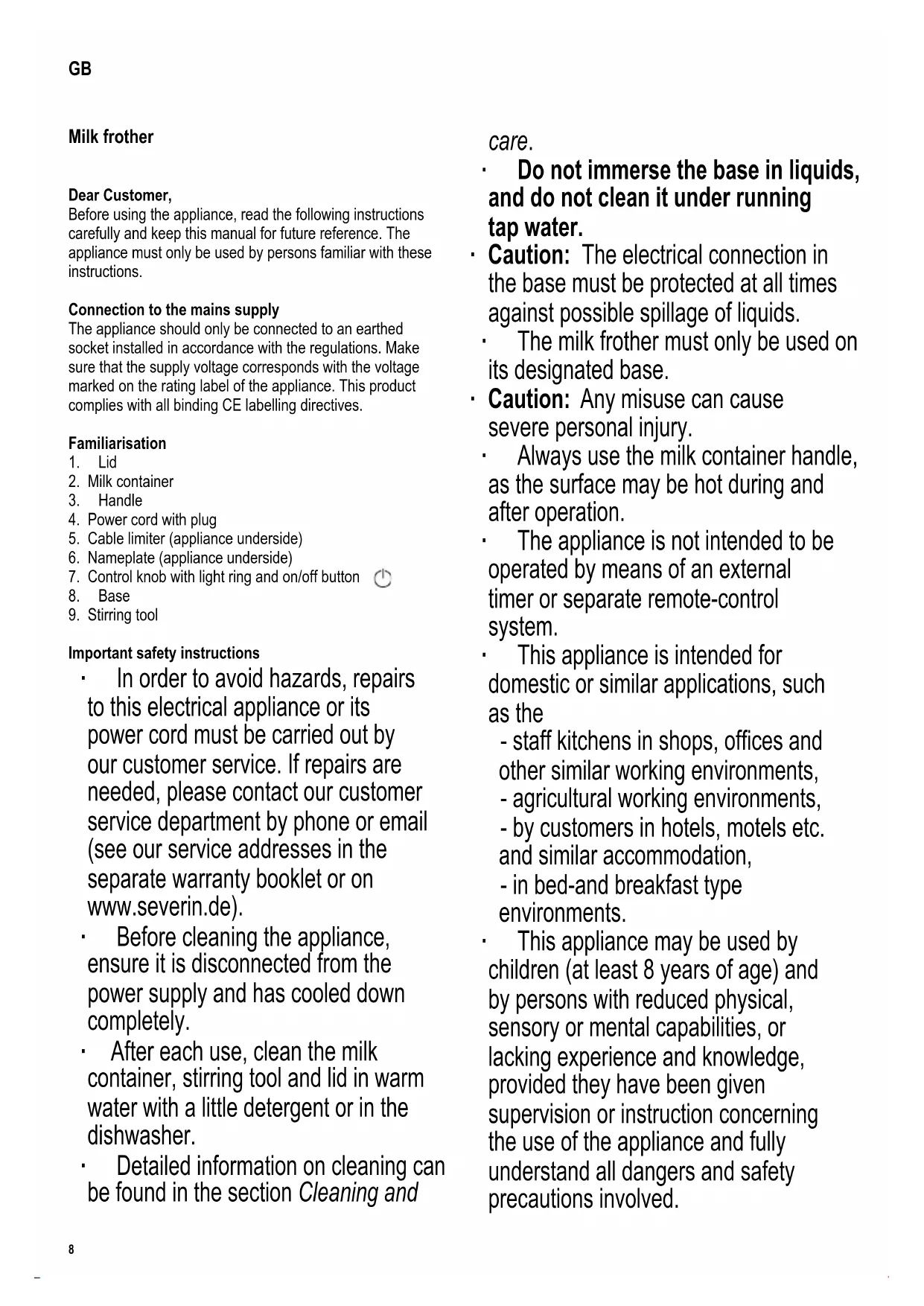

GB Instructions for use

FR Mode d'emploi

Before using the appliance, read the following instructions carefully and keep this manual for future reference. The appliance must only be used by persons familiar with these instructions.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label of the appliance. This product complies with all binding CE labelling directives.

Familiarisation

1. Lid
2. Milk container
3. Handle
4. Power cord with plug
5. Cable limiter (appliance underside)
6. Nameplate (appliance underside)
7. Control knob with light ring and on/off button
8. Base
9. Stirring tool

Important safety instructions

• In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please contact our customer service department by phone or email (see our service addresses in the separate warranty booklet or on www.severin.de).
• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• After each use, clean the milk container, stirring tool and lid in warm water with a little detergent or in the dishwasher.
  • Detailed information on cleaning can be found in the section Cleaning and

care.

• Do not immerse the base in liquids, and do not clean it under running tap water.
• Caution: The electrical connection in the base must be protected at all times against possible spillage of liquids.
• The milk frother must only be used on its designated base.
• Caution: Any misuse can cause severe personal injury.
  • Always use the milk container handle, as the surface may be hot during and after operation.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

• This appliance is intended for domestic or similar applications, such as the

• staff kitchens in shops, offices and other similar working environments,

• agricultural working environments,
• by customers in hotels, motels etc. and similar accommodation,
• in bed-and breakfast type environments.

- This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved.

- Children must not be permitted to play with the appliance.

- Children must not be permitted to carry out any cleaning or maintenance work on the appliance unless they are supervised and at least 8 years of age.

- The appliance and its power cord must be kept well away from children under 8 at all times.

- Caution: Keep any packaging materials well away from children – such materials are a potential source of danger, e.g. of suffocation.

- Every time the appliance is used, the main body including the power cord as well as any attachment fitted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance.

- Do not leave the milk frother unattended while in use.

- Always observe the min and max level marks inside the milk container for each application.

- The protrusion in the bottom of the container (min. level mark) must be covered by the milk. If there is not enough milk, the appliance may overheat.

• Overfilling the container may cause danger if frothing milk is forced out.

- Caution: The lid must always be fitted during operation.

- The appliance may only be used with the original accessory parts provided by the manufacturer.

- The appliance must always be set on a firm, level surface.

- Do not allow the appliance or its power cord to come into contact with open flames or any hot surfaces such as hot-plates.

- Do not allow the power cord to hang free; the cord must be kept well away from hot parts of the appliance.

• Always remove the plug from the wall socket

- in case of any malfunction,

- after use,

- before cleaning the appliance.

- When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

- Never touch the mains plug with wet hands.

- No responsibility is accepted if damage results from improper use, or if these instructions are not complied with.

Intended Use

- This appliance is intended solely for heating up and frothing milk, hot chocolate and cocoa. Any other use is considered improper and can cause severe personal injury or damage to the appliance.

- Do not put any other liquids or solid food in the container.

Before using for the first time

- Remove any remaining packaging materials and promotional stickers, and check that all components are present.

Do not remove the nameplate!

- Before the appliance is used for the first time, or after extended periods of non-use, it should be thoroughly cleaned as described in the section Cleaning and care.

Cable limiter

- The appliance has a cable limiter on its bottom that allows you to tuck up the unused cable length.

Operation

Lid

- The lid must always be fitted during operation.

- Only remove the lid to add chocolate.

Control knob

You can select the following modes:

→ hot chocolate/cocoa

→ extra and firm milk froth

→ creamy milk froth

→ heating milk

→ cold frothing

Light ring

Red

A function with heating is selected.

Blue

A function without heating is selected.

Steady light

Preparation is in progress.

Slow flashing

The unit is waiting for input, or preparation is complete.

Fast flashing

An error has occurred (see 'Troubleshooting' at the end of the instructions).

Fill amounts

- MIN minimum quantity 75 ml – the protrusion must be covered

- MAX Frothing maximum quantity of milk 150 ml (lower max mark)

- MAX Stirring and heating maximum quantity 300 ml (upper max mark)

Preparing the appliance

• Remove the lid from the milk container.
• Fit the stirring tool in the milk container, push it down and ensure it is seated on the lower part of the protrusion.
• Put the required amount of milk into the container.
• Place the lid on the container.
• Insert the plug into the wall socket.
• Place the milk container onto the base.

Preparation

• Choose the desired mode using the control knob.
• Press to start the preparation.

- Note: If the appliance is not in stand-by mode, the button must be pressed twice.

• The programme starts.
• To prepare cocoa and hot chocolate, fill in the desired amount of cocoa powder or chocolate (see Preparation instructions).
• Once processing is complete, the heating and stirring process stops automatically.
• You can now remove the milk container from the base.
• Pour out the prepared food, or use a suitable spoon to take off the milk froth. Do not leave any residual amounts in the container.
• Detach the power cord from the wall socket after use.
• Always allow the appliance to cool down first, and then clean it, before starting a new cycle.

Preparation instructions

Milk froth:

• We recommend using milk with a high protein content. For best results, the milk should be taken from the refrigerator immediately before frothing.
• To achieve a thicker froth, go through a cold-frothing cycle first, followed by a hot-frothing cycle.
• When the milk froth is ready, remove the milk jug from the base immediately and pour it straight into the cup.

Hot chocolate / cocoa:

• To prepare drinking chocolate from milk and chocolate or cocoa.
• Grate the chocolate finely before preparation.
• Fill in the chocolate / cocoa only after the programme has started, when the milk is already being stirred. Otherwise, the stirring tool could jam.
• We recommend using the following amounts of chocolate:
  150 ml milk → approx. 10 - 15 g
  300 ml milk → approx. 25 - 30 g

Interrupting a cycle

- The heating or stirring process may be stopped by pressing ⏻ at any time.

Automatic switch-off

- If the unit is inactive for three minutes, it switches off automatically.

Cleaning and care

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid the risk of electric shock, do not clean the base or the power cord with water and do not immerse them.
• The base can be cleaned with a soft, damp cloth and some detergent.
• Thoroughly clean the milk container and lid in warm water with a little detergent immediately after each use to avoid scorching.
• If necessary, use a brush to clean the stirring tool by removing the spiral.
• Wipe all parts thoroughly dry.
• The removable parts are dishwasher-safe.
• Do not use abrasives or harsh cleaning solutions.

Disposal

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which

can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

Trouble shooting

Problem Cause Remedy
Milk is not frothing, the appliance beeps 3 times and then the light ring flashes slowly.	Missing stirring tool.	Insert the stirring tool and restart the appliance.
	Milk container is missing.	Fit the milk container and restart the appliance.
The appliance will not start, the light ring flashes quickly and the appliance beeps.	The appliance has been used five times in a row without a break.	Unplug the power cord and let the appliance cool down for about 20 minutes.
Once plugged in, the light ring flashes quickly, and the appliance will not start.	The device is defective. Contact customer service.

Should you be unable to solve the problem using the table, please contact our Customer Service. The contact data can be found in the appendix to this manual.
