USER MANUAL SM 3586 SEVERIN

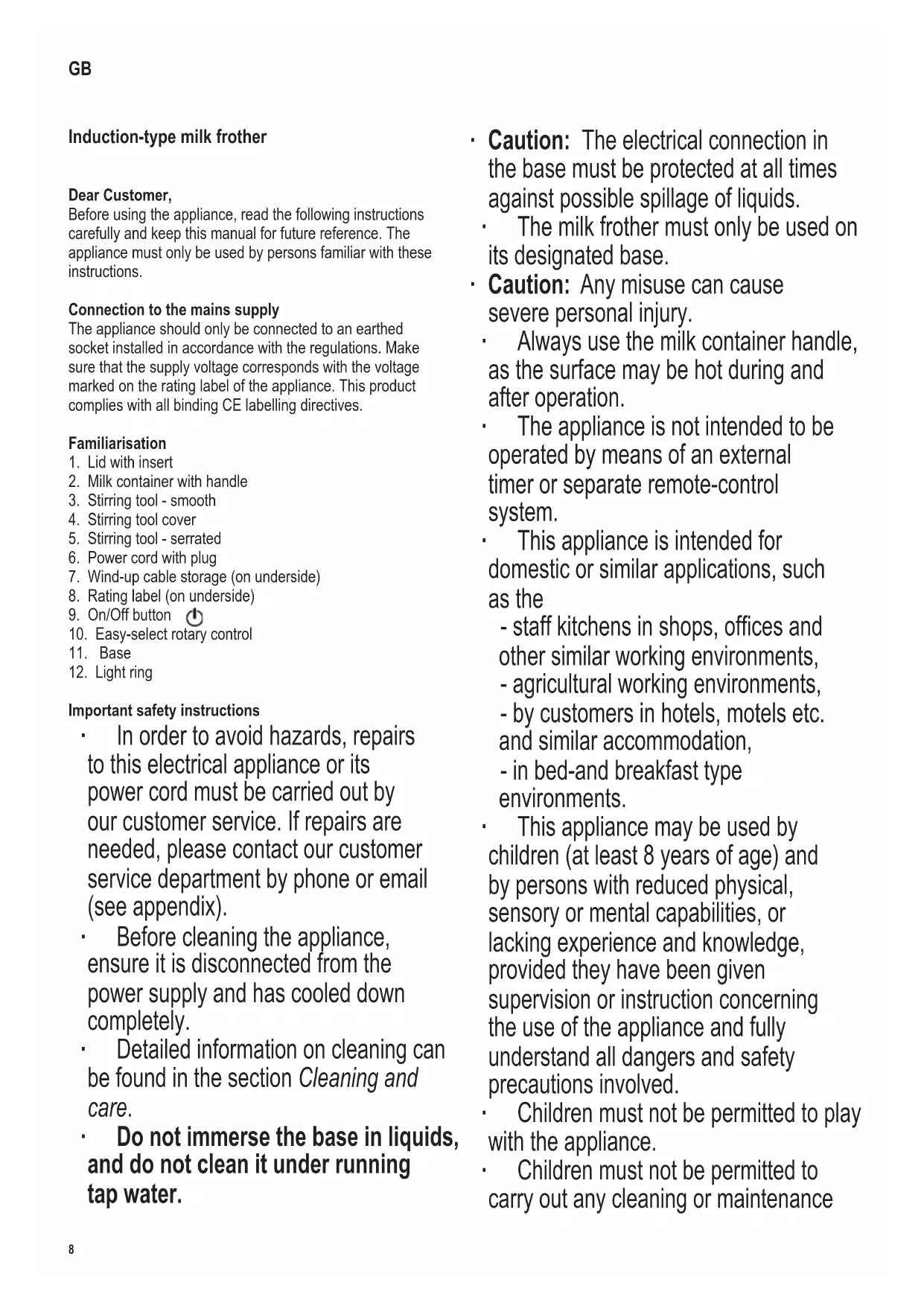

2. Milk container with handle

3. Stirring tool - smooth

4. Stirring tool cover

5. Stirring tool - serrated

6. Power cord with plug

7. Wind-up cable storage (on underside)

8. Rating label (on underside)

10. Easy-select rotary control

Important safety instructions ∙ In order to avoid hazards, repairs to this electrical appliance or its power cord must be carried out by our customer service. If repairs are needed, please contact our customer service department by phone or email (see appendix). ∙ Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely. ∙ Detailed information on cleaning can be found in the section Cleaning and care. ∙ Do not immerse the base in liquids, and do not clean it under running tap water. ∙ Caution: The electrical connection in the base must be protected at all times against possible spillage of liquids. ∙ The milk frother must only be used on its designated base. ∙ Caution: Any misuse can cause severe personal injury. ∙ Always use the milk container handle, as the surface may be hot during and after operation. ∙ The appliance is not intended to be operated by means of an external timer or separate remote-control system. ∙ This appliance is intended for domestic or similar applications, such as the - staffkitchensinshops,ofcesand other similar working environments, - agricultural working environments, - by customers in hotels, motels etc. and similar accommodation, - in bed-and breakfast type environments. ∙ This appliance may be used by children (at least 8 years of age) and by persons with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, provided they have been given supervision or instruction concerning the use of the appliance and fully understand all dangers and safety precautions involved. ∙ Children must not be permitted to play with the appliance. ∙ Children must not be permitted to carry out any cleaning or maintenance GB9 142 x 208 mm work on the appliance unless they are supervised and at least 8 years of age. ∙ The appliance and its power cord must be kept well away from children under 8 at all times. ∙ Caution: Keep any packaging materials well away from children – such materials are a potential source of danger, e.g. of suffocation. ∙ Every time the appliance is used, the main body includingthepowercordaswellasanyattachmenttted should be checked thoroughly for any defects. Should the appliance, for instance, have been dropped onto a hard surface, or if excessive force has been used to pull the power cord, it must no longer be used: even invisible damage may have adverse effects on the operational safety of the appliance. ∙ This appliance is solely designed for heating up and frothing milk, hot chocolate and cocoa. Do not put any other type of liquid or solid food in the container. ∙ Do not leave the milk frother unattended while in use. ∙ Always observe the min and max level marks inside the milk container for each application. ∙ The protrusion in the bottom of the container (min. level mark) must be covered by the milk. If there is not enough milk, the appliance may overheat. ∙ Overllingthecontainermaycausedangeriffrothing milk is forced out. ∙ Caution: Thelidmustalwaysbettedduringoperation. ∙ Do not cover the ventilation slots at the rear of the appliance. ∙ The appliance may only be used with the original accessory parts provided by the manufacturer. ∙ Theappliancemustalwaysbesetonarm,level surface. ∙ Do not allow the appliance or its power cord to come intocontactwithopenamesoranyhotsurfacessuch as hot-plates. ∙ Do not allow the power cord to hang free; the cord must be kept well away from hot parts of the appliance. ∙ Always remove the plug from the wall socket - in case of any malfunction, - after use, - before cleaning the appliance. ∙ When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself. ∙ No responsibility is accepted if damage results from improper use, or if these instructions are not complied with. Before using for the rst time ∙ Remove any remaining packaging materials and promotional stickers, and check that all components are present. ∙ Beforetheapplianceisusedforthersttime,orafter extended periods of non-use, it should be thoroughly cleaned as described in the section Cleaning and care. Wind-up power cord storage ∙ There is a power-cord storage compartment in the base. ∙ Unwind the cord to the required length before use. ∙ Wind up the power cord again after use. Operation Lid ∙ Thelidmustalwaysbettedduringoperation. ∙ To add ingredients during operation, turn and then take off the lid insert. ∙ Forstorage,thesmoothstirringtoolcanbettedtothe lid insert. Light ring Red A function with heating is selected. Blue A function without heating is selected. Steady light Preparation is in progress. Flashing red or blue The unit is waiting for an input, preparation is complete, or an error has occurred (see Trouble shooting at the end of the instructions). Selecting the stirring tool The following stirring tools are available: è smooth è serrated

è serrated with cover Beverage Function Stirring tool Milk froth Frothing Hot milk Heating Hot chocolate/ cocoa Heating +10 142 x 208 mm Fill amounts ∙ MIN minimum quantity 120 ml – the protrusion must be covered ∙ MAX Frothing maximum quantity of milk 350 ml (lower max mark) ∙ MAX Stirring and heating maximum quantity 700 ml (upper max mark) Preparing the appliance ∙ Remove the lid from the milk container. ∙ Fit the selected stirring tool in the milk container and push it down: ensure it is seated on the lower part of the protrusion. ∙ Put the required amount of milk into the container. ∙ Place the lid on the container. ∙ Insert the plug into the wall socket. ∙ Place the milk container onto the base. Preparation ∙ Turn the rotary control to turn the appliance on and select the required function: è cold frothing 45°-65° è warm frothing or heating milk 45 to 65 °C è hot chocolate / cocoa ∙ Press to start the preparation. ∙ Note: If the appliance is not in stand-by mode, the button must be pressed twice. ∙ The programme starts. ∙ Topreparecocoaandhotchocolate,llinthedesired amount of cocoa powder or chocolate (see Preparation instructions). ∙ Once processing is complete, the heating and stirring process stops automatically. ∙ You can now remove the milk container from the base. ∙ Pour out the prepared food, or use a suitable spoon to take off the milk froth. Do not leave any residual amounts in the container. ∙ Detach the power cord from the wall socket after use. ∙ Alwaysallowtheappliancetocooldownrst,andthen clean it, before starting a new cycle. Preparation instructions Milk froth: ∙ We recommend using milk with a high protein content. For best results, the milk should be taken from the refrigerator immediately before frothing. ∙ To achieve a thicker froth, go through a cold-frothing cyclerst,followedbyahot-frothingcycle. Hot chocolate / cocoa: ∙ To prepare drinking chocolate from milk and chocolate or cocoa. ∙ Gratethechocolatenelybeforepreparation. ∙ Alternatively, break down the chocolate to pieces of 5 x 4 cm minimum (but not any smaller). Caution:Donotll in melted chocolate! ∙ Fill in the chocolate / cocoa only after the programme has started, when the milk is already being stirred. Otherwise, the stirring tool could jam. ∙ We recommend using the following amounts of chocolate: 200 ml milk è approx. 15-20 g 350 ml milk è approx. 30-35 g Interrupting a cycle ∙ The heating or stirring process may be stopped by pressing at any time. Automatic switch-off ∙ The appliance switches off automatically two minutes after non-use. Cleaning and care ∙ Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely. ∙ To avoid the risk of electric shock, do not clean the base or the power cord with water and do not immerse them. ∙ The base can be cleaned with a soft, damp cloth and some detergent. ∙ The milk container, stirring tools and lid should be cleaned after each cycle of use with hot water and a little detergent, or in the dishwasher. If necessary, the serrated stirring tool may be taken off and cleaned with a suitable brush. ∙ Wipe all parts thoroughly dry. ∙ Do not use abrasives or harsh cleaning solutions.11 142 x 208 mm Disposal Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials which can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter. Guarantee This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the instructions,andprovidedthatithasnotbeenmodied, repaired or interfered with by any unauthorised person, or damaged through misuse. This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase. Trouble shooting Problem Cause Remedy Milk is not frothing / The light ring ashesredandblue Missing stirring tool Fit stirring tool The motor jams Detach the milk container, remove the blockage, re-start the appliance Lightringisashing Milk container was removed during operation Fit the milk container and re-start the appliance Appliance doesn’t start The unit was not in stand-by mode when was pressed Press again Should you be unable to solve the problem using the table, please contact our Customer Service. The contact data can be found in the appendix to this manual.12 142 x 208 mm Mousseur à lait à induction Chère cliente, Cher client, Avant d’utiliser cet appareil, veuillez lire soigneusement les instructions suivantes et conserver ce manuel pour future référence. L’appareil doit être utilisé exclusivement par des personnes familiarisées avec les présentes instructions. Branchement au secteur Cet appareil doit être branché sur une prise de terre installée selon les normes en vigueur. Assurez-vous que la tension d’alimentation correspond à la tension indiquée sur lachesignalétiquedel’appareil.Ceproduitestconforme à toutes les directives relatives au marquage “CE”. Familiarisez-vous avec votre appareil
