SensoLite 110 G - Laser level Laserliner - Free user manual and instructions

Product type	Laser receiver for red and green rotary levels
Brand	Laserliner
Model	SensoLite 110 G
Laser reception range	100 m maximum
Power supply	2 AAA 1.5 V batteries
Dimensions (L x H x D)	60 x 110 x 23 mm
Weight (batteries included)	0.14 kg
Working conditions	0 °C to 40 °C, max. humidity 80 % RH, max. altitude 4,000 m
Storage conditions	-10 °C to 70 °C, max. humidity 80 % RH
Tolerance ranges	Hand-held range (wide tolerance) and precision range (fine tolerance)
Mounting	Universal mount for grade rod (ref. 080.50 red / 080.51 green)
Acoustic signal	Fast beeps (large deviation), slow beeps (small deviation), continuous tone (centered)
Battery charge indicator	Yes
Magnet	Yes, keep at distance > 30 cm from implants and sensitive devices
Marking groove	Circular, to mark the measuring height
Reception field	Detection surface of the laser beam
Maintenance and cleaning	Clean with a slightly damp cloth, without solvent. Remove batteries for prolonged storage.
Safety	Do not modify the device; avoid mechanical loads, extreme temperatures and humidity; observe electromagnetic compatibility.
Spare parts and repairability	Contact the manufacturer; no spare parts listed
General information	Compliant with EU standards; selective disposal according to WEEE; complete manual at laserliner.com/info?an=sesoli110

Frequently Asked Questions - SensoLite 110 G Laserliner

How to insert the batteries?

Open the battery compartment on the back and insert two AAA 1.5 V batteries observing the indicated polarity.

What is the maximum range of the receiver?

The laser reception range is 100 m maximum under favorable conditions.

How to use the circular marking groove?

The circular marking groove allows marking the measuring height once the receiver is centered on the laser beam.

What do the different acoustic signals mean?

Fast beeps: the receiver is far from the beam; slow beeps: it is approaching; continuous tone: the beam is centered (mark the measurement).

How to attach the receiver to a grade rod?

Use the provided universal mount. It allows mounting the receiver on a grade rod (ref. 080.50 for red, 080.51 for green).

How to clean the device?

Clean all components with a slightly damp cloth. Do not use cleaning agents, solvents, or abrasive products.

What to do if the receiver does not detect the laser?

Check that the rotary laser is set to the maximum rotation speed. Make sure the batteries are in good condition and that the range is not obstructed.

Can I use the receiver outdoors?

Yes, under working conditions: 0 °C to 40 °C and max. humidity 80 %. Avoid direct exposure to rain.

How to know if the batteries are low?

The battery charge indicator (mark 16) lights up or flashes to signal low battery. Replace the batteries promptly.

What types of lasers are compatible?

The receiver works with red and green rotary lasers. It is optimized for a long detection distance.

USER MANUAL SensoLite 110 G Laserliner

Laserliner® SensoLite 110

Laserliner

!

Interior view of a remote control device showing internal components and labeled buttons (no readable text or symbols)

Medical device with measurement scale and control panel, showing numerical values from -15 to -7

CE RECOLOGY RECOLOGY RECOLOGY

!

Completely read through the operating instructions, the "Warranty and Additional Information" booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and passed on together with the device.

Laser receiver for red and green rotary lasers

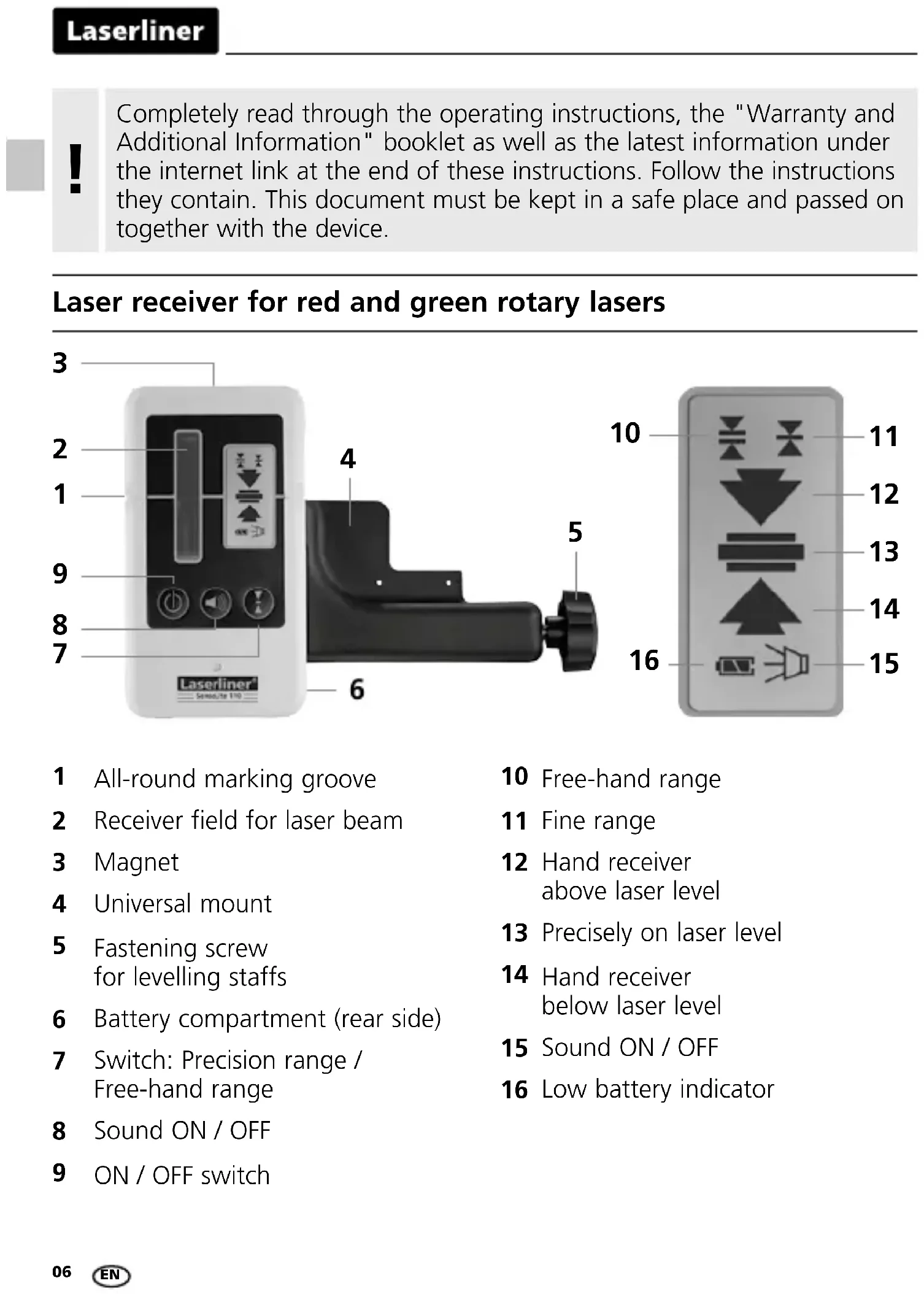

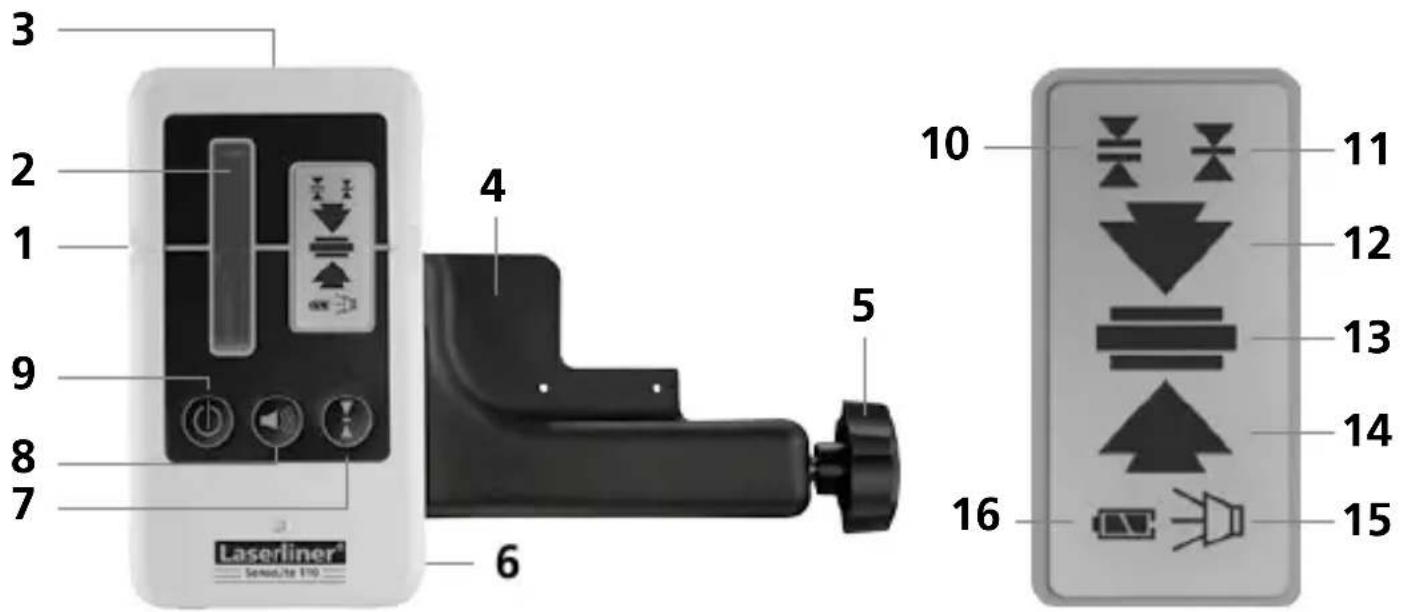

3 2 1 9 8 7 4 5 6 10 11 12 13 14 15 16 Laserliner® Senskilde 110

1 All-round marking groove
2 Receiver field for laser beam
3 Magnet
4 Universal mount
5 Fastening screw for levelling staffs
6 Battery compartment (rear side)
7 Switch: Precision range / Free-hand range
8 Sound ON / OFF
9 ON / OFF switch

10 Free-hand range
11 Fine range
12 Hand receiver above laser level
13 Precisely on laser level
14 Hand receiver below laser level
15 Sound ON / OFF
16 Low battery indicator

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• The structure of the device must not be modified in any way.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Inserting the battery

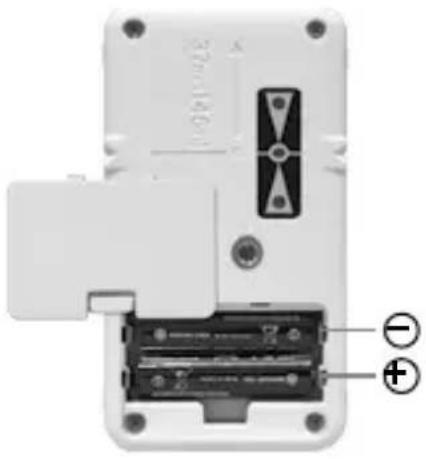

Open the battery compartment and insert batteries according to the symbols. Be sure to pay attention to polarity.

Interior view of a white remote control device showing battery pack and internal components (no text or symbols visible)

Working with the laser receiver

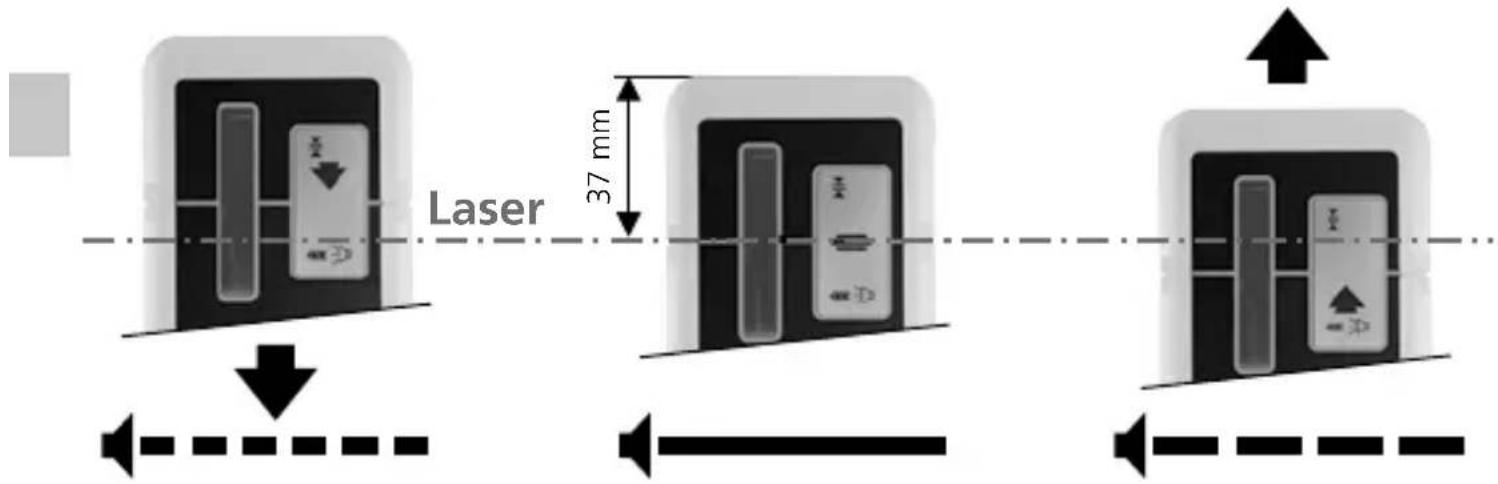

Set the rotary laser to maximum speed and switch the laser receiver on. It is able to detect the laser beam at a great distance now. Move the SensoLite up and down through the laser beam until the middle indicator (13) appears. Mark the measured height at the perimeter marking groove.

Laser 37 mm

Rapid peeping Slow peeping continuous tone = mark the reference

The laser receiver has two tolerance settings:

• Free-hand range (10): Display with larger tolerance for rough alignment by hand.
• Precision range (11): Display with smaller tolerance for precision alignment (e.g. levelling staff).

Universal mount

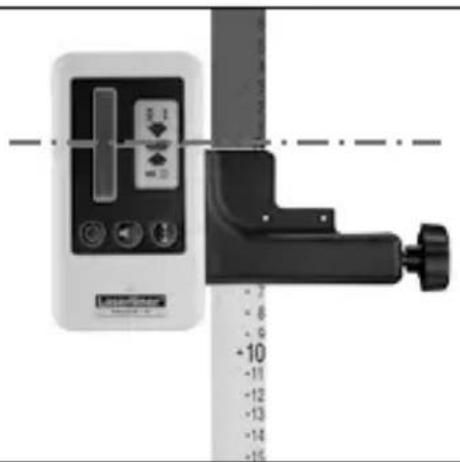

The laser receiver can be installed on levelling staffs with the aid of the universal mount. The Flexi measuring staff (Art. No. 080.50 – red / 080.51 – green) is always recommended when measuring from floor heights. It also allows you to determine heights directly without any need for calculation.

Medical device with measurement scale and adjustment knob (no visible text or symbols)

Danger - powerful magnetic fields

Powerful magnetic fields can adversely affect persons with active medical implants (e.g. pacemaker) as well as electromechanical devices (e.g. magnetic cards, mechanical clocks, precision mechanics, hard disks).

With regard to the effect of powerful magnetic fields on persons, the applicable national stipulations and regulations must be complied with such as BGV B11 §14 „electromagnetic fields“ (occupational health and safety - electromagnetic fields) in the Federal Republic of Germany.

To avoid interference/disruption, always keep the implant or device a safe distance of at least 30 cm away from the magnet.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents. Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical data (Subject to technical alterations. 10.17)
Laser reception range max. 100 m
Power supply 2 x AAA 1.5 Volt batteries
Operating conditions 0 ... 40°C, Max. humidity 80% rH,no condensation, Max. working altitude 4000 m above sea level
Storage conditions -10 ... 70°C, Max. humidity 80% rH
Weight (incl. battery) 0,14 kg
Dimensions (W x H x D) 60 x 110 x 23 mm

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=sesoli110

CE × × ×

!

Interior view of a white remote control device showing battery pack, switch, and mounting holes (no text or symbols visible)

Close-up of a medical or laboratory device with a black lever and control panel, no visible text or symbols.

Interior view of a white remote control device showing battery pack and indicator lights (no text or symbols visible)

Interior view of a white remote control device showing battery pack and indicator lights (no text or symbols visible)

Medical device with measurement scale and adjustment knob (no visible text or symbols)

Interior view of a remote control device showing battery pack and indicator lights (no text or symbols visible)

Medical imaging device with measurement scale and adjustment knobs (no visible text or symbols)

Interior view of a white remote control device showing battery pack and indicator lights (no text or symbols visible)

Medical device with measurement scale and adjustment knobs (no visible text or symbols)

Interior view of a white remote control device showing battery pack and internal components (no text or symbols visible)

Medical device with digital display and adjustable arm, showing measurement scale (no text or symbols visible)

Interior view of a white remote control device showing internal components and labeled pins (no readable text or symbols)

Medical device with digital display and adjustable arm, showing measurement scale (no text or symbols visible)

Interior view of a white remote control device showing internal components and mounting holes (no text or symbols visible)

Medical device with measurement scale and adjustment knob (no visible text or symbols)

Interior view of a remote control device showing internal components and mounting holes (no text or symbols visible)

Medical device with measurement scale and adjustment knob (no visible text or symbols)

Diagram of a mechanical assembly with metal beams and a device, showing motion indicators (no text or symbols)
