GAS HEATER

Tropicano Gas Compact

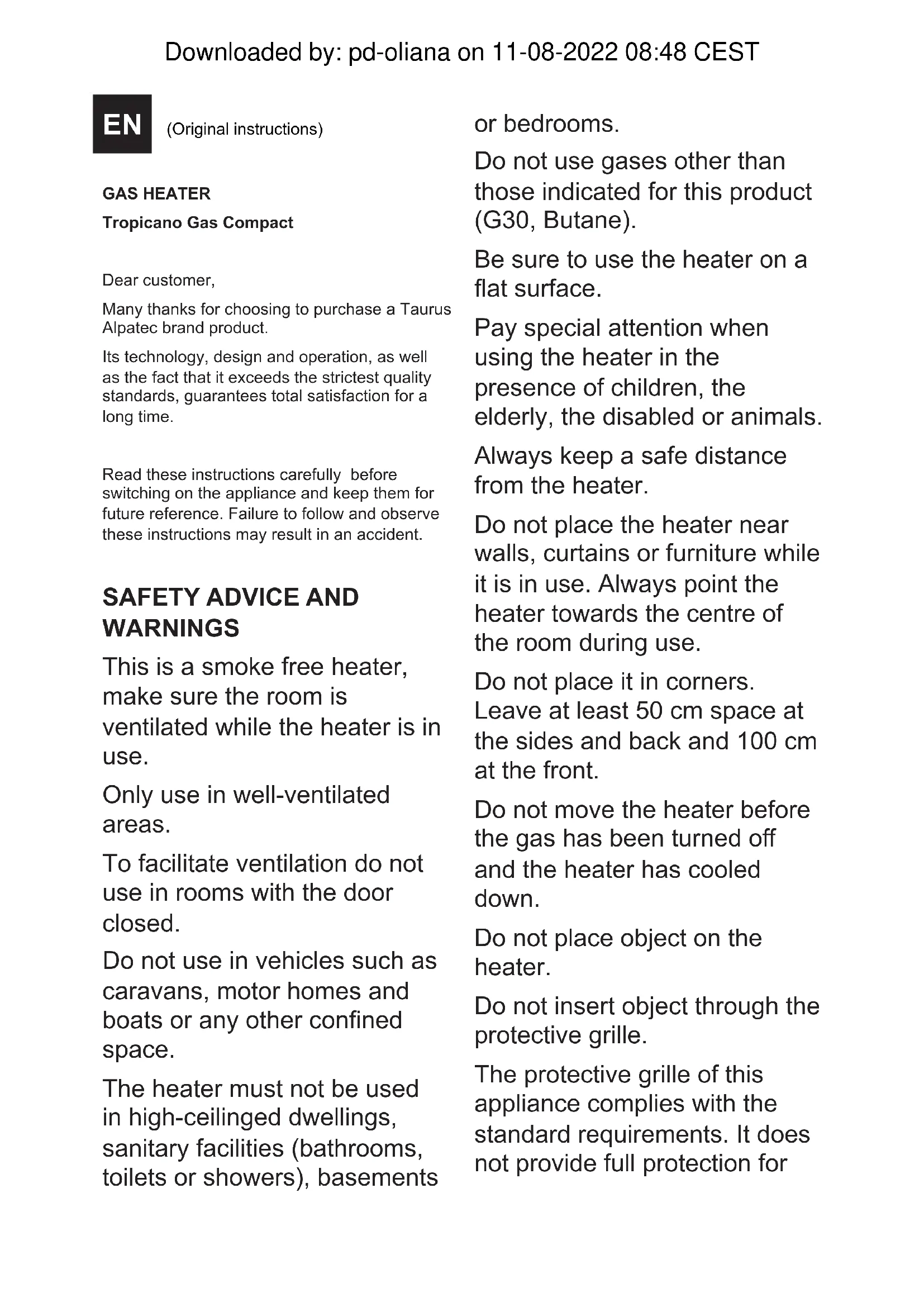

Dear customer,

Many thanks for choosing to purchase a Taurus Alpatec brand product.

Its technology, design and operation, as well as the fact that it exceeds the strictest quality standards, guarantees total satisfaction for a long time.

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident.

SAFETY ADVICE AND WARNINGS

This is a smoke free heater, make sure the room is ventilated while the heater is in use.

Only use in well-ventilated areas.

To facilitate ventilation do not use in rooms with the door closed.

Do not use in vehicles such as caravans, motor homes and boats or any other confined space.

The heater must not be used in high-ceilinged dwellings, sanitary facilities (bathrooms, toilets or showers), basements or bedrooms.

Do not use gases other than those indicated for this product (G30, Butane).

Be sure to use the heater on a flat surface.

Pay special attention when using the heater in the presence of children, the elderly, the disabled or animals.

Always keep a safe distance from the heater.

Do not place the heater near walls, curtains or furniture while it is in use. Always point the heater towards the centre of the room during use.

Do not place it in corners.

Leave at least 50 cm space at the sides and back and 100 cm at the front.

Do not move the heater before the gas has been turned off and the heater has cooled down.

Do not place object on the heater.

Do not insert object through the protective grille.

The protective grille of this appliance complies with the standard requirements. It does not provide full protection for

young or sick children. The guard is to prevent risk of injury and no part should be removed or altered.

Do not use the heater to dry clothes, fabrics or other materials. Also, never place any of these items in front of the grille.

Never place a container of water on the heater.

Do not use the heater if any of its parts have been in contact with water or in situations of high humidity. In such cases, consult an authorised technician.

In the event of a malfunction, always consult an authorised specialised technician.

Do not store or use flammable materials or liquids in the vicinity of the heater.

In the event of a leak, the gas supply to the appliance must be cut off at the gas bottle valve.

Do not expose the bottle to direct sunlight in summer, or too close to a heat source. Do not place the heater in use near curtains, furniture, wood panelling or combustible materials that may be damaged by heat.

Do not use in bedrooms while sleeping, or in any room where someone is sleeping.

Do not expose to atmospheric agents.

During use, keep small children away from the heater. Supervise that they do not play with it.

Pay attention and check that the gas pipe is not bent excessively in such a way as to prevent gas transit.

Turn off the gas whenever the heater is not in use.

Carefully observe the installation instructions and if you smell gas:

-Shut off the gas at the cylinder regulator.

-Open the windows.

Do not turn on any electrical switch and extinguish any kind of flame.

Notify an authorised technician.

Do not place the bottle horizontally.

If the heater switches off automatically, do not switch it on immediately. Beforehand, let fresh, new air into the room. If the problem persists, consult

with technical service.

Never use the hoover on the catalytic panel, blow on it or spill any liquid on it. Any cleaning of the catalytic panel or safety components must be carried out by a certified technician.

Check the condition of the gas pipe and the expiry date regularly.

Never use gas pipes or regulators that do not comply with current regulations.

Contact technical service if in doubt.

Note: The heater incorporates several safety devices that will turn off the heater in unsafe conditions:

1. ODS (Oxygen Depletion System) In case of flame failure, the gas heater will automatically turn off.

.2 The Tip Over switch will turn the heater off if it is not standing on a level surface or if the heater is knocked. If this is triggered, set the heater in an upright position, check for obvious damage and wait 5-10 minutes again before attempting to restart the heater.

ATTENTION: To prevent

overheating never cover the heater.

PRECAUTION! The surface remains hot during and after use.

SERVICE:

Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.

Misuse or failure to follow the instructions may be dangerous and renders the manufacturer's guarantee null and void.

DESCRIPTION

A Burner....

B Body...

C Power control

C1 Minimum

C2 Medium

C3 Maximum

D Power switch

E Infrared ceramic heating plate

F Protective grille

G Cylinder fitting

H Wheels

I Handles

*J Gas adjustment valve

*K Flexible pipe

*L Flanges

*If the model of your appliance does not have the accessories described above, they can purchased separately from the Technical Assistance Service.

Downloaded by: pd-oliana on 11-08-2022 08:48 CEST

ASSEMBLY:

Unpack the appliance, gather the wheels and the rear panel.

Move the left and right panels outwards and lift the lower panel.

TURN OUTSIDE TURN INSIDE TURN OUTSIDE

Fix the side panels in the slots of the bottom panel. Make sure they are properly aligned.

Technical line drawing of a mechanical housing or enclosure with internal compartments and mounting holes (no text or symbols)

Place the top panel into the slots, and push it towards the front panel to fix it in place.

Technical diagram of a device with labeled components, including 'GA' and directional arrow indicating orientation.

Line drawing of a refrigerator with door, front panel, and side panel (no text or symbols)

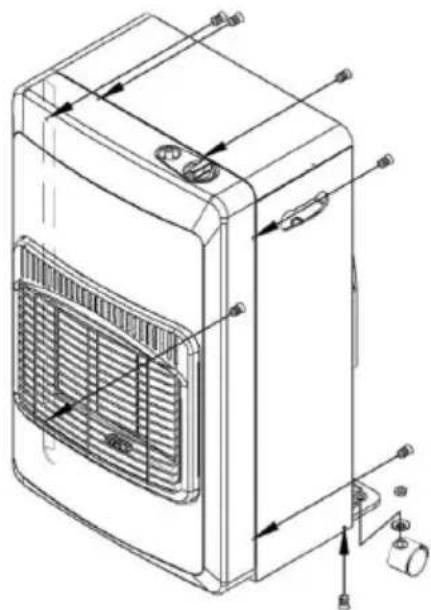

Fasten the panels with the screws.

Technical line drawing of a front-mounted air conditioner unit with ventilation grilles and mounting points (no text or labels)

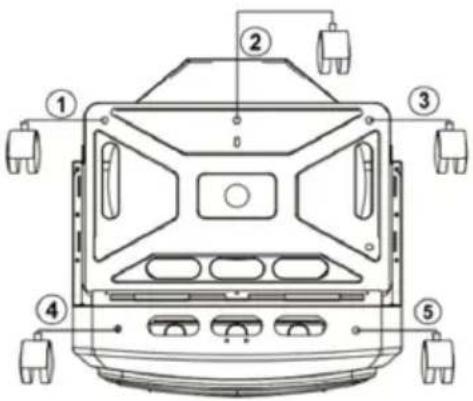

Install wheels in position

Technical diagram of a vehicle front panel with numbered components for identification

Install the rear panel after the installation of the cylinder.

INSTALLATION

INSTALLATION RECOMMENDATIONS:

Make sure that the entire product's packaging has been removed.

It is important to follow the specifications established by the current legal regulations for the installation and commissioning of this appliance, for which we recommend that you consult an authorised technician. However, if you decide to forego such advice, the most important ones are listed below:

Conditions of the premises:

- The premises in which the appliance operates

must have an air inlet of at least 105 cm2 of cross-section, both at the top and at the bottom. - Have a minimum volume of 84m3 and existing furniture, 2m3 maximum.

- We recommend not to use the device in environments where aerosols are used very frequently.

Connection of the appliance:

The appliance can be connected to the gas bottle by the user himself, without the need of an installer. To this end, they must have the necessary accessories for its proper use.

Necessary accessories:

• 1 12.5 kg butane gas bottle, filled only by Official Distributors, according to the gas indicated on the nameplate.
• 1 Pressure regulator approved and indicated on the nameplate.
• 1 Standard flexible gas pipe 0.5m long.
• 2 Screw flanges for the flexible pipe.

To determine these accessories, please refer to the nameplate and contact your gas supplier.

HEATER INSTALLATION:

Remove the rear door.

Connect the flexible pipe to the gas inlet nozzle on the heater and to the regulator, making sure it is airtight by means of the 2 flanges.

Place the bottle on the base and mount the regulator on the bottle. Make sure that the pipe does not come into contact with the front of the heater. Avoid twisting the flexible pipe. The flexible pipe should be checked regularly and replaced if necessary.

After opening the regulator, check for gas leaks by applying soapy water with a brush to the connection of the flexible pipe to the heater and the regulator.

Mount the rear door, securing it with the screws supplied.

NOTES:

The bottles must be replaced according to the instructions provided.

Replacement of bottles must be carried out in non-flammable environments.

The process for searching for gas leaks must be carried out in an open and well-ventilated area. Turn off any existing flames in the vicinity, as well as any electrical appliances. Do not smoke during the process.

Check to make sure the gas is closed.

Prepare a soapy solution, with the same amount of water as soap.

Use a brush or similar to apply this solution to the ends of the pipe.

Open the gas.

If there are leaks, bubbles will form at the points where they are located. If this happens, turn off the gas and tighten the gaskets. If the problem persists, contact your dealer immediately.

IGNITION INSTRUCTIONS:

The heater can be regulated in three heat intensities: 1 MAXIMUM, 2 MEDIUM, 3 MINIMUM. Ignition is by means of a piezoelectric mechanism.

1. Open the gas valve on the cylinder.
2. Set the power controller to position 1 (Low Level - On).
3. Press the controller for about 10 seconds.
4. While continuing to press, press the ignition button once or twice until the pilot light (at the bottom of the burner) comes on. Continue to hold down the control knob for an additional 10 to 15 seconds. Release the button, and if the pilot flame goes out, repeat the previous process.
5. Then, if you want to increase the power, press the controller slightly and turn it to the desired position. Never leave the controller in an intermediate position.

SWITCH OFF INSTRUCTIONS:

To turn off the heater:

1. Turn the power controller to the * position.

2. Close the gas valve.

ATTENTION: The gas flow will not be shut off if you do not shut it off from the cylinder.

NOTE: do not move or cover the heater before it has cooled down completely.

CLEANING AND MAINTENANCE

In the event of any anomaly or if you require spare parts, please contact our Technical Service.

Periodic maintenance should only be carried out by an authorised technician.

We recommend having the appliance serviced by an authorised technician every 2 years.

Monitor the pilot flame, which must be stable.

Check if the flexible gas pipe needs to be replaced. If necessary, obtain a new pipe and connect it as described in the chapter "Heater installation".

The appliance must be cleaned with the gas valve switched off, the heater completely cold, and using non-abrasive products. Use a cloth.

We recommend storing the heater when not in use, in a dust-free atmosphere, covered with a cloth or plastic cover and in a dry place.

ANOMALIES AND REPAIRS

Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair it, as this may be dangerous.

TROUBLESHOOTING CHART

SYMPTOM CAUSE SOLUTION
The heater does not light	Empty gas cylinder. Incorrectly fitted gas regulator. Gas valve not properly opened.	Ensure that the gas cylinder has sufficient gas level. Ensure that the valve is properly opened.
The heater does not stay on	The heater is not level. Poor room ventilation. Low gas level in the cylinder.	Ensure that the heater is on a level surface, as it has a tip-over switch that shuts off the gas. Ensure that the room is sufficiently ventilated so that the heater has the necessary level of oxygen to keep the heater lit. Check cylinder gas level.
The heater does not ignite after a cylinder change	Regulator not properly attached to the cylinder. Not enough gas reaching the burners. The gas pipe is twisted.	Make sure that the regulator is securely fastened. Hold the controller down for the required time MAX 15 sec. Make sure that the cylinder is correctly positioned and the pipe is not twisted.

FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

The packaging materials for this appliance are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.

The product does not contain concentrations of substances that could be considered harmful to the environment

- This symbol means that if you wish to dispose of the product once its useful life has ended, it must be deposited with an authorised waste management agent for the selective collection of Waste Electrical and Electronic Equipment (WEEE)

Information requirements for local gas / liquid fuel heaters
Identifier(s): TROPICANO GAS COMPACT GH4200
Indirect heating function: [No]
Direct heat output: 4.2 (kW)
