PI 400 - Cooker TAURUS - Free user manual and instructions

Product type	Induction cooktop
Model	PI 400
Brand	Taurus
Number of cooking zones	1
Heating technology	Induction
Cooking zone diameter	18 cm
Energy consumption per burner	192.2 Wh/kg
Energy consumption of the hob	192.2 Wh/kg
Power supply	220-240 V ~ 50/60 Hz
Maximum power	2000 W (approx)
Main functions	Adjustable power, temperature, timer, child lock (model PI400)
Display	LED screen
Automatic shut-off	Yes, after 2 hours of inactivity
Thermal protection	Yes, safety device against overheating
Compatible utensil types	Induction utensils (magnetic base)
Cleaning	Damp cloth with mild detergent, do not use abrasive products
Surface material	Glass ceramic
Weight	Approximately 3 kg (approx)
Dimensions (W x D x H)	Approximately 30 x 30 x 8 cm (approx)
Warranty	2 years (standard)
Certifications	CE, RoHS, low voltage

Frequently Asked Questions - PI 400 TAURUS

How to turn on the PI 400 induction hob?

Plug in the appliance, then press the power button (K). The screen lights up in power selection mode.

How to adjust the cooking power?

Press the function button (F) to select power mode, then use the + or - buttons (H, I) to adjust.

How to use the timer on the PI 400 model?

Press the timer button (G), then set the duration using + (in 10 min increments) or - (in 1 min increments). The remaining time is displayed on the screen.

How to activate the child lock?

When the appliance is plugged in but turned off, press the button (J) to lock the controls. To unlock, hold the same button for 2 seconds.

What to do in case of error code E0?

E0 means the cooking utensil is too small or too large. Use a container suitable for the cooking zone size (18 cm diameter).

How to clean the induction hob?

Unplug the appliance and wait for it to cool down. Clean with a damp cloth and a few drops of mild detergent. Never use abrasive products or bleach.

Why does the appliance turn off by itself?

The appliance has an automatic shut-off after 2 hours of inactivity (if no timer is set). It may also shut off in case of overheating (error code E5 or E6). Let it cool for 15 minutes before reuse.

What types of utensils to use?

Use only induction-compatible utensils (magnetic base). Check with a magnet: if it sticks to the bottom, the utensil is suitable. The bottom must be flat and of appropriate size (18 cm).

How to save energy with this hob?

Use lids on pots, match the container size to the amount of food, and do not use too much water. Turn on the hob only when the container is ready and turn it off before removing it.

Is the appliance under warranty?

Yes, the standard warranty is 2 years. For any repairs, contact an authorized technical support service. Do not disassemble the appliance yourself.

USER MANUAL PI 400 TAURUS

Español

Placa de inducción

PI400

PI410

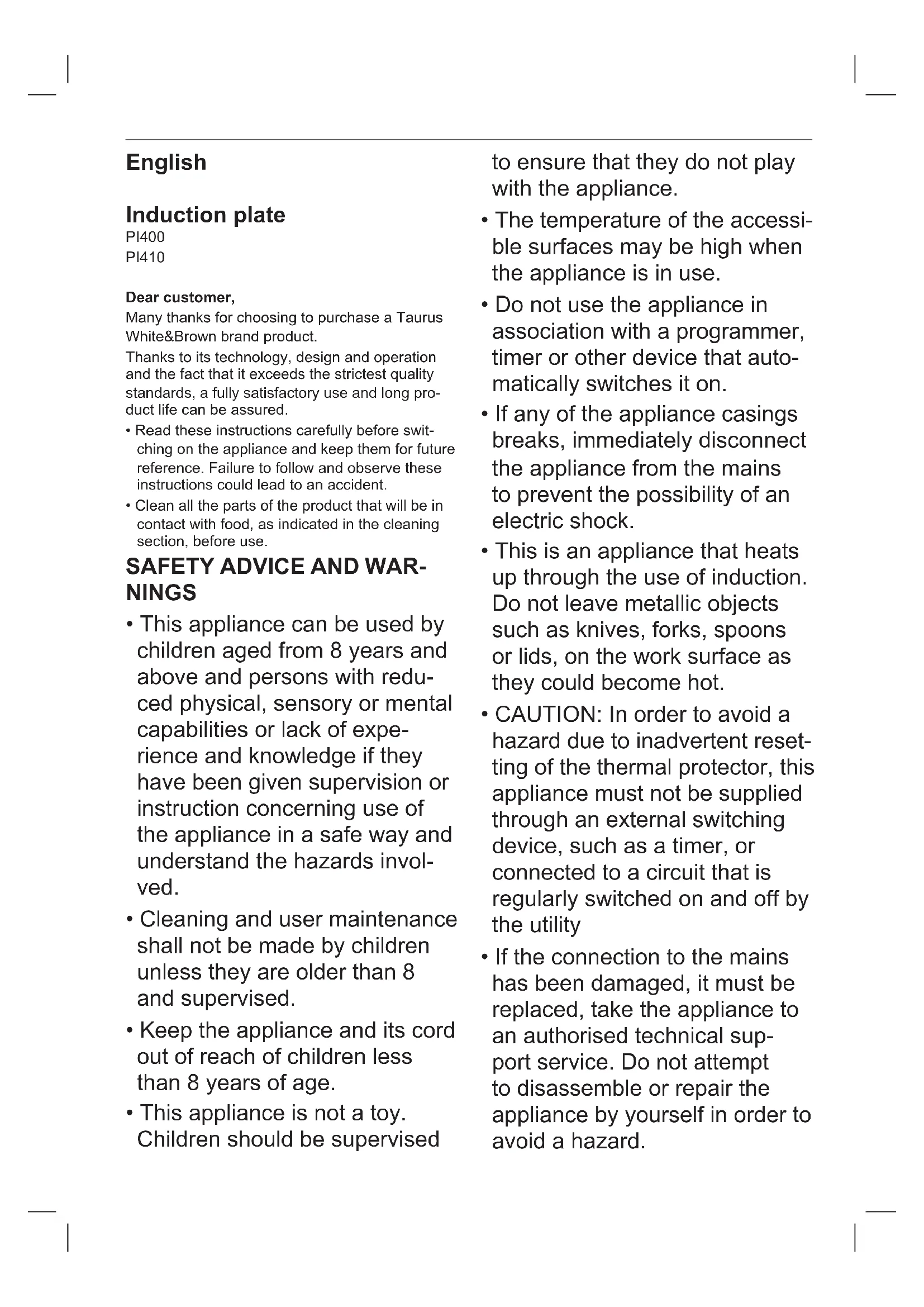

Many thanks for choosing to purchase a Taurus White&Brown brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
• Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

SAFETY ADVICE AND WAR- NINGS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years of age.
  • This appliance is not a toy. Children should be supervised

to ensure that they do not play with the appliance.

- The temperature of the accessible surfaces may be high when the appliance is in use.

- Do not use the appliance in association with a programmer, timer or other device that automatically switches it on.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- This is an appliance that heats up through the use of induction. Do not leave metallic objects such as knives, forks, spoons or lids, on the work surface as they could become hot.

- CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal protector, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 16 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not allow the power cord to hang or to come into contact with the hot surfaces of the appliance.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak
• The appliance is not suitable for outdoor use.
• Do not place the appliance on hot surfaces, such as cooking plates, gas burners, ovens or similar.
• Place the appliance on a horizontal, flat, stable surface, suitable for withstanding high temperatures and away from other heat sources and contact with water.
• Do not place inflammable material near the appliance.
• Ensure that neither the air access nor exit become either totally or partially covered by drapery, clothing, etc., as this increases the risk of fire.
• Do not use or store the appliance outdoors.
• Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.
• Do not use the appliance in the case of persons insensitive to heat (the appliance has heated surfaces).
• Do not touch metal parts or the body when it is operating, as it may cause serious burns. USE AND CARE:
• Fully unroll the appliance's power cable before each use.
• Do not use the appliance if the on/off switch does not work.
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
  • This appliance is for household use only, not

professional, industrial use.

• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Do not store the appliance if it is still hot.
• Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.
• Turn the thermostat or power control to the minimum (MIN) setting. This does not mean that the appliance is switched off permanently.

SERVICE:

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

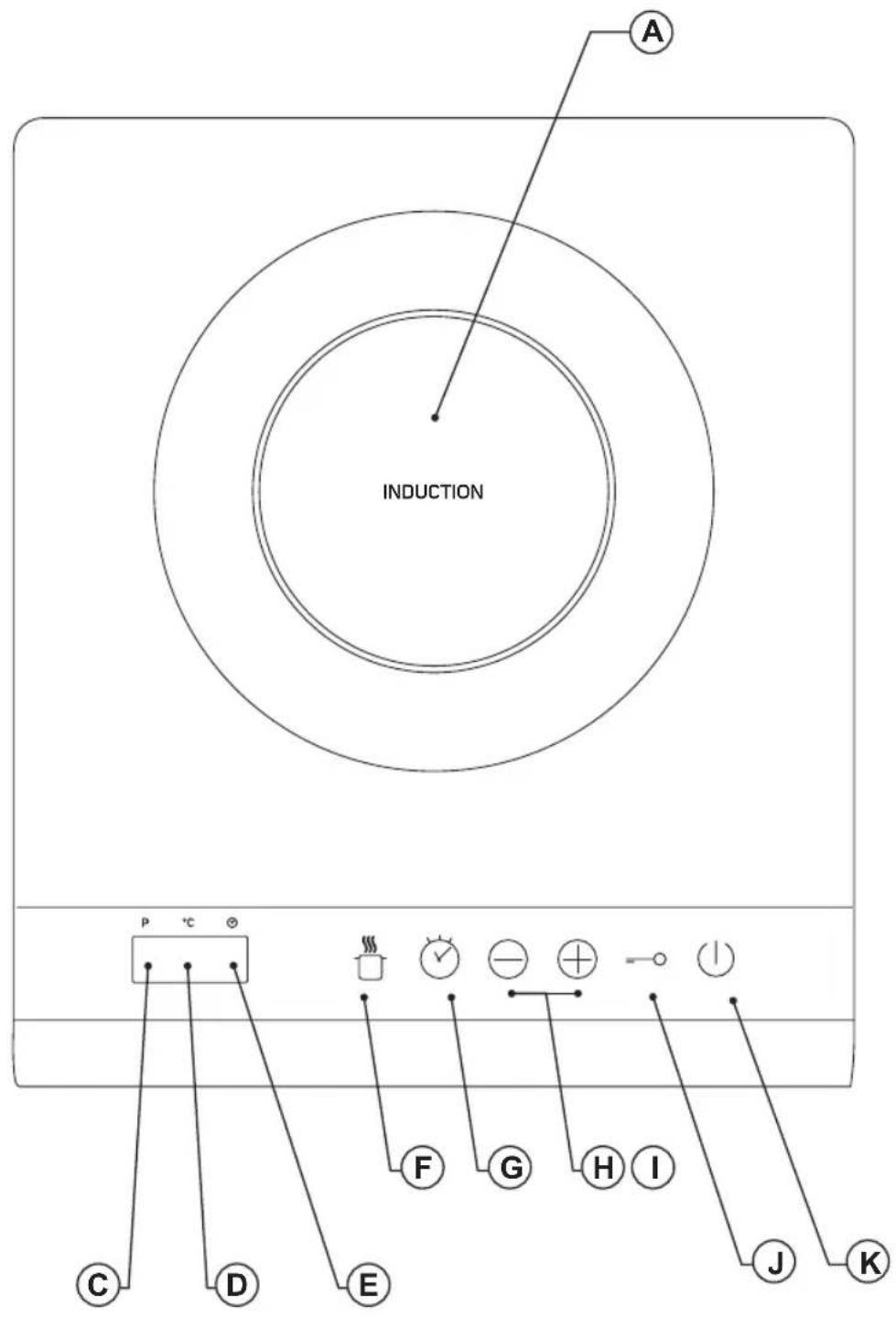

DESCRIPTION

A Cooking Zone

B LCD Display

C Power Function Indicator

D Temperature Function Indicator

E Timer Function Indicator

F Function Button.

G Timer Activator Button*

H, I Selector Button (+, -)

J Lock Function Activator Button*

K ON/OFF Button

(*) Only available in the model PI400

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTALLATION

• Be sure to remove all packaging material from inside the appliance.
• Do not remove the support feet of the appliance.
• Do not cover or obstruct any of the openings of the appliance.
• The plug must be easily accessible so it can be disconnected in an emergency.
• The appliance should be used with its base fitted.
• The appliance should be used with its base feet fitted.

INSTRUCTIONS FOR USE BEFORE USE:

- Make sure that all products' packaging has been removed.

- Prepare the appliance according to the function you wish to use:

USE:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Push the ON/OFF button (K)
• The LED display will switch on and it will run power function by default.
• Push the function button (F) to change between power and temperature modes.
• Choose the wanted power or temperature by using the "+" and "-" buttons. (H,I)
• Once you selected, the appliance will be ready to work.

CAUTION: Always use compatible utensils with induction system. If not, the result will not be as the wanted.

NOTE: In order to minimize the generation of acrylamide during the cooking process, avoid reaching dark brown colours on the foodstuffs.

TIMER FUNCTION:

- The appliance's operating time can be controlled.

Model PI400

• To program the operating time simply select it using the timer button.
• When the Time pilot turns on, use “+” (+10min) and “-” (-1min) buttons to choose the needed time.
• The time programmed or remaining time will appear on the LED display.
• When the time ends, the appliance will turn off.

Model PI410

• To program the operating time simply select it by clicking 3 times the function button.
• Program the time by using “+” and “-” buttons.
• Once you choose a time, the remaining time will appear in the LED display.
• When the time ends, the appliance will turn off.

SAFETY LOCK:

• The appliance has a Lock security system.
• To activate this function click on the lock button (G) when appliance while the appliance is plugged.
• To deactivate this function, push during 2 sec the same button

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Stop the appliance using the on/off switch.
• Don't unplug the appliance right when it has finished. The fan will keep working in order to cool down the appliance.
• Unplug the appliance from the mains.
• Clean the appliance.

CAUTION: The appliance has a Standby system. In order to save energy, the appliance passes to stand-by after 2 hours if the user does not use it.

SAFETY THERMAL PROTECTOR:

• The appliance has a safety device, which protects the appliance from overheating.
• If the appliance turns itself off and does not switch itself on again, disconnect it from the mains supply, and wait for approximately 15 minutes before reconnecting. If the machine does not start again seek authorised technical assistance.

SPECIAL MESSAGES:

• The following messages can appear on the screen:
• E0 ▶ Use of wrong, too small pot. To solve it use a correct size pot.
• E1, E2 ▶ NTC Open / Short Circuit. Return the appliance to repair.
• E3, E4 ▶ Voltage too low / too high. Connect the appliance to a right power outlet.
• E5 ▶ Ceramic Plate is overheated. Allow the device to cool down.
• E6 ▶ Overheating protection. Allow the appliance to cool down.

PRACTICAL RECOMMENDATIONS:

• Use cookware suitable for the size of the hot-plate.
• Do not use excess water to cook foods. The more water used, the more energy needed.
• Whenever possible use a pressure cooker, it saves time and energy.
• Switch the hotplates on only when the cookware is ready and switch them off before removing it.
  • Cookware must be flat.
• Use cookware suitable for the amount being cooked. Large pots used for small amounts increase power consumption.
• Cooking without using the lid for the cookware increases power consumption.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the electrical equipment and the mains connection with a damp cloth and dry. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not let water or any other liquid get into the air vents to avoid damage to the inner parts of the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.

ANOMALIES AND REPAIR

• Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material?
• The product does not contain concentrations of substances that could be considered harmful to the environment.

This symbol means that in case you wish to dispose of the product once its working life has ended; take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

The following information is regarding to energy labelling and ecodesign:

Product card
Model: PI400
Type of hob: Electric
Number of cooking zones and/or areas:	1
Heating technology: Induction
Diameter of useful surface (∅):	18 cm
Energy consumption per cooking zone or area (ECe-lectric cooking)	192,2 Wh/kg
Energy consumption for the hob (ECelectric hob)	192,2 Wh/kg

Product card
Model: PI410
Type of hob: Electric
Number of cooking zones and/or areas:	1
Heating technology: Induction
Diameter of useful surface (∅):	18 cm
Energy consumption per cooking zone or area (ECe-lectric cooking)	190,2 Wh/kg
Energy consumption for the hob (ECElectric hob)	190,2 Wh/kg

To establish compliance with the ecodesign requirements and for calculation of energy labelling parameters the appliance the European standard EN 60350-2 is used as reference.

This symbol means that surface could to get hot during the use

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

Français

Plaque à induction

PI400

PI410

Cher Client,

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
