| Product type | LED Christmas tree effect light garland |
| Brand | Livarno Lux |
| Model / IAN | IAN 390508 |
| Intended use | Outdoor only, decoration |
| Number of LEDs | 200 micro-LEDs (8 in the star + 8 strands of 24) |
| Color temperature | 2700 K (warm white) |
| Total power | 1.5 W |
| Power supply unit | Model MLS-D24V1.5WG3TK-IP44 |
| Input voltage | 220-240 V~, 50/60 Hz |
| Output voltage | 24 V—, 1.5 W |
| Protection class (garland) | III (SELV) |
| Protection class (power supply) | II |
| Protection type | IP44 (splash-proof) |
| Total assembled height | Approx. 220 cm (star included) |
| Diameter of stretched strands | Approx. 320 cm |
| Length of LED strands | Approx. 265 cm |
| Length of power cable | Approx. 10 m |
| Timer function | Yes, integrated into the power supply unit |
| Timer duration | 6 hours on then 18 hours off (cycle) |
| Warranty | 3 years |
| Replaceable parts | None (LEDs, cable and power supply unit not replaceable) |
| Cleaning | Dry cloth, do not use chemicals, do not immerse |
| Disposal | Do not dispose with household waste, recycle via recycling center or collection point |
Frequently Asked Questions - IAN 390508 Livarno Lux
User questions about IAN 390508 Livarno Lux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Light Decoration in PDF format for free! Find your manual IAN 390508 - Livarno Lux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 390508 by Livarno Lux.
USER MANUAL IAN 390508 Livarno Lux
Operation and safety notes
图2
GUIRLANDE LUMINEUSE LED EFFET SAPIN DE NOEL
Before reading, please add the Listeners page and bond cards placed with all device barriers. The listing number is given in the corresponding portion when the line.
Find two in a person's place money constantly apost to announce a steel belonded plan. This is often if you stay there on a copy of the paper.
Fed. Ojurna voduža struš o občenom i na avanin te se ve vodnými kalkium pristaju. Čišta obdukov se vložy a ne solorá na pristavnom mědné v truša.

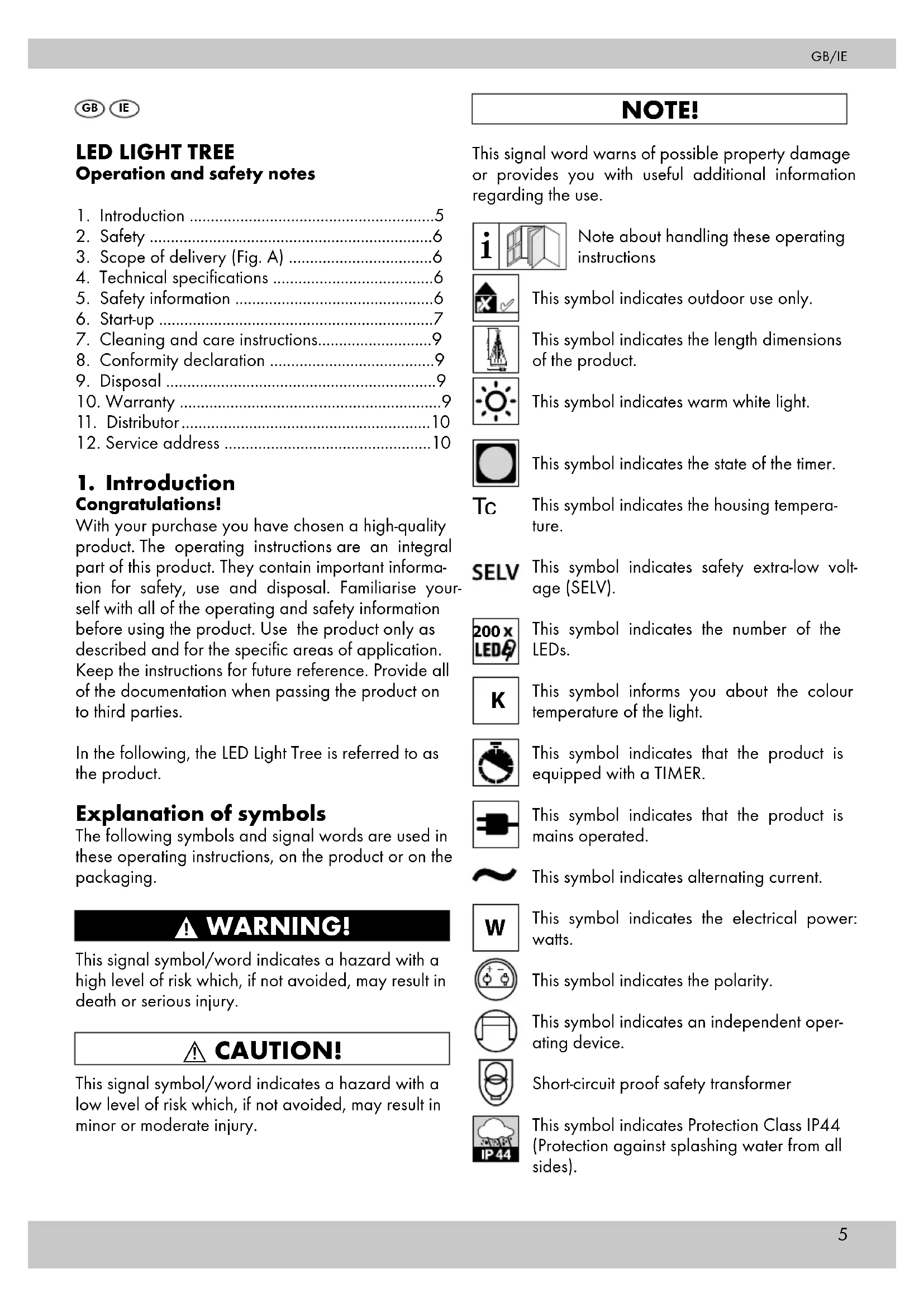

GB/IE LED Light Tree - Operation and safety notes 5
LED LIGHT TREE Operation and safety notes
- Introduction 5
- Safety 6
- Scope of delivery (Fig. A) 6
- Technical specifications ....6
- Safety information 6
- Start-up 7
- Cleaning and care instructions....9
- Conformity declaration 9
- Disposal 9
- Warranty 9
- Distributor....10
- Service address 10
1. Introduction Congratulations!
With your purchase you have chosen a high-quality product. The operating instructions are an integral part of this product. They contain important information for safety, use and disposal. Familiarise yourself with all of the operating and safety information before using the product. Use the product only as described and for the specific areas of application. Keep the instructions for future reference. Provide all of the documentation when passing the product on to third parties.
In the following, the LED Light Tree is referred to as the product.
Explanation of symbols
The following symbols and signal words are used in these operating instructions, on the product or on the packaging.
! WARNING!
This signal symbol/word indicates a hazard with a high level of risk which, if not avoided, may result in death or serious injury.
CAUTION!
This signal symbol/word indicates a hazard with a low level of risk which, if not avoided, may result in minor or moderate injury.
NOTE!
This signal word warns of possible property damage or provides you with useful additional information regarding the use.
Note about handling these operating instructions
This symbol indicates outdoor use only.
This symbol indicates the length dimensions of the product.
This symbol indicates warm white light.
This symbol indicates the state of the timer.
Tc
This symbol indicates the housing temperature.
SELV This symbol indicates safety extra-low voltage (SELV).
This symbol indicates the number of the LEDs.
This symbol informs you about the colour temperature of the light.
This symbol indicates that the product is equipped with a TIMER.
This symbol indicates that the product is mains operated.
\~
This symbol indicates alternating current.
This symbol indicates the electrical power: watts.
This symbol indicates the polarity.
This symbol indicates an independent operating device.
Short-circuit proof safety transformer
This symbol indicates Protection Class IP44 (Protection against splashing water from all sides).
This symbol indicates protection class II. APPLIES ONLY TO THE POWER SUPPLY UNITI
This symbol indicates protection class III. SELV: safety extra-low voltage. APPLIES ONLY TO THE LIGHT CHAIN!
these symbols inform you about the disposal of the packaging and the product.
GS Certified safety: Products marked with this symbol comply with the requirements of the German Product Safety rodSG).
This symbol indicates that the product is tested and safe.
This symbol indicates that compliance with European safety requirements has been tested and certified on the product.
This symbol indicates that the product complies with the relevant safety requirements in Finland and can be used safely. It is a basis safety of the product throughout Europe.
Conformity declaration (see chapter "8. Conformity declaration"): Products that are marked with this symbol fulfil all appli Community regulations of the European EcoArea.
2. Safety Intended use
The product is intended for use as a decorative light chain outdoors.
The product is not intended for commercial use. Different use or a modification to the product are not deemed as intended use and may lead to risks, such as injuries and damage. The distributor assumes no liability for damage that results from improper use.
The product is intended for outdoor use.
The product is for decorative purposes only - it is not suitable for household room lighting.
The product is a decorative product and not a toy.
3. Scope of delivery (Fig. A)
1x Top section 1 (pole with LED star, B LED strands, power supply cable)
1x Power supply unit ?
3x Pole 3
3x Connector 4
1x Ground spike 5
8x Peg 6
1x Operating and safety instructions (not shown)
4. Technical specifications
Type: LED Light Tree
IAN: 390508_2201
Tradix Item No.: 390508-22-A-EU
Illuminant
200 Micro-LEDs 8 micro LEDs in LED star, 8 LED strings with 24 micro LEDs each
Colour temperature: 2,700 K (warm white, not replaceable)
Total output: 1.5 W
Protection class: III/
Protection type: IP44
Power supply unit
Model: MLS-D24V1.5WG3TK-IP44
Input: 220-240 V ∼, 50/60 Hz
Output: 24 V, 1.5 W
Protection class: II/□
Protection type: IP44
Dimensions
Diameter LED strands stretched: approx. ∅ 320 cm at the bottom
Height completely assembled, incl. LED star: approx. 220 cm
Length LED strand: approx. 265 cm
Length of power supply cable: approx. 10 m
Production date: 05/2022
Warranty: 3 years
5. Safety information
WARNING!
Risk of strangulation and suffocation!
If children play with the product or the packaging, they could become caught in it and suffocate!
- Do not let children play with the product or the packaging.
- Supervise children who are close to the product.
- Keep the product and the packaging out of the reach of children.
WARNING!
Risk of injury!
Not suitable for children under the age of 8! There is a risk of injury!
- Children from the age of 8, as well as people with impaired physical, sensory or mental capabilities or with a lack of experience and knowledge, must be supervised when the product and/or be instructed regarding safe use of the product and understand theiting dangers.
- Children are not allowed to play with the product.
- Maintenance and/or cleaning of the product is not allowed to be performed by children.
Observe national regulations!
- Observe the applicable national requirements and regulations for the use and disposal of the product.
WARNING!
Risk of injury!
Do not use in an explosive environment! There is a risk of injury!
- The product is not allowed to be used in an explosive (Ex) environment. The product is not approved for an environment, in which flammable liquids, gases or dust are present.
WARNING!
Risk of injury!
A defective product is not allowed to be used! There is a risk of injury!
- Do not use the product in the case of malfunctions, damage or defects.
- Significant danger can occur for the user in the case of improper repairs.
- If you find a defect in the product, have the product checked and repaired if necessary before putting it back into operation.
- The LEDs are not replaceable. If the LEDs are defective, the product must be disposed of.
- The cable is not interchangeable. If the cable is defective, the product must be disposed of.
WARNING!
Risk of injury!
The product is not allowed to be manipulated! There is a risk of injury from electric shock!
- The casing must not be opened and the product must not be manipulated/modified under any circumstances. Manipulations/modifications can cause danger to life from electric shock. Manipulations/modifications are prohibited for approval reasons (CE).
- Check voltages! Make sure that the existing mains voltage corresponds to the specification on the rating place. Failure to comply can lead to excessive heat development.
- Never touch the power plug with wet hands, if it is in operation.
- The product must not be covered up during use.
- The product must not be electrically connected to another light chain or similar.
- Always unplug the power supply unit from the wall outlet before mounting, disassembling or cleaning.
- Do not operate the product with an extension cord or multiple plug.
CAUTION!
Risk of damage to property!
- Never expose the product to high temperatures and moisture, otherwise the product may be damaged.
- Keep the product away from fire and open flames!
- Prevent mechanical stress on the product
CAUTION!
Danger of overheating!
Remove packaging prior to use.
6. Start-up
-
Remove all packaging materials.
-
Check whether all parts are available and undamaged.
If this is not the case, notify the specified service address.
Legend
1 Top section
1c LED sta
15 Bracket
BROCK
Top section pole
4 Power supply unit
3 Pole
4 Connector
5 Ground spike
6 Peq
7 Power supply cable
B Plug
8a Sealing ring
9 Output socket
10 Union nut
11 Timer button
12 LED strand
Assembly
Place the product only on a flat, level surface. Pay attention to the fact that the occupied area requires approx. 4 x 4 m of free space.
NOTE!
Leave the LED strands 12 coiled for the time being to simplify assembly.
WARNING!
Risk of injury!
The LED strands 12 must not be operated in the wound-up state. Danger of overheating!
For safety reasons, keep the product switched off during all steps of the Assembly.
- Insert the ground spike 5 as deep as possible into your intended spot in the ground.
CAUTION!
Risk of injury!
- The ground must be sufficiently firm and stable to hold the ground spike 5.
- If the ground is too firm to press the ground spike 5 into the ground, loosen the ground slightly.
- Wear suitable protective gloves when inserting the ground spike 5.
CAUTION!
Risk of damage to property!
- Do not insert the ground spike 5 into the ground if the ground is frozen or if you feel a strong resistance. You could damage the ground spike 5 I
- Do not use a hammer or other tools when inserting the ground spike 5. You could damage the ground spike 5!
- Place the LED star 1a on the bracket b on the top section 1, see Fig. B.
NOTE!
The LED star 1c is connected to the top section by the wiring.
- As shown in Fig. B, connect the pole 1c of the top section and the other poles 3 using the connectors 4.
- Carefully unwind the LED strands 12
NOTE!
Make sure that the LED strands 1 do not get tangled in each other when unwinding.
- Carefully insert the pole assembled in step 3. onto the ground spike 5, see Fig. B.
- Check all plug connections of the product for secure and tight fit.
- Attach the pegs 6 to the end of the LED strands 12, see Fig. E.
- Attach each peg 6 together with the LED strand 12 to the desired position on the ground, see Fig. E/F.
NOTE!
Risk of damage to property!
Do not tension the LED strands 12 too tightly. The product may become damaged.
Start-up of the power supply unit
WARNING!
Risk of injury!
There is a risk of injury from electric shock!
The product may only be operated with the supplied power supply unit 2!
The product may only be operated with the supplied power supply unit 2 with the model designation MLS-D24V1.5WG3TK-IP44.
The product must be disposed of if the power supply unit 2 is defective.
- Insert the plug 8 according to the polarity into the output socket 9 see Fig. C.
NOTE!
For this, please pay attention to the recess and polarity ⓘ in the outlet socket 9.
WARNING!
Risk of injury!
There is a risk of electric shock! The product must not be used without the sealing ring 8c properly attached to the plug 8, see Fig. Cl
- Screw the union nut 10 clockwise onto the output socket 9, see Fig. C.
NOTE!
- Make sure that the union nut TC does not tilt and that it is firmly tightened. This is the only way that weather-proofness in accordance with IP44 can be guaranteed.
CAUTION!
Risk of damage to property!
- Make sure that the power supply cable 7 is never crushed, kinked or damaged by sharp edges. - Make sure that the power supply cable 7 hangs loosely and is not too taut. Otherwise there is a risk of cable breakage.
CAUTION!
Risk of injury!
- To minimize the risk of tripping posed by a loosely laid power supply cable 7, if possible, wrap the power supply cable 7 one to several times around the pole of the product before connecting the connected power supply unit 2 to a wall outlet, see Fig. F.
Product switch on/off
To switch on the product, plug the power supply unit 2, which is properly connected to the power supply cable 7, into an easily accessible and properly installed wall outlet. The product is now switched on and illuminated.
To switch the product off, remove the power supply unit 2 from the wall outlet. The product is now switched off.
Timer function (6-hour timer)
The product is fitted with a timer function. If you press the timer button 11 on the power supply unit 2, the timer function switches ON, see Fig. D. When the timer function is activated, the timer button 11 lights up green.
When the timer function is activated, the product switches OFF automatically after 6 hours. After another 18 hours, the product will automatically switch back ON. This daily rhythm repeats as long as the timer function remains activated. By pressing the timer button 11 on the power supply unit 2 again, you switch the timer function OFF. The green LED in the timer button 11 goes out.
Disassembly
To disassemble the product, unplug the power supply unit 2 from the wall outlet and then follow the steps listed under Assembly in reverse order.
7. Cleaning and care instructions
WARNING!
Risk of injury!
Before cleaning, you must unplug the power supply unit 2 from the wall outlet. There is a risk of electric
shock!
- only clean with a dry cloth - do not use any strong detergents and/or chemicals - do not immerse in water - store in a cool, dry place and protected from UV light
8. Conformity declaration
CE This device complies with the fundamental requirements and other relevant regulations of the European Electromagnetic Compatibility Directive 2014/30/EU and the RoHS Directive 2011/65/EU. The complete original conformity declaration is available from the importer.
9. Disposal
Disposal of the packaging
The packaging and operating instructions are made of 100% environmentally friendly materials, which you may dispose of at local recycling centres.
Disposal of the product
The product may not be disposed of with normal household waste. For information on disposal options for the product, please contact your local council/municipality or your Lidl shop.
10. Warranty
Dear customer, the warranty on this product is 3
years from the purchase date. In the event of defects in this product, you are entitled to exercise your statutory rights against the seller of the product. These statutory rights are not limited by our warranty described in the following.
Warranty conditions
The warranty begins on the date of purchase. Please keep the original receipt. This document is required as verification of the purchase.
If a material or manufacturing defect arises within three years from the purchase date of this product, the product will be repaired or replaced, as per our choice, at no charge to you. This warranty service requires the submission of the purchase receipt and the defective product within the three-year period and a short written description of the defect and when it arose.
If the defect is covered by our warranty, the repaired or a new product will be returned to you. The warranty period does not restart with the repair or replacement of the product.
Guarantee period and statutory claims for defects
The guarantee period will not be extended by the warranty. This also applies to replaced and repaired parts. Damage and defects which may possibly already exist upon purchase must be reported immediately after unpacking. After the guarantee period has expired, required repairs shall be subject to a charge.
Scope of guarantee
The device has been carefully produced under strict quality guidelines and conscientiously inspected prior to delivery. The guarantee service applies to material or manufacturing faults. This guarantee does not extend to product parts, which are exposed to normal wear and tear and can therefore be regarded as wearing parts or to damage to fragile parts, e.g. switches, battery packs or which are made of glass. This guarantee shall lapse, if the product is damages, not used properly or maintained properly. For proper use of the product, all of the instructions in the operating instructions must be precisely complied with. Purposes and actions, which are dissuaded from or warned about in the operating instructions must be avoided.
The product is only intended for private and not commercial use. In the case of abusive and improper handling, use of force and with interventions, which are not performed by our authorised service branch, the guarantee shall lapse.
Processing in the case of a guarantee claim
To ensure quick processing of your concern, please follow the instructions below:
- Please have the till receipt and article number available (IAN 390508_2201) as proof of the purchase.
- You can find the article number on the rating plate on the product, as an engraving on the product, the title place of your instructions or the sticker on the back or underside of the product.
- If malfunctions or other defects occur, first contact the service department below by telephone or e-mail.
- You can then send a product that has been recorded as being defective, including the proof of purchase (till receipt) and stating what the defect is and when it occurred, postage-free to the service address provided to you.
On www.lidl-service.com, you can download these and many other manuals, product videos and installation software.
With this QR code, you can directly reach the Lidl Service website (www.lidl-service.com) and can open your operating instructions by entering the article number (IAN 390508_2201).
11. Distributor
Hotline: 00800 / 30012001 (free of charge, mobile networks may vary)
E-Mail:tradix-gb@teknihall.com
E-Mail:tradix-ie@teknihall.com
05/2022
Tradix item no.: 390508-22-A-EU
IAN 390508_2201
LED-LICHTERBAUM
m = 311
m = 311
m = 311
m = 311
m = 311
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
⚠️ VAROVÁNÍ!
Nebezpečí poranění!
9 Zhongda Michica 10 Belairing motion
10 Pokrivna marica
Gumb za časovnik
12 Žička LED
