Product type	Light decoration (Christmas Village)
Brand	Livarno Lux
Model	HG02935A
Power supply	2 AA 1.5 V batteries (included)
Battery type	Non-rechargeable alkaline
Number of LEDs	10
Power	0.25 W
Voltage	3 V=
Light color	Warm white
Functions	ON / OFF / 6h Timer
Timer	6 h lighting, 18 h pause, automatic repeat
Use	Indoor use only
Cable length between houses	approx. 40 cm
Package contents	1 light village, 2 AA batteries, 1 instruction manual
Warranty	3 years
After-sales service France	0800904879 / [e-mail]
After-sales service Belgium	080071011 / [e-mail]
Cleaning	Use a feather duster, do not use water
Disposal	WEEE compliant, batteries to be recycled
Repairability	LEDs non-replaceable, product to be replaced
Safety	Not suitable for children under 14 years

Frequently Asked Questions - HG02935A Livarno Lux

How to replace the batteries?

Turn the product over on a soft surface. Slide the battery compartment cover in the opposite direction of the switch. Insert two new AA batteries observing the indicated polarity (+/-). Close the cover.

How to use the timer function?

Slide the switch to the TIMER position. The product lights up for 6 hours, then automatically turns off for 18 hours. This cycle repeats daily at the same time.

Why do the LEDs turn off after 6 hours?

The timer function is activated. It turns off the LEDs after 6 h of lighting and turns them back on 18 h later. For continuous lighting, set the switch to ON.

Can I use rechargeable batteries?

No, the product is designed for non-rechargeable alkaline batteries. Using rechargeable batteries may damage the product or pose a risk of explosion.

Is the product waterproof?

No, it is intended exclusively for indoor use. Avoid any contact with water or excessive humidity.

Can I connect several decorations together?

No, the product must not be electrically connected to another light chain. Do not plug it directly into a 230 V outlet.

What to do if the LEDs do not light up?

Check that the batteries are correctly inserted (polarity) and not used. Make sure the switch is on ON or TIMER. If the problem persists, contact after-sales service.

How to clean the decoration?

Use a feather duster to dust. Never use water, liquids, or chemicals. Clean the battery contacts with a dry cloth.

Where should I dispose of the product at end of life?

Do not throw it in household waste. Dispose of it at a recycling center or a collection point for electronic devices. Used batteries must be recycled separately.

What is the warranty period?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects, but not normal wear (batteries) or damage caused by improper use.

USER MANUAL HG02935A Livarno Lux

Black-and-white photo of six miniature winter village houses on snow-covered bases, with a decorative heart-shaped light in the background (no text or symbols)

WEIHNACHTSSTRASSE MIT BELEUCHTUNG/LIGHT-UP CHRISTMAS VILLAGE SCENE/VILLAGE DE NOËL LUMINEUX

DE AT CH

Operation and safety notes

NL BE

KERSTSTRAAT MET VERLICHTING

GB/IE Operation and safety notes Page 11

LED: HG02935A: 10 LEDs

HG02935B: 6 LEDs

3 V=

Leistung: 0,25 W

Batterietyp: 2 x 1,5 V === AA Batterie

Intended use......Page 12

Description of parts....Page 13

Technical specifications....Page 13

Includes......Page 13

Safety advice......Page 13

Safety instructions for batteries/rechargeable batteries......Page 13

Before first use....Page 14

Inserting/replacing batteries....Page 14

Use Page 14

Switching on and off....Page 14

Cleaning and care....Page 14

Disposal Page 15

Warranty Page 15

Warranty claim procedure......Page 15

Service Page 16

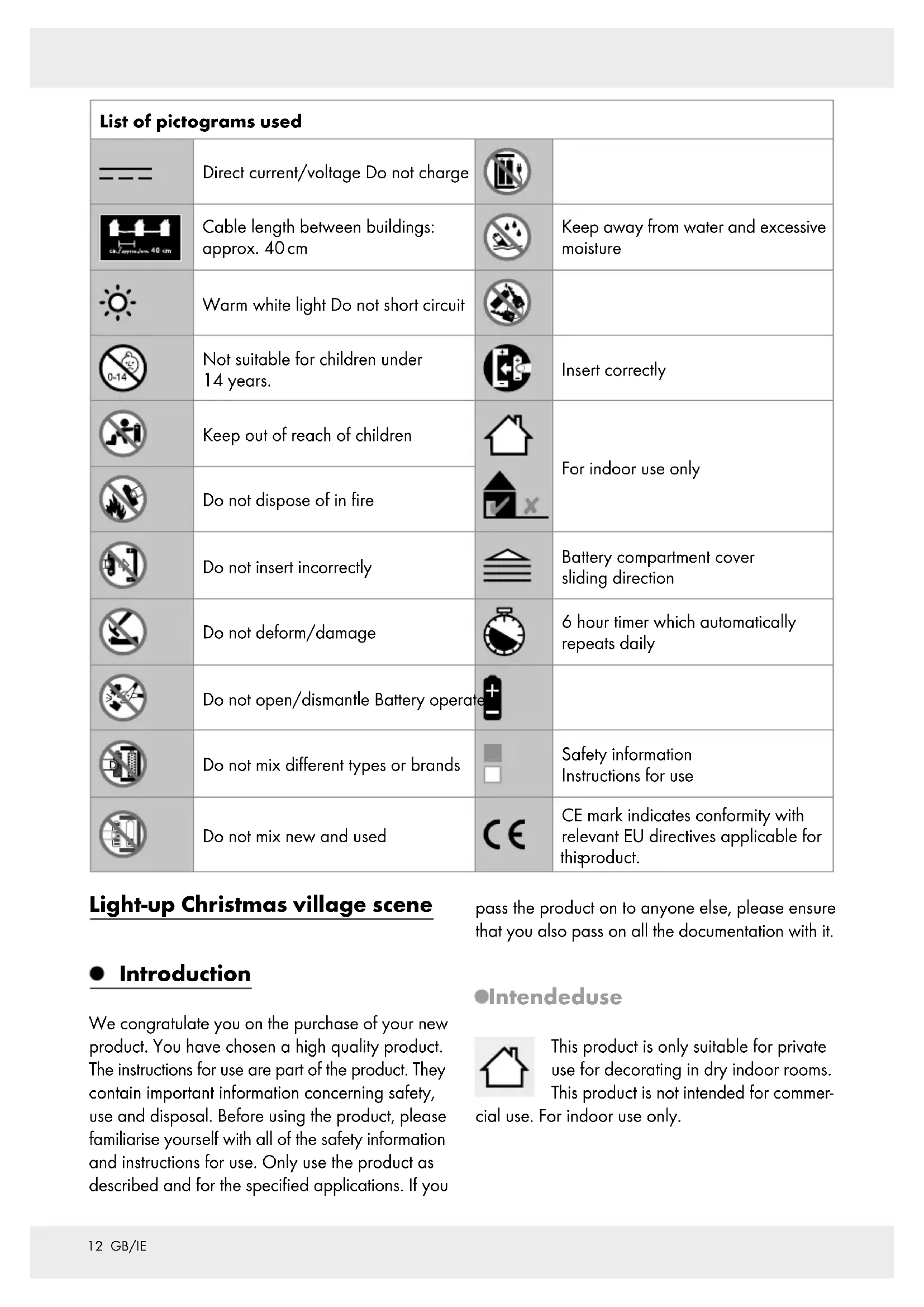

List of pictograms used
	Direct current/voltage Do not charge
	Cable length between buildings: approx. 40 cm		Keep away from water and excessive moisture
	Warm white light Do not short circuit
	Not suitable for children under 14 years.		Insert correctly
	Keep out of reach of children		For indoor use only
	Do not dispose of in fire
	Do not insert incorrectly		Battery compartment cover sliding direction
	Do not deform/damage		6 hour timer which automatically repeats daily
	Do not open/dismantle Battery operate	[27X7]
[DBTC]	Do not mix different types or brands	[24TD]	Safety information Instructions for use
[ZZBK]	Do not mix new and used		CE mark indicates conformity with relevant EU directives applicable for thisproduct.

Light-up Christmas village scene

pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you

Intendeduse

This product is only suitable for private use for decorating in dry indoor rooms. This product is not intended for commer-

cial use. For indoor use only.

• Description of parts

1 Christmas street with lighting
2 Lamp holder
3 Plug
4 Connector
5 Battery compartment cover
6 Battery compartment
7 Switch (ON/OFF/TIMER)

● Technical specifications

LED: HG02935A: 10 LEDs

HG02935B: 6 LEDs

3V=

Power: 0.25 W

Battery type: 2 x 1.5 V === AA battery

(included)

Includes

1 Light-up Christmas village scene
2 Batteries
1 Operating instructions

Safety advice

PLEASE KEEP THE INSTRUCTIONS FOR USE IN A SAFE PLACE!

ISKOWENING!

AND ACCIDENTS FOR INFANTS AND CHILDREN! Never leave

children unattended with the packaging material. Risk of suffocation. Keep children away from the product.

This product is not for children under 14 years of age. This product is a decoration article and not a toy. This product has to be kept out of the reach of children.
- Do not use the product if you notice any signs of damage.

■ Never expose the product to high temperatures or moisture, as otherwise the product may be damaged.
■ Ensure that the product is not subjected to a mechanical load!
- Please contact a qualified electrician in the case of damage, repairs or other problems with the product.
- Do not put the product on sensitive surfaces of furniture, otherwise scratching may cause.

CAUTION! RISK OF OVERHEATING!

Do not operate the product whilst it is still in the packaging.

The product does not contain any parts which can be serviced by the user.
■ The LEDs are not replaceable.
If the LEDs fail at the end of its life, the entire product must be replaced.
■ The product must not be electrically connected to another set of lights.
■ Never connect the product directly to a 230 V mains supply.
- Do not attach any other objects to the product.
- Never fix the product in place with clips or nails.

Safety instructions for batteries/rechargeable batteries

■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

■ Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit bat-

teries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.

• Never throw batteries/rechargeable batteries into fire or water.
• Do not exert mechanical loads to batteries / rechargeable batteries.

Risk of leakage of batteries/rechargeable batteries

- Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.

If batteries/rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries/rechargeable batteries, immediately remove them from the product to prevent damage.

Only use the same type of batteries/rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.

■ Remove batteries/rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

Only use the specified type of battery/rechargeable battery!

Insert batteries/rechargeable batteries according to polarity marks (+) and (-) on the battery/rechargeable battery and the product.

Use a dry lint-free cloth or cotton swab to clean the contacts on the battery/rechargeable battery and in the battery compartment before inserting!

■ Remove exhausted batteries/rechargeable batteries from the product immediately.

- Before first use

Note: Remove all packaging materials from the product.

- Inserting/replacingbatteries (see fig. B)

☐ Turn the product over and place it on a soft underlay to avoid scratching the surface.

Open the battery compartment 6 by sliding out the battery compartment cover 5 against the direction of the switch 7. See the indicated arrow (see fig. B).

☐ Reinstall the batteries if necessary and then dose the battery compartment 6. The product is now ready for use.

Note: Make sure you insert the batteries with the correct polarity. This is indicated in the battery compartment 6.

Use

□ Connect the plug 3 to the connector 4.

☐ Install the lamp holders 2 to back side of the houses (see fig. A).

☐ Your product is now ready for use.

- Switching on and off

The switch 7 has three functions:

☐ Slide the switch ☐ to set the product to TIMER, the product lights glow permanently for 6 hours and will be followed by a subsequent pause of 18 hours. Afterwards, the product will light up again at its designated turn on time for 6 hours followed by a subsequent pause of 18 hours.

☐ Slide the switch 7 to set the product to ON, the product glows permanently.

☐ Slide the switch 7 to set the product to OFF, the product is switched off.

- Cleaning and care

- Do not clean the product with water or other liquids.

☐ Use a feather duster for cleaning purposes.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibre-board/80–98: composite materials.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

The product and packaging materials are recyclable, subject to extended manufacturer responsibility. Dispose it separately, following the illustrated packaging symbols, for better waste treatment. The Triman logo is valid in France only.

Faulty or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The

chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 390580_2201) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions

for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

CE

LED: HG02935A: 10 diod LED

HG02935B: 6 diod LED 3 V=

Moc: 0,25 W

Typ baterii: 2 x 1,5 V === bateria AA

NOSTE OCHRANNÉ RUKA-

LED: HG02935A: 10 LED

HG02935B: 6 LED 3 V=

Výkon: 0,25 W

NOSTE OCHRANNÉ RUKA-

LED: HG02935A: 10 LED

HG02935B: 6 LED da

3 V=

Potenza: 0,25 W

LED: HG02935A: 10 LED

HG02935B: 6 LED 3 V=

Pooblaščeni serviser:

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

NEMČIJA
