IAN 390263 - Light Decoration Livarno Lux - Free user manual and instructions

Product type	Decorative LED candle with real wax
Brand	Livarno Lux
Model	IAN 390263
Power supply	2 AAA alkaline batteries (1.5 V) included
Power	0.065 W
Bulb	1 non-replaceable LED
Functions	On/Off, Timer 6h on / 18h off with automatic repeat
Use	Indoor only, ambient light
Material	Real wax, plastic, electronic components
Dimensions (approx.)	Height 10 cm, Diameter 6 cm
Weight (approx.)	100 g (with batteries)
Delivery contents	1 LED candle, 2 AA alkaline batteries, 1 decoration, 1 instruction manual
Safety	Do not expose to water, do not open, keep out of reach of children, do not recharge batteries
Cleaning	Turn off and remove batteries, clean with a duster or brush, do not immerse
Warranty	36 months from date of purchase
Manufacturer	Uni-Elektra GmbH, Hummelbergstr. 6, Germany
After-sales service	Uni-Elektra GmbH, keep the receipt and article number IAN 390263_2201
Recycling	Product and packaging recyclable, dispose of batteries at collection point

Frequently Asked Questions - IAN 390263 Livarno Lux

How to turn on the LED candle?

Set the ON/OFF/TIMER switch to ON. The LED lights up and the simulated flame moves automatically.

How to use the timer?

Set the switch to TIMER. The candle stays on for 6 hours then off for 18 hours, repeating this cycle daily.

Which batteries to use?

Use 2 alkaline batteries type AAA (LR6) 1.5 V. Do not mix new and used batteries.

What to do if the LED does not light up?

Check that the batteries are inserted correctly (respect polarity + and -). Replace if worn.

Can I use the candle outdoors?

No, the candle is intended for indoor use only in a dry place.

How to clean the candle?

Turn off the product (OFF position) and remove batteries. Clean with a duster or brush. Do not immerse in water.

Is the LED replaceable?

No, the LED is not replaceable. At end of life, the entire product must be replaced.

What is the battery life?

Battery life depends on usage. In continuous mode, batteries last about 30 to 50 hours. Timer extends battery life.

What to do in case of battery ingestion?

Consult a doctor immediately. Ingestion can cause severe burns in less than 2 hours. Keep batteries out of reach of children.

How to dispose of the candle and batteries?

Do not dispose of product or batteries with household waste. Drop batteries at a collection point and the product at a recycling center or recycle according to local regulations.

USER MANUAL IAN 390263 Livarno Lux

LIVARNO home

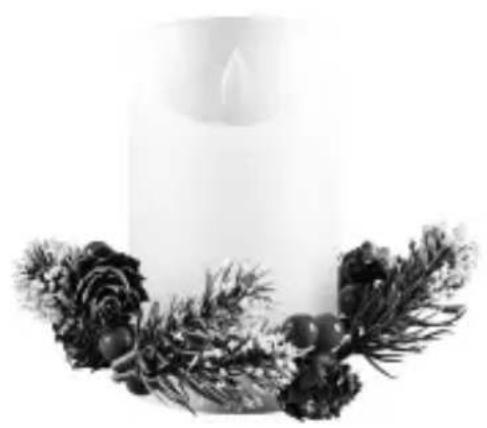

Black and white photo of a lit candle with pine branches and berries, no text or symbols visible

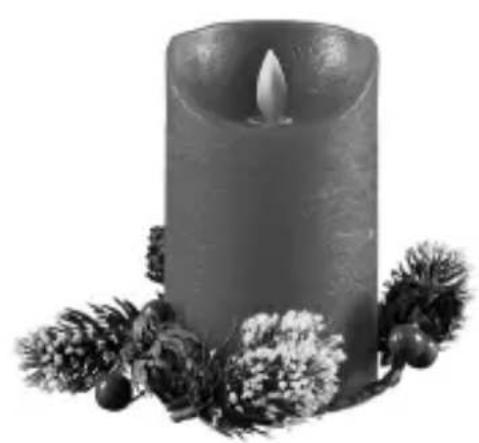

Black-and-white photo of a lit candle with pine branches and small flowers (no text or symbols)

Black and white photo of a lit candle with pinecones on its base (no text or symbols visible)

LED REAL WAX CANDLE

GB IE NI

LED REAL WAX CANDLE

Operation and safety notes

NL BE

LED-WASKAARS

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE/NI Operation and safety notes Page 5

A 1 2 3 10661LA 10661LB 10661LC

B

- + + - OFF ON TRE 6 7

10661LA

10661LB

10661LC

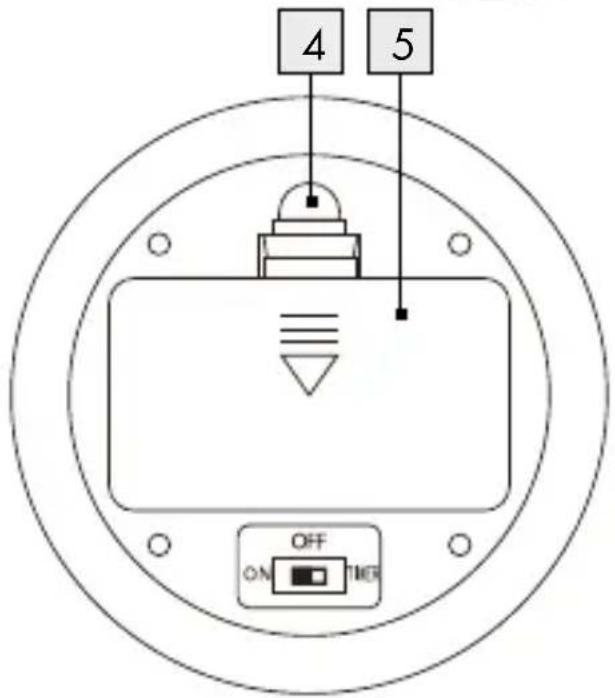

4 5 OFF ON TIER

Simple line drawing of a rectangular object with a downward arrow and layered top (no text or symbols)

- + p + -

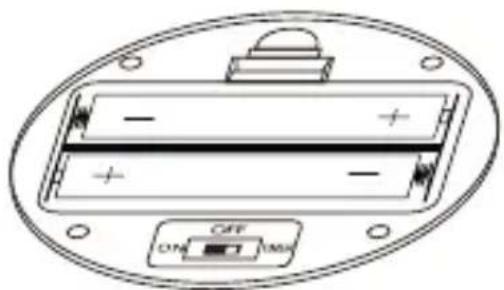

Diagram of a battery pack with an open lid and internal components, no text or symbols present.

List of pictograms used......Page 6

Introduction......Page 10

Intended use Page 10

Parts description......Page 10

Technical data Page 10

Scope of delivery......Page 10

General safety notes......Page 11

Safety instructions for batteries/rechargeable batteries......Page 12

Prior to first use......Page 14

Inserting/replacing the batteries ...... Page 15

Use Page 16

Cleaning and care......Page 17

Warranty and service Page 19

Service address Page 20

Manufacturer Page 20

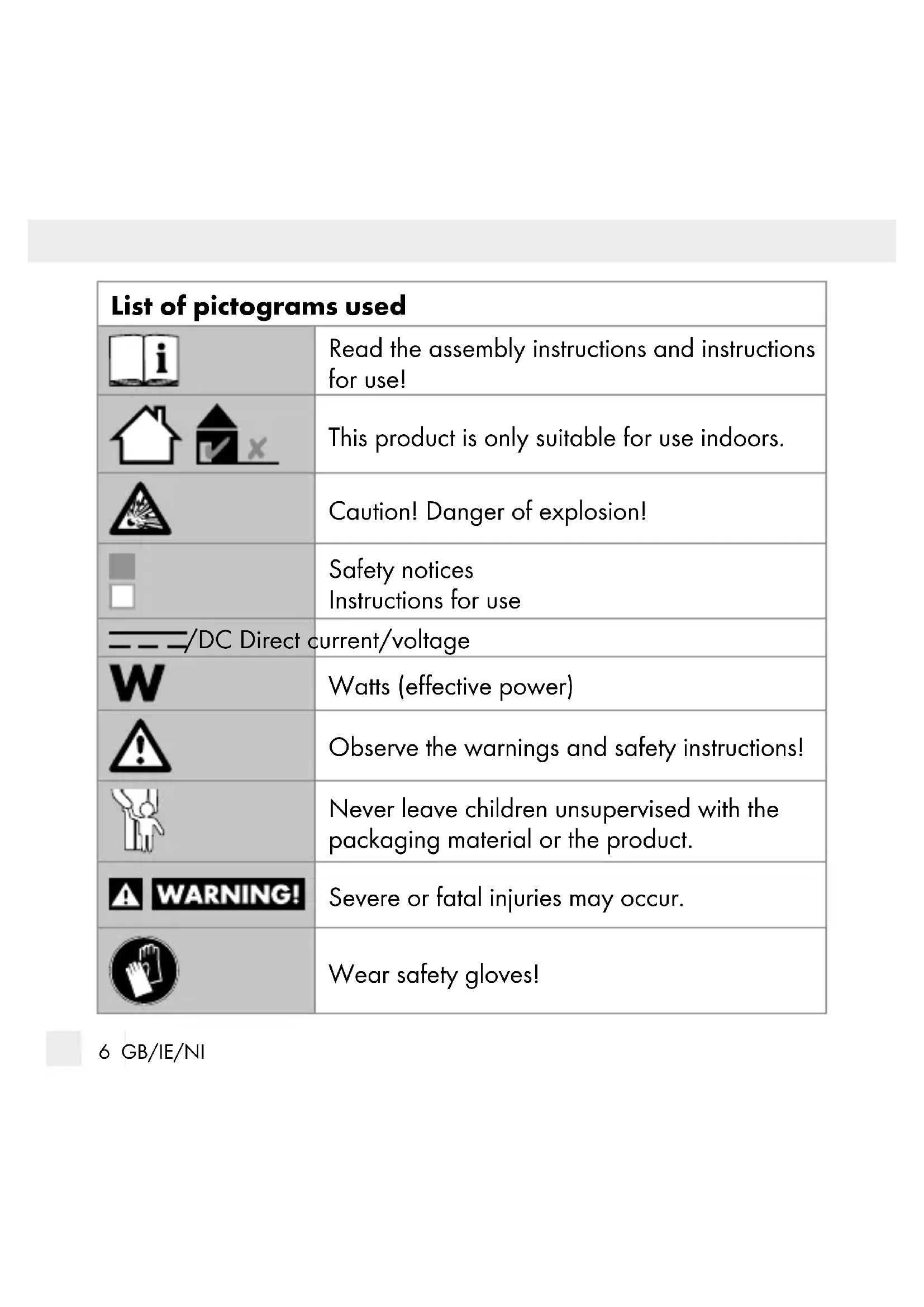

List of pictograms used
	Read the assembly instructions and instructions for use!
	This product is only suitable for use indoors.
	Caution! Danger of explosion!
	Safety noticesInstructions for use
/DC Direct current/voltage
	Watts (effective power)
	Observe the warnings and safety instructions!
	Never leave children unsupervised with the packaging material or the product.
	Severe or fatal injuries may occur.
	Wear safety gloves!
	6-hour timer with automatic daily recurrence
	Battery-operated
	Warm white light
	Keep batteries away from children.
	Do not throw batteries into fire.
	Insert the batteries in compliance with the correct polarity (+ and -).
	Do not damage batteries.
	Do not open batteries.
	Do not mix rechargeable batteries, zinc, carbon, alkaline and lithium batteries.
	Do not mix used and new batteries.
	The batteries are not rechargeable.
	Do not allow batteries to come into contact with water.
	Do not short-circuit batteries.
	Dispose of the packaging and product in an environmentally-friendly manner!
	Environmental damage due to incorrect disposal of the batteries/rechargeable batteries!
	UKCA mark indicates conformity with relevant Great Britain regulations applicable for this product.(The UKCA mark logo is valid in Great Britain only.)

LED Real Wax Candle

- Introduction

Congratulations on the purchase of your new product. You have chosen a high quality product. The assembly instructions and instructions for use are a part of this product. They contain important information about safety, use and disposal. Before using the product, please familiarise yourself with all the instructions for use and safety notes. The product must only be used as described and for the specified applications. Please include all documentation when passing this product on to others.

Intendeduse

This product is suitable as ambient lighting in dry indoor rooms. The product is only intended for use in private households, and is not intended for commercial use.

Partsdescription

1 Real wax LED candle
2 Simulated flame
3 LED
4 Battery cover handle

5 Battery cover
6 Battery compartment
7 ON/OFF/TIMER switch

- Technical data

Lamp: 1 LED (The LED is not replaceable.)

Output: 0.065 W

Batteries: 2 x 1.5 V=, LR6 (type AA)

- Scope of delivery

1 LED real wax candle

2 batteries (AA alkaline)

1 decoration

1 set of instructions for use

General safety notes

Before using the product, please familiarise yourself with all of the safety instructions and instructions for use! When passing this product on to others, please also include all the documents!

RISK OF MACCIDENT AND

DANGER TO LIFE FOR INFANTS AND CHILDREN!

There is a risk of suffocation! Keep the packaging material out of the reach of children and away from animals.

This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.

- Do not expose the product to weather effects. The product may otherwise be damaged.

• Do not expose the product to direct sunlight. Do not place it above heaters. The product's wax may otherwise soften and lose its shape, resulting in malfunctions.
  ■ The LED is not replaceable.
  If the LED fails at the end of its life, the entire product must be replaced.
• Do not stand the product on valuable or sensitive surfaces without appropriate protection. Otherwise the surface could become damaged by the product.
  RISK OF OVERHEATING! Do not operate the product inside the packaging.

Safety instructions for batteries/rechargeable batteries

■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
■ Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.

DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries/rechargeable batteries into fire or water.
- Do not exert mechanical loads to batteries/rechargeable batteries.
■ Never throw batteries/rechargeable batteries into fire or water.
- Do not exert mechanical loads to batteries/rechargeable batteries.

Risk of leakage of batteries/rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.
  If batteries/rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
  WEAR PROTECTIVE GLOVES! Leaked or damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
  In the event of a leakage of batteries/rechargeable batteries, immediately remove them from the product to prevent damage.
• Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.
  If batteries/rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
  WEAR PROTECTIVE GLOVES! Leaked or damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
  batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves if such an event occurs.
  In the event of a leakage of batteries/rechargeable batteries, immediately remove them from the product to prevent damage.

DANGER OF EXPLOSION! Never recharge non-

rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.

Risk of leakage of batteries/rechargeable batteries

WEAR PROTECTIVE GLOVES! Leaked or damaged

■ Only use the same type of batteries/rechargeable batteries. Do not mix used and new batteries/rechargeable batteries
■ Remove batteries/rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery/rechargeable battery!
- Insert batteries/rechargeable batteries according to polarity marks (+) and (-) on the battery/rechargeable battery and the product.
■ Use a dry lint-free cloth or cotton swab to clean the contacts on the battery/rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries/rechargeable batteries from the product immediately.

- Prior to first use

■ Remove all product packaging.
■ Protect delicate surfaces before you set up the product.

- Inserting/replacing the batteries

☐ If you notice the brightness of the LED 3 is fading, the batteries are too weak and must be replaced.
Slide the ON/OFF/TIMER switch at the bottom of the real wax LED candle 1 into the OFF position (Fig. B).
☐ Pull on the handle of the battery compartment cover 4 and this will open the battery compartment 6.
☐ If applicable, remove the old batteries from the battery compartment 6 and insert new batteries. Only use batteries of the type specified under "Technical data" in these instructions for use.
□ When inserting the batteries, ensure the correct polarity. This is indicated in the battery compartment 6.
☐ Close the battery compartment again.

The product is now ready to use.

Use

The ON/OFF/TIMER switch 7 has three functions:

Switch ON

☐ Slide the ON/OFF/TIMER switch 7 to the ON position to switch the product on. The LED 3 lights up and the simulated flame 2 moves automatically.

Switch OFF

☐ Slide the ON/OFF/TIMER switch 7 to the OFF position to turn the product and the timer off permanently.

Switch TIMER

☐ Slide the ON/OFF/TIMER switch 7 to the TIMER position to switch the timer function on. The product lights up continuously for 6 hours and then switches itself off for 18 hours. The product will then switch on again for 6 hours at the allocated time and then switch off for 18 hours.

Note: If you slide the ON/OFF/TIMER switch from the ON or OFF position to the TIMER position, the TIMER will start again

with a new cycle. The product lights up continuously for 6 hours and then switches itself off for 18 hours.

- Cleaning and care

■ Never immerse the product in water.
☐ Slide the ON/OFF/TIMER switch 7 into the OFF position and remove the batteries before cleaning the product.
☐ Replace the batteries after cleaning.
☐ Use a duster or brush when cleaning.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities. The product and packaging materials are recyclable, dispose of it separately for better waste treatment.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury,

Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.

- Warranty and service

Note: This product includes a 36-month warranty from the date of purchase. The product has been manufactured with care and thoroughly inspected prior to delivery. However, if defects in manufacturing or material arise during the warranty period, please contact your retailer immediately.

The warranty does not cover damages due to improper handling, failure to comply with the operating instructions, or manipulation by unauthorised persons. Most malfunctions are caused by incorrect operation. Therefore please first refer to the operating instructions if a malfunction occurs.

Please contact the Uni-Elektra GmbH service address before returning products. The product may only be returned to us after contacting us. Shipments that are sent carriage forward will not be accepted. The performance of services under the warranty does not extend or restart the warranty period of 36 months.

• Service address

Uni-Elektra GmbH

Hummelbergstr. 6

Please have your receipt and the item number (IAN 390263_2201) ready as your proof of purchase when enquiring about your product.

Manufacturer

Uni-Elektra GmbH

Hummelbergstr. 6

QR code image containing encoded data, no visible human-readable text

CE UK CA

QR code image containing encoded data, no visible human-readable text

CE UK CA

QR code image containing encoded data, no visible human-readable text

CE UK CA

QR code image containing encoded data, no visible human-readable text

CE UK CA

Uni-Elektra GmbH

Hummelbergstr. 6
