Brand	Livarno Lux
Model	IAN 372342 (ref. 14135306L / 14135402L)
Product type	Desk lamp with touch dimmer
Use	Indoor, dry rooms
Power supply	230-240 V~, 50 Hz
Socket	E27
Max. rated power	6 W
Included bulb	LED E27, max. 4.9 W, 3 brightness levels
Protection class	II
Protection rating	IP20
Energy efficiency class	F (bulb included)
Dimmer	Integrated touch dimmer (3 levels)
Package contents	Lamp, lamp glass, LED bulb, instruction manual
Assembly	Screwing in the glass and bulb, connecting to mains
Maintenance	Dry lint-free cloth, unplug before cleaning
Bulb replacement	Possible by user (E27 bulb, max. 6 W)
Warranty	36 months
Customer service	Toll-free: 00800/27456637

Frequently Asked Questions - IAN 372342 Livarno Lux

How do I turn the lamp on or off?

Touch the lamp base (touch dimmer) to turn on or off.

How do I adjust the brightness?

Briefly touch the lamp base several times to cycle through 3 brightness levels. After each touch, the lamp briefly turns off, then the next level activates.

What to do if the lamp does not work?

First check that the power plug is properly plugged in and the socket is live. If the problem persists, contact customer service at 00800/27456637.

How do I replace the bulb?

Turn off the lamp and unplug the power plug. Let the lamp cool down. Unscrew the used bulb counterclockwise. Screw in a new E27 bulb (max. 6 W) clockwise. Replug.

How do I clean the lamp?

Unplug the power plug and let it cool down. Use a dry, lint-free cloth. Never use water or solvents.

Can I use an external dimmer or electronic switch?

No, this lamp is not suitable for external dimmers or electronic switches. Only use the integrated touch dimmer.

Which bulb can I use?

Use only bulbs with E27 socket with a maximum power of 6 W. The included bulb is a 4.9 W LED adjustable to 3 levels.

Is the lamp suitable for children?

Yes, from 8 years under supervision. Do not let children play with the lamp or packaging. Cleaning must not be performed by a child without supervision.

What to do in case of malfunction?

If damaged, do not use the lamp. Contact customer service or an electrician for any repairs. Never open the electrical components.

How to dispose of packaging and the product at end of life?

The packaging is recyclable, sort it according to local regulations. Do not dispose of the product in household waste, take it to a recycling center or return it to the point of sale.

USER MANUAL IAN 372342 Livarno Lux

PDF ONLINE www.lidl-service.com

Modern table lamp with a white cylindrical shade and metallic base (no text or symbols visible)

Modern minimalist table lamp with a white cylindrical body and metallic base, no text or symbols visible.

TISCHLEUCHTE MIT TOUCH-DIMMER/TABLE LAMP WITH TOUCH DIMMER/LAMPE DE BUREAU AVEC VARIATEUR TACTILE

DE AT CH

Operation and safety notes

NL BE

TAFELLAMP MET TOUCHDIMMER

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Intended use......Page 13

Scope of delivery....Page 13

Parts description......Page 13

Technical data......Page 13

Safety Page 13

Safety notices....Page 13

Initial use Page 14

Mounting the lamp....Page 14

Switching the light on/off....Page 14

Dimming the lamp....Page 14

Changing the light bulb....Page 15

Maintenance and cleaning......Page 15

Disposal Page 15

Warranty and service......Page 15

Warranty Page 15

Service address......Page 16

Declaration of conformity....Page 16

Manufacturer......Page 16

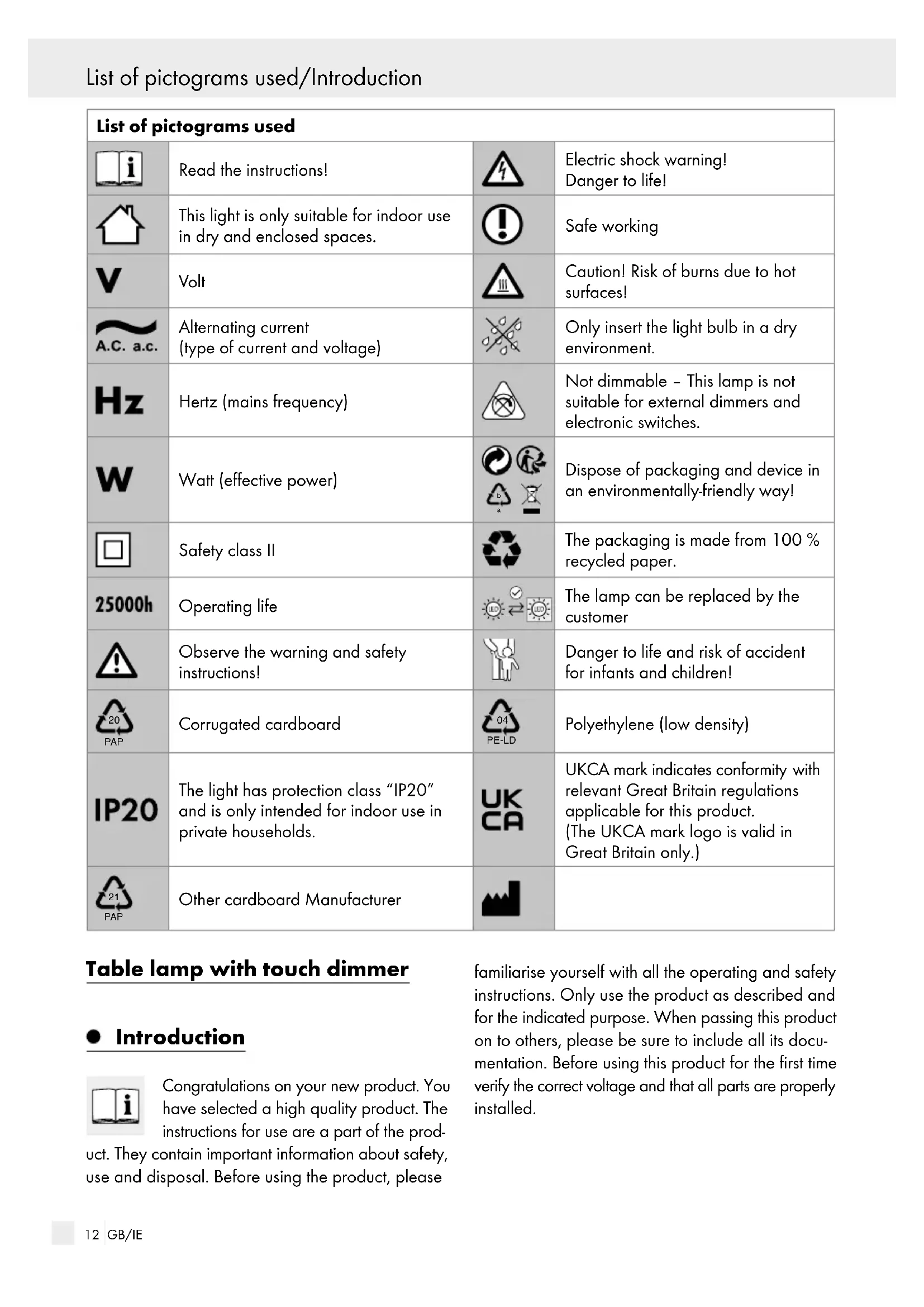

List of pictograms used
	Read the instructions!		Electric shock warning!Danger to life!
	This light is only suitable for indoor use in dry and enclosed spaces.		Safe working
	Volt		Caution! Risk of burns due to hot surfaces!
A.V. a.C.	Alternating current(type of current and voltage)		Only insert the light bulb in a dry environment.
	Hertz (mains frequency)		Not dimmable - This lamp is not suitable for external dimmers and electronic switches.
	Watt (effective power)	[IMAGE]	Dispose of packaging and device in an environmentally-friendly way!
	Safety class II		The packaging is made from 100 % recycled paper.
25000h	Operating life		The lamp can be replaced by the customer
	Observe the warning and safety instructions!		Danger to life and risk of accident for infants and children!
EAT	Corrugated cardboard		Polyethylene (low density)
D	The light has protection class "IP20" and is only intended for indoor use in private households.		UKCA mark indicates conformity with relevant Great Britain regulations applicable for this product.(The UKCA mark logo is valid in Great Britain only.)
FAI*	Other cardboard Manufacturer

Table lamp with touch dimmer

- Introduction

Congratulations on your new product. You have selected a high quality product. The instructions for use are a part of the prod-

uct. They contain important information about safety, use and disposal. Before using the product, please

familiarise yourself with all the operating and safety instructions. Only use the product as described and for the indicated purpose. When passing this product on to others, please be sure to include all its documentation. Before using this product for the first time verify the correct voltage and that all parts are properly installed.

Intended use

This light is only suitable for indoor use in dry and enclosed spaces. This product is intended for private household use only.

This product is intended for normal operation.

- Scope of delivery

Check immediately after unpacking that the parts are complete and that the product is in proper condition.

1 Table lamp with touch dimmer 14135306L/14135402L
1 Glass shade
1 LED light bulb
1 Instructions for use

- Parts description

1 Threaded ring
2 Lamp glass
3 Lamp socket
4 Mains plug
5 Illuminant
6 Lamp base

- Technical data

Model No.: 14135306L/14135402L

Operating voltage: 230–240 V\~, 50 Hz

Lampsocket:E27

Rated power: max. 6 W

Protection class: II/

Bulb: LED E27, max. 4.9 W, 3-level dimmable

Protection type: IP20

This product contains a light source of energy efficiency class „F“.

- Safety

Safetynotices

Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

WARNING! RISK OF FATAL INJURY AND ACCIDENT HAZ-ARD FOR TODDLERS AND SMALL

CHILDREN!

Never leave children unattended with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers.

This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, when supervised or instructed in the safe use of the device and they understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without supervision.

RISK OF INJURY!

Do not leave the lamp or packaging material lying unattended. Plastic film or bags, Styrofoam etc. can become dangerous toys for children.

Avoid the risk of fatal injury from electric shock

Luminaire with strong conducted disturbances can cause nuisance triggering, it can be self-recovered.
■ Always check the mains plug for damage before connecting the light to the mains. Never use the light if it shows any signs of damage.
In the event of damage, repairs or other problems with the light, please contact the service centre or an electrician.
- Ensure that the light does not come into contact with water or other liquids under any circumstances.

■ Never open or insert anything into electrical fittings or equipment (e.g. switches, fitting socket). This will pose a risk of fatal injury from electric shock.
■ Only touch the insulated area of the mains plug when connecting to or disconnecting from the mains!
To prevent hazards, a damaged flexible outer lead of this light may only be exchanged by the manufacturer, his service representative or by an equally qualified specialist.
Before every use, verify the available mains voltage matches the required operating voltage of the light (see "Technical data").
Always unplug the mains plug, respectively, from the mains prior to assembly, disassembly, cleaning, or when the light will not be used for extended periods.
Do not install the lamp on a wet or conductive surface.
Only insert the light bulb in a dry environment.
This lamp is not suitable for external dimmers and electronic switches.
lamp is not suitable for external dimmers and electronic switches.

Safe working

■ Position the lamp so it is protected from moisture and dirt.
■ Always be attentive! Always pay attention to what you are doing and use common sense.
Do not cover the lamp with objects. Excessive heat can result in fire.
Do not look into the illuminant from a close distance during operation.
Do not use optical instruments to look at the illuminant.
In order to disconnect the light completely from the power supply, the mains plug must be removed from the socket.
Only use the light bulbs specified in the chapter "Technical data".

- Initial use

- Mounting the lamp

Note: Remove all packaging materials from the product.

Only 14135306L:

☐ Caution: The lamp glass and the ring nut 1 are pre-assembled, but are not screwed tight.
☐ Loosen the ring nut 1 from the lamp socket 3.
☐ Bring the lamp glass 2 into the correct position (see Fig. A).

Only 14135402L:

☐ Loosen the ring nut 1 from the lamp socket 3.
☐ Bring the lamp glass 2 into the correct position (see Fig. B).

All models:

☐ Screw the lamp glass 2 to the ring nut 1. Be sure they are positioned correctly.
☐ Use a clean, lint-free, dry cloth to insert the bulb 5.
☐ Screw the light bulb 5 clockwise into the lamp socket 3.
☐ Plug the mains plug 4 into a properly installed socket.

Your light is now ready to use.

- Switching the light on/off

☐ Touch the lamp base 6 to switch the lamp on or off.

Dimming the lamp

Note: The lamp is only dimmable using the light bulb 5 supplied.

☐ To dim the light bulb 5 touch the lamp base 6 multiple times in short succession.
☐ Each time the lamp base (touch dimmer) is touched, the lamp is then briefly switched off. The next dimming level then follows.

☐ If the dimmer function was interrupted for a while (approx. 10 seconds) between the separate levels, the brightest light level will always be switched on.

● Changing the light bulb

□ Switch the lamp off.

WARNING! RISK OF ELECTRIC SHOCK!

First unplug the mains plug 4 from the socket.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Allow the lamp to cool down completely.

☐ Use a clean, lint-free, dry cloth when replacing the illuminant 5.
☐ Unscrew the defective illuminant 5 from the lamp socket 3, turning counter-clockwise.
☐ Screw a new illuminant, clockwise into the lamp socket 3.
☐ Plug the mains plug 4 into a properly installed socket.

Your light is now ready to use.

● Maintenance and cleaning

□ Switch the lamp off.

WARNING! RISK OF ELECTRIC SHOCK!

First remove the mains plug 4 from the socket.

CAUTION! RISK OF BURNS DUE TO HOT SURFACES!

Allow the lamp to cool down completely.

WARNING! RISK OF ELECTRIC SHOCK!

For electrical safety, never clean the light with water or other liquids, or immerse it in water.

• Do not use solvents, benzene or similar substances. They could damage the light.
  ☐ Only use a dry, lint-free cloth for cleaning.
  ☐ Plug the mains plug 4 into a properly installed socket.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibre-board/80-98: composite materials.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

The product and packaging materials are recyclable, subject to extended manufacturer responsibility. Dispose it separately, following the illustrated packaging symbols, for better waste treatment. The Triman logo is valid in France only.

● Warranty and service

Warranty

You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event that a defect arises during the warranty period, please send the device to the listed service centre address, quoting the following model number: 14135306L/14135402L.

Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of

Warranty and service

services under the warranty does not extend or renew the warranty period.

Serviceaddress

Free service number:

Tel.: [phone]

IAN 372342_2204

Please have your receipt and the item number (IAN 372342_2204) ready as your proof of purchase when enquiring about your product.

● Declaration of conformity CE

This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer
