USER MANUAL SHDH 2000 A1 SILVERCREST

1.1 Intended use   6

1.2 Scope of delivery   6

2. Safety indications for room heating appliances   7

3.3 Range of use of the remote control   13

4. Commissioning   14

4.1 Standby mode   14

4.2 Switch on the unit   14

4.3 Heating level setting   14

4.4 Switch lighting on/off   14

4.5 Switch off the unit   14

5. Maintenance, cleaning and storage   14

Congratulations on purchasing your new appliance. You have decided in favour of a high-quality product. The operating instructions are part of this product. They contain important information regarding the safety, use and disposal. Familiarise yourself with all the operating and safety indications prior to using the product. Only use the product as described and for the specified areas of use. If you pass the product on to third parties, hand out all the documents too.

This appliance is only intended for heating in pro- tected outdoor areas. The appliance is not intended for indoor use. Every further use or change to the appliance is viewed as not in accordance with its intended use and involves considerable accident risks. We assume no liability for damages arising from improper use. The appliance is only intended for private and not for commercial use.

1.2 Scope of delivery

1 Hanging Patio Heater 1 Remote control 2 AAA batteries 1 Metal chain with 2 pre-mounted snap hooks 1 Instruction manual

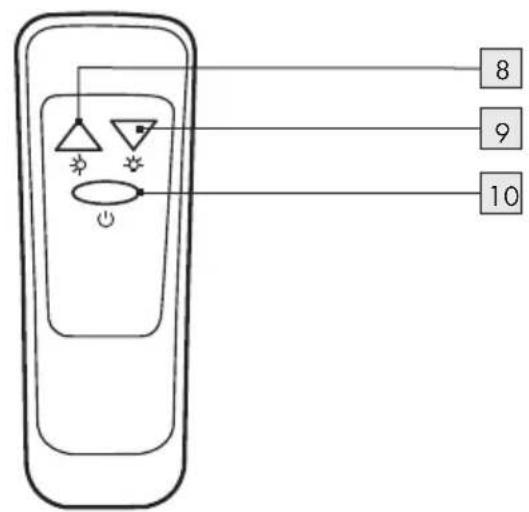

8 Heat level button 9 Light button 10 On/Off button 11 Battery compartment cover 12 Tab 13 Batteries

( Wec hselstrom) Mains frequency: 50 Hz Dimensioning uptake: 1800-2000 W Heating level 1: 800 W Heating level 2: 1200 W Heating level 3: 2000 W Protection class of the housing: IP24 (protection against ingress of foreign ob- jects (Ø > 12 mm) and

plashing water from all directions) Protection class of the mains plug: IP44 (Protected against solid foreign bodies with Ø ≥ 1.0 mm and against access with a wire and splashing water from all directions) Protection rating: I Mains cable length: 1,8 m Remote control (only for use with the SHDH 2000 A1 hanging Patio Heater) Battery supply: 2x 1,5 V (Direct current) : AAA AlkalineGB/IE/NI/CY/MT 7

2. Safety indications for room heating appliances

Read all the safety indications and instructions. Failure to adhere to the safety indications and instructions may cause serious injuries and/or property damages. Please keep all the safety indications and instructions for future use. WARNING! Do not cover! To avoid the heater overheating, it must not be covered. The heater must be installed at least 1.8 m above the floor. The heater must not be placed directly below or above a power supply socket. Do not connect this heater to a program switch, time switch, separate telecontrol system or any other device which automatically switches on the heater due to the fire hazard if the heater is covered or set up incorrectly. Do not use this heater if the heating element is damaged! The protection grille of this heater is intended to prevent direct access to the heating elements and must be installed in the designated location when using the heater. The protection grille does not offer adequate protection for toddlers or infirm persons. Do not use this heater in the direct vicinity of a bathtub, a shower or a swimming pool. Do not commission an appliance which has been dropped.GB/IE/NI/CY/MT

Do not use the product if you notice any visible damage. The heater must be mounted on a firm and level surface on the ceiling. If the supply cable for this appliance is damaged, it must be replaced by the manufacturer or his customer service or a similarly qualified person in order to avoid any dangers. No action is required on the part of the user to set the product to 220 or 240 V. The product automatically adjusts to the correct voltage. WARNING! The heater must not be used if there are persons in its vicinity who cannot leave the place independently, unless constant supervision is ensured. WARNING! Fire hazard! To reduce the risk of fire, keep textiles, curtains and other combustible materials at least 1 m away from the appliance.

2.1 General Safety Instructions

WARNING! FIRE RISK! Never use the appliance near or under curtains and other combusti- ble materials such as furniture, cushions, bedding and curtains. This device can be used by children aged from 8 years and above and by physically, sensory or mentally restricted persons if they are supervised or given instructions on safe use and understand the hazards involved as it does not require any experience or know- ledge. This device is not a toy for children to play with! Cleaning and user maintenance shall not be carried out by children without supervision. Children under the age of 3 are to be kept away unless they are continually supervised.GB/IE/NI/CY/MT 9 Children between the age of 3 and 8 are only allowed to switch the device on or off if they are supervised or given instructions on safe use and understand the hazards involved, provided that it has been placed or installed in its intended normal operating position. Children between the age of 3 and 8 shall not plug in, regulate and clean the heater or perform user maintenance! Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. Beware of hot surfaces! CAUTION: Some parts of the product can become very hot and cause burns. Pay particular attention when children and vulnerable people are present. Danger to life by electrical current! Contacting the live cables or components is dangerous to your life! In outdoor areas, the mains plug may only be plugged into an IP44 socket!GB/IE/NI/CY/MT

2.2 Information about batteries

Keep out of reach of children. Swallowing can lead to injury, perforation of soft tissue and to death. Severe burns can occur within 2 hours of swallowing. Seek medical advice immediately. Incorrect use of batteries may result in fire, explosion, leakage of dangerous substances, or other hazard! Do not throw batteries into the fire and do not expose them to high temperatures. Do not open, deform or short-circuit the batteries. Otherwise, the contained chemicals can leak out of them. Do not try to recharge batteries. Recharging is only allowed for batteries which are marked as “rechargeable”. There is a danger of explosion! Always remove rechargeable batteries from the device to charge them. Regularly check the batteries. Leaking chemicals can cause heavy damage to the device. Dealing with damaged or leaking batteries, exercise a particular caution. Risk of chemical burns! Wear protective gloves. Chemicals escaping from a battery can cause skin irritation. In case of contact with skin, rinse with much water. In case of con- tact with eyes, do not rub your eye, but rinse it with water and immediately visit a doctor. Different types of batteries or accumulators as well as new and old batteries must not be used together. Always insert batteries with correct polarity, otherwise there is a risk of bursting. Remove the batteries from the device if you are not going to use it for a long time or if you want to store it. Insert the batteries according to the polarity.GB/IE/NI/CY/MT 11 Do not allow children to replace batteries without supervision by an adult. Always choose the right size and the right battery type for the in- tended use. The information sheet enclosed with the device which is meant to assist you in choosing the right batteries should be kept for reference. Clean the battery contacts and also the contacts of the equipment before installing the batteries. Remove used batteries immediately and dispose of them in an en- vironmentally friendly manner. Do not dismantle the batteries. If the battery compartment does not close securely, do not use the remote control any more and keep it away from children. Please avoid extreme conditions and temperatures which can ad- versely affect the batteries/rechargeable batteries, e.g. placing

hem on radiators/direct solar radiation. The terminals must not be short-circuited.GB/IE/NI/CY/MT

3. Before commissioning

3.1 Mounting the unit

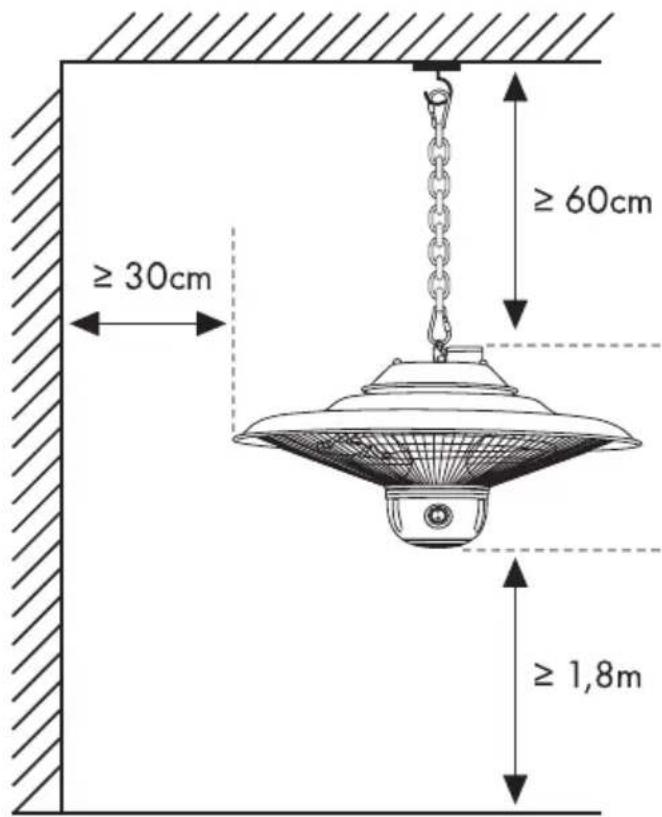

Remove all packaging material and all trans- port bracing from the device. Check that the package contents are complete and undam- aged. Do not install the unit in a hot or dusty environ- ment or near combustible material. The socket must be easily accessible so that the mains plug can be easily disconnected if neces- sary. Make sure that the wall must be able to support a weight of at least 8 kg (about four times the weight of the unit). The distance to the walls must not be be less than 30 cm. The distance to the ceiling must not be less than 60 cm. The distance to the ground must not be less than

The unit may only be used in a vertical position! NOTE: You may need a climbing aid (e.g. a lad- der) to carry out the assembly.

CAUTION! IF THE SPECIFIED DISTANCES ARE

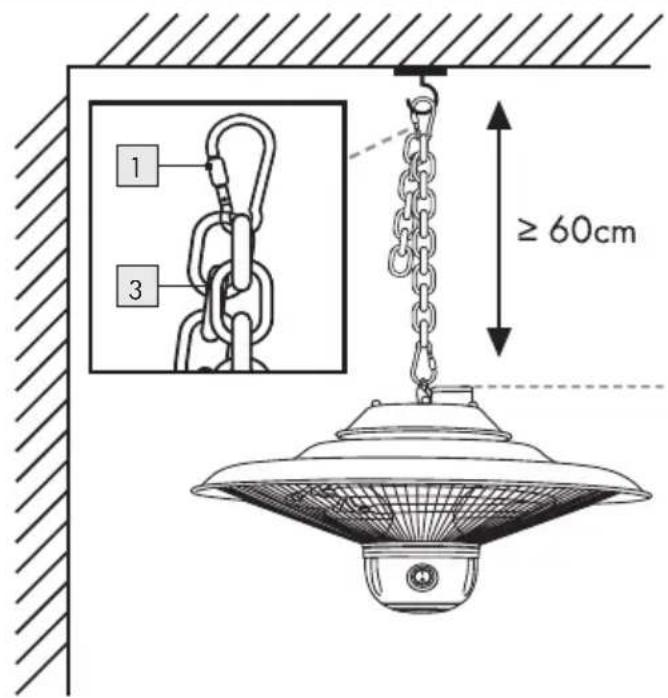

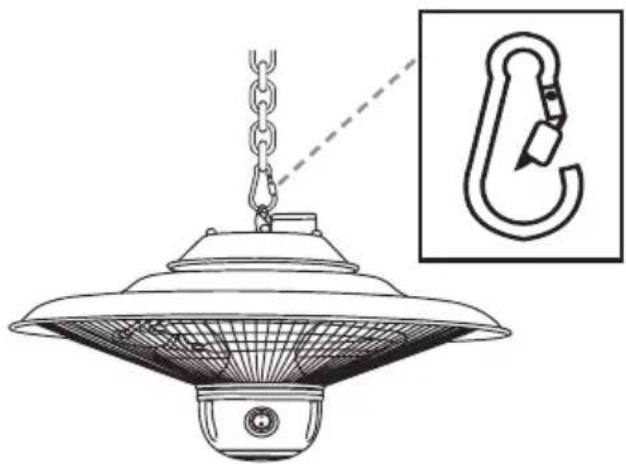

NOT OBSERVED, THE UNIT MUST NOT BE MOUNTED. NOTE: You may need to attach a hook to the cei- ling before mounting the unit. This hook must be strong enough to support four times the weight of the unit itself. Be careful not to damage any hidden power lines! Using the snap hook

, first connect the metal chain

to the unit. The unit should be hung like a lamp. First measure the required distance of at least 60 cm on the metal chain

. Now place the free, pre-assembled snap hook

at this point. After 60 cm have been measured, the safety distance to the ground must be further ensured.GB/IE/NI/CY/MT 13

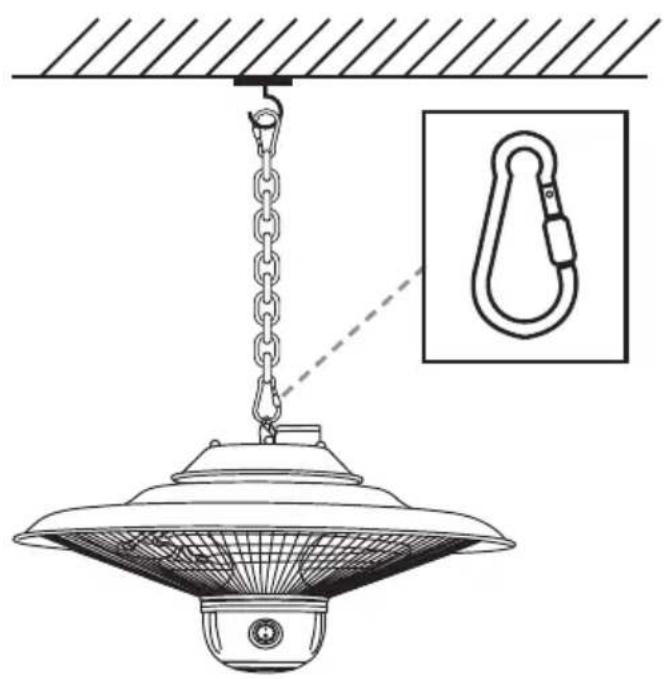

to a hook protru- ding from the ceiling. NOTE: The second snap hook

, located on the unit, does not need to be removed.

are supplied with the remote control. To operate the remote control, remove the plastic film covering the batteries

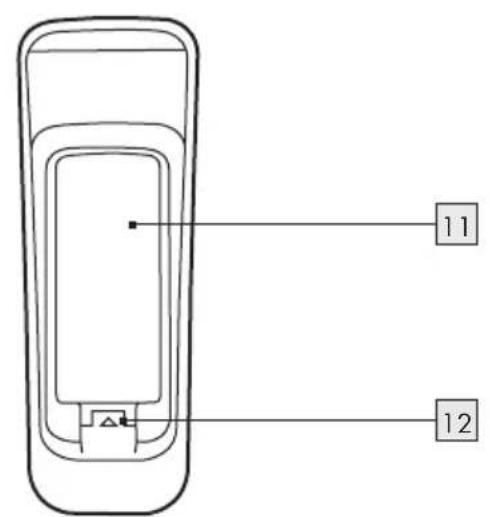

Pay attention to the type of batteries (AAA). Push up the tab

on the battery compartment cover

of the remote control. Now pull out the battery compartment cover

according to the polarity. Slide the battery compartment cover

back into the remote control until the tab

clicks into place. If the batteries

in the remote control need re- placing, insert two new 1 .5 volt alkaline batteries.

3.3 Range of use of the remote control

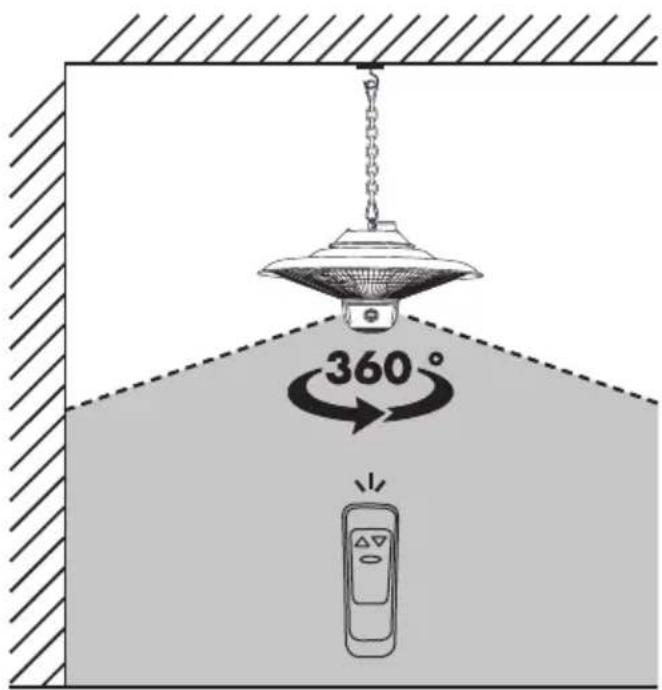

When controlling the unit with the remote control, please be sure to observe the range of use of the unit as shown below. To ensure that the unit responds to a button press on the remote control, make sure that the remote control is within the range of use shown when a button is pressed. Depending on the distance to the unit, the angle of use and the radius of use change, resulting in the respective area of use. The most favourable positioning of the remote con

trol to the unit is below the unit in a radius of approx. 3 m. NOTE: If there are objects, walls or other obstacles between the unit and the remote control, the control of the unit with the remote control may be obstructed.GB/IE/NI/CY/MT

HAZARD. ATTENTION! You must not put the unit into opera- tion until it has been completely assembled!

Make sure that the on/off switch

is in the "0" position. Then connect the unit to an earthed socket pro- tected by a residual current circuit breaker. Press the red on/off switch

upwards to "I". The unit is now supplied with power and is in standby mode. NOTE: A beep sounds each time a button on the re- mote control is pressed, provided the unit is in stand- by or heating mode.

4.2 Switch on the unit

You switch on the unit by pressing the on/off button

on the remote control. The appliance is now in the first heating stage and has an output of 800 W.

4.3 Heating level setting

on the remote control the remote control is used to set the desired desired heating level. By pressing the heating level button

, the appliance changes to the next heating level. 1x press: 1. Heating level (800 W) – the inner heating element

press: 2. Heating level (1200 W) – the outer heating element

press: 3. Heating level (2000 W) – both heating elements

4.4 Switch lighting on/off

Independent of the heating function, the integra- ted LED lamp

can be switched on/off. To switch on the lamp

when in standby or heating mode. To switch off the lamp

again. NOTE: When the unit is switched off (see 4.5), the LED lamp

switches off at the same time.

4.5 Switch off the unit

Switch the unit off by pressing the on/off button

once. To disconnect the unit from the power supply, press the red on/off switch

5. Maintenance, cleaning and

SHOCK! Always disconnect the power plug when the device is not in use and before any cleaning or in the event of operating faults! Clean the device only when it is turned OFF and in a cooled condition. Make sure that no moisture penetrates the device during cleaning to avoid irreparable damage to the appliance. Clean the housing with a slightly damp cloth and a mild flushing fluid. Do not use aggressive and/or abrasive cleaning agents. Remove dust deposits on the protection grille

with a hoover. Store the appliance in a dry and dust-free environment.GB/IE/NI/CY/MT 15

The device packaging is made of envi- ronmentally friendly materials that you can dispose of at your local recycling centres. The Triman logo is valid in France only. This product is subject to the European Directive 2012/19/EU. Do not dispose of the product in household waste, but via municipal collection points for material re

cycling! For information on how to dispose of t he discarded device can be obtained from your local authority or city council. Batteries must be recycled in accordance with Directive 2006/66/EC and must not be disposed of with household waste. Eve- ry consumer is legally obliged to hand in all ba tteries/rechargeable batteries at a collection point in their municipality/district or in a shop. This obligation aims to ensure that batteries are disposed of in an environ

mentally friendly manner. Only return batteries when they have been fully discharged. Batteries must be removed

om the appliance before disposal. Observe the marking on the packaging materials when separating the waste, they are marked with abbreviations (a) and numbers (b) with the following meanings: 1–7: Plastics/20–22: Paper and card

board/80–98: Composite materials.

This product complies with all applicable European and national standards.

8. ROWI Germany GmbH Warranty

Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase. If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence. If the defect is covered by the warranty, your pro- duct will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.GB/IE/NI/CY/MT

Scope of the warranty This appliance has been manufactured in accor- dance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries or those made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintai- ned. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper hand- ling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres. Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: Please have the till receipt and the item number (IAN 419743_2201) available as proof of purchase. You will find the item number on the type plate on the product, on the front page of the instruc- tions (bottom left), or as a sticker on the rear or bottom of the appliance. If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. You can return a defective product to us free of charge to the service address that will be provi- ded to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. At www.lidl-service.com you can download this manual as well as many other manuals, product videos and installation software. This QR code will take you directly to the Lidl service page (www.lidl- service.com) and allow you to open your operating instructions simply by entering the article number (IAN 419743_2201).

If any problems occur during use of your ROWI Germany product, please proceed as follows: Contact us You can contact the service team of ROWI Germany at: ROWI Germany GmbH Werner-von-Siemens-Str. 27 76694 Forst GERMANY [e-mail] Service-Hotline: [phone] (free call from a German landline) IAN 419743_2201 Most problems can be resolved with the skilled technical support of our Service Team.GB/IE/NI/CY/MT 17GB/IE/NI/CY/MT 18DE/AT/CH 19
