USER MANUAL SSH 1200 A1 SILVERCREST

PATIO HEATER SSH 1200 A1

STANDHEIZSTRAHLER SSH 1200 A1

CHAUFFAGE RADIANT SUR PIED SSH 1200 A1

QR code with embedded icon of a person holding a tablet or book

PDF ONLINE

www.lidl-service.com

GB IE CYNI MT

PATIO HEATER

Operation and Safety Instructions

FR BECH

CHAUFFAGE RADIANT SUR PIED

Before reading, fold out the page with the images and familiarise yourself with all the features of the device.

DE AT CH

GB/IE/NI/CY/MT Operation and Safety Instructions Page 5

Technical diagram of a honeycomb heat exchanger with labeled components and warning symbol

1. Introduction 6

1.1 Intended use...6.....
1.2 Scope of delivery...6.
1.3 Features 6
1.4 Technical data...6

2. Safety indications for room heating appliances .7

2.1 General Safety Instructions...8.

3. Before commissioning ...10....

3.1 Device Installation...10

4. Commissioning ...10

4.1 Switching on the unit...10
4.2 Switching off the unit 10

5. Protective devices for the appliance 10

5.1 Tip-over protection.... 10

6. Maintenance, cleaning and storage 10

7. Disposal 11

8. EU conformity .....

9. ROWI Germany GmbH Warranty 11

10. Service 12

PATIO HEATER SSH 1200 A1

1. Introduction

Congratulations on purchasing your new appliance. You have decided in favour of a high-quality product. The operating instructions are part of this product. They contain important information regarding the safety, use and disposal. Familiarise yourself with all the operating and safety indications prior to using the product. Only use the product as described and for the specified areas of use. If you pass the product on to third parties, hand out all the documents too.

1.1 Intended use

This appliance is only intended for heating in protected outdoor areas. The appliance is not intended for indoor use. Every further use or change to the appliance is viewed as not in accordance with its intended use and involves considerable accident risks. We assume no liability for damages arising from improper use. The appliance is only intended for private and not for commercial use.

1.2 Scope of delivery

1 Patio heater
1 Set of operating instructions

1.3 Features

1 Carrying handle
2 Fire protection grille
3 On/off switch

1.4 Technical data

Input voltage: 220-240 V

Mains frequency: 50-60 Hz

Dimensioning uptake: 1200 W

Protection class

of the housing:

IP55(protection against dust deposits (dust-protected), complete protection against contact and water jets from all directions)

Protection class

of the mains plug:

IP44 (Protected against solid foreign bodies with ≥ 1.0 mm and against access with a wire and splashing water from all directions)

Protection rating:

Mains cable length: 1,8 m

2. Safety indications for room heating appliances

Read all the safety indications and instructions.

Failure to adhere to the safety indications and instructions may cause serious injuries and/or property damages.

Please keep all the safety indications and instructions for future use.

WARNING! Do not cover!

To avoid the heater overheating, it must not be covered.

• The heater may not be placed directly beneath a wall mains socket.
• Do not connect this heater to a program switch, time switch, separate telecontrol system or any other device which automatically switches on the heater due to the fire hazard if the heater is covered or set up incorrectly.
• Do not use this heater if the heating element is damaged!
  The fire protection grille of this heater is intended to prevent direct access to the heating elements and must be installed in the designated location when using the heater.
• The fire protection grille does not offer adequate protection for toddlers or infirm persons.
• Do not use this heater in the direct vicinity of a bathtub, a shower or a swimming pool.
• Do not commission an appliance which has been dropped.
• Do not use the product if you notice any visible damage.
  ■ The heater must be placed on a firm, flat and horizontal floor.
  If the supply cable for this appliance is damaged, it must be replaced by the manufacturer or his customer service or a similarly qualified person in order to avoid any dangers.

- No user action is required to set the product to 50 or 60 Hz or to 220 or 240 V. The product automatically adjusts to the correct frequency or voltage.

2.1 General Safety Instructions

WARNING! FIRE RISK!

Never use the appliance near or under curtains and other combustible materials such as furniture, cushions, bedding and curtains.

This device can be used by children aged from 8 years and above and by physically, sensory or mentally restricted persons if they are supervised or given instructions on safe use and understand the hazards involved as it does not require any experience or knowledge.
This device is not a toy for children to play with!
- Cleaning and user maintenance shall not be carried out by children without supervision.
Children under the age of 3 are to be kept away unless they are continually supervised.
Children between the age of 3 and 8 are only allowed to switch the device on or off if they are supervised or given instructions on safe use and understand the hazards involved, provided that it has been placed or installed in its intended normal operating position. Children between the age of 3 and 8 shall not plug in, regulate and clean the heater or perform user maintenance!

Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

Beware of hot surfaces!

CAUTION: Some parts of the product can become very hot and cause burns. Pay particular attention when children and vulnerable people are present.

Danger to life by electrical current!

Contacting the live cables or components is dangerous to your life!

In outdoor areas, the mains plug may only be plugged into an IP44 socket!

3. Before commissioning

3.1 Device Installation

Remove all packaging material and all transport bracing from the device. Check that the package contents are complete and undamaged.

For a safe and trouble-free running of the device, choose the installation location which meets the following requirements:

■ The floor should be firm, flat and horizontal.
Do not place the device in a hot and wet or very humid environment or near combustible material.
The socket should be easily accessible so that the mains connection cable can be easily disconnected, if necessary.

4. Commissioning

NOTE: WHEN USING FOR THE FIRST TIME OR AFTER A LONG PERIOD OF NON-USE, THERE MAY BE A SLIGHT ODOUR AND SMOKE FOR A SHORT TIME. THIS IS NOT A MALFUNCTION AND DOES NOT CONSTITUTE A SAFETY HAZARD.

4.1 Switching on the unit

■ Make sure that the on/off switch 3 is in the "0" position.
■ Then connect the appliance to an earthed socket protected by a residual current circuit breaker.
Now switch on the unit by pushing the on/off switch 3 upwards to "I".
■ The on/off switch 3 lights up red.

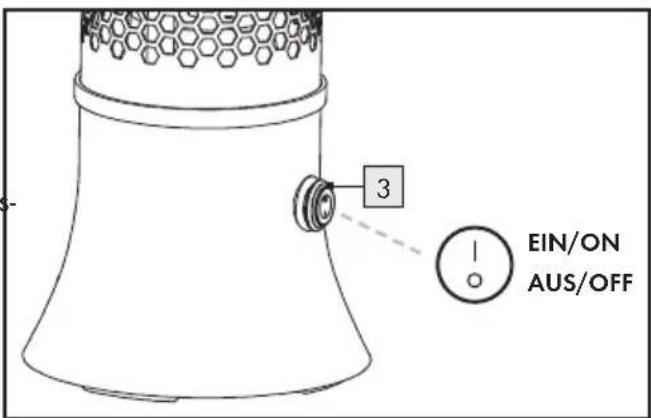

4.2 Switching off the unit

• Switch off the unit by pressing the on/off switch 3 down to "0".
  ■ The red light in the on/off switch 3 goes out.

3 EIN/ON AUS/OFF

⚠️ Wait until the appliance has cooled down before covering it or putting it away.

5. Protective devices for the appliance

5.1 Tip-over protection

This appliance is equipped with a tip-over protection. If the appliance is accidentally knocked over or subjected to a strong inclination during operation, the appliance switches off automatically. The appliance operates only in the upright position.

6. Maintenance, cleaning and storage

CAUTION! DANGER FROM ELECTRIC SHOCK!

■ Always disconnect the power plug when the device is not in use and before any cleaning or in the event of operating faults!
Clean the device only when it is turned OFF and in a cooled condition.
■ Make sure that no moisture penetrates the device during cleaning to avoid irreparable damage to the appliance.
- Clean the housing with a slightly damp cloth and a mild flushing fluid. Do not use aggressive and/or abrasive cleaning agents.
■ Remove dust deposits on the fire protection grille 2 with a hoover.
■ Store the appliance in a dry and dust-free environment.

7. Disposal

The device packaging is made of environmentally friendly materials that you can dispose of at your local recycling centres.

FR LE TRI + FACILE ÉLÉMENTS D'EMBALLAGE BAC DE TRI

The Triman logo is valid in France only.

This product is subject to the European Directive 2012/19/EU. Do not dispose of the product in household waste, but via municipal collection points for material recycling! For information on how to dispose of the discarded device can be obtained from your local authority or city council.

Observe the marking on the packaging materials when separating the waste, they are marked with abbreviations (a) and numbers (b) with the following meanings: 1-7: Plastics/20-22: Paper and cardboard/80-98: Composite materials.

8. EU conformity

This product complies with all applicable European and national standards.

9. ROWI Germany GmbH Warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries or those made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 420389_2201) available as proof of purchase.
- You will find the item number on the type plate on the product, on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
- You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

PDF ONLINE www.lidl-service.com

At www.lidl-service.com you can download this manual as well as many other manuals, product videos and installation software. This QR code will take you directly to the Lidl service page (www.lidl-service.com) and allow you to open your operating instructions simply by entering the article number (IAN 420389_2201).

10. Service

If any problems occur during use of your ROWI Germany product, please proceed as follows:

Contact us

You can contact the service team of ROWI Germany at:

ROWI Germany GmbH

(free call from a German landline)

IAN 420389_2201

Most problems can be resolved with the skilled technical support of our Service Team.
