USER MANUAL KBC 36 MAGFORCE Fein
| KBC 36 MAGFORCE (**) KBC 36 MAGFORCE (**) | |||
| 7 273 23 ... 7 273 23 ... | |||
| U | V 220 ... 240 100...120 | ||
| P_1 | W | 1 | 2 |
| P_2 | W 680 680 | ||
| n_OR | /min, min ^-1 , rpm, r/min 660 660 | ||
| n_OL | /min, min ^-1 , rpm, r/min 130 130 | ||
| kg 8,5 8,5 | |||
| HSS, HM mm 12 26 40 2 ... 36 | |||
| HSS mm 16 16 Fe 400 | |||
| M12 | M12 | ||
| mm 32 32 | |||
| L_pA | dB(A) | 91,5 | 91,5 |
| K_pA | dB | 5 | 5 |
| L_wA | dB(A) | 104,5 | 104,5 |
| K_wA | dB | 5 | 5 |
| L_pCpeak | dB | 101,8 | 101,8 |
| K_pCpeak | dB | 5 | 5 |
| a_h | m/s ^2 | <2,5 | <2,5 |
| K_u | m/s ^2 | 1,5 1,5 | |
| T_a | °C | -5 ... +40 | -5 ... +40 |


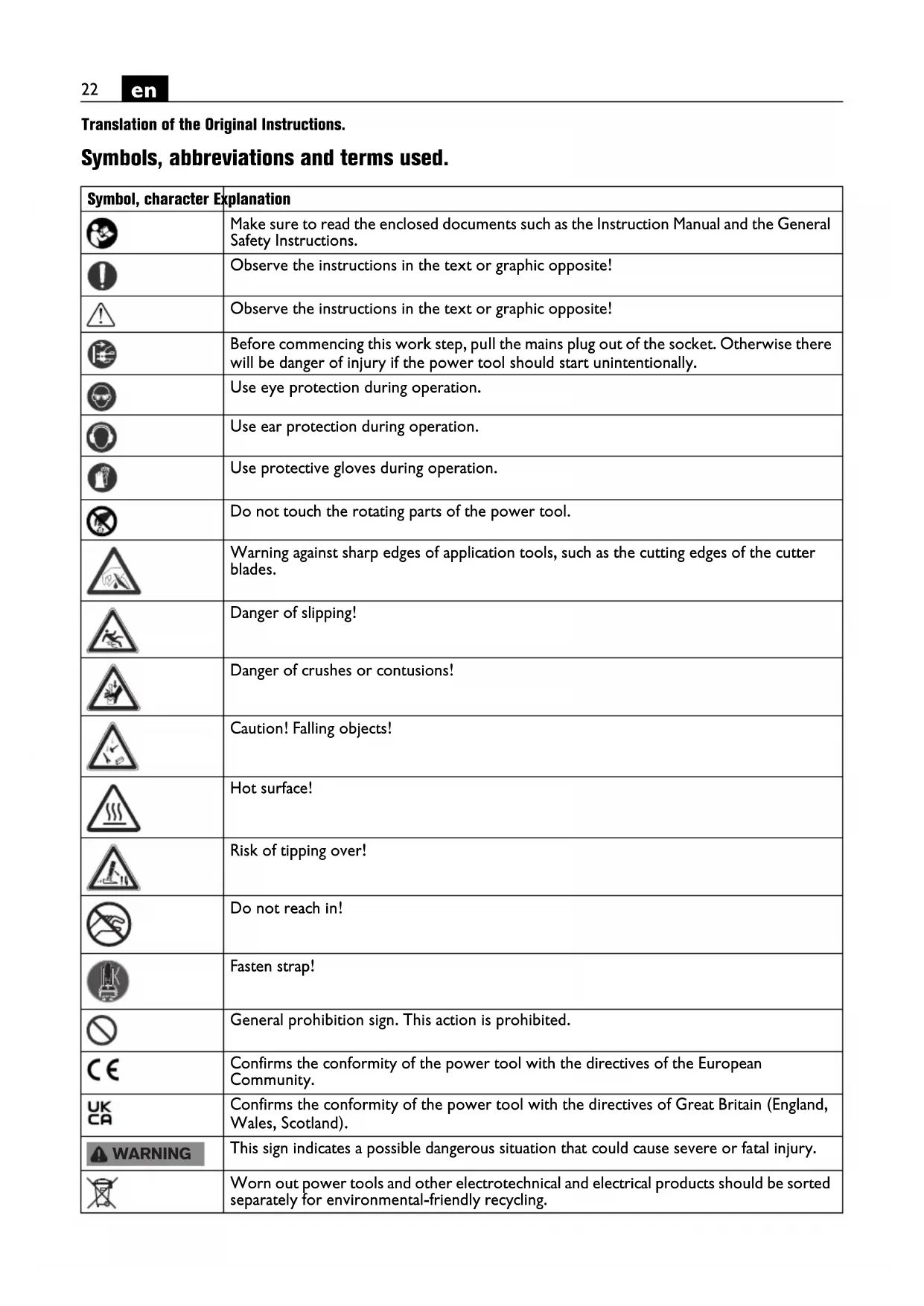

Symbols, abbreviations and terms used.
| Symbol, character Explanation | |
 | Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions. |
 | Observe the instructions in the text or graphic opposite! |
 | Observe the instructions in the text or graphic opposite! |
 | Before commencing this work step, pull the mains plug out of the socket. Otherwise there will be danger of injury if the power tool should start unintentionally. |
 | Use eye protection during operation. |
 | Use ear protection during operation. |
 | Use protective gloves during operation. |
 | Do not touch the rotating parts of the power tool. |
 | Warning against sharp edges of application tools, such as the cutting edges of the cutter blades. |
 | Danger of slipping! |
 | Danger of crushes or contusions! |
 | Caution! Falling objects! |
 | Hot surface! |
 | Risk of tipping over! |
 | Do not reach in! |
 | Fasten strap! |
 | General prohibition sign. This action is prohibited. |
| [SDG3] | Confirms the conformity of the power tool with the directives of the European Community. |
 | Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland). |
 RNING | This sign indicates a possible dangerous situation that could cause severe or fatal injury. |
 | Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling. |
 | Identifies recyclable packaging and products that must be collected and disposed of separately. |
| [W02H] | Protective ground |
| [Q2X] | Tap |
| [Q7Y3] | Steel |
 | Low speed |
 | High speed |
 | Additional information. |
 | See section “Operating Instructions” |
 | Magnetic holding power, sufficient |
 | Magnetic holding power, insufficient |
 | Fluid supply open. |
 | Switching on |
 | Switching off |
 | Applies only for China:The duration of environmental protection under normal use of the product is 10 years. |
 | Starts the drill motor. Rotation direction: clockwise |
 | Starts the drill motor in inch mode. Rotation direction: anticlockwise |
 | Speed reduction in steps |
 | Speed increase in steps |
 | Stops the motor |
 | Switches the magnet On/Off |
 | The PRCD personal protection switch (*) is switched on, the indicator is active. |
 | The PRCD personal protection switch (*) is switched off, the indicator is inactive. |
| (*) | Due to national health and safety regulations or to statutory regulations, the personal protection switch (PRCD) may be present in the country of placing on the market. |
| (**) May contain numbers and letters | |
| (Ax - Zx) Marking for internal purposes | |
| Character Unit of measurement | international | Explanation |
| P_1 | W Power input | |
| P_2 | W Output | |
| n_OR | /min, min ^-1 , rpm, r/min No-load speed (clockwise) | |
| n_OL | /min, min ^-1 , rpm, r/min No-load speed (anticlockwise) | |
| in | inch Size | |
| UV | R | a t |
| fHz Frequency | ||
| M... | mm Size of metric thread | |
| ∅ mm Diameter of a round part | ||
| HM mm Max. capacity in steel with up to 400 N/mm | ^2_- TCT (core drill bit) | |
| HSS mm Max. capacity in steel with up to 400 N/mm | ^2_- high speed steel (core drill bit) | |
| HSS mm Max. capacity in steel with up to 400 N/mm | ^2_- high speed steel (twist drill bit) | |
| mm Max. drill chuck capacity | ||
| mm Counterboring diameter | ||
| kg Weight according to EPTA-Procedure 01 | ||
| T_a | °C | Allowable ambient temperature |
| L_pA | dB(A) | Sound pressure level |
| L_wA | dB(A) | Sound power level |
| L_pCpeak | dB Peak sound pressure level | |
| K... | Uncertainty | |
| a | m/s ^2 | Vibrational emission value according to EN 62841 (vector sum of three directions) |
| a_h | m/s ^2 | Mean vibrational value for core drilling |
| m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s ^2 | Basic and derived units of measurement from the international system of units SI. | |
For your safety.
WARNING
Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General
Safety Instructions" (document number 3 41 30 465 06 0). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.
Please also observe the relevant national industrial safety regulations.
Intended use of the power tool:
Magnetic core drill unit for drilling with core drill bits and solid drill bits with a maximum diameter of 36 mm, countersinking and tapping on materials with magnetisable surfaces for commercial use in weather-protected environments using the application tools and accessories (see www.fein.com) recommended for the product by FEIN.
The carrying handle is used for transporting the machine.
In environments subject to interference, a reduction of the operating quality is possible; this can include temporary failure, temporary reduction of the function or the intended operating behaviour, for the correction of which intervention by the operator is required.
This power tool is also suitable for use with AC generators with sufficient power output that correspond to the Standard ISO 8528, design type G2. This Standard is particularly not complied with when the so-called distortion factor exceeds 10 %. When in doubt, please refer to the generator instruction/specification guide. Observe the operating instructions and the national regulations for the installation and operation of the AC generator.
WARNING
Operating the power tool off power generators whose no-load speed
exceeds the voltage value on the type plate of the power tool is prohibited.
These appliances are not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Foreseeable improper use.
For safe operation of the product and to exclude misuse, the following is prohibited:
- Unauthorized modifications
-Use not as intended for
-Non-observance of the operating instructions
-Transporting via cable
-Use of drill bits with a diameter greater than 36 mm.
-Drilling in non-magnetisable materials.
-Automated industrial continuous use
-Exceeding the use in accordance with local occupational safety regulations
-Carrying out series drilling in confined drilling locations with insufficient air supply.
-Covering or taping off the ventilation openings.
—Fastening the magnetic core drill unit via the housing with screw clamps or similar.
Safety instructions.
When performing drilling that requires the use of a fluid, route the fluid away from the operator's work area or use a fluid collection device. Such precautionary measures keep the operator's work area dry and reduce the risk of electrical shock.
Operate the power tool by the insulated grasping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.
Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
Wear hearing protection when drilling. Exposure to noise can cause hearing loss.
When the bit is jammed, stop applying downward pressure and turn off the tool. Investigate and take corrective actions to eliminate the cause of the bit jamming.
When restarting a drill in the workpiece, check that the bit rotates freely before starting. If the bit is jammed, it may not start, may overload the tool, or may cause the drill to release from the workpiece.
When securing the drill stand with anchors and fasteners to the workpiece, ensure that the anchoring used is capable of holding and restraining the machine during-guse. If the workpiece is weak or porous, the anchor may pull out causing the drill stand to release from the workpiece.
Ensure there is sufficient vacuum before and during drilling. If the vacuum is insufficient, the pad may release from the workpiece.
Never perform overhead and wall drilling with the machine secured by the vacuum plate only. If the vacuum is lost, the vacuum plate will release from the workpiece.
When drilling through walls or ceilings, ensure to protect persons and the work area on the other side. The bit may extend through the hole or the core may fall out on the other side.
Do not use this tool for overhead drilling with fluid supply. Fluids entering the power tool will increase the risk of electric shock.
Have the protective cable bushing replaced immediately when damaged. A defective protective cable bushing can lead to overheating of the machine.
Special safety instructions.
Wear personal protective equipment. Depending on the application, use a face shield, safety goggles or safety glasses. Wear ear protection. The safety glasses must be capable of protecting against flying particles generated by the various different operations. Prolonged exposure to high intensity noise may cause loss of hearing.
Do not touch the sharp edges of the core drill bit. Danger of injury.
To avoid injuries, check the core drill bits prior to starting the work. Use only undamaged core drill bits that are not deformed. Damaged or deformed core drill bits can cause serious injury.

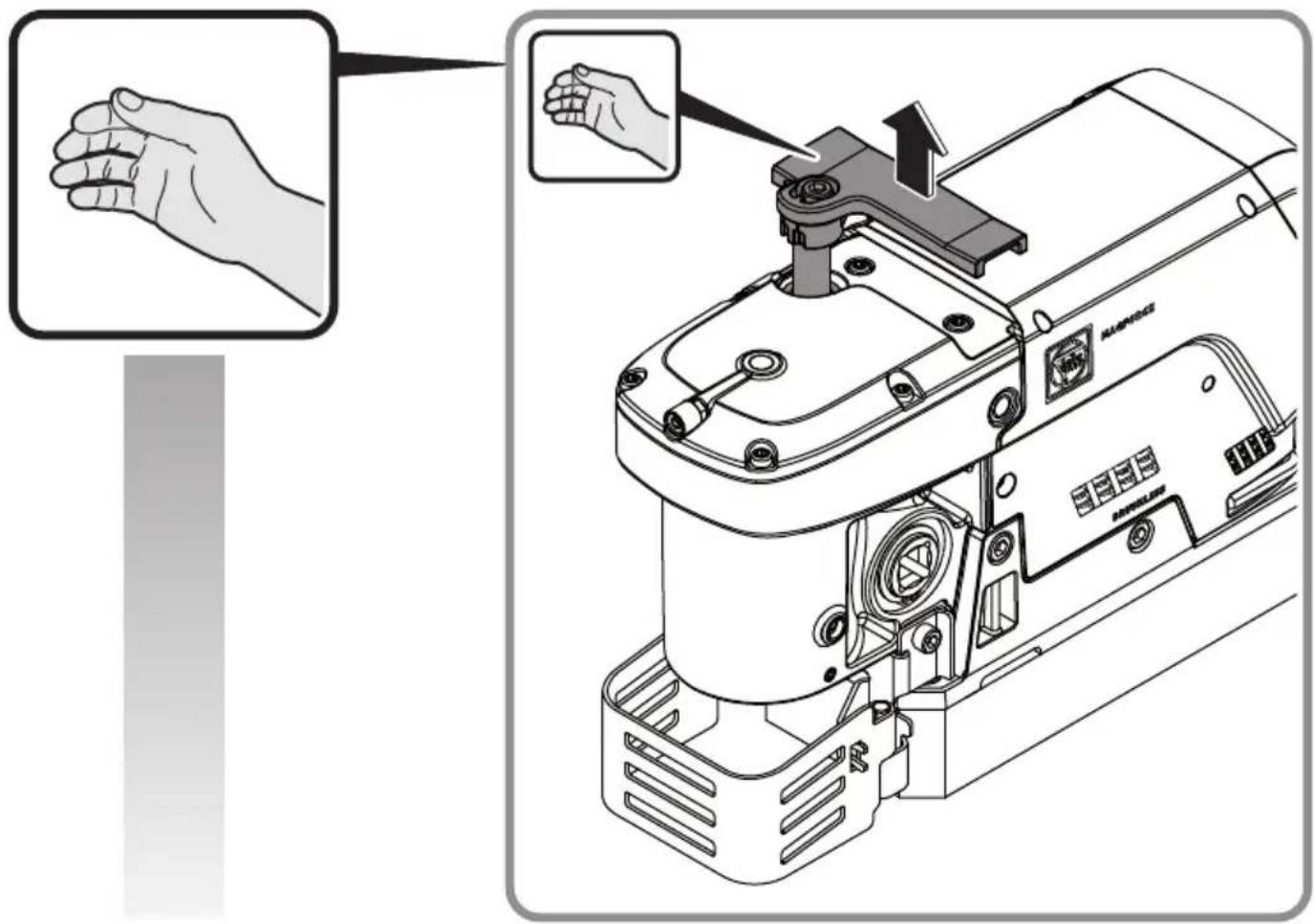

Before putting into operation: Mount the chip guard to the machine.

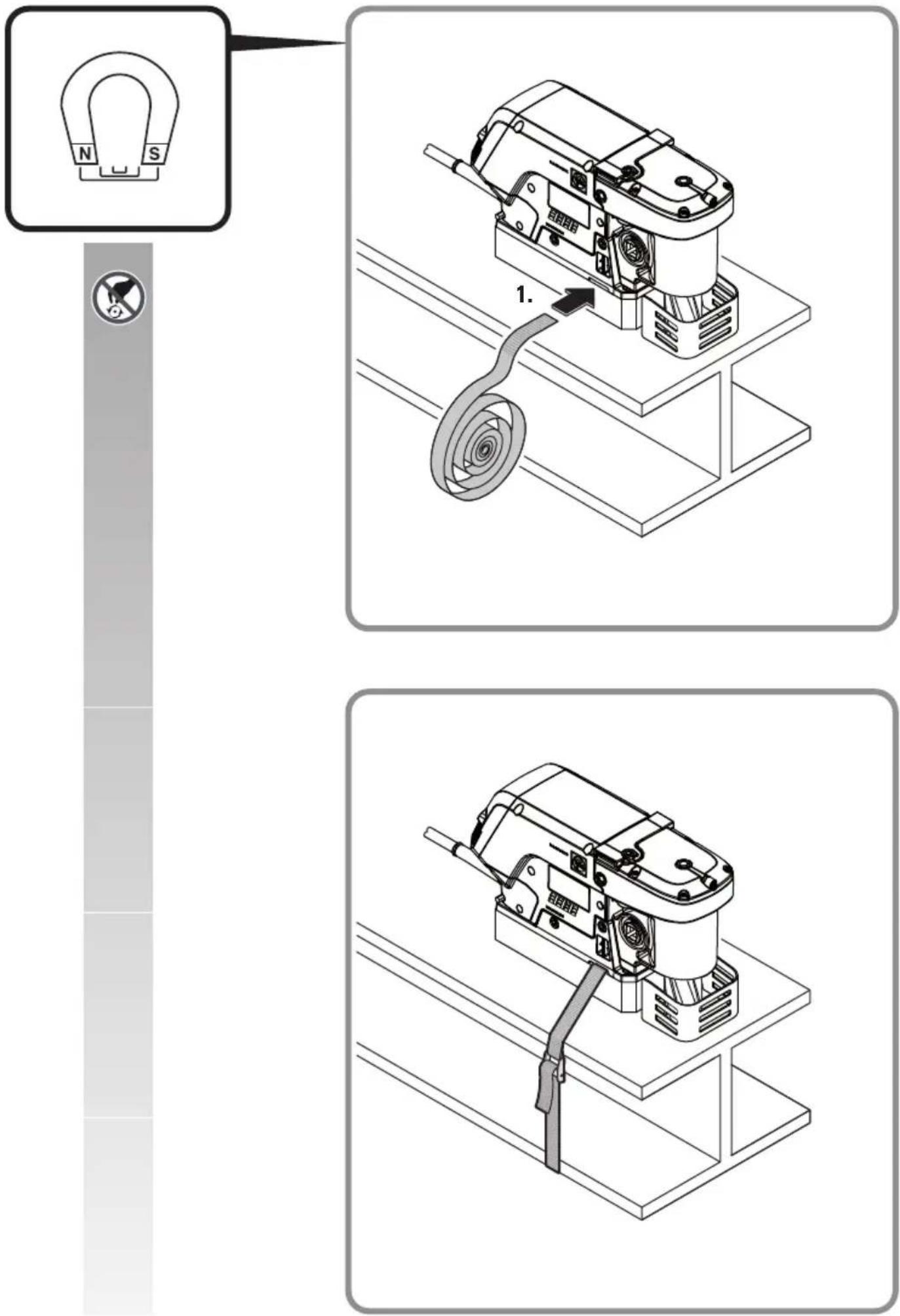

Always secure the machine with the supplied safety strap. Especially on inclined or uneven surfaces there is risk of unsecured machines tipping over.
When working overhead, beware of falling objects, such as cores or chips.
Inspect the safety strap each time before using for damage such as cracks, cuts, nicks and breakage in the webbing, strong signs of wear and/or corrosion of the end fittings and tensioning elements, as well as a missing or unreadable label. Replace the safety strap immediately in case of any defects.
When working overhead or on vertical surfaces, the coolant container must not be used. Use a coolant spray instead. Liquids penetrating your electric power tool may cause electric shock.
Avoid touching the drilled core that is automatically ejected by the centering pin when the working procedure is finished. Contact with the core when it is hot, or if it falls, can cause personal injuries.
Operate the power tool only from grounded sockets that comply with the specifications. Do not use any connection cables that are damaged; use extension cables with a grounding contact that are checked at regular intervals. A ground conductor without continuity can cause an electric shock.
To prevent injuries, always keep your hands, clothing, etc. away from rotating swarf. The swarf can cause injuries. Always use the chip guard.
Do not attempt to remove the cutting tool if it still turns. This can lead to serious injuries.
Beware of any concealed electric cables, gas or water conduits. Check the working area before commencing work, e.g. with a metal detector.
Do not work with materials containing magnesium.
Danger of fire.
Do not work with CFRP (carbon-fiber-reinforced polymer) and materials containing asbestos. These materials are considered carcinogenic.
Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective.
Do not overload the power tool or the storage case and do not use it as a ladder or stand. Overloading or standing on the power tool or the storage case can lead to the upward shifting of the centre of gravity of the power tool or the storage case, and its tipping over.
Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.
Clean the ventilation openings on the power tool at regular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accumulation of metallic dust can cause an electrical hazard.
Before storage: Remove the application tool.
Store the power tool only in the case or packaging.
Before putting into operation, check the mains connection and the mains plug for damage.
Always operate the power tool with together with a PRCD personal protection switch (*). Before beginning to work, always check the proper functioning of the PRCD personal protection switch (*) (see page 27).
Vibration and noise emission values
The vibration and noise emission values given in these instructions have been measured according to a measurement method standardised in EN 62841 and can be used to compare power tools with each other. They are also suitable for a preliminary assessment of vibration and noise exposure.
The given vibration and noise emission values represent the main applications of the power tool. However, if the power tool is used for other applications, with deviating application tools or insufficient maintenance, the overall vibration values and the noise emission values may differ. This can significantly increase the vibration and noise exposure over the total working period.
For an accurate estimation of vibration and noise exposure, the durations when the equipment is switched off or running but not actually in use should also be taken into account. This may significantly reduce the vibration and noise exposure over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration and noise such as: Maintain the power tool and the accessories, keep the hands warm, organization of work patterns.

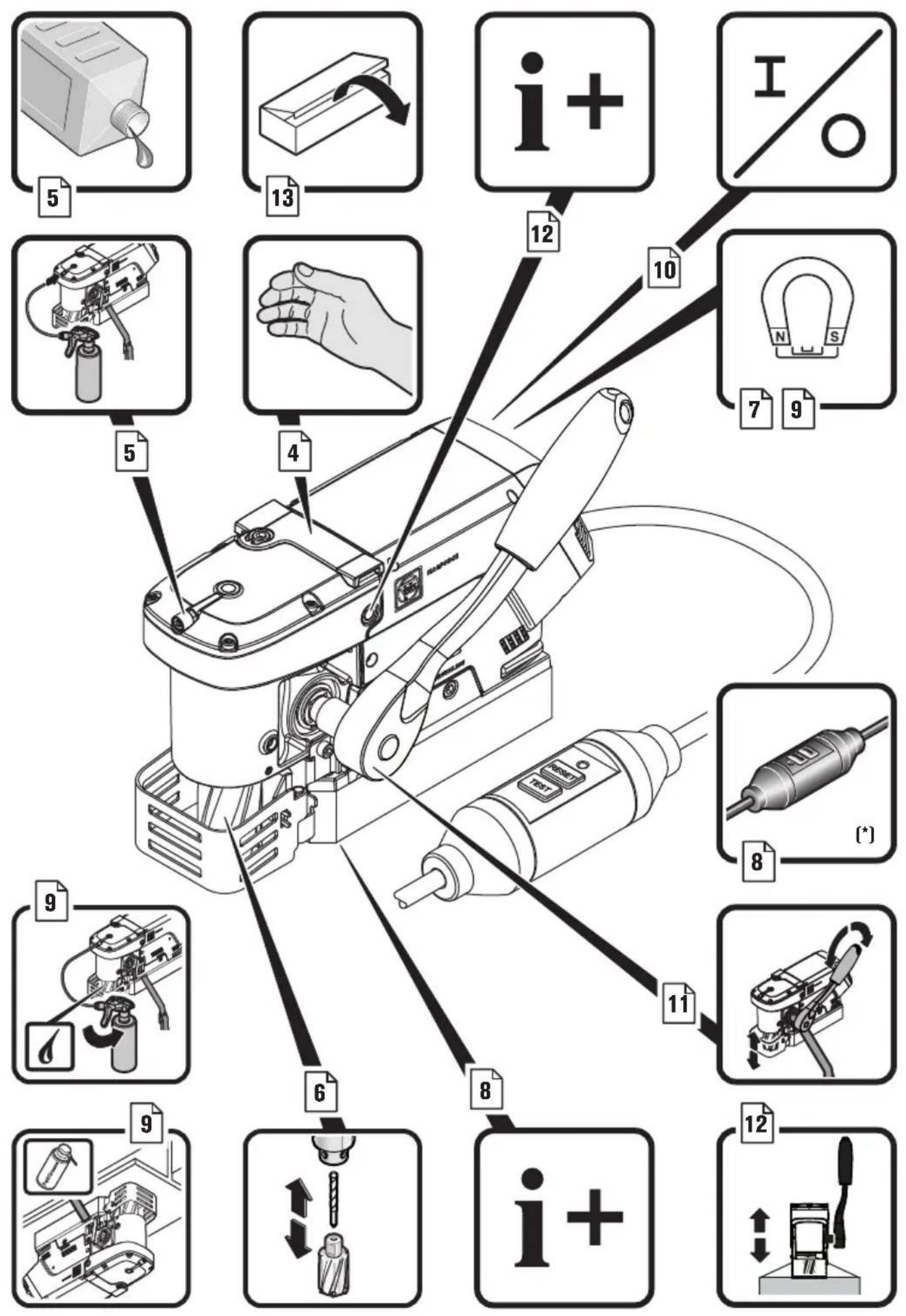

Operating Instructions.

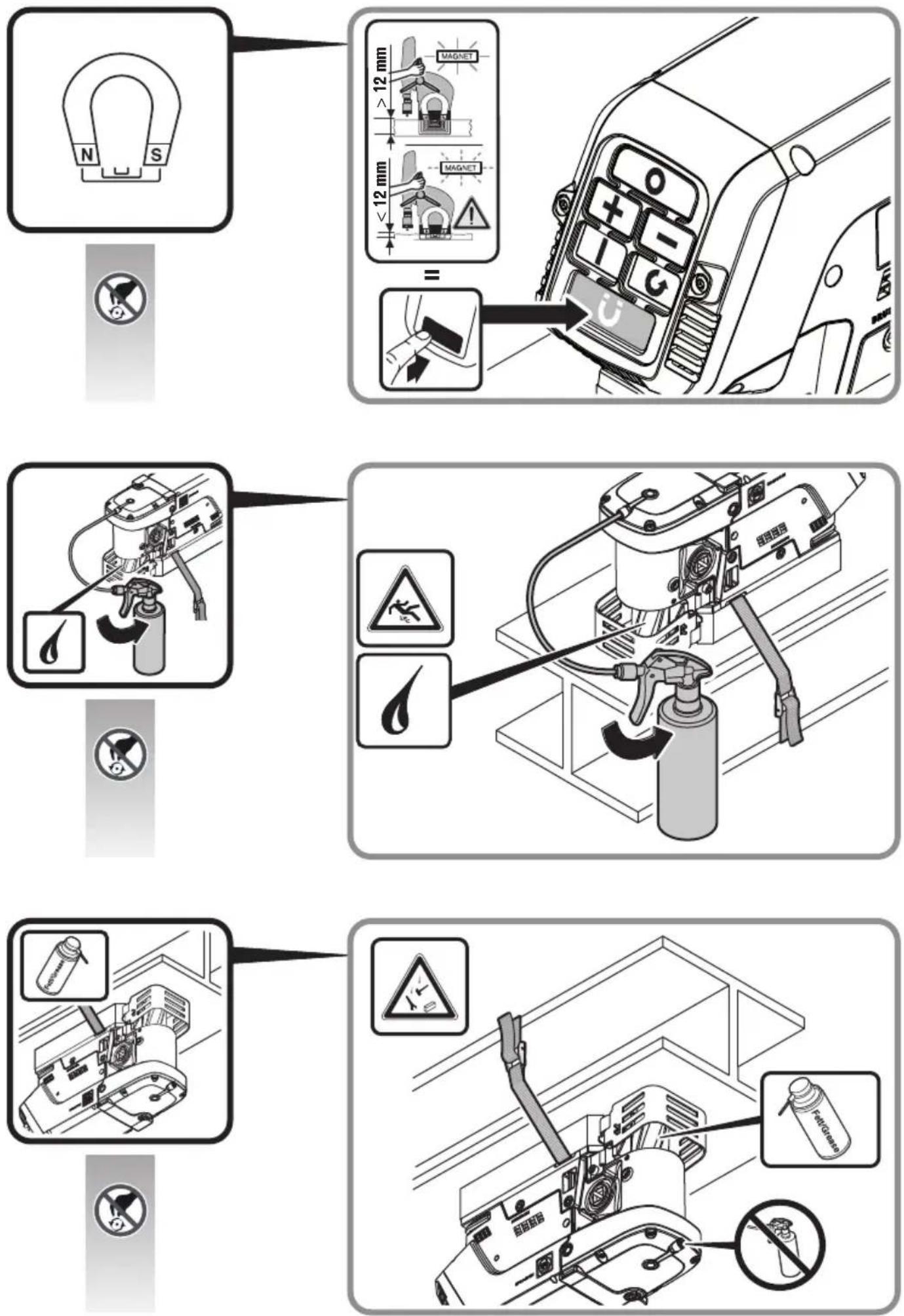

Only use water-soluble cutting fluids (oil in water) as the cooling agent.
Observe the manufacturer's instructions on coolant.
Pay attention that the set-up surface for the magnetic foot is flat, clean, rust-free and ice-free. Remove varnish, putty/filler layers and other materials. Prevent an air gap between the magnetic foot and the set-up surface. The air gap reduces the magnetic holding power. Do not operate this machine on hot surfaces; it could lead to a permanent reduction of the magnetic holding power.
Drilling process
-
Position the machine on the set-up surface.
-
Switch the magnet on.
-
Secure the machine with a safety strap.
-
Start the drilling operation.
If the machine is placed on the set-up surface with the magnet already switched on, an error is recognised and the motor cannot be started. In this case, the machine must be disconnected from the power supply.
Procedure for jammed application tools
-
Switch the machine off.
-
Disconnect the machine from power supply.
-
Remove chips/swarf with the chip hook.
-
Allow the application tool to cool down.
-
Loosen and remove the jammed application tool using e.g. suitable pliers.
Only undamaged application tools may be used for further operation.
When working, always use the magnetic foot; pay attention that the magnetic holding power is sufficient:
- When the green button on the control panel lights up permanently, the magnetic holding power may be sufficient and the machine can be operated with normal feed.
- When the Magnet button on the control panel flashes, the magnetic holding power possibly is insufficient and the machine must be operated with reduced feed.
When working non-magnetic materials, suitable FEIN fastening devices, such as vacuum plates or pipe drilling devices, which are available as accessories, must be used. Observe the corresponding operating instructions for these.
When working on steel materials with a material thickness of less than 12 mm, the workpiece must be reinforced with an additional steel plate in order to guarantee the magnetic holding power.
The magnetic foot is monitored by means of a power sensor. If the magnetic foot is defective, the motor will not start.
In case of overload, the motor automatically stops and must be restarted again.
Work only with the absolutely required amount of feed. Excessive feed can lead to breakage of the application tool and loss of the magnetic holding power.
When the power supply is disconnected while the motor is running, a protective circuit prevents automatic restarting of the motor. Restart the motor again.

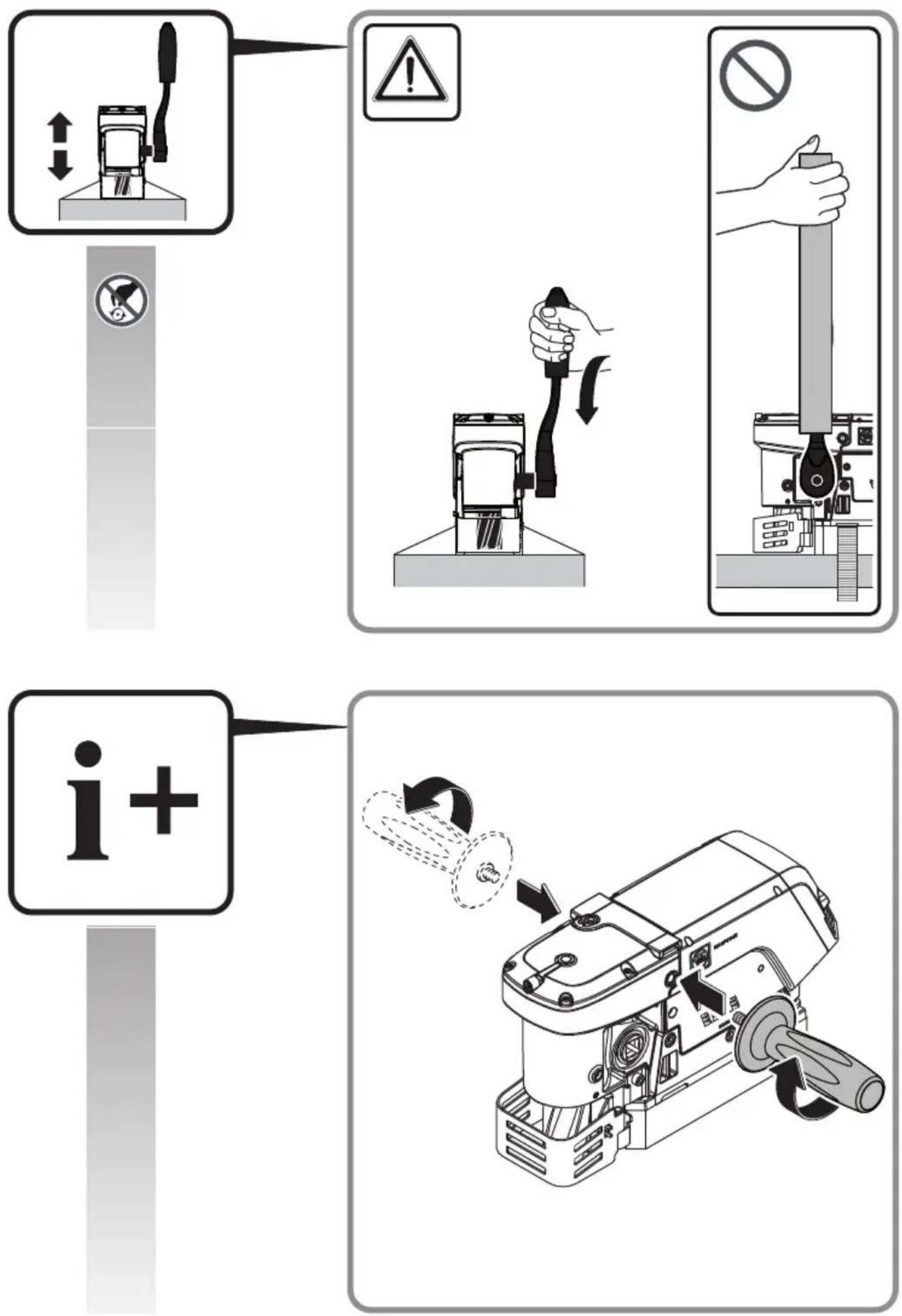

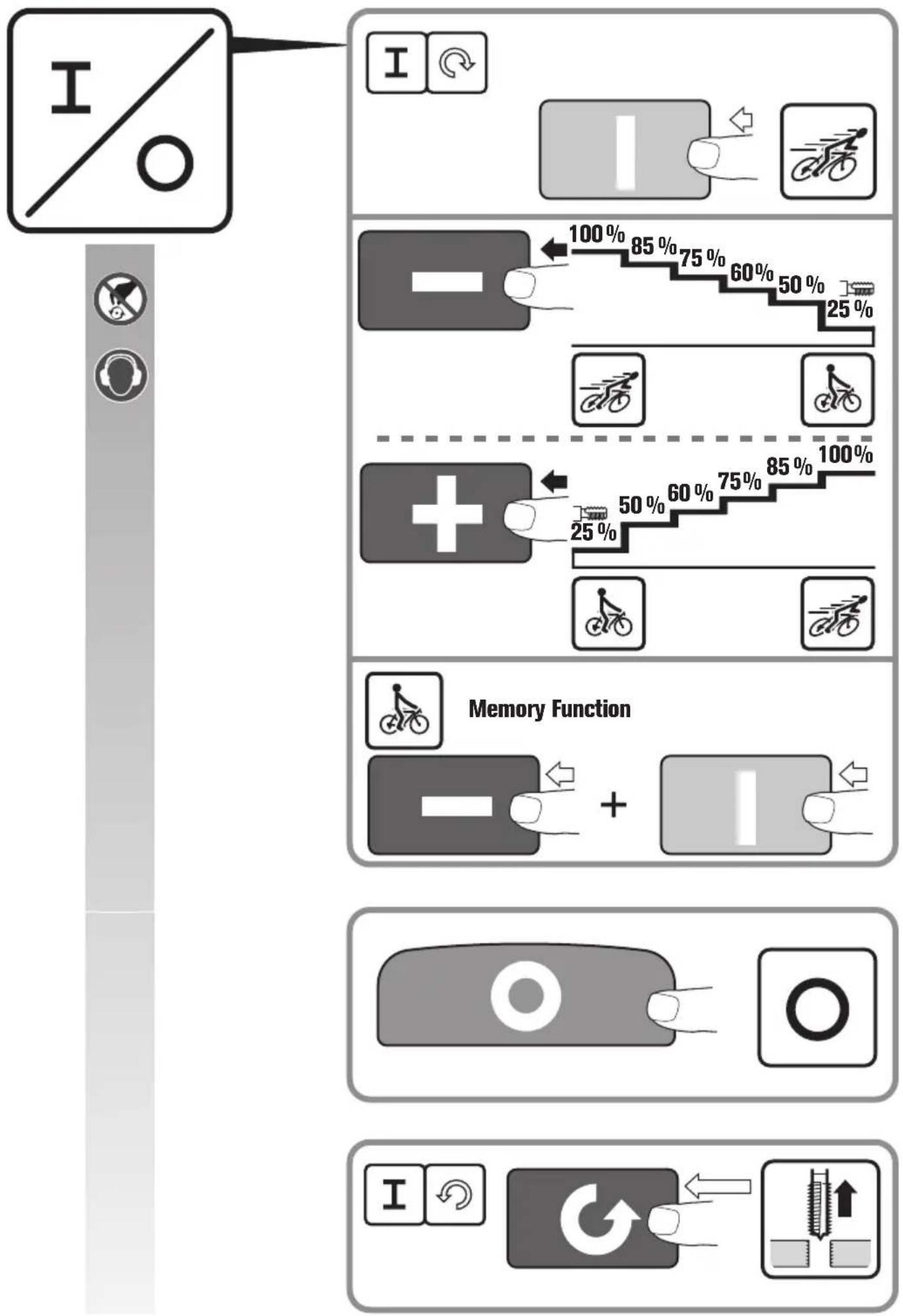

The last set speed is automatically stored (memory function). To start the power tool with the last set speed, press and hold the button with the symbol, and then press the button with the symbol.
Do not stop the drill motor during the drilling procedure.
Only remove the core bit from the drilled hole while the motor is running.
If the core bit should remain stuck in the material, stop the drill motor and carefully turn the core bit out counter-clockwise.
Remove the chips and the drilled core after each drilling process.
Do not touch the chips with your bare hands. Always use a chip hook (6 42 98 160 40 0).
Danger of burning! The surface of the magnet can reach high temperatures. Do not touch the magnet with your bare hands.

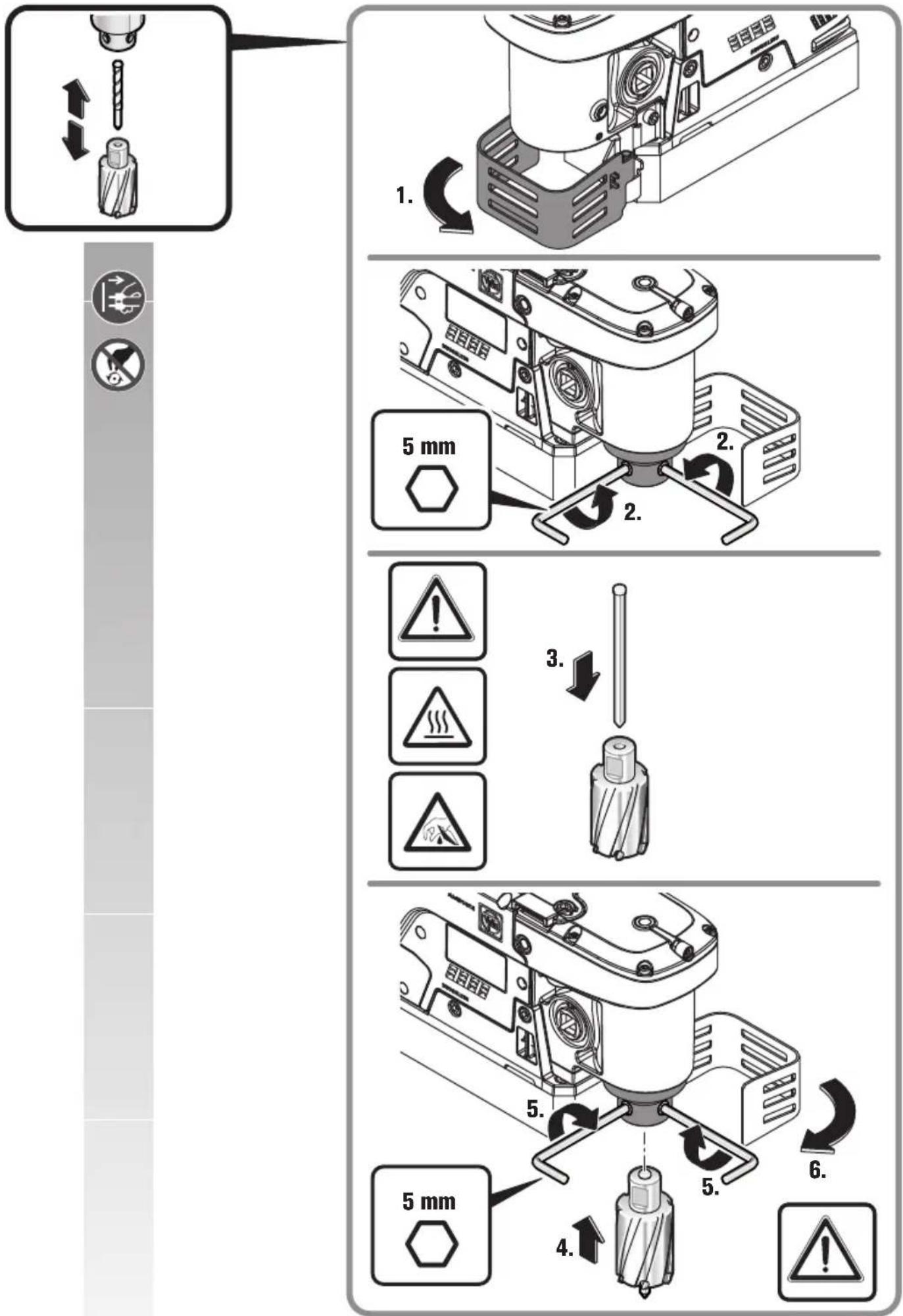

When changing a drill bit, pay attention not to damage the cutting edges.
When core drilling layered material, remove the core and the chippings after drilling each layer.

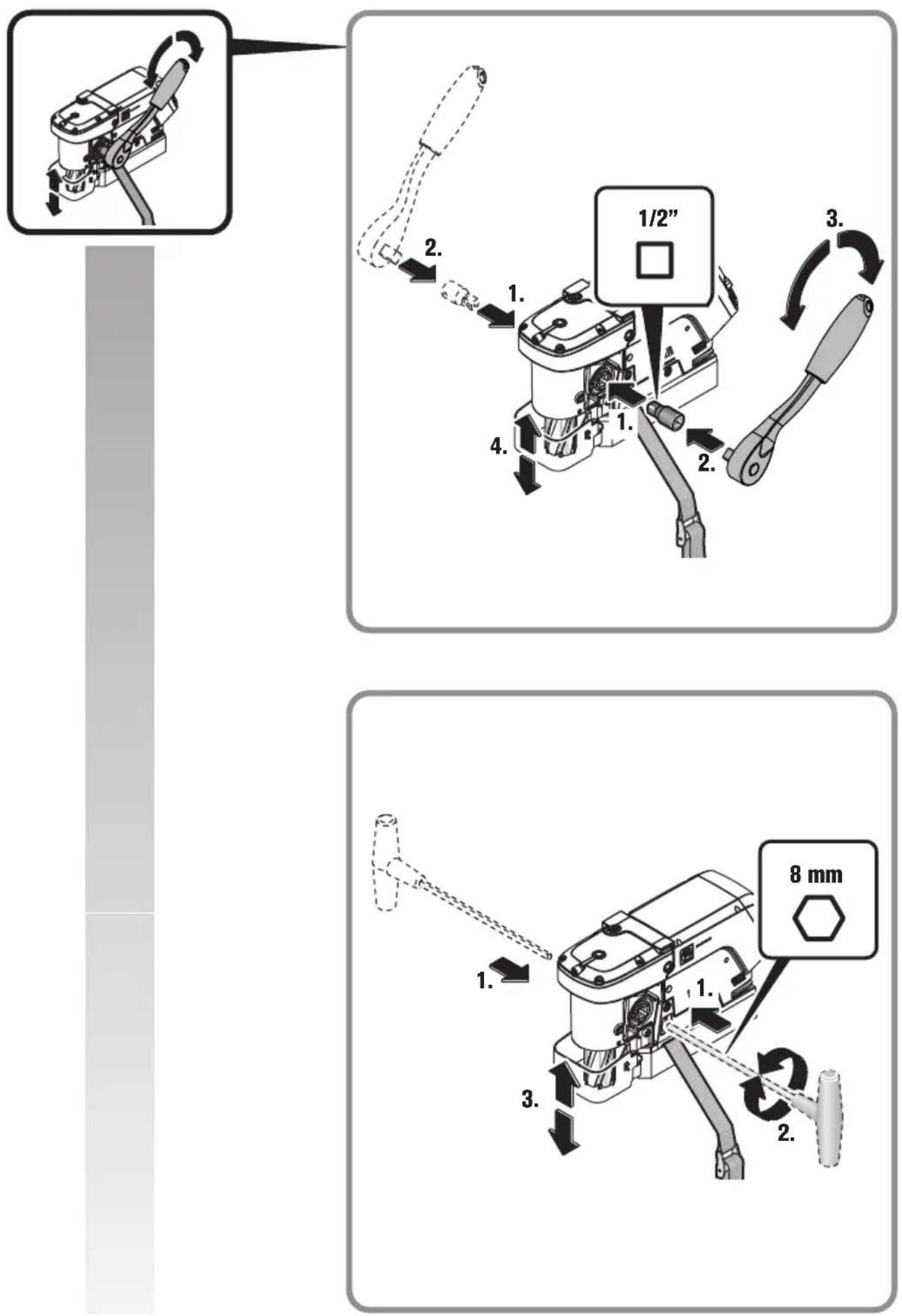

When readjusting the drill spindle for tapping, use only the supplied T-handle spanner or Allen key.

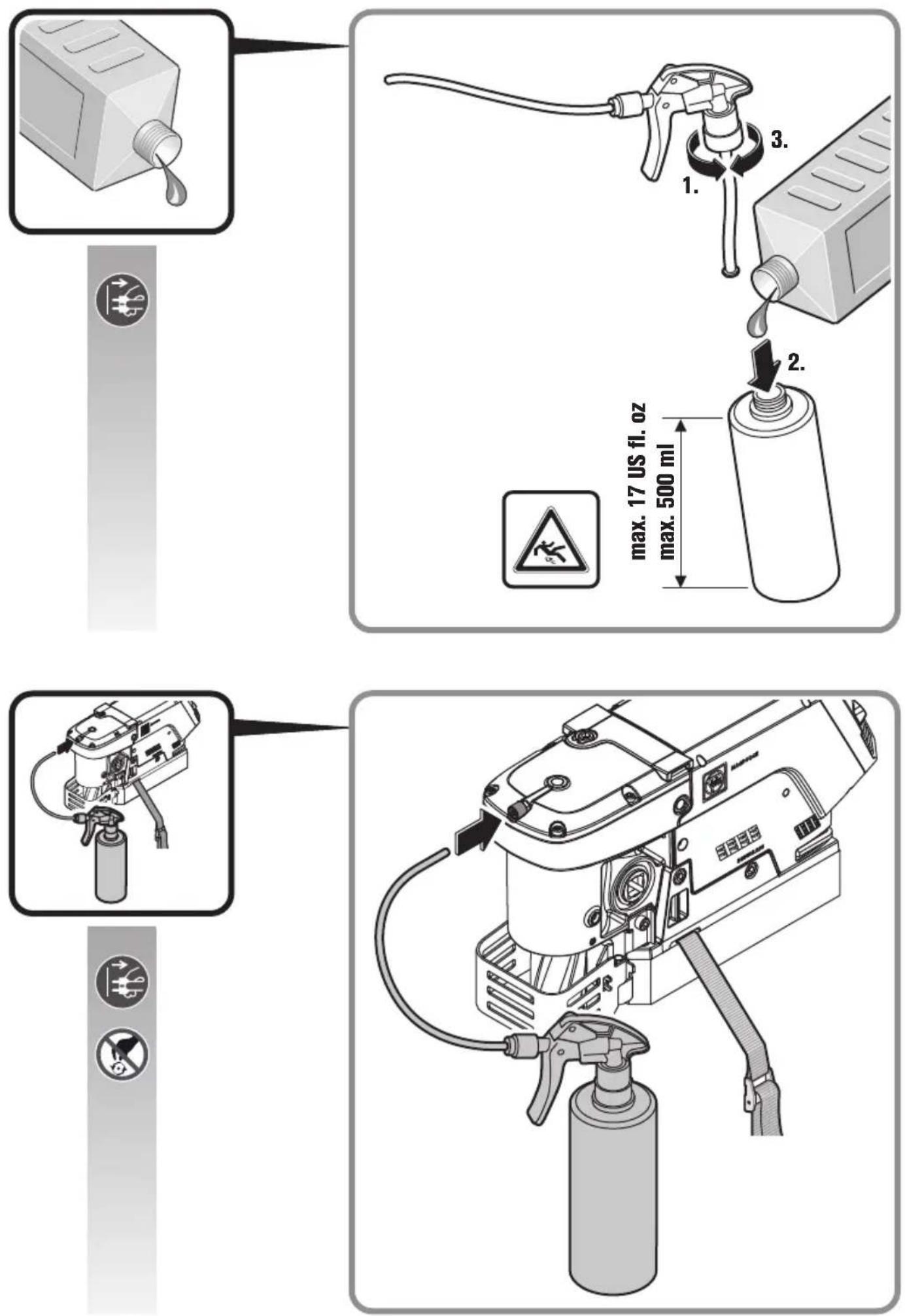

Do not use the magnetic core drill unit when the cooling-lubricant system is defective. Each time before operating, check for tightness against leaks and for cracks in the hoses. Prevent liquids from entering or penetrating electrical components.
| Error message/Response of Magnet Button | Meaning Corrective Action | |
| Indicator lights up green Magnetic holding power possibly sufficient. | - | |
| Indicator flashes green Magnetic holding power possibly insufficient. | Even when working on steel materials where the material thickness is below 12 mm, the work piece must be made thicker with an additional steel plate in order to ensure the magnetic holding power. | |
| Indicator lights up red for 1 second | -Motion sensor has actuated-Overload shut-off has actuated-Incorrect mains voltage | After malfunction correction, the power tool can be switched on again. |
| Indicator lights up red continuously | -Incorrect mains voltage/mains frequency-Button is blocked when switching on | After malfunction correction, the power tool can be switched on again.If the error occurs frequently, send the machine to your FEIN customer service agent. |
| Indicator flashes red continuously | Power tool is defective. Send the machine to your FEIN customer service agent. | |
PRCD personal protection switch (\*) (see page 8)
The PRCD personal protection switch is specifically intended for your protection. Do not use the PRCD personal protection switch for switching the product on and off.
If the personal protection switch is damaged, e.g. due to contact with water, do not use it any more.
The PRCD personal protection switch is indispensable; it is used for protection of the operator against electric shock. Under fault-free operation, the personal protection switch control lamp is active.
Check the operability of the PRCD personal protection switch before beginning to work:
- Connect the plug of the PRCD personal protection switch with the mains socket outlet.
- Press the RESET-button. The personal protection switch control lamp is active.
- Disconnect the plug from the mains socket outlet. The personal protection switch control lamp becomes inactive.
- Repeat steps 1. and 2.
- Press the TEST-button. The personal protection switch control lamp becomes inactive. In case the control lamp remains active, do not run the product. In this case, contact the customer service at www.fein.com.
- Press the RESET-button. When the control lamp is active, the product may be switched on.
Do not use the PRCD personal protection switch for switching the power tool on and off.
Repair and customer service.
When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power tool. The total insulation of the power tool can be impaired. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air.
Renew stickers and warning indications on the power tool when aged and worn.
When the machine's power supply cable is damaged, it must be replaced using a specially prepared power supply cable with PRCD personal protection switch (*), available from the FEIN customer service.
Products that have come into contact with asbestos may not be sent in for repair. Dispose of products contaminated with asbestos according to the applicable country-specific regulations for such disposal.
For FEIN power tools and accessories in need of repair, please contact your FEIN after-sales service. The address can be found on the Internet under www.fein.com.
Wear detection on the magnetic foot
Moving the machine tool on the set-up surface causes wear to the magnetic foot. This may result in air gaps between the magnetic foot and the set-up surface and the magnetic holding power can be reduced. For checking, the magnetic foot is provided with indentations. Check for wear each time before using the machine. If one of these indentations is no longer fully visible, the magnetic foot must be replaced (see page 8). Please refer to the FEIN customer service agent under www.fein.com.
Wear parts: Application tools, magnetic foot.
The current spares parts list for this power tool can be found on our website at www.fein.com.
Use only original spare parts.
If required, you can change the following parts yourself:
Application tools, coolant container, chip guard
Warranty and liability.
The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

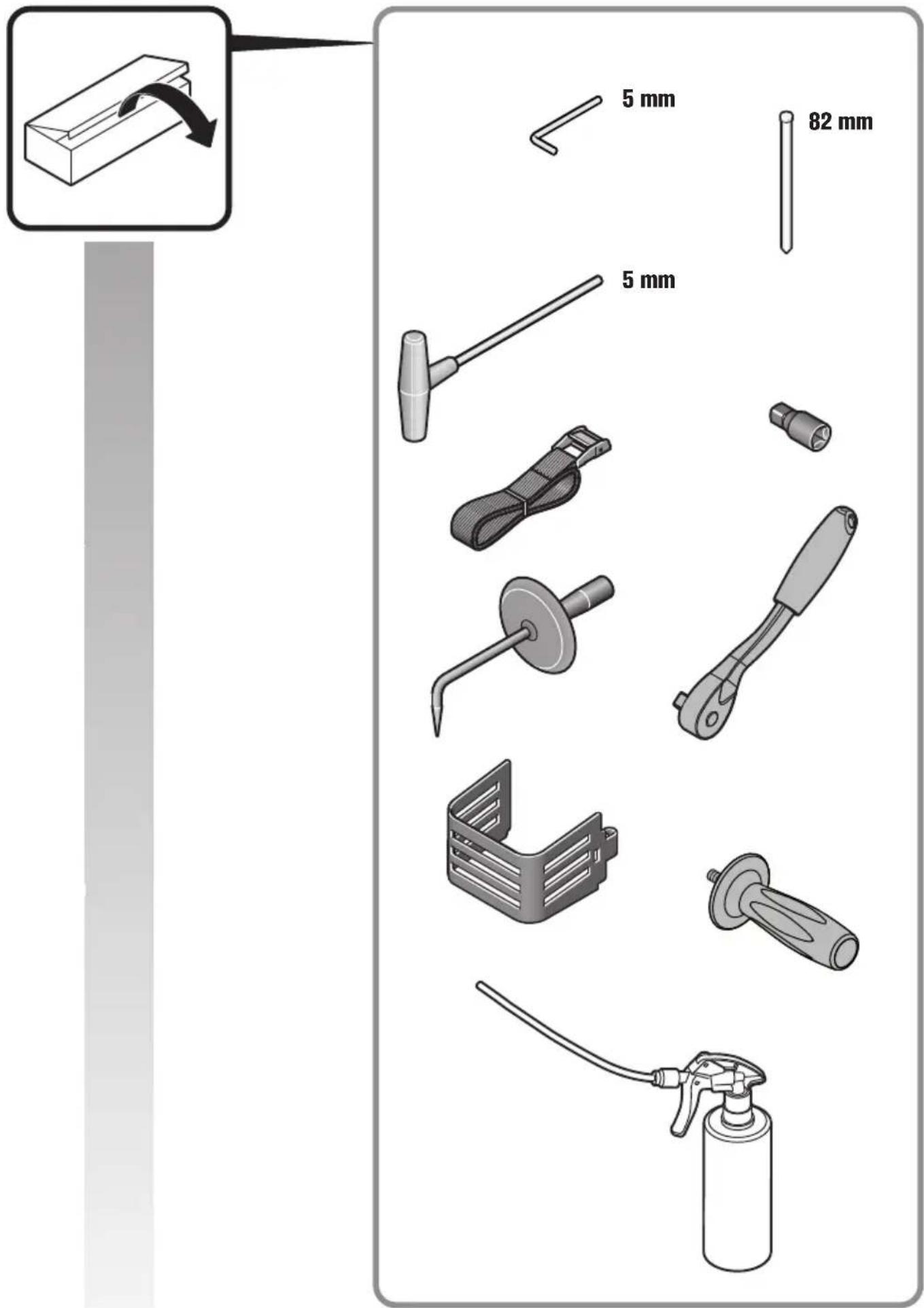

The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual.
Declaration of conformity.
This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.
The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.
Environmental protection, disposal.
Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling.
