Product Type	3D Line Laser Level
Brand	Laserliner
Model	SuperPlaneLaser 3D Plus
Dimensions (L x W x H)	85 x 125 x 130 mm
Weight (with batteries)	650 g
Power Supply	4 alkaline AA 1.5V batteries
Laser Class	2 / < 1 mW (EN 60825-1:2014/AC:2017)
Wavelength	650 nm
Accuracy	± 0.35 mm/m
Self-leveling Range	± 3°
Working Range (without receiver)	15 m
Working Range (with manual receiver)	40 m
Operating Time (3 laser planes)	Approx. 6 h
Operating Time (2 laser planes)	Approx. 10 h
Operating Time (1 laser plane)	Approx. 25 h
Operating Conditions	0 to 50 °C, 80% RH, max. altitude 4000 m
Storage Conditions	-10 to 70 °C, 80% RH
Main Functions	Self-leveling, tilt mode, manual receiver (RX-READY), transport lock
Safety	Laser class 2: do not look into the beam, directly or reflected
Maintenance and Cleaning	Clean with a slightly damp cloth; do not use solvents; remove batteries before prolonged storage
Repairability	Contact UMAREX-LASERLINER after-sales service for any adjustments or repairs
Tripod Thread	1/4" (bottom)

Frequently Asked Questions - SuperPlaneLaser 3D Plus Laserliner

How to turn on the device?

Unlock the transport lock (sliding switch) to the ON position. The horizontal laser line appears. Use the selection button to activate the desired laser lines.

What to do if the laser lines flash?

Flashing indicates the device is outside the self-leveling range of ±3°. Position the instrument so that it is within this range. If all lines flash for 3 seconds then turn off, the batteries are low (Low Bat.), replace them.

How to use tilt mode?

Do not unlock the transport lock. Set the switch to OFF, then press and hold the selection button for 3 seconds. The laser lines flash to indicate that the self-leveling is deactivated. You can then tilt the device as needed.

How to use the laser receiver?

Press and hold the selection button to activate manual receiver mode. The lines become darker and pulse at high frequency. Use a compatible laser receiver (optional) to detect lines over long distances or in high brightness.

How to check the calibration of the device?

Place the device in the center between two walls at least 5 m apart. Mark point A1, rotate the device 180° and mark A2. Place the device near the wall at the height of A1, rotate 180° and mark A3. If the difference between A2 and A3 exceeds 0,35 mm/m, adjustment is necessary.

What to do if the device does not level?

Check that the transport lock is unlocked (switch in ON position). If lines flash, the device is tilted more than 3°. Place it on a flatter surface or use a tripod.

How to replace the batteries?

Open the battery compartment located on the bottom of the device. Insert 4 alkaline type AA 1.5V batteries, observing polarity. Close the compartment.

What safety precautions should be observed?

Never look directly into the laser beam or its reflections. Do not use optical instruments to observe the beam. Avoid directing the laser toward people or animals. Cover nearby reflective surfaces.

Where to find the complete user manual?

The user manual is available free of charge in PDF format at notice-facile.com. You can download it or request a translation in your language.

How to clean the device?

Use a slightly damp cloth to clean the surfaces. Do not use cleaning products, solvents or abrasive materials. Remove batteries before prolonged storage and store the device in a dry, clean place.

USER MANUAL SuperPlaneLaser 3D Plus Laserliner

Exterior view of a LaserFilter 3D device (no signage or text beyond branding)

AUTOMATIC LEVEL
Laser 650 nm

Laserliner

!

Laserstrahlung!

Close-up of a handheld electronic device with internal components and labeled parts (no readable text or symbols)

Completely read through the operating instructions, the „Warranty and Additional Information” booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Three-dimensional laser with a horizontal and two vertical 360^ laser circles and slope function for aligning tiles, wall studding, windows, doors etc.

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.

Safety instructions

Using class 2 lasers

Warning symbol with a triangular triangle containing a central sunburst pattern (no text or numbers)

Laser radiation! Do not stare into the beam! Class 2 laser < 1 mW · 650 nm EN 60825-1:2014/AC:2017

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.
• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
• Under no circumstances should optical instruments (magnifying glass, microscope, binoculars) be used to look at the laser beam or reflections.
• Do not use the laser at eye level (1.40...1.90 m)
• Reflective, specular or shiny surfaces must be covered whilst laser devices are in operation.
• In public areas shield off the laser beam with barriers and partitions wherever possible and identify the laser area with warning signs.

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limits in accordance with the EMC Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Special product features

Automatic alignment of the device with a magnetically dampened pendulum system. The device is brought into initial position and aligns itself autonomously.

Transport LOCK: The device is protected with a pendulum lock during transport.

Laser diodes of the highest performance class produce extremely bright laser lines. They remain visible even on surfaces at great distances or on dark surfaces and under bright ambient light conditions.

RX-READY technology enables line lasers to be used even in unfavourable light conditions. The laser lines pulsate at a high frequency and this can be picked up by special laser receivers over long distances.

Number and direction of the lasers

H = horizontal laser

V = vertical laser

S = slope function

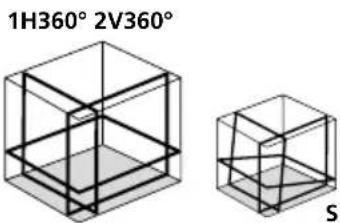

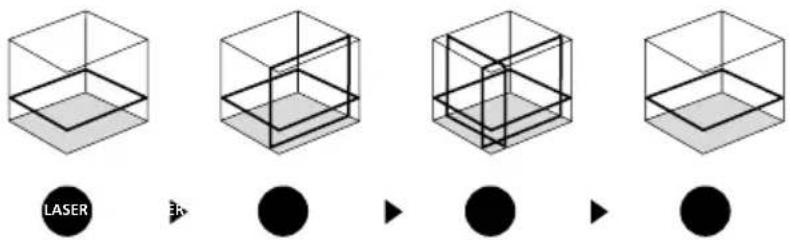

1H360° 2V360° S

1Inserting the batteries

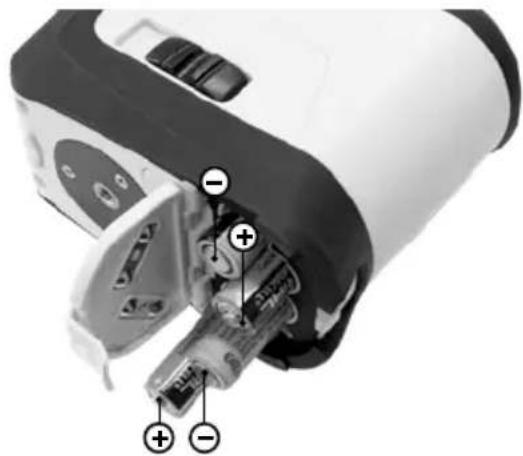

Open the battery compartment (3) and insert the batteries in accordance with the installation symbols, ensuring the correct polarity.

Close-up of a handheld electronic device with internal components and labeled ports (no readable text or symbols)

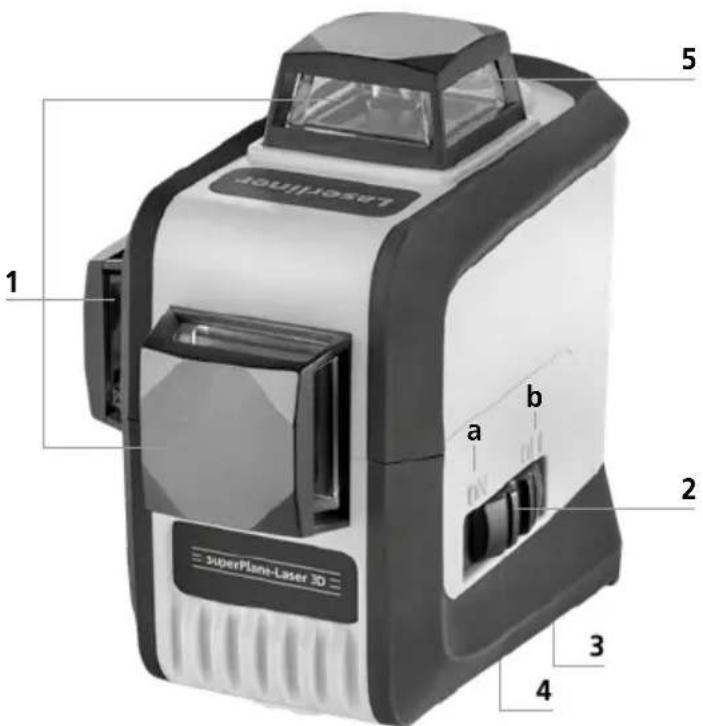

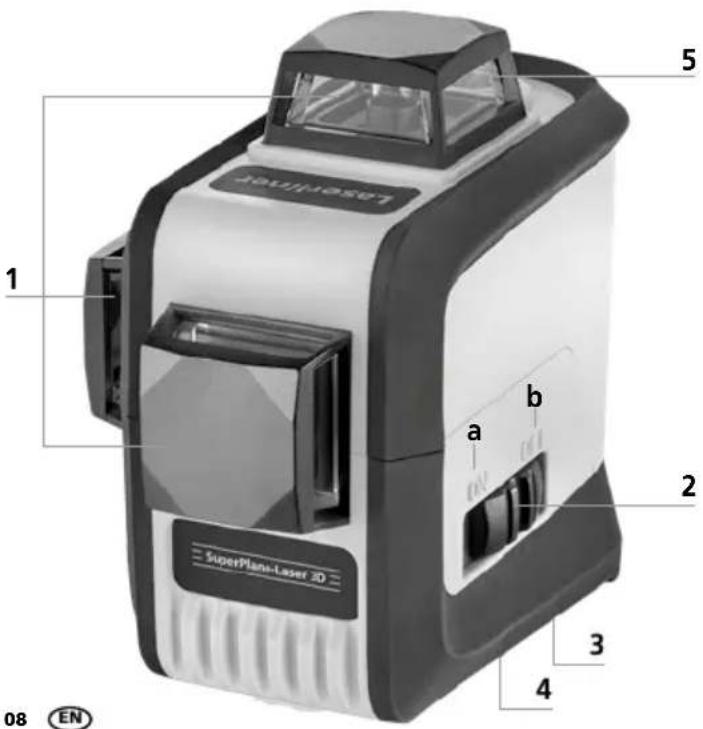

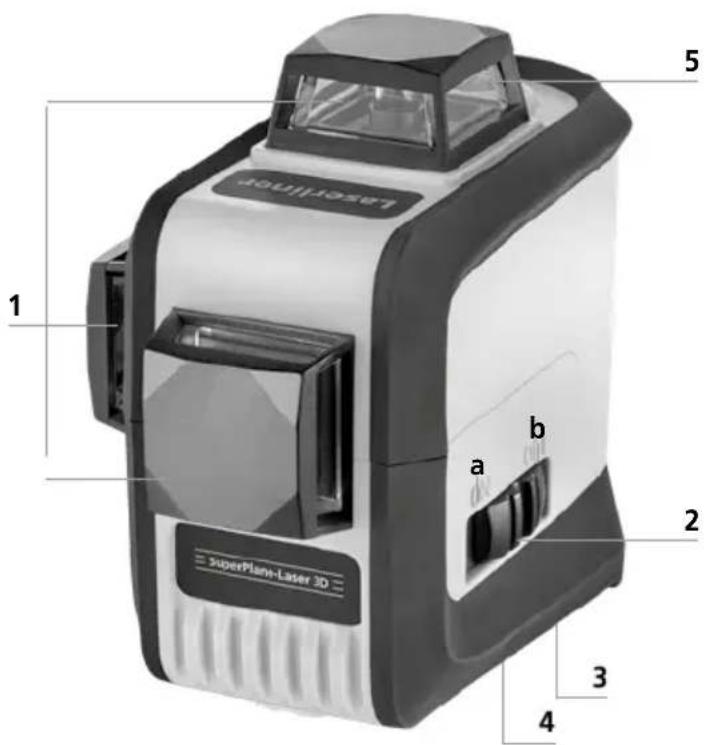

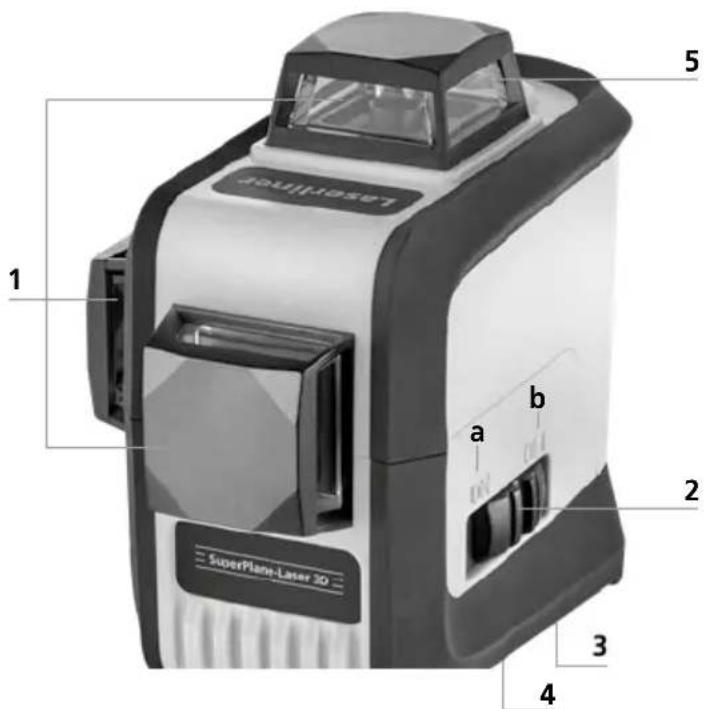

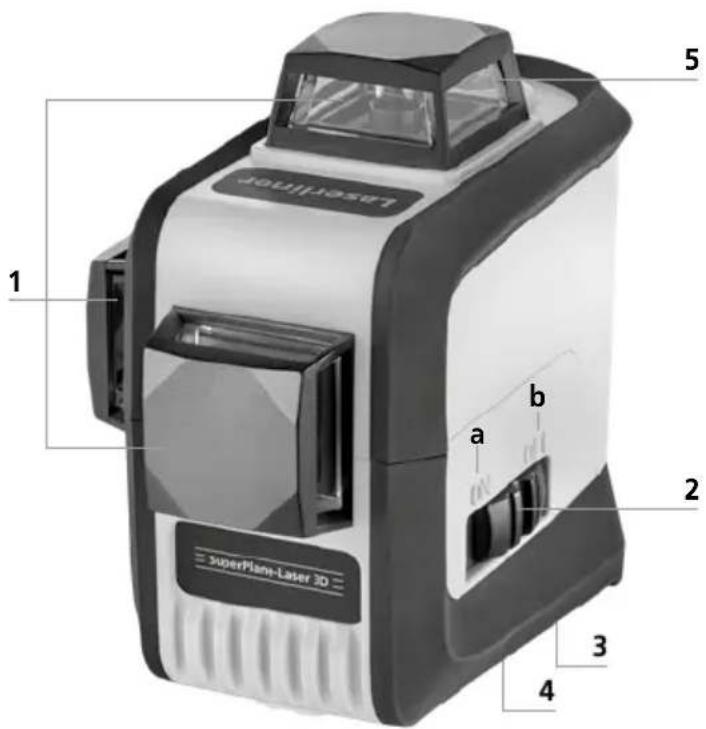

1 Laser emitting window

2 Slide switch

a ON

b OFF / Slope mode / Transport lock

3 Battery compartment (bottom)

4 1/4" tripod threads (bottom)

5 Laser line selection button / Slope mode on / Hand receiver mode on / off

When transporting always switch off all lasers, secure the pendulum and set the slide switch to "OFF"!

Low battery indicator: All laser lines flash for 3 seconds and then go out when the battery charge is low.

2Horizontal and vertical levelling

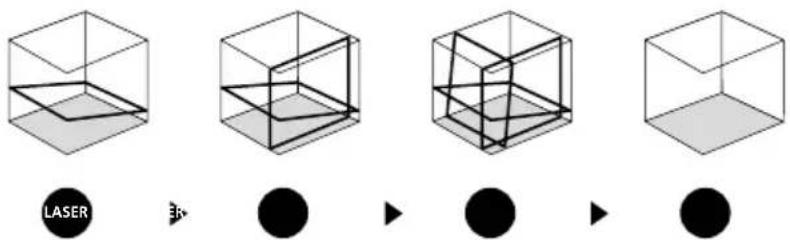

Release the transport restraint, set slide switch (2) to "ON". The horizontal laser line appears. The laser lines can be switched individually with the selection button.

The transport restraint must be released for horizontal and vertical levelling. The laser lines flash when the device is outside the automatic levelling range of 3^ . Position the device such that it is within the levelling range.

B Hand receiver mode

Optional: Working with the laser receiver RX

Use an RX laser receiver (optional) to carry out levelling at great distances or when the laser lines are no longer visible. To work with a laser receiver, switch the line laser to hand-held receiver mode by keeping button 5 (handheld receiver mode on / off) pressed. The laser lines will now pulsate with high frequency, making the laser lines darker. The laser receiver can detect these pulsating laser lines.

! Observe the laser receiver's operating instructions for line lasers.

Due to the special optics required to generate a continuous 360° laser line, the underlying technology may cause differences in brightness in different areas of the line. This may lead to different ranges in hand receiver mode.

4Slope mode

Do not release the transport restraint, set slide switch (2) to "OFF" and switch on slope mode by pressing and holding (3 seconds) button 5. Select the laser with the selector button (5). Sloping planes and tilts can now be measured. In this mode, the laser lines no longer align automatically. This is signalised by the laser lines flashing.

Preparing the calibration check:

It is possible for you to check the calibration of the laser. To do this, position the device midway between 2 walls, which must be at least 5 metres apart. Do this by turning the unit on, thus releasing the transport restraint (cross laser on). Please use a tripod.

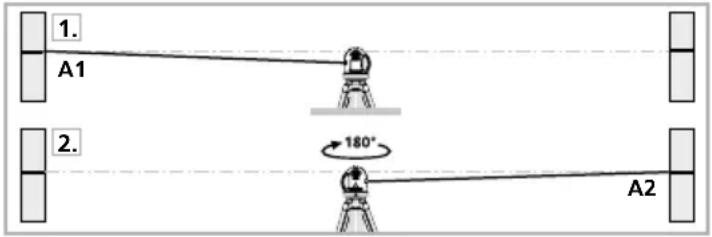

1. Mark point A1 on the wall.
2. Turn the device through 180^ and mark point A2. You now have a horizontal reference between points A1 and A2.

Performing the calibration check:

1. Position the device as near as possible to the wall at the height of point A1.
2. Turn the device through 180^ and mark point A3. The difference between points A2 and A3 is the tolerance.

When A2 and A3 are more than 0.35 mm / m apart, an adjustment is necessary. Contact your authorised dealer or else the UMAREX-LASERLINER Service Department.

Checking the vertical line:

Position the device about 5 m from a wall. Fix a plumb bob with a line of 2.5 m length on the wall, making sure that the bob can swing freely. Switch on the device and align the vertical laser to the plumb line. The precision is within the specified tolerance if the deviation between the laser line and the plumb line is not greater than ± 1.75 mm.

Checking the horizontal line:

Position the device about 5 m from a wall and switch on the cross laser. Mark point B on the wall. Turn the laser cross approx. 2.5 m to the right and mark point C. Check whether the horizontal line from point C is level with point B to within ± 1.75 mm. Repeat the process by turning the laser to the left.

! Regularly check the adjustment before use, after transport and after extended periods of storage.

Information on maintenance and care

Clean all components with a damp cloth and do not use cleaning agents, scouring agents and solvents.

Remove the battery(ies) before storing for longer periods. Store the device in a clean and dry place.

Technical data (Subject to technical alterations. 21W25)
Self-levelling range ± 3°
Precision ± 0.35 mm / m
Operating range (depending on room illumination)	15 m
Working range with hand receiver	(depends on how the technology affects the difference in brightness) 40 m
Laser wavelength 650 nm
Laser class 2 / < 1 mW (EN 60825-1:2014/AC:2017)
Power supply	4 x 1.5 V alkaline batteries (type AA) / rechargeable batteries
Operating time with 3 laser levels with 2 laser levels with 1 laser level	approx. 6 hours approx. 10 hours approx. 25 hours
Operating conditions	0 ... 50°C, 80% rH, no condensation, max. altitude 4000 m
Storage conditions -10°C ... 70°C, 80% rH, no condensation
Weight 650 g (incl. batteries)
Dimensions (W x H x D) 85 x 125 x 130 mm

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=AFM

!
