USER MANUAL TL 95 BEURER

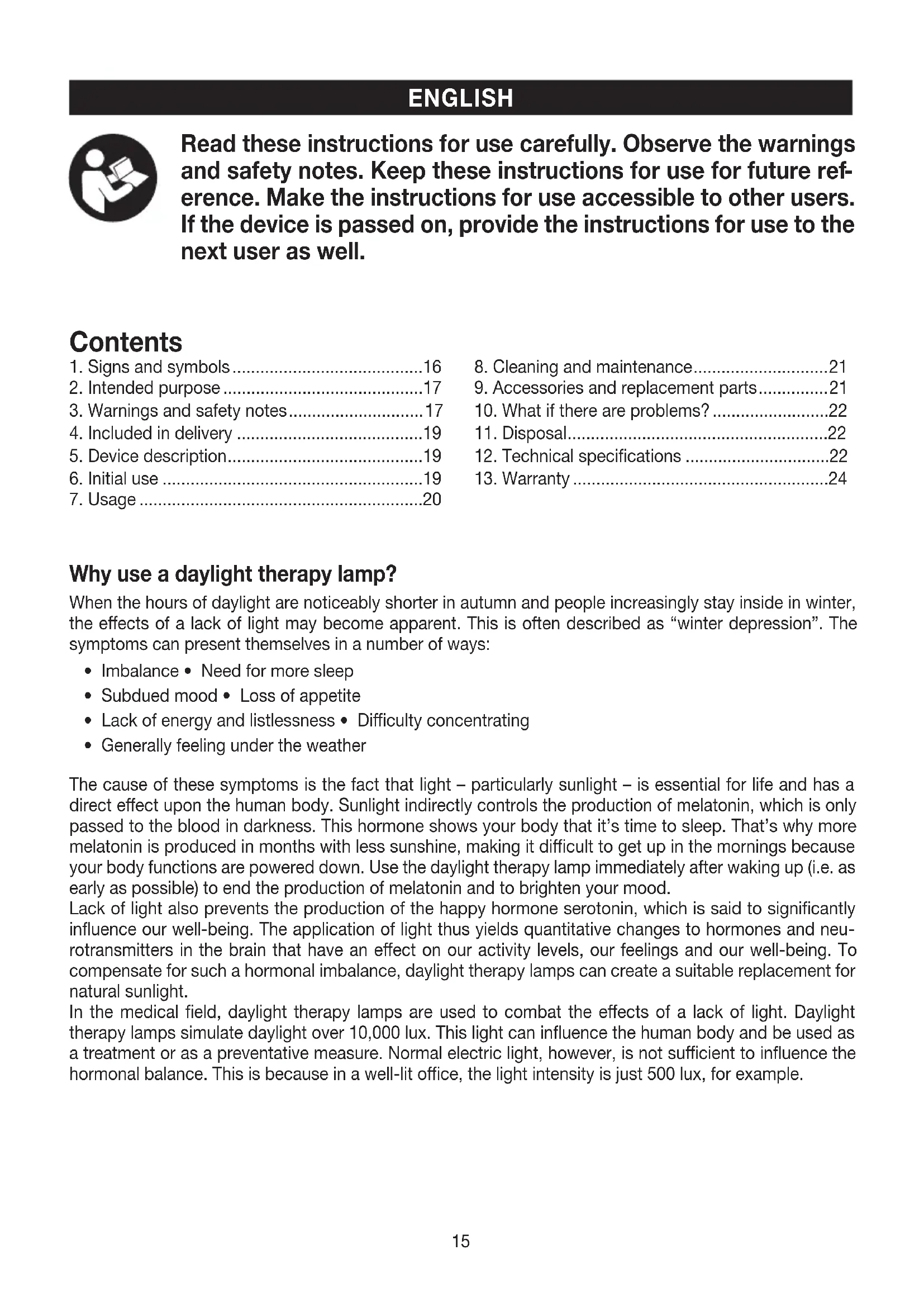

erence. Make the instructions for use accessible to other users. If the device is passed on, provide the instructions for use to the next user as well. Why use a daylight therapy lamp? When the hours of daylight are noticeably shorter in autumn and people increasingly stay inside in winter, the eects of a lack of light may become apparent. This is often described as “winter depression”. The symptoms can present themselves in a number of ways:

• Imbalance • Need for more sleep

• Subdued mood • Loss of appetite

• Lack of energy and listlessness • Diculty concentrating

• Generally feeling under the weather The cause of these symptoms is the fact that light – particularly sunlight – is essential for life and has a direct eect upon the human body. Sunlight indirectly controls the production of melatonin, which is only passed to the blood in darkness. This hormone shows your body that it’s time to sleep. That’s why more melatonin is produced in months with less sunshine, making it dicult to get up in the mornings because your body functions are powered down. Use the daylight therapy lamp immediately after waking up (i.e. as early as possible) to end the production of melatonin and to brighten your mood. Lack of light also prevents the production of the happy hormone serotonin, which is said to significantly influence our well-being. The application of light thus yields quantitative changes to hormones and neu

rotransmitters in the brain that have an eect on our activity levels, our feelings and our well-being. To compensate for such a hormonal imbalance, daylight therapy lamps can create a suitable replacement for natural sunlight. In the medical field, daylight therapy lamps are used to combat the eects of a lack of light. Daylight therapy lamps simulate daylight over 10,000lux. This light can influence the human body and be used as a treatment or as a preventative measure. Normal electric light, however, is not sucient to influence the hormonal balance. This is because in a well-lit oce, the light intensity is just 500 lux, for example.

3. Warnings and safety notes ............................. 17

4. Included in delivery ........................................19

9. Accessories and replacement parts ............... 21

10. What if there are problems? .........................22

The following symbols are used on the device, in these instructions for use, on the packaging and on the type plate for the device: WARNING Warning notice indicating a risk of injury or damage to health CE labelling This product satisfies the requirements of the applicable European and national directives. IMPORTANT Safety note indicating possible damage to the device/accessory Storage Permissible storage temperature and humidity Product information Note on important information Operating Permissible operating temperature and humidity Observe the instructions Read the instructions before starting work and/or operating devices or machines IP21 Protected against solid foreign objects

12.5 mm in diameter and larger, and

against vertically falling drops of water IP24 Protection against solid objects greater than 12,5mm and agains splashes of water from all directions. Manufacturer Serial number Protection class II device The device is double-insulated and is, therefore, in protection class 2 Dispose of packaging in an environmen- tally friendly manner ON/OFF

Marking to identify the packaging material. A = Material code, B = Material number: 1-7 = Plastics, 20-22 = Paper and card

board Medical device For indoor use only Item number EC REP Authorised representative in the Europe- an Community Date of manufacture Importer symbol atmospheric pressure limitation UDI Unique Device Identifier (UDI) for unique product identification Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE Direct current The device is suitable for use with direct current only Batch Code Type Separate the product and packaging elements and dispose of them in accor

dance with local regulations.17

Purpose The Bright Light Therapy lamp is intended to compensate the eects of lack of light, particularly sunlight, and provide relief from winter seasonal aective disorders, mood disorders and circadian phase sleep disorders. Patient population Adult and child over 3 years old. Intended users The use of the device does not require a specific knowledge or professional ability. The patient is the in- tended operator except in case patient that required special assistance. Indication The device simulates daylight to provide relief from seasonal or mood disorders.

• The daylight therapy lamp is intended for radiation on human bodies only.

• Before use, ensure that there is no visible damage to the device or accessories and that all packaging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

• Ensure that the daylight therapy lamp is positioned on a stable base.

• The device must only be connected to the mains voltage that is specified on the type plate.

• Never submerge the device in water and do not use it in the wet rooms.

• Do not use the daylight therapy lamp on animals!

• Do not use device on patient is taking a photosensitizing medication or herb.

• Do not use device on: - children under age 3 - people insensitive to heat - people with skin lesions due to illness - people that has a condition that might render his or her eyes more vulnerable to phototoxicity - people that has a photosensitive skin condi

• Keep packaging material away from children (risk of suocation).

• If the device is warm, do not cover it or pack and store it.

• Always unplug the mains adapter and allow the device to cool down before touching it.

• Do not touch the device with wet hands when it is plugged in and do not allow water to spray on the device. Only operate the device if it is completely dry.

• Ensure that you only insert and remove the mains adapter with dry hands and that you only press the On/O button with dry hands.

• Keep the mains cable away from hot objects and naked flames.

• Protect the device from heavy impacts.

• Do not pull the mains adapter out of the socket using the mains cable.

• Do not use the device if it shows signs of damage or does not function properly. In such cases, contact Customer Services.

• Do not leave the equipment unattended when it is switched on to avoid the risk of fire or burns.18

• This equipment is not intended for use by children under three years. Children under three years should be supervised to ensure that they do not play with the equipment to avoid the risk of fire and burns.

• If the wall socket used to power the equipment has poor connections, the plug of the equipment be

comes hot. Make sure you plug the equipment into a properly installed wall socket to avoid the risk of fire and burns.

• Do not subject the equipment to heavy shocks to avoid risk of damage to the lamp.

• In the event of damage to the mains connection cable for this device, the cable must be disposed of. If it is not a removable cable, the device must be disposed of.

• Disconnection from the power supply network is only guaranteed when the mains adapter is unplugged.

• Do not use the device in the presence of flammable anaesthetic gas connections with air, oxygen or nitrogen oxide.

• No calibration and no preventive checks or maintenance need to be carried out on this device.

• You cannot repair the device. The device contains no parts that you can repair.

• Do not make any changes to the device without the manufacturer's permission.

• If the device has been changed, thorough tests and checks must be carried out to ensure the contin

ued safety of the device for any future use.

• To avoid strangulation and entanglement, keep cable out of reach of young children.

• The device is intended for use by the patient themselves. The device and accessories must be used in accordance with these instructions for use. General notes IMPORTANT

• Diabetics and people who suer from retinal diseases must be examined by an optician before using the daylight therapy lamp.

• Please do not use the device if you suer from an eye disease such as cataracts, glaucoma, diseases of the optic nerve or inflammation of the vitreous body.

• Please do not use in case of a recent eye surgery or a diagnosed eye condition whereby doctor has advised you to avoid bright light.

• Always consult a doctor before using the daylight therapy lamp if you have a strong sensitivity to light, skin sensitive to light or you are prone to migraine attacks.

• It must not be used on people with disabilities, children under 3 years of age or people with reduced sensitivity to heat (people with skin alterations due to illness).

• Always consult a doctor before using the daylight therapy lamp if you are taking medication such as pain relief medication, medication to reduce high blood pressure or antidepressant medication.

• Severe cases of SAD should, in any case, be closely supervised by a clinician.

• If you have health concerns of any kind, consult your general practitioner!

• Remove all packaging material before using the device.

• Light sources are excluded from the warranty.

• If the device has been in storage or recently transported, keep it for at least two hours at room temper

ature before using it.

• Power adapter is part of the ME euqipment.

• Power-on check item: please check whether light flashes, dark areas/shadows and other abnormalities occur after power-on. If there is any abnormality, please contact the after-sales hotline.

• The patient cannot undergo MRI scan while using this device.

• Please report any serious incident that has occurred in relation to the device injury or adverse event to the local competent authority and to the Manufacturer or to the European Authorised Representative (EC REP) Vigilance contact point: https://ec.europa.eu/growth/sectors/medical-devices/contacts/

• PRC is the abbreviation of the People’s Republic of China.19 Instruction for repairs IMPORTANT

• Do not open the device. Do not attempt to repair the device yourself. This could result in serious injury. Failure to comply with this instruction will void the warranty.

• For repairs, please contact Customer Services or an authorised retailer.

4. INCLUDED IN DELIVERY

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that there is no visible damage to the device or accessories and that all pack

aging material has been removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

• 1 daylight therapy lamp

• 1 set of instructions for use

The corresponding drawings are shown on page 3.

Rear of the device housing

Brightness setting (dimmer)

Mains adapter connector

Take the device out of the plastic wrapping. Check the device for damage or faults. If you notice any dam- age or faults on the device, do not use it and contact Customer Services or your supplier. Setting up the device Place the device on a level surface. The position should be chosen to ensure a distance of between 20cm and 45 cm between the user and the device. The lamp is most eective at this distance. Mains connection

• To prevent possible damage to the device, the daylight therapy lamp must only be used with the mains adapter described here.

• Insert the mains adapter into the connector provided for this purpose on the rear of the daylight therapy lamp. The mains adapter must only be connected to the mains voltage that is specified on the type plate.

• After using the daylight therapy lamp, unplug the mains adapter from the mains socket first and then disconnect it from the daylight therapy lamp. Note Ensure that there is a mains socket close to the set-up area. Arrange the mains cable in such a way that no-one will trip over it.20

Insert the mains adapter into the connector. 2 Switching on the lamp Press and hold the On/O button

for 2 seconds. When the device is next switched on, it will start with the saved brightness level and treatment time. 3 LED display/timer The TL 95 Daylight therapy lamp indicates your current treatment time using 4 LEDs. The treatment time can be set at the following 4 levels. The timer function will not be active when the lamp is switched on for the first time. The lamp now runs until it is switched o again or a treatment time is set (timer = 0 min). In order to use the timer, set the desired level from 1 to 4 by pressing briefly the On/O button

. Level 1 sets a treatment time of 30 minutes. The other levels are as follows: Treatment time Level (Number of lit LEDs) 30 minutes 1 60 minutes 2 90 minutes 3 120 minutes 4 The lamp switches o automatically after this treatment time and steadily becomes darker. To deactivate the timer function, briefly touch the On/O button until the LEDs go out. 4 Brightness setting The TL 95 Daylight therapy lamp has 6 brightness levels. The desired brightness level can be set using the flower button on the side – this level should be set so that it is pleasant for the eye dur

ing the treatment. Settings 1 to 6 correspond to 25%, 33%, 43%, 57%, 75% and 100% intensity respectively. When the device is switched o, the last level that was set is saved. Note: The device can also be used as a reading lamp from level 1. 5 Enjoying the light Position yourself as close as possible to the lamp, at a distance of between 20 cm and 45 cm. You can continue to go about your day-to-day activities during the treatment, including reading, writing, making telephone calls, etc.

• Keep looking directly into the light for a short period of time, as it is absorbed and shows an eect via the eyes/retina.

• Use the daylight therapy lamp as often as you want. However, the treatment is most eective if you carry out the light therapy for at least 7 successive days according to the prescribed times.

• The most eective time of day for the treatment is between 6 am and 8 pm, and we recommend that you use the device for 2 hours per day.

• However, do not look directly into the light for the entire treatment time, as this may cause over-stimulation of the retina.

• Start with a brief treatment time and gradually increase the time over the course of a week. Note You may experience pain in the eyes and headaches after the first few applications. This pain should disappear in further sessions as the nervous system becomes accustomed to the new stimuli.21 6 Things to consider We recommend a distance of between 20 and 45 cm from the face to the lamp during treatment. The treatment time depends on the distance: Lux Distance Treatment time 13,000 approx. 20 cm 20 min. 10,000 approx. 25 cm 0.5 hours 5,000 approx. 30 cm 1 hour 2,500 approx. 45 cm 2 hours In principle: The closer you are to the light source, the shorter the treatment time. 7 Enjoying the light over longer periods Repeat the treatment on at least 7 consecutive days during darker periods of the year, or for longer depending on your individual needs. The treatment should take place during the mornings where possible. 8 Switching o the lamp Press and hold the On/O button

for 2 seconds. The LEDs switch o. Unplug the mains adapter from the mains socket. IMPORTANT The lamp remains hot after use. Allow the lamp to cool down suciently before putting it away and/or packing it away.

8. CLEANING AND MAINTENANCE

The device should be cleaned from time to time. IMPORTANT

• Ensure that no water gets inside the device! The device must be switched o, disconnected from the mains and allowed to cool down each time before cleaning.

• Do not clean the device in the dishwasher. Use a slightly damp cloth to clean the device.

• Do not use any abrasive cleaning products and never submerge the device in water. Do not touch the device with wet hands when it is plugged in and do not allow water to spray on the device. Only operate the device if it is completely dry. Storage If you are not going to use the device for an extended period of time, disconnect it and store it in a dry place, out of the reach of children. Follow the storage instructions provided in the “Technical specifications” chapter.

9. ACCESSORIES AND REPLACEMENT PARTS

To purchase accessories and replacement parts, please visit www.beurer.com or contact the service ad- dress for your country (see the service address list). Accessories and replacement parts are also available from retailers.22

10. WHAT IF THERE ARE PROBLEMS?

Problem Possible cause Solution Device does not light up On/O button

switched o Switch on the On/O button

No power Connect the mains adapter correctly. No power The mains adapter is faulty. Contact Customer Services or your retailer. LEDs have reached the end of their service life. LEDs faulty For repairs, please contact Customer Services or an authorised retailer.

For environmental reasons, do not dispose of the device in household waste at the end of its service life. Dispose of the device at a suitable local collection or recycling point in your country. Observe the local regulations for material disposal. Dispose of the device in accordance with EC Directive – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the local authorities responsible for waste disposal. You can obtain the location of collection points for old devices from the local or municipal authorities, local waste disposal company or your retailer, for example. Component Disposal Description Photo Device The component mainly is PC , metal and ABS. All comply with RoHS and REACH, and all could be safety disposal. Power adapter The adapter mainly includes plastic and elect- ronic components, All comply with RoHS and REACH, and all could be safety disposal.

12. TECHNICAL SPECIFICATIONS

Type GCE505 Model no. TL 95 Dimensions (L x W x H) 30.0 x 15.8 x 47.5 cm Weight approx. 1900 g Light Full-spectrum LEDs Power output max. 60 watts CRI min. 9523 Light intensity 13,000 lux (at a distance of approx. 20 cm) 10,000 lux (at a distance of approx. 25 cm) Radiation Radiance output outside of the visible range (infrared and UV) is low enough that no eye or skin damage is anticipated. Operating conditions 0°C to +35°C, 15 - 90% relative humidity, 700 – 1060 hPa ambient pressure Transport and storage conditions -20°C to +60°C, 15 - 90% relative humidity, 700 – 1060 hPa ambient pressure Product classification Protection class II, IP21 Accessories Mains adapter, instructions for use Colour temperature of the LEDs 6500K ±400 Kelvin Threshold of short wavelength 420 - 680 nm Maximum light output 66.88 W / m² Expected service life of the device 10.000 hours Maximum radiance output of the TL 95 Radiance output Risk group classified in accord- ance with IEC 62471 Maximum value

UVA: Eye UV-A Exempt Group 0 ES: Actinic UV skin & eye Exempt Group 0 EIR: Infrared radiation hazard exposure limits for the eye Exempt Group 2.146e-1 LIR: Retinal thermal (mild visual irritation) Exempt Group 7.057e-2 LB: Blue light Exempt Group 8.867e0 LR: Retinal thermal Exempt Group 1.187e2 Subject to technical changes. The serial number is located on the device or in the battery compartment. Brightness: 10,000 lux (this point about the light intensity is merely for information purposes. With regard to the standard IEC 60601-2-83, this light source is classified as an Exempt Group). Notes on electromagnetic compatibility The device complies with Regulation (EU) 2017/745 of the European Parliament and of the Council on medical devices and the respective national regulations and the European standard EN 60601-1-2 (in accordance with CISPR 11, IEC61000-3-2, IEC61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4- 4, IEC 61000-4- 5, IEC 61000-4- 6, IEC 61000-4- 11, IEC 61000-4-8) and is subject to particular precauti

ons with regard to electromagnetic compatibility.

• The device is suitable for use in all environments listed in these instructions for use, including domestic environments.

• The use of the device may be limited in the presence of electromagnetic disturbances. This could result in issues such as error messages or the failure of the display/device.

• Avoid using this device directly next to other devices or stacked on top of other devices, as this could lead to faulty operation. If, however, it is necessary to use the device in the manner stated, this device as well as the other devices must be monitored to ensure they are working properly.24 Subject to errors and changes

• The use of accessories other than those specified or provided by the manufacturer of this device can lead to an increase in electromagnetic emissions or a decrease in the device’s electromagnetic immu

nity; this can result in faulty operation.

• Failure to comply with the above can impair the performance of the device. Mains adapter Model no. LXCP62 (II)-240 Input 100–240 V ~ 50/60 Hz, 1.5 A max Output 24 V DC, 2.5 A Protection The device is double-protected. Polarity of the DC voltage connection Classification IP24, protection class II

Further information on the warranty and warranty conditions can be found in the warranty leaflet supplied. Notification of incidents For users/patients in the European Union and identical regulation systems (EU Medical Device Regulation (MDR) 2017/745), the following applies: If during or through use of the product a major incident occurs, notify the manufacturer and/or their representative of this as well as the respective national authority of the member state in which the user/patient is located.25 FRANÇAIS Lisez attentivement l’intégralité de ce mode d’emploi. Veuillez prendre connaissance des consignes d’avertissement et de mise en garde. Conservez le mode d’emploi pour un usage ul

ropa.eu/growth/sectors/medical-devices/contacts

torizado (REP): https://EC.europa.eu/growth/sectors/medical-devices/contacts.

pa.eu/growth/sectors/medical-devices/contacts.

tion. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment. RF emissions CISPR 11 Class B The Device is suitable for use in all establishments In

cluding domestic and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes. Harmonic emissions

Class A Voltage fluctuations/ flicker emissions

Complies Table 2: Guidance and manufacturer’s declaration – electromagnetic immunity The Device is intended for use in the electromagnetic environment specified below. The customer or the user of the Device should assure that it is used in such an environment Immunity test IEC 60601 test level Compliance level Electromagnetic environment – guidance Electrostatic di

scharge (ESD) lEC 61000-4-2 ±2kV ±4kV ±6kV ±8kV ±15kV ±8 kV contact ±2kV ±4kV ±8kV ±15kV air Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30 % Electrical fast transient/burst

±1kV, ±2kV, 100 kHz repetition frequency Power supply lines ±2 kV Mains power quality should be that of a typical commercial or hospital environ

ment. Surge lEC 61000-4-5 ±0.5kV, ±1kV (Line to line) ±0.5kV, ±1kV, ±2kV (Line to Ground) Line to line: ±0.5kV, ±1kV Line to Ground: ±0.5kV, ±1kV, ±2kV Mains power quality should be that of a typical commercial or hospital environ

ment. Voltage dips, short interrupti

ons and voltage variations on power supply input lines 0% U

Mains power quality should be that of a typical commercial or hospital environ

ment. Voltage dips, short interrupti

ons and voltage variations on power supply input lines

for 25/30 cycles 0% UT for 250/300 cycles for 25/30 cycles 0% U

for 250/300 cycles Mains power quality should be that of a typical commercial or hospital environ

ment. If the user of the model TL55 re- quire continued operation during power mains interruptions, it is recommended that the model 168 DAYLUX daylight therapy lamp be powered from an unin

terruptible power supply or a battery.139 Power frequen- cy (50/60 Hz) magnetic field lEC 61000-4-8 30 A/m 50Hz/60Hz 30 A/m 50Hz/60Hz Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hos

is the a.c. mains voltage prior to application of the test level. Table 3: Guidance and manufacturer’s declaration – electromagnetic immunity The Device is intended for use in the electromagnetic environment specified below. The customer or the user of the Device should assure that it is used in such an environment Immunity test IEC 60601 test level Compliance level Electromagnetic environment – guidance Conduced RF

3Vrms 6Vrms (in ISM and amateur radio bands) 80% Am at 1kHz 150KHz to 80MHz

3Vrms 6Vrms (in ISM and amateur radio bands) 80% Am at 1kHz Portable and mobile RF communications equip

ment should be used no closer to any part of the Device ,including cables, than the recommended separation distance calculated from the equation appropriate for the frequency of the transmitter. Recommended separation distances: d=1.2√P; d=2√P Radiated RF

10V/m 10V/m 80MHz to 800MHz

d=2.3 P Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer, d is the recommended separation distance in meters (m) Field strengths from fixed RF transmitters, as determined by an electromagnetic site surveya ,should be less than the compliance level in each frequency range b Interference may occur in the vicinity of equipment marked with the following symbol:

NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the [XXXXX] is used exceeds the applicable RF compliance level above, the [XXXXX] should be observed to verify normal operation. If abnormal per

formance is observed, additional measures may be necessary, such as re-orienting or relocating the [XXXXX]. b Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.140 Table 4: Recommended separation distances between portable and mobile RF communications equipment and the [] The Device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Device as recommen

ded below, according to the maximum output power of the communications equipment. Rated maximum output power of transmitter

Separation distance according to frequency of transmitter

150 kHz to 80 MHz (out ISM and ama

teur radio bands) d=1.2 P 150 kHz to 80 MHz (in ISM and ama

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in me

ters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) accordable to the transmitter manufacturer. NOTE 1 At 80 MHz and 800 MHz. the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. Table 5: Guidance and manufacturer’s declaration – electromagnetic immunity The Device is intended for use in the electromagnetic environment specified below. The customer or the user of the Device should assure that it is used in such an environment141 Radiated RF

NITY to RF wireless communica

If necessary to achieve the IMMUNITY TEST LEVEL, the distance between the transmitting antenna and the ME EQUIPMENT or ME SYSTEM may be reduced to 1 m. The 1 m test distance is permitted by IEC 61000-4-3. a) For some services, only the uplink frequencies are included. b) The carrier shall be modulated using a 50 % duty cycle square wave signal. c) As an alternative to FM modulation, 50 % pulse modulation at 18 Hz may be used because while it does not repre

sent actual modulation, it would be worst case.142 The MANUFACTURER should consider reducing the minimum separation distance, based on RISK MANAGEMENT, and using higher IMMUNITY TEST LEVELS that are appropriate for the reduced minimum separation distance. Minimum separation distances for higher IMMUNITY TEST LEVELS shall be calculated using the following equation: E=6/d P Where P is the maximum power in W, d is the minimum separation distance in m, and E is the IMMUNITY TEST LEVEL in V/m. For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.143144145146
