Product type	Compact laser distance meter
Brand	Laserliner
Model	LaserRangeMaster T7
Dimensions (L x H x D)	49 x 115 x 26 mm
Weight (batteries included)	145 g
Power supply	3 AAA batteries 1.5 V
Laser class	2
Laser power	< 1 mW
Laser wavelength	635 nm
Measuring range (indoor)	0.2 m – 70 m
Typical accuracy	± 0.2 mm/m
Measurement functions	Length, Area, Volume, Pythagoras (3 modes), Continuous min./max. measurement, Addition/Subtraction
Memory	30 slots
Automatic laser off	30 seconds
Automatic device off	3 minutes
Operating conditions	-10°C to +40°C, RH max 85% (non-condensing), up to 2000 m altitude
Storage conditions	-20°C to +70°C, RH max 80%
Cleaning	With a soft, dry cloth. Do not allow water to enter.
Disposal	Electrical device: selective collection according to WEEE
Standards	CE, EN 60825-1:2014
Safety	Do not look into the laser beam. Do not point at eyes. Class 2.

Frequently Asked Questions - LaserRangeMaster T7 Laserliner

How to turn the distance meter on and off?

Press the ON/OFF button to turn the device on. To turn it off, press and hold the same button or the device will turn off automatically after 3 minutes of inactivity.

How to change the measurement unit (m, ft, inch)?

Press the unit change button (unit symbol) to toggle between meters (m), feet (ft), inches (inch), or feet+inches.

How to set the measurement reference (front/rear/thread)?

Press the measurement reference switch button (front/thread/rear symbol) to choose the reference: front (end of device), thread (threaded insert), or rear (back of device).

How to measure a single length?

Turn on the device, point the laser at the target, and press the Measure button (DIST). The result is displayed immediately.

How to use area measurement?

Press the function button (MEAS) several times until the area symbol (square) appears. Measure two lengths (press DIST for each); the device automatically calculates the area.

What to do if the screen displays an error code like 204 or 220?

Code 204 indicates a calculation error; redo the measurement. Code 220 means low batteries: replace the 3 AAA batteries. For other codes, consult the manual or contact the dealer.

Can the device measure through glass?

No, measurements through glass can be inaccurate. It is recommended to measure directly on the target.

How to clean the distance meter?

Use a soft, dry cloth to clean the housing and laser window. Do not allow water to enter inside.

What is the maximum range outdoors?

Outdoors, the range depends on sunlight. In strong sunlight, measurement is limited. The indicated indoor range is 0.2 to 70 m, but outdoors it may be reduced.

How to use the continuous measurement function (min/max)?

Press and hold the Measure button (DIST) for 2 seconds to start continuous measurement. Move the device; the screen displays the current, minimum, and maximum values. Briefly press DIST to stop.

USER MANUAL LaserRangeMaster T7 Laserliner

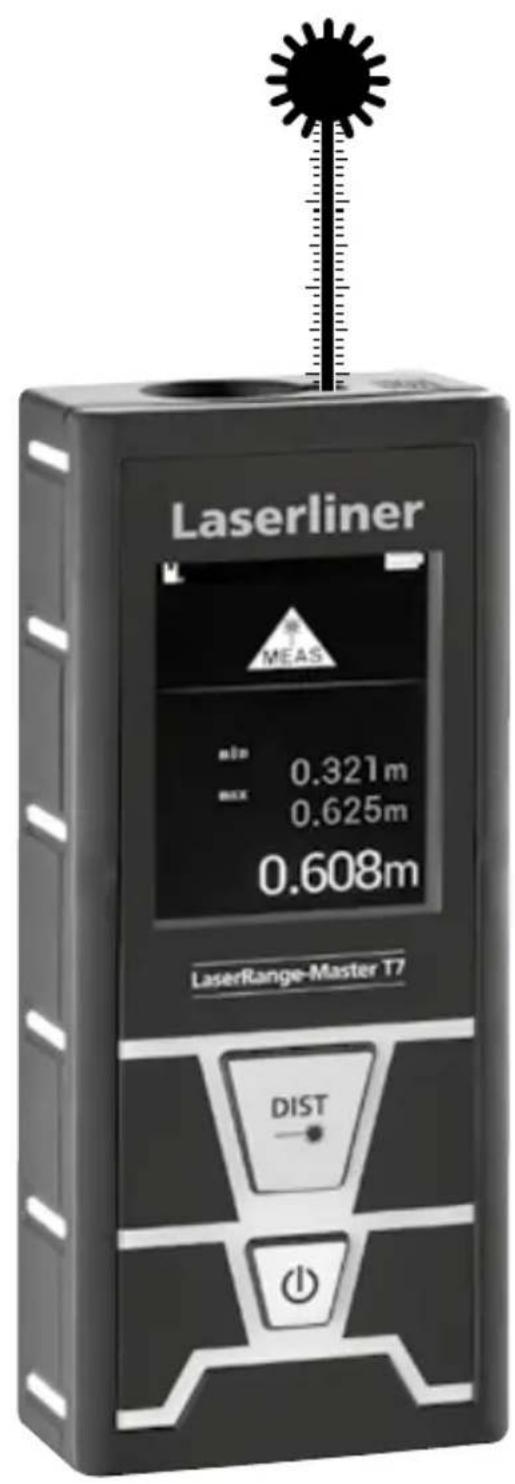

LaserRange-Master T7

Laserliner MEAS M2P 0.321m MAX 0.625m 0.608m LaserRange-Master T7 DIST

Laser

635 nm

SPEED

SHUTTER

Laserliner

DE	04
EN	11
NL	18
DA	25
FR	32
ES	39
IT	46
PL	53
FI	60
PT
SV
NO
TR
RU
UK
CS
ET
LV
LT
RO
BG
EL
SL
HU
SK

35.108m 4.690m 0.238m Laserliner Laser

Interior view of a memory card showing two batteries with a screwdriver inserted (no visible text or symbols)

3 x Typ AAA / LR03

1,5V / Alkaline

LaserRange-Master T7

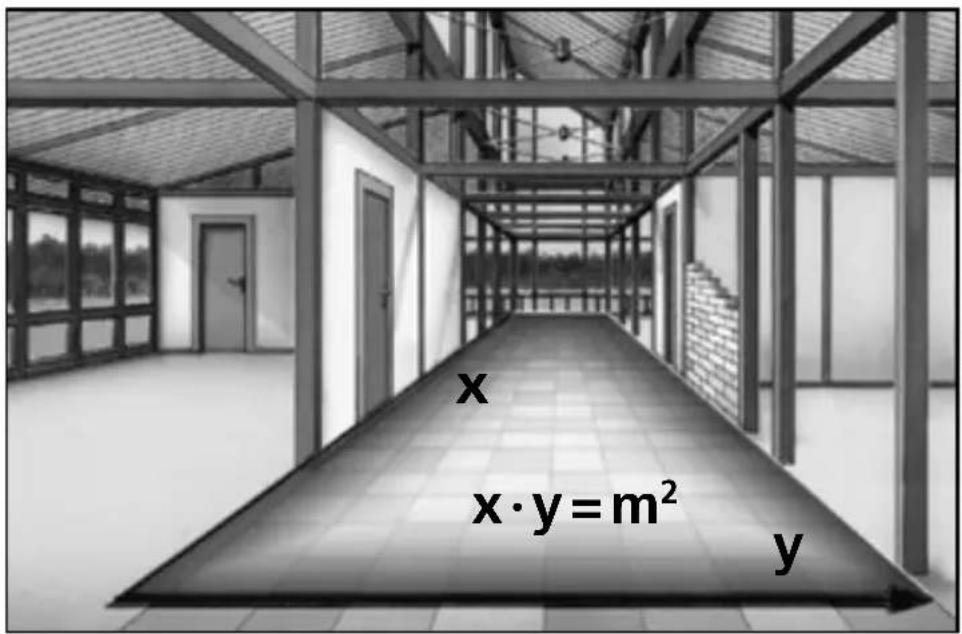

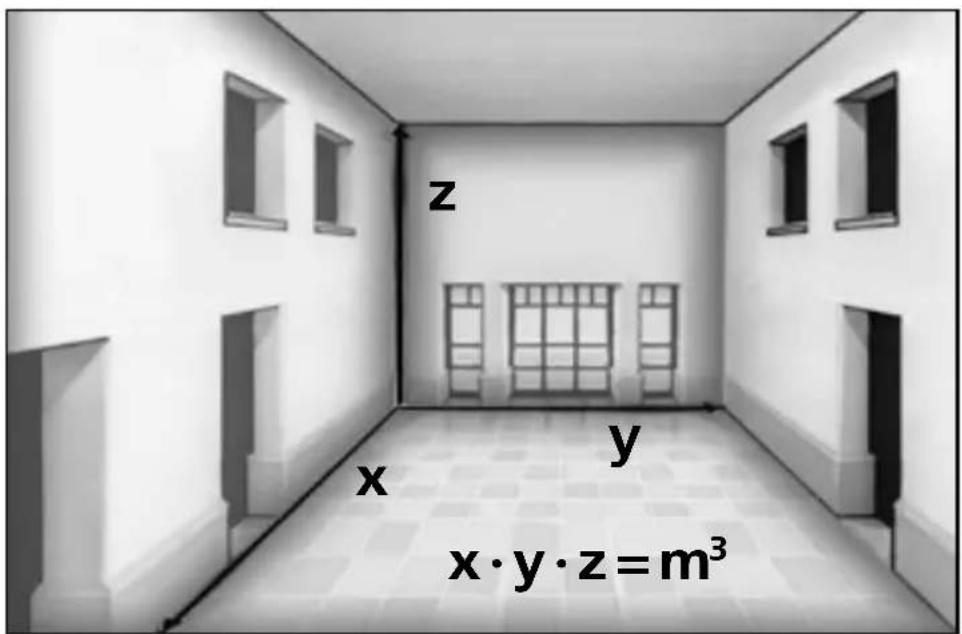

Architectural interior view showing ceiling and window views with dashed lines indicating perspective projection (no text or symbols)

x x·y=m² y

z x y x·y·z=m³

Laserliner

!

Warning sign with sunburst symbol inside triangle, commonly used for safety or hazard warning

m / ft / inch / _' _"

1.

MEAS

2.

Hand gesture pointing at a control interface with icons for function, message, and status

Hand gesture pointing at a button with icons for username, password, and function symbol

Diagram showing a hand pointing at three labeled geometric shapes: a cube, a triangle, and an inverted triangle.

Längenmessung:

MEAS m

Laser an Messen

* laser 1x 2x

S V S DIST 5.570m DIST S 5.570 m 2.383 m 13.273 m²

Volumenmessung:

S v 4 1 V DIST 3x 4.690 m 4.690 m 0.383 m 8.425 m²

S 570 m 13.273

Hand gesture pointing at a button labeled 'm' and 'L', with sun icon above it

S 570 m 2.73 m 13.273

oder

Speicher verlassen

31.50 5.57 2.383 13.273 m²

oder

Fehlercode:

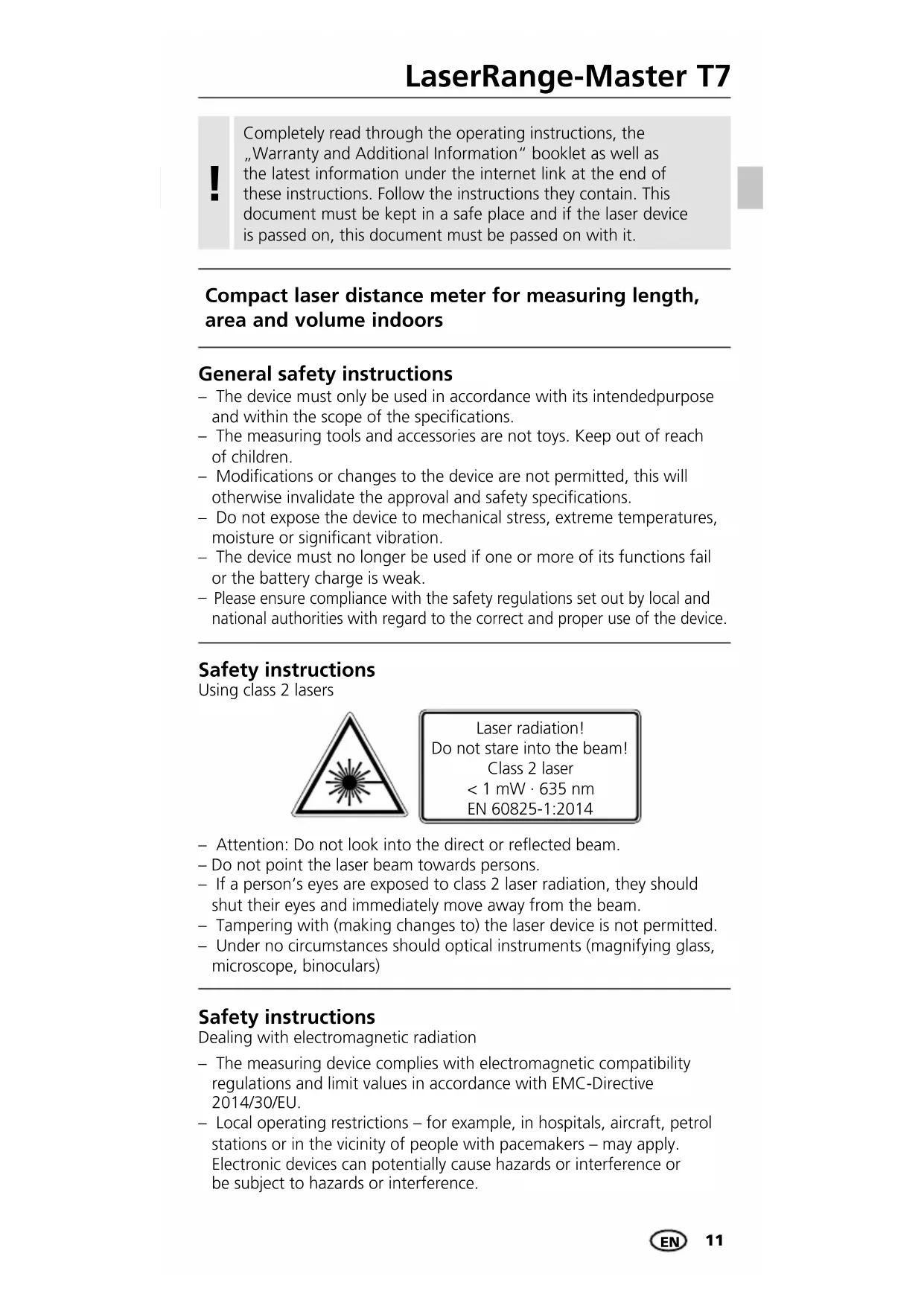

Completely read through the operating instructions, the „Warranty and Additional Information“ booklet as well as the latest information under the internet link at the end of these instructions. Follow the instructions they contain. This document must be kept in a safe place and if the laser device is passed on, this document must be passed on with it.

Compact laser distance meter for measuring length, area and volume indoors

General safety instructions

• The device must only be used in accordance with its intended purpose and within the scope of the specifications.
• The measuring tools and accessories are not toys. Keep out of reach of children.
• Modifications or changes to the device are not permitted, this will otherwise invalidate the approval and safety specifications.
• Do not expose the device to mechanical stress, extreme temperatures, moisture or significant vibration.
• The device must no longer be used if one or more of its functions fail or the battery charge is weak.
• Please ensure compliance with the safety regulations set out by local and national authorities with regard to the correct and proper use of the device.

Safety instructions

Using class 2 lasers

Warning sign with sunburst symbol inside triangle, commonly used in safety or hazard warning

Laser radiation!

Do not stare into the beam!

Class 2 laser

< 1 mW · 635 nm

EN 60825-1:2014

• Attention: Do not look into the direct or reflected beam.
• Do not point the laser beam towards persons.
• If a person's eyes are exposed to class 2 laser radiation, they should shut their eyes and immediately move away from the beam.
• Tampering with (making changes to) the laser device is not permitted.
• Under no circumstances should optical instruments (magnifying glass, microscope, binoculars)

Safety instructions

Dealing with electromagnetic radiation

• The measuring device complies with electromagnetic compatibility regulations and limit values in accordance with EMC-Directive 2014/30/EU.
• Local operating restrictions – for example, in hospitals, aircraft, petrol stations or in the vicinity of people with pacemakers – may apply. Electronic devices can potentially cause hazards or interference or be subject to hazards or interference.

Laserliner

- The measuring accuracy may be affected when working close to high voltages or high electromagnetic alternating fields.
        S["MEAS"]
        T["j"] --> U["-k"]
    end

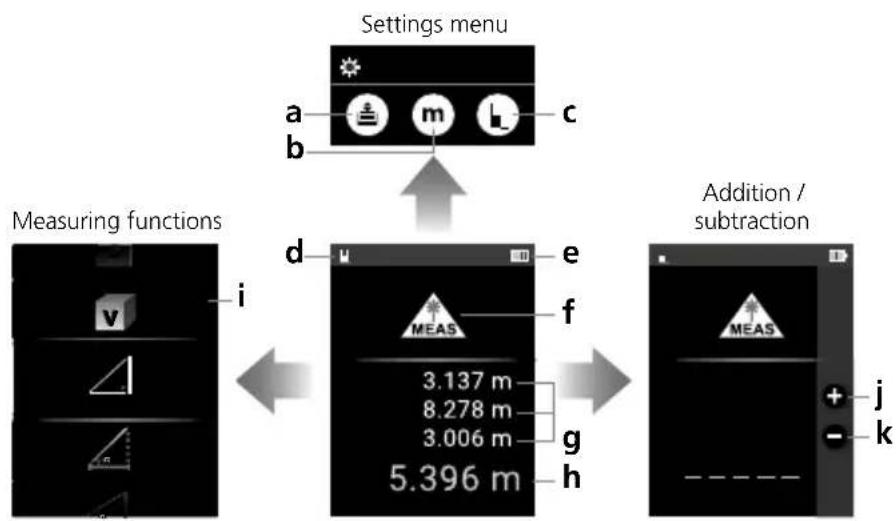

DISPLAY:

a Measured value memory
b Unit of measure m / ft / inch / _ ' _ "
c Measurement point (reference) front / thread / rear
d Set measuring level
e Battery symbol

1.

DIST

2.

f Set measuring function
g 1st / 2nd and 3rd length measurement
h 4th length measurement

i Measuring functions

j Addition function
k Subtraction function

KEYPAD:

1. Measure min/max continuous measurement
2. ON / OFF

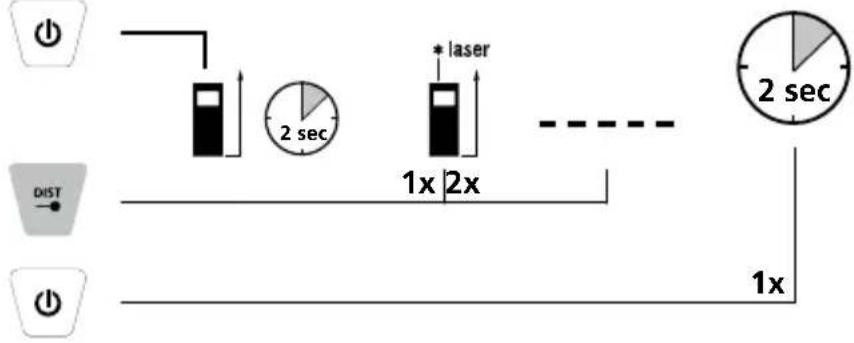

Switch on, measure and switch off:

device on laser on measure device off

Change unit of measure:

m / ft / inch / _' _"

1.

MEAS

2.

Hand gesture pointing at a finger with three icons: person, document, and letter in the button

Change measurement point (reference):

front / thread / rear

1.

MEAS

2.

Hand gesture pointing at a button with icons for location, message, and function symbols

Change measurement function:

length / area / volume / pythagoras 1 / pythagoras 2 / pythagoras 3

1.

MEAS

2.3.

3.

Diagram showing a hand pointing at a control panel with labeled icons including a cube, triangle, and ruler.

Length measurement:

MEAS ------ m

measuredevice on

dIaer 1x 2x

Laserliner

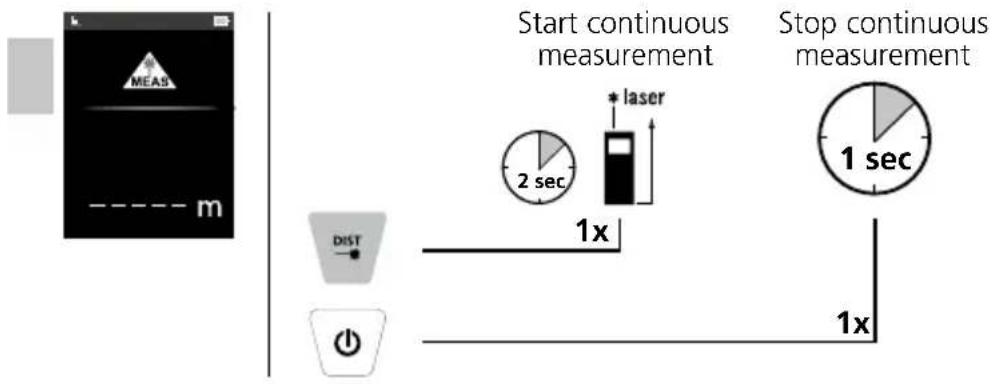

min/max continuous measurement:

MEAS m Start continuous measurement * laser 2 sec Stop continuous measurement 1 sec DIST 1x 1x

The LC display shows the max value, the min value and the current value.

In the area measurement, volume measurement and Pythagoras 1 to 3 functions the laser will switch off if left idle for a short time and must be switched on again by pressing button 1 in order to continue measurement.

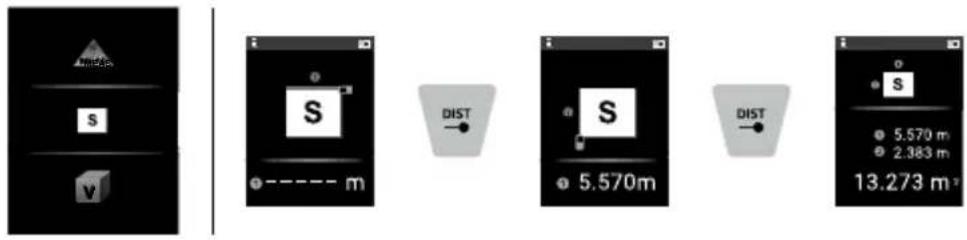

Area measurement:

S V S DIST 5.570m DIST 5.570 m 2.383 m 13.273 m²

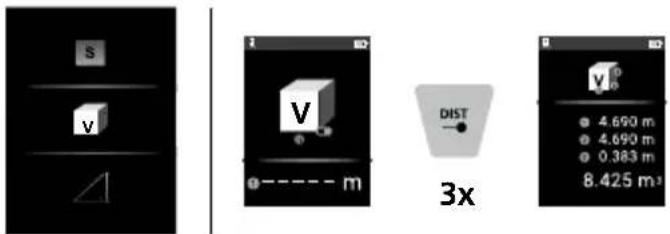

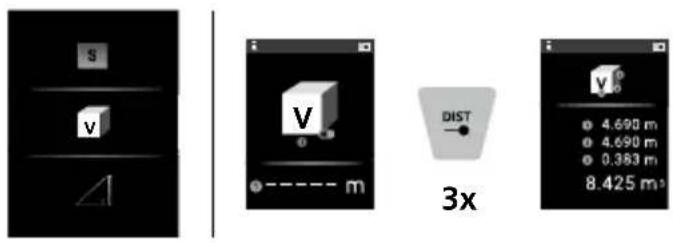

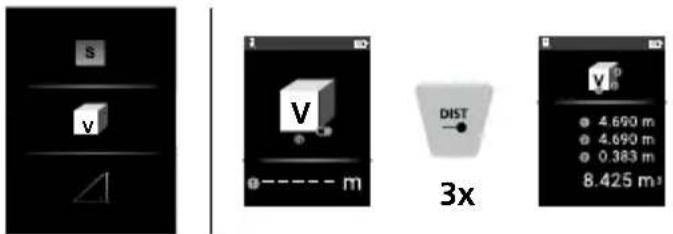

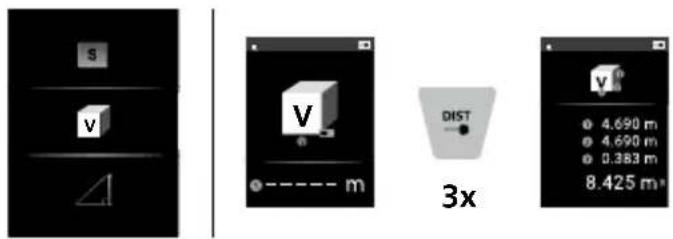

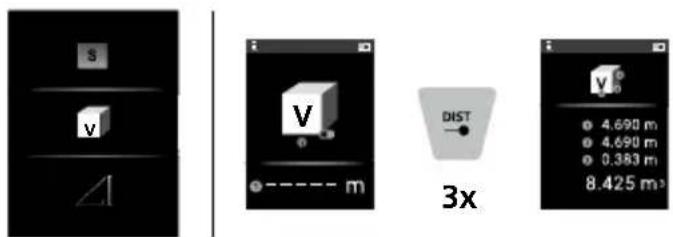

Volume measurement:

S v 4 V m DIST 3x 4.690 m 4.690 m 0.383 m 8.425 m

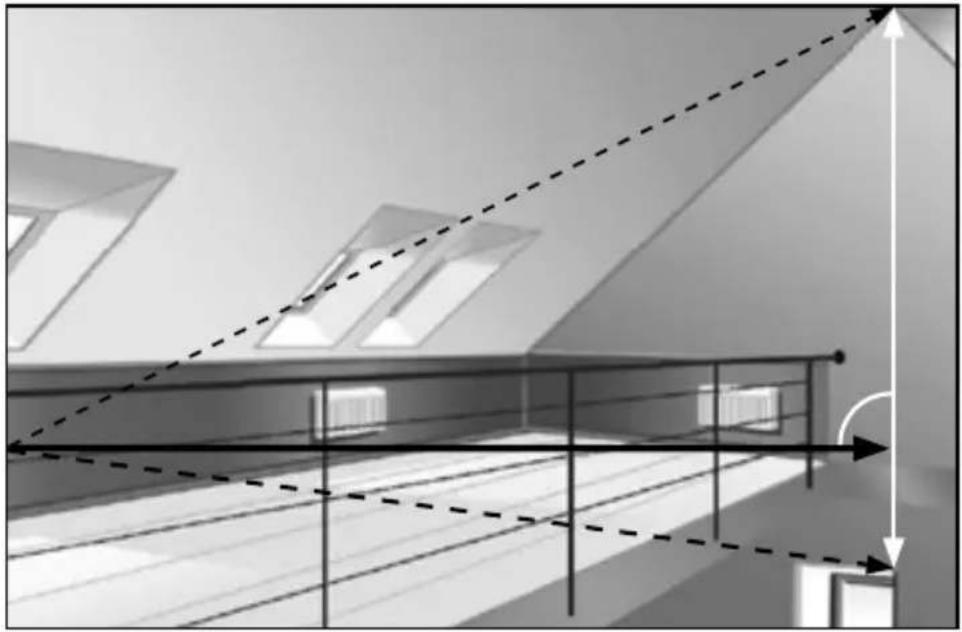

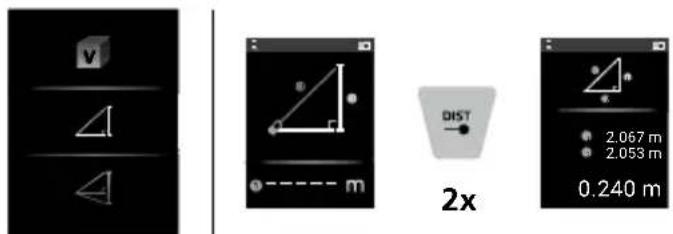

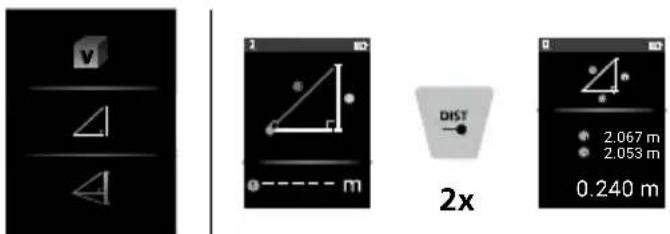

Pythagoras function 1:

v 4 4 m DIST 2x 2.067 m 2.053 m 0.240 m

LaserRange-Master T7

Pythagoras function 2:

4 4 4

Pythagoras function 3:

4 4

Addition and subtraction of lengths:

MEAS 3.186 m

1. Length measurement

MEAS 0.246

Addition or subtraction selection

NEAS 0.240 m

MEAS 3.186 m ----- m ----- m

1. Add length measurement

Area calculation:

S 5.570 m 2.383 m 13.273 m²

1. Area measurement

S 570 m 263 m 13.273

Addition or subtraction selection

S 5.570 m² 2.383 m² 13.273 m²

S + 13.273 m⁻¹ ----- m⁻¹ ----- m⁻¹

1. Add area measurement

Laserliner

Volume calculation:

4.690 m 4.690 m 0.383 m 8.425 m³

1. Volume measurement

4.690 m 690 m 0.3 8.425

Addition or subtraction selection

4.690 4.690 m² 0.383 m² 8.425 m²

+ 8.425 m 0 ---- m ---- m

1. Add volume measurement

Memory function:

The device has 30 storage locations.

1.

MEAS

Hand gesture pointing at a button labeled 'm' and 'L', with sun icon above it

record 01:08 S 670 m 24 m 13.273 or DIST

Exit memory

5.57 2.383 13.273 m²

or

Error codes:

204 Calculation error

208 Excess current (please contact your retailer)

220 Replace the battery

252 Temperature is too high

253 Temperature is too low

255 Received signal too weak or measuring time too long

256 Received signal too strong

251 Outside the measuring range

500 Hardware fault (If the symbol stays on after switching the device off and on, please contact your retailer.)

Important notices

• The laser points to the location that will be measured. No objects may get into the laser's line of measurement
• The device compensates the measurement for different room temperatures. Therefore allow the device a brief adaptation period when changing locations with large temperature differences.
• The device is only conditionally useable in outdoor areas and cannot be used in strong sunlight.
• The measurement results of outdoor measurements may be influenced or falsified by rain, fog and snow.
• In unfavourable conditions, e.g. with poorly reflecting surfaces, the maximum deviation may be greater than 3 mm.
• Carpeting, upholstery or curtains will not reflect the laser optimally. Measure to flat surfaces.
• Measurements made through glass (window panes) can falsify measurement results.
• An energy-saving function switches the device off automatically.
• Clean with a soft cloth. Water may not be allowed to penetrate the housing.

Technical Data (Subject to technical changes without notice. 17W51)

Inside measurement range 0,2 m	-70 m
Precision (typical)* ± 0,2 mm / m
Laser class 2 < 1 mW
Laser wavelength 635 nm
Power supply 3 x AAA 1.5 Volt batteries
Dimensions (W x H x D) 49 x 115	x 26 mm
Weight (incl. batteries) 145 g
Automatic switch-off 30 sec laser	/3 min device
Operating conditions	-10°C...40°C, Max. humidity20...85% rH, no condensation,Max. working altitude 2000 mabove sea level
Storage conditions	-20°C...70°C,Max. humidity 80% rH

* measuring distance up to 10 m with strongly reflective target surface and at room temperature. The measurement deviation may increase by ± 0.2 mm/m for greater distances and under unfavourable measuring conditions such as strong sunlight or weakly reflective target surfaces.

EU directives and disposal

This device complies with all necessary standards for the free movement of goods within the EU.

This product is an electric device and must be collected separately for disposal according to the European Directive on waste electrical and electronic equipment.

Further safety and supplementary notices at:

http://laserliner.com/info?an=lrmt7

Warning sign with black triangular triangle and central sunburst symbol

m / ft / inch / _' _"

1.

MEAS

2.

Hand gesture showing finger pressing on a control panel with icons for function, input, and output

Hand gesture pointing at a button with icons for username, password, and address symbol

Diagram showing a hand pointing at three labeled geometric shapes: a cube, a triangle, and an inverted triangle.

Lengtemeting:

MEAS ----- m

laser aan meten

* laser 1x 2x

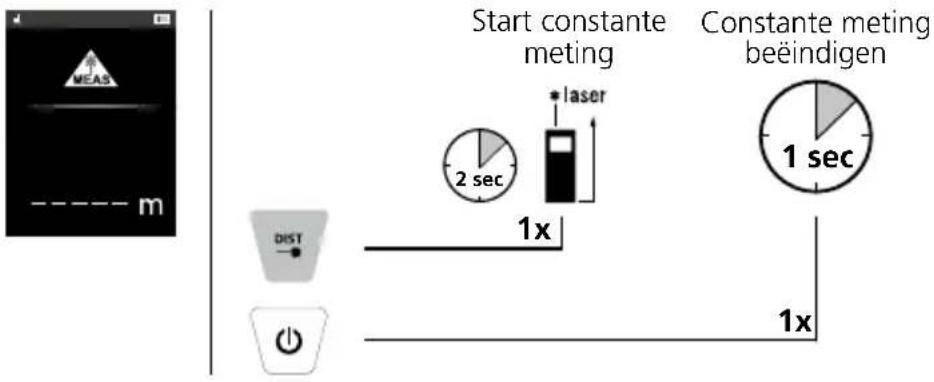

Constante min/max-meting:

MEAS m Start constante meting * laser 2 sec 1 sec DIST 1x 1x Constante meting beëindigen

S V S DIST 5.570m DIST S 5.570 m 2.383 m 13.273 m²

Volumemeting:

s v 4 1 V m DIST 3x 4.690 m 4.690 m 0.383 m 8.425 m²

Hand gesture pointing at a button with icons for 'sun', 'm', and 'L' symbols

S 570 m 270 m 13.273 of DIST

Geheugen verlaten

31.20 5.57 2.383 13.273 m²

of

Foutcode:

204 Berekeningsfout

Warning sign with sunburst symbol inside triangle, commonly used in safety or hazard prevention context

m / ft / inch / _' _"

1.

MEAS

2.

Hand gesture pointing at three icons: a person, a document, and a letter, with a sun icon above the top.

Hand gesture pointing at a control panel with icons for battery, mode, and function buttons

Hand pointing at a control panel with icons for V, triangle, and ruler on a dark background

Længdemåling:

MEAS m

MålingLaser tændt

* laser 1x 2x DIST

Laserliner

S V S M DIST S 5.570m DIST S 5.570 m 2.383 m 13.273 m²

Rumfangsmåling:

S v 4 V 0 ---- m DIST 3x V 0 4.690 m 4.690 m 0.383 m 8.425 m³

Hand gesture pointing at a button with icons for 'm', 'L', and a sun symbol above it

S 570 m 13.273

eller

Hukommelse forlades

31.50 5.57 2.383 13.273 m²

eller

Fejlkode:

204 Beregningsfejl

Warning sign with sunburst symbol inside triangle, commonly used in safety or hazard prevention context

LaserRange-Master T7

m / ft / inch / _' _"

1.

MEAS

2.

Hand gesture showing finger pressing on a control panel with icons for function, input, and output

Hand gesture pointing at a button with icons for username, password, and address symbol

Diagram showing a hand pointing at three labeled geometric shapes: a cube, a triangle, and an inverted triangle.

S V S DIST 5.570m DIST S 5.570 m 2.383 m 13.273 m²

Mesure du volume :

S v 4 1 V m DIST 3x V 4.690 m 4.690 m 0.383 m 8.425 m²

S 570 m 13.273

Hand gesture pointing at a button with icons for 'm', 'L', and a sun symbol above it

S 570 m 2.73 m 13.273

Quitter la mémoire

31.20 5.57 2.383 13.273 m²

ou

Code erreur :

Warning sign with triangular shape containing a central sunburst symbol

m / ft / inch / _' _"

1.

MEAS

2.

Hand gesture pointing at three icons: user, app, and letter, with a sun icon above the top.

Hand gesture pointing at a control panel with icons for battery, mode, and function buttons

Hand pointing at a control panel with icons for V, triangle, and ruler on a dark background

S V S DIST 5.570m DIST S 5.570 m 2.383 m 13.273 m²

Hand gesture pointing at a button labeled 'm' and 'L', with sun icon above it

S 570 m 270 m 13.273

Salir de la memoria

21.36 5.57 2.383 13.273 m²

0

Código de errores:

Warning sign with black triangular triangle and central sunburst symbol

m / ft / inch / _' _"

1.

MEAS

2.

Hand gesture showing finger pressing on a control panel with icons for function, input, and output

Hand gesture pointing at a button with icons for username, password, and function keys

S V S DIST 5.570m DIST S 5.570 m 2.383 m 13.273 m²

Misura del volume:

s v 4 1 V m DIST 3x 4.690 m 4.690 m 0.383 m 8.425 m³

S 570 m 13.273

Hand gesture pointing at a button with icons for 'm', 'L', and a sun symbol above it

S 570 m 200 m 13.273 O DIST

Warning sign with sunburst symbol inside triangle, commonly used in safety or hazard prevention context

m / ft / inch / _' _"

1.

MEAS

2.

Hand gesture pointing at three icons: user, app, and lock, with a sun icon above the top.

Hand gesture pointing at a control panel with icons for location, mode, and function buttons

S v S DIST 5.570m DIST S 5.570 m 2.383 m 13.273 m²

Pomiar kubatury:

S v 4 i V m DIST 3x v ● 4.690 m ● 4.690 m ● 0.383 m 8.425 m³

Hand gesture pointing at a button with icons for 'm', 'L', and a sun symbol above it

S 670 m 2.5 m 13.273 lub DIST

Zamykanie pamięci

31.50 5.57 2.383 13.273 m²

lub

Kody błędów:

CE RECOLOGY RECOLOGY RECOLOGY

Laserliner

!

Warning sign with black triangular triangle and central sunburst symbol

m / ft / inch / _' _"

1.

MEAS

2.

Hand gesture pointing at a control panel with icons for function, input, and output

Hand gesture pointing at a button with icons for username, password, and address symbol

S v V m DIST 3x v 4.690 m 4.690 m 0.383 m 8.425 m

Kolmiomittaus 1:

v 4 4 1 m DIST 2x 0.240 m 2.067 m 2.053 m

Laserliner

Kolmiomittaus 2:

4 4 4

Kolmiomittaus 3:

4 4

S 570 m 13.273 m

Hand gesture pointing at a button with icons for 'm', 'L', and a sun symbol above it

S 570 m 2.73 m 13.273

LaserRange-Master T7

LaserRange-Master T7

Interior view of a modern, minimalist room with hanging lanterns and large windows (no text or symbols visible)

SERVICE

Umarex GmbH & Co. KG

- Laserliner -
