10640A - Lighting Livarno Lux - Free user manual and instructions

Brand	Livarno Lux
Model	10640A
Category	Solar LED outdoor luminaire
Product type	Decorative solar outdoor lamp
Power supply	Rechargeable Ni-MH battery 1.2 V
Power consumption	0.01 W
Bulb type	1 x LED (non-replaceable)
Lighting duration	Approximately 8 hours (fully charged battery)
Protection rating	IP44 (protected against water splashes)
Operating voltage	1.2 V (DC)
Solar cell	Integrated, converts sunlight into energy
Activation	Automatic at dusk
Main functions	Decorative outdoor lighting, solar charging, automatic dusk activation
Delivery contents	3 solar lamps, 3 rods, 3 stakes, 3 assembly pieces, 1 manual
Assembly	Push the lampshade, insert the lamp into the assembly piece, connect rod and stake, plant in the ground
Recommended installation	Sunny location, without any artificial light source nearby
Battery replacement	Every 12 months, specified type rechargeable Ni-MH battery
Maintenance and cleaning	Clean regularly with a dry, lint-free cloth; do not use harsh products
Safety instructions	Do not use if damaged; keep out of reach of children; do not short-circuit the battery; do not expose to extreme temperatures
Spare parts and repairability	Bulb non-replaceable; battery replaceable; no other spare parts available
Warranty	3 years from date of purchase, covers material and manufacturing defects
After-sales service	Tel.: [phone] (FR), 080071011 (BE), 80023970 (LUX); e-mail: [e-mail] / [e-mail]

Frequently Asked Questions - 10640A Livarno Lux

The light does not turn on even though the product has been exposed to sunlight all day. What should I do?

Check that the ON/OFF switch is in the ON position. Make sure no artificial light source (streetlamp, etc.) disturbs the solar cell. Install the product in a sunnier location away from any stray light.

How do I replace the rechargeable battery?

Turn off the lamp (switch to OFF). Loosen the fixing screws with a small Phillips screwdriver, lift the decorative solar lamp. Replace the used battery with a Ni-MH battery of the same type (1.2 V) respecting the polarity (+/-) indicated in the compartment. Close and tighten the screws, then set the switch back to ON.

What is the lighting duration after a full charge?

A fully charged rechargeable battery provides about 8 hours of autonomy. Actual duration depends on sunlight, angle of incidence, and temperature.

Where should I install the solar lamp for optimal operation?

Place the lamp where the solar cell is exposed directly to sunlight for as long as possible. Avoid proximity to artificial light sources (yard lighting, street lighting) that could prevent automatic activation at dusk.

How do I clean the solar lamp?

Clean the product regularly with a dry, lint-free cloth. For stubborn dirt, use a slightly damp cloth. Never use abrasive cleaners or solvents.

Can the LED be replaced?

No, the LED is permanently integrated and cannot be replaced. When the LED reaches end of life, the entire product must be replaced.

What type of battery should be used for replacement?

Use exclusively a rechargeable Ni-MH battery of 1.2 V and appropriate size (AAA type). Strictly observe polarity when inserting.

The lamp turns off shortly after turning on. What should I do?

This may be due to a damaged battery or insufficient sunlight. Replace the battery with a new one or move the lamp to a more sun-exposed area.

What should I do if the battery leaks?

Wear protective gloves. Avoid any contact of the chemical with skin, eyes, or mucous membranes. Rinse thoroughly with clean water if contact occurs and consult a doctor. Remove the used battery from the product and clean the compartment.

What is the warranty period and how do I activate it?

The warranty is 3 years from the date of purchase. To activate it, keep the receipt and the reference number (IAN 439153_2304). In case of a defect, contact after-sales service by phone or e-mail, then send the defective product with the proof of purchase.

USER MANUAL 10640A Livarno Lux

Black-and-white photo of three identical outdoor lighting fixtures with glass domes, displayed on a wooden surface with floral plants in the foreground (no text or symbols visible)

LED-SOLAR-LEUCHTEN/LED-SOLAR-TISCHLEUCHTEN/ LED SOLAR LIGHTS/LED SOLAR TABLE LIGHTS/ LAMPES SOLAIRES À LED/LAMPES DE TABLE SOLAIRES À LED

DE AT CH

Assembly, operating and safety instructions

FR BE

LAMPES SOLAIRES À LED/ LAMPES DE TABLE SOLAIRES À LED

GB/IE Assembly, operating and safety instructions Page 16

Diagram of a dropper with a pointed tip inserted into a liquid channel, showing fluid flow direction (no text or labels)

HG10602B

1 2 3 4 5 6 7 8

Description of parts and features...... Page 17

Scope of delivery....Page 18

Technical data......Page 18

Safety instructions......Page 18

Product-specific safety instructions ...... Page 19

Safety instructions for batteries / rechargeable batteries......Page 19

Functioning......Page 20

Preparing for use ...... Page 20

Installing the product......Page 20

Setting up the product......Page 20

Replacing the rechargeable battery....Page 21

Charging the rechargeable battery......Page 21

Maintenance and care......Page 21

Troubleshooting Page 22

Disposal Page 22

Warranty Page 23

Warranty claim procedure......Page 24

Service Page 24

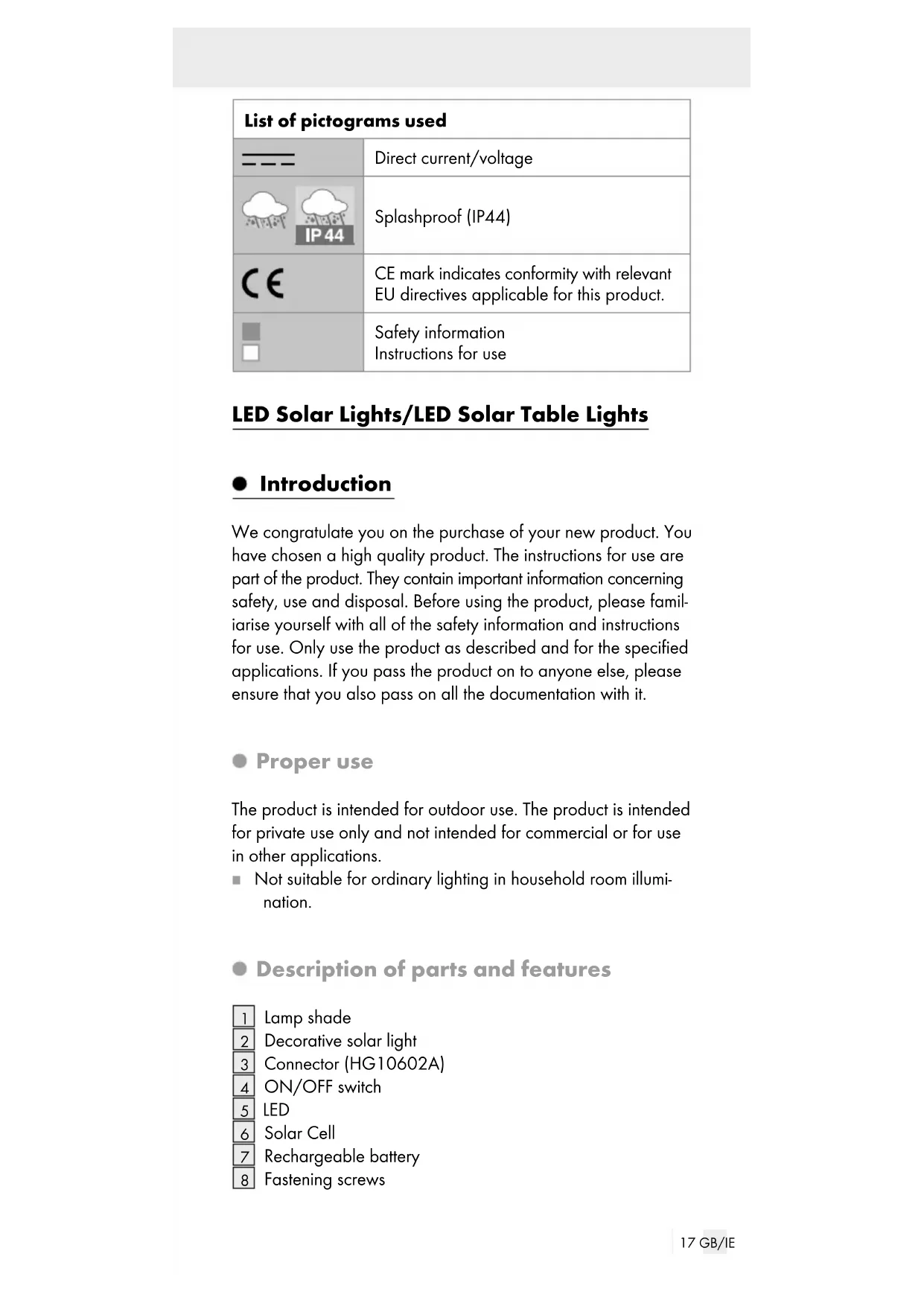

LED Solar Lights/LED Solar Table Lights

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Proper use

The product is intended for outdoor use. The product is intended for private use only and not intended for commercial or for use in other applications.

■ Not suitable for ordinary lighting in household room illumination.

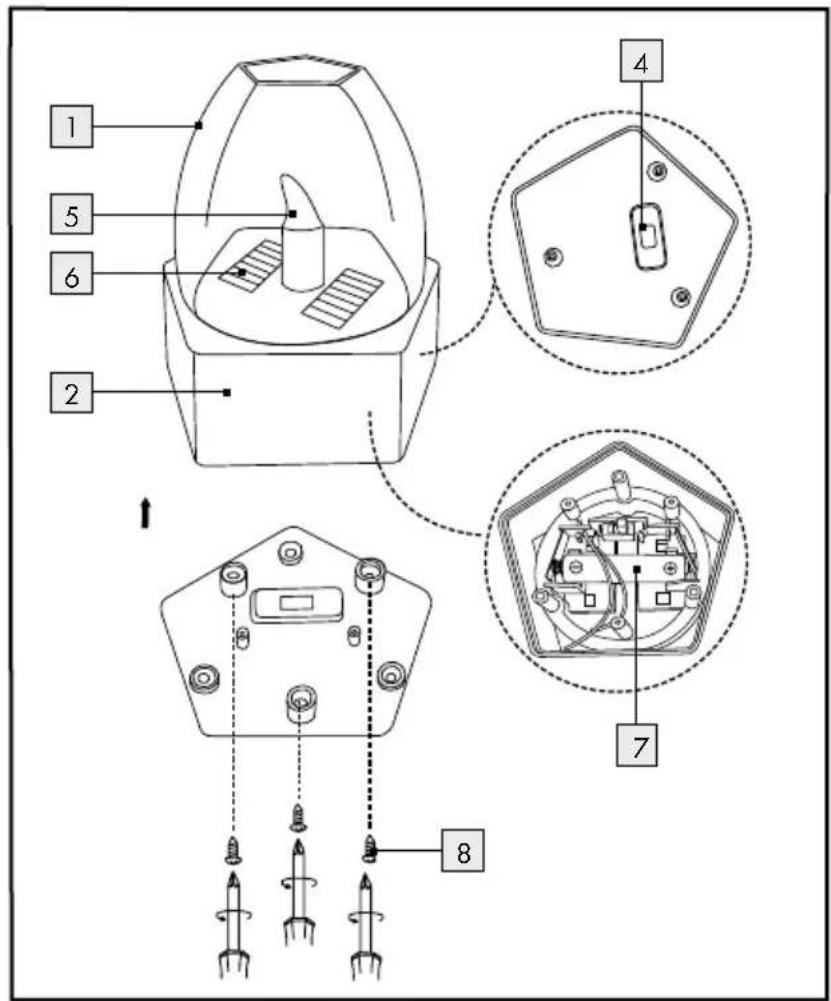

• Description of parts and features

1 Lamp shade
2 Decorative solar light
3 Connector (HG10602A)
4 ON/OFF switch
5 LED
6 Solar Cell
7 Rechargeable battery
8 Fastening screws

- Scope of delivery

3 Solar lights and rechargeable battery
3 Poles (HG10602A/HG10602C)
3 Ground stakes (HG10602A/HG10602C)
3 Connectors (HG10602A)
1 Set of assembly instructions and instructions for use

- Technical data

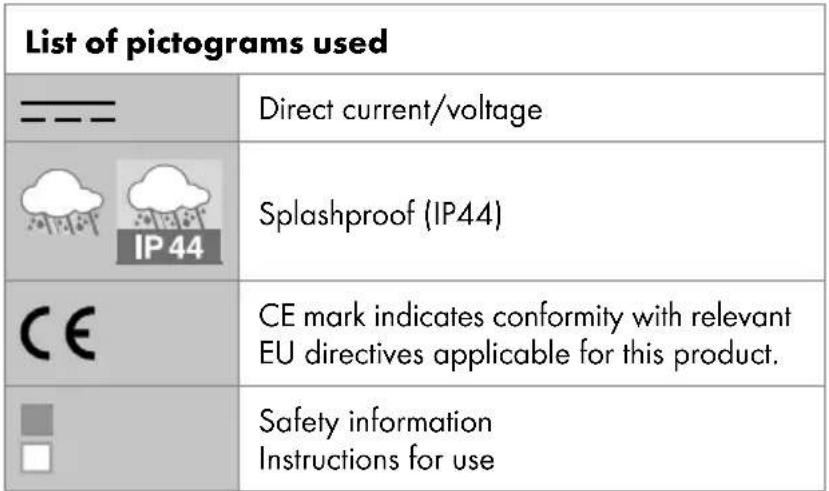

Operating voltage: 1.2V ---

Rechargeable battery: 1 x Ni-MH rechargeable battery/AAA/1.2V==/100mAh

Bulb: 1 x LED (not replaceable)

Power: 0.01 W

Degree of protection: IP44 (splash proof)

Lighting Duration

(with full charge): approx. 8 hours

Safety instructions

YOU SHOULD STORE ALL SAFETY INFORMATION AND INSTRUCTIONS IN A SAFE PLACE IN CASE YOU NEED TO REFER TO THEM AGAIN IN THE FUTURE!

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

Do not use the product if you detect any kind of damage.
The illuminant is not replaceable.
If the illuminant fails at the end of its life, the entire product must be replaced.

● Product-specific safety instructions

■ Make sure that the solar cell is free of dirt and free of snow and ice in winter. Otherwise the performance of the solar cell will diminish.

Safety instructions for batteries/rechargeable batteries

■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.

■ Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.

DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open

them. Overheating, fire or bursting can be the result.

- Never throw batteries/rechargeable batteries into fire or water.

Do not exert mechanical loads to batteries/echargeable batteries.

Risk of leakage of batteries/rechargeable batteries

- Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.

If batteries/rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES! Leaked or damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries/rechargeable batteries, immediately remove them from the product to prevent damage.

■ Remove batteries/rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery/rechargeable battery!
- Insert batteries/rechargeable batteries according to polarity marks (+) and (-) on the battery/rechargeable battery and the product.

Use a dry lint-free cloth or cotton swab to clean the contacts on the battery/rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries/rechargeable batteries from the product immediately.

- Functioning

The solar cell installed in the product converts sunlight into electrical energy and stores it in 1 Ni-MH rechargeable battery. Switch on the product with the ON/OFF switch 4. The product will automatically light on as it begins to get dark. The in-built LED is a very long-life and energy-saving light source. The light duration depends on the amount of sunlight, the angle of light on the solar cell and the temperature (the rechargeable battery capacity is temperature-dependent). A vertical angle of light at temperatures above the freezing point is ideal. The rechargeable battery 7 does not achieve maximum capacity until after several charge and discharge cycles.

● Preparing for use

Note: Remove all packaging materials from the product.

• Installing the product

Install the product in accordance with Figures A, C, D:

1. Move the ON/OFF switch 4 into the ON position to switch the light on.
2. For model A, insert the lamp shade 1 into the decorative solar light 2.
3. For model A, place the Decorative solar light 2 into the connector 3
4. For model A, C, connect the product, pole 9 and ground stake 10 with reference Fig C.
5. Your product is ready for use.

- Setting up the product

☐ Insert the assembled product far enough into the ground (lawn, flower bed) for it to be stable.
☐ Make sure you keep proper footing and balance at all times. Do not use any force when assembling or setting-up the

product, e.g. hammer blows. This will damage the product. In order to achieve the best result, set the product up in a place where the solar cell will get direct sunlight for as long as possible.

☐ Make sure that the solar cell is not influenced by any other source of light such as yard or street lighting as otherwise the light will not come on in twilight.
☐ The light automatically switches on in twilight conditions and off again when normal outdoor lighting conditions return.

● Replacing the rechargeable battery

The rechargeable battery should be replaced every 12 months to ensure optimum performance.

1. Switch off the light with the ON/OFF switch 4.
2. Loosen the fastening screws 8 by using a small cross head screwdriver and then lever out the decorative solar light 2 with the help of a slot screwdriver (see Fig. B/E).
3. Take care not to damage the cables and cable connections (see Fig. B/E).
4. Exchange the old rechargeable battery 7 to a new one. Take care about the correct polarity, when inserting the new rechargeable battery. The polarity is indicated in the battery compartment. The new rechargeable battery has to have the same technical data like the old one.
5. Now again fasten the decorative solar light 2, fasten the fastening screws 8 by using a small cross head screw-driver. Slide the ON/OFF switch 4 to the position ON.

● Charging the rechargeable battery

Note that the product must be switched on when the rechargeable battery is charging.

The charging time of the rechargeable battery when the solar cell is used depends on the intensity of the sunlight and the angle of incidence of the light on the solar cell. Place the solar cell as perpendicular as possible to the angle of incidence of the light. In this way you will receive the highest light levels.

● Maintenance and care

The LED cannot be replaced. The product is maintenance-free, except for any necessary change of rechargeable battery.

☐ Clean the product regularly with a dry, lint-free cloth. Use a slightly dampened cloth to remove more stubborn dirt.

●Troubleshooting

Note: This product has delicate electronic components. This means that if it is placed near an object that transmits radio signals, it could cause interference. If you notice that the product is malfunctioning, remove any sources of interference from the area of the product.

Note: Electrostatic discharges may cause product to malfunction. In the event of such malfunctions, remove the rechargeable battery briefly and reinsert it.

Error Cause Solution
The light will not switch on even though the sun shone on the product all day.	Artificial sources of light, e.g. street lighting, are interfering with the product.	Mount the product in a place where it cannot be disturbed by other sources of light.
The light does not come on or comes on only briefly.	The rechargeable battery is broken or there was not enough daylight.	Replace the rechargeable battery or mount the product in a place where it can receive more sunlight.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment. The Triman logo is valid in France only.

Faulty or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

For this product, the rechargeable battery is also covered by its warranty period.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN

439153_2304) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

CE IP44

Pile rechargeable : 1 x pile rechargeable Ni-MH/

AAA/1,2V==/100mAh

Diagram of a mechanical device with a pointed tip inserted into a container, showing downward force arrows below (no text or symbols)

PDF ONLINE www.lidl-service.com

OWIM GmbH & Co. KG

Stiftsbergstraße 1

74167 Neckarsulm

Germany

Model no.: HG10602A/HG10602B/HG10602C

Version: 10/2023
