USER MANUAL HG09316 Livarno Lux

Assembly, operating and safety instructions

NL BE

LEDLAMP

Montage-, bedienings- en veiligheidsinstrumenties

C

LEDREFLEktor

GB/IE Assembly, operating and safety instructions Page 18

Intended use.. Page 20
Parts description.. Page 20
Technical data.. Page 20
Scope of delivery.. Page 21

General safety instructions.. Page 21

Before installation.. Page 23

Before use. Page 23

Installation Page 23

Start-up Page 25

Adjusting the motion detector.. Page 25
Setting the lighting duration.. Page 25
Setting the daylight level . Page 25
Aligning the motion detector.. Page 26

Cleaning and care.. Page 26

Disposal.. Page 27

Warranty.. Page 27

Warranty claim procedure.. Page 28
Service . Page 29

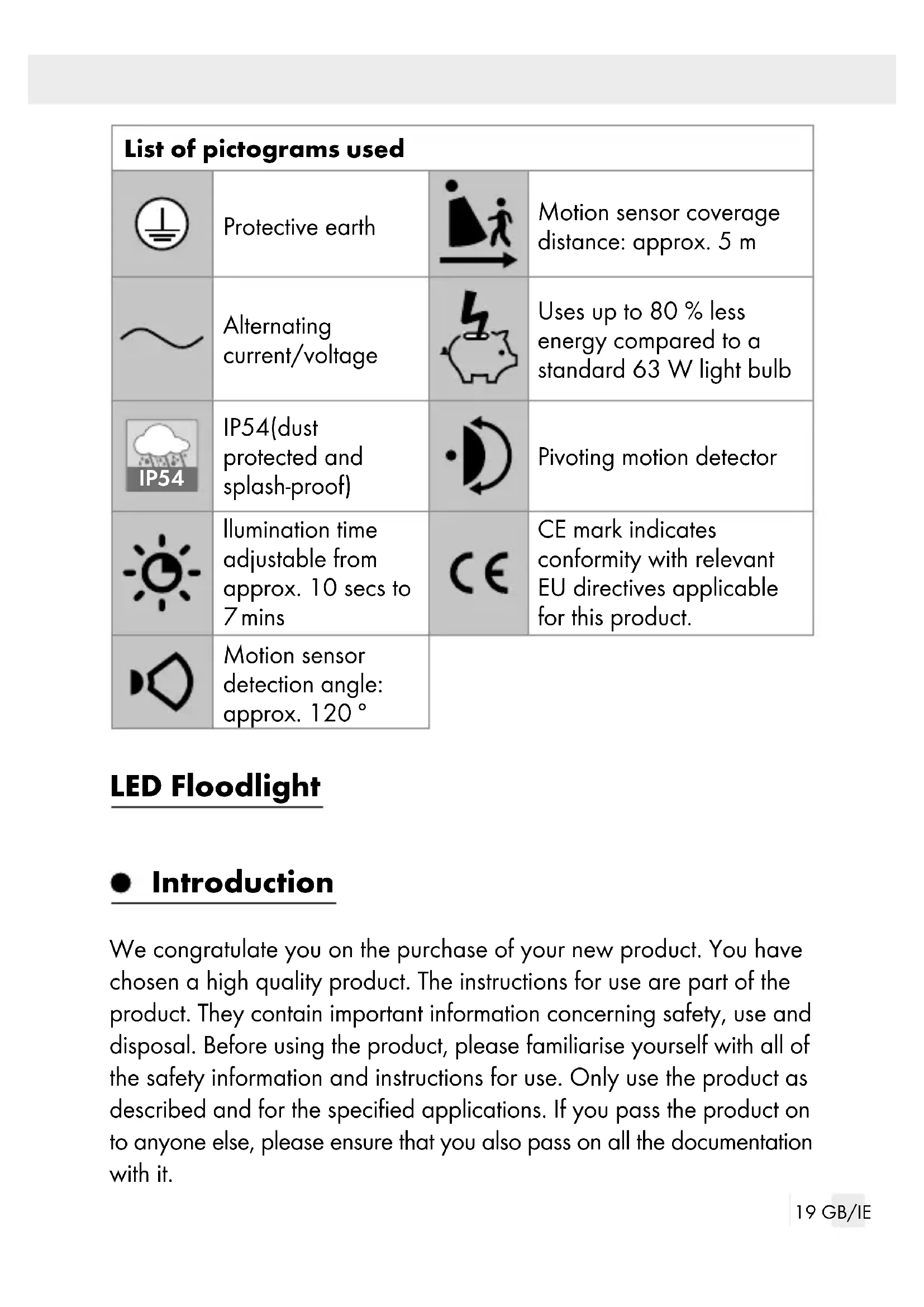

List of pictograms used
	Protective earth		Motion sensor coverage distance: approx. 5 m
~	Alternating current/voltage		Uses up to 80 % less energy compared to a standard 63 W light bulb
IP54	IP54(dust protected and splash-proof)		Pivoting motion detector
	lumination time adjustable from approx. 10 secs to 7 mins		CE mark indicates conformity with relevant EU directives applicable for this product.
	Motion sensor detection angle: approx. 120°

LED Floodlight

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

The product is intended for automatic lighting in outdoor areas only. This product is solely intended for private use and not for commercial use.

- Partsdescription

1 Spotlight
2 Lockingscrew (mounting bracket)
3 Spring washer
4 Tooth lock washer
Mounting screw
6 Wall plug
7 Mounting bracket
8 Motion detector
Neutral conductor (blue)

10Protectiveconductor (yellow-green)
11 Outer conductor (brown)
12 Rotary control LUX (light sensitivity)
13 Rotary control TIME (switched on duration)
14Terminalblock (not included in the delivery)

-Technicaldata

Operating voltage: 230V 50Hz,10W

LEDs: 15 × LED (LEDs are non-replaceable.)

Dimming switch: adjustable from 10 lx-20,000 lx

Light on time: adjustable between approx. 10 s-7 min

Protection class: I

Protection class: IP54 (dust protected and splash-proof)

Dimensions (H× W× D) approx. 16.4× 11.4× 7.1~cm

Projected area: max. 160~cm^2

Mounting height: approx. 2.5m

Weight: approx. 305 g

GS certified

This product contains a light source of energy efficiency class "F".

- Scope of delivery

1 LED spotlight with motion detector
2 Wall plugs (0 6 mm)
2 Screws
1 Set of mounting and operating instructions

General safety instructions

Before using the product, please familiarise yourself with all of the safety information and instructions for use! When passing this product on to others, please also include all the documents!

DANGER TO LIFE AND ACCIDENT HAZARD

FOR TODDLERS AND SMALL CHILDREN! Never

leave children unattended with the packaging material.

The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Children should not be allowed to play with the product. Cleaning and user maintenance should not be performed by children without supervision.

Risk of electric shock

Always check product for damage before connecting it to power.

Never use the product if it shows any signs of damage.

Prior to installation, verify that the mains voltage on site corresponds with the operating voltage required for the product (230V 50Hz) . Otherwise do not install the product.
Terminal block is not included. Installation must be performed by a qualified person.

CAUTION! DANGER OF BURN INJURIES! To prevent burns, verify the product is switched off and has cooled down for at least 15 min before touching it. The product can become very hot.

FIRE HAZARD! Fit the product so that it is at least 0.5m away from the material to be illuminated. Excessive heat can result in a fire.

CAUTION! RISK OF INJURY! Broken lamp glass must be replaced before any further use is made of the product.

Only intended for installations out of normal reach.

This product does not contain any parts that can be serviced by the user. The LEDs and built-in LED control gear cannot be replaced.
If the LEDs fail at the end of their lives, the entire product must be replaced.
The spotlight is only suited for use with the built-in LED control gear.
The product continues to draw a small amount of power even if the lamp is off as long as product is connected to supply mains. To switch the product off completely, the mains switch should be switched off.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.

- Before installation

Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the product and the connection regulations.

Before installation ensure that the circuit, to which the product will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).

Use the voltage tester to verify the de-energised status.

The included mounting material is suitable for ordinary solid concrete or masonry construction. Check which mounting material is suitable for your chosen mounting surface. If necessary, seek expert advice.

- Before use

Note: Remove all packaging materials from the product.

- Installation

Make sure you will not be drilling into electrical, gas or water lines inside the wall. Use a power drill to drill the holes into the brick wall. Always observe all safety instructions for the power drill in the manual for the power drill. Death or injury due to electric shock may otherwise result.

When selecting the mounting location, pay attention to the following:

Make sure that the spotlight illuminates the desired area. You can move the spotlight 1 vertically.

Make sure the motion detector covers the desired area. The motion detector has a maximum coverage range of 5m , with a coverage angle of about 120^ (depending on the mounting height - a height of 2.50m is ideal) (Fig. D).

Make sure the motion detector is not illuminated at night by street lighting. This can influence its functioning.

During mounting, proceed as described below:

Unscrew locking screw by using a screw driver (cross type) to detach the mounting bracket from the spotlight 1.

Hold the mounting bracket so that it is horizontal (possibly with a spirit level) against the wall and mark the fastening holes.

Now drill the fastening holes (Ø 6 mm) and push the wall plugs into the drill holes (Fig. A).

Secure the mounting bracket 7 onto the wall using the mounting screws 5 provided and check the tight fit.

Connect the outer conductor 11, the neutral conductor 9 and the protective conductor 10 to the terminal block 14 of a properly installed junction box (not included) (Fig. C).

Note: The connection cable type should be H05RN-F 3G 1.0mm².

Note: The protective conductor 10 connection is to be used longer than the other conductors, so that it is the last one to tear off in the event of a breakage of the product.

The used connection terminal must have at least the following specifications:

Type of connection terminal: With screws

Number of contacts: 3

Operating voltage: >230 ~V

Rated current: >1 A

The connection terminal has to fulfill the requirements of the DIN EN 60998-2-1 or EN 60998-2-2. The kind of connection has to fulfill the local and national requirements.

Note: The terminal block is not included in the delivery.

Now use the screw driver (cross type) to attach the spotlight 1 to the mounting bracket 7 by using the previously removed locking screws 2, spring washers 3 and tooth lock washers 4 (Fig. A).
Align the spotlight into the desired direction. The motion detector 8 can be rotated horizontally and vertically.

Reinsert the fuse or switch the circuit breaker back on. Your product is now ready to use.

- Start-up

Adjusting the motion detector

Depending on the pre-adjustments of the motion detector [8], the spotlight [1] will switch itself on for a certain period of time as soon as the motion detector [8] detects movement. These pre-adjustments are made using the two controllers on the backside of the motion detector [8] (Fig. B).

- Setting the lighting duration

Turn the rotary control TIM13 anti-clockwise to increase the duration of the illumination. The lighting duration can be adjusted within a time window of approx. 10 seconds to 7 minutes.

Setting the daylight level

Turn the rotary control Lux clockwise to increase the daylight level: In the position, the motion detector only reacts at night (at

approx. 10 lx). In the position, the motion detector also responds at daylight levels, as long as about 20,000 lx are not exceeded.

Aligning the motion detector

Note: Perform this adjustment at twilight.

Turn the rotary control Lux to position
Align the motion detect into the central region of the desired coverage area.
Move about through the coverage area until you are satisfied with the response characteristics of the motion detector 8. To find the proper orientation, change the orientation of the motion detector 8.

Note: Please note that the motion detector 8 primarily detects movements transverse to the motion detector 8. If you move directly towards the motion detector 8, it cannot detect this movement.

When you have aligned the motion detector 8 satisfactorily then turn the rotary control LUX 12 to the desired position. You can determine the appropriate position of the rotary control LUX 12 during dawn or dusk at which the spotlight 1 should react.
Slowly turn the rotary control LUX 12 anti-clockwise until the motion detector 8 reacts to movement within the coverage area.

- Cleaning and care

Before cleaning, remove the fuse or switch off the circuit breaker at the fuse box.
- Never immerse the product in water or other liquids. Otherwise the product can be damaged.

Clean the product with a lint-free, slightly moist cloth and mild cleaning agent.
Reconnect the fuse or circuit breaker for use after cleaning.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects

you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 403055_2110) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

CE IP54
