Product type	LED outdoor spotlight with motion sensor
Brand	Livarno Lux
Model	HG09317A
Power	24 W
Operating voltage	230 V ~ 50 Hz
LED type	28 integrated LEDs (non-replaceable)
Energy efficiency class	F
Detection angle	approx. 180°
Detection range	approx. 12 m
Lighting duration setting	from 10 s to 7 min
Brightness threshold setting	from 10 lx to 20,000 lx
Protection class	I
Ingress protection	IP44 (splash-proof)
Dimensions (H x W x D)	approx. 19.2 x 16 x 9 cm
Weight	approx. 440 g
Recommended mounting height	approx. 2.5 m
Max. projection area	307 cm²
Mounting hardware included	Wall plugs Ø 6 mm and screws
Connection cable type	H05RN-F 3G 1.0 mm² (not supplied)
Warranty	3 years

Frequently Asked Questions - HG09317A Livarno Lux

How to install the Livarno Lux HG09317A LED spotlight?

Installation must be carried out by a qualified electrician. Fix the mounting bracket to the wall using the supplied plugs and screws, then connect the power cable to the terminal block respecting the L, N and ⊥ markings. Make sure to use a cable type H05RN-F 3G 1.0 mm² with a maximum length of 2.5 m.

How to adjust the motion sensor?

Use the three rotary switches located under the sensor: TIME for lighting duration (10 s to 7 min), SENS for sensitivity (turn counterclockwise to increase), and LUX for brightness threshold (sun position = reacts during daytime, moon position = only at night).

What is the detection range and angle?

The sensor has a detection angle of approximately 180° and a maximum range of approximately 12 m at an ideal mounting height of 2.5 m.

What to do if the spotlight does not turn on?

First check the power supply (fuse or circuit breaker). Make sure the LUX setting is not in sun position during the day. Ensure the sensor is not obstructed and that the sensitivity SENS is sufficient. If the problem persists, contact customer service.

Can I replace the LEDs myself?

No, the LEDs and integrated ballast are not user-replaceable. At the end of their life, call a qualified electrician or replace the entire spotlight.

How to clean the spotlight?

Before cleaning, disconnect the power (fuse or circuit breaker). Use a lint-free cloth slightly dampened with a mild detergent. Never immerse the device in water.

What is the IP protection class?

The spotlight is certified IP44, splash-proof, making it suitable for outdoor use.

The spotlight turns on during the day, how to fix this?

Turn the LUX rotary switch clockwise towards the moon position (approx. 10 lx) so that the sensor only reacts at night. If the problem persists, reduce the SENS sensitivity.

What is the warranty period?

This product has a warranty of 3 years from the date of purchase. Keep the receipt as proof of purchase. The warranty covers material and manufacturing defects, but not normal wear and tear.

How to contact customer service?

In France, call 0800 904 879 or email [e-mail]. For Belgium, dial 0800 71 011 (or 800 23970 in Luxembourg) or write to [e-mail].

USER MANUAL HG09317A Livarno Lux

Exterior view of a modern white LED light fixture mounted on a wall, with an inset image showing a close-up of the lamp (no text or symbols visible)

LED-AUSSENSTRAHLER 24 W / LED OUTDOOR FLOODLIGHT 24 W / PROJECTEUR EXTÉRIEUR À LED 24 W

DE AT CH

Assembly, operating and safety instructions

NL BE

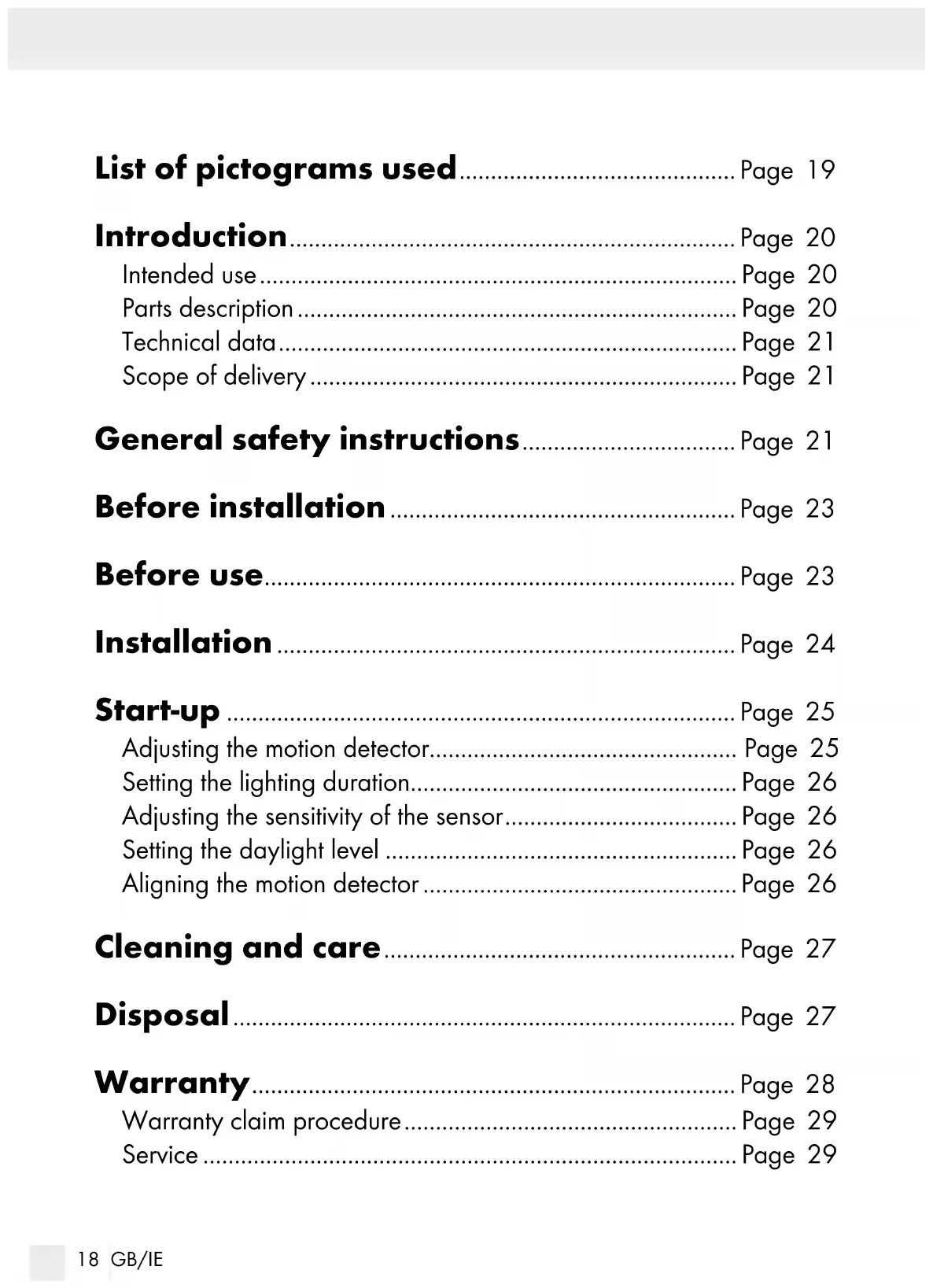

GB / IE Assembly, operating and safety instructions Page 18

Intended use......Page 20

Parts description Page 20

Technical data...... Page 21

Scope of delivery....Page 21

General safety instructions......Page 21

Before installation Page 23

Before use......Page 23

Installation Page 24

Start-up Page 25

Adjusting the motion detector.... Page 25

Setting the lighting duration....Page 26

Adjusting the sensitivity of the sensor......Page 26

Setting the daylight level ...... Page 26

Aligning the motion detector....Page 26

Cleaning and care......Page 27

Disposal Page 27

Warranty Page 28

Warranty claim procedure......Page 29

Service Page 29

List of pictograms used
	Alternating current/voltage
	Splashproof
	Motion sensor detection angle: approx. 180 °
	Motion sensor coverage distance: approx. 12 m
	Uses up to 80 % less energy compared to a standard 130 W light bulb
	Pivoting motion detector
	CE mark indicates conformity with relevant EU directives applicable for this product.

LED Outdoor Floodlight 24 W

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intendeduse

The product is intended for automatic lighting in outdoor areas only. This product is solely intended for private use and not for commercial use.

Partsdescription

1 Spotlight
2 Locking screw (mounting bracket)
3 Spring washer
4 Flat washer
5 Mounting screw
6 Wall plug
7 Mounting bracket
8 Motion detector
9 Plastic cover

10 Seal ring
11 Cable gland
12 Terminal cover
13 Connection terminal

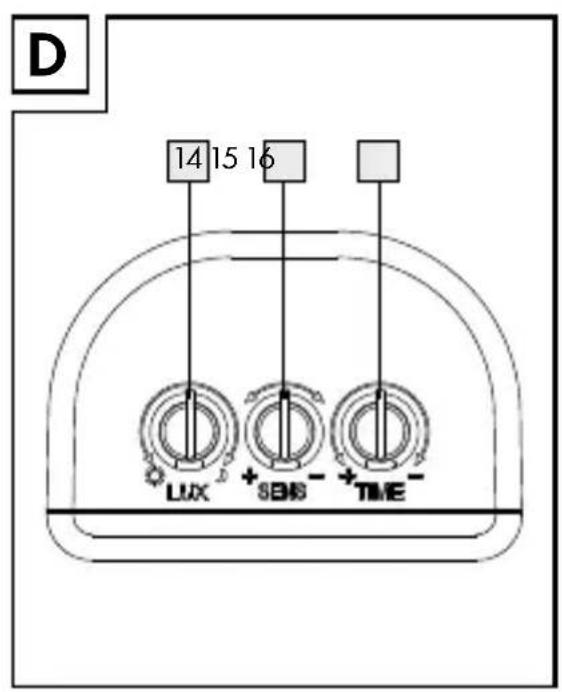

14 Rotary control LUX (light sensitivity)
15 Rotary control SENS (sensitivity)
16 Rotary control TIME (switched on duration)

●Technicaldata

Operating voltage: 230V\~50Hz, 24W

LEDs: 28 x LED (LEDs are non-replaceable.)

Dimming switch: adjustable from 10 lx-20,000 lx

Light on time: adjustable between approx. 10 s–7 min

Protection class: I

Protection class: IP44 (Splashproof)

Dimensions (H x W x D): approx. 19.2 x 16 x 9 cm

Projected area: max. 307 cm ^4

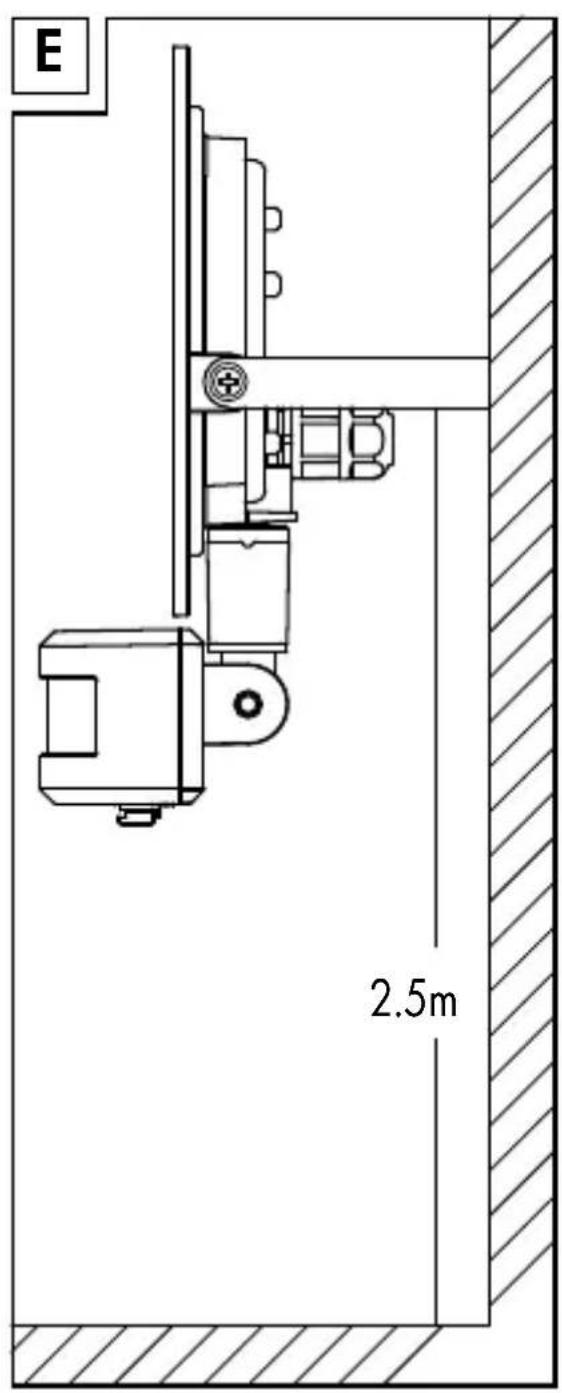

Mounting height: approx. 2.5 m

Weight: approx. 440 g

GS certified

This product contains a light source of energy efficiency class "F".

- Scope of delivery

1 LED spotlight with motion detector
2 Wall plugs (∅ 6 mm)
2 Screws

1 Terminal cover
1 Cable gland
1 Set of mounting and operating instructions

General safety instructions

Before using the product, please familiarise yourself with all of the safety information and instructions for use! When passing this product on to others, please also include all the documents!

DANGER TO LIFE AND ACCIDENT HAZARD

FOR TODDLERS AND SMALL CHILDREN! Never

leave children unattended with the packaging material.

The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Children should not be allowed to play with the product. Cleaning and user maintenance should not be performed by children without supervision.

Risk of electric shock

Always check product for damage before connecting it to power. Never use the product if it shows any signs of damage.

Prior to installation, verify that the mains voltage on site corresponds with the operating voltage required for the product (230 V\~ 50 Hz). Otherwise do not install the product.

CAUTION! DANGER OF BURN INJURIES! To prevent burns, verify the product is switched off and has cooled down for at least 15 min before touching it. The product can become very hot.

FIRE HAZARD! Fit the product so that it is at least 0.5 m away from the material to be illuminated. Excessive heat can result in a fire.

CAUTION! RISK OF INJURY! Broken lamp glass must be replaced before any further use is made of the product.

Only intended for installations out of normal reach.

This product does not contain any parts that can be serviced by the user. The LEDs and built-in LED control gear cannot be replaced by end user.
If the LEDs fail at the end of their lives, they must be repaired by qualified electrician or the entire product must be replaced.
■ The spotlight is only suited for use with the built-in LED control gear.

- Before installation

Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the product and the connection regulations.

Before installation ensure that the circuit, to which the product will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).
Use the voltage tester to verify the de-energised status.
The included mounting material is suitable for ordinary solid concrete or masonry construction. Check which mounting material is suitable for your chosen mounting surface. If necessary, seek expert advice.

- Before use

Note: Remove all packaging materials from the product.

☐ Remove the plastic cover 9 from the product (Fig. B).

- Installation

■ Make sure you will not be drilling into electrical, gas or water lines inside the wall. Use a power drill to drill the holes into the brick wall. Always observe all safety instructions for the power drill in the manual for the power drill. Death or injury due to electric shock may otherwise result.

When selecting the mounting location, pay attention to the following:

Make sure that the spotlight illuminates the desired area. You can move the spotlight 1 vertically.
Make sure the motion detector covers the desired area. The motion detector 8 has a maximum coverage range of 12 m, with a coverage angle of about 180° (depending on the mounting height-a height of 2.50 m is ideal) (Fig. E).
Make sure the motion detector is not illuminated at night by street lighting. This can influence its functioning.

During mounting, proceed as described below:

☐ Unscrew locking screws by using a screw driver (cross type) to detach the mounting bracket 7 from the spotlight 1.
☐ Hold the mounting bracket so that it is horizontal (possibly with a spirit level) against the wall and mark the fastening holes.
Now drill the fastening holes ( 6 mm) and push the wall plugs into the drill holes (Fig. A).
☐ Secure the mounting bracket 7 onto the wall using the mounting screws 5 provided and check the tight fit.
☐ Run the connection cable (not include in the product), type H05RN-F 3G 1.0 mm², through the cable gland 11 and terminal cover 12 to the connection terminal 13. The suitable length for the connecting wires please refer to Fig. C.
Open the connection terminal 13 by using a screw driver (cross type) to loosen the screws. Then connect the connection cable

with the connection terminal 13. Pay attention to the markings on the connection terminal 13 (L for live, N for neutral and or G for the earth wire) (Fig. C). The overall length for the connection cable line should not exceed 2.5 m.

☐ Close the connection terminal 13 again by fastening the screws. Make sure the seal ring 10 is correctly installed (Fig. B). Then tighten the terminal cover 12 and cable gland 11 finally to fix the connection cable.
Now use the screw driver (cross type) to attach the spotlight 1 to the mounting bracket 7 by using the previously removed locking screws 2, spring washers 3, and flat washers 4 (Fig. A).
Align the spotlight into the desired direction. The motion detector 8 can be rotated horizontally and vertically.

Reinsert the fuse or switch the circuit breaker back on. Your product is now ready to use.

- Start-up

- Adjusting the motion detector

Depending on the pre-adjustments of the motion detector 8, the spotlight 1 will switch itself on for a certain period of time as soon as the motion detector 8 detects movement. These pre-adjustments are made using the three controllers on the underside of the motion detector 8 (Fig. D).

- Setting the lighting duration

Turn the rotary control TIMB anti-clockwise to increase the duration of the illumination. The lighting duration can be adjusted within a time window of approx. 10 seconds to 7 minutes.

- Adjusting the sensitivity of the sensor

Turn the rotary control SENS anti-clockwise to increase the sensitivity of the sensor.

Note: The motion detector 8 responds to heat radiation. When outdoor temperatures are low, it is more sensitive to body heat than when outdoor temperatures are warm. Be sure to regulate the sensitivity of the sensor over the course of the year.

- Setting the daylight level

Turn the rotary control LUX anti-clockwise to increase the daylight level: In the position, the motion detector only reacts at night (at approx. 10 lx). In the * position, the motion detector also responds at daylight levels, as long as about 20,000 lx are not exceeded.

• Aligning the motion detector

Note: Perform this adjustment at twilight.

Turn the rotary control LUX to position ✱
☐ Align the motion detector into the central region of the desired coverage area.

Move about through the coverage area until you are satisfied with the response characteristics of the motion detector 8. To find the proper orientation, change the position of the rotary control SENS 15 or the orientation of the motion detector 8.
Note: Please note that the motion detector 8 primarily detects movements transverse to the motion detector 8. If you move directly towards the motion detector 8, it cannot detect this movement.
☐ When you have aligned the motion detector 8 satisfactorily then turn the rotary control LUX 14 to the desired position. You can determine the appropriate position of the rotary control LUX 14 during dawn or dusk at which the spotlight 1 should react.
☐ Slowly turn the rotary control LUX 14 anti-clockwise until the motiondetector 8 reacts to movement within the coverage area.

- Cleaning and care

Before cleaning, remove the fuse or switch off the circuit breaker at the fuse box.
■ Never immerse the product in water or other liquids. Otherwise the product can be damaged.
☐ Clean the product with a lint-free, slightly moist cloth and mild cleaning agent.
☐ Reconnect the fuse or circuit breaker for use after cleaning.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our

choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

- Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 380541_2110) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]
