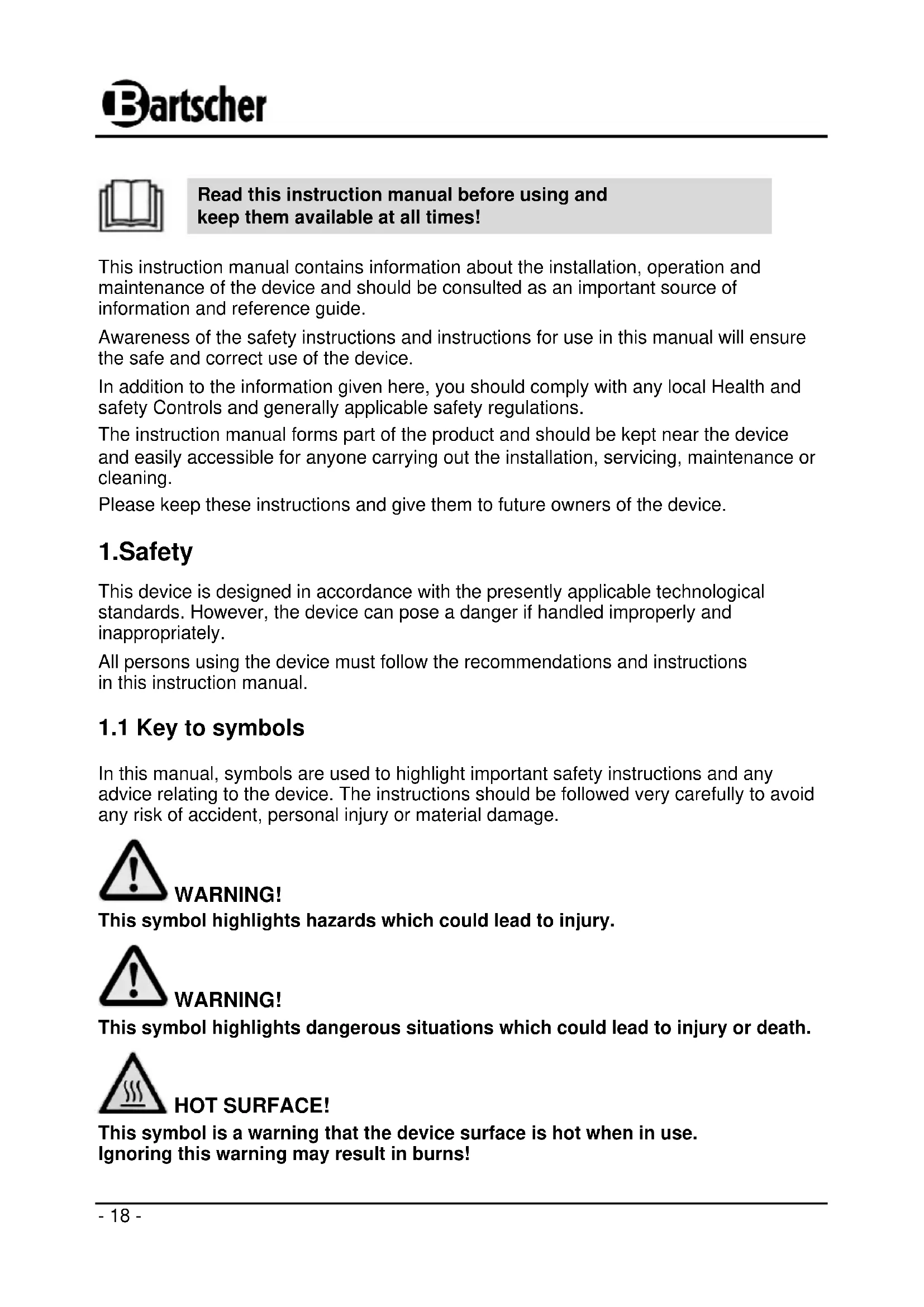

Read this instruction manual before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. In addition to the information given here, you should comply with any local Health and safety Controls and generally applicable safety regulations. The instruction manual forms part of the product and should be kept near the device and easily accessible for anyone carrying out the installation, servicing, maintenance or cleaning. Please keep these instructions and give them to future owners of the device. 1.Safety This device is designed in accordance with the presently applicable technological standards. However, the device can pose a danger if handled improperly and inappropriately. All persons using the device must follow the recommendations and instructions in this instruction manual.

In this manual, symbols are used to highlight important safety instructions and any advice relating to the device. The instructions should be followed very carefully to avoid any risk of accident, personal injury or material damage. WARNING! This symbol highlights hazards which could lead to injury. WARNING! This symbol highlights dangerous situations which could lead to injury or death. HOT SURFACE! This symbol is a warning that the device surface is hot when in use. Ignoring this warning may result in burns!- 19 - CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation.

1.2 Safety instructions

The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or have received instructions regarding appropriate use of the device.

Children should be observed to ensure that they are not playing with the device.

Never leave the device unattended when in use.

Never use the device with a programmable switch, timer or an automatic switching device.

This device may only be operated in technically proper and safe condition.

Prevent access of children to the package materials like plastic bags and foamed polystyrene elements. Suffocation hazard!

Only a qualified technician and using original spare parts and accessories should carry out repairs and maintenance of the device. Do not attempt to repair the device yourself.- 20 -

Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires.

To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken. DANGER! Electric shock hazard! To avoid the hazard results please follow the safety instructions below.

Never allow the power cable to come into contact with heat sources or sharp edges. The power cable should not hang over the side of the working surface. Ensure that no one can step on or trip over the cable.

The power cable must not be folded, bent or tangled, and must always remain fully unrolled. Never place the device or other objects on the power cable.

Do not lay the power cable over carpets or other inflammable materials. Do not cover the cable. Keep away the cable from operating range and do not immerse it into water.

Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged. If this cable is damaged, it must be replaced by customer service or a qualified electrician in order to avoid dangers.

The supply cable must be disconnected from the socket only by pulling the plug.

Never carry or lift the device by the supply cable.

In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur.

Do not place foreign objects in the device openings! This may result in electric shock and damage the equipment!

The device may not be exposed to vibrations and other mechanical shocks.

Although the infrared heater is splash-proof, do not use the device during rain.

Never immerse the device, power cord or the plug in water or other fluids.

Do not use any acid agents and make sure no water ingresses the device.

Never operate the device with moist hands or standing on wet floor.

Remove the plug from its socket:

when the device is not used,

in case of anomalies during operation,

before cleaning. HOT SURFACE! Burn hazard! Follow the safety instructions listed in order to avoid the hazard:

During the operation, the housing and protective grid become very hot, do not touch these elements during the operation of the device.

Also after switching the device off, it remains hot for some time afterwards; before cleaning the device, handling or moving it to a different place, leave the device to cool down.

Never move the device during its operation.- 22 -

Keep children and animals away from the device. Children should never use the infrared heater. WARNING! Fire or explosion hazard! Follow the safety instructions listed in order to avoid the hazard:

Do not use the device near the containers holding gas, petrol, paint, spirits, alcohol or inflammable objects. High temperature may lead to their evaporation and their coming into contact with the sources of ignition may result in deflagration, in effect leading to personal injuries and material damages.

Infrared heater is designed for private use only. Never use the device in greenhouses, livestock buildings or similar buildings, because they often have inflammable objects or excessive dust which may also present a risk.

Never dry clothes, towels or similar objects on the device. Risk of overheating and fire!

In case of fire, before starting any fire-fighting actions, pull the plug from the socket. Ensure proper flow of fresh air. Note: Never extinguish fire with water while the plug is connected to the socket. Risk of electric shock!- 23 -

The operational safety of the device is assured only in case of proper use, according to the operation manual. All technical activities like installation and maintenance must be performed by the qualified service personnel only. WARNING! Device for outdoor use only! Indoor use of device (closed spaces) is unsafe and FORBIDDEN ! CAUTION! Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional. Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible. The operator is liable for all damages resulting from inappropriate use.- 24 -

2. General information

2.1 Liability and Warrantees

All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. The German version of this instruction manual is definitive. If the delivery consists of a special model, the actual scope of delivery may differ from the descriptions and illustrations in this manual. This is also the case for special orders or when the device has been modified in line with new technology. CAUTION! Read this manual carefully and thoroughly before any operation of the device, and especially before turning it on! Manufacturer is not liable for any damages or faults caused by: - violation of advice concerning operation and cleaning; - use other than designed; - alterations made by user; - use of inadequate spare parts. We reserve the right to make technical changes for purposes of developing and improving the useful properties.

2.2 Copyright protection

The instruction manual including any texts, drawings, images or other illustrations is copyright. No part of this publication may be reproduced, transmitted or used in any form or by any means without permission in writing from the manufacturer. Any person who commits any unauthorized act in relation to this publication shall be liable to claims for damages. All rights reserved. NOTE! The contents, texts, drawings, pictures and any other illustrations are copyright and subject to other protection rights. Any person unlawfully using this publication is liable to criminal prosecution.

2.3 Declaration of conformity

The device complies with the current standards and directives of the EU. We certify this in the EC declaration of conformity. If required we will be glad to send you the according declaration of conformity.- 25 -

3. Transport, packaging and storage

Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints.

Please do not throw away the covering carton of your device as it might be useful for storage purposes, when moving or, in case of damages, when the device must be sent back to a repair center. The outer and inner packing material should be removed completely from the device before installation. NOTE! If you liked to dispose the packing, consider the regulations applicable in your country. Supply re-usable packing materials to the recycling. Please inspect the device upon completeness. In case any part is missing please contact our customer service center immediately.

Keep the package closed until installation and under consideration of the outside indicated positioning- and storage markings. Packages should be stored under consideration of the following: - do not store outdoors, - keep it dry and dust-free, - do not expose it to aggressive media, - do not expose it to direct sunlight, - avoid mechanical shocks and vibration, - in case of longer storage (> 3 months) make sure you check the state of the packaging and the parts regularly, If required refresh or renew.- 26 -

4.1 Overview of parts

Heat-level indicator

Pull switch with heat-level indicator

Name Electric patio heater 2000D I Item number: Power: 2000 W / 230 V 50 Hz Heating grate: 3 (650 W, 1300 W, 2000 W) Size parameters: W 550 x D 500 x H 1800 - 2100 mm Weight: 8,75 kg Cord length: approx. 7 m We reserve the right to make technical changes!

5. Installation and operation

• Unpack the device and remove the packaging material. Check the delivery for completeness. CAUTION! Never remove the type plate and warning signs. Assembly CAUTION! Connect device to electrical grid only following installation!

and fasten using 4 M6x30 screws .install the power supply conduit pin by the lower pipe stand (ill. 1).

using three M5x6 screws

using three screws M5x6

and place patio heater

, which is located behind the heat-level indicator

in desired position round joining nut

• Place device on level, safe ground/basis which can withstand the weight of the device.

• Never place device on inflammable ground.

• Do not place device live fire sources, electrical heaters, stoves or other heat sources.

• Place device in such a way as to allow easy access to the plug, avoid tripping over the chord and make it impossible to get entangled (for example, playing children).

• Keep minimal 60 cm distance between patio heater and other inflammable objects. WARNING! Burn hazard! Patio heater gets extremely heated during use! User should remember to avoid placing device around inflammable materials. Offsetting distance should be kept from every side.

• Do not place device near curtains and / or other inflammable objects.

• Do not place device next to a pool or pond, in a bathroom or close to a shower cabin.

• Do not use device in enclosed spaces.

• In as much as it is possible, do not place device in a walkway, in order to avoid the device tipping over due to accidental jostling of the patio heater. NOTE! Machine is equipped with a safety device, guarding it from tipping over and which disconnects the machine when not in proper positioning (vertical position), (for example, in an instance of device tipping over due to high wind).- 30 - Connection WARNING! Hazard via electrical current! The device can cause injuries due to improper installation! Before installation the local power grid specification should be compared with that of the device (see type label). Connect the device only in case of compliance! Connect the device only to properly installed single socket with protective terminal.

• The electrical circuit of the socket must be secured to at least 16A. Only connect the device to a wall outlet; do not use any extension cords or power strips.

• Place the device so that the plug is easily accessible so as to quickly disconnect the device if the need arises.

• Electric patio heater with quartz heater pipes is switched on by use of pull switch with heat-level indicator light.

• While device is being switched on, some vibration occurs that lasts for a few seconds.

• During first use of pull switch with heat-level indicator light, the patio heater is set at first degree: 650 W (standard-level energy).

• Next action on the pull switch initiates the second degree: 1300 W (mid-level energy).

• 3rd degree: 2000 W (full power) becomes switched on by a third pull of the switch.

is regulated (0° ~ 45°). Before changing the inclination angle (ill. 5), switch off device first and leave it to cool off for 15 min. WARNING! Burn hazard! Patio heater extremely heated during use! Never change inclination angle during use. ①- 31 -

• Height of patio heater can be regulated (1,80 to 2,10 m). In order to effect this, pull up the extension pipe

from the upper pipe stand

, until desired height is reached. Next, set extension pipe, turning the base casting

in order to effect this.

• In order to switch off device, pull the pull switch with heat-level indicator repeatedly, until „0“ becomes displayed on the indicator. Next, disconnect device by pulling the plug out!

WARNING! Disconnect the device from the power supply (unplug!) before cleaning. Let the device cool down. Never clean the device with use of water jet! Be careful and do not let the water into the device. CAUTION! Never use aggressive or abrasive cleaning agents. Do not use flammable cleaning agents (e.g. gasoline or solvents)! Do not use sharp or pointed objects. o Clean the device regularly. o After long use, reflector may collect dust. Remove dust using a brush. o Following device use, if necessary, dry cleanse device with a soft cloth. o Only use a soft cloth and never use rough detergents which could scratch the surface of the device. o Store device in a dry place. Before storing device, make sure device is properly cleansed.- 32 -

Discarding old devices At the end of its service life the discarded device has to be disposed in accordance with the national regulations. It is advisable to contact a company which is specialized in waste disposal, or just contact the local disposal service in your community. WARNING! To exclude any abuse and the dangers involved make the waste device unfit for use before disposal. For that purpose disconnect device from mains supply and remove mains connection cable from the device. CAUTION!

For the disposal of the device please consider and act according to the national and local rules and regulations.
