Product type	Double outdoor side awning
Brand	Livarno Lux
Model	HG06102
Dimensions (W x H)	2 x approx. 300 x 160 cm
Weight	Approx. 8 kg (estimate)
Power supply	Manual (no electrical supply)
Opening/closing mechanism	Handle and support bar with hook
Use	Private use, outdoor
Wind resistance class	1 (Beaufort 4, 20–27 km/h)
Frost conditions	Do not use in frost (risk of damage)
Delivery contents	1 awning, 2 support bars, 14 anchor bolts, 1 assembly instructions
Housing material	Not specified (probably aluminium or steel)
Fabric material	Not specified (probably coated polyester)
Care and cleaning	Lint-free, slightly damp cloth; dry before storage
Storage	In a clean, dry state, at room temperature
Assembly	Recommended for two people; drilling and floor anchoring
Warranty	3 years (date of purchase)
Reference number (IAN)	409392_2207
After-sales service (France)	Tel. [phone] ; [e-mail]
After-sales service (Belgium/Luxembourg)	Tel. [phone] ; [e-mail]

Frequently Asked Questions - HG06102 Livarno Lux

What are the dimensions of the outdoor awning HG06102?

The dimensions are 2 x approx. 300 x 160 cm (width x height).

How do I install the Livarno Lux awning?

Installation requires choosing a flat surface, drilling 5 cm deep holes (drill bit ∅ 8 mm) and fixing the housing and support bars with the supplied anchor bolts. It is recommended to proceed with two people.

Is the awning wind resistant?

Yes, it has a wind resistance class of 1 (Beaufort 4, i.e. 20–27 km/h). In strong wind, it must be closed.

How do I clean the awning?

Use a lint-free, slightly damp cloth to clean the awning. Let it dry completely before storing to prevent mold.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep the proof of purchase.

How do I open and close the awning?

To open, pull the handle towards the support bar and engage the hook. To close, hold the handle, release it, and move it slowly towards the housing; the fabric retracts automatically.

Can I use the awning in winter or in frost?

No, the product may be damaged if used in frost. It is advisable to store it during frost periods.

What accessories are supplied with the awning?

The delivery includes: 1 awning, 2 support bars, 14 anchor bolts (∅ 8 x 50 mm) and 1 assembly instructions.

How do I contact after-sales service?

In France: 0800904879 or [e-mail]. In Belgium/Luxembourg: 080071011 / 80023970 or [e-mail].

Is the awning suitable for commercial use?

No, it is designed for private use only, not for commercial use.

USER MANUAL HG06102 Livarno Lux

Interior scene with a modern sofa, large open space partition, and a poolside view (no text or symbols visible)

DOPPEL-SEITENMARKISE / DOUBLE SIDE AWNING / STORE LATÉRAL DOUBLE

DE AT CH

Assembly, operating and safety instructions

NL BE

DUBBELEZIJMARKIEZEN

Ø 8 mm x 5 cm 80mm 80mm

F 4 6

G 2 3 4 5 Max. 300cm 3 Hakenmaul/ Hook mouth/ Linguet Max. 300cm 4

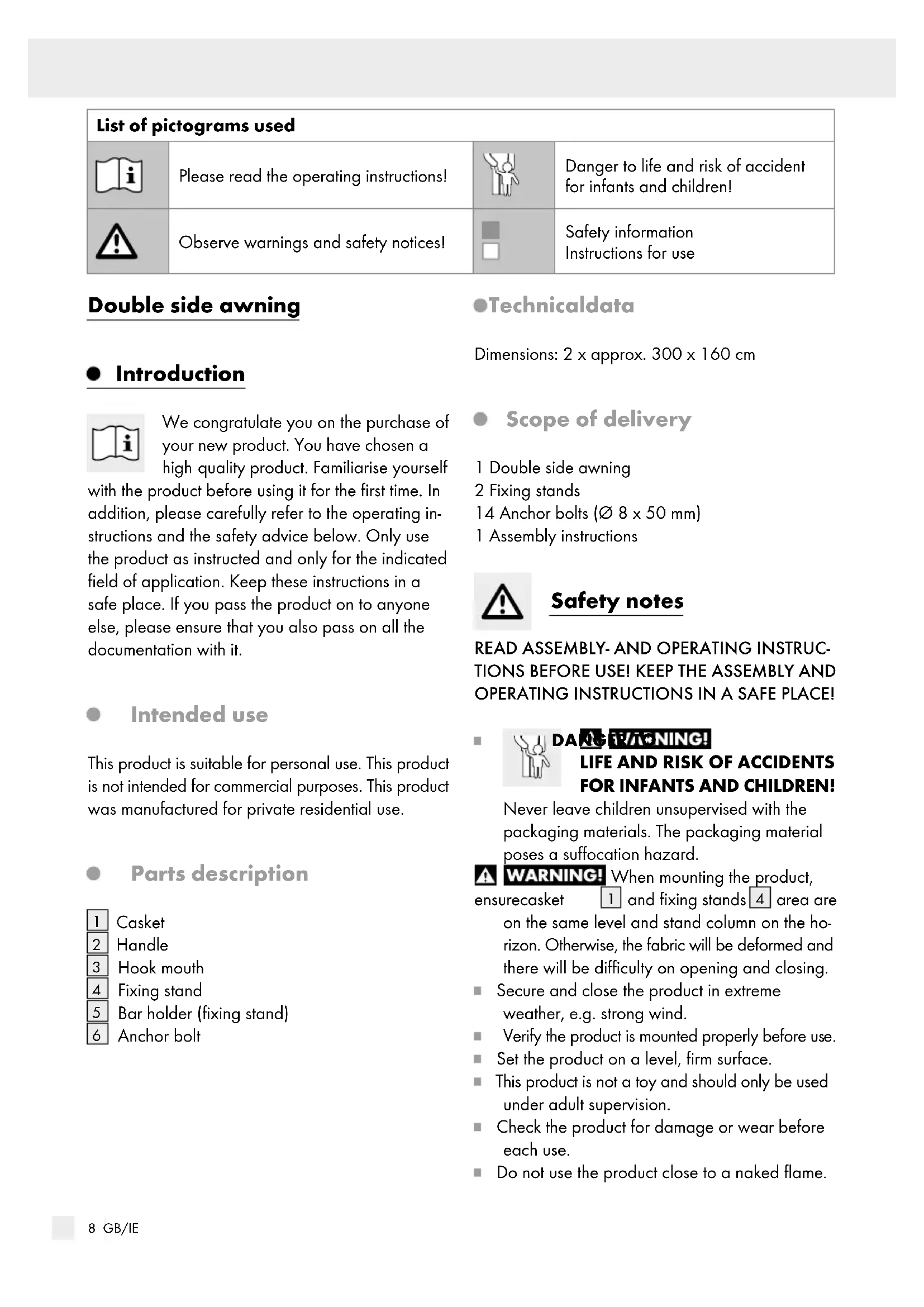

List of pictograms used
	Please read the operating instructions!		Danger to life and risk of accident for infants and children!
	Observe warnings and safety notices!	[00K8]	Safety information Instructions for use

Double side awning

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is suitable for personal use. This product is not intended for commercial purposes. This product was manufactured for private residential use.

Parts description

1
2
3
4
5
6
Casket
Handle
Hook mouth
Fixing stand
Bar holder (fixing stand)
Anchor bolt

●Technicaldata

Dimensions: 2 x approx. 300 x 160 cm

- Scope of delivery

1 Double side awning
2 Fixing stands
14 Anchor bolts ( 8 x 50 mm)
1 Assembly instructions

Safety notes

READ ASSEMBLY- AND OPERATING INSTRUCTIONS BEFORE USE! KEEP THE ASSEMBLY AND OPERATING INSTRUCTIONS IN A SAFE PLACE!

DANG RACING!

LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard.

WARNING!

When mounting the product,

ensurecasket 1 and fixing stands 4 area are on the same level and stand column on the horizon. Otherwise, the fabric will be deformed and there will be difficulty on opening and closing.

• Secure and close the product in extreme weather, e.g. strong wind.
• Verify the product is mounted properly before use.
  ■ Set the product on a level, firm surface.
  This product is not a toy and should only be used under adult supervision.
• Check the product for damage or wear before each use.
• Do not use the product close to a naked flame.

We recommend that two persons assemble the product together in order to avoid injuries or damage to people or the product.
Do not release handle 2 after removing from stand 4, until it is fixed in the casket 1.
■Releasinghandle 2 without attention may result in damage and/or injury.
- The operation in frosty conditions may damage the product.
■ There is no maintenance required by the user.
Wind resistance class 1 = wind beaufort scale 4 = 20 - 27 km/h (small branches start to move, loose paper is lifted)

- Assembly instructions

☐ First locate a suitable installation position on the ground and mark six hole positions of the casket 1 (see fig. A).
☐ Drill 5-centimeter-deep holes in the marked places with a broach which has a diameter of 8 millimeters (see fig. B).

Important: Make sure before locating anchor

bolts 6 are suitable for surface type. If not suitable, consult your local hardware or DIY store.

☐ Fix the product on the ground with the anchor bolts 6 by hammering them into the pre-drilled holes with a hammer (see fig. C). Tighten the anchor bolts 6 with a wrench.

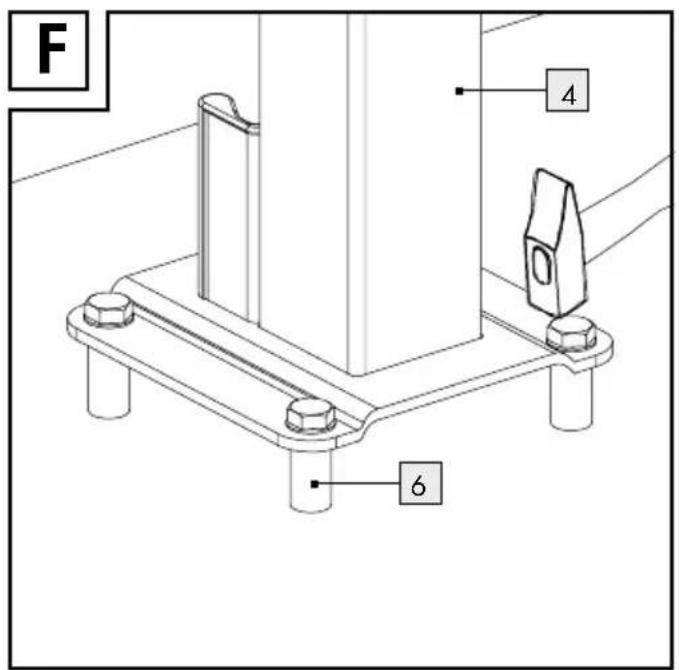

☐ Locate the fixing stand 4 position ensuring casket 1 and stand 4 are at same level and aligned. Fixing stand 4 can be mounted at max. 300 cm from casket 1 (see fig. D). Mark the fixing stand holes and drill 5-centimeter-deep holes in the marked places with a broach which has a diameter of 8 millimeters (see fig. E). Fix the stand 4 with the anchor bolts 6 by hammering them into the pre-drilled holes with a hammer (see fig. F). Tighten the anchor bolts 6 with a wrench.

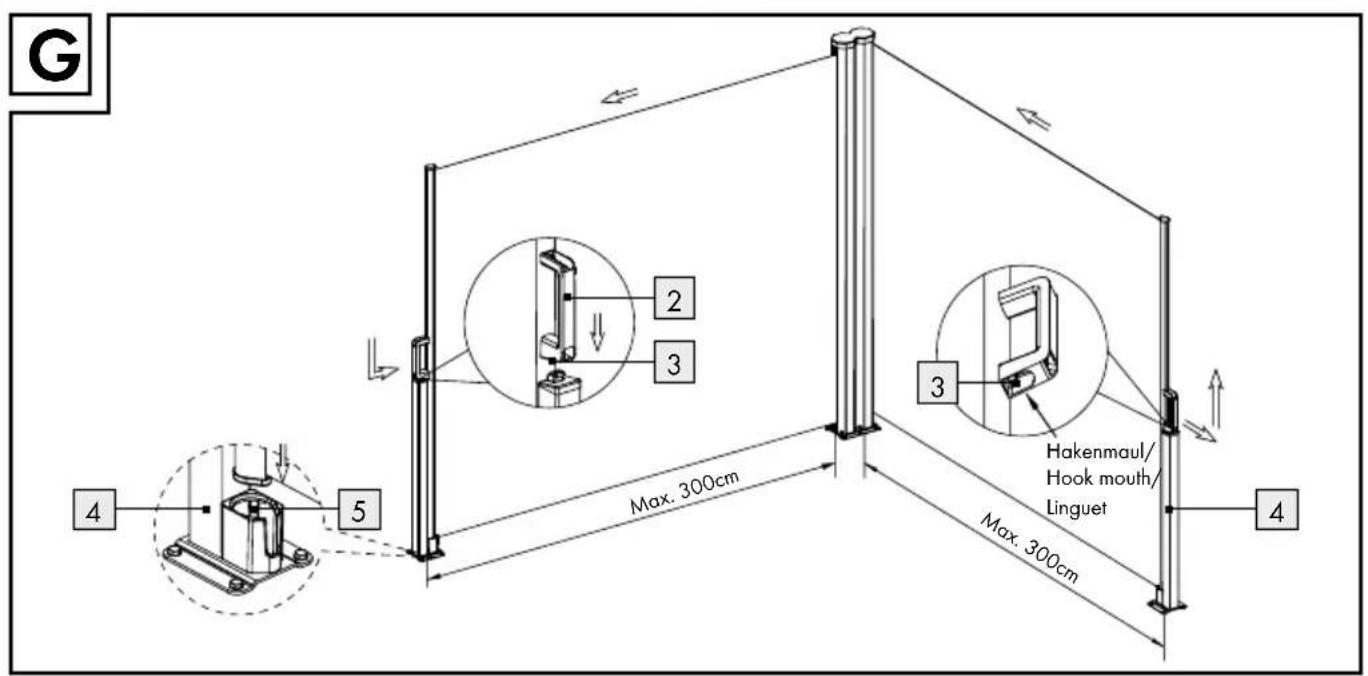

- Opening awning (see fig. G)

☐ Hold the handle 2 and walk to the fixing stand 4.

☐ Insert the hook on the top of stand 4 into the hook mouth 3 (under the handle 2).
☐ Insert the front bar into the bar holder 5 (bottom of stand).

Closingawning

☐ Hold the handle 2 and pull back a little bit (There is a groove to lock the handle 2 and fixing stand 4, so it is hard to pull up directly.) and lift up.
Grasp the handle 2 and walk to the casket 1. Move the handle 2 slowly and horizontally. The fabric will draw back itself into the casket 1.

- Cleaning and care

• Allow all parts to dry thoroughly before you pack the product up again. This will prevent the formation of moulds, odours and discolouration.
  □ Clean this product with a slightly dampened, lint-free cloth.
  Store the product in a sheltered room. Or always store the dry and clean product at room temperature.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment. The Triman logo is valid in France only.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 409392_2207) available as proof of purchase. You will find the item number on the rating plate, an engraving on the front page of the instructions

for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
