USER MANUAL H300 BONECO

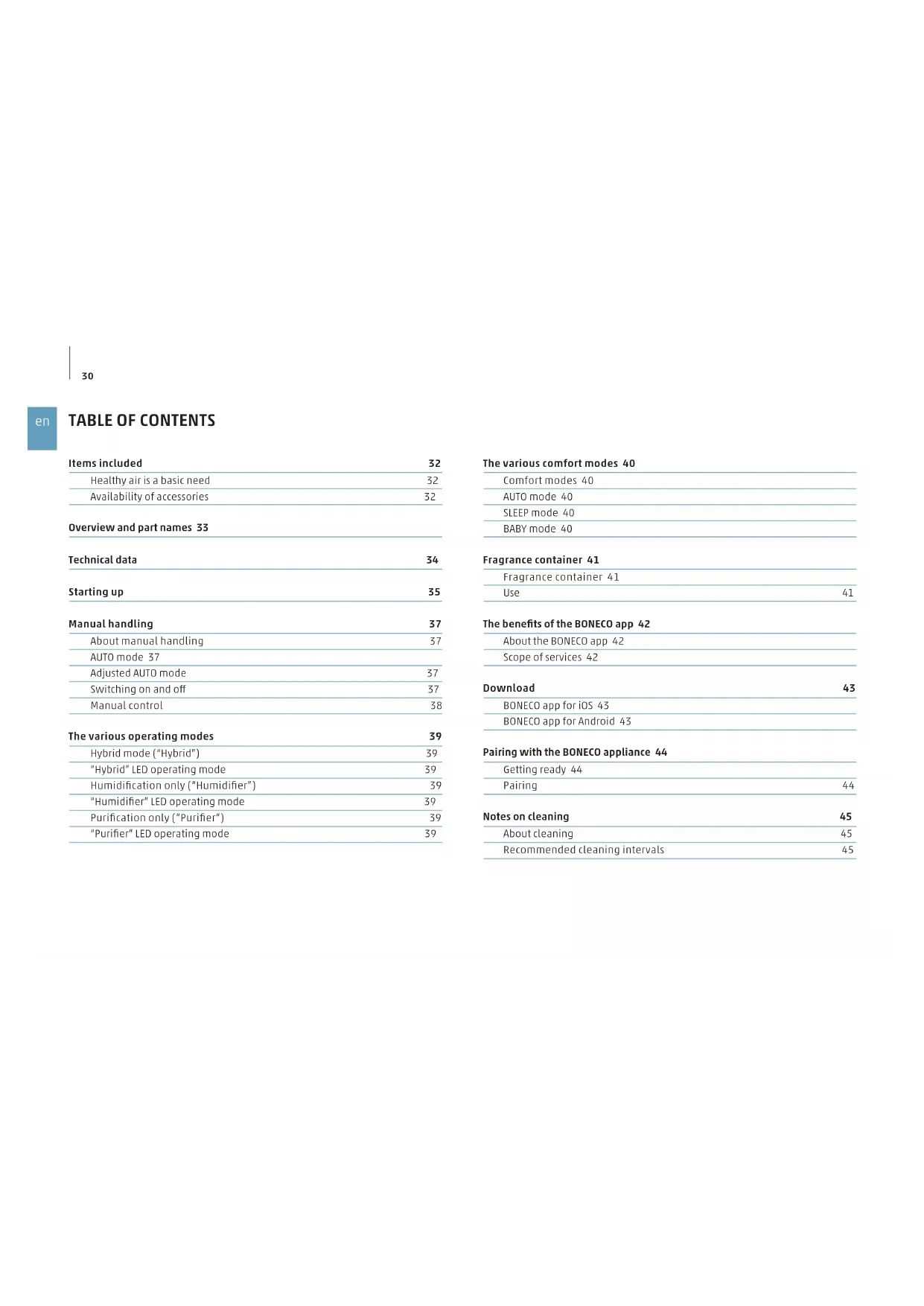

The various comfort modes 40 Comfort modes 40 AUTO mode 40 SLEEP mode 40 BABY mode 40 Fragrance container 41 Fragrance container 41 Use 41 The benefits of the BONECO app 42 About the BONECO app 42 Scope of services 42 Download 43 BONECO app for iOS 43 BONECO app for Android 43 Pairing with the BONECO appliance 44 Getting ready 44 Pairing 44 Notes on cleaning 45 About cleaning 45 Recommended cleaning intervals 45 Items included 32 Healthy air is a basic need 32 Availability of accessories 32 Overview and part names 33 Technical data 34 Starting up 35 Manual handling 37 About manual handling 37 AUTO mode 37 Adjusted AUTO mode 37 Switching on and o 37 Manual control 38 The various operating modes 39 Hybrid mode (“Hybrid”) 39 “Hybrid” LED operating mode 39 Humidification only (“Humidifier”) 39 “Humidifier” LED operating mode 39 Purification only (“Purifier”) 39 “Purifier” LED operating mode 3931

Cleaning the appliance 46 Disassembly and cleaning 46 Cleaning the AW200 evaporator mat 47 About the AW200 evaporator mat 47 Cleaning in the washing machine 47 Cleaning by hand 47 Cleaning the pre-filter 48 About the pre-filter 48 Clean the pre-filter 48 Replacing the accessories 49 Replacing the A7017 Ionic Silver Stick® 49 Replacing the AH300 pollen filter 49 Availability of accessories 49 Malfunctions and troubleshooting 50 Factory default settings 51 About the factory default settings 51 Resetting the appliance 5132

ITEMS INCLUDEDHEALTHY AIR IS A BASIC NEED There is little to which we react with greater sensi

tivity than poor air. And yet many people do not pay enough attention to air quality, which has conse- quences for health and quality of life. This makes us all the more pleased that you have chosen a BONECO appliance to ensure that the basic need for healthy room air is satisfied for you and the people around you.

AVAILABILITY OF ACCESSORIES

You can obtain replacements for spent accessories as well as additional accessories:

• At your BONECO specialist dealer,

• At www.shop.boneco.com or

• Directly via the “BONECO healthy air” app. BONECO H300 Quick ManualPower supply Safety instructions ITEMS INCLUDED1

• Washable in the dishwasher up to 50°C (122°F) ** Washable in the washing machine up to 40°C (104°F)34

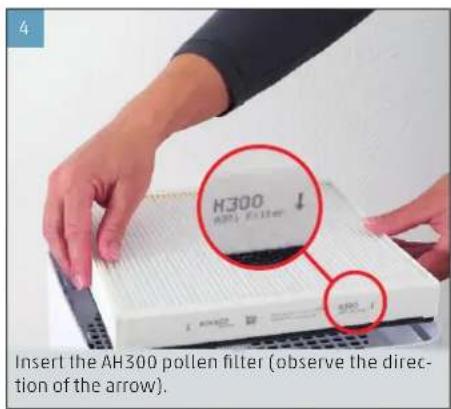

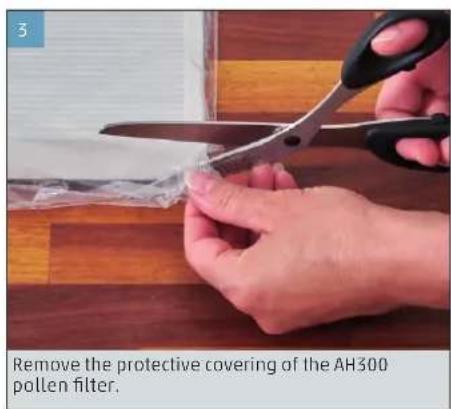

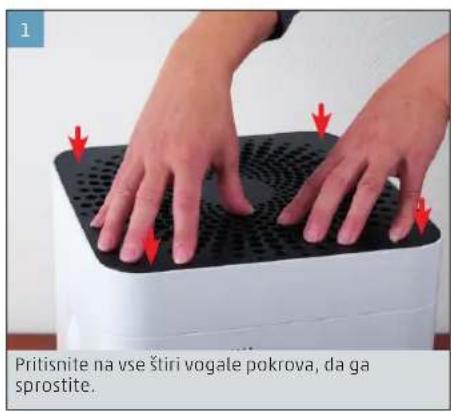

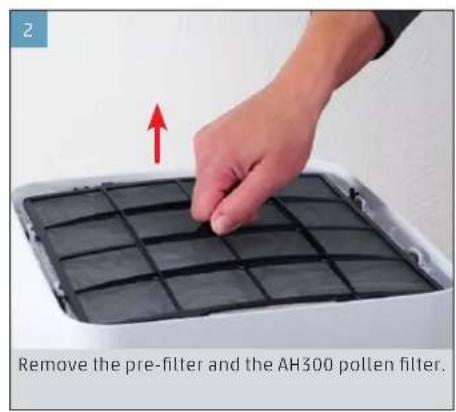

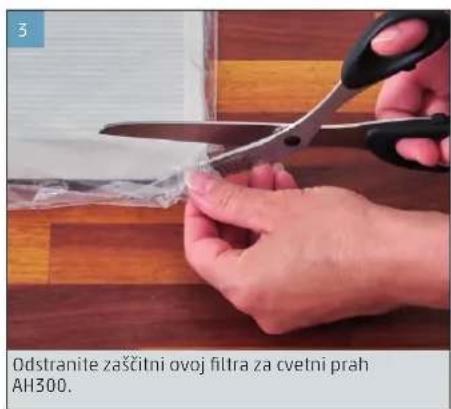

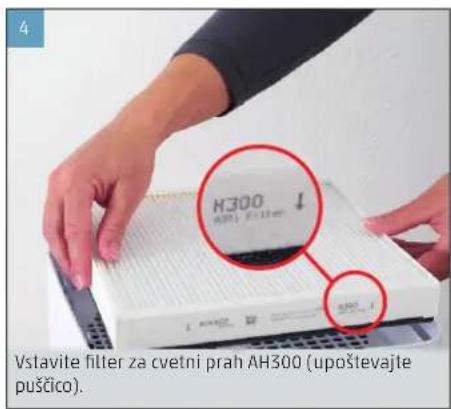

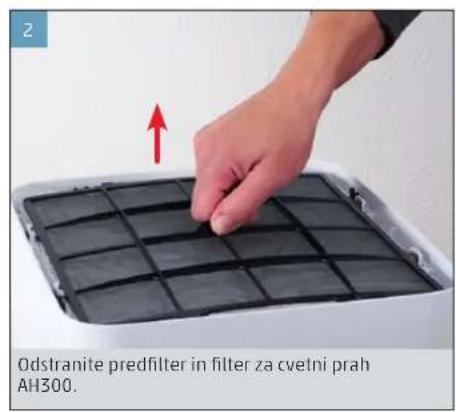

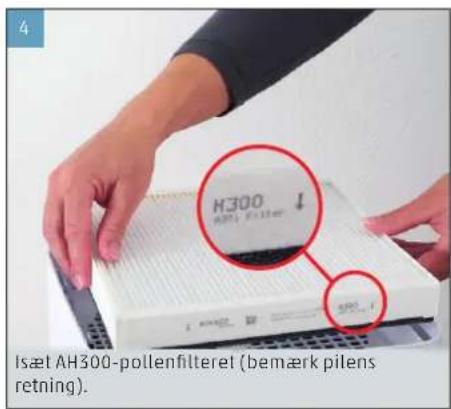

Remove the pre-filter and the AH300 pollen filter. Remove the protective covering of the AH300 pollen filter. Insert the AH300 pollen filter (observe the direc- tion of the arrow). Press down on all four corners of the cover to unlock them. Insert the pre-filter. Press down forcefully to snap the cover back in place.36

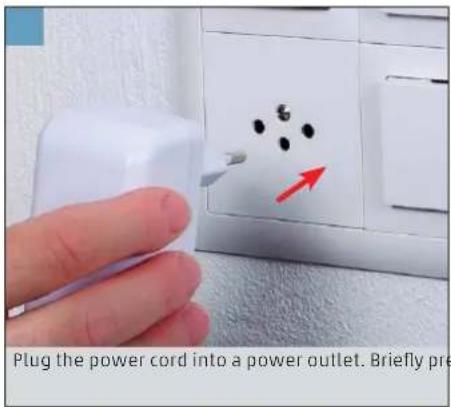

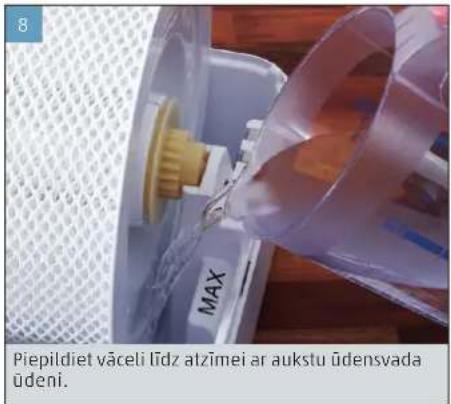

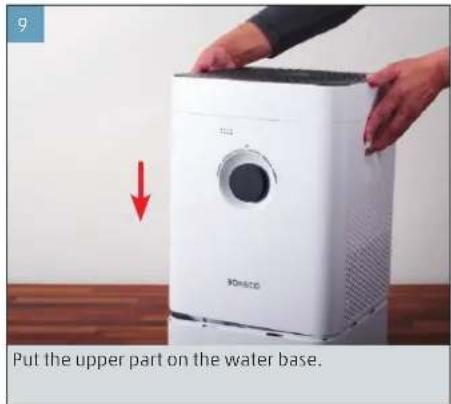

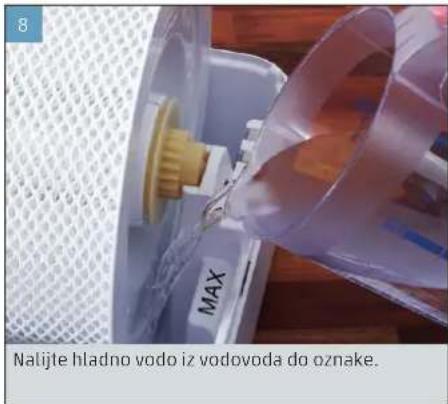

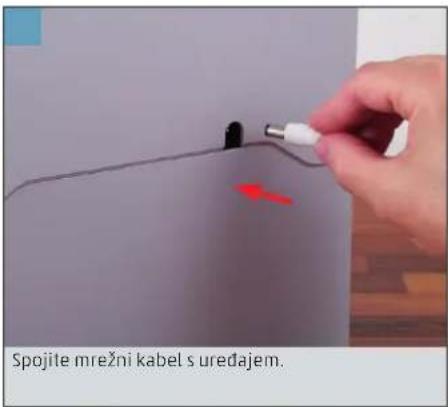

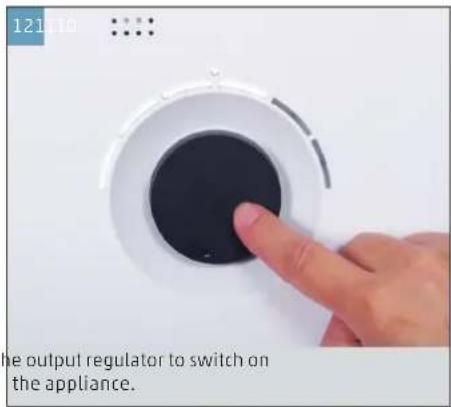

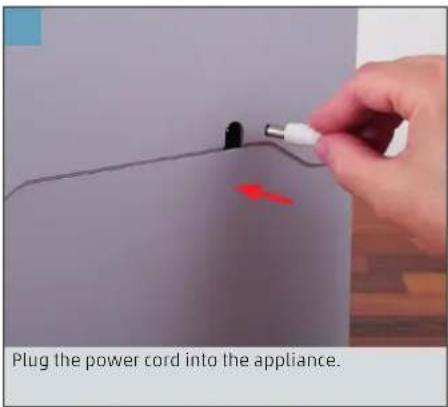

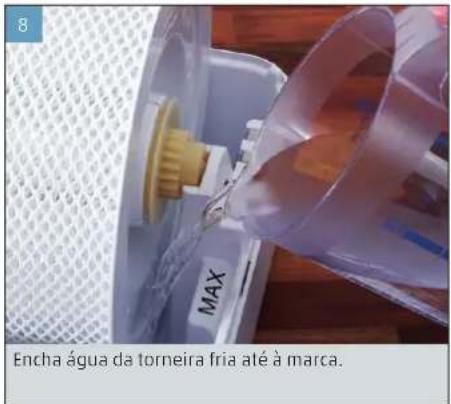

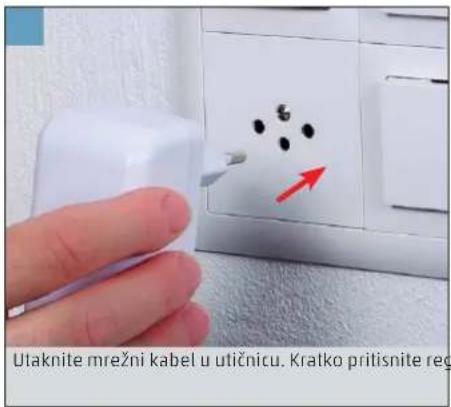

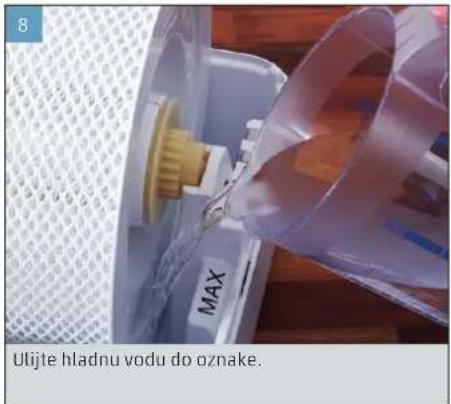

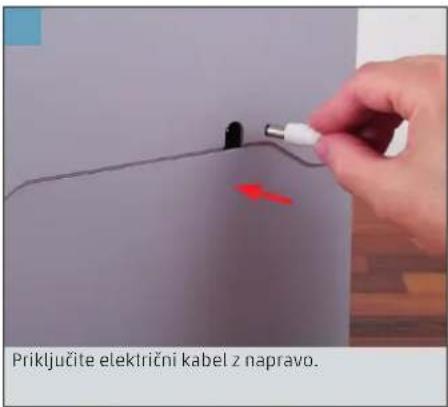

Fill with cold tap water up to the marking. Put the upper part on the water base. Plug the power cord into the appliance. Remove the upper part. Plug the power cord into a power outlet. Briefly press the output regulator to switch on the appliance.37

ABOUT MANUAL HANDLING

Manual handling works conveniently by the knob on the front side. The BONECO app o ers additional extensive options for control and automation of the BONECO appliance. AUTO MODE If you have never operated the BONECO appliance with the BONECO app and switch it on for the fi rst time, it starts up in AUTO mode. The appliance is pre- set to a target relative humidity of 50 percent. The performance level is automatically adapted to the current humidity: The drier the air, the higher the performance level. If the preset target humidity is exceeded, the appli- ance switches to standby mode, which is indicated by the pulsing LED: If the humidity drops below the set level, the appli- ance resumes operation.

If you have already operated the appliance with the BONECO app and set a di erent humidity, that value is automatically taken over when the appliance is switched on.

SWITCHING ON AND OFF

1. Briefl y press the knob once to switch on the ap-

pliance. The appliance is always in AUTO mode when it is switched on. You can identify active AUTO mode by the small LED that lights up above the knob.

2. To switch o the appliance while it is in AUTO

The selected performance level is indicated by the number of LEDs that light up above the knob.

3. Briefly press the knob once to exit manual mode

and to reactivate AUTO mode.

4. Briefly press the knob once more to switch o the

appliance. If you exit AUTO mode, the appliance will con- tinue at the selected performance level until the water base is empty, regardless of what the cur- rent level of humidity is. MANUAL CONTROL

pliance. The appliance is always in AUTO mode when it is switched on.

2. Adjust the output to your needs by setting the

knob to the desired level from 1 to 6. This action exits AUTO mode (AUTO LED is o).39

• The AH300 pollen filter cleanses breathing air by removing pollen, household dust and fine parti

• The AW200 evaporator mat humidifies the room air. You achieve the best results when the appliance is humidifying and purifying the air at the same time. Nevertheless it is possible to use just one of the two functions.

“HYBRID” LED OPERATING MODE

HUMIDIFICATION ONLY (“HUMIDIFIER”) We recommend using the appliance with insert- ed AH300 pollen filter even in the winter because, aside from pollen, it also filters household dust out of the air. In order to operate the appliance with- out the AH300 pollen filter, simply remove the filter from its holder and use the BONECO app to switch to “Humidifier” mode. When you remove the AH300 pollen filter, the max

imum humidifier performance increases because you achieve a better air passage.

“HUMIDIFIER” LED OPERATING MODE

PURIFICATION ONLY (“PURIFIER”) In summer, humidity is usually sucient, but pollen gives people with allergies a dicult time. If you only want to use the purifying eect of the AH300 pollen filter, switch the appliance to “Purifier” oper

ating mode using the BONECO app and remove the water and the drum from the appliance.

COMFORT MODES There are three dierent comfort modes available in each of the three “Hybrid”, “Air purification” and “Air humidification” operating modes: AUTO, SLEEP and BABY. AUTO MODE In AUTO mode, the BONECO appliance uses all of the fan levels between 1 and 5. The preset humidity is 50%. SLEEP MODE In SLEEP mode, the BONECO appliance can even be used in a bedroom at night. The appliance automat

ically operates at the lowest fan level of 1 to keep the operation noise level to a minimum. The preset humidity is 45%. BABY MODE The BABY mode uses fan levels 1 through 4 and in

creases the humidity to 60%. This value is ideal for use in a nursery or baby’s room since higher humid- ity is recommended for babies and small children. The fan also operates quietly enough that it will not trigger a baby monitor.41

FRAGRANCE CONTAINER Commercially available fragrances and essential oils can be inserted into the fragrance container on the rear side. Never put any fragrances into the water base itself, since doing so can decrease the perfor- mance of the appliance and even cause damage. Such damage is not covered by the warranty. The fragrance container can be cleaned in the dishwasher. However, the temperature may not exceed 50°C. USE

1. Press down on the fragrance container to take

2. Sprinkle the felt insert in the drawer with the fra

grance of your choice. FRAGRANCE CONTAINER42

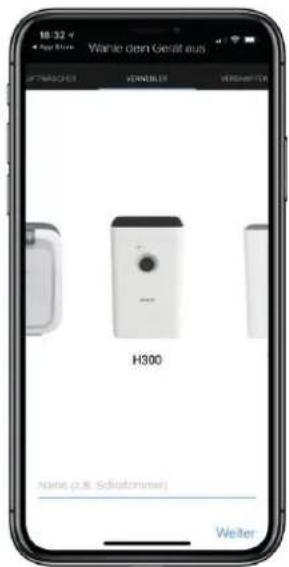

The “BONECO healthy air” app is used to control the appliance and lets you take full advantage of its po- tential. The app includes functions such as a timer, a humidity preset and the option to switch between various programs. In addition, it provides remind- ers for the cleaning intervals and other recurring tasks.

Operating modes “Hybrid” The air is cleaned and humidified at the same time “Purifier” The air is cleaned, but not humidified “Humidifier” The air is humidified, but not cleaned Selecting modes Predefined settings for frequent situations AUTO mode The appliance uses all fan levels from 1 to 5 and has a preset target humidity of 50% SLEEP mode The appliance uses fan level 1 only and increases the target humidity to 45% BABY mode The appliance uses fan level 1 through 4 and increases the humidity to 60% Hygrostat Defines the desired humidity Dimmer Sets the brightness of the status LED Weather Displays the current weather and outside temperature Filter change information Indicates when an AH300 pollen filter is spent A7017 Ionic Silver Stick® information Indicates when the A7017 Ionic Silver Stick® is spent Accessories and consumables Provides support in replacement orders and further information43

Search the app store for “BONECO healthy air” or scan the QR code below. Reading the QR code under iOS 10 or earlier requires installing a corresponding app. Under iOS 11 and later, the QR code is read au- tomatically whenever you direct the camera at it.

BONECO APP FOR ANDROID

Search the Google Play Store for “BONECO healthy air” or scan the QR code below. Reading the QR code requires installing a corresponding app on your de- vice.44

PAIRING WITH THE BONECO APPLIANCE

GETTING READY Make sure that Bluetooth is activated on your smart

phone. During pairing, make sure that the smart- phone is in the same room as the BONECO appliance. Once paired successfully, you can control the BONECO appliance with your smartphone from the same room or even from an adjacent room. How

ever, the maximum distance between smartphone and BONECO appliance depends on the specific structural conditions. PAIRING

1. Make sure that Bluetooth is activated on your

3. Follow the instructions in the app.45

ABOUT CLEANING Regular maintenance and cleaning are necessary for trouble-free and hygienic operation. Recommended cleaning and maintenance intervals vary depending on air quality, water quality and operating time. A soft cloth, dish detergent and a scrub brush are recommended for cleaning by hand. Always unplug the appliance from the power outlet before you begin cleaning! Failure to do so can result in electric shock and fatal injury! If you clean the drum and the water base in the dishwasher, a temperature of 50 °C may not be exceeded, as temperatures higher than this can cause the plastic parts to deform.

RECOMMENDED CLEANING INTERVALS

Interval Action After the third day without operation Empty water base and fill with fresh water Every 2 weeks Clean water base, drum and AW200 evaporator mat Clean the pre-filter Annually Replace the A7017 Ionic Silver Stick® Replace the AH300 pollen filter Clean the fan and the inner area of the appliance46

CLEANING THE APPLIANCE

6. Clean the water base and the drum either by

hand or in the dish washer at a max. temperature of 50 °C.

7. Put the appliance back together by following the

steps in reverse order.

4. Twist both drum discs to release them. When do-

DISASSEMBLY AND CLEANING

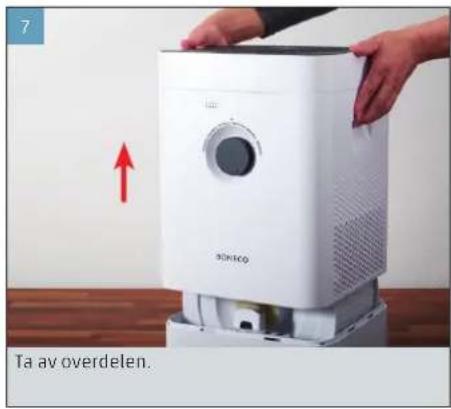

1. Take o the upper part of the BONECO appliance.

2. Remove the drum with the AW200 evaporator

The AW200 evaporator mat can be cleaned in the washing machine. Uses any commercially available detergent. We recommend putting the AW200 evaporator mat into a laundry bag or washing it separately because it will collect loose fibers from other pieces of laun

dry otherwise. When stretching the AW200 evaporator mat on the drum after cleaning, take note of correct position

CLEANING IN THE WASHING MACHINE

The AW200 evaporator mat can be cleaned in the washing machine. Commercially available deter

gents can be used. The AW200 evaporator mat must not be washed at a temperature higher than 40 °C. Do not dry the AW200 evaporator mat in the clothes dryer.

1. Add a little detergent to warm water and tumble

the AW200 evaporator mat in it thoroughly to get dish detergent on all of it.

2. Rinse out the AW200 evaporator mat repeatedly

in clean, hand-warm water until suds no longer form.

3. Allow the AW200 evaporator mat to dry before

you stretch it on the drum again.48

The pre-filter cleans coarse contaminants from the air. Clean the pre-filter if it is dusty or dirty.

CLEAN THE PRE-FILTER

1. Press down each of the four corners of the cover

in sequence to unlock it.

2. Remove the pre-filter by pulling it upwards by

the lug in its center.

3. Wash the pre-filter under running water using a

4. Dry the pre-filter with a cloth.

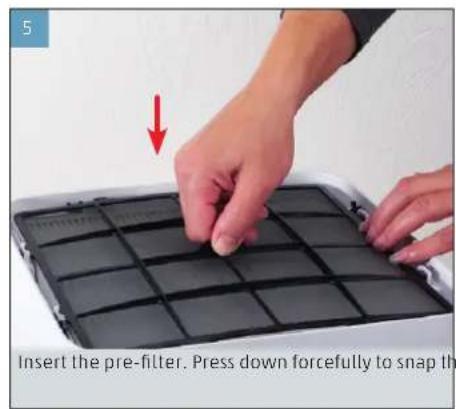

5. Insert the pre-filter into the appliance.

bial eect of silver for a significant improvement of water hygiene. It is eective as soon as water comes into contact with it – even if the appliance is switched o. Replace the A7017 Ionic Silver Stick® annually to guarantee antimicrobial eectiveness. The spent A7017 Ionic Silver Stick® can be thrown out with your regular household waste.

REPLACING THE AH300 POLLEN FILTER

The AH300 pollen filter cannot be cleaned.

• Dirt is normal and shows that the AH300 pollen filter is working.

• Replace the AH300 pollen filter once a year to maintain the cleaning performance.

• The spent AH300 filter can be disposed of with your regular household waste.

AVAILABILITY OF ACCESSORIES

You can obtain replacements for spent accessories as well as additional accessories:

• At your BONECO specialist dealer,

• At www.shop.boneco.com or

• Directly via the “BONECO healthy air” app.

REPLACING THE ACCESSORIES50

MALFUNCTIONS AND TROUBLESHOOTING

Problem Possible cause Action Air has an unpleasant odor Stagnant water in the water base Drain the water base and clean the appliance and the AW200 evaporator mat No improvement in air quality Open windows or doors Close windows and doors AUTO LED on the appliance flashes red The water base is empty Fill the water base Appliance cannot be operated in the app. The message “Searching …” “Non accessi

ble” appears Appliance is blocked by another smartphone Close the app on the second smartphone AUTO LED pulses The desired humidity has been reached or exceeded None needed Current display flashes if handling is attempted Operation is blocked Disable the LOCK function in the app Display remains dark The brightness of the LEDs has been heavily reduced in the app Increase the brightness of the LEDs in the app51

If your BONECO appliance control system is not func- tioning the way you are expecting, or if you would like to delete all adjustments, you can reset the ap- pliance to the factory settings. This deletes all ad- justments and settings. After the reset, the BONECO appliance has to be paired with the smartphone again so that the control system can continue working with the app.

RESETTING THE APPLIANCE

Reset your BONECO appliance to the factory settings by pressing and holding the black button on the ap

pliance for approx. 30 seconds until the LEDs light up in red. Now the BONECO appliance is in the same state as when it was first started up.52 en53
