Product type	Internal aquarium water filter
Brand	EHEIM
Model	skim350
Use	Indoor aquariums only
Protection class	II
Protection rating	IPX8
Power supply	230 V AC, 50 Hz
Max. water temperature	35°C
Functions	Surface skimming and mechanical filtration
Maintenance	Regular cleaning of cartridge and pump
Cartridge replacement	Replaceable filter cartridge
Safety	30 mA residual current device recommended
Compliance	WEEE Directive 2012/19/EU
Spare parts	Available via EHEIM after-sales service
Delivery contents	Filter, cartridge, pump
Manufacturer	EHEIM GmbH & Co.KG, Germany

Frequently Asked Questions - skim350 EHEIM

How to clean the EHEIM skim350 filter?

To clean the filter, first unplug the device. Remove the filter chamber by pressing upward, then remove the cartridge. Clean the cartridge with clean water or replace it. Also clean the pump impeller with a brush under water. Then reassemble in reverse order. See the maintenance section of the manual.

What is the maximum water temperature for this device?

The water temperature must not exceed 35°C.

Can I use the skim350 filter in saltwater?

No, this device is designed for use in freshwater only. Use in saltwater could damage the device.

What to do if water leaks from the device?

In case of a leak, immediately disconnect all aquarium devices from the mains. Check the condition of the seals and cartridge. If the problem persists, contact EHEIM after-sales service. Never operate the device out of water.

How to install the filter for the first time?

Install the filter in the aquarium by attaching it to the glass using the supplied suction cups. Follow the assembly instructions in the manual. Ensure the device is submerged and the cable forms a drip loop to prevent water ingress.

What are the important safety precautions?

Read the entire manual before use. Use a 30 mA residual current device. Never operate the device out of water. Disconnect before maintenance. Do not use with flammable liquids. Keep out of reach of children.

Where can I buy spare parts for the skim350?

Spare parts are available from EHEIM after-sales service or authorized dealers. See pages 3 and 6 of the manual for part numbers.

Can I use the filter with chemicals or additives?

No, the device must not be used with easily flammable, aggressive or explosive substances, nor with food or drinking water. Use it only for aquarium water filtration.

How to replace the filter cartridge?

Unplug the device. Remove the filter chamber by pressing upward, then remove the old cartridge. Insert a new cartridge (reference see manual). Reassemble the chamber. Regular replacement is recommended for optimal filtration.

Is the device covered by a warranty?

The manual does not explicitly mention the warranty period. Generally, EHEIM products benefit from a legal warranty of 2 years. Keep the invoice and contact your dealer for any claims.

USER MANUAL skim350 EHEIM

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

3D technical illustration of a mechanical component with no visible text or symbols

miniFLAT

miniUP

de	Bedienungsanleitung	pl	Instrukcja obsługi
en	Operating manual	cs	Návod k obsluze
fr	Mode d'emploi	sk	Návod na obsluhu
it	Istruzioni per l'uso	hu	Használati utasítás
es	Manual de instrucciones	sl	Navodilo za upravljanje
pt	Manual de instruções	sr	Uputstvo za upotrebu
nl	Bedieningshandleiding	ro	Manual de utilizare
da	Betjeningsvejledning	bg	Инструкция за експлоатация
sv	Bruksanvisning	ru	Руководство по обслуживанию
no	Bruksanvisning	el	Обнгієх хрніснє
fi	Käyttöohje	ko	사용 설명서
tr	Kullanma kılavuzu	zh	操作说明书

de Bedienungsanleitung (Original)......8
en Operating manual (translation)....13
fr Mode d'emploi (traduction)....18
it Istruzioni per l'uso (traduzione)....23
es Manual de instrucciones (traducción)....28
pt Manual de instruções (Tradução)....33
nl Bedieningshandleiding (vertaling) 38
da Betjeningsvejledning (oversættelse) 43
SV Bruksanvisning (översättning) 48
no Bruksanvisning (oversettelse)....53
fi Käyttöohje (käännös)....58
tr Kullanım kılavuzu (çeviri)......63
pl Instrukcja obsługi (tłumaczenie)....68
cs Návod k použití (překlad) 73
sk Návod na obsluhu (preklad)....78
hu Használati utasítás (fordítás)....83
sl Navodila za uporabo (prevod) 88
sr Uputstvo za upotrebu (prevod)....93
ro Manual de utilizare (traducere)....98
bg Инструкция за експлоатация (превод)....103
ru Руководство по эксплуатации (перевод) 108
el Oδηγίες λειτουργίας (μετάφραση)....113
ko 사용 설명서 (번역)......118
zh 操作说明书(翻译件)....123

miniFLAT/miniUP

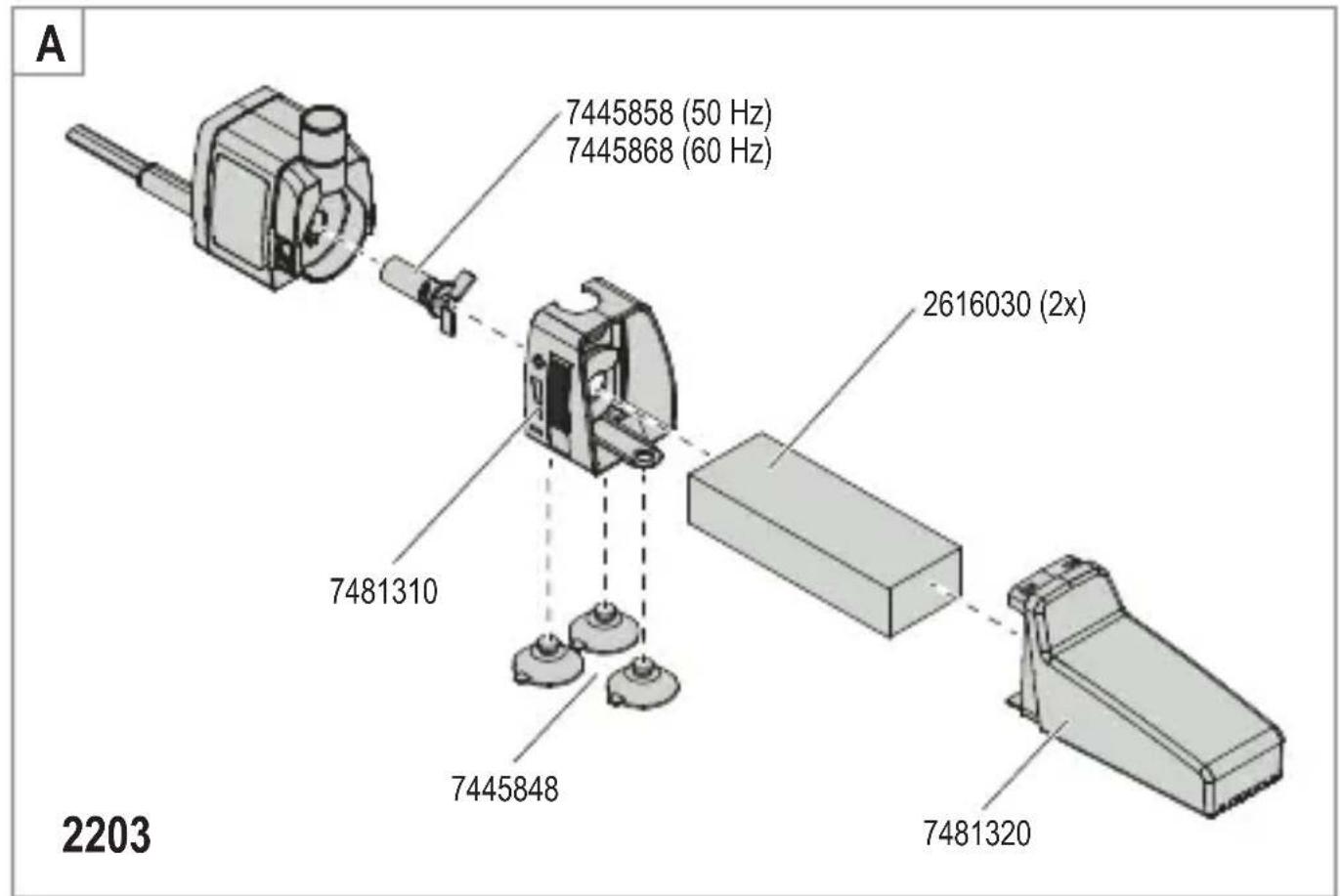

A 7445858 (50 Hz) 7445868 (60 Hz) 2616030 (2x) 7481310 7445848 7481320 2203

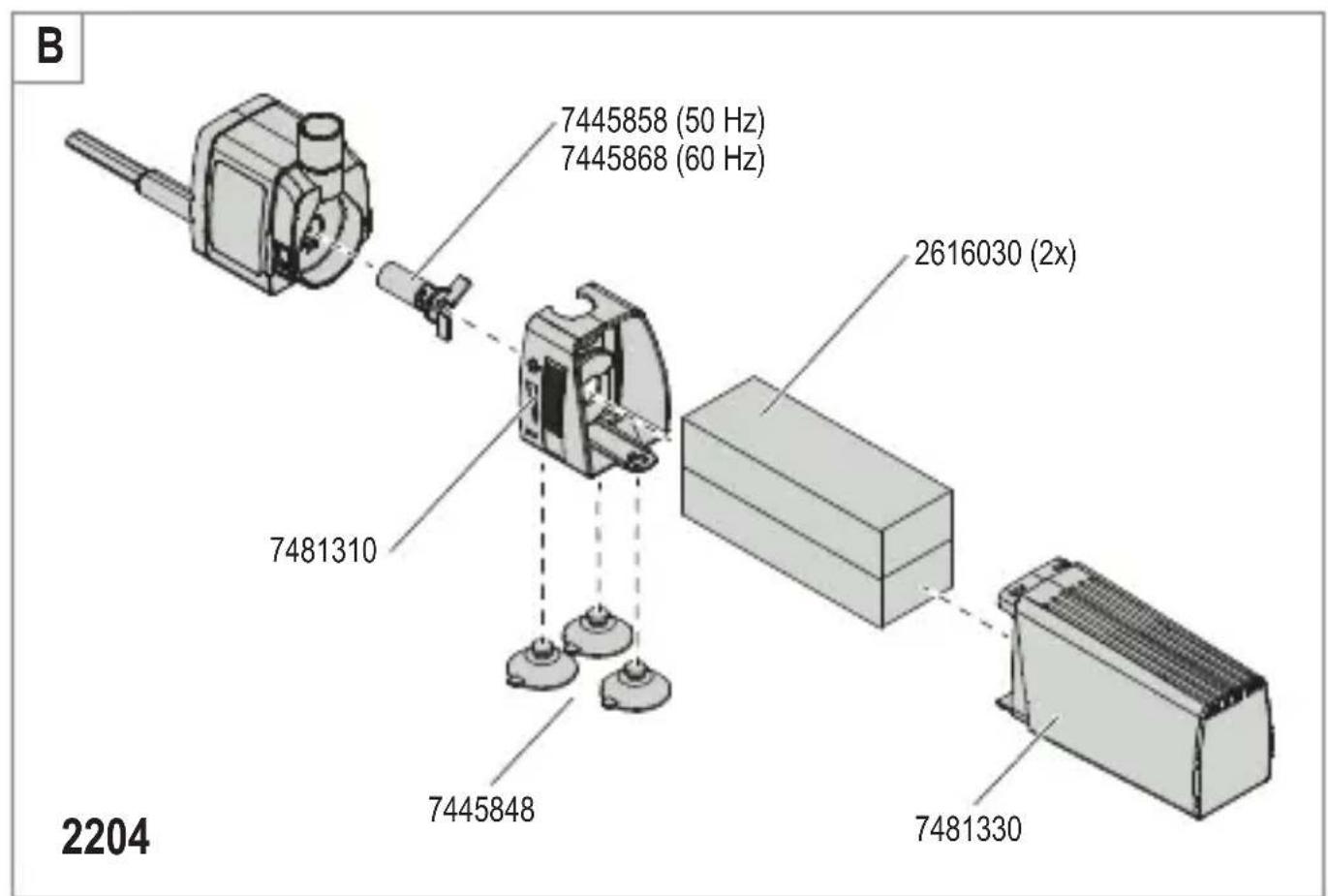

B 7445858 (50 Hz) 7445868 (60 Hz) 2616030 (2x) 7481310 7445848 7481330 2204

miniFLAT/miniUP

Diagram of a mechanical device with three circular components and an arrow indicating rotation or movement (no text or symbols)

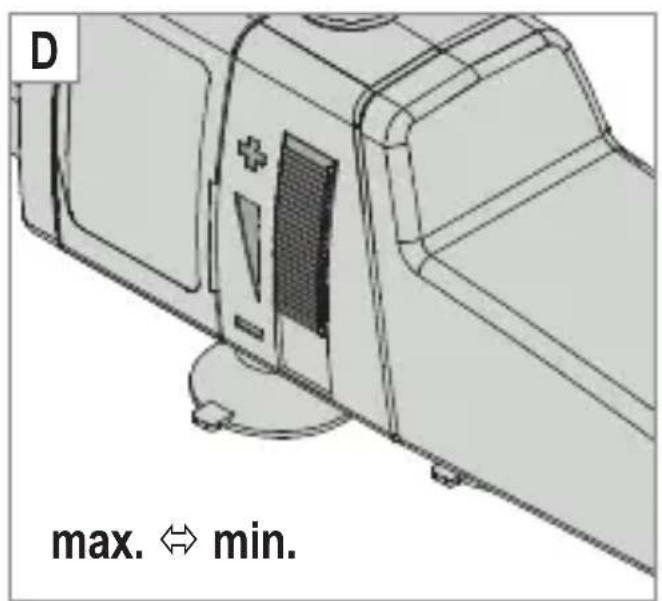

D max. ⇌ min.

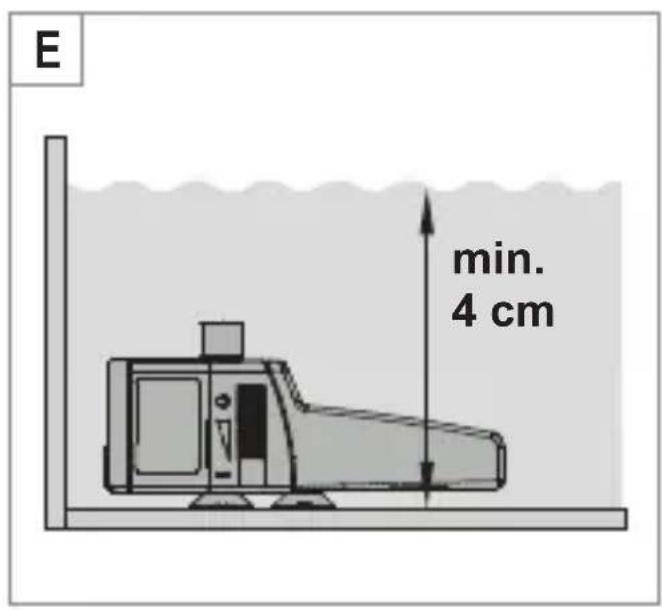

E min. 4 cm

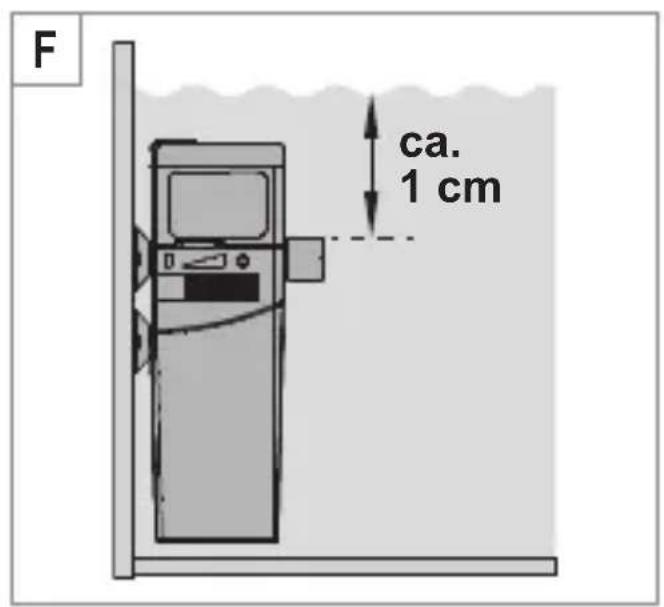

F ca. 1 cm

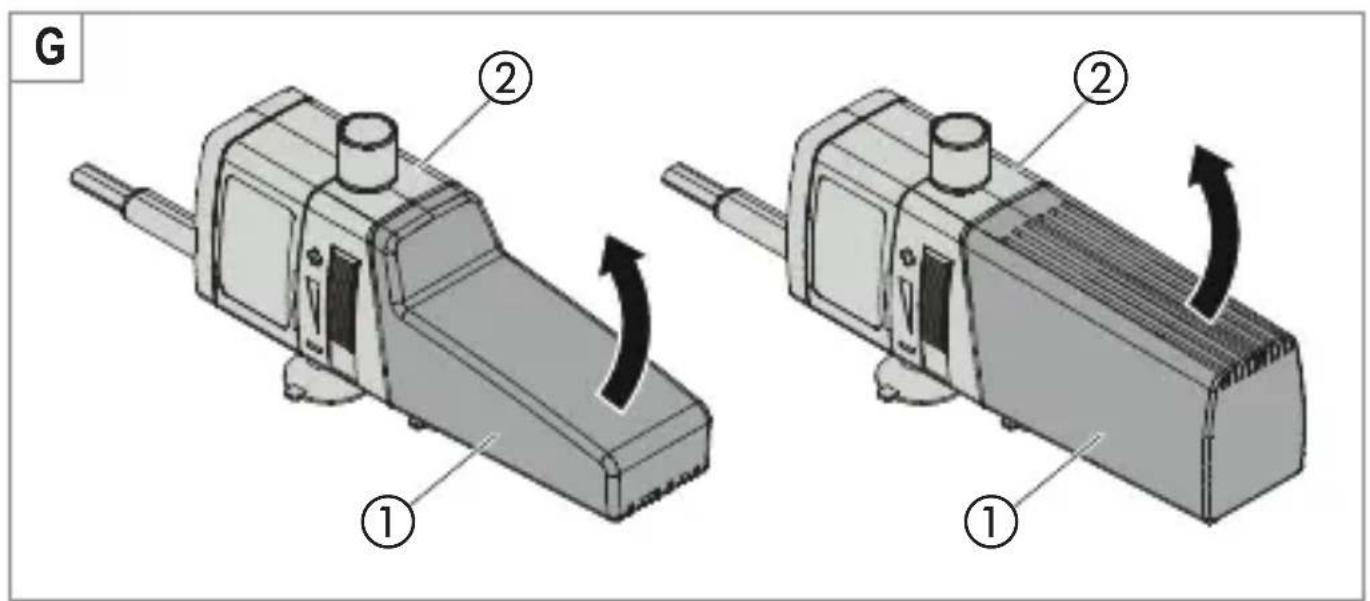

G ① ② ① ②

miniFLAT/miniUP

1 ④

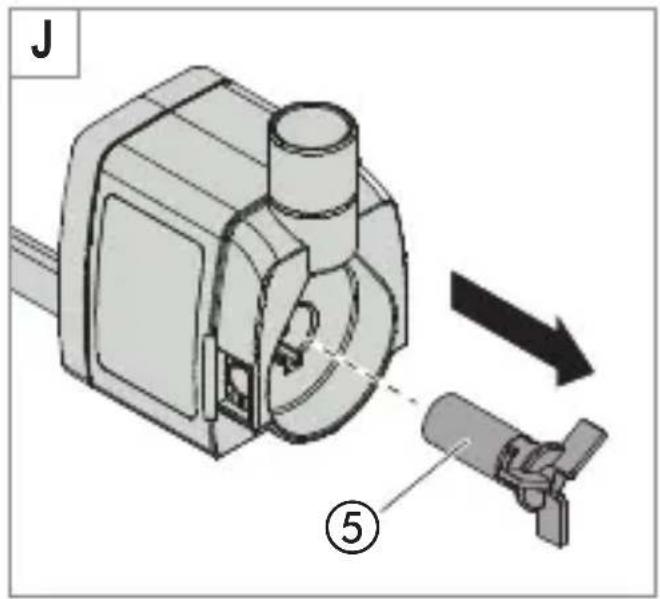

J ⑤

skim350

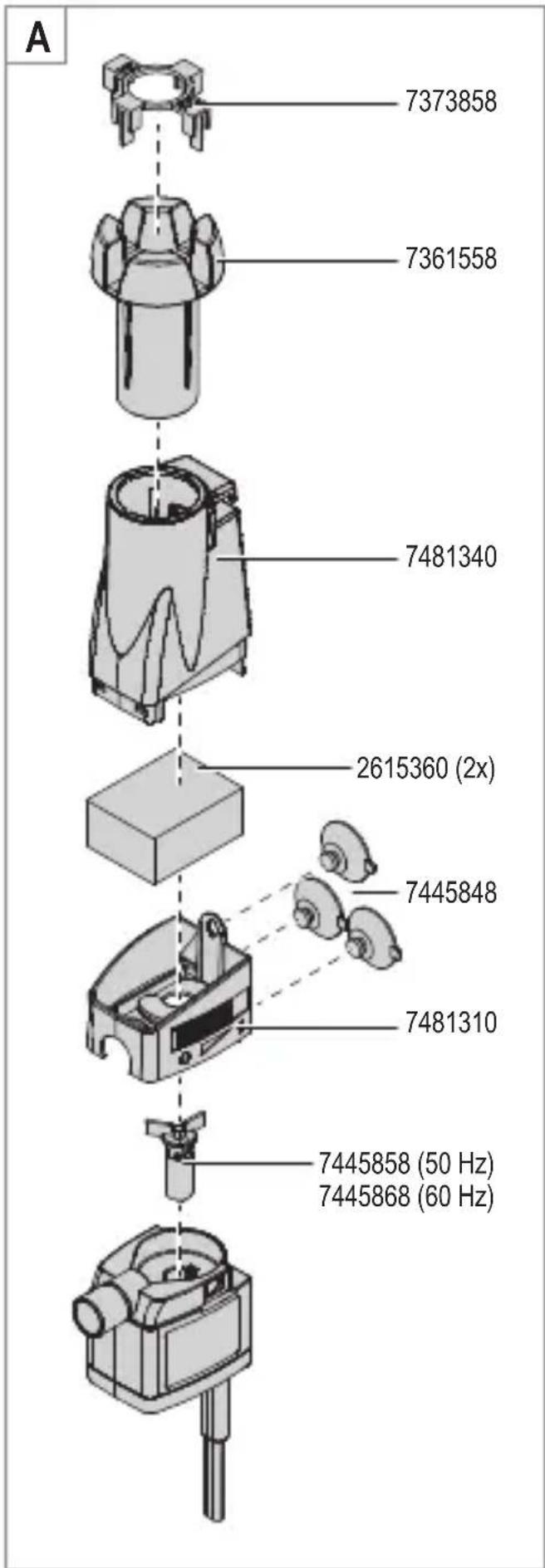

A 7373858 7361558 7481340 2615360 (2x) 7445848 7481310 7445858 (50 Hz) 7445868 (60 Hz)

Diagram of a mechanical device with three circular components and an arrow indicating rotation or movement (no text or symbols)

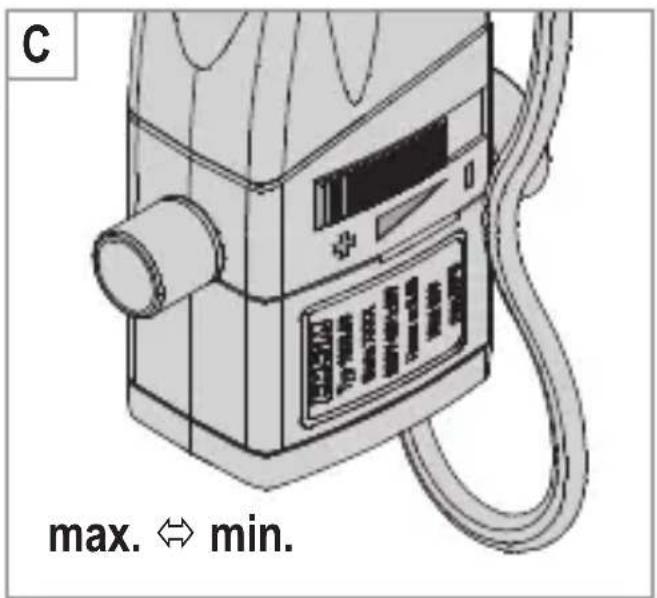

C max. ⇌ min.

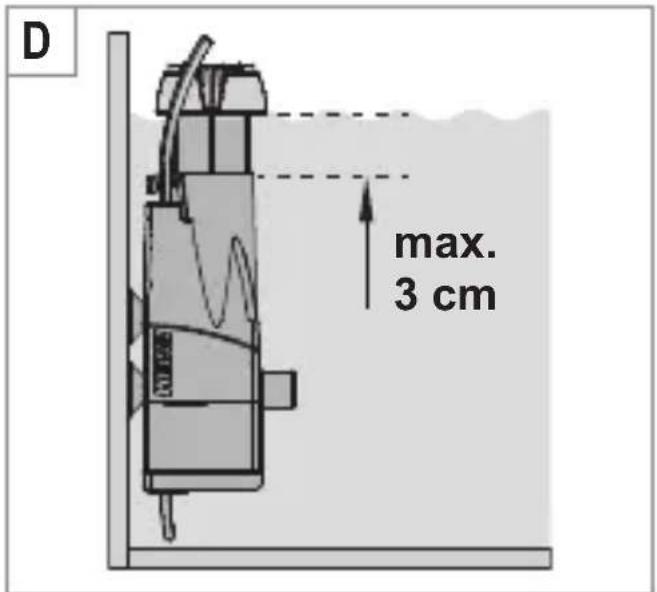

D max. 3 cm

skim350

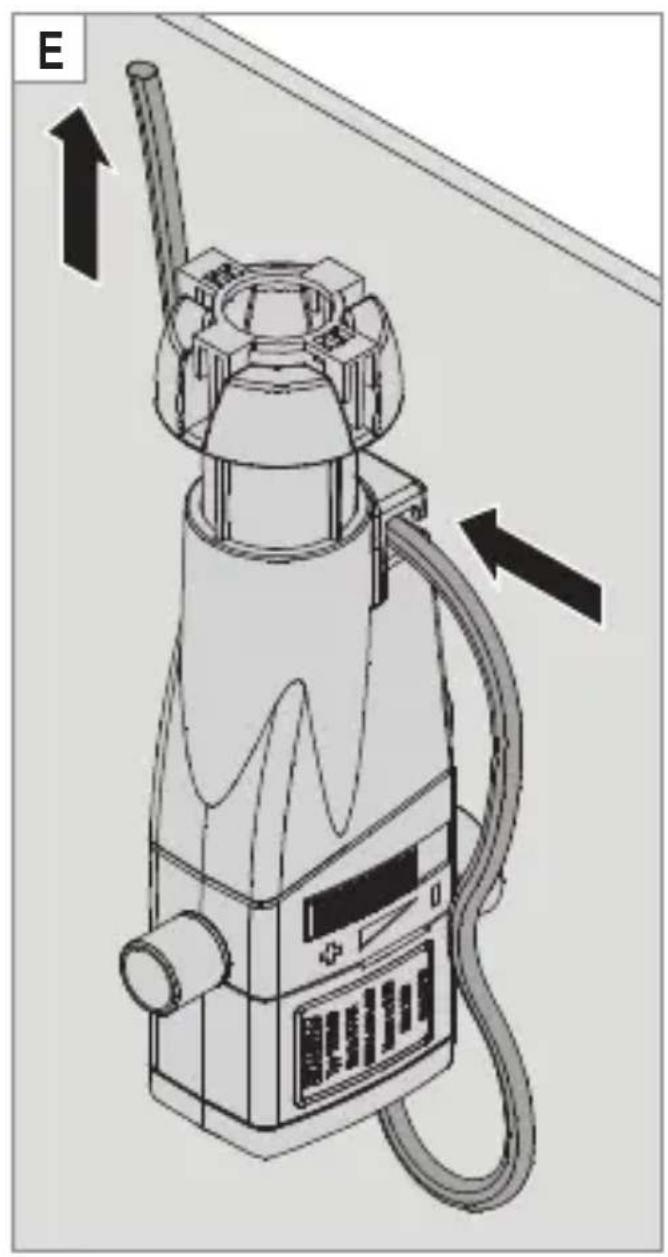

E

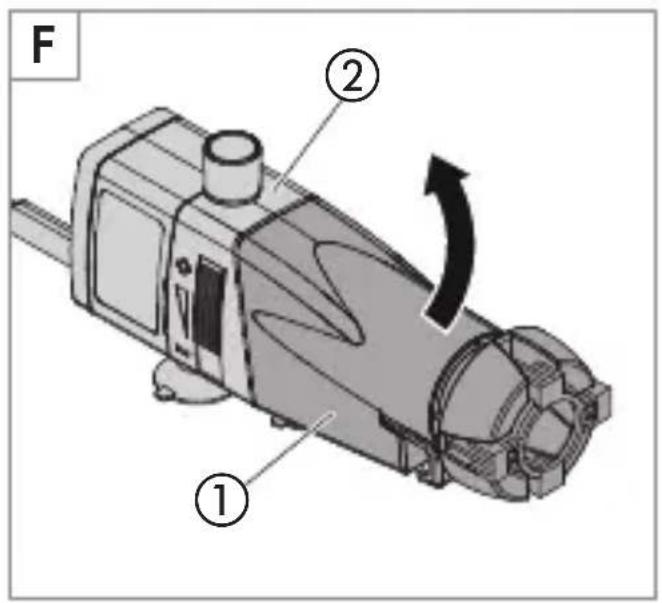

F ① ②

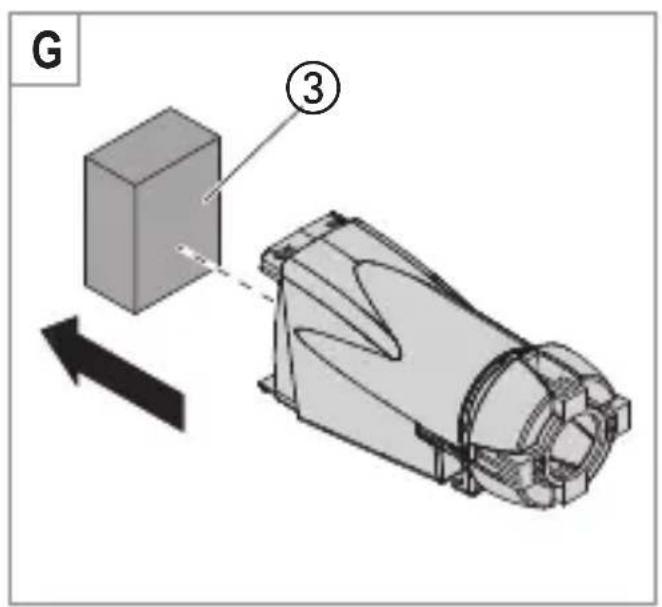

G ③

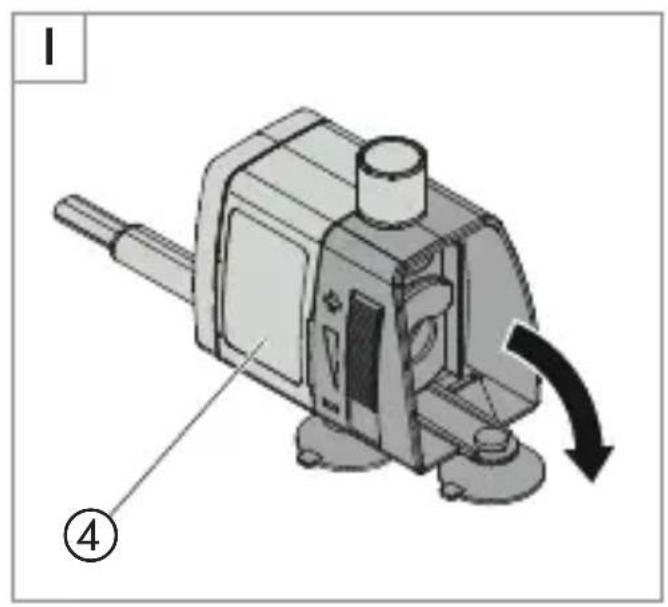

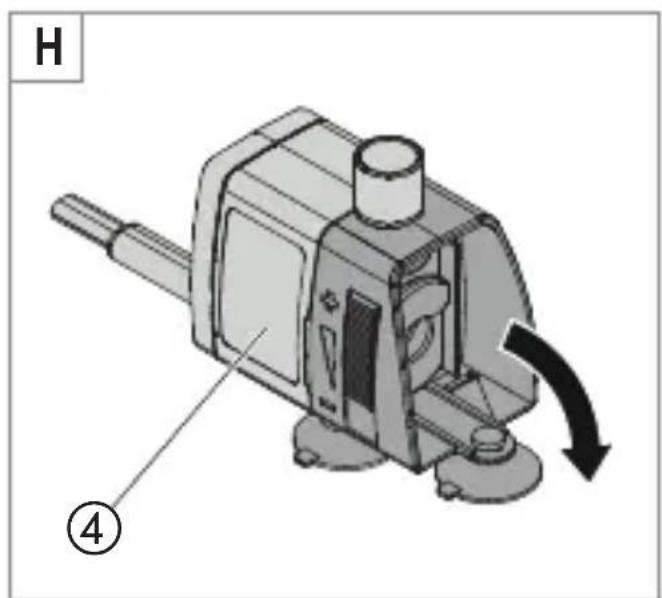

H ④

I ⑤

Simple line drawing of a simple electrical circuit with a power outlet and a submerged object (no text or symbols)

Wartung

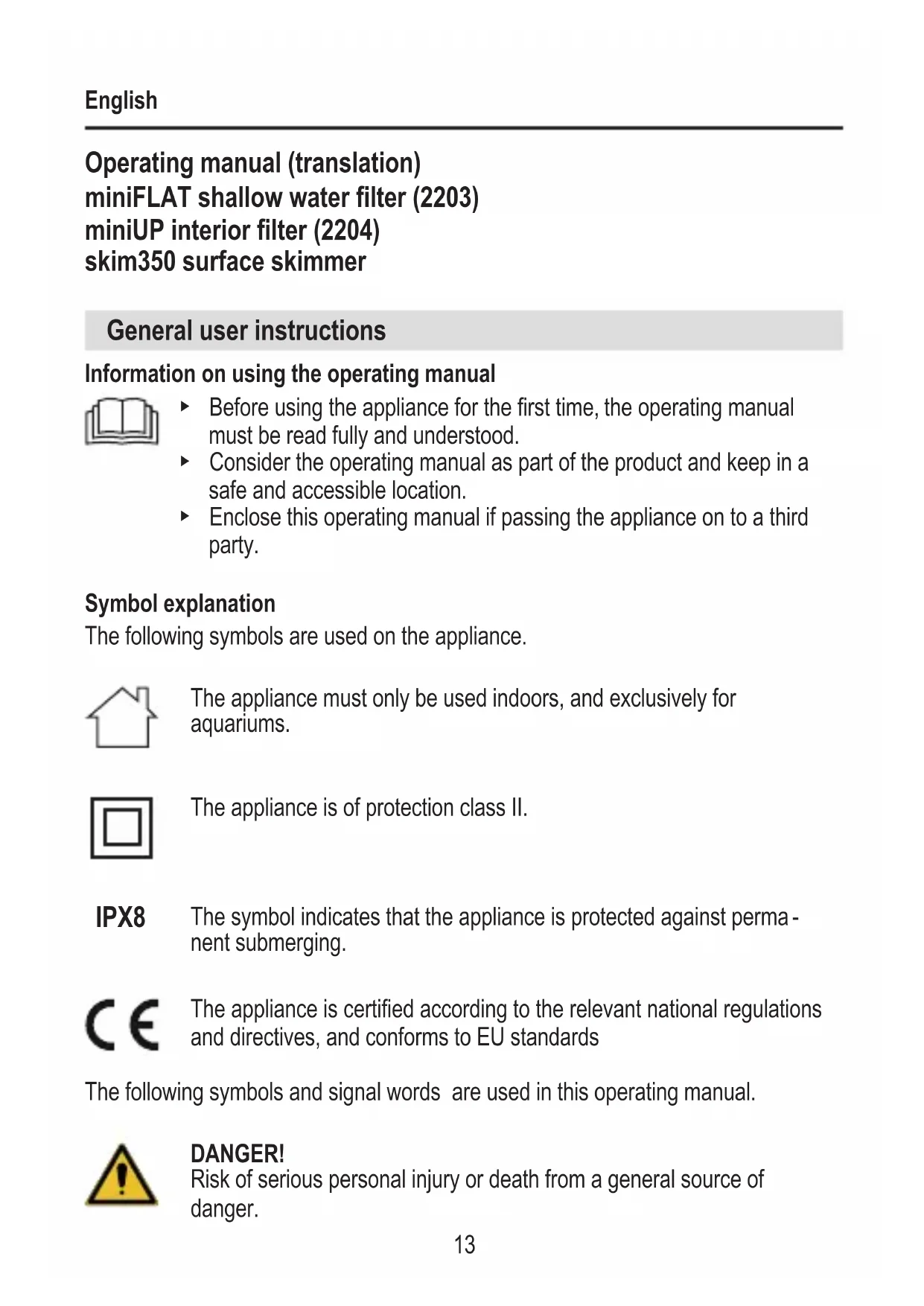

Operating manual (translation) miniFLAT shallow water filter (2203) miniUP interior filter (2204) skim350 surface skimmer

General user instructions

Information on using the operating manual

Before using the appliance for the first time, the operating manual must be read fully and understood.
- Consider the operating manual as part of the product and keep in a safe and accessible location.
- Enclose this operating manual if passing the appliance on to a third party.

Symbol explanation

The following symbols are used on the appliance.

The appliance must only be used indoors, and exclusively for aquariums.

The appliance is of protection class II.

IPX8

The symbol indicates that the appliance is protected against permanent submerging.

The appliance is certified according to the relevant national regulations and directives, and conforms to EU standards

The following symbols and signal words are used in this operating manual.

DANGER!

Risk of serious personal injury or death from a general source of danger.

DANGER!

Danger of electric shock with the risk of serious personal injury or death.

WARNING!

Danger of serious personal injury or health hazard.

CAUTION!

Note on the risk of material damage.

Note with useful information and tips.

Typographical conventions:

☒A Reference to a figure, in this case, reference to figure A.

▶ You are prompted for an action.

Application

The appliance and all parts included in the scope of delivery are intended for private use and must only be used:

· for aquarium-related purposes
· indoors
· in compliance with the technical data

The following limitations apply to the appliance:

· do not use for commercial or industrial purposes
- do not use together with caustic, inflammable, aggressive or explosive substances, food or drinking water
· the water temperature may not exceed 35^ C
· never operate without a water flow

Safety

Risks for persons and property can arise from this appliance if the appliance is improperly used or not used as intended or if the safety instructions are not heeded.

For your safety

• Do not let the appliance packaging and small parts get into the hands of children or people who are unaware of how to handle them, as hazards can arise (danger of suffocation!). Keep away from animals.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are under the supervision of someone responsible for their safety or have received instruction on usage of the appliance from said person. Children should be supervised to ensure that they do not play with the appliance.

· Only for European markets:

This appliance can be used by children from the age of 8 and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they are supervised and have been instructed in the safe use of the appliance and have understood the resulting dangers. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children unless they are supervised.

• Before use, carry out a visual inspection to ensure that the appliance, especially the mains cable and plug, are undamaged.
  · The appliance must never be operated out of water.
  · Repairs must only be carried out by an EHEIM service centre.
• The mains cable of this appliance cannot be replaced. If the cable is damaged, the appliance must be scrapped.
• Only carry out the work described in these instructions.
  · Never make technical modifications to the appliance.
• Only use original spare parts and accessories for the appliance.

We recommend protecting all electrical aquarium appliances via a residual current protective device with a rated residual current of 30 mA maximum.

- In the event of leakage or when the residual current protection device is triggered, immediately disconnect all devices in the aquarium from the power supply. - If they are not being used, always disconnect all devices in the aquarium from the power supply before you install/remove any parts and before all cleaning and maintenance work.

- Protect the mains socket and mains plug against moisture and wetness. A drip loop must be formed with the mains cable.

This prevents any water running along the cable to the mains socket, which would result in a short-circuit.

- The electrical data of the appliance must match the data of the power mains. This data is found on the type plate, the packaging and in these instructions.

Simple line drawing of a simple electrical circuit with a power outlet and a submerged object (no text or symbols)

Maintenance

Caution! Material damage.

▶ Do not use hard objects or cleaning agents for cleaning.

Cleaning or changing the filter cartridge and cleaning the pump miniFLAT/miniUP (☒G/H/I/J)

skim350 (☒F/G/H/I)

1. Before maintenance work, remove the mains plug.
2. Gently tilt the filter container① upward.
3. Remove the filter container from the pump cover ^② .

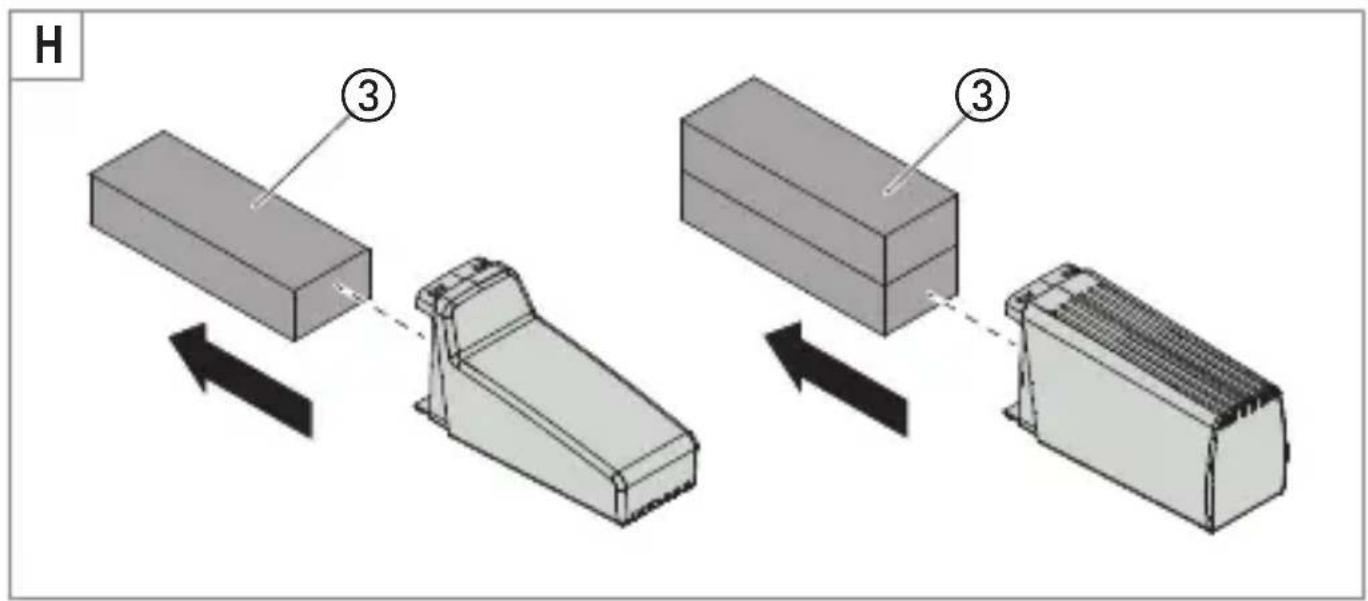

4. Remove the filter cartridge ③.
5. Wash the filter cartridge or replace it.
6. Remove the pump cover from the pump body ②.

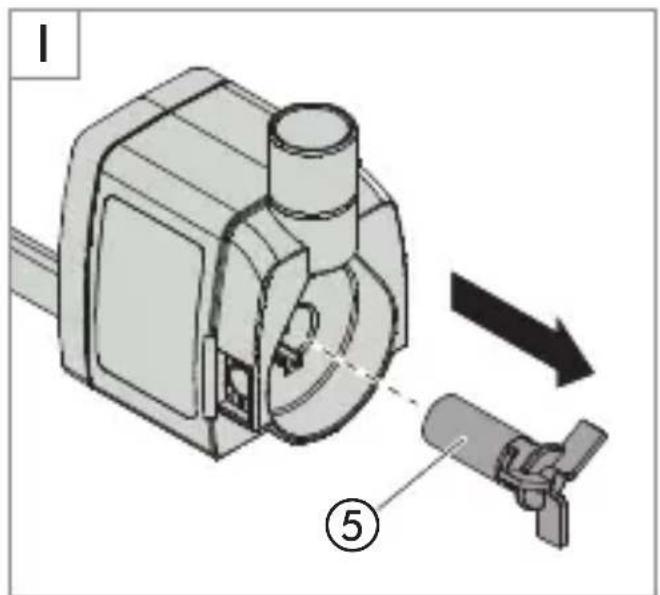

7. Pull the impeller⑤ out of the pump body.
8. Using a brush, clean all components under a jet of water.
9. Install all components again in reverse order.

Spare parts

miniFLAT/miniUP see page 3.

skim350 see page 6.

Decommissioning and disposal

Disposal

When disposing of the appliance, pay attention to the relevant statutory regulations.

Information on the disposal of electrical and electronic appliances in the European Union: Within the European Union, disposal of electrically operated appliances is governed by national regulations that are based on the EU Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). The appliance may no longer be disposed of with the municipal or household waste. The appliance will be accepted free of charge at municipal collection points or recycling centres. The product packaging is made up of recyclable materials. Dispose of them in an environmentally responsible manner and take them for recycling.

Simple line drawing of a U-shaped tube connected to a power outlet (no text or symbols)

Maintenance

Élimination/destruction

Simple line drawing of a simple electrical circuit with a power outlet and a submerged object (no text or symbols)

Simple line drawing of a U-shaped tube connected to a power outlet (no text or symbols)

Mantenimiento

Simple line drawing of a simple electrical circuit with a power outlet and submerged components (no text or symbols)

Manutenção

Simple line drawing of a U-shaped tube connected to a power outlet (no text or symbols)

Onderhoud

Simple line drawing of a pipe system with a power outlet and a submerged container (no text or symbols)

Vedligeholdelse

Simple line drawing of a U-shaped tube connected to a power outlet (no text or symbols)

Underhåll

Simple line drawing of a pipe connected to a container with a bulb (no text or symbols)

Vedlikehold

Simple line drawing of a plug connected to a U-shaped tube with a submerged block (no text or symbols)

Huolto

Simple line drawing of a U-shaped tube connected to a power outlet (no text or symbols)

Bakım

Simple line drawing of a U-shaped tube connected to a power outlet (no text or symbols)

Konserwacja

Simple line drawing of a pipe connected to a container with a bulb (no text or symbols)

Údržba

Simple line drawing of a U-shaped tube connected to a power outlet (no text or symbols)

Údržba

Pozor! Vecné škody.

Simple line drawing of a U-shaped tube connected to a power outlet (no text or symbols)

Notranji filter miniUP (2204)

Površinski posnemovalec umazanije skim350

Simple line drawing of a plug connected to a U-shaped tube with liquid inside (no text or symbols)

Vzdrževanje

Pozor! Materialna škoda.

Simple line drawing of a plug connected to a U-shaped tube with a submerged block (no text or symbols)

Održavanje

Simple line drawing of a simple electrical circuit with a power outlet and submerged components (no text or symbols)

Întreținere

Simple line drawing of a simple electrical circuit with a power outlet and submerged components (no text or symbols)

Поддръжка

Simple line drawing of a U-shaped tube connected to a power outlet (no text or symbols)

Simple line drawing of a U-shaped tube connected to a power outlet (no text or symbols)

Συντήρηση

Simple line drawing of a power outlet connected to a U-shaped tube with a submerged block (no text or symbols)

경고

주의! 제품의 손상.

Simple line drawing of a U-shaped tube connected to a power outlet (no text or symbols)

维护

小心！财产损失。

Reproduction or copying – even parts thereof – only with the express permission of the producer.
