| Product type | Bluetooth jobsite radio |
| Brand | DeWalt |
| Model | DCR011 |
| Voltage | 10.8 / 14.4 / 18 V |
| Battery type | Lithium-Ion |
| Audio output power | 2 x 10 W |
| Weight (without battery) | 1.77 kg |
| USB port | Yes, 2.1 A for charging devices |
| Connectivity | Bluetooth |
| Main functions | Bluetooth audio playback, volume control, track change, USB port, automatic pairing, auto power off function |
| Wall mounting | Possible via slots at the back |
| Handle/phone holder | Integrated into the handle and dedicated tray |
| Maintenance and cleaning | Blow dust with dry air, use a dry cloth, do not immerse |
| Safety | Electronic protection against overload and overheating, automatic shutdown, usage instructions |
| Compatible batteries | DCB125, DCB127, DCB141, DCB142, DCB143, DCB144, DCB145, DCB181, DCB182, DCB183, DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB189, DCB546, DCB547, DCB548 |
| Compatible chargers | DCB107, DCB113, DCB115, DCB118, DCB132, DCB119 |
| Charging temperature | 4 °C to 40 °C |
| General information | Professional use, temperate climate, not suitable for persons with reduced capabilities without supervision |
Frequently Asked Questions - DCR011 DEWALT
User questions about DCR011 DEWALT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Radio in PDF format for free! Find your manual DCR011 - DEWALT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DCR011 by DEWALT.

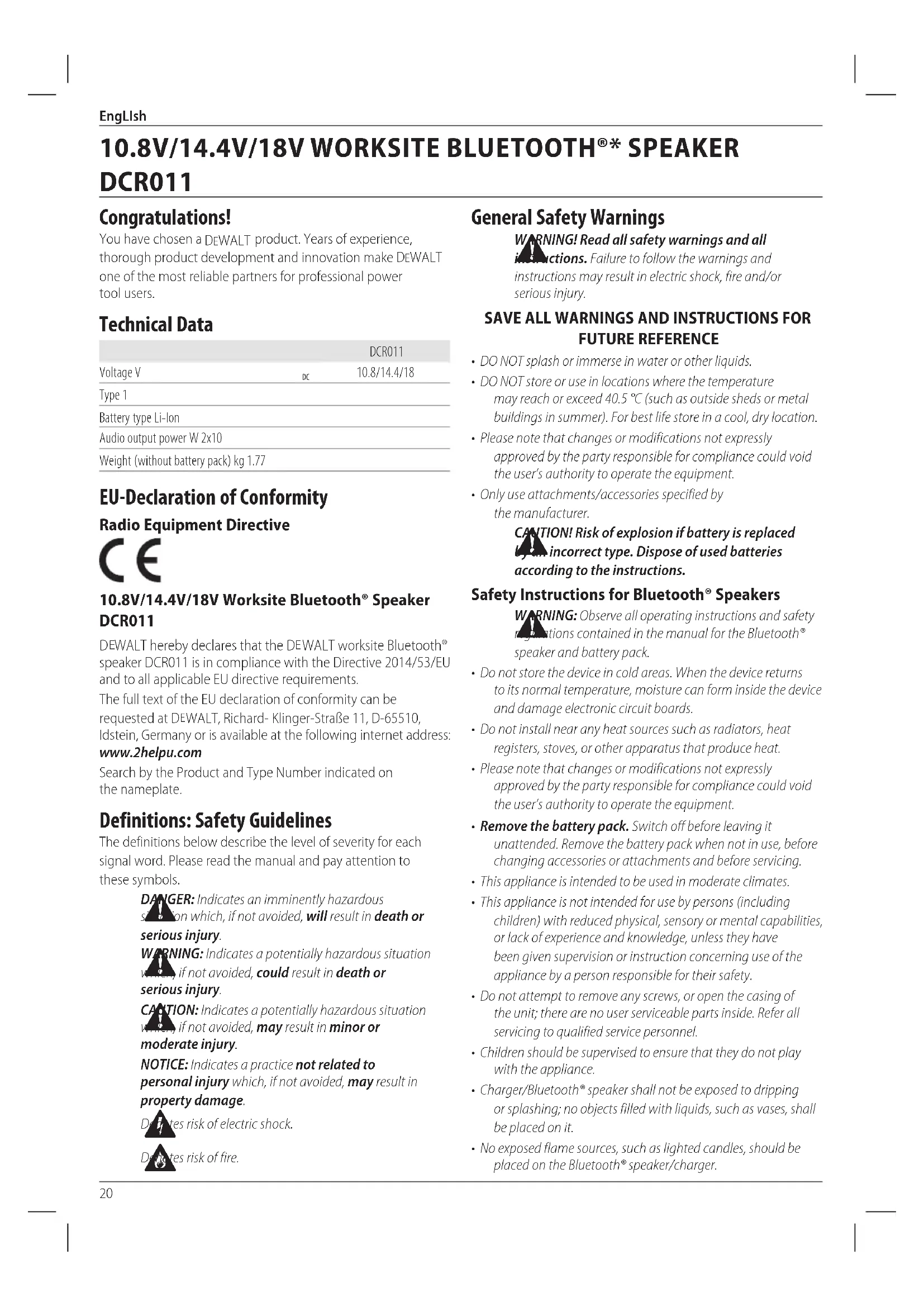

USER MANUAL DCR011 DEWALT
English (original instructions) 20


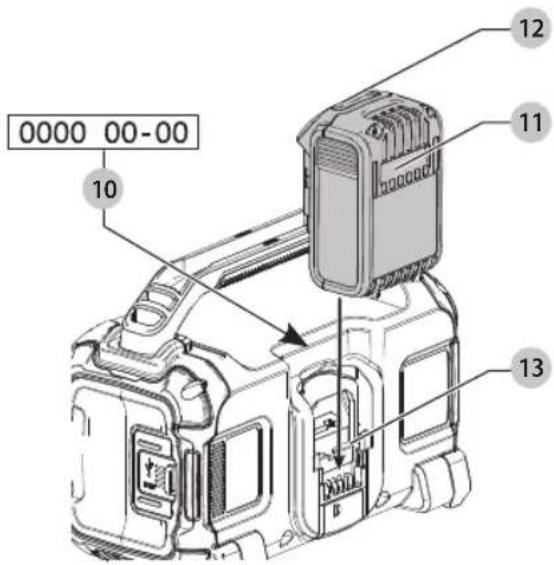

Diagram showing a device being inserted into a battery, with labeled parts 11 and 12 pointing to the component.


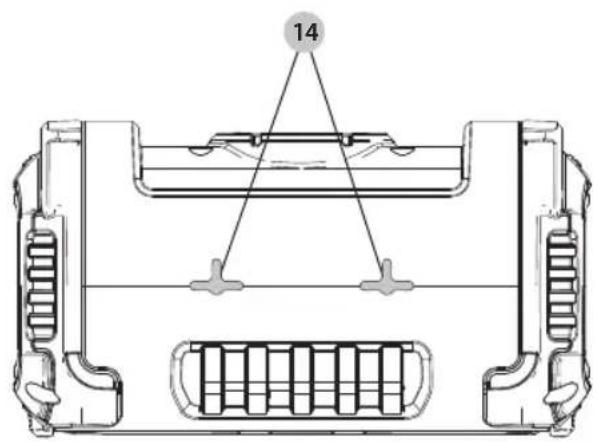

0000 00-00 10 12 11 13Fig. C

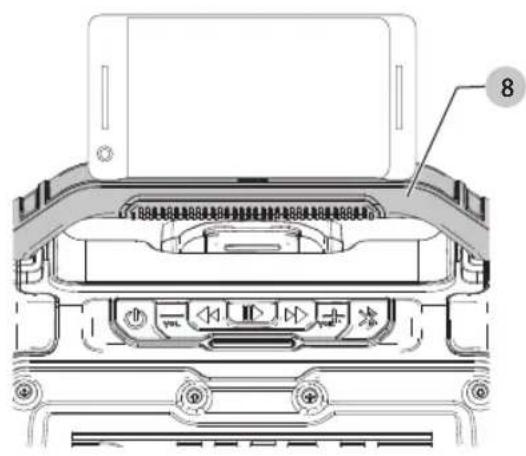

Fig. D
DCR011
Tillykke!
You have chosen a DEWALT product. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.
Technical Data
| DCR011 | ||
| Voltage V | DC | 10.8/14.4/18 |
| Type 1 | ||
| Battery type Li-Ion | ||
| Audio output power W 2x10 | ||
| Weight (without battery pack) kg 1.77 | ||
EU-Declaration of Conformity
Radio Equipment Directive
10.8V/14.4V/18V Worksite Bluetooth® Speaker DCR011
DEWALT hereby declares that the DEWALT worksite Bluetooth® speaker DCR011 is in compliance with the Directive 2014/53/EU and to all applicable EU directive requirements.
The full text of the EU declaration of conformity can be requested at DEWALT, Richard-Klinger-Straße 11, D-65510, Idstein, Germany or is available at the following internet address: www.2helpu.com
Search by the Product and Type Number indicated on the nameplate.
Definitions: Safety Guidelines
The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.
DANGER: Indicates an imminently hazardous situation on which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation when, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.
Deicates risk of electric shock.
Deletes risk of fire.
General Safety Warnings
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE
• DO NOT splash or immerse in water or other liquids.
- DO NOT store or use in locations where the temperature may reach or exceed 40.5 °C (such as outside sheds or metal buildings in summer). For best life store in a cool, dry location.
- Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Only use attachments/accessories specified by the manufacturer.
CAUTION! Risk of explosion if battery is replaced by the incorrect type. Dispose of used batteries according to the instructions.
Safety Instructions for Bluetooth® Speakers
WARNING: Observe all operating instructions and safety regulations contained in the manual for the Bluetooth® speaker and battery pack.
- Do not store the device in cold areas. When the device returns to its normal temperature, moisture can form inside the device and damage electronic circuit boards.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
- Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Remove the battery pack. Switch off before leaving it unattended. Remove the battery pack when not in use, before changing accessories or attachments and before servicing.
• This appliance is intended to be used in moderate climates.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.
• Children should be supervised to ensure that they do not play with the appliance.
- Charger/Bluetooth® speaker shall not be exposed to dripping or splashing; no objects filled with liquids, such as vases, shall be placed on it.
- No exposed flame sources, such as lighted candles, should be placed on the Bluetooth® speaker/charger.
| Batteries Chargers/Charge Times (Minutes) | |||||||||
| Cat # V | Weight | DCB107 DCB113 DCB115 DCB118 DCB132 DCB119 | |||||||
| Ah | kg | ||||||||
| DCB546 18/54 6.0/2.0 1.05 270 140 90 60 90 X | |||||||||
| DCB547 18/54 9.0/3.0 1.25 420 220 140 85 140 X | |||||||||
| DCB548 18/54 12.0/4.0 1.46 540 300 180 180 120 | X | ||||||||
| DCB181 | 18 | 1.5 | 0.35 | 70 | 35 | 22 | 22 | 22 | 45 |
| DCB182 | 18 4.0 | 0.61 | 185 100 60 60 60 120 | ||||||
| DCB183/B | 18 | 2.0 | 0.40 | 90 | 50 | 30 | 30 | 30 | 60 |
| DCB184/B | 18 5.0 | 0.62 | 240 120 75 75 75 150 | ||||||
| DCB185 | 18 | 1.3 | 0.35 | 60 | 30 | 22 | 22 | 22 | X |
| DCB187 | 18 3.0 | 0.54 | 140 70 | 45 45 45 90 | |||||
| DCB189 | 18 4.0 | 0.54 | 185 100 60 60 60 120 | ||||||
| DCB141 | 14.4 | 1.5 | 0.30 | 70 | 35 | 22 | X | 22 | 45 |
| DCB142 | 14.4 | 4.0 | 0.54 | 185 | 100 | 60 | X | 60 | 120 |
| DCB143 | 14.4 | 2.0 | 0.30 | 90 | 50 | 30 | X | 30 | 60 |
| DCB144 | 14.4 | 5.0 | 0.52 | 240 | 120 | 75 | X | 75 | 150 |
| DCB145 | 14.4 | 1.3 | 0.30 | 60 | 30 | 22 | X | 22 | 40 |
| DCB125 | 10.8 | 1.3 | 0.20 | 60 | 30 | 22 | X | 22 | 40 |
| DCB127 | 10.8 | 2.0 | 0.20 | 90 | 50 | 30 | X | 30 | 60 |
- Mains plug of battery charger is used as the disconnect device; the disconnect device (plug) shall remain readily operable.
• To reduce the risk of hearing damage, do not place ears too close to the speaker. - Speaker should be placed only in safe, secure locations with no danger of falling. People could be injured by falling objects.
SAVE THESE INSTRUCTIONS
Chargers
DFWALT chargers require no adjustment and are designed to be as easy as possible to operate.
Electrical Safety
The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains.
Your DEWALT charger is double insulated in accordance with EN60335; therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DEWALT service organisation.
Mains Plug Replacement
(U.K. & Ireland Only)
If a new mains plug needs to be fitted:
• Safely dispose of the old plug.
- Connect the brown lead to the live terminal in the plug.
- Connect the blue lead to the neutral terminal.
WARNING: No connection is to be made to the earthen terminal.
Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 3 A.
Using an Extension Cable
An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see Technical Data). The minimum conductor size is 1 mm ^2 ; the maximum length is 30 m.
When using a cable reel, always unwind the cable completely.
Important Safety Instructions for All Battery Chargers
SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for compatible battery chargers (refer to Technical Data).
- Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using battery pack.
WARNING: Shock hazard. Do not allow any liquid to get a charger. Electric shock may result.
WARNING: We recommend the use of a residual current with a residual current rating of 30mA or less.
CAUTION: Burn hazard. To reduce the risk of injury, charge only DEWALT rechargeable batteries. Other types of batteries may burst causing personal injury and damage.
CAUTION: Children should be supervised to ensure that they do not play with the appliance.
NOTICE: Under certain conditions, with the charger plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such
ENGLISH
as, but not limited to, steel wool, aluminum foil or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean
- DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together.
• These chargers are not intended for any uses other than charging DEWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution. - Do not expose charger to rain or snow.
- Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.
- Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
- Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock, or electrocution.
- Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.
- Do not operate charger with damaged cord or plug—have them replaced immediately.
- Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorised service centre.
- Do not disassemble charger; take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
- In case of damaged power supply cord the supply cord must be replaced immediately by the manufacturer, its service agent or similar qualified person to prevent any hazard.
- Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
- NEVER attempt to connect two chargers together.
- The charger is designed to operate on standard 230V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.
Charging a Battery (Fig. B)
- Plug the charger into an appropriate outlet before inserting battery pack.
-
Insert the battery pack 11 into the charger, making sure the battery pack is fully seated in the charger. The red (charging) light will blink repeatedly indicating that the charging process has started.
-
The completion of charge will be indicated by the red light remaining ON continuously. The battery pack is fully charged and may be used at this time or left in the charger. To remove the battery pack from the charger, push the battery release button 12 on the battery pack.
NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before first use.
Charger Operation
Refer to the indicators below for the charge status of the battery pack.
Charge Indicators
| Charging | — — — — — — |
| Fully Charged | — — — — — — |
| Hot/Cold Pack Delay* | — — — | — — — — — |
* The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the charging procedure.
The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery by refusing to light.
NOTE: This could also mean a problem with a charger.
If the charger indicates a problem, take the charger and battery pack to be tested at an authorised service centre.
Hot/Cold Pack Delay
When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life.
A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery pack warms.
The DCB118 charger is equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to be cooled. Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to enter the interior of the charger.
Electronic Protection System
XR Li-Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge.
The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium-ion battery pack on the charger until it is fully charged.
Wall Mounting
These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a
corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 25.4 mm long with a screw head diameter of 7–9 mm, screwed into wood to an optimal depth leaving approximately 5.5 mm of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots.
Charger Cleaning Instructions
WARNING: Shock hazard. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions. Never let any liquid get inside the charger; never immerse any part of the charger into a liquid.
Battery Packs
Important Safety Instructions for All Battery Packs
When ordering replacement battery packs, be sure to include catalogue number and voltage.
The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging procedures outlined.
READ ALL INSTRUCTIONS
- Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes.
- Never force battery pack into charger. Do not modify battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury.
- Charge the battery packs only in DEWALT chargers.
- DO NOT splash or immerse in water or other liquids.
- Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 40^ (104°F) (such as outside sheds or metal buildings in summer).
- Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs are burned.
- If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
- Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.
WARNING: Burn hazard. Battery liquid may be flammable in exposed to spark or flame.
WARNING: Never attempt to open the battery pack for any reason. If battery pack case is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Electric shock or electrocution may result. Damaged battery packs should be returned to service centre for recycling.
WARNING: Fire hazard. Do not store or carry the battery pack so that metal objects can contact
exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc.
Transportation
WARNING: Fire hazard. Transporting batteries can possibly cause fire if the battery terminals inadvertently come in contact with conductive materials. When transporting batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit.
NOTE: Lithium-ion batteries should not be put in checked baggage.
DEWALT batteries comply with all applicable shipping regulations as prescribed by industry and legal standards which include UN Recommendations on the Transport of Dangerous Goods; International Air Transport Association (IATA) Dangerous Goods Regulations, International Maritime Dangerous Goods (IMDG) Regulations, and the European Agreement Concerning The International Carriage of Dangerous Goods by Road (ADR). Lithium-ion cells and batteries have been tested to section 38.3 of the UN Recommendations on the Transport of Dangerous Goods Manual of Tests and Criteria.
In most instances, shipping a DEWALT battery pack will be excepted from being classified as a fully regulated Class 9 Hazardous Material. In general, only shipments containing a lithium-ion battery with an energy rating greater than 100 Watt Hours (Wh) will require being shipped as fully regulated Class 9. All lithium-ion batteries have the Watt Hour rating marked on the pack. Furthermore, due to regulation complexities, DEWALT does not recommend air shipping lithium-ion battery packs alone regardless of Watt Hour rating. Shipments of tools with batteries (combo kits) can be air shipped as excepted if the Watt Hour rating of the battery pack is no greater than 100 Whr. Regardless of whether a shipment is considered excepted or fully regulated, it is the shipper's responsibility to consult the latest regulations for packaging, labeling/marking and documentation requirements.
The information provided in this section of the manual is provided in good faith and believed to be accurate at the time the document was created. However, no warranty, expressed or implied, is given. It is the buyer's responsibility to ensure that its activities comply with the applicable regulations.
Transporting the FLEXVOLT™ Battery
The DEWALT FLEXVOLT ^™ battery has two modes: Use and Transport.
ENGLISH
Use Mode: When the FLEXVOLT™ battery stands alone or is in a DEWALT 18V product, it will operate as an 18V battery. When the FLEXVOLT™ battery is in a 54V or a 108V (two 54V batteries) product, it will operate as a 54V battery.
Transport Mode: When the cap is attached to the FLEXVOLT™ battery, the battery is in Transport mode. Keep the cap for shipping.
When in Transport mode, strings of cells are electrically disconnected within the pack resulting in 3 batteries with a lower Watt hour (Wh) rating as compared to 1 battery with a higher Watt hour rating. This increased quantity of 3 batteries with the lower Watt hour rating can exempt the pack from certain shipping regulations that are imposed upon the higher Watt hour batteries.
For example, the Transport Wh rating might indicate 3 x 36 Wh, meaning 3 batteries of 36 Wh each. The Use Wh rating might indicate 108 Wh (1 battery implied).
Example of Use and Transport Label Marking
Use: 108 Wh
Transport: 3x36 Wh
Storage Recommendations
- The best storage place is one that is cool and dry away from direct sunlight and excess heat or cold. For optimum battery performance and life, store battery packs at room temperature when not in use.
- For long storage, it is recommended to store a fully charged battery pack in a cool, dry place out of the charger for optimal results.
NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.
Labels on Charger and Battery Pack
In addition to the pictographs used in this manual, the labels on the charger and the battery pack may show the following pictographs:
Read instruction manual before use.
See Technical Data for charging time.
Do not probe with conductive objects.
Do not charge damaged battery packs.
Do not expose to water.
Have defective cords replaced immediately.
Charge only between 4 °C and 40 °C.
Only for indoor use.
Discard the battery pack with due care for the environment.
Charge DEWALT battery packs only with designated DEWALT chargers. Charging battery packs other than the designated DEWALT batteries with a DEWALT charger may make them burst or lead to other dangerous situations.
Do not incinerate the battery pack.
USE (without transport cap). Example: Wh rating indicates 108 Wh (1 battery with 108 Wh).
TRANSPORT (with built-in transport cap). Example: Wh rating indicates 3 x 36 Wh (3 batteries of 36 Wh).
Battery Type
The DCR011 operates on a 10.8, 14.4, or 18 volt battery pack. These battery packs may be used: DCB125, DCB127, DCB141, DCB142, DCB143, DCB144, DCB145, DCB181, DCB182, DCB183, DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB189, DCB546, DCB547, DCB548. Refer to Technical Data for more information.
Package Contents
The package contains:
1 Worksite Bluetooth ^® speaker
1 Instruction manual
- Check for damage to the unit, parts or accessories which may have occurred during transport.
• Take the time to thoroughly read and understand this manual prior to operation.
Markings on Speaker
The following pictograms are shown on the speaker:
Read instruction manual before use.
Date Code Position (Fig. B)
The date code 10, which also includes the year of manufacture, is printed into the housing.
Example:
2018 XX XX
Year of Manufacture
Description (Fig. A)
WARNING: Never modify the unit or any part of it. Damage or personal injury could result.
1 Power button
2 Volume buttons +/-
3 Track change buttons
4 Bluetooth® status indicator
5 Play/Pause button
6 Bluetooth® button
7 USB port
8 Handle and mobile phone cradle
9 Mobile phone tray
10 Date code
Intended Use
This DEWALT Bluetooth® speaker is designed to play/stream audio via a wireless Bluetooth® connection to a mobile phone or other audio device.
DO NOT use under wet conditions or in the presence of flammable liquids or gases.
DO NOT let children come into contact with the unit.
Supervision is required when inexperienced operators use this unit.
- Young children and the infirm. This appliance is not intended for use by young children or infirm persons without supervision.
- This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with this product.
USB Port (Fig. A)
The USB power output port 7 is a connection port for powering low power devices such as mobile phones, CD and MP3 players. It delivers up to 2.1 amp total current.
As the speaker is powered by batteries, the USB power output port will charge a device when the user presses the power button to turn the speaker on.
NOTE: The audio device must connect to the speaker via Bluetooth® to use the speaker function. The USB port is only a power port for charging the audio device.
Handle/Mobile Phone Cradle (Fig. C)
The speaker should be transported using the handle 8. The handle has a cradle which can be used to hold the mobile phone while in use.
WARNING: A mobile phone cannot be secured in the car, and can fall if the speaker is moved or transported. Be sure to remove mobile phone from the cradle before moving or transporting the speaker.
Mobile Phone Tray (Fig. A)
The speaker has a mobile phone tray 9 which can be used to hold the mobile phone while in use.
WARNING: A mobile phone cannot be secured in the tray and can fall if the speaker is moved or transported. Be sure to remove mobile phone from the tray before transporting the speaker.
Mounting the Speaker (Fig. D)
The speaker is designed to be mountable or to sit upright on a table or work surface. If mounting, use the mounting slots 14 found on the bottom of the speaker as a template for the location of the screws on the wood or wall. Mount the speaker securely using drywall screws (purchased separately) at least 25.4 mm long with a screw head diameter of 5–7 mm, screwed into wood to an optimal depth leaving approximately 5.5 mm of the screw exposed. Align the slots on the back of the speaker with the exposed screws and fully engage them in the slots. The speaker can be mounted horizontally or vertically in either direction.
ASSEMBLY AND ADJUSTMENTS
WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect battery pack before cleaning, making any adjustments or removing/installing attachments or accessories.
Inserting and Removing the Battery Pack from the Bluetooth® Speaker (Fig. B)
NOTE: Make sure your battery pack 11 is fully charged.
To Install the Battery Pack into the Speaker
- Align the battery pack 11 with the rails inside the speaker's battery port 13.
- Slide it in until the battery pack is firmly seated and ensure that you hear the lock snap into place. Be sure that it does not disengage.
To Remove the Battery Pack from the Speaker
- Press the battery release button 12 and firmly pull the battery pack out of the battery port.
- Insert battery pack into the charger as described in the charger section of this manual.
Fuel Gauge Battery Packs (Fig. B)
Some DEWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the battery pack.
To actuate the fuel gauge, press and hold the fuel gauge button. A combination of the three green LED lights will illuminate designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to be recharged.
NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.
OPERATION
Instructions for Use
WARNING: Always observe the safety instructions and applicable regulations.
WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect battery pack
before cleaning, making any adjustments or removing/installing attachments or accessories.
Button Functions (Fig. A)
Power Button
Press the power button 1 to turn the speaker either on or off.
Play/Pause Button
Press the play/pause button 5 to begin playing a selection from the audio device. Press the play/pause button again to pause play.
Volume Adjustment Buttons
The volume buttons 2 can be used to increase or decrease volume on the speaker.
Track Change Buttons
The right and left track change buttons 3 can be used to skip or go to previous tracks on the audio device.
NOTE: The track change buttons will function only when paired via Bluetooth ^® .
Playing Audio
Audio can be played through the speaker via a wireless Bluetooth® connection to a compatible Bluetooth® audio device.
Pairing Speaker with a Bluetooth® Audio Device (Fig. A)
- Place the speaker and the Bluetooth® audio device within 1 m (3 feet) of each other.
- Turn on the speaker by pressing the power button 1.
- Be sure the Bluetooth® audio device has Bluetooth® turned on. (Please consult your device's instruction manual for specific pairing instructions.)
- Press the Bluetooth® button 6 on the speaker. This will cause the Bluetooth® status indicator 4 to blink slowly. During this time, the speaker is trying to find a previously paired device. If found, the Bluetooth® status indicator will stay lit without any blinking.
- If another device is to be paired, the Bluetooth® status indicator will blink rapidly. While the speaker is displaying the fast blink, it is in pairing mode with a new device.
- Confirm pairing on your device.
NOTE: If pairing is not confirmed within 5 minutes, the status indicator will stop flashing and will return to a half second interval blink pattern.
- Once pairing is successful, the Bluetooth® status indicator will turn solid. The speaker will now play audio from your device.
Bluetooth® Status Indicator
| Blink Patterns Status/Mode | |
| Steady blinking (half second interval) | Speaker is unpaired or in connecting mode. |
| Rapid Blinking Speaker | is in pairing mode and discoverable by your device. |
| Solid light Speaker is connected with a device. | |
| No light Speaker has timed out and/or is off. | |
Connecting a Previously Paired Bluetooth® Audio Device If a Bluetooth® device has been previously paired to the speaker, it should automatically reconnect when the speaker is powered on. After 4 seconds, the speaker will go into connecting mode. This is indicated by the Bluetooth® status indicator 4 blinking steadily. Once the previously paired Bluetooth® device is recognized and connected, the Bluetooth® status indicator will stop blinking and turn solid. If connection does not occur and you are unable to stream audio, please follow the instructions for Pairing Speaker with a Bluetooth® Audio Device.
NOTE: The Bluetooth® audio device must have Bluetooth® turned on to automatically pair.
Timeout Functionality (Fig. A)
To conserve battery life, the speaker is designed to power off automatically after a half hour of inactivity. This inactivity could be due to the device being unpaired for a half hour or in the case of the Bluetooth® connection being broken for the same period of time. If the speaker powers off due to inactivity of any kind, refer to Connecting a Previously Paired Bluetooth® Audio Device.
NOTE: Optimum Bluetooth® streaming range is roughly 9 m (30 feet) (line of sight) to the speaker, but distances up to 30 m (100 feet) are possible. Physical obstacles, other wireless devices or electromagnetic devices may affect the connection quality. If Bluetooth® connection is lost due to exceeding time of separation, exceeding the optimum distance, obstacles or otherwise, reconnecting your device with the speaker may be necessary.
Incoming Call
If your phone receives a call while it is connected to the speaker, it will pause the Bluetooth® connection.
MAINTENANCE
This DEWALT unit has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper care and regular cleaning.
WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect battery pack before cleaning, making any adjustments or removing/installing attachments or accessories.
The charger and battery pack are not serviceable.
Cleaning
WARNING: Blow dirt and dust out of the main housing is dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.
WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the unit. These chemicals may weaken the materials used in these parts. Use a dry cloth. Never let any liquid get inside the unit; never immerse any part of the unit into a liquid.
Optional Accessories
WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.
Consult your dealer for further information on the appropriate accessories.
Protecting the Environment
Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste.
Products and batteries contain materials that can
be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com.
Rechargeable Battery Pack
Long life battery packs must be recharged when they fail to produce sufficient power on jobs which were easily done before. At the end of its technical life, discard it with due care for our environment:
- Run the battery pack down completely, then remove it from the unit.
- Li-Ion cells are recyclable. Take them to your dealer or a local recycling station. The collected battery packs will be recycled or disposed of properly.
*The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth®, SIG, Inc. and any use of such marks by DEWALT is under license.
ALTAVOZ WORKSITE BLUETOOTH®\* 10,8 V/14,4 V/18 V DCR011
¡Enhorabuena!
Radio Equipment Directive
Enceinte de chantier Bluetooth® 10,8V/14,4V/18V DCR011
(Isolation double) – outils
5 Bouton Lecture/Pause
6 Bouton Bluetooth®
7 Prise USB
Bouton Lecture/Pause
DCB142, DCB143, DCB144, DCB145, DCB181, DCB182,
DCB183, DCB183B, DCB184, DCB184B, DCB185, DCB187,
6 Bluetooth®-painike
7 USB-portti
