Brand	DeWalt
Model	DCC018NXJ
Product type	Cordless compressor/inflator
Power source	18 V Li-Ion battery, 12 V DC vehicle socket, 220-240 V AC mains adapter (optional)
Nominal voltage (battery)	18 V DC
External power voltage	12-13.8 V DC
Maximum pressure	11 bar (1100 kPa)
Max power consumption (external)	150 W
Operating temperature range	-18 °C to +40 °C
Weight (without battery)	2.3 kg
Compatible battery type	DCB181, DCB182, DCB183, DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB546, DCB547
Compatible battery capacity	From 1.3 Ah to 9.0 Ah
Inflation modes	High pressure, large volume, deflation
Additional features	Built-in pressure gauge, automatic shut-off at preset pressure, LED lighting
Display	LCD screen (pressure, mode, errors)
Supplied hoses	High pressure hose, large volume hose
Included accessories	Large volume conical nozzle, high pressure nozzle, inflation needle, Presta valve adapter
Intended use	Inflating tires, mattresses, floats, balls, etc. Professional use.
Maintenance	Clean with a damp cloth and mild soap. Do not immerse. Check filters.
Safety	Protection against overheating, overload, deep discharge. Automatic shut-off in case of error.
Protection rating	IPX0 (not waterproof, avoid water)
Package contents	1 inflator, 1 Li-Ion battery (depending on model), 1 charger (depending on model), 1 instruction manual
Warranty	Standard manufacturer warranty (see manual)

Frequently Asked Questions - DCC018NXJ DEWALT

Which batteries are compatible with the DCC018NXJ compressor?

The compressor works with the following DeWalt 18 V Li-Ion batteries: DCB181, DCB182, DCB183, DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB546 and DCB547. Refer to the technical data sheet for charging times.

How to set the desired pressure?

In high pressure mode, turn the pressure setting knob (6) to set the pressure. The inflator automatically stops when this pressure is reached.

Can I use the compressor with a cigarette lighter socket?

Yes, plug the supplied 12 V DC cable into your vehicle's cigarette lighter socket. Ensure the socket supports at least 12 A and the cable is fully unwound.

What does the error code 'LoP' mean?

The 'LoP' code indicates a supply voltage that is too low or too high. For vehicle power, start the engine. For external power, replace it.

How to maintain the compressor?

Clean the exterior with a damp cloth and mild soap. Do not use solvents or immerse the device. Regularly check the ventilation openings and remove dust with compressed air.

Can the compressor deflate objects?

Yes, in large volume mode, attach the hose to the inlet/deflation port (14) and press the start button. Deflation does not have automatic stop.

What is the maximum output pressure?

The maximum pressure is 11 bar (1100 kPa). Never exceed the pressure recommended by the manufacturer of the inflated object.

How to change the pressure measurement unit?

Hold down the inflation mode selector (3) and the lighting switch (4) while turning the pressure setting knob (6). The unit changes between bar, psi, kPa, etc.

The LED lighting does not turn on, what to do?

Make sure the device is on (power switch (2) set to ON). The lighting is activated via the switch (4) on the front. If still off, check the battery or power supply.

What to do if the high pressure hose is damaged?

Replacement of the high pressure hose must be carried out by an authorized DeWalt service center. Do not use the device with a damaged hose.

USER MANUAL DCC018NXJ DEWALT

Transport of FLEXVOLT™ batteri

DFWALT FLEXVOLT™ batteri har to Funktioner: Anvendelse og transport.

WARMUNG:BERSTGEFAHR.

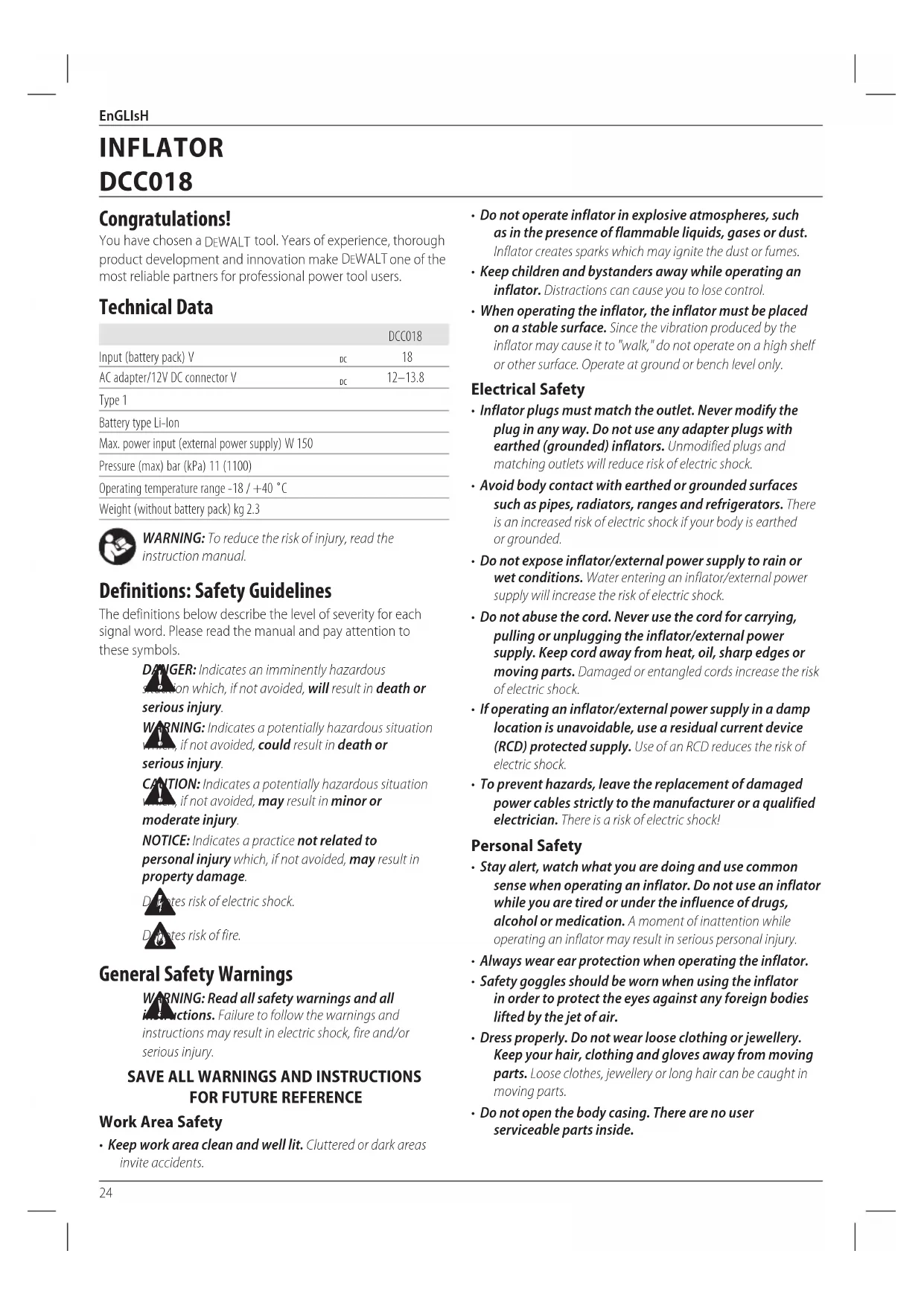

You have chosen a DEWALT tool. Years of experience, thorough product development and innovation make DEWALT one of the most reliable partners for professional power tool users.

Technical Data

		DCC018
Input (battery pack) V	DC	18
AC adapter/12V DC connector V	DC	12-13.8
Type 1
Battery type Li-lon
Max. power input (external power supply) W 150
Pressure (max) bar (kPa) 11 (1100)
Operating temperature range -18 / +40 °C
Weight (without battery pack) kg 2.3

WARNING: To reduce the risk of injury, read the instruction manual.

Definitions: Safety Guidelines

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Diodes risk of electric shock.

Notes risk of fire.

General SafetyWarnings

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNING AND INSTRUCTIONS FOR FUTURE REFERENCE

Work Area Safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.

• Do not operate inflator in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inflator creates sparks which may ignite the dust or fumes.

• Keep children and bystanders away while operating an inflator. Distractions can cause you to lose control.
• When operating the inflator, the inflator must be placed on a stable surface. Since the vibration produced by the inflator may cause it to "walk," do not operate on a high shelf or other surface. Operate at ground or bench level only.

Electrical Safety

• Inflator plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) inflators. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose inflator/external power supply to rain or wet conditions. Water entering an inflator/external power supply will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the inflator/external power supply. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• If operating an inflator/external power supply in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
• To prevent hazards, leave the replacement of damaged power cables strictly to the manufacturer or a qualified electrician. There is a risk of electric shock!

Personal Safety

• Stay alert, watch what you are doing and use common sense when operating an inflator. Do not use an inflator while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating an inflator may result in serious personal injury.
• Always wear ear protection when operating the inflator.
• Safety goggles should be worn when using the inflator in order to protect the eyes against any foreign bodies lifted by the jet of air.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• Do not open the body casing. There are no user serviceable parts inside.

Batteries Chargers/Charge Times (Minutes)
Cat # V DC Ah Weight (kg) DCB107 DCB113 DCB115 DCB118 DCB132 DCB119
DCB546 18/54 6.0/2.0 1.05 270 140 90 60 90 X
DCB547 18/54 9.0/3.0 1.25 420 220 140 85 140 X
DCB181 18 1.5 0.35	70	35	22	22	22	45
DCB182 18 4.0 0.61	185	100	60	60	60	120
DCB183/B 18 2.0 0.40	90	50	30	30	30	60
DCB184/B 18 5.0 0.62	240	120	75	75	75	150
DCB185 18 1.3 0.35	60	30	22	22	22	X
DCB187 18 3.0 0.48	140	70	45	45	45	90

Use and Care

• Do not use the inflator if the switch does not turn it on and off. An inflator that cannot be controlled with the switch is dangerous and must be repaired.
• Directly after inflating tyres, check the pressure with a suitable pressure gauge, for example at your filling station.
• Always use the handle when moving the inflator.
• Store idle inflator out of the reach of children and do not allow persons unfamiliar with the inflator or these instructions to operate the inflator. Inflators are dangerous in the hands of untrained users.
• Maintain inflators. Check for misalignment or bending of pressurized parts, breakage of parts and any other condition that may affect the operation. If damaged, have the inflator repaired before use. Many accidents are caused by poorly maintained tools.
• For your own safety you must only use the accessories and additional units listed in the operating instructions or recommended or specified by the manufacturer. The use of accessories other than those recommended in the operating instructions or catalog may place your personal safety at risk.

Battery Use and Care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use inflator only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

• Have your inflator serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the inflator is maintained.

ADDITIONAL SAFETY WARNINGS FOR YOUR INFLATOR

WARNING: RISK TO BREATHING.

compressed air from your inflator is not safe for breathing. Never inhale air from your inflator or from a breathing device connected to the inflator.

WARNING: RISK OF BURSTING.

much air pressure causes a hazardous risk of bursting. Check the manufacturer's maximum pressure rating for objects being inflated.

• Do not leave inflator running unattended. It could burst tyres or other items.
• Use a calibrated air gauge to check the tyres pressure before each use and while inflating tyres; see the tyre sidewall for the correct tyre pressure.

WARNING: RISK OF UNSAFE OPERATION.

not modify or attempt to repair. Never drill into, yield, or make any modifications to the inflator or its attachments.

• Operate only with the accessories included or air handling parts acceptable for not less than 11 bar. The use of any accessory not recommended for use with this tool could be hazardous.
• Never "horseplay". High pressure air is dangerous. Don't direct air-flow at yourself or others.
• Never direct the jet of air towards persons, animals, or your body.
• Never direct the jet of air towards yourself in any manner.

WARNING: RISK OF FIRE. Inflator can become hot during low inflator to cool 30 minutes before storing away.

WARNING: When using a FLEXVOLT™ battery, ensure that the capacitor is operating on a flat surface with the screen facing upward.

LIQUID CRYSTAL DISPLAY FLUID (FIRST AID MEASURES)

If liquid crystal comes in contact with your skin:

• Wash area off completely with plenty of water. Remove contaminated clothing.
  If liquid crystal gets into your eye:
• Flush the affected eye with clean water and then seek medical attention.

If liquid crystal is swallowed:
- Flush your mouth thoroughly with water. Drink large quantities of water and induce vomiting. Then seek medical attention.

Residual Risks

In spite of the application of the relevant safety regulations and the implementation of safety devices, certain residual risks cannot be avoided. These are:

Impairment of hearing.
- Risk of personal injury due to flying particles.
- Risk of burns due to accessories becoming hot during operation.

Electrical Safety

The electric motor has been designed for one voltage only. Always check that the battery pack voltage corresponds to the voltage on the rating plate. Also make sure that the voltage of your charger corresponds to that of your mains.

Your DEWALT charger is double insulated in accordance with EN60335; therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by a specially prepared cord available through the DEWALT service organisation.

Mains Plug Replacement (U.K. & Ireland Only)

If a new mains plug needs to be fitted:

• Safely dispose of the old plug.
• Connect the brown lead to the live terminal in the plug.
• Connect the blue lead to the neutral terminal.

WARNING: No connection is to be made to the terminal.

Follow the fitting instructions supplied with good quality plugs. Recommended fuse: 3 A.

Using an Extension Cable

An extension cord should not be used unless absolutely necessary. Use an approved extension cable suitable for the power input of your charger (see Technical Data). The minimum conductor size is 1mm^2 ; the maximum length is 30m .

When using a cable reel, always unwind the cable completely.

SAVE THESE INSTRUCTIONS

Chargers

DEWALT chargers require no adjustment and are designed to be as easy as possible to operate.

Important Safety Instructions for All Battery Chargers

SAVE THESE INSTRUCTIONS: This manual contains important safety and operating instructions for compatible battery chargers (refer to Technical Data).

• Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using battery pack.

WARNING: Shock hazard. Do not allow any liquid to get charger. Electric shock may result.

WARNING: We recommend the use of a residual current device with a residual current rating of 30mA or less.

CAUTION: Burn hazard. To reduce the risk of injury, use only DEWALT rechargeable batteries. Other types of batteries may burst causing personal injury and damage.

CAUTION: Children should be supervised to ensure that they do not play with the appliance.

NOTICE: Under certain conditions, with the charger plugged into the power supply, the exposed charging contacts inside the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean

DO NOT attempt to charge the battery pack with any chargers other than the ones in this manual. The charger and battery pack are specifically designed to work together.
- These chargers are not intended for any uses other than charging DEWALT rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.
- Do not expose charger to rain or snow.
- Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.
- Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
- Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock, or electrocution.
- Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.
- Do not operate charger with damaged cord or plug—have them replaced immediately.

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorised service centre.
• Do not disassemble charger; take it to an authorised service centre when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
  In case of damaged power supply cord the supply cord must be replaced immediately by the manufacturer, its service agent or similar qualified person to prevent any hazard.
• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.
  NEVER attempt to connect two chargers together.
  The charger is designed to operate on standard 230V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicular charger.

Charging a Battery (Fig. A)

1. Plug the charger into an appropriate outlet before inserting battery pack.
2. Insert the battery pack 12 into the charger, making sure the battery pack is fully seated in the charger. The red (charging) light will blink repeatedly indicating that the charging process has started.
3. The completion of charge will be indicated by the red light remaining ON continuously. The battery pack is fully charged and may be used at this time or left in the charger. To remove the battery pack from the charger, push the battery release button 11 on the battery pack.

NOTE: To ensure maximum performance and life of lithium-ion battery packs, charge the battery pack fully before first use.

Charger Operation

Refer to the indicators below for the charge status of the battery pack.

Charge Indicators
Charging	- - - - -
Fully Charged	- - - - -
Hot/Cold Pack Delay*	- - - - -

• The red light will continue to blink, but a yellow indicator light will be illuminated during this operation. Once the battery pack has reached an appropriate temperature, the yellow light will turn off and the charger will resume the charging procedure. The compatible charger(s) will not charge a faulty battery pack. The charger will indicate faulty battery by refusing to light.

NOTE: This could also mean a problem with a charger. If the charger indicates a problem, take the charger and battery pack to be tested at an authorised service centre.

Hot/Cold Pack Delay

When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery pack life.

A cold battery pack will charge at a slower rate than a warm battery pack. The battery pack will charge at that slower rate throughout the entire charging cycle and will not return to maximum charge rate even if the battery pack warms.

The DCB118 charger is equipped with an internal fan designed to cool the battery pack. The fan will turn on automatically when the battery pack needs to be cooled. Never operate the charger if the fan does not operate properly or if ventilation slots are blocked. Do not permit foreign objects to enter the interior of the charger.

Electronic Protection System

XR Li-ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge.

The tool will automatically turn off if the Electronic Protection System engages. If this occurs, place the lithium-ion battery pack on the charger until it is fully charged.

Wall Mounting

These chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 25.4mm long with a screw head diameter of 7 - 9mm , screwed into wood to an optimal depth leaving approximately 5.5mm of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in the slots.

Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger in the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Battery Packs

Important Safety Instructions for All Battery Packs

When ordering replacement battery packs, be sure to include catalogue number and voltage.

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging procedures outlined.

READ ALL INSTRUCTIONS

ENGLISH

• Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes.
• Never force battery pack into charger. Do not modify battery pack in any way to fit into a non-compatible charger as battery pack may rupture causing serious personal injury.
• Charge the battery packs only in DFWALT chargers.
  DO NOT splash or immerse in water or other liquids.
• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 40^ (104°F) (such as outside sheds or metal buildings in summer).
• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium-ion battery packs are burned.
• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithium salts.
• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

WARNING: Burn hazard. Battery liquid may be flammable used to spark or flame.

WARNING: Never attempt to open the battery pack for any reason. If battery pack case is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Electric shock or electrocution may result. Damaged battery packs should be returned to service centre for recycling.

WARNING: Fire hazard. Do not store or carry the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with large battery packs will stand upright on the battery pack but may be easily knocked over.

Transportation

WARNING: Fire hazard. Transporting batteries can possibly cause fire if the battery terminals inadvertently come in contact with conductive materials. When transporting batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit.

DEWALT batteries comply with all applicable shipping regulations as prescribed by industry and legal standards which include UN Recommendations on the Transport of Dangerous Goods; International Air Transport Association (IATA) Dangerous Goods Regulations, International Maritime Dangerous Goods (IMDG) Regulations, and the European Agreement Concerning The International Carriage of Dangerous Goods by Road (ADR). Lithium-ion cells and batteries have been tested to section 38.3 of the UN Recommendations on the Transport of Dangerous Goods Manual of Tests and Criteria.

In most instances, shipping a DEWALT battery pack will be excepted from being classified as a fully regulated Class 9 Hazardous Material. In general, only shipments containing a lithium-ion battery with an energy rating greater than 100 Watt Hours (Wh) will require being shipped as fully regulated Class 9. All lithium-ion batteries have the Watt Hour rating marked on the pack. Furthermore, due to regulation complexities, DEWALT does not recommend air shipping lithium-ion battery packs alone regardless of Watt Hour rating. Shipments of tools with batteries (combokits) can be air shipped as excepted if the Watt Hour rating of the battery pack is no greater than 100 Whr. Regardless of whether a shipment is considered excepted or fully regulated, it is the shipper's responsibility to consult the latest regulations for packaging, labeling/marking and documentation requirements.

The information provided in this section of the manual is provided in good faith and believed to be accurate at the time the document was created. However, no warranty, expressed or implied, is given. It is the buyer's responsibility to ensure that its activities comply with the applicable regulations.

Transporting the FLEXVOLT™ Battery

The DEWALT FLEXVOLT™ battery has two modes: Use and Transport.

Use Mode: When the FLEXVOLT™ battery stands alone or is in a DEWALT 18V product, it will operate as an 18V battery. When the FLEXVOLT™ battery is in a 54V or a 108V (two 54V batteries) product, it will operate as a 54V battery.

Transport Mode: When the cap is attached to the FLEXVOLT^TM battery, the battery is in Transport mode. Keep the cap for shipping.

When in Transport mode, strings of cells are electrically disconnected within the pack resulting in 3 batteries with a

lower Watt hour (Wh) rating as compared to 1 battery with a higher Watt hour rating. This increased quantity of 3 batteries with the lower Watt hour rating can exempt the pack from certain shipping regulations that are imposed upon the higher Watt hour batteries.

For example, the Transport Wh rating might indicate 3 × 36 Wh, meaning 3 batteries of 36 Wh each. The Use Wh rating might indicate 108 Wh (1 battery

Example of Use and Transport Label Marking

Use:108 Wh Transport:3x36 Wh

Storage Recommendations

1. The best storage place is one that is cool and dry away from direct sunlight and excess heat or cold. For optimum battery performance and life, store battery packs at room temperature when not in use.
2. For long storage, it is recommended to store a fully charged battery pack in a cool, dry place out of the charger for optimal results.

NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use.

Labels on Charger and Battery Pack

In addition to the pictographs used in this manual, the labels on the charger and the battery pack may show the following pictographs:

Read instruction manual before use.

See Technical Data for charging time.

Do not probe with conductive objects.

Do not charge damaged battery packs.

Do not expose to water.

Have defective cords replaced immediately.

Charge only between 4^ and 40^

Only for indoor use.

Discard the battery pack with due care for the environment.

Charge DEWALT battery packs only with designated DEWALT chargers. Charging battery packs other than the designated DEWALT batteries with a DEWALT charger may make them burst or lead to other dangerous situations.

Do not incinerate the battery pack.

USE (without transport cap). Example: Wh rating indicates 108 Wh (1 battery with 108 Wh).

TRANSPORT (with built-in transport cap). Example: Wh rating indicates 3 × 36 Wh (3 batteries of 36 Wh).

Battery Type

The DCC018 operates on an 18 volt battery pack.

These battery packs may be used: DCB181, DCB182, DCB183, DCB183B, DCB184, DCB184B, DCB185, DCB187, DCB546, DCB547. Refer to Technical Data for more information.

Package Contents

The package contains:

1 DCC018 Inflator
1 Li-ion battery pack (C1, D1, L1, M1, P1, S1, T1, X1 models)
2 Li-ion battery packs (C2, D2, L2, M2, P2, S2, T2, X2 models)
3 Li-lon battery packs (C3, D3, L3, M3, P3, S3, T3, X3 models)
1 Instruction manual

NOTE: Battery packs, chargers and kitboxes are not included with N models. Battery packs and chargers are not included with NT models. B models include Bluetooth® battery packs.

nOTE: The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth®, SIG, Inc. and any use of such marks by DLWALT is under license. Other trademarks and trade names are those of their respective owners.

• Check for damage to the tool, parts or accessories which may have occurred during transport.
  Take the time to thoroughly read and understand this manual prior to operation.

Markings on Tool

The following pictograms are shown on the tool:

Read instruction manual before use.

Visible radiation. Do not stare into light.

Do not expose to rain or high humidity.

Do not leave unattended.

Date Code Position (Fig. A)

The date code 21, which also includes the year of manufacture, is printed into the housing.

Example:

2018 XX XX

Year of Manufacture

Description (Fig. A)

WARNING: Never modify the inflator/external power supply or any part of it. Damage or personal injury could result.

1 LED light
2 Power switch
3 Inflation mode switch
4 LED light switch
5 High-volume hose
6 Pressure adjustment knob

7 Inflation start/pause button
8 Pressure setting/model display
9 Pressure gauge display
10 High-pressure hose
11 Battery release button

ENGLISH

12 Battery pack

17 Presta valve adapter

13 High-volume tapered nozzle

18 Outlet/Inflation port

14 Inlet/Deflation port

19 12V DC vehicle connector and cord

15 High-pressure tapered nozzle

20 External power connector (12V DC or AC adapter)

16 Inflator needle

21 Date code

Intended Use

Your DEWALT inflator is designed to be used cordless, in most vehicles, from the standard 12V DC socket or by the DEWALT 13.8V external power supply to inflate car and bike tyres, balls, rafts, air mattresses and swimming pool floats, etc. This product is intended for professional use only.

DO NOT use under wet conditions or in the presence of flammable liquids or gases.

DO NOT operate the inflator in a paint spray area.

This inflator is a professional power tool. DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

• Young children and the infirm. This appliance is not intended for use by young children or infirm persons without supervision.
• This product is not intended for use by persons (including children) suffering from diminished physical, sensory or mental abilities; lack of experience, knowledge or skills unless they are supervised by a person responsible for their safety. Children should never be left alone with this product.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack or external power supply before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

WARNING: Use only DEWALT battery packs and chargers.

Inserting and Removing the Battery Pack from the Tool (Fig. A)

NOTE: Make sure your battery pack 12 is fully charged.

To install the battery pack 12 into the inflator, align the battery pack with the rails inside inflator's battery port and slide it into the port until the battery pack is firmly seated and ensure that it does not disengage.

To remove the battery pack from the inflator, press the release button 11 and firmly pull the battery pack out of the battery port. Insert it into the charger as described in the charger section of this manual.

Fuel Gauge Battery Packs (Fig. A)

Some DEWALT battery packs include a fuel gauge which consists of three green LED lights that indicate the level of charge remaining in the battery pack.

To actuate the fuel gauge, press and hold the fuel gauge button. A combination of the three green LED lights will illuminate

designating the level of charge left. When the level of charge in the battery is below the usable limit, the fuel gauge will not illuminate and the battery will need to be recharged.

NOTE: The fuel gauge is only an indication of the charge left on the battery pack. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.

Hose and Accessory Storage (Fig. A)

12V DC Vehicle Connector and Cord

• The 12V DC vehicle connector 19 can be stored inside the storage compartment on the side of the inflator.

High-Pressure Hose

The high-pressure hose 10 is located on a storage channel on the side of the unit. Wrap the high-pressure hose inside the channel and secure in the two clips.

High-Volume Hose

• The high-volume hose 5 is located on a storage channel on the side of the unit. Wrap the high-volume hose inside the channel and secure in the two clips.

Accessories

• The accessories 15, 16 and 17 are stored in snap clips located on the side of the inflator.

Fitting the Accessories (Fig. A)

The high-volume hose 5 comes fitted with a standard tapered nozzle 13.

The high-pressure hose 10 can be fitted with the following attachments which can be found on the side storage compartment panel:

an inflator needle valve 16
a high-pressure tapered nozzle 15, and
a Presta valve adapter 17.

NOTE: Make sure each of these adapters are firmly locked in place before turning the on the inflator.

Fitting the High-Volume Hose (Fig. B)

• Remove the high-volume hose 5 from its storage location.
  Line up the notches of the hose with the nubs 22 of the high volume pump outlet/inflation port 18. Then, slide the hose on and twist counter-clockwise to secure.
• To remove, twist the hose clockwise and slide hose off. Many inflatable have an internal flap that prevents air loss during inflation, especially air mattresses. Unless this flap is displaced by the nozzle the inflatable will not inflate. Push the nozzle firmly into the valve to make sure that you push this flap out of the way.

LED Worklight (Fig. A)

An LED worklight 1 is located on the handle of the inflator. To turn the worklight on, first power the unit by pressing the power switch 2, then press the light switch 4 on the front of the inflator. The inflator will turn off after two minutes of idle time, including the light. To turn the worklight off, press the light switch 4 again.

NOTE: The light will not time out until the entire unit times out.

OPERATION

Instructions for Use

WARNING: Always observe the safety instructions and applicable regulations.

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack or external power supply before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Switching On (Fig. A)

WARNING: Risk of Bursting. Do not leave unit running unended. Over inflation of tyres and other items could result in serious injury and property damage.

NOTE: When power is supplied to the inflator by 12V vehicle connector, 18V battery or an external power supply (optional accessory), the LCD display will remain on for approximately 2 minutes before the display shuts off/goes into sleep mode. This occurs when the unit is not operating. To wake up the system, press the power switch 2. At this time the LCD will turn on and the inflator is ready for use.

Before switching your inflator on, decide which power source you will be using; a 18V battery pack 12, the12V DC vehicle connector 19, or an external power supply (optional accessory), and connect them using the following instructions. You can then press the AC/DC power switch 2 located on the front of the unit.

Powering with an 18V Battery Pack

To use the 18V battery pack, refer to Inserting and Removing the Battery Pack.

Powering with the 12V DC Vehicle Connector

To use the 12V DC vehicle connector 19, connect it to your vehicle's 12V DC accessory socket. Always fully extend the 12V DC cord before each use. Your vehicle's accessory socket must be rated for at least 12A.

Powering with an External Power Supply (Fig. C)

WARNING: Use only the external power supply recommended for this product. Use of any other

external power supply could damage the inflator or power supply.

To use an external power supply, attach the DC output cord from the external power supply to the external power supply connector 20 on the side of the unit, then plug the 220V-240V AC cord end into the wall outlet or an appropriate-sized extension cord that is plugged into a wall outlet. Always fully extend the cord before each use.

To Inflate/Deflate Using High-Volume

(Fig. A, B)

The high-volume hose is meant to be used for objects that hold large amounts of air, such as air mattresses, rafts, and swimming pool floats.

NOTE: The high-volume mode DOES NOT have an auto shut-off feature.

To Inflate

1. Remove the high-volume hose 5 from it's storage channel. Attach the high-volume hose to the high-volume outlet/inflation port 18 as described in the Fitting the High-Volume Hose section.
2. Insert the high-volume hose 5, or its tapered nozzle 13 into the object being inflated.
3. Press the power switch 2.
4. Then press the pressure mode switch. You will see the inflator/deflator symbol in the pressure setting/mode display 8
5. Then press the inflation start/pause button 7 to turn the pump on.
6. To turn off, press the inflation start/pause button 7 .

To Deflate

Follow steps 1 through 6 in section To Inflate above, but attach the high-volume hose to the inlet/deflation port 14, Fig. A.

To Inflate Using High-Pressure (Fig. A, B)

WARNING: Risk of Bursting. Excessive air pressure may cause a hazardous risk of bursting or personal injury.

Check the manufacturer's maximum pressure rating for items being inflated.

WARNING: Replacing the high-pressure hose must be done by a DEWALT service organisation.

The high-pressure hose 10 is meant to be used for objects that need more air pressure, such as tyres and basketballs.

1. Remove the high-pressure hose 10 from its storage channel.
2. Attach a nozzle as described in the Fitting the Accessories section. Attach the chuck to the tyre stem to inflate a tyre, or attach an accessory to inflate a ball or other inflatable.
3. Attach or insert the nozzle into the object being inflated.
4. Press the power switch 2. The inflator will default to High-Pressure inflation mode.

NOTE: The pressure gauge display 9 will only show inflation pressures when the inflator is in high-pressure mode.

NOTE: To switch between units, press and hold the inflation mode switch 3 and the LED light switch 4 while rotating the pressure adjustment knob 6.

1. Rotate the pressure adjustment knob 6 to set the desired pressure.
2. Press the inflation start/pause button 7 to begin inflation.
3. To stop the inflator at any time, press the inflation start/pause button 7.
4. When the item to be inflated has reached the preset value, the unit will automatically turn off.

NOTE: You may notice the actual pressure reading may drop after a couple of seconds. This is normal.

NOTE: If the power switch 2 is turned off, all settings will be lost and will need to be reentered. This is a safety feature to prevent the risk of items OVER INFLATING.

EnGLIsH

Using the Inflator as a Pressure Gauge

CAUTION: Verify the pressure with a suitable pressure gauge; for example, at your filling station.

1. Connect the high-volume hose 10 to the item to be checked.
2. Press the power switch 2.
3. The pressure gauge display 9 will display the item's pressure.

MAINTENANCE

Your DEWALT inflator has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect battery pack or external power supply before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Repairs

The charger, battery pack and external power supply are not serviceable. If the inflator will not turn on, check the battery, all connections, and the fuse in the 12V DC vehicle connector 19. The inflator display will show an error code under certain conditions. Refer to the Troubleshooting Error Codes chart.

Storage Recommendations

Store the inflator indoors. The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold.

Cleaning

WARNING: Blow dirt and dust out of the main housing. Dry air as often as dirt is seen collecting in and around the air vents. Wear approved eye protection and approved dust mask when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Optional Accessories

WARNING: Since accessories, other than those offered by DEWALT, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only DEWALT recommended accessories should be used with this product.

Consult your dealer for further information on the appropriate accessories.

Protecting the Environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste. Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com.

Rechargeable Battery Pack

This long life battery pack must be recharged when it fails to produce sufficient power on jobs which were easily done before. At the end of its technical life, discard it with due care for our environment:

• Run the battery pack down completely, then remove it from the tool.
• Li-ion cells are recyclable. Take them to your dealer or a local recycling station. The collected battery packs will be recycled or disposed of properly.

TROUBLESHOOTING ERROR CODES

Error Code Meaning Solution
LoP	Vehicle or external power supply voltage too low or too high	Vehicle power - Turn vehicle engine on to increase voltage External power supply - Replace power supply
bLo 18 V battery discharged Charge or replace battery
bAt	18 V battery temperature too low or too high	Allow battery to rest and return to room temperature
Er S Pressure sensor fault Contact a D		EWALT authorised service centre.
OL	Pump current too high	Check for restrictions in hose and connections. If error persists, contact a DEWALT authorised service centre.
OP Pressure exceeded 11 bar Check for restrictions in hose and connections

INFLADOR

DCC018

jEnhorabuena!

(Isolation double) - outfits

Batterie rechargeable

BEWAAR ALLE WAARSCHUWINGEN EN INSTRUCTIES ALS TOEKOMSTIG REFERENTIEMATERIALAAL

UJARI: SOLUMA TEHLIKESI.

Evdsicic enavw oTo epyaaleio

Enavw oTo epyaIeio eupaviovtaT a napakatw Eikovoypauata:

△aβαoTe to exyepidio odnyiw npiv ano tn xprion.

Aktioia Mny kntaTe aenuTheia oTO qWC.

MnveKETeTe Tn oukeun oBpOxH uynu npia.

MnV apnveTe T ouakeun Xwopic EITnpon.

Oeeh Kwdikou Hερομηνιας (Eik. A)

O Kwaikoc nepoynvic 21, o onioe nepiaaabeve enianc to etoc kataokeunc, elva twnuevoc enavw oto nepiBna.

Papadjiya:

2018 XX XX

Etoc kataokeunc

IIepiypaqni (Eik.A)

PNEIADONIOIHs: Note mny Tpononioa

oooumieot/ to Eeotepikto paoodtiko n

onioofo note mepoc tou. Oa unopoovc va npokvsei qmuia npaupatiouoc.

1 Auxvia LED
2 DIAKoPTnc TPOPOOoiac
3 Ⅲaikokntnc EniOyoNc, LEIToupyiac fouokwpatc
4 Diaokontc φwiou LED
5 Eukamntoc oWlhyac λeIToupyiac eYayau oykou
6 NepiotpOpiKo Koumipuθμionπeon
7 Kouπi evapεη/πaʊən φουσκωμatoc
8 Oboyn evoetncpuuonpioc/tpoou aeitoupyiac
9Obovn metpnon nion
10 Eukaiptoc oawlvac uynanc
11 Koupi aneavepomega natapia
