Product type	Extractor hood
Brand	Elica
Model	Era 60
Width	60 cm
Minimum distance to electric hob	50 cm
Minimum distance to gas or mixed hob	65 cm
Power supply	Mains voltage, see rating plate
Lighting type	LED
Max bulb power	3 W (E14)
Suction speeds	Multi-speed (depending on model)
Grease filter	Metallic, dishwasher safe
Charcoal filter (recirculation version)	Activated, replace every 4 months max
Discharge type	Exhaust (external) or filtering (recirculation)
Non-return valve	Optional (depending on installation conditions)
Grease filter maintenance frequency	At least once a month
Interior/exterior cleaning	Damp cloth with neutral liquid detergent
Child safety	Use by children over 8 under supervision
Safety standards	EN/IEC 60335-1, EN/IEC 60335-2-31, EN/IEC 62233
Performance	EN/IEC 61591, ISO 5167, EN/IEC 60704 (noise)
Electromagnetic compatibility	EN 55014-1, EN 55014-2, EN/IEC 61000-3-2/3
Recycling	Compliant with WEEE (Directive 2012/19/EC)

Frequently Asked Questions - Era 60 ELICA

What is the minimum distance between the hood and the hob?

For electric cookers, the minimum distance is 50 cm. For gas or mixed cookers, it is 65 cm. If the hob instructions specify a larger distance, follow that.

How to clean the grease filter of the Elica Era 60 hood?

The metallic anti-grease filter should be cleaned at least once a month. You can wash it by hand with a non-aggressive detergent or in the dishwasher at low temperature and a short cycle. Note: dishwasher washing may discolor the filter but performance is not affected.

When should the activated charcoal filter be replaced?

The activated charcoal filter (used in recirculation mode) cannot be cleaned or regenerated. It must be replaced at most every 4 months, or sooner if saturation is noticed depending on usage.

What type of bulb should be used to replace the hood lighting?

Use only a 3W LED bulb with E14 base. Refer to the enclosed manual for more details (ILCOS D reference position '1d').
Before touching the lamps, make sure they are cool and unplug the appliance.

Can the hood be used in filtering mode (recirculation)?

Yes, the Elica Era 60 hood is designed to work either in extraction mode (external discharge) or in filtering mode (internal recirculation) with a suitable activated charcoal filter.

Can I use the hood without the grid mounted?

No, it is imperative to never use the hood without the grid properly mounted. The grid protects against moving parts and ensures proper operation.

What to do if the LED lamps do not turn on?

Before contacting customer service, check that the bulbs are properly inserted in their housing. If the problem persists, replace the bulbs with identical models (LED 3W E14).
Remember to unplug the appliance before any manipulation.

How to reduce environmental impact when using the hood?

Turn on the hood at minimum speed during cooking and leave it running for a few minutes after. Only use boost speeds when necessary. Regularly replace the charcoal filter and clean the grease filter. Use the maximum recommended pipe diameter to optimize performance and reduce noise.

What are the safety precautions before maintenance?

Before any cleaning or maintenance operation, disconnect the power supply by removing the plug or turning off the main switch. Use work gloves to protect yourself.

Is the hood suitable for use in a professional kitchen?

This appliance is intended for domestic use and similar applications (staff kitchens, farms, hotels, bed and breakfasts). It is not designed for intensive professional use.

USER MANUAL Era 60 ELICA

EN Instruction on mounting and use

1

Technical line drawing of a mechanical device with a cart and a coiled component (no text or symbols)

3

OK!

4

Isometric line drawing of a rectangular container with internal compartments and a central slot (no text or symbols)

OK!

Technical line drawing of a mechanical assembly inside a transparent enclosure, showing internal components and alignment lines (no text or symbols)

Technical line drawing of a mechanical device with gears and flanges (no text or symbols)

6

Technical line drawing of a device interior showing internal components and a magnified view (no text or symbols)

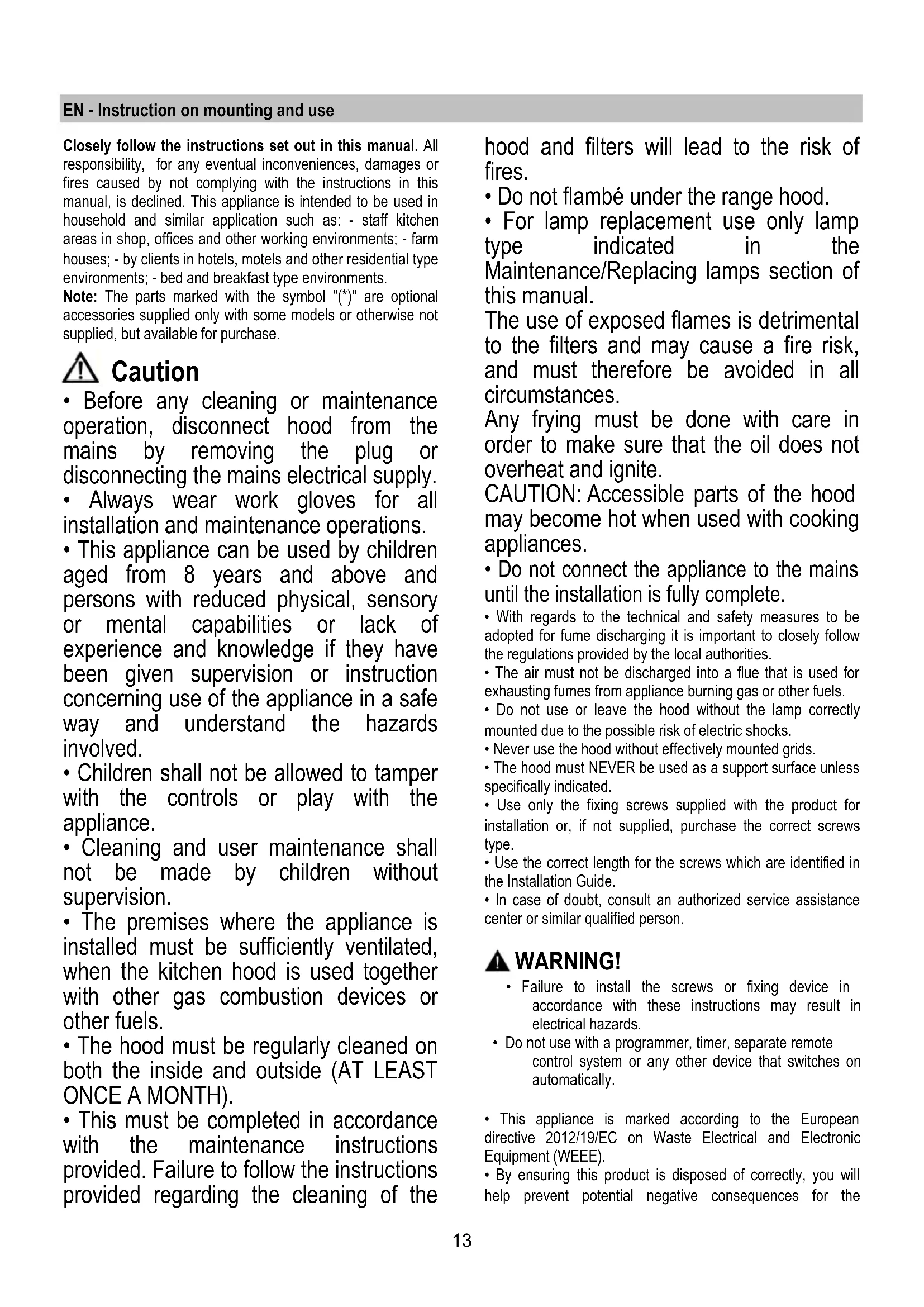

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Caution

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

- The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

- This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the

hood and filters will lead to the risk of fires.

• Do not flambé under the range hood.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

- Do not connect the appliance to the mains until the installation is fully complete.

- With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.

- The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.

- Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

- Never use the hood without effectively mounted grids.

- The hood must NEVER be used as a support surface unless specifically indicated.

- Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.

- Use the correct length for the screws which are identified in the Installation Guide.

- In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

- Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

- This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).

- By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

- The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

- For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

- Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.

• Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.

- EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

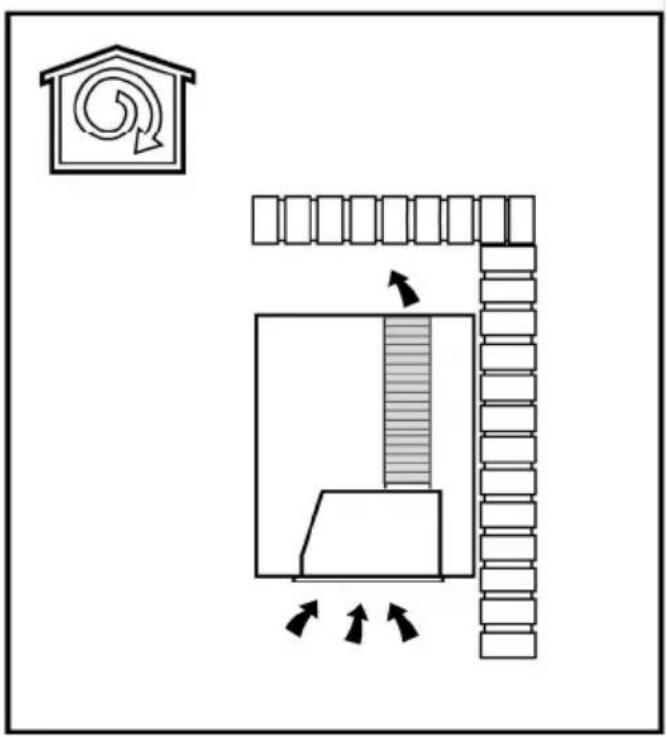

Use

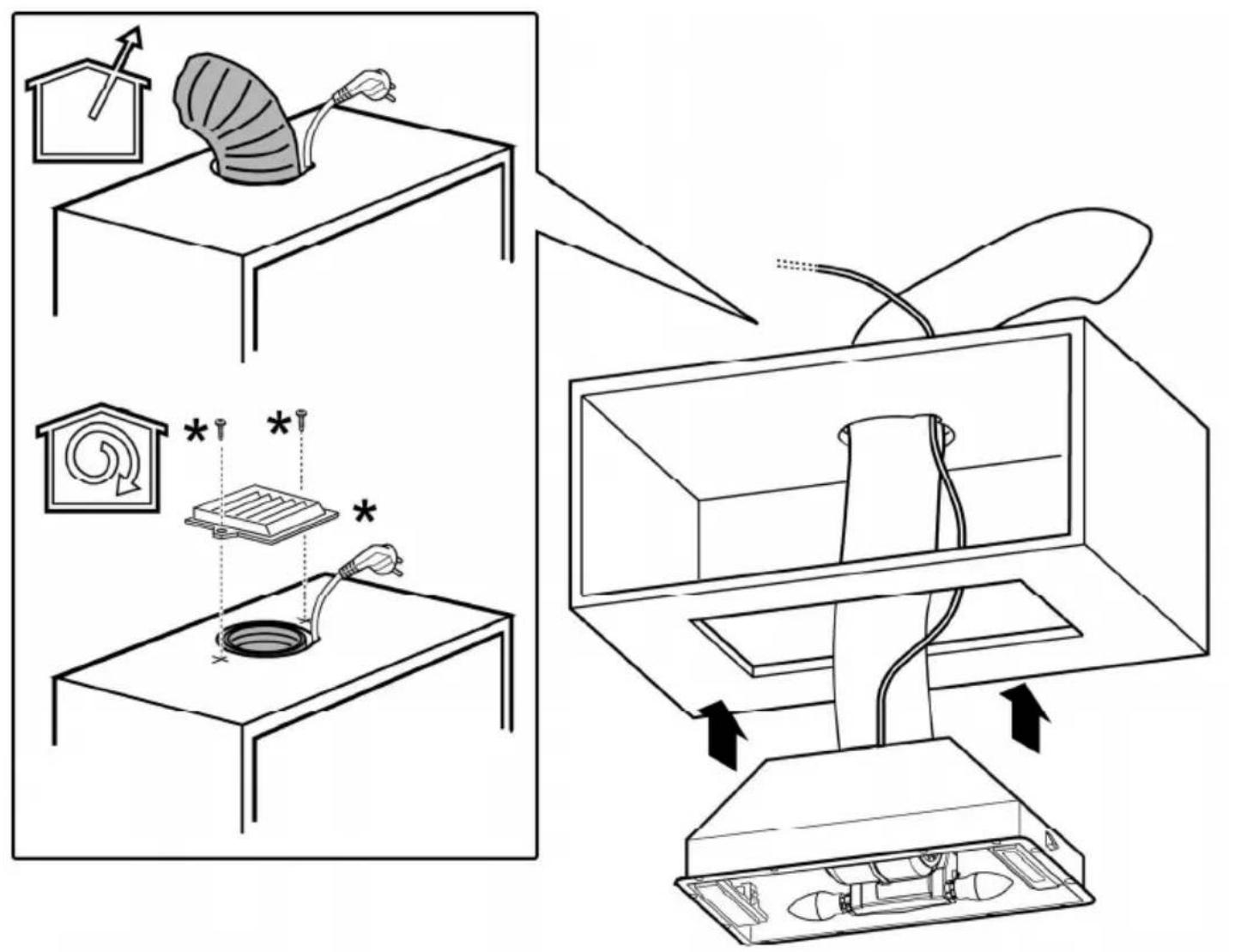

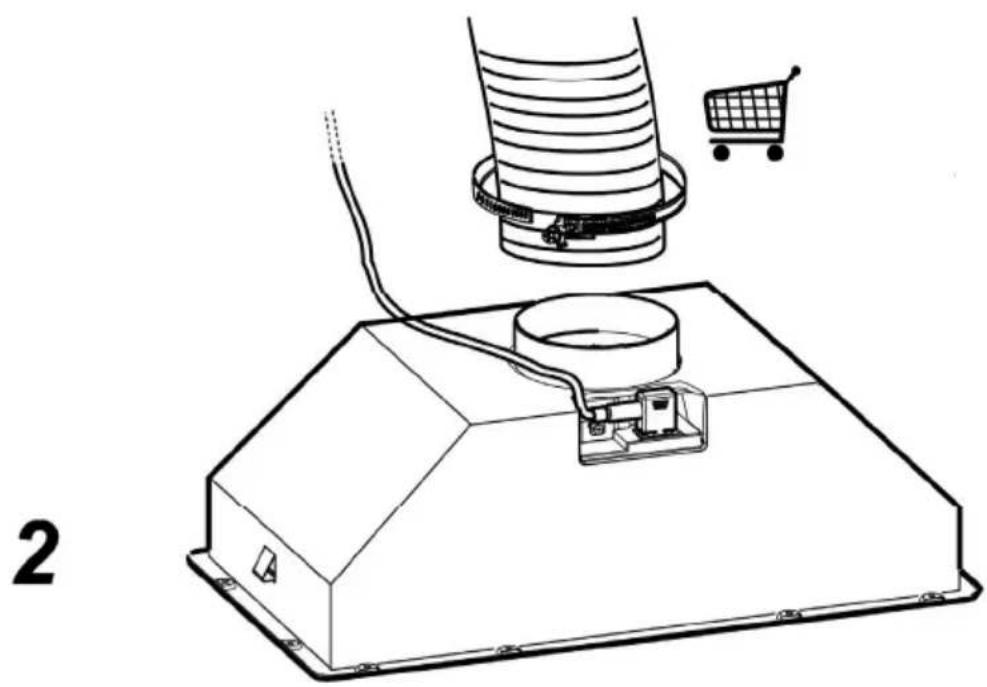

The hood is designed to be used either for exhausting

or filter version

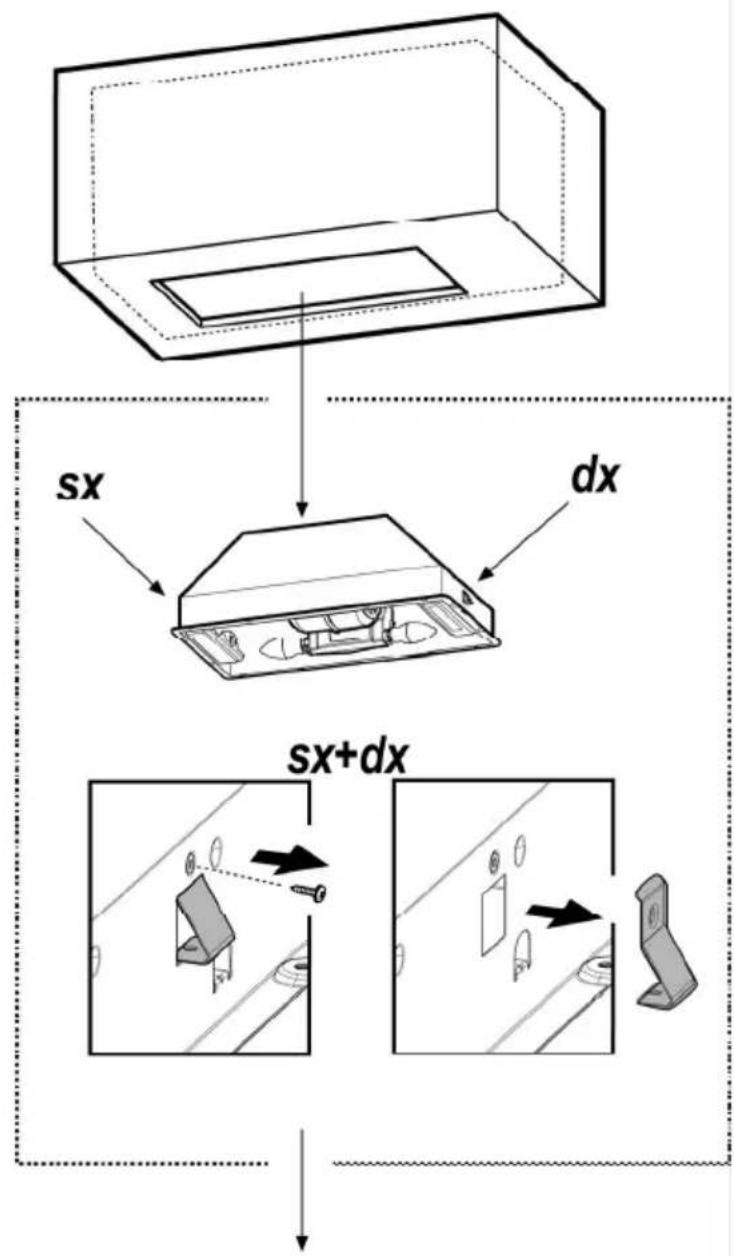

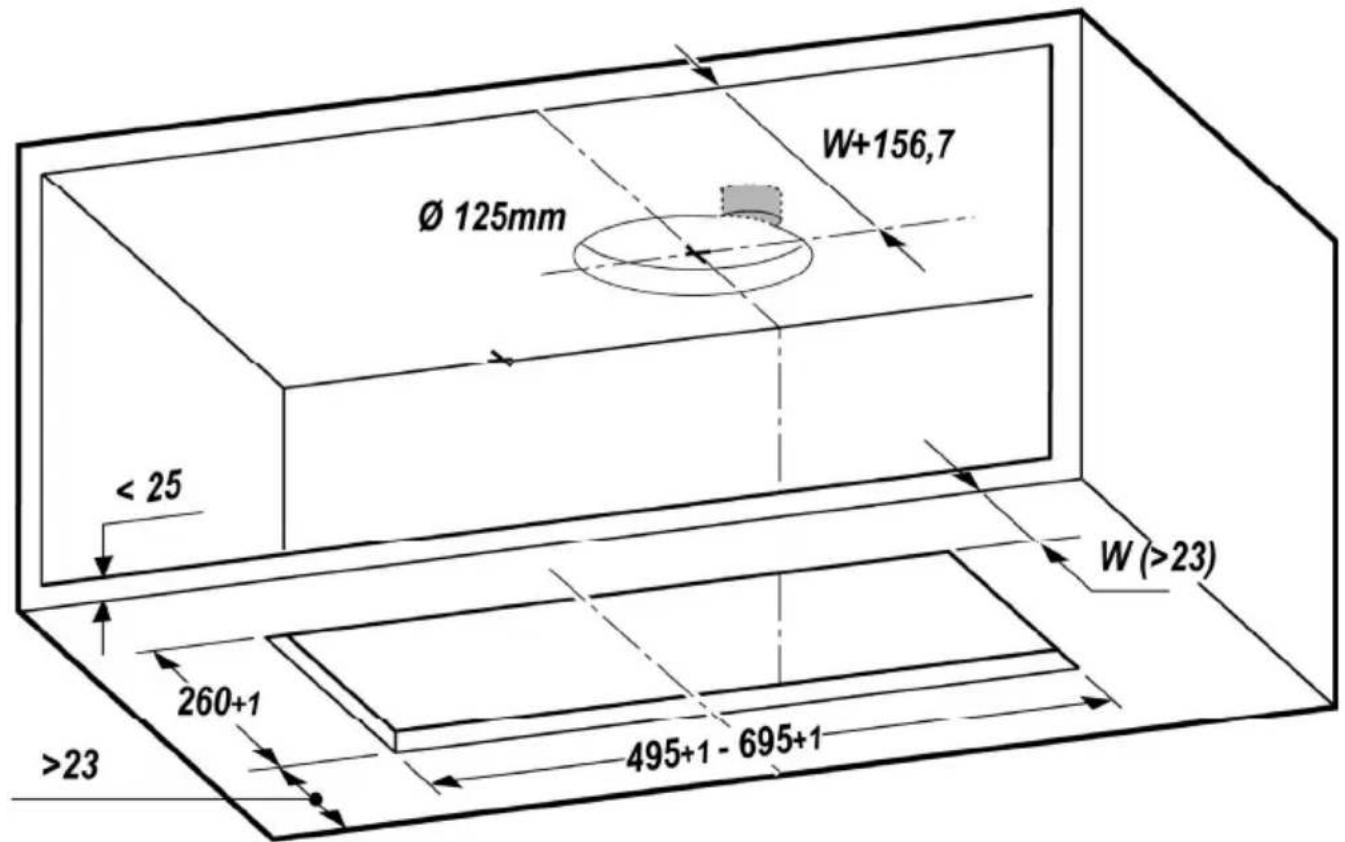

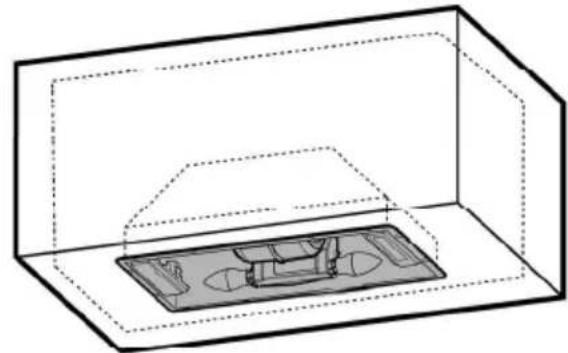

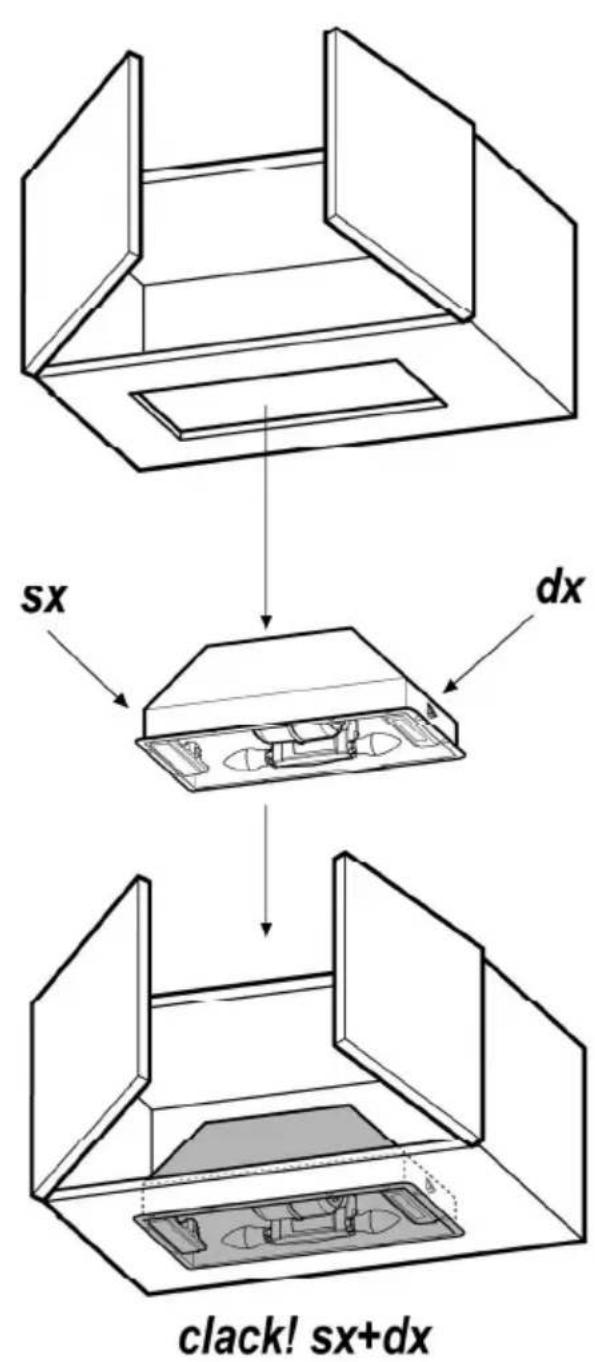

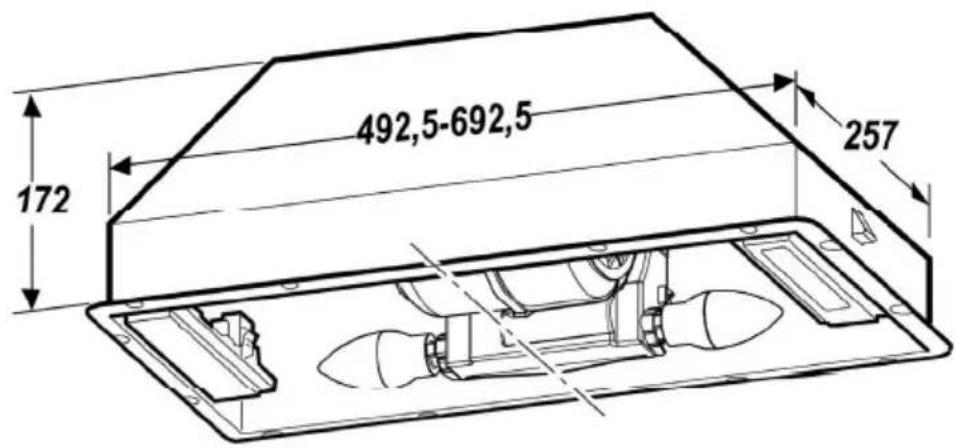

Installation

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

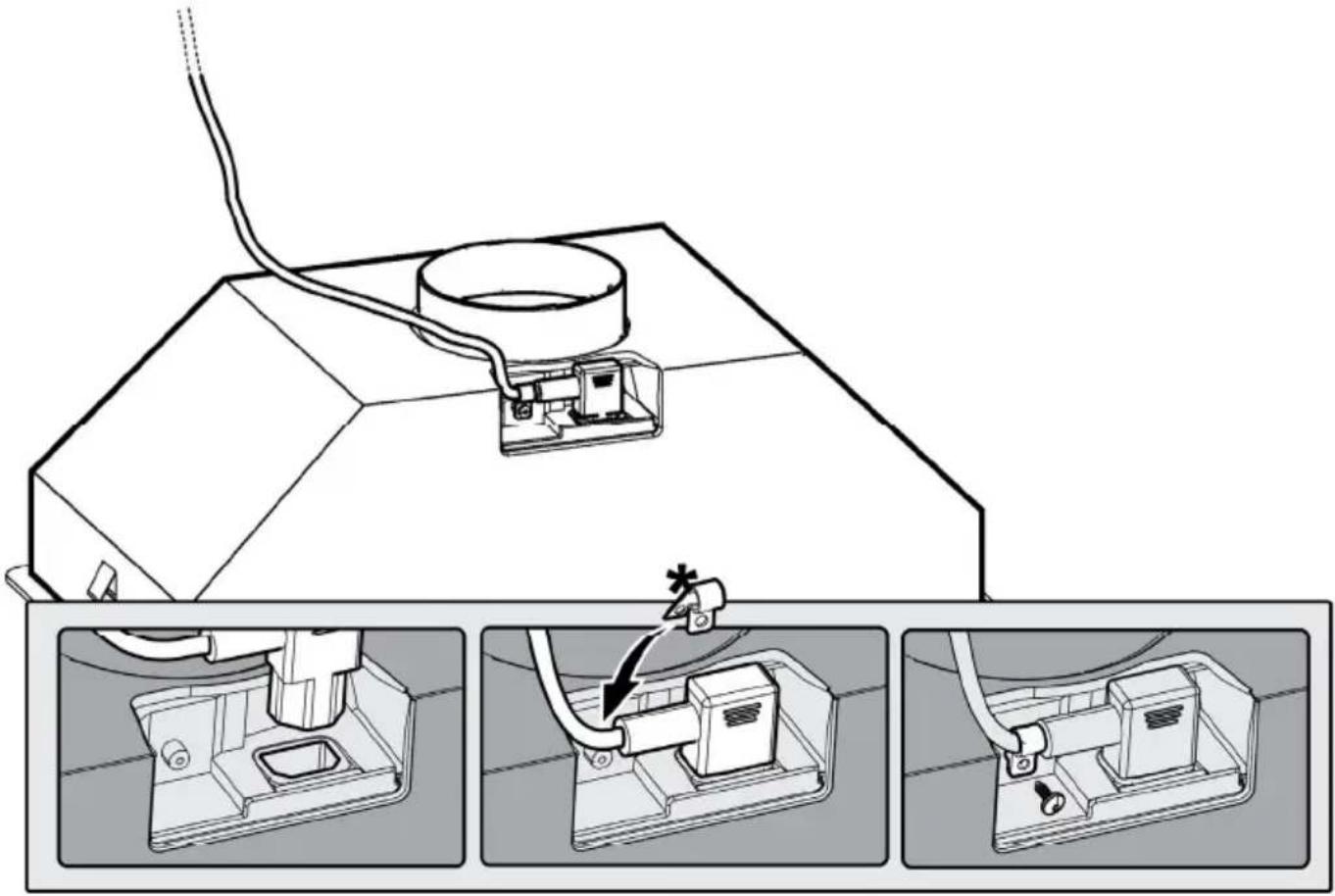

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Operation

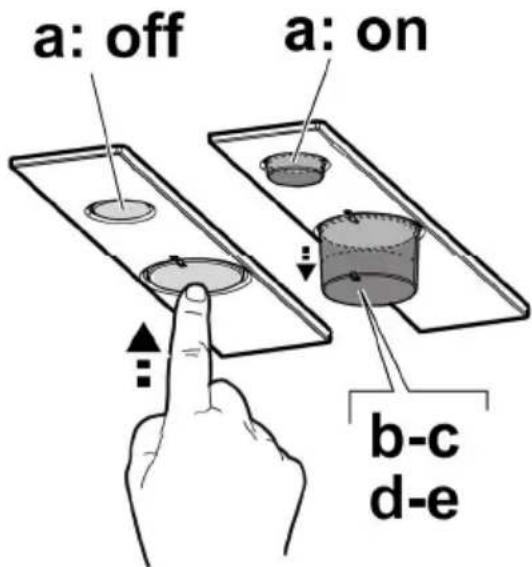

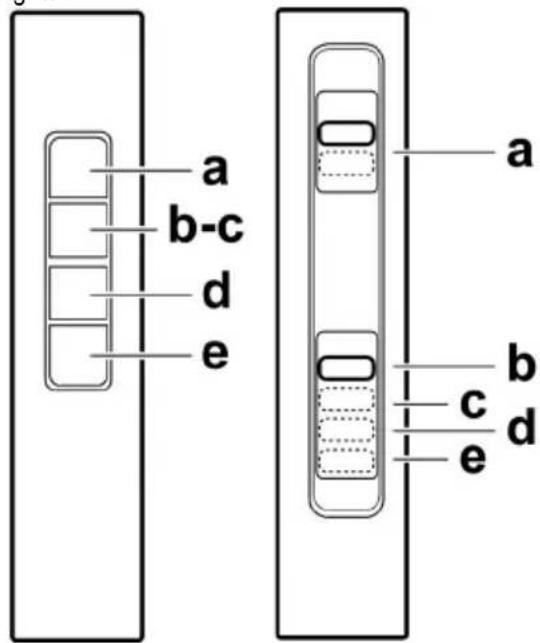

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

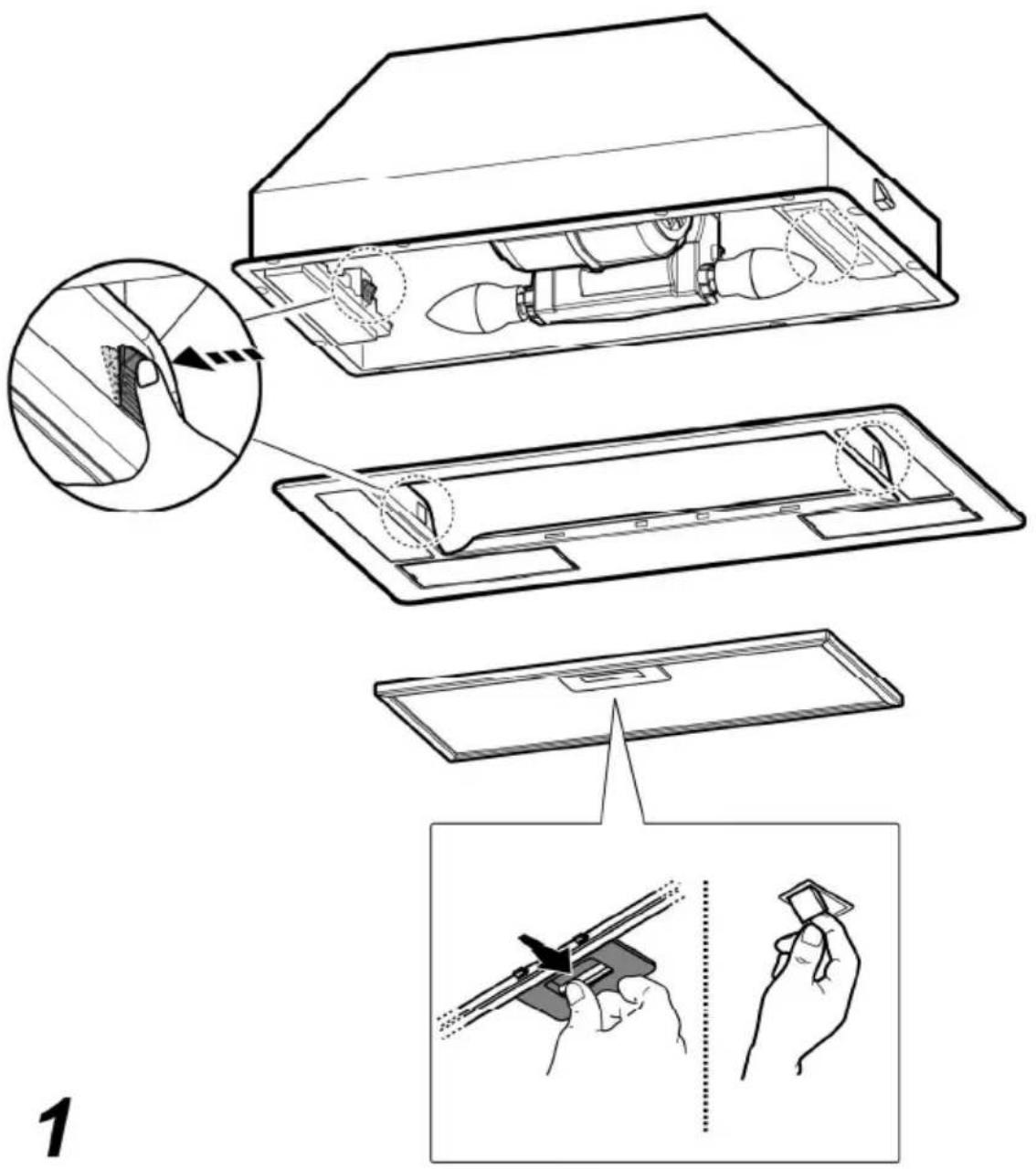

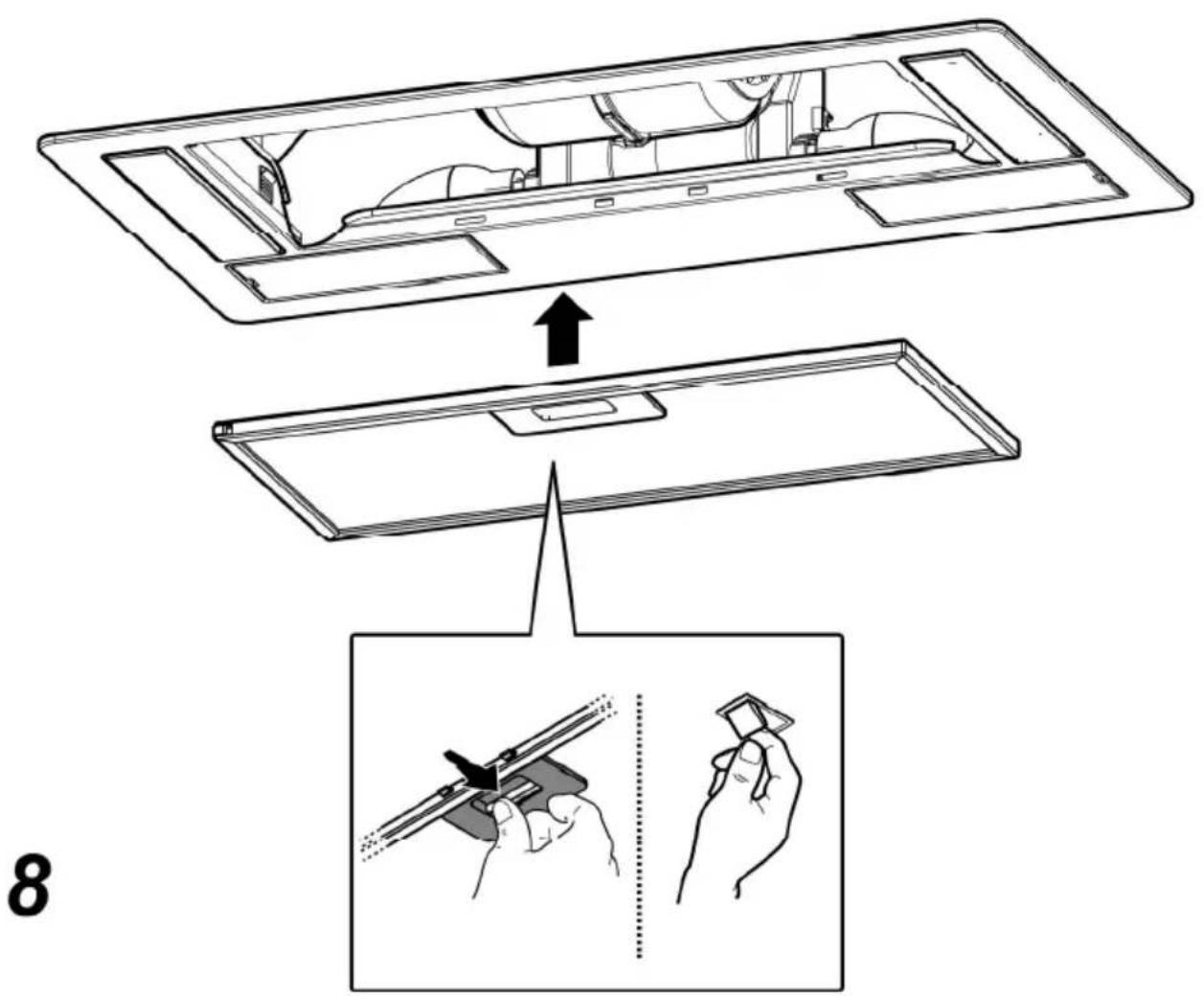

Grease filter

Fig. 1-7

The grease filter must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

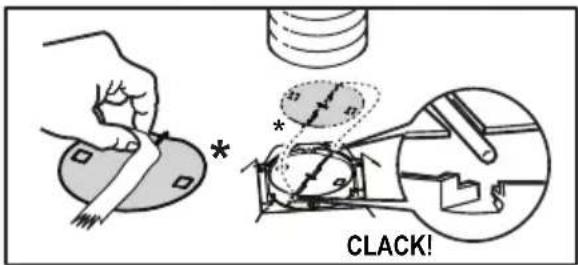

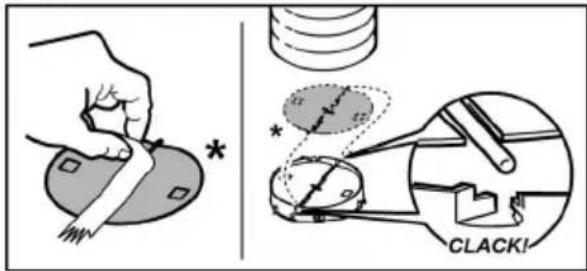

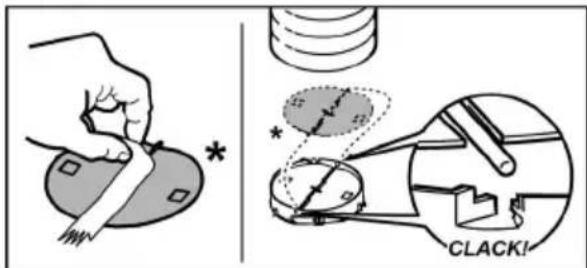

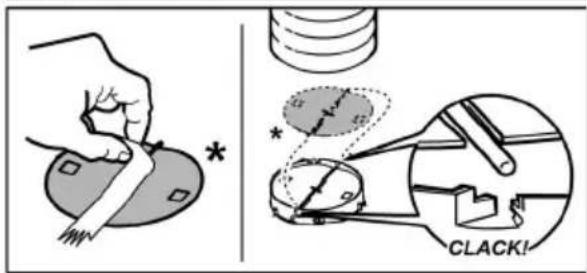

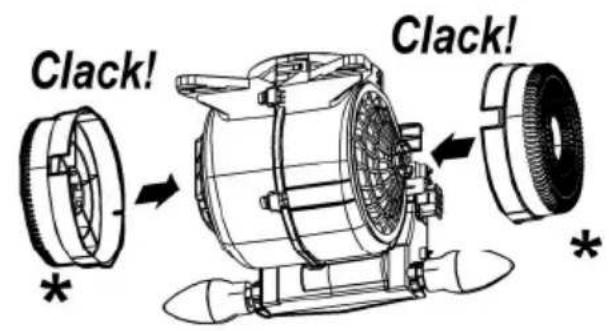

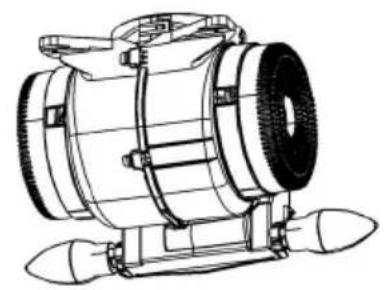

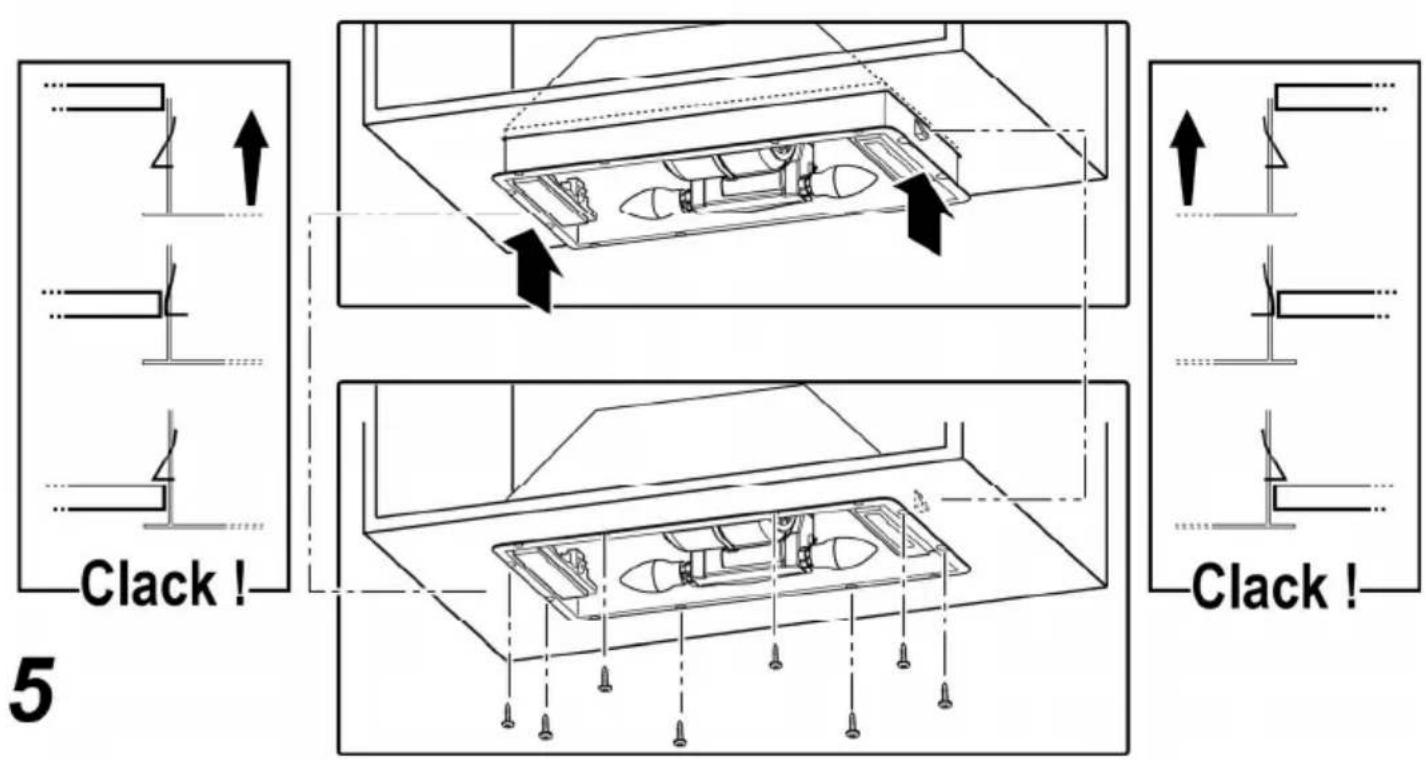

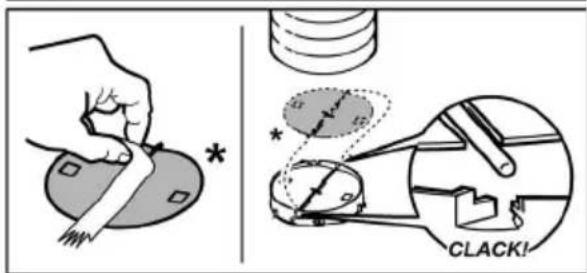

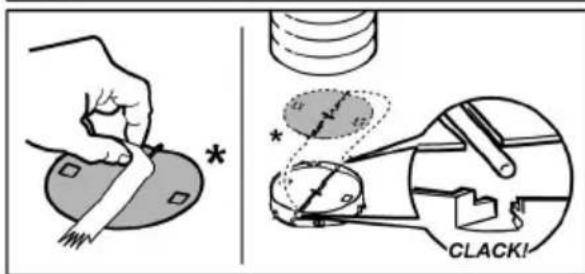

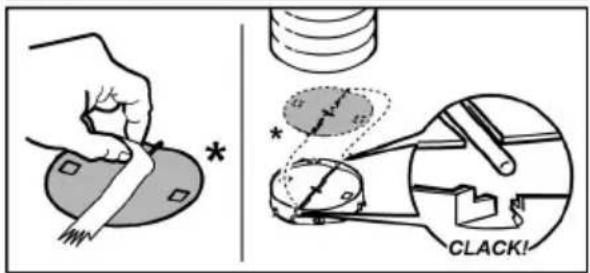

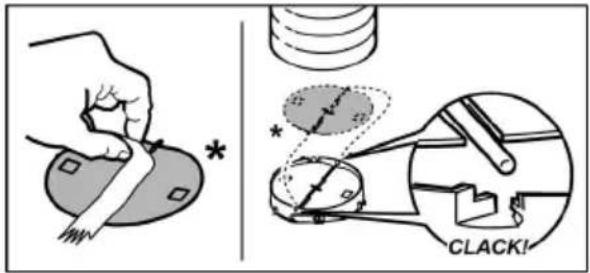

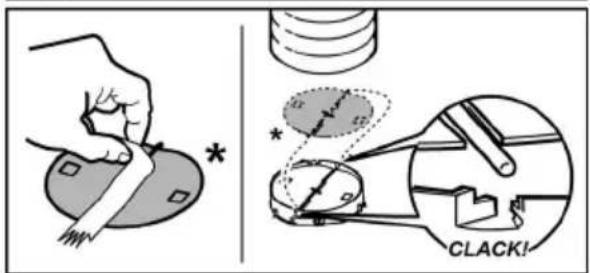

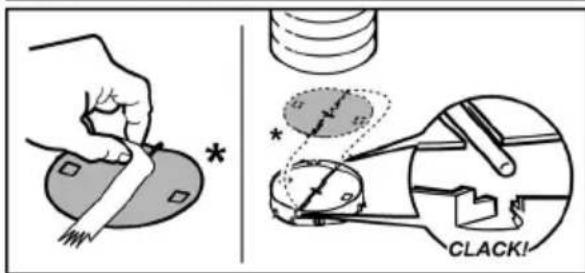

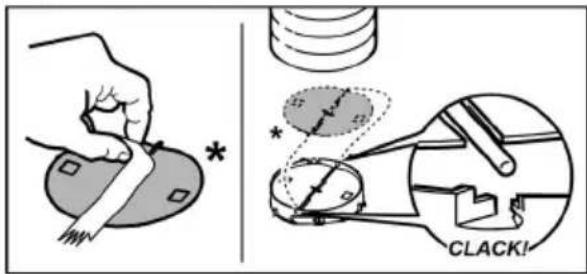

Charcoal filter (filter version only)

Fig. 5

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

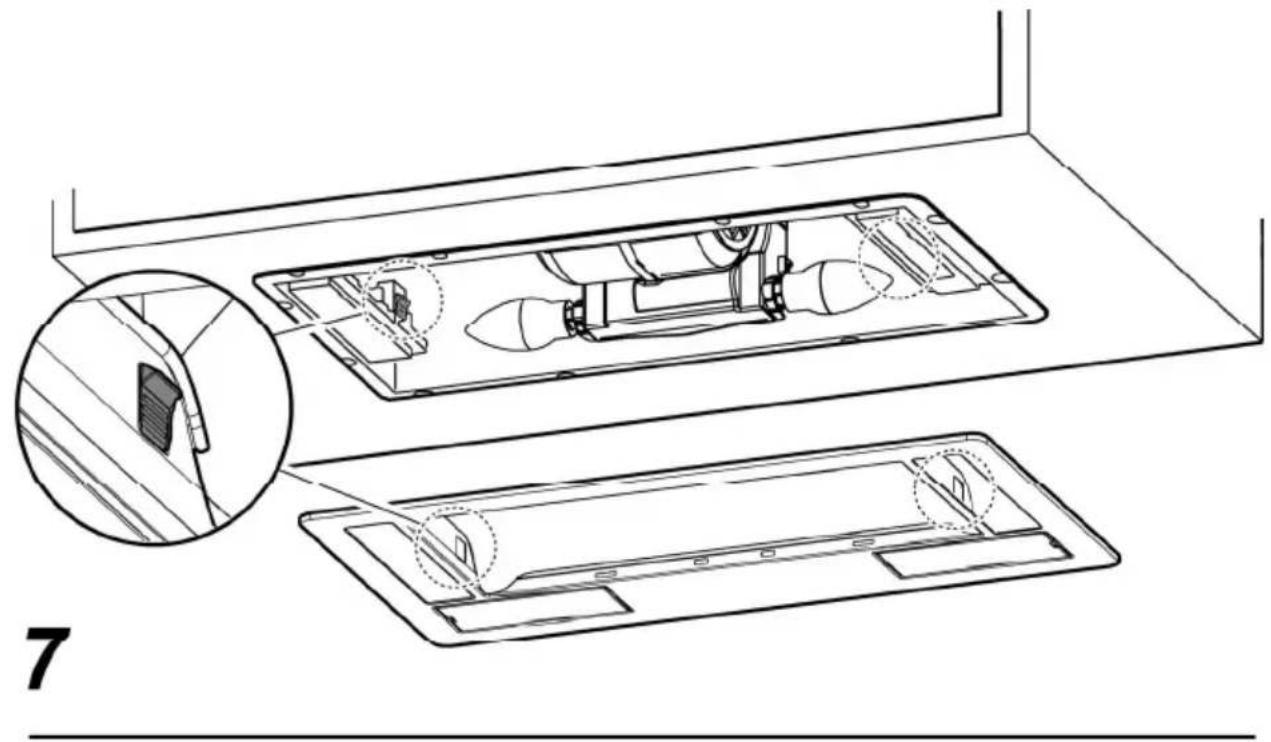

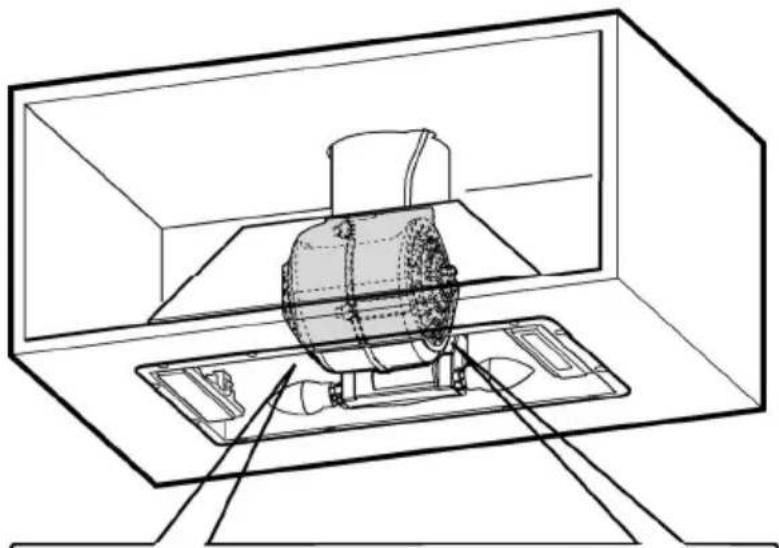

Replacing lamps

Fig.7

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Remove the suction gril to access the lamp area.

Replace the damaged lamp.

Use E14 3W max LED lamps only. For more details, check enclosed leaflet "ILCOS D" (alfanumeric position "1d").

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

On some models ONLY:

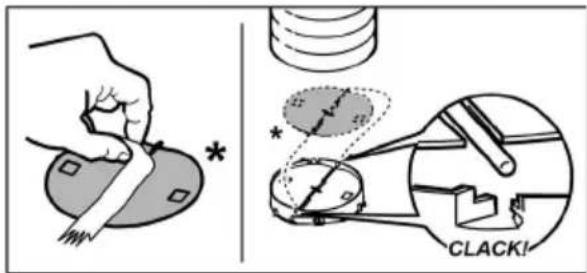

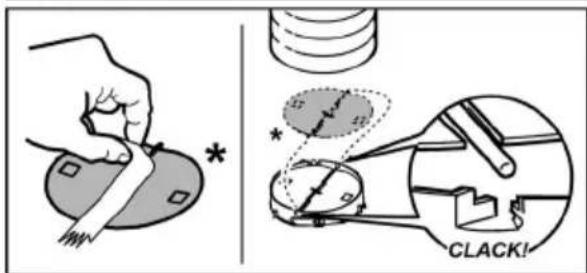

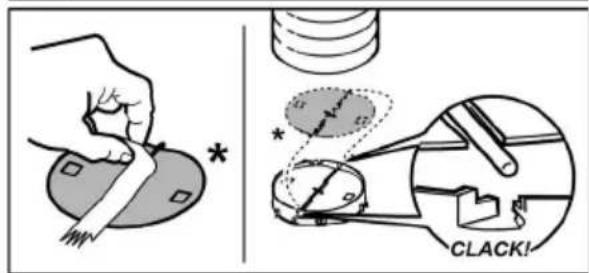

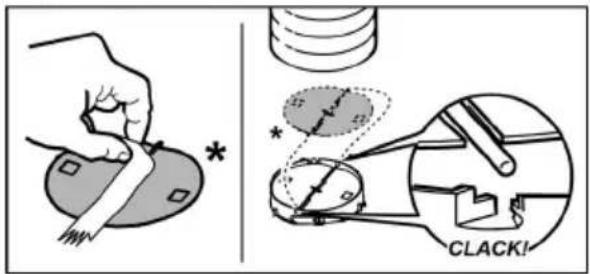

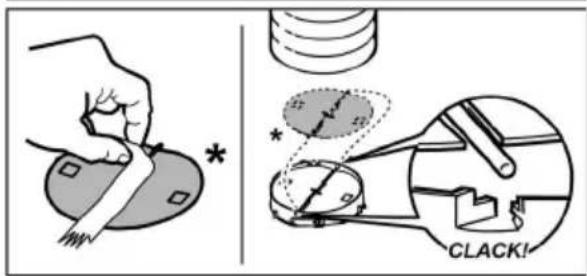

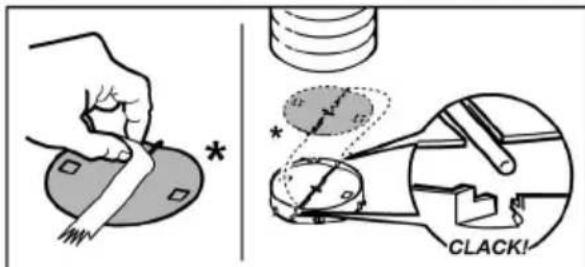

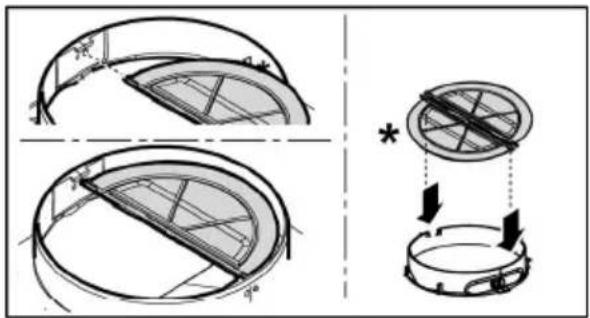

A Non Return Backdraft Damper is included in the supply, as optional accessory to be installed under certain installation conditions (i.e. if there is no protection against accidental backdraft of air from the outside). The damper must be installed inside the dedicated housing, inside of the Air Outlet Fitting, before installing the flue.
