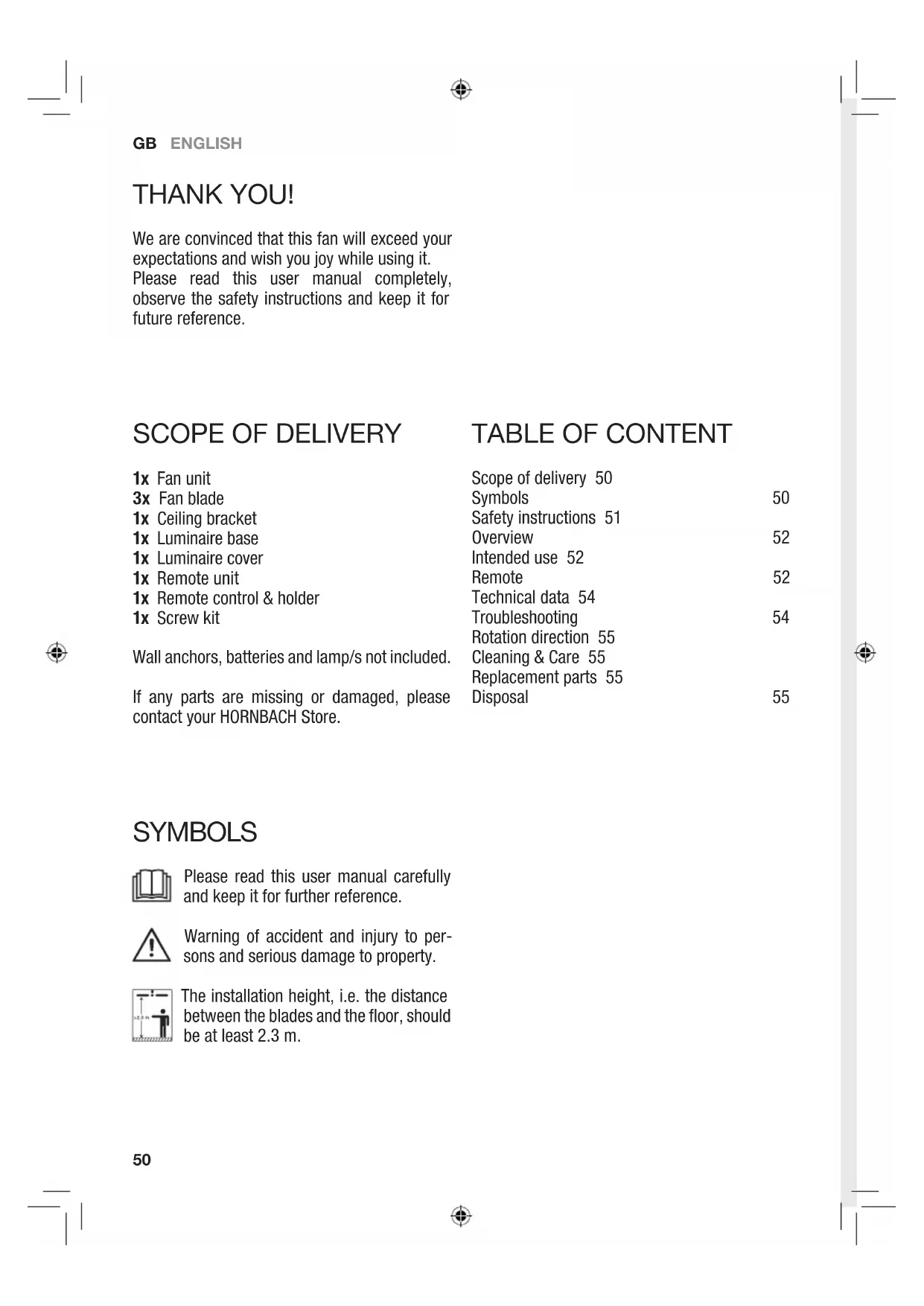

We are convinced that this fan will exceed your expectations and wish you joy while using it. Please read this user manual completely, observe the safety instructions and keep it for future reference.

SCOPE OF DELIVERY

1x Fan unit
3x Fan blade
1x Ceiling bracket
1x Luminaire base
1x Luminaire cover
1x Remote unit
1x Remote control & holder
1x Screw kit

Wall anchors, batteries and lamp/s not included.

If any parts are missing or damaged, please contact your HORNBACH Store.

TABLE OF CONTENT

Scope of delivery 50
Symbols 50
Safety instructions 51
Overview 52
Intended use 52
Remote 52
Technical data 54
Troubleshooting 54
Rotation direction 55
Cleaning & Care 55
Replacement parts 55
Disposal 55

SYMBOLS

Please read this user manual carefully and keep it for further reference.

Warning of accident and injury to persons and serious damage to property.

The installation height, i.e. the distance between the blades and the floor, should be at least 2.3m

SAFETY INSTRUCTIONS

• Electrical installation should be performed by a qualified licensed electrician. The installation requirements of VDE 0100 must be observed.
• WARNING! To prevent injuries, make sure the blades are not bent and that there are no objects with in the area of rotation.
• WARNING! Do Not use this fan in the same room at the same time as a gas or fuel burning fire, unless the flue has been tested under these conditions of use by a competent person.
• WARNING! If regular operation causes problems, such as noise, vibration, damaged or loose parts, stop using the fan immediately!
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be carried out by children without supervision.
• Make sure that the fixed installation has a contact separation in all poles that provide full disconnection under over voltage category III conditions.
• Do not install the fan in a room equipped with a smoke alarms, as this might have an influence on the smoke detection.
• WARNING! Do not use a dimmer type switch to control the fan speed.
• Make sure the fan is securely fastened at the ceiling. If in doubt, contact a specialist for proper installation.
  The distance between the blades and the floor, should be at least 2.3m
• Always maintain 1m distance between the lamp and inflammable materials (curtains, wall, etc.).
• Only replace the lamp when it has cooled down.

• Before operation, make sure the luminaire cover is securely fixed in position.

• The fan is designed for indoor use only. It is not designed for installation in a bathroom or any damp area. Please ensure that the luminaire does not come into contact with water.
  WARNING! Before working on the fan, make sure the fan is disconnected from the mains supply in all poles.

• To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.
• Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for cleaning.

FOR USE OF BATTERIES

• CAUTION! Danger of explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type. Observe correct polarity.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Protect from mechanical shock. Keep dry and clean. Keep away from children.
• Do not open, dismantle, shred or short-circuit batteries. Do not mix old and new batteries.
• Dispose of properly. Pay attention to environmental aspects of battery disposal. Do not dispose of in household waste.
  Refer to safety and other instructions on the battery or its packaging.
• In case of battery leakage, remove the batteries and clean the battery compartment thoroughly. Avoid contact with skin and eyes.

OVERVIEW

1 Cover
2 Fan unit
3 Luminaire base
4 Luminaire cover
5 Fan blade
6 Ceiling bracket screws
7 IR Opening
8 IR Transmitter
9 Light on/off

Time pre-set:

10 2H
11 4H
12 8H

Fan speed:

13 HI
14 MED
15 LOW
16 OFF

17 Battery compartment
18 Remote holder

REMOTE

The fan is controlled via its remote control. Place two AAA batteries (not included) in the battery compartment 17 - observe correct polarity. Make sure the IR Transmitter 8 of the remote points to the IR opening 7 at the cover 1 of the fan unit 2.

LIGHT

To switch the light on or off, press the light on/off button 9.

FAN SPEED

To switch the fan on and to set the desired operation speed press:

HI 13 = high speed

MED 14 = medium speed

LOW 15 = low speed

OFF16 = fan off

TIME PRE-SET

To set a designated runtime with automatic switch-off press:

2H10 = 2 hours

4H11 = 4 hours

8H 12 = 8 hours

REMOTE HOLDER

The remote holder 18 can be installed by drilling two 6mm holes. Insert the plugs and install the holder with the screws.

INTENDED USE

The appliance is intended for distribution of dry air in private interiors, as well as lighting (if provided). The appliance is not intended for commercial use.

Any other use or modification to the appliance is considered as improper use and could cause considerable dangers.

1

Switch off the circuit breaker of the installation site.

2

Remove the right screw of the ceiling bracket screws 6 on both sides.

3

At the installation site, drill two 8mm holes into the ceiling and insert the wall anchors (not included).

4

Install the ceiling bracket with the screw kit. Make sure the ceiling bracket is securely fastened.

5

Connect the cable to the terminal as follows:

L Brown

N Blue

llow/Green

6

Hang the fan unit 2 into the ceiling bracket. Rotate the fan unit 2 until the rotation latch engages.

7

Slide the remote unit into the ceiling bracket as shown.

8

Install the infrared receiver of the remote unit at its opening 7 on the cover 1.

9

Connect the two cable clips of the remote unit with the corresponding clips on the fan unit 2.

10

Install the cover 1 of the fan unit 2 by attaching it to the ceiling bracket and reinstall the screws removed in step 2.

11

Install the three blades 5 to the motor of the fan unit 2 by use of two screws per blade.

12

Connect the cable clip of the fan unit 2 with the clip on the luminaire base 3 and install the luminaire base 3 to the fan unit 2 using its three screws.

13

Fit two lamps (max. 40W / not included) to the sockets of the luminaire base 3.

14

Install the luminaire cover 4 and check it for secure fitting.

15

Switch on the circuit breaker of the installation site.

TECHNICAL DATA

Nominal voltage 220-240 V~ / 50 Hz

Rated power 70 W

Fan diameter 142 cm

Lamp 2x E27 / Max 40 W / not included

Speed settings Low - Med - Hi - Off / via remote control

Timer settings 2 - 4 - 8 hours / via remote control

Protection Class / I

Degree of protection IP20

Weight 7.1 kg

TROUBLESHOOTING

Fan does not start. Check circuit breakers and/or circuit fuses.

Disconnect from mains supply and check connection terminals inside the fan.

Light does not work. Check if the lamp is defective.

Disconnect from mains supply and check connection terminals inside the fan.

Fan runs unevenly and/or wobbles.

Disconnect from mains supply and check if the blades are correctly installed to the motor.

Disconnect from mains supply and check if the ceiling bracket securely fastened at the ceiling.

If the problem persists, start exchanging the position of single blades.

Fan sounds noisy.

Disconnect from mains supply and check for loose or overtightened screws.

CLEANING & CARE

WARNING! Before working on the fan, make sure the fan is disconnect- m the mains supply in all poles.

• To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.
• Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for cleaning.

REPLACEMENT PARTS

BATTERIES

The batteries (Type AAA / not included) in the remote can be replaced. Observe correct polarity and only replace by batteries of the same type.

LAMP

The lamp/s in the luminaire can be replaced. Only replace the lamp/s when the luminaire has cooled down and the fan is disconnected from the mains supply. Only use lamps as specified in technical data.

DISPOSAL

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Such equipment may

contain dangerous and hazardous substances. These appliances must be returned to a designated collection point for the recycling of WEEE and must not be disposed as unsorted municipal waste. By doing so, you will help to conserve resources and protect the environment. Contact your local authorities for more information.

Children must not play with plastic bags and packaging material, due to possible injury or danger of suffocation. Store such material safely or dispose of environmentally friendly.

Used batteries must be disposed of properly. Battery selling stores and municipal collection points offer special containers for battery disposal.
