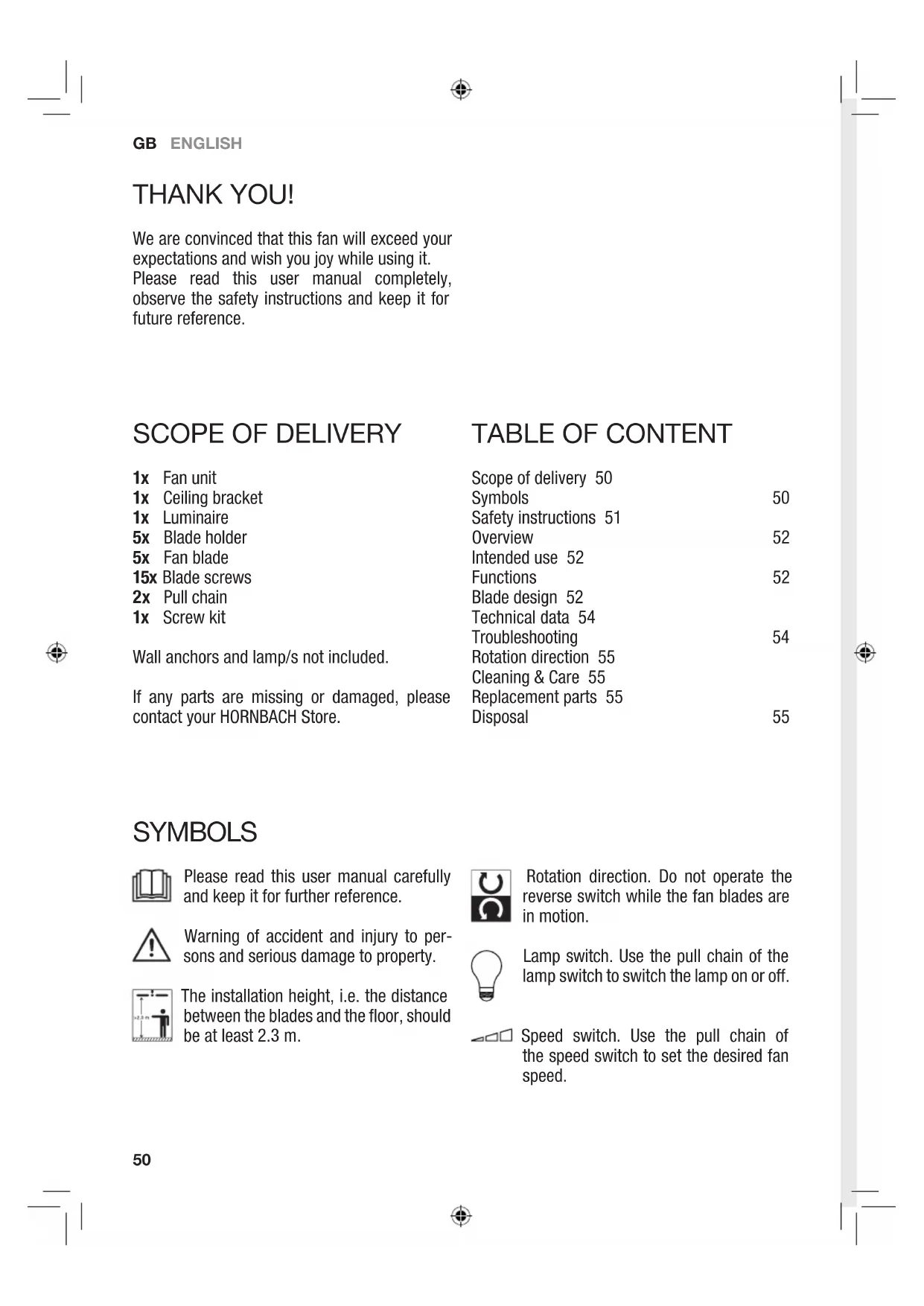

We are convinced that this fan will exceed your expectations and wish you joy while using it.

Please read this user manual completely, observe the safety instructions and keep it for future reference.

SCOPE OF DELIVERY

1x Fan unit
1x Ceiling bracket
1x Luminaire
5x Blade holder
5x Fan blade
15x Blade screws
2x Pull chain
1x Screw kit

Wall anchors and lamp/s not included.

If any parts are missing or damaged, please contact your HORNBACH Store.

TABLE OF CONTENT

Scope of delivery 50

Symbols 50

Safety instructions 51

Overview 52

Intended use 52

Functions 52

Blade design 52

Technical data 54 Troubleshooting 54

Rotation direction 55

Cleaning & Care 55 Replacement parts 55

Disposal 55

SYMBOLS

Please read this user manual carefully and keep it for further reference.

Warning of accident and injury to persons and serious damage to property.

The installation height, i.e. the distance between the blades and the floor, should be at least 2.3 m.

Rotation direction. Do not operate the reverse switch while the fan blades are in motion.

Lamp switch. Use the pull chain of the lamp switch to switch the lamp on or off.

Speed switch. Use the pull chain of the speed switch to set the desired fan speed.

SAFETY INSTRUCTIONS

- Electrical installation should be performed by a qualified licensed electrician. The installation requirements of VDE 0100 must be observed.

- WARNING! To prevent injuries, make sure the blades are not bent and that there are no objects with in the area of rotation.

- WARNING! Do Not use this fan in the same room at the same time as a gas or fuel burning fire, unless the flue has been tested under these conditions of use by a competent person.

- WARNING! If regular operation causes problems, such as noise, vibration, damaged or loose parts, stop using the fan immediately!

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance.

- Cleaning and user maintenance shall not be carried out by children without supervision.

- Make sure that the fixed installation has a contact separation in all poles that provide full disconnection under over voltage category III conditions.

- Do not install the fan in a room equipped with a smoke alarms, as this might have an influence on the smoke detection.

- WARNING! Do not use a dimmer type switch to control the fan speed.

- Make sure the fan is securely fastened at the ceiling. If in doubt, contact a specialist for proper installation.

- The distance between the blades and the floor, should be at least 2.3 m.

- Always maintain 1 m distance between the lamp and inflammable materials (curtains, wall, etc.).

- Only replace the lamp when it has cooled down.

- Before operation, make sure the luminaire cover is securely fixed in position.

- The fan is designed for indoor use only. It is not designed for installation in a bathroom or any damp area. Please ensure that the luminaire does not come into contact with water.

- Do not operate the rotation direction switch while the fan blades are in motion. The fan must be off and the blades stand still before reversing the rotation direction.

- WARNING! Before working on the fan, make sure the fan is disconnected from the mains supply in all poles.

- To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.

- Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for cleaning.

OVERVIEW

1 Cover
2 Fan unit
3 Fan blade
4 Luminaire
5 Ceiling bracket screws
6 Blade holder
7 Pull chain

FUNCTIONS

LIGHT

To switch the light on or off, pull the respective pull chain 7 on the fan unit 2.

FAN SPEED

To cycle through the different fan speeds, pull the respective pull chain 7 on the fan unit 2 repeatedly:

$$ \text { LOW } = \text { low speed } $$

$$ \text { MED } = \text { medium speed } $$

$$ \mathrm{HI} = \text { h i g h s p e e d } $$

$$ O F F = \text { fan off } $$

INTENDED USE

The appliance is intended for distribution of dry air in private interiors, as well as lighting (if provided). The appliance is not intended for commercial use.

Any other use or modification to the appliance is considered as improper use and could cause considerable dangers.

BLADE DESIGN

The blades of this fan are reversible. Each blade side has a different design. This way, the fan can be installed in two looks, depending on the blade design you choose.

3D rendering of a curved, elongated object with black and gray surfaces (no text or symbols)

1

Switch off the circuit breaker of the installation site.

2

Remove the right screw of the ceiling bracket screws 5 on both sides.

3

At the installation site, drill two 8 mm holes into the ceiling and insert the wall anchors (not included).

4

Install the ceiling bracket with the screw kit. Make sure the ceiling bracket is securely fastened.

5

Connect the cable to the terminal as follows:

L Brown

N Blue

Yellow/Green

6

Connect the cable clips of the ceiling bracket with the clips of the fan unit 2. Install the cover 1 by attaching it to the ceiling bracket.

7

Rotate the fan unit 2 until the rotation latch engages.

8

Install the five blade holders 6 to the motor of the fan unit 2 by use of two screws per blade holder.

9

Install the five blades 3 to the motor of the blade holders 6 by use of three screws per blade.

10

Connect the cable clip of the fan unit 2 with the clip on the luminaire 4 and install the luminaire 4 to the fan unit 2 using its three screws.

11

Fit the three lamps (max. 50 W) to the sockets of the luminaire 4.

12

Install the two pull chains at the speed and light switch of the fan unit 2.

13

Switch on the circuit breaker of the installation site.

TECHNICAL DATA

Nominal voltage 220-240 V\~ / 50 Hz

Rated power 60 W

Fan diameter 132 cm

Lamp 3x G10 / Max 50 W / not included

Speed settings Low - Med - Hi - Off

Protection Class / I

Degree of protection IP20

Weight

6.2 kg

TROUBLESHOOTINGTROUBLESHOOTING

Fan does not start. Check circuit beakers and/or circuit fuses.

Disconnect from mains supply and check connection terminals inside the fan.

Light does not work. Check if the lamp is defective.

Disconnect from mains supply and check connection terminals inside the fan.

Fan runs unevenly and/or wobbles.

Disconnect from mains supply and check if the blades are correctly installed to the motor.

Disconnect from mains supply and check if the ceiling bracket securely fastened at the ceiling.

If the problem persists, start exchanging the position of single blades.

Fan sounds noisy. Disconnect from mains supply and check for loose or overtightened screws.

ROTATION DIRECTION

The fan can be set to operate clock or anticlockwise. The desired rotation direction can be set at the rotation direction switch while the fan is standing still.

REPLACEMENT PARTS

LAMP

The lamp in the luminaire can be replaced. Only replace the lamp when the luminaire has cooled down and the fan is disconnected from the mains supply. Only use lamps as specified in technical data.

CLEANING & CARE

WARNING! Before working on the fan, make sure the fan is disconnected from the mains supply in all poles.

• To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.
• Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for cleaning.

DISPOSAL

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Such equipment may contain dangerous and hazardous substances. These appliances must be returned to a designated collection point for the recycling of WEEE and must not be disposed as unsorted municipal waste. By doing so, you will help to conserve resources and protect the environment. Contact your local authorities for more information.

Children must not play with plastic bags and packaging material, due to possible injury or danger of suffocation. Store such material safely or dispose of environmentally friendly.
