Lucentum II - Fan Madeira - Free user manual and instructions

Product Type	Ceiling fan with integrated LED light
Brand / Model	Madeira Lucentum II
Blade diameter	132 cm
Net weight	6.9 kg
Minimum installation height	2.3 m (between blades and floor)
Intended use	Indoor only, dry rooms
Power supply	Mains 230 V ~ 50 Hz (via circuit breaker)
Motor power	28 W
Max. light output	22 W (non-replaceable LED)
Luminous flux	2200 lm
Color temperature	3000 K (warm white), 4300 K (white), 6500 K (cool white) – adjustable
Number of speeds	5 (via remote control)
Rotation direction	Reversible (summer/winter)
Timer	2, 4 or 8 hours
Remote control	Radio 433.92 MHz, 2 x AAA batteries (not included), wall mount included
Protection rating	IP20
Blade material	Not specified (likely plastic or composite wood)
Package contents	Fan, ceiling mount, 3 blades, base and light cover, remote control with mount, screw kit, manual
Maintenance	Dry or slightly damp cloth – no water or detergent
Batteries	Replaceable (type AAA) – observe polarity
Safety	Installation by an electrician, safety distance 1 m from flammable materials, do not use with dimmer, do not install in bathroom
Repairability	LED light source non-replaceable – replace entire unit in case of failure
Warranty	Consult the retailer (HORNBACH)

Frequently Asked Questions - Lucentum II Madeira

How to install the Lucentum II fan?

The electrical installation must be carried out by a qualified electrician. Fix the ceiling mount with suitable dowels (not supplied), connect the wires (phase, neutral, earth) according to the colors, then assemble the fan and blades. Observe a minimum height of 2.3 m between the blades and the floor.

What batteries to use for the remote control?

The remote control works with 2 AAA 1.5V batteries (not included). Insert them respecting the polarity indicated in the compartment. Do not mix new and used batteries.

How to adjust the fan speed?

Use the remote control: press the speed control button (11) to cycle through the 5 speed levels, from 1 (minimum) to 5 (maximum).

How to change the rotation direction?

Press the F/R button (13) on the remote control to reverse the direction: forward direction (summer, downward airflow) or reverse direction (winter, upward air circulation).

The light does not turn on, what to do?

First check the circuit breaker. If the problem persists, cut the power supply and check the connections at the light cover. The LED is not replaceable; if it is defective, the entire light unit must be replaced.

How to clean the fan?

Use a dry or slightly damp cloth. Never use water or detergent. Before any cleaning, switch off the circuit breaker to avoid any electrical risk.

The fan shakes or makes noise, what to do?

Cut the power. Check that the blades are properly attached and that the screws are tight. If the problem persists, swap the position of the blades. Also ensure the ceiling mount is firmly anchored.

The remote control no longer works, how to re-pair it?

Power on the fan. Within 30 seconds, press and hold the fan on/off button (7) on the fan until the blades move. The pairing is then restored.

Can I install this fan in a bathroom?

No, this fan is designed for indoor use in dry rooms only. It is not suitable for humid rooms like bathrooms.

How to dispose of the fan at the end of its life?

Do not dispose of the appliance with household waste. Take it to a collection point for electrical and electronic waste (WEEE). Used batteries must be disposed of in the containers provided for this purpose.

USER MANUAL Lucentum II Madeira

Modern gray and white striped cabinet fan with three blades (no text or symbols visible)

10273954

GB Scope of delivery

2

Lieferumfang

Zeichenerklärung

Sicherheitshinweise

Uberblick

Close-up of a mechanical component with internal gears and mounting holes (no visible text or symbols)

13

Close-up of a three-blade propeller with a circular vent and arrow symbol (no text or labels)

14

TECHNISCHE DATEN

GB Scope of delivery

1213

TABLE DES MATIÈRES

Close-up of a mechanical component with no visible text or symbols

13

Close-up of a three-blade propeller with a circular head and arrow indicator (no text or symbols)

14

CARACTÉRISTIQUES TECHNIQUES

Tension nominale 220-240 V\~ / 50 Hz

DÉCLARATION DE CONFORMITÉ

GB Scope of delivery

2223

INDICE DEI CONTENUTI

Close-up of a mechanical clamp or bracket component with no visible text or symbols

6

7

Close-up of a mechanical component with arrows indicating motion or force direction (no visible text or symbols)

13

Close-up of a three-blade propeller with a circular vent and arrow symbol (no text or labels)

14

DATI TECNICI

Voltaggio nominale 220-240 V\~ / 50 Hz

GB Scope of delivery

3233

INHOUDSOPGAVE

Leveringsomvang 33

Symbolen 33

Close-up of a mechanical component with no visible text or symbols

13

Installeer de lampenkap 4 en controleer of de kap stevig vastzit.

14

Close-up of a three-blade propeller with a circular vent and directional arrow symbol (no text or labels)

14

TECHNISCHE GEGEVENS

Nominaal voltage 220-240 V\~ / 50 Hz

Nominaal motorvermogen 28 W

Nominaal lichtvermogen max. 22 W

Ventilatordiameter 132 cm

GB Scope of delivery

4243

INNEHÄLLSFÖRTECKNING⚠ SÄKERHETSIN- Leveransomfattning 43 STRUKTIONER

Close-up of a mechanical clamp or bracket component with no visible text or symbols

6

7

Close-up of a mechanical component with arrows indicating motion or force direction (no visible text or symbols)

13

Close-up of a three-blade propeller with a circular head and arrow symbol (no text or labels)

14

TEKNISKA DATA

Märkspänning 220–240 V\~/50 Hz

Motorns märkeffekt 28 W

GB Scope of delivery

5253

OBSAH

Rozsah dodávky 53

Symboly 53

GB Scope of delivery

6263

OBSAH

Rozsah dodávky 63

Symboly 63

Close-up of a mechanical clamp or bracket with attached wires and components (no visible text or symbols)

6

7

The image is too blurry to recognize any text content.

11

Close-up of a mechanical component with internal components and motion arrows (no visible text or symbols)

121

Close-up of a mechanical component with internal components and arrows indicating motion (no text or symbols)

13

Close-up of a three-blade propeller with a circular head and arrow indicator (no text or symbols)

14

TECHNICKÉ ÚDAJE

Menovité napätie 220-240 V\~ / 50 Hz

GB Scope of delivery

7273

CUPRINS

Close-up of a mechanical clamp or bracket component with no visible text or symbols

6

7

Close-up of a mechanical component with arrows indicating motion or force direction (no visible text or symbols)

13

Close-up of a three-blade propeller with a circular vent and arrow indicator (no text or symbols)

14

DATE TEHNICE

GB Scope of delivery

8283

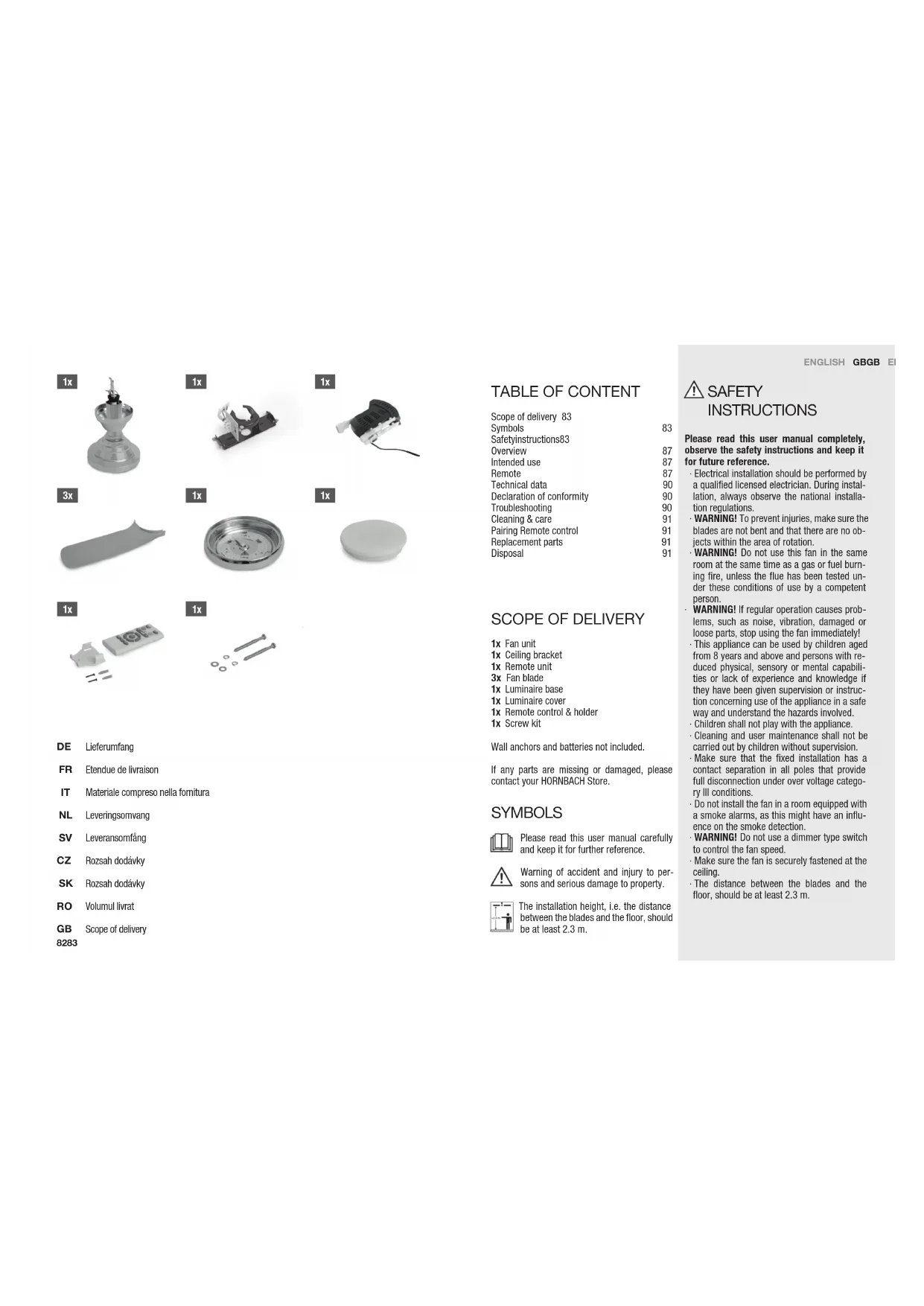

TABLE OF CONTENT

Scope of delivery 83

Symbols

Safetyinstructions83

Overview

Intended use

Remote

Technical data

Declaration of conformity

Troubleshooting

Cleaning & care

Pairing Remote control

Replacement parts

Disposal

SAFETY

INSTRUCTIONS

Please read this user manual completely, observe the safety instructions and keep it for future reference.

Electrical installation should be performed by a qualified licensed electrician. During installation, always observe the national installation regulations.

WARNING! To prevent injuries, make sure the blades are not bent and that there are no objects within the area of rotation.

WARNING! Do not use this fan in the same room at the same time as a gas or fuel burning fire, unless the flue has been tested under these conditions of use by a competent person.

WARNING! If regular operation causes problems, such as noise, vibration, damaged or loose parts, stop using the fan immediately!

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be carried out by children without supervision.

Make sure that the fixed installation has a contact separation in all poles that provide full disconnection under over voltage category III conditions.

Do not install the fan in a room equipped with a smoke alarms, as this might have an influence on the smoke detection.

WARNING! Do not use a dimmer type switch to control the fan speed.

Make sure the fan is securely fastened at the ceiling.

The distance between the blades and the floor, should be at least 2.3 m.

SCOPE OF DELIVERY

1x Fan unit
1x Ceiling bracket
1x Remote unit
3x Fan blade
1x Luminaire base
1x Luminaire cover
1x Remote control & holder
1x Screw kit

Wall anchors and batteries not included.

If any parts are missing or damaged, please contact your HORNBACH Store.

SYMBOLS

Please read this user manual carefully and keep it for further reference.

Warning of accident and injury to persons and serious damage to property.

The installation height, i.e. the distance between the blades and the floor, should be at least 2.3 m.

ENGLISH

GBGB

· Always maintain 1 m distance between the lamp and inflammable materials (curtains, wall, etc.).
The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole product shall be replaced.
- The product must not be modified in any way. Risk of electric shock and accident.
- Before operation, make sure the luminaire cover is securely fixed in position.
The fan is designed for indoor use only. It is not designed for installation in a bathroom or any damp area. Please ensure that the luminaire does not come into contact with water.
- WARNING! Before working on the fan, make sure the fan is disconnected from the mains supply in all poles.
· To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for cleaning.

FOR USE OF BATTERIES

CAUTION! Danger of explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type. Observe correct polarity.

• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. Protect from mechanical shock. Keep dry and clean. Keep away from children.
• Do not open, dismantle, shred or short-circuit batteries. Do not mix old and new batteries.
• Dispose of properly. Pay attention to environmental aspects of battery disposal. Do not dispose of in household waste.
• Refer to safety and other instructions on the battery or its packaging.
• In case of battery leakage, remove the batteries and clean the battery compartment thoroughly. Avoid contact with skin and eyes.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

8687

ENGLISH GBGB EI

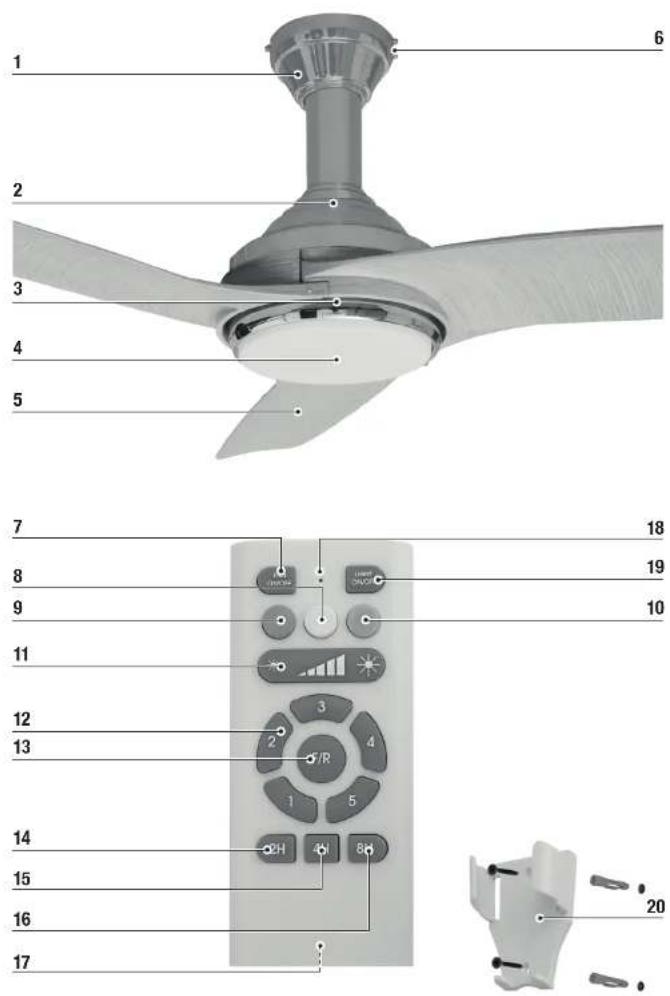

OVERVIEW

1 Cover
2 Fan unit
3 Luminaire base
4 Luminaire cover
5 Fan blade
6 Ceiling bracket screws
7 Fan on/off

8 Change LED colour to warm white
9 Change LED colour to yellow
10 Change LED colour to white
11 Dimmer
12 Fan speed level 1 to 5
13 Forward / Reverse

Time pre-set:

14 2 hours
15 4 hours
16 8 hours
17 Battery compartment
18 Remote control
19 Light on/off
20 Remote holder

REMOTE

The fan is controlled via its remote control. Place two AAA batteries (not included) in the battery compartment 17 - observe correct polarity.

LIGHT

To switch the light on or off, press the light on/off button 19.

FAN SPEED

To switch the fan on and to set the desired operation speed press 12:

1 = min. speed up to
5 = max.speed

TIME PRE-SET

To set a designated runtime with automatic switch-off press:

14 = 2 hours
15 = 4 hours
16 = 8 hours

ROTATION DIRECTION

Change the rotation direction by pushing the F/R button 13.

REMOTE HOLDER

The remote holder 20 can be installed by drilling two 6 mm holes. Insert the plugs and install the holder with the screws.

Ensure the battery compartment cover is closed properly.

Do not expose the remote control to direct sunlight.

INTENDED USE

The appliance is intended for distribution of dry air in private interiors, as well as lighting (if provided). The appliance is not intended for commercial use.

Any other use or modification to the appliance is considered as improper use and could cause considerable dangers.

1

Select an installation location without pipes or cables behind it. Switch off the circuit breaker of the installation site.

2

Remove the right screw of the ceiling bracket screws 6 on both sides. Keep them for step 9. Loosen the left bracket screws 1 mm, but do not remove them.

3

At the installation site, fix adequate wall anchors (not included) to the ceiling.

4

Install the ceiling bracket with the screw kit. Make sure the ceiling bracket is securely fastened.

5

Connect the cable to the terminal as follows: L Brown N Blue Yellow/Green

6

Hang the fan unit 2 into the ceiling bracket. Rotate the fan unit 2 until the rotation latch engages.

7

Slide the remote unit into the ceiling bracket as shown.

8

Connect the three cable clips of the remote unit with the corresponding clips on the fan unit 2. Take care, that the facing colors match.

9

Install the cover 1 by attaching it to the ceiling bracket and reinstall the screws removed in step 2. Tighten all four bracket screws 6.

10

Install the three blades 5 to the fan unit 2 by use of two screws per blade.

11

Connect the cable clip of the fan unit 2 with the clip on the luminaire base 3 Install the luminaire base 3 to the fan unit 2.

12

Fasten the three screws that hold the luminaire base.

13

Install the luminaire cover 4 and check it for secure fitting.

14

Switch on the circuit breaker of the installation site.

1

2

3

4

5

6

7

8

9

-

11

121

Close-up of a mechanical component with arrows indicating motion or force direction (no visible text or symbols)

13

Close-up of a three-blade propeller with a circular vent and arrow symbol (no text or labels)

14

TECHNICAL DATA
Nominal voltage 220-240 V\~ / 50 Hz

Nominal power of motor	28 W
Nominal power of lighting	max. 22 W
Fan diameter	132 cm
Lamp	LED, not replaceable
Luminous flux	2200 lm
Color temperature	3000 K / 4300 K / 6500 K
Speed settings	Five speed levels / via remote control
Timer settings	2 - 4 - 8 hours / via remote control
Protection Class	+/
Degree of protection	IP20
Weight	6.9 kg
Remote control
Radio frequency	433.92 MHz ± 100 KHz
Transmit power	max. -1 dBm
Batteries	2 x 1.5 V AAA

DECLARATION OF CONFORMITY

Hereby, HORNBACH Baumarkt AG declares that the radio equipment type "remote control" is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.hornbach.com/productcompliance/

TROUBLESHOOTING

Fan does not start.	Check circuit beaker respectively circuit fuse.Disconnect from mains supply and check connection terminals inside the fan.
Light does not work.	Disconnect from mains supply and check connection terminals inside the cover.
Fan runs unevenly and/or wobbles.	Disconnect from mains supply and check if the blades are correctly installed to the motor.Disconnect from mains supply and check if the ceiling bracket securely fastened at the ceiling.If the problem persists, start exchanging the position of single blades.
Fan sounds noisy.	Disconnect from mains supply and check for loose or overtightened screws.

CLEANING & CARE

WARNING! Before working on the fan, make sure the corresponding circuit breaker is disconnected.

· To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.
- Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for cleaning.

PAIRING REMOTE CONTROL

The fan and the remote control are already paired. Pair setting is necessary in following situations:

• You would like to use one remote control to control more than one fan.

• You get a new wireless remote control spare part.

• Switch on the circuit breaker of the installation site.

• Press and the FAN ON/OFF key 7 within 30 seconds. Hold it until the fan starts to move.
• Switch on the circuit breaker of the installation site.
• Press and the FAN ON/OFF key 7 within 30 seconds. Hold it until the fan starts to move.

REPLACEMENT PARTS

BATTERIES

The batteries (Type AAA / not included) in the remote can be replaced. Observe correct polarity and only replace by batteries of the same type.

LAMP

The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole product shall be replaced.

DISPOSAL

The crossed-out wheeled bin logo requires the separate collection of waste electric and electronic equipment (WEEE). Such equipment may contain dangerous and hazardous substances. These appliances must be returned to a designated collection point for the recycling of WEEE and must not be disposed as unsorted municipal waste. By doing so, you will help to conserve resources and protect the environment. Contact your local authorities for more information.

Children must not play with plastic bags and packaging material, due to possible injury or danger of suffocation. Store such material safely or dispose of environmentally friendly.

Used batteries must be disposed of properly. Battery selling stores and municipal collection points offer special containers for battery disposal.
