SSA1200 - Multitools EGO - Free user manual and instructions
Find the device manual for free SSA1200 EGO in PDF.
| Product Type | Snow Shovel Extension |
| Brand | EGO |
| Model | SSA1200 |
| Rated Voltage | 56 V |
| No-Load Speed | 1420 ± 10% tr/min (PH1400E) / 1750 ± 10% tr/min (PH1420E/PHX1600) |
| Clearing Width | 30 cm |
| Throwing Distance | Up to 7.5 m |
| Collection Height | 15 cm |
| Recommended Operating Temperature | -10 to 10 °C |
| Recommended Storage Temperature (without battery) | -20 to 70 °C |
| Weight | 5.2 kg |
| Guaranteed Sound Power Level (LwA) | 100 dB(A) |
| Sound Pressure Level (LpA) | 90 dB(A) (PH1400E) / 87.7 dB(A) (PH1420E) / 85 dB(A) (PHX1600) |
| Vibration Level (front handle) | 4.4 m/s² (PH1400E) / 1.61 m/s² (PH1420E) / 1.17 m/s² (PHX1600) |
| Vibration Level (rear handle) | 3.9 m/s² (PH1400E) / 1.73 m/s² (PH1420E) / 2.1 m/s² (PHX1600) |
| Compatibility | EGO power heads PH1400E, PH1420E, PHX1600 |
| Main Functions | Snow removal of yards, driveways, garages; adjustable deflector (60°), replaceable scraper bar, auger |
| Safety | Engine stop, remove battery before maintenance, eye protection required, keep feet away from the impeller |
| Maintenance and Cleaning | Gear lubrication every 50 hours, clean with a clean cloth, do not immerse in water |
| Spare Parts and Repairability | Replaceable scraper bar, sealing screw, hex key included, repairs by an authorized center |
| Package Contents | Snow shovel extension, hex key, bit, scraper bar, screws |
Frequently Asked Questions - SSA1200 EGO
User questions about SSA1200 EGO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Multitools in PDF format for free! Find your manual SSA1200 - EGO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SSA1200 by EGO.
USER MANUAL SSA1200 EGO
EN Snow shovel attachment 4
RU Cheroy6bopouha HacaKa 96
PL Koncowka-odsniezarka 105
CZ Pridavna lopata na snih 114
The Anchorage, 34 Bridge Street Reading, RG1 2LU, United Kingdom

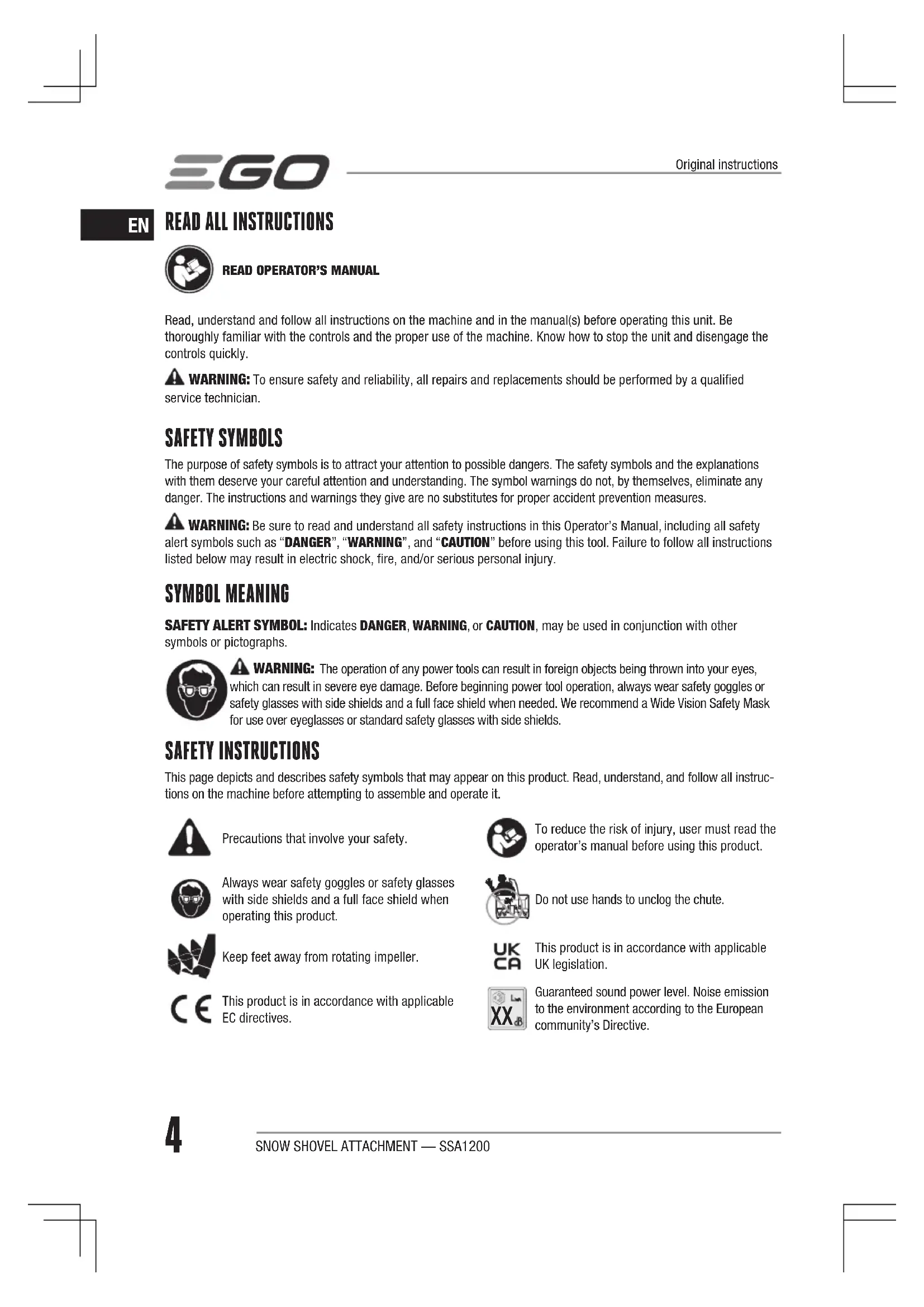

EN
READ ALL INSTRUCTIONS
READ OPERATOR'S MANUAL
Read, understand and follow all instructions on the machine and in the manual(s) before operating this unit. Be thoroughly familiar with the controls and the proper use of the machine. Know how to stop the unit and disengage the controls quickly.
WARNING: To ensure safety and reliability, all repairs and replacements should be performed by a qualified service technician.
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.
WARNING: Be sure to read and understand all safety instructions in this Operator's Manual, including all safety alert symbols such as "DANGER", "WARNING", and "CAUTION" before using this tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION, may be used in conjunction with other symbols or pictographs.
WARNING: The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.
SAFETY INSTRUCTIONS
This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate it.
Precautions that involve your safety.
To reduce the risk of injury, user must read the operator's manual before using this product.
Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product.
Do not use hands to unclog the chute.
Keep feet away from rotating impeller.
This product is in accordance with applicable UK legislation.
Guaranteed sound power level. Noise emission to the environment according to the European community's Directive.
4
Waste electrical products should not be disposed of with household waste. Take to an authorized recycler.
mm Millimeter
V Voltage kg Kilogram
cm Centimeter
GENERAL MACHINE SAFETY WARNINGS
WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this machine. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
The term "machine" in the warnings refers to your mains-operated (corded) machine or battery-operated (cordless) machine.
WORK AREA SAFETY
- Keep work area clean and well lit. Cluttered or dark areas invite accidents.
- Do not operate machines in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Machines create sparks which may ignite the dust or fumes.
- Keep children and bystanders away while operating a machine. Distractions can cause you to lose control.
ELECTRICAL SAFETY
Machine plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) machines. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not operate the machine in rain or wet conditions. Water entering the machine may increase the risk of electric shock or malfunction that could result in personal injury.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the machine. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
Direct Current
- When operating a machine outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a machine in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
PERSONAL SAFETY
- Stay alert, watch what you are doing and use common sense when operating a machine. Do not use a machine while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating machines may result in serious personal injury.
Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. - Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the machine. Carrying machines with your finger on the switch or energizing machines that have the switch on invites accidents.
- Remove any adjusting key or wrench before turning the machine on. A wrench or a key left attached to a rotating part of the machine may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the machine in unexpected situations.
- Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
EN
- Do not let familiarity gained from frequent use of machines allow you to become complacent and ignore machine safety principles. A careless action can cause severe injury within a fraction of a second.
MACHINE USE AND CARE
-
Do not force the machine. Use the correct machine for your application. The correct machine will do the job better and safer at the rate for which it was designed.
-
Do not use the machine if the switch does not turn it on and off. Any machine that cannot be controlled with the switch is dangerous and must be repaired.
-
Disconnect the plug from the power source and/ or remove the battery pack, if detachable, from the machine before making any adjustments, changing accessories, or storing machines. Such preventive safety measures reduce the risk of starting the machine accidentally.
Store idle machines out of the reach of children and do not allow persons unfamiliar with the machine or these instructions to operate the machine. Machines are dangerous in the hands of untrained users.
-
Maintain machines and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the machine's operation. If damaged, have the machine repaired before use. Many accidents are caused by poorly maintained machines.
-
Keep cutting machines sharp and clean. Properly maintained cutting machines with sharp cutting edges are less likely to bind and are easier to control.
Use the machine, accessories and machine bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the machine for operations different from those intended could result in a hazardous situation.
- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the machine in unexpected situations.
BATTERY MACHINE USE AND CARE
- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
Use machines only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
-
Do not use a battery pack or machine that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
-
Do not expose a battery pack or machine to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
-
Follow all charging instructions and do not charge the battery pack or machine outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
TRAINING
- Read, understand and follow all instructions on the machine and in the manual(s) before operating this tool. Be thoroughly familiar with the controls and the proper use of the equipment. Know how to stop the tool and disengage the controls quickly.
- Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction.
- Keep the area of operation clear of all persons, particularly small children.
Exercise caution to avoid slipping or falling, especially when operating the snow shovel attachment in reverse.
PREPARATION
- Never operate the machine while people, especially children, or pets are nearby.
- Wear eye protection and stout shoes at all times while operating the machine.
The distance between the machine and bystanders shall be at least 15m - Never operate the machine while the operator is tired, ill or under the influence of alcohol or other drugs.
Thoroughly inspect the area where the equipment is to be used and remove all doormats, sleds, boards, wires,
and other foreign objects.
- Do not operate the equipment without wearing adequate winter garments. Avoid loose-fitting clothing that can get caught in moving parts. Wear footwear that will improve footing on slippery surfaces.
Always wear safety glasses or eye shields during operation or while performing an adjustment or repair to protect eyes from foreign objects that may be thrown from the machine.
Use extension cords and receptacles as specified by the manufacturer for all units with electric starting motors. - Never attempt any adjustment while the motor is running (except when specifically recommended by manufacturer).
OPERATION
- Do not put hands or feet near or under rotating parts. Keep clear of the discharger opening at all times.
Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or traffic.
After striking a foreign object, stop the motor, remove the battery pack, thoroughly inspect the snow shovel attachment for any damage, and repair the damage before restarting and operating the snow shovel attachment.
If the unit should start to vibrate abnormally, stop the motor and check immediately for the cause. Vibration is generally a warning of trouble. - Stop the motor whenever you leave the operating position before unclogging the auger assembly housing, and when making any repairs, adjustments or inspections.
Exercise extreme caution when operating on slopes. - Never operate the snow shovel attachment without proper guards and other safety protective devices in place and working.
- Never direct the discharge toward people or areas where property damage can occur. Keep children and others away.
- Do not overload the machine capacity by attempting to clear snow at too fast a rate.
- Never operator the snow shovel attachment at high transport speeds on slippery surfaces. Look behind and use care when operating in reverse.
Use only attachments and accessories approved by the manufacturer of the snow shovel attachment (such as the scraper bar). - Never operate the snow shovel attachment without good
visibility or light. Always be sure of your footing, and keep a firm hold on the handles. Walk; never run.
EN
- Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 100^ may cause explosion.
Use only with the battery packs and chargers listed in fig.B.
CLEARING A CLOGGING AUGER ASSEMBLY
Hand contact with the rotating auger assembly is the most common cause of injury associated with snow shovel attachment. Never use your hand to clean out the rotating auger assembly.
To clear the auger assembly:
SHUT THE TOOL OFF!
Remove the battery pack from the tool.
Wait 10 seconds to be sure the auger has stopping rotating.
Always use the auger clean tool which is attached to the machine as an accessory, do not use your hand.
MAINTENANCE AND STORAGE
- Check all bolts or fasteners at frequent intervals for proper tightness to be sure the equipment is in safe working condition.
Always refer to operator's manual for important details if the snow shovel attachment is to be stored for an extended period. - Maintain or replace safety and instruction labels, as necessary.
Run the machine a few minutes to prevent freeze-up of the auger assembly.
SAVE THESE INSTRUCTIONS. Refer to them frequently
and use them to instruct others who may use this tool. If you lend this tool to someone else, also lend these instructions to them to prevent misuse of the product and possibly injury.
EN SPECIFICATIONS
| Rated Voltage 56 V | |
| No-load Speed | 1420±10% rpm 1750±10% rpm |
| Clearing Width 30 cm | |
| Throw distance Up to 7.5 m | |
| Intake Height 15 cm | |
| Recommended Operating Temperature | -10-10°C |
| Recommended Storage Temperature *For the appliance WITHOUT battery pack | -20-70°C |
| Weight 5.2 kg | |
| Measured sound power level LWA | 98 dB(A) K=2.3 dB(A) (PH1400E) |
| 90.41 dB(A) K=2.34 dB(A) (PH1420E) | |
| 91 dB(A) K=1.3 dB(A) (PHX1600) | |
| Sound pressure level at operator's ear LPA | 90 dB(A) K=2.5 dB(A) (PH1400E) |
| 87.7 dB(A) K=3 dB(A) (PH1420E) | |
| 85 dB(A) K=3 dB(A) (PHX1600) | |
| Guaranteed sound power level LWA (measured according to 2000/14/EC) | 100 dB(A) |
| Valuation of vibration \( {a}_{n} \) : | Front-assist handle | \( {4.4}\mathrm{\;m}/{\mathrm{s}}^{2} \) K=1.5 m/s2 (PH1400E) |
| \( {1.61}\mathrm{\;m}/{\mathrm{s}}^{2} \) \( \mathrm{K} = {1.5}\mathrm{\;m}/{\mathrm{s}}^{2} \) (PH1420E) | ||
| \( {1.17}\mathrm{\;m}/{\mathrm{s}}^{2} \) \( \mathrm{K} = {1.5}\mathrm{\;m}/{\mathrm{s}}^{2} \) (PHX1600) | ||
| Rear handle | \( {3.9}\mathrm{\;m}/{\mathrm{s}}^{2} \) \( \mathrm{K} = {1.5}\mathrm{\;m}/{\mathrm{s}}^{2} \) (PH1400E) | |
| \( {1.73}\mathrm{\;m}/{\mathrm{s}}^{2} \) \( \mathrm{K} = {1.5}\mathrm{\;m}/{\mathrm{s}}^{2} \) (PH1420E) | ||
| \( {2.1}\mathrm{\;m}/{\mathrm{s}}^{2} \) \( \mathrm{K} = {1.5}\mathrm{\;m}/{\mathrm{s}}^{2} \) (PHX1600) |
The above parameters are tested and measured equipped with power head PH1400E/PH1420E/ PHX1600.
The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;
The declared vibration total value may also be used in a preliminary assessment of exposure.
NOTICE: The vibration emission during actual use of the power tool can differ from the declared value in which the tool is used; In order to protect the operator, user should wear gloves and ear protectors in the actual conditions of use.
PACKING LIST(FIG. A)
DESCRIPTION
KNOW YOUR SNOW SHOVEL ATTACHMENT (Fig. A)
1.Deflector Adjust Knob
2. Shaft
3. Sealing Screw
4. Deck
5. Deflector
6. Scaper Bar
7. Auger
8. Auger Shaft
9. Hex Wrench
10. End Cap
ASSEMBLY
WARNING: If any parts are damaged or missing, do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.
WARNING: Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.
WARNING: To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the machine when assembling parts.
UNPACKING
Inspect the tool carefully to make sure that no breakage or damage occurred during shipping.
- Do not discard the packing material until you have carefully inspected and satisfactorily operated the tool.
CONNECTING THE SNOW SHOVEL ATTACHMENT TO THE POWER HEAD
This snow shovel attachment is designed for the use with EGO Power Head PH1400E/PH1420E/PHX1600.
See "INSTALLING AN ATTACHMENT TO THE POWER HEAD" section in the power head PH1400E/PH1420E/ PHX1600 operator's manual.
REMOVING THE ATTACHMENT FROM THE POWER HEAD
See "REMOVING THE ATTACHMENT FROM THE POWER HEAD" section in the power head PH1400E/PH1420E/ PHX1600 operator's manual.
OPERATION
WARNING: Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.
WARNING: Always ware safety goggles or safety glasses with side shields and a full face shield when operating this product. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.
APPLICATIONS
You may use this product for the purpose listed below:
- Cleaning small areas and light working conditions such as courtyards, walkways, and garages.
USING THE SNOW SHOVEL ATTACHMENT WITH POWER HEAD
WARNING: Never use snow shovel attachment on frozen lakes, rivers or similar surfaces. Death or serious injury could occur if the ice breaks.
WARNING: Never use the snow shovel attachment on a rooftop or other unstable surface, which can result in death or serious injury.
WARNING: Do not use the snow shovel attachment on ice, which can cause the operator to slip and fall, resulting in possibly serious personal injury.
WARNING: Do not wear loose clothing, scarves, or jewelry. They can be caught in moving parts and cause death or serious personal injury.
WARNING: Never point the snow shovel attachment in the direction of people or pets. Thrown snow or other objects can cause serious personal injury.
WARNING: Make sure that the area to be cleared is free of stones, sticks, wires, gravel, and other objects that could be accidentally thrown by the snow shovel attachment in any direction and cause serious personal injury to the operator and others.
When using the snow shovel attachment, hold the tool with a firm grip with both hands while in operation (Fig. C).
Take notice of the direction of the wind before beginning. When possible, discharge snow in the same direction as the wind to prevent snow from being thrown back into your face.
Some parts of the snow shovel attachment can freeze under extreme weather conditions. Do not attempt to operate the tool with frozen parts.
If the tool contacts with any type of obstruction during operation, stop it and remove the battery pack. Check the tool carefully before using.
If the snow is too thick and deeper than the clearing depth, it may take more than one pass to clear.
When finished, let the tool run for a few minutes to allow all snow to clear the auger before storing.
EN
EN
TO START/STOP THE TOOL
See "STARTING/STOPPING THE POWER HEAD" section in the power head PH1400E/PH1420E/PHX1600 operator's manual.
DEFLECTOR ADJUST KNOB (Fig. D)
The discharge direction of this snow shovel attachment can be changed by rotating the deflector adjust knob left, forward, or right.
The maximum adjusting range of the knob is 60^ (30^ to the left or right).
The knob will be locked when it is in the leftmost or rightmost position. Press the knob and rotate it in reverse to unlock it.
D-1 Lock Indicator
D-2 Deflector Adjust Knob
MAINTENANCE
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.
WARNING: When cleaning the snow shovel attachment, DO NOT immerse it in water or other liquids.
MOUNTING AND DETACHING THE SCRAPER BAR
- Remove the battery pack from the power head.
- Lay the snow shovel attachment on its side or any other convenient position for scraper bar service.
- Remove the four screws in the front of the scraper bar, as well as the two screws at both ends. Use a screwdriver (not included) to unscrew them (Fig. E & F).
E-1 Scaper Bar
- Replace the worn scraper bar with a new one, if necessary.
- To reassemble, insert a new scraper bar, with the six holes aligned, insert the six screws into the holes and secure them with a screwdriver (not included).
The transmission gears in the gear case need be lubricated periodically with gear grease. Check the gear case grease level about every 50 hours of operation by removing the sealing
screw on the side of the case.
If no grease can be seen on the sides of the gear, follow the steps below to fill with gear grease up to 3/4 capacity.
Do not completely fill the transmission gear case.
- Position the attachment upright so that the sealing screw is facing upwards (Fig. G).
G-1 Gear Case
G-2 $ealing Screw
- Use the multi-function wrench provided to loosen and remove the sealing screw.
- Use a grease syringe (not included) to inject some grease into the screw hole; do not exceed 3/4 capacity.
- Tighten the sealing screw after injection.
TRANSPORTING AND STORING
Remove the battery pack from the tool.
Clean the tool thoroughly before storing it.
Store the tool in a dry, well-ventilated area, locked-up or up high, out of the reach of children. Do not store the tool on or adjacent to fertilizers, gasoline, or other chemicals.
Protecting the environment
Do not dispose of electrical equipment, used battery and charger into household waste! Take this product to an authorized recycler and make it available for separate collection. Electric machines must be returned to an environmentally compatible recycling facility.
TROUBLESHOOTING
EN
| PROBLEM CAUSE | SOLUTION | |
| The snow shovel fails to start. | ■ Depleted battery pack ■ The lock-off button or trigger switch was not used properly. ■ The battery is not fully inserted into the housing. | ■ Charge the battery. ■ Follow section “STARTING/STOPPING THE POWER HEAD the manual for PH1400E/PH1420E/PHX1600. ■ Check if the battery is fully inserted into the housing. |
| The machine is obviously damaged. | ■ Abnormal damage during transportation or use. | ■ Do not continue to use, send it to the designated repair center for repair. |
| The snow shovel leaves a thin layer. | ■ The scraper bar is worn. | ■ Replace the scraper bar. |
| Unexpected shut-down at work | ■ Overloaded machine ■ The battery pack or the machine is overheated. | ■ Reduce machine load intensity. ■ Cool down the battery pack or tool before working. |
WARRANTY
EGO WARRANTY POLICY
Please visit the website egopowerplus.eu for full terms and conditions of the EGO Warranty policy.
LISTA DE PEÇAS (IMAGEM A)
DESCRÊÇÄO
Protecting the environment
KEN UW SNEEUWSCHUIVERBEVESTIGING (afb. A)
1.Deflector instelknop
2. As
3. Afdichtschoef
4. Dek
5. Deflector
6. Schraapbalk
7.Boor
8. Boorschacht
9. Binnenzenskantsleutel
10. Eindhoven
