Product type	Wired gaming mouse
Brand	Trust
Model	Ybar GXT 922W
Connection	Wired USB
Number of buttons	6 programmable buttons
Scroll wheel	Yes, middle click
Adjustable DPI	Yes, via software (multiple levels)
LED lighting	Customizable RGB, color per DPI level
Macros	Up to 112 actions per macro
Profiles	4 customizable profiles
Configuration software	Trust GXT 922 Gaming Mouse (download at trust.com/24309/driver)
Compatible operating systems	Windows (not specified, but Windows driver)
Power supply	Via USB port
Maintenance and cleaning	Clean with a soft, dry cloth
Safety	Do not expose to water or moisture
Repairability	Software updated via Trust website; no spare parts provided
General information	Manual available in multiple languages at notice-facile.com

Frequently Asked Questions - Ybar GXT 922W TRUST

How to install the Trust GXT 922 mouse software?

Go to www.trust.com/24309/driver, download the EXE file and run it. Follow the installation wizard. Then launch the software via the 'TRUST GXT 922 Gaming Mouse' shortcut.

How to reassign the mouse buttons?

In the software, click on the button you want to modify, then choose the desired function. Validate by clicking 'Save'. At least one button must remain as 'Left Click'.

How to adjust the DPI levels?

Go to the 'DPI' tab, check or uncheck the desired levels, adjust each level with the slider, and assign an LED color per level. Click 'Save' to apply.

How to change the LED lighting?

In the 'LED' tab, select the lighting mode, adjust the animation speed and wave direction. Save with 'Save'.

How to create and use a macro?

Click on 'Macro Editor', then 'New macro'. Set the delay and repetitions. Record your key sequence (max 112 actions). Then assign the macro to a button via step 3.

How to save or load a profile?

Select one of the 4 profiles, then click 'Export' to save the configuration. To load, click 'Import' and choose the file. Validate with 'Save'.

How to restore default settings?

Click 'RESET' in the software, then 'Save' to restore the factory settings of the current profile.

The software does not start, what to do?

Check that the mouse is properly connected to a USB port. If the problem persists, consult the help at www.trust.com/24309/faq or contact technical support.

How to adjust the scroll speed or double-click?

Go to the 'DPI' tab (Mouse Parameter), then adjust the sliders for acceleration, pointer speed, scroll speed, or double-click speed. Click 'Save'.

Where to find the full mouse manual?

The manual is available for free in PDF format at notice-facile.com for the Trust Ybar GXT 922W model. You can also download the software and manual at www.trust.com/24309/driver.

USER MANUAL Ybar GXT 922W TRUST

Trust www.trust.com/24309/faq CXT CXT YBAR | PC Laptop RGB

www.trust.com/24309/faq

GXT

Trust

YBAR

PC Laptop RGB

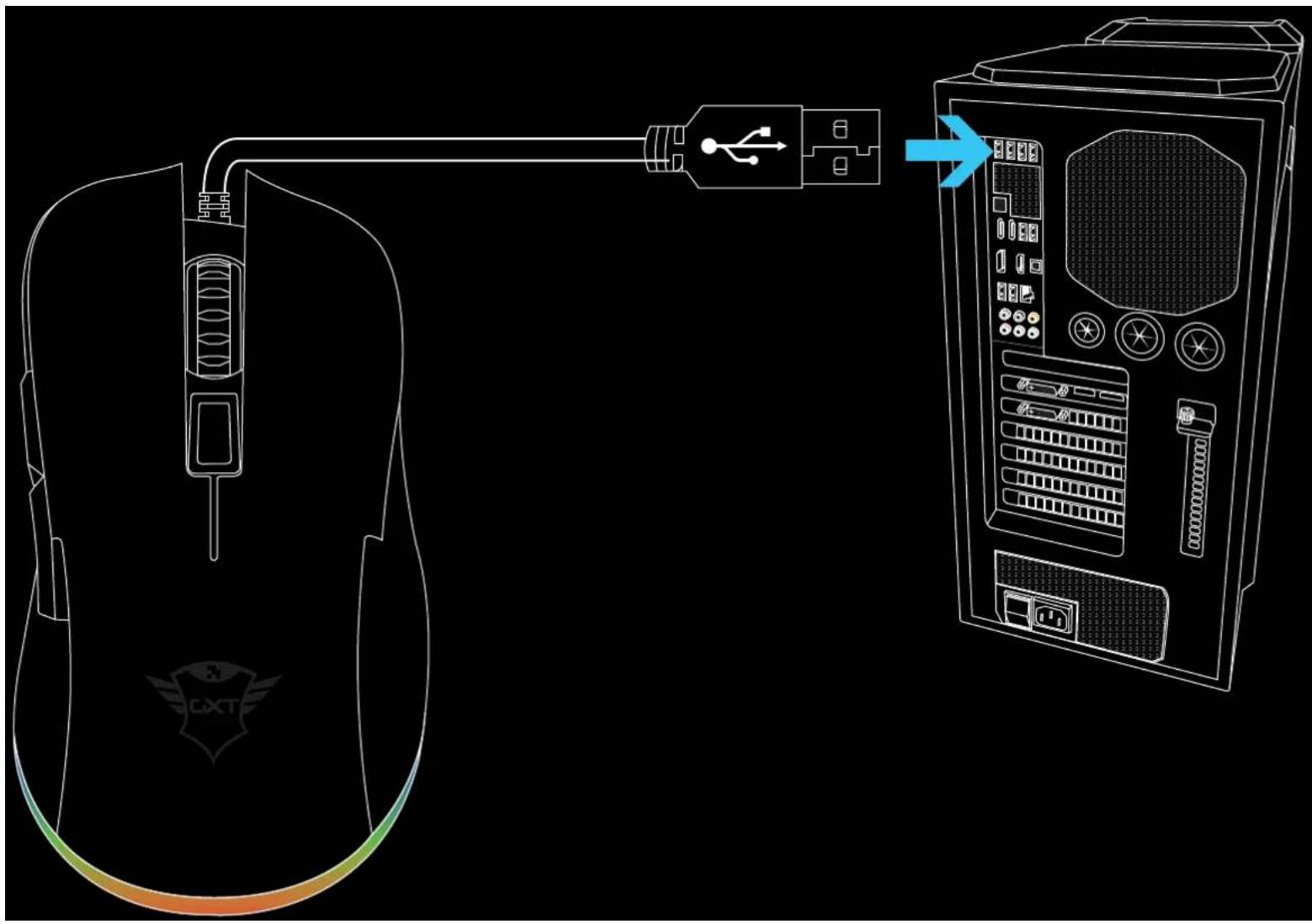

Diagram showing connection between a computer mouse and a server with USB port, highlighting the process to transfer or export.

a b c d e f

SUPPORT DOWNLOAD MANUALS PRODUCT INFORMATION SOFTWARE Select type Select your language Select your operating system (OS) USB MANUAL BISESH Text. Not About Version: 1.0 DOWNLOAD POP (18.51 MB) DOWNLOAD POP WINDOWS 31 (44-BIT) WINDOWS 16 WINDOWS 8 (44-BIT) WINDOWS 8 WINDOWS 7 (44-BIT) WINDOWS 7 DOWNLOAD LRL (R KB) 24309_01.exe C Trust GXT 922 Gaming Mouse 2x Restore Apply

0° 32 In Time View OK OK Value Sensitivity 2.71 Sound Speed 2.49 Noise Speed 0.75 Sine Speed 2.71 DIF-0.02 0% 120 200 265 485 720 C

Volume Sensing 2/11 Sound Speed 2/10" Sound Speed Speed 2/10 F Dining Rate 25% 40% 50% 60% Diff. Level 0 120 290 320 430 720 d e

Muzzle Click Right Line Profile: Profile 1 Import: Export Reset

Add Save Finish End

C D

Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save Save

Index

Language	Page
'nglish	2
'deutsch	1
'rançais	1
'taliano	1
'español	4
'ortuguês	7
'lederlands	0
'Dansk	3
'iuomi	6
'lorsk	9
'venska	2
'olski	5
'esky	8
'lovenčina	1
'agyar	4
'omână	7
'ýlгарски	0
'ycский	3
'ělληνικά	6
'Türkçe	9
'írvatski	2
'lovenski	5
'rasileiro	8
'україна	1

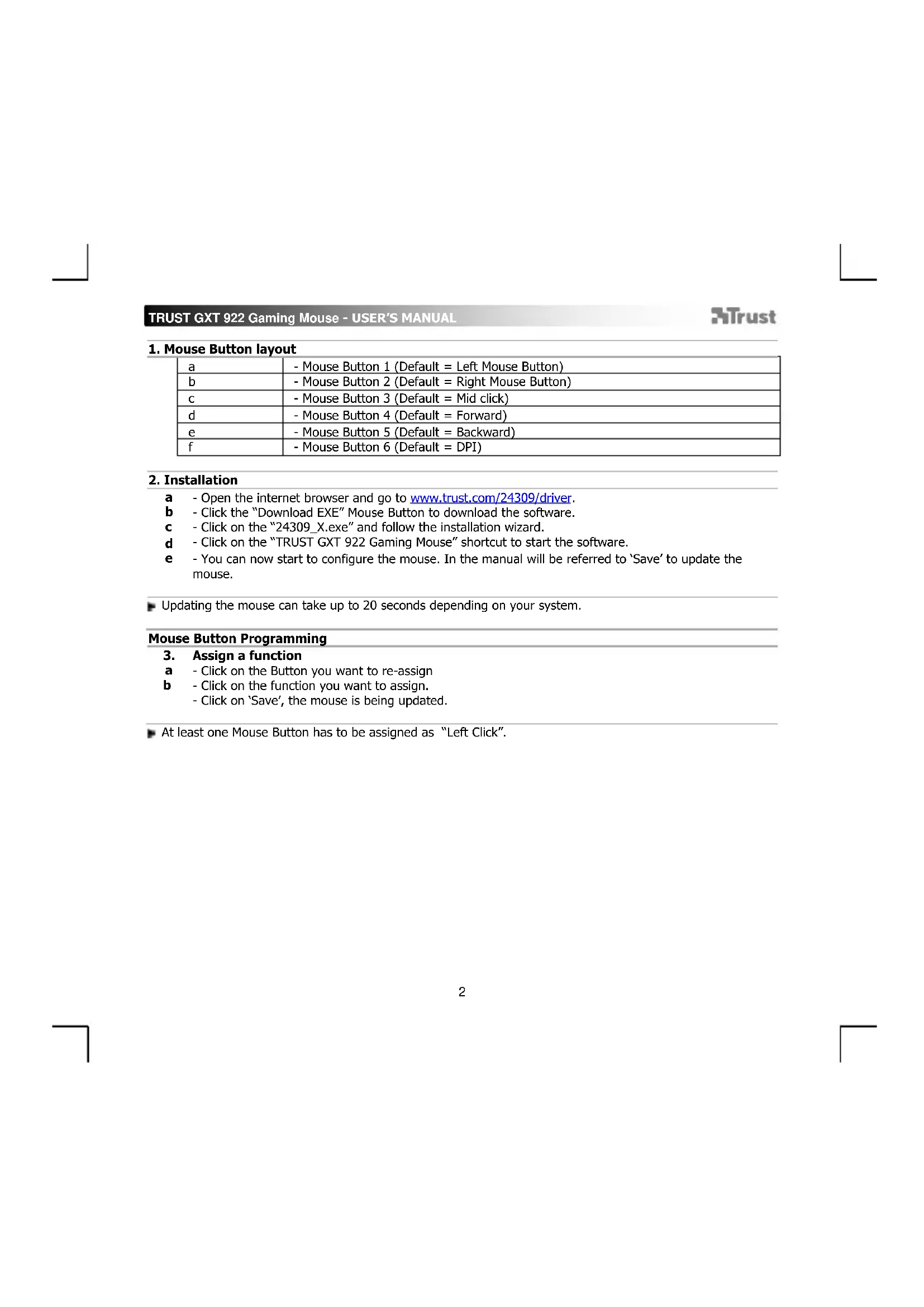

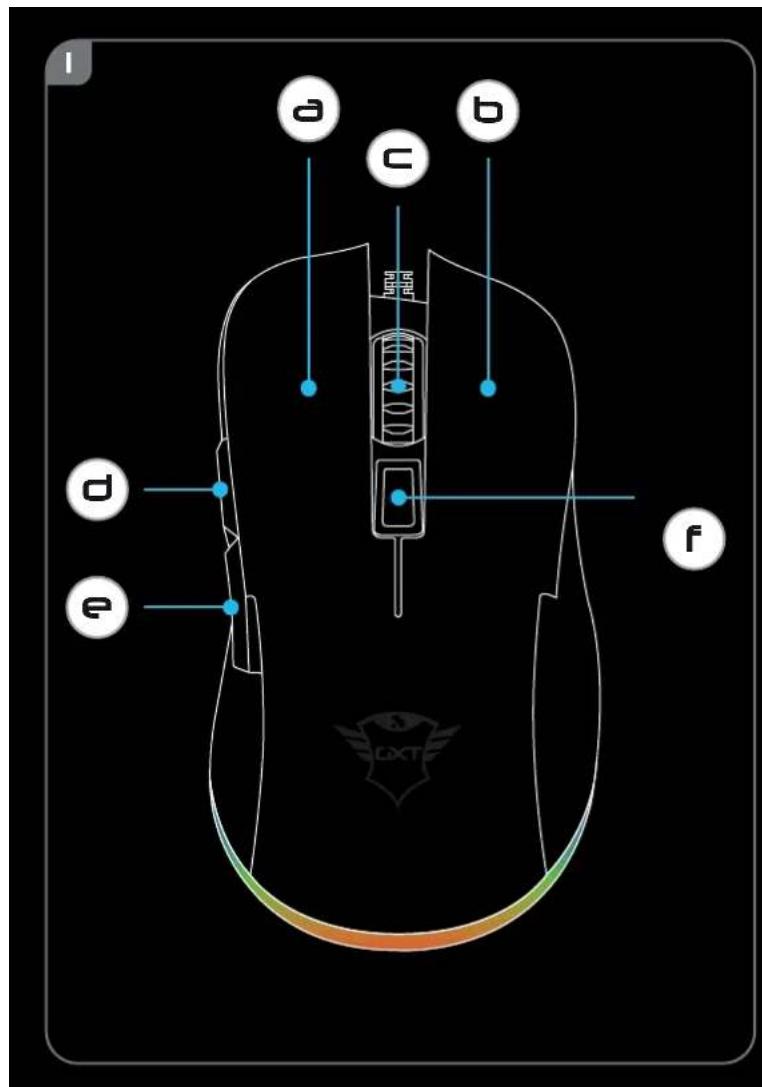

1. Mouse Button layout

a	- Mouse Button 1 (Default = Left Mouse Button)
b	- Mouse Button 2 (Default = Right Mouse Button)
c	- Mouse Button 3 (Default = Mid click)
d	- Mouse Button 4 (Default = Forward)
e	- Mouse Button 5 (Default = Backward)
f	- Mouse Button 6 (Default = DPI)

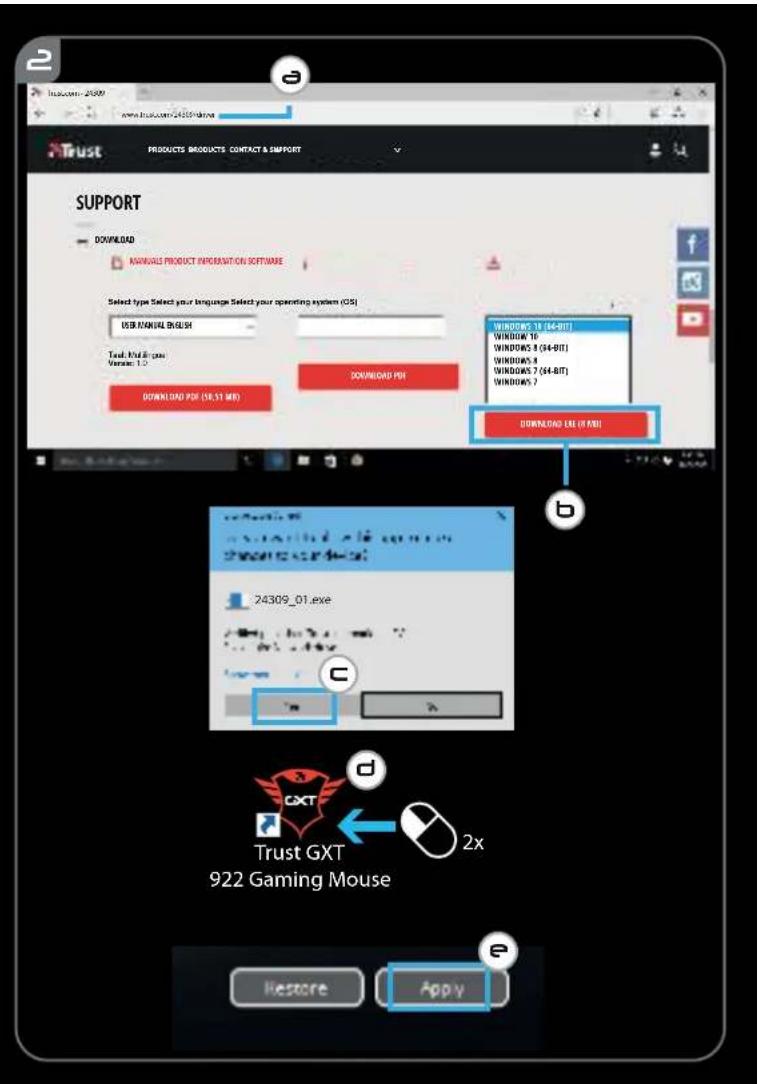

2. Installation

a - Open the internet browser and go to www.trust.com/24309/driver.
b - Click the "Download EXE" Mouse Button to download the software.
c - Click on the "24309_X.exe" and follow the installation wizard.
d - Click on the "TRUST GXT 922 Gaming Mouse" shortcut to start the software.
e - You can now start to configure the mouse. In the manual will be referred to 'Save' to update the mouse.

▶ Updating the mouse can take up to 20 seconds depending on your system.

Mouse Button Programming

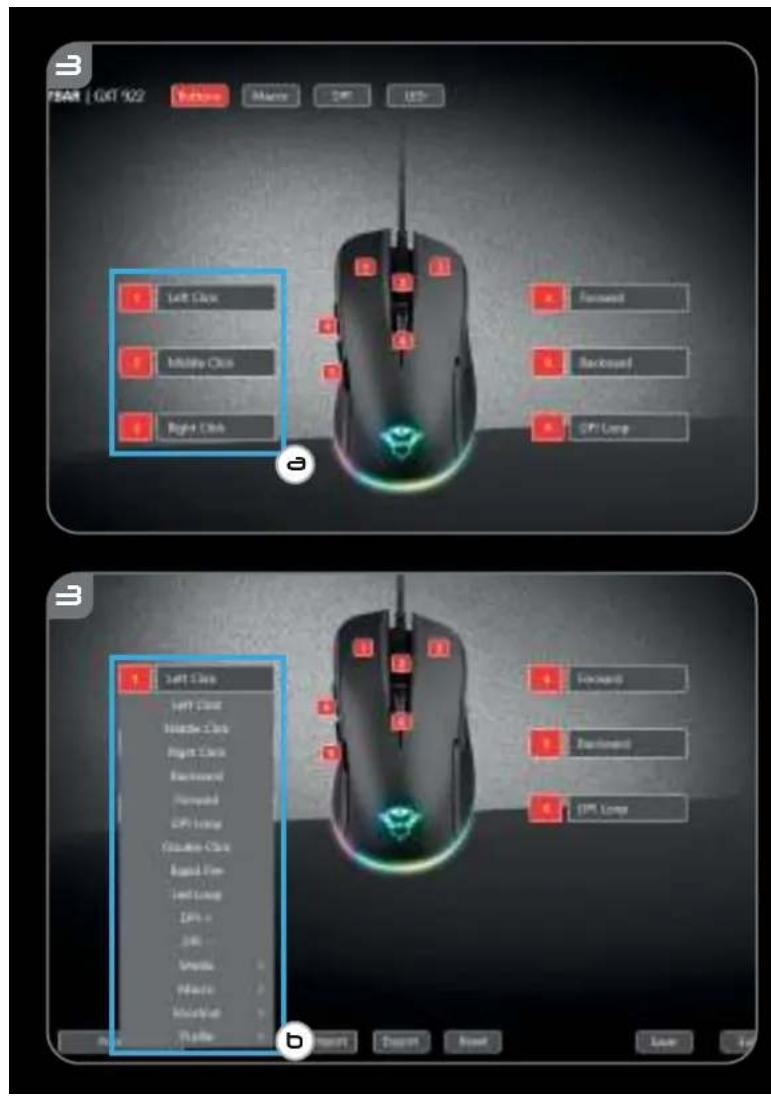

3. Assign a function

a - Click on the Button you want to re-assign
b - Click on the function you want to assign.
- Click on 'Save', the mouse is being updated.

At least one Mouse Button has to be assigned as "Left Click".

Report rate & DPI settings

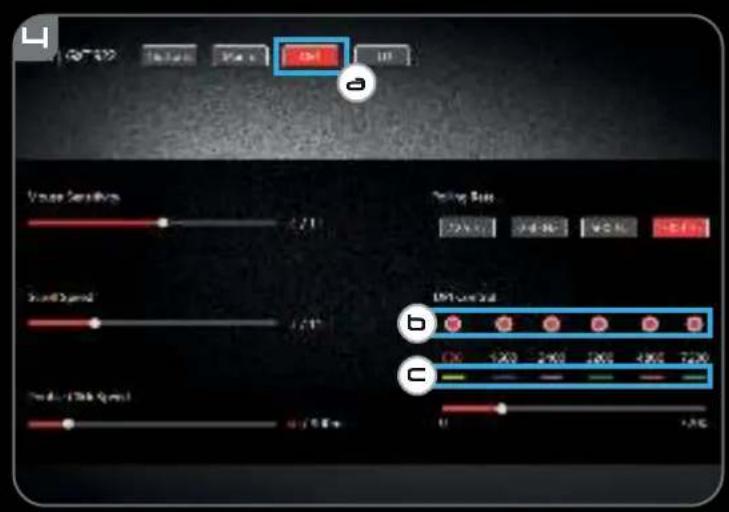

4. DPI setting

a - Click on the 'DPI' tab.
b - Click on the checkbox next to the DPI number to enable or disable this DPI level.
c - Choose a LED color for each DPI setting.

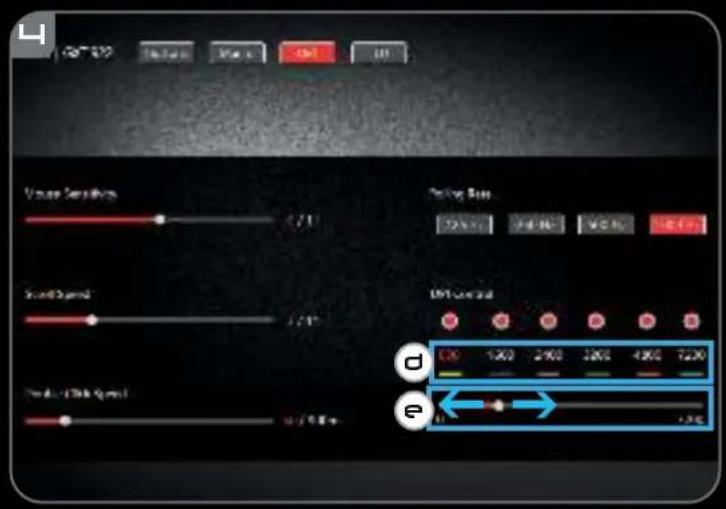

d - Click on the 'DPI' button.
e - Change the DPI level by dragging the respective bar.
- Click on 'Save', the mouse is being updated.

Light Settings

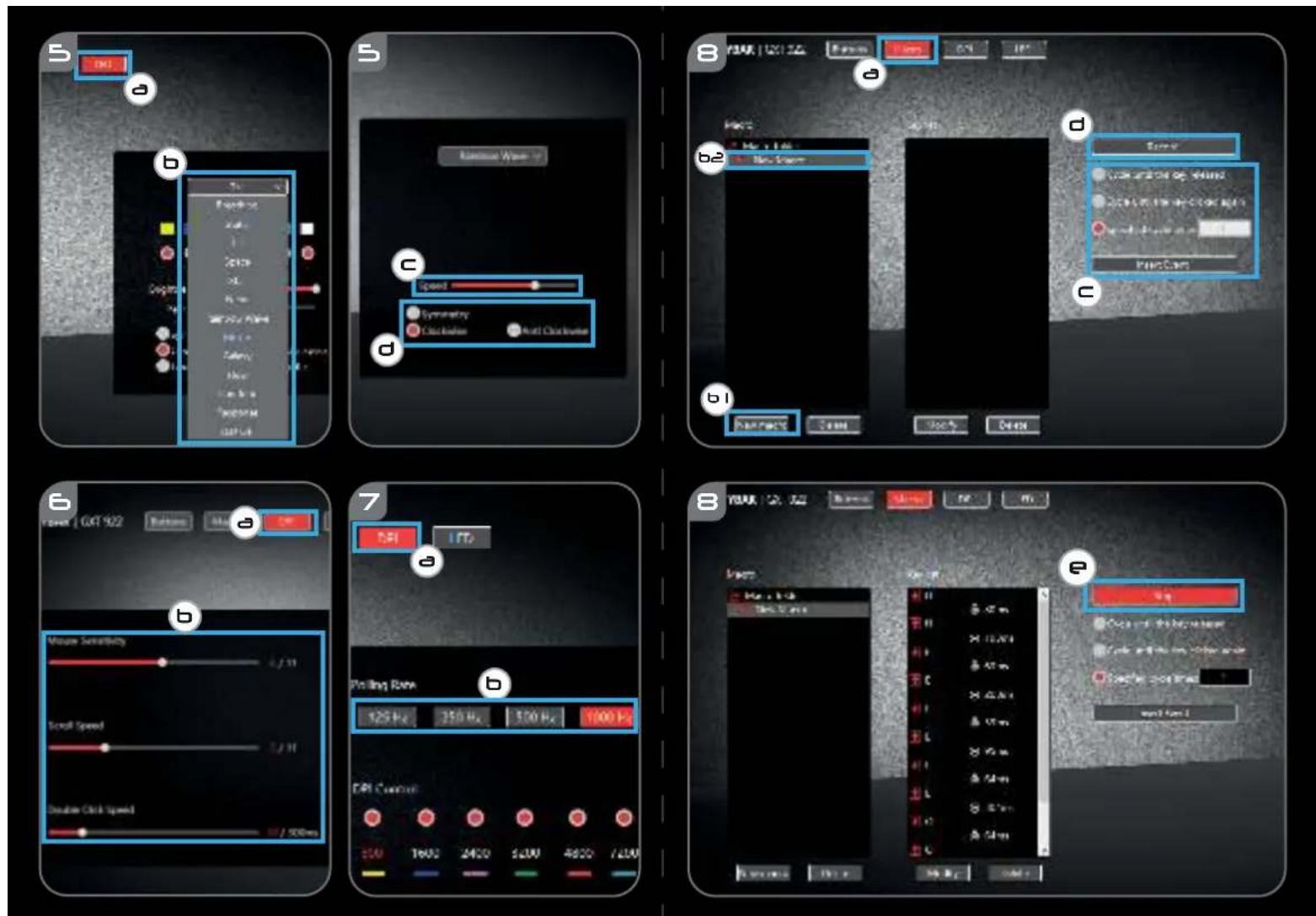

5. Change the Lighting

a - Click on the 'LED' tab.
b - Change the light mode.
c - Change the animation speed.
d - Change the direction.
- Click on 'Save', the mouse is being updated.

Other settings

6. Mouse Parameter

a - Click on the 'DPI' tab.
b - Change the Windows acceleration, Windows pointer speed, Windows scroll speed or Windows doubleclick speed by dragging the respective cursor.
- Click on 'Save', the mouse is being updated.

7. Polling Rate

a - Click on the 'DPI" tab.
b - Change the Polling rate by clicking on the respective frequency.
- Click on 'Save', the mouse is being updated.

Macro Settings

1. Create a Macro (Store a sequence of keys in the software)

a - Click on the 'Macro Editor' button.

b - Click on 'New macro' to create a new macro.

c - Set the delay time between each action and/or the loop/repeat setting.

d - Click 'Record' to Recording the macro. Now enter your preferred macro sequence.

e - Click 'Stop' to Stopping the macro. (max. 112 actions)

- The created macro is now available under the 'Macro' function.

To assign a macro follow step 3 of this manual.

Profile Settings

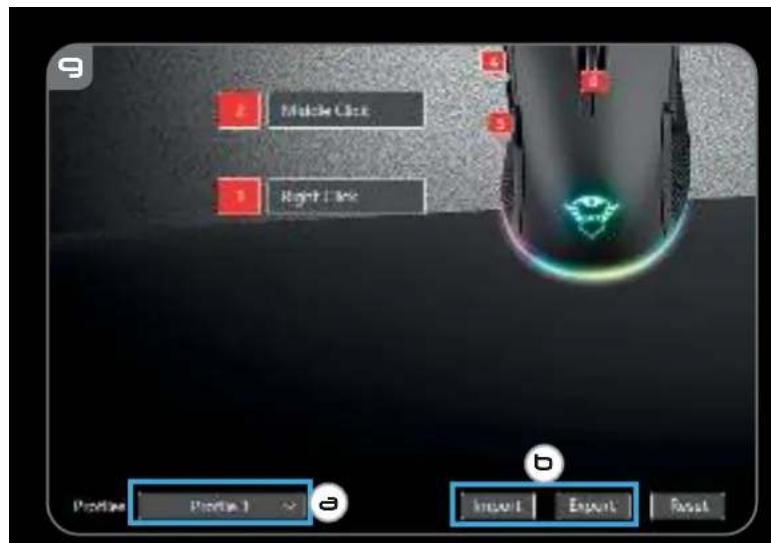

1. Select, Save or Load a profile

a - Select one of the 4 profiles by clicking on the preferred profile.
b - Click on 'Export' to save a setup, Click on 'Import' to load a setup.

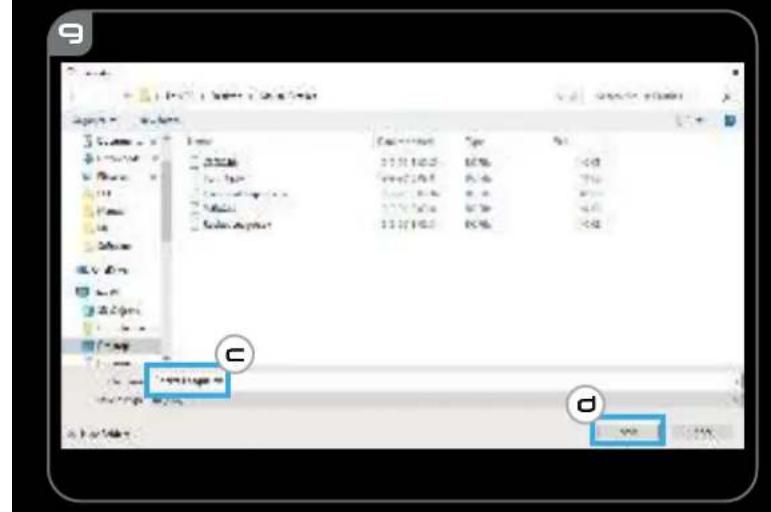

c - Enter a name for the mouse setup you want to save, or choose the preferred profile to load.
d - Click on 'Save' to save the setup, click on 'Open' to load the setup.
- Click on 'Save' → Your mouse setup is now saved or updated to your mouse.

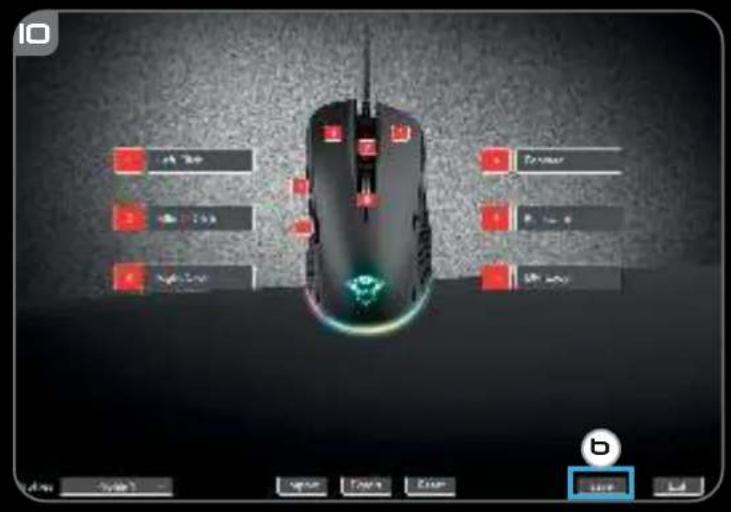

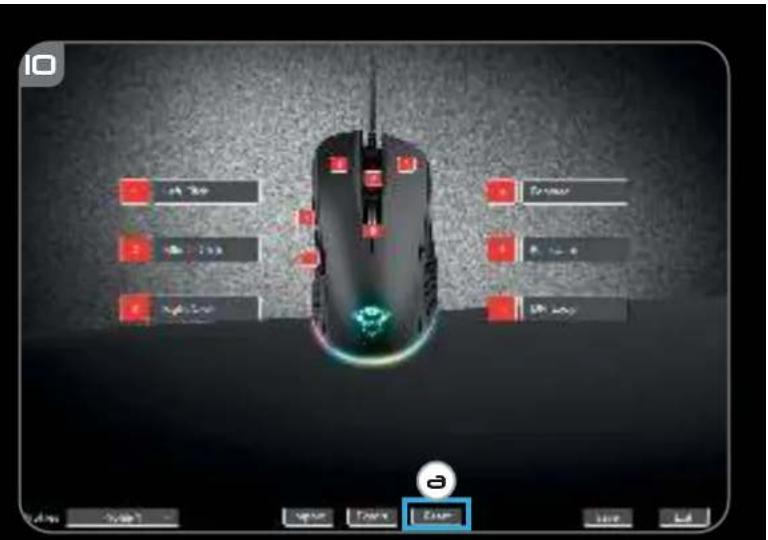

1. Reset default settings

a - Click on 'RESET' to reset the current profile to factory default.

b - Click on 'Save' to reset the current profile to factory default.

Trouble shooting

Problem

Solution

The software is not starting.

- Make sure the TRUST GXT 922 mouse is connected and try to start the software again.

If your problem is not solved, please contact the help desk at www.trust.com/24309/faq.

TRUST GXT 922 Gaming Mouse - USER'S MANUAL

www.trust.com/24309/faq.

TRUST GXT 922 Gaming Mouse - USER'S MANUAL

1. Knap-layout

a	- Knap 1 (Standard = Venstre museknap)
b	- Knap 2 (Standard = Højre museknap)
c	- Knap 3 (Standard = Midterknap)
d	- Knap 4 (Standard = Fremad)
e	- Knap 5 (Standard = Tilbage)
f	- Knap 6 (Standard = DPI)

2. Installation

Report rate & DPI settings

4. DPI-innstilling
