Product type	Reversible plate compactor
Brand	Lescha / BELLE
Model	RPC 4560
Petrol engine (Honda GX270)	9 hp (6.7 kW) at 3600 rpm
Diesel engine (Hatz 1B30)	6.3 hp (4.7 kW) at 3000 rpm
Weight (petrol version)	275 kg
Weight (diesel version)	291 kg
Weight (diesel electric start)	303 kg
Dimensions (L × W × H)	1275 × 450 × 600 mm (approximate)
Centrifugal force	45 kN
Vibration frequency	70 Hz
Max travel speed	>24 m/min
Noise level	108 dB(A)
Fuel tank capacity (petrol)	3.6 L
Engine oil capacity (petrol)	0.6 L
Engine oil capacity (diesel)	0.9 L
Gearbox oil capacity	0.6 L (SAE 75W-90)
Hydraulic circuit oil capacity	0.2 L (Shell Tellus 32 or Fuchs Renolin MR520)
Spark plug type (petrol)	BM6ES or BPR6ES, gap 0.6-0.7 mm
Fuel type	Unleaded petrol or diesel (depending on version)
Main functions	Soil compaction, reversible forward/reverse travel, centrifugal clutch
Safety	Emergency stop, belt guard, automatic return to forward if released
Routine maintenance	Engine oil change every 50 h, belt inspection every 8 h, air filter cleaning
Warranty	12 months for material or manufacturing defects

Frequently Asked Questions - BELLE RPC 4560 Lescha

How to start the BELLE RPC 4560 plate compactor?

For the Honda petrol engine: open the fuel valve, set the choke if cold, turn the key to I, then pull the starter handle. For the Hatz diesel engine: open the fuel supply, adjust the speed, then pull the starter. For electric start: insert the key, turn to position II, release as soon as the engine runs.

What is the fuel tank capacity?

The petrol tank has a capacity of 3.6 litres. Use unleaded petrol.

How to stop the plate compactor safely?

Move the control handle to stop position. For the petrol engine, turn the key to O. For the diesel engine, press the red stop button until complete stop. Then close the fuel supply.

What type of oil to use for the engine and gearbox?

For the petrol engine: SAE 10W30 (0.6 L). For the diesel engine: SAE 10W30 (0.9 L). Gearbox: SAE 75W-90 (0.6 L). Hydraulic circuit: Shell Tellus 32 or Fuchs Renolin MR520 (0.2 L).

What safety precautions should be taken during use?

Always wear protective equipment: safety glasses, gloves, ear protection, dust mask, and steel-toe boots. Never work in an enclosed area due to toxic exhaust fumes. Use a safety cord around the work area. Do not leave the engine running unattended.

How to check and adjust belt tension?

Remove the protective cover. Press at the center of the belt between the two pulleys; it should deflect 10 to 15 mm. To adjust, loosen the tension device screws, slide it to the right, then retighten. Recheck the tension.

What to do if the engine won't start?

First check the fuel level and open the fuel valve. If the engine is cold, use the choke. Clean the spark plugs if fouled. For a Hatz engine, move the speed control to stop position and pull the starter 5 times before repeating the procedure. If nothing works, contact your dealer.

What is the hydraulic system bleed procedure?

Place the machine on level ground. Remove the filler cap and fill the pump head to max level. Slowly pump the handle in reverse until the level drops, then repeat. Continue until you feel resistance and the handle locks in reverse. Refill to max level and tighten the cap.

How to lift the plate compactor safely?

Use lifting equipment suitable for the weight (275 to 303 kg depending on version). Attach chains or straps only to the lifting ring located above the plate. Never lift the machine alone.

Where to find spare parts for the BELLE RPC 4560?

Use only genuine BELLE parts. Contact your authorized Altrad Belle dealer or visit the official website. Common parts include the belt, air filter, spark plug, clutch, and hydraulic seals.

USER MANUAL BELLE RPC 4560 Lescha

Abstract white bird-like shape on gradient background (no text or symbols)

BELLE

RPC 45

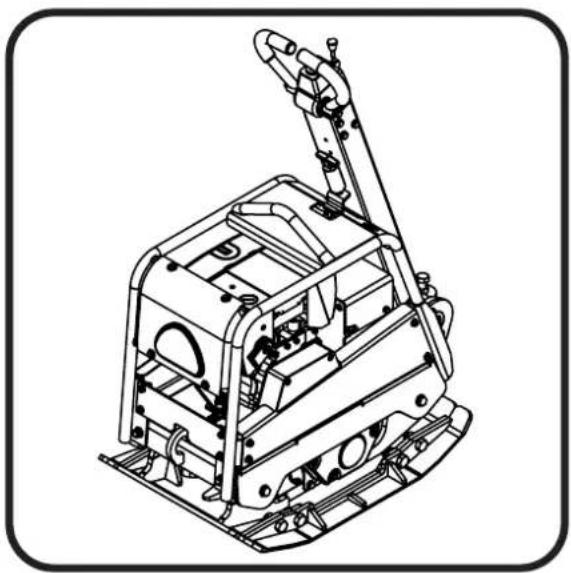

Technical line drawing of a mechanical device with frame and mounting bracket (no text or symbols)

• Spare Parts Book
• Pièces détachées
• Libro Despiece
• Lista de Peças
• Onderdelen Boekje
• Reservedele Skrift
• Ersatzteilhandbuch
• Manuale dei ricambi
• Bruksanvisning
• Bruksanvisning
• Varaosaluettelo
• Lista Części Zamiennych
• Запасные части Книга
• Varuosade nimekiri
• Rezerves daju saraksts
• Atsarginiu daliu sarašas
• Част Списък
• Část Barevný pruh
• Részek Oldalra dől
• Rezervni djelovi Knjiga

154

GB Operators Manual 6
US Operators Manual 13
F Manuel De L'Opérateur 20
E Manual del Operador 27
P Manual de Operação 34
NL Handleiding 41
DK Betjeningsvejledning 48
D Bedienungshandbuch 55
I Manuale Dell'Operatore 62
S Bruksanvisning 69
NO Betjene Håndbok 76
SF Käyttöohje 83
PL Instrukcja Obsługi 90
RUS Руководство для оператора 97
EST Kasutusjuhend 104
LV Lietotāja rokasgrāmata 111
LT Naudojimo Instrukcija 118
BG Оператор Ръчен 125
CZ Na'vod K Obzluze 132
HUN Kezelők Kézi 139
HR Uputstvo za rukovatelja 146

EC DECLARATION OF CONFORMITY / DECLARATION CE DE CONFORMITE / DECLARACIÓN DE CONFORMIDAD CE / DECLARAÇÃO CE DE CONFORMIDADE / EG-VERKLARING VAN OVEREENSTEMMING / EF OVERENSSTEMMELSESERKLAERING

We, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, hereby certify that if the product described within this certificate is bought from an authorised Belle Group dealer within the EEC, it conforms to the following EEC directives: 2006/42/CE (This directive replaces directive 98/37/EC), Electromagnetic Compatibility Directive 2004/108/CE (as amended by 89/336/EEC, 92/31/EEC & 93/68 EEC). The Waste Electrical and Electronic Equipment (WEEE) 2002/96/CE, the low voltage directive 2006/95/CE, BS EN ISO 12100-1:2003 Safety of machinery and associated harmonised standards, where applicable. Noise emissions conform to directives 2000/14/EC Annex VI & 2005/88/EC, for machines under article 12 the notified body is AV Technology Limited, AVTECH house, Birdhall Lane, Cheadle Heath, Stockport, Cheshire, SK3 0XU, GB. Noise Technical files are held by Ray Neilson at the Belle group Head Office address which is stated above.

PRODUCT TYPE .... TYPE DE PRODUIT.... TIPO DE PRODUCTO.....

MODEL...... MODELE...... MODELO......

SERIAL No..... N° DE SERIE..... N° DE SERIE.....

Empty white rectangle with dashed border (no text or symbols)

Signed by:

Signature:

Medido por:

Assinado por:

Getekend door:

Uunderskrevetaf:

D. Nath

Ray Neilson

Managing Director - On behalf of BELLE GROUP (SHEEN) UK.

Date of Declaration - 2003......

Empty white rectangle with dashed border (no text or symbols)

Unterzeichnet vo:

Firmato da:

Undertecknat:

Signatur:

Allekirjoitus:

Podpisat:

O.Nah

Ray Neilson

Empty white rectangle with dashed border (no text or symbols)

Подпись:

Alla kirjutanud:

Paraksts:

Pasiraše:

Подпис:

Υπογραφή:

O.Nah

Ray Neilson

Ray Neilson

Director General - in numele BELLE GROUP (SHEEN), UK

This manual has been written to help you operate and service the ‘RPC’ safely. This manual is intended for dealers and operators of the ‘RPC’.

Foreword

The ‘Machine Description’ section helps you to familiarise yourself with the machine’s layout and controls.

The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way.

The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the general public.

The 'Start and Stop Procedure' helps you with starting and stopping the machine.

The ‘Trouble Shooting Guide’ helps you if you have a problem with your machine.

The 'Service & Maintenance' section is to help you with the general maintenance and servicing of your machine.

The 'Warranty' Section details the nature of the warranty cover and the claims procedure.

The ‘Declaration of conformity’ section shows the standards that the machine has been built to.

Directives with regard to the notations.

Text in this manual to which special attention must be paid are shown in the following way:

CAUTION

The product can be at risk. The machine or yourself can be damaged or injured if procedures are not carried out in the correct way.

WARNING

The life of the operator can be at risk.

WARNING

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

KNOW how to safely use the unit's controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the machine off before you switch on, in case you get into difficulty.)

ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): [phone]

Contents

How To Use This Manual....6

Warning 6

Machine Description....7

Technical Data....7

Environment 7

Reasons For Compaction....7

General Safety 8

Health and Safety 8

Pre-Start Checks 8

Start and Stop Procedure....9

Operating Instructions....10

Trouble Shooting Guide .... 10

Service & Maintenance 11 - 12

Warranty 12

Declaration of conformity....2

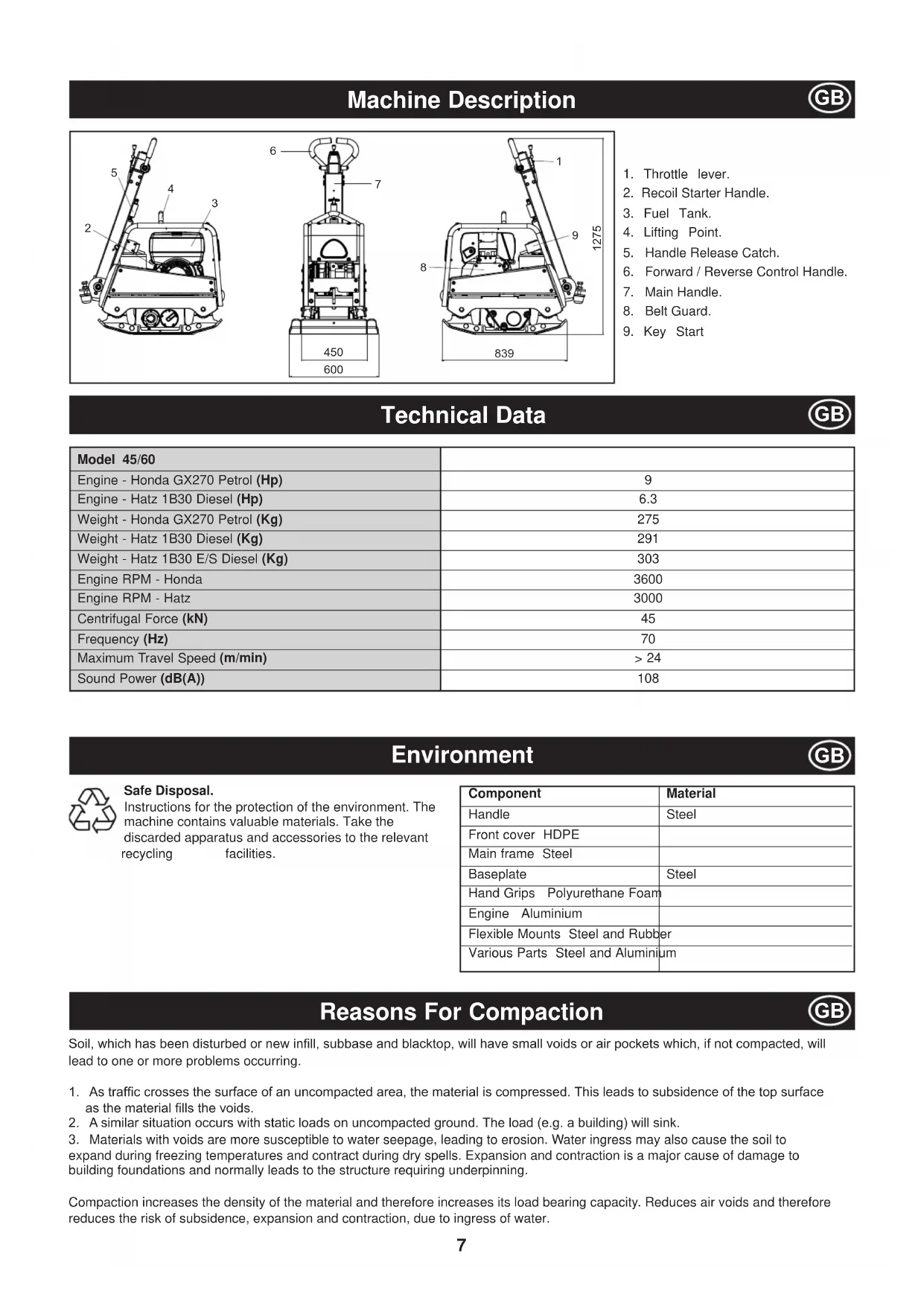

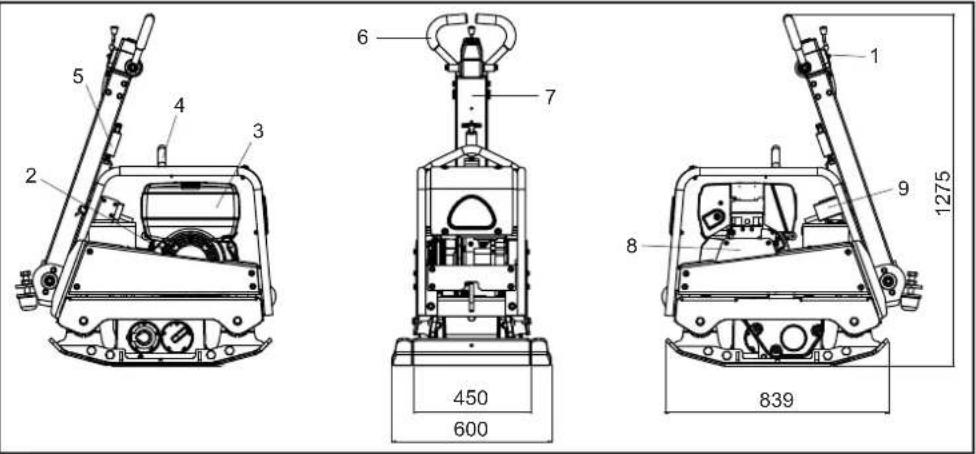

Machine Description

1. Throttle lever.
2. Recoil Starter Handle.
3. Fuel Tank.
4. Lifting Point.
5. Handle Release Catch.
6. Forward / Reverse Control Handle.
7. Main Handle.
8. Belt Guard.
9. Key Start

Technical Data

Model 45/60
Engine - Honda GX270 Petrol (Hp)	9
Engine - Hatz 1B30 Diesel (Hp)	6.3
Weight - Honda GX270 Petrol (Kg)	275
Weight - Hatz 1B30 Diesel (Kg)	291
Weight - Hatz 1B30 E/S Diesel (Kg)	303
Engine RPM - Honda	3600
Engine RPM - Hatz	3000
Centrifugal Force (kN)	45
Frequency (Hz)	70
Maximum Travel Speed (m/min)	>24
Sound Power (dB(A))	108

Environment

Safe Disposal.

Instructions for the protection of the environment. The machine contains valuable materials. Take the discarded apparatus and accessories to the relevant recycling facilities.

Component	Material
Handle	Steel
Front cover HDPE
Main frame Steel
Baseplate	Steel
Hand Grips Polyurethane Foam
Engine Aluminium
Flexible Mounts Steel and Rubber
Various Parts Steel and Aluminium

Reasons For Compaction

Soil, which has been disturbed or new infill, subbase and blacktop, will have small voids or air pockets which, if not compacted, will lead to one or more problems occurring.

1. As traffic crosses the surface of an uncompacted area, the material is compressed. This leads to subsidence of the top surface as the material fills the voids.
2. A similar situation occurs with static loads on uncompacted ground. The load (e.g. a building) will sink.
3. Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to building foundations and normally leads to the structure requiring underpinning.

Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore reduces the risk of subsidence, expansion and contraction, due to ingress of water.

For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the 'RPC', consult your supervisor or Altrad Belle.

CAUTION

Improper maintenance can be hazardous. Read and Understand this section before you perform any maintenance, service or repairs.

• This equipment is heavy and must not be lifted single-handedly, either GET HELP or use suitable lifting equipment.
• Cordon off the work area and keep members of the public and unauthorised personnel at a safe distance.
• Personal Protective Equipment (PPE) must be worn by the operator whenever this equipment is being used (see Health & Safety).
• Make sure you know how to safely switch this machine OFF before you switch it ON in case you get into difficulty.
• Always switch OFF the engine before transporting, moving it around the site or servicing it.
- During use the engine becomes very hot, allow the engine to cool before touching it. Never leave the engine running and unattended.
- Never remove or tamper with any guards fitted, they are there for your protection. Always check guards for condition and security, if any are damaged or missing, DO NOT USE THE COMPACTOR until the guard has been replaced or repaired.
- Do not operate the Compactor when you are ill, feeling tired, or when under the influence of alcohol or drugs.

CAUTION

Fuel is flammable. It may cause injury and property damage. Shut down the engine, extinguish all open flames and do not smoke while filling the fuel tank. Always wipe up any spilled fuel.

Fuel Safety.

• Before refuelling, switch off the engine and allow it to cool.
- When refuelling, DO NOT smoke or allow naked flames in the area.
- Spilt fuel must be made safe immediately, using sand. If fuel is spilt on your clothes, change them.
- Store fuel in an approved, purpose made container away from heat and ignition sources.

Health & Safety

Vibration

Some vibration from the compaction operation is transmitted through the handle to the operator's hands. The Altrad Belle RPC range has been specifically designed to reduce hand/arm vibration levels. Refer to specifications & technical data for vibration levels and usage times (recommended maximum daily exposure time). DO NOT exceed the maximum usage times.

PPE (Personal Protective Equipment)

Suitable PPE must be worn when using this equipment i.e. Safety Goggles, Gloves, Ear Defenders, Dust Mask and Steel Toe capped footwear. Wear clothing suitable for the work you are doing. Tie back long hair and remove any jewellery which may catch in the equipment's moving parts. Always protect skin from contact with concrete.

Dust

The compacting process will occasionally produce dust, which may be hazardous to your health. Always wear a mask that is suited to the type of dust being produced.

Fuel

Do not ingest fuel or inhale fuel vapours and avoid contact with your skin. Wash fuel splashes immediately. If you get fuel in your eyes, irrigate with copious amounts of water and seek medical attention as soon as possible.

Exhaust Fumes

Do not operate the compactor indoors or in a confined space, make sure the work area is adequately ventilated.

WARNING

The exhaust fumes produced by this equipment are highly toxic and can kill!

Pre-Start Checks

Pre start-up inspection

The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use, whichever is first. Please refer to the service section for detailed guidance. If any fault is discovered, the compactor must not be used until the fault is rectified.

1. Thoroughly inspect the compactor for signs of damage. Check components are present and secure. Pay special attention to the belt guard.
2. Check the engine oil and hydraulic oil level and top up as necessary.
3. Check the engine fuel level and top up as necessary.
4. Check for fuel, oil and hydraulic leaks.

Start And Stop Procedure

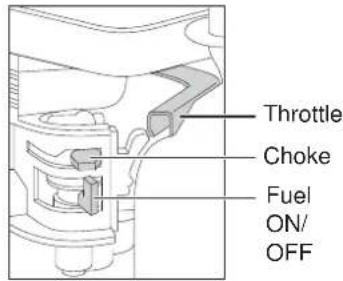

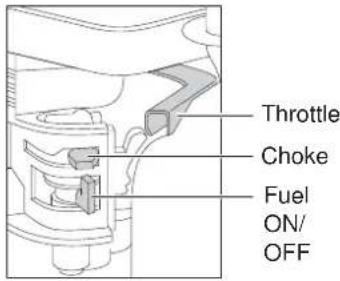

Honda Petrol Engine

1. Open the fuel tap by moving the fuel ON / OFF lever fully to the right.

2. If starting the engine from cold, set the choke ON by moving the choke lever fully to the left. If restarting a warm engine, the choke is usually not required, however, if the engine has cooled to a degree, partial choke may be required.

3. Turn the engine ON / OFF switch clockwise to the 'I' position.

4. Set the throttle to the idle position by moving the throttle lever fully to the right. Do not start the engine on full throttle, as the compactor will vibrate as soon as the engine starts.

5. Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with the other. Pull the recoil starter until engine resistance is felt, then let starter return.

6. Taking care not to pull the starter's rope fully out, pull the starter handle briskly.

7. Repeat until the engine fires.

8. Once the engine fires gradually set the choke lever to the OFF position by moving it to the right.

9. If the engine fails to fire after several attempts, follow the troubleshooting guide.

10. To stop the engine, set the throttle to idle and turn the engine ON / OFF switch anticlockwise to the '0' position.

11. Turn the fuel off.

Throttle Choke Fuel ON/ OFF

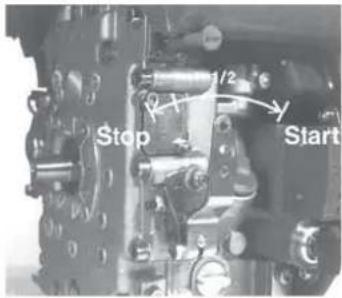

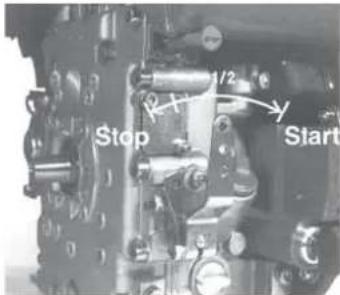

Hatz Diesel Engine

1. Turn ON the fuel by moving the fuel ON/OFF lever fully to the right.
2. Set the engine speed control to start.

3. Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with the other. Pull the handle until engine resistance is felt, then let the starter return.

4. Taking care not to pull the starter's rope fully out, pull the starter handle briskly with both hands.

5. Repeat this procedure until the engine fires.

6. If the engine fails to start after several attempts, Follow the troubleshooting guide.

7. To stop the engine, set the throttle control to idle, then press and hold the red stop button until the engine stops.

Stop 1/2 Start

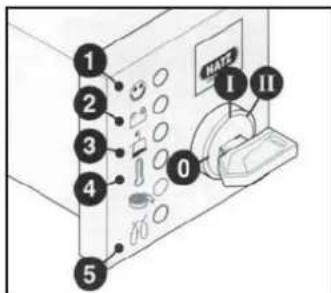

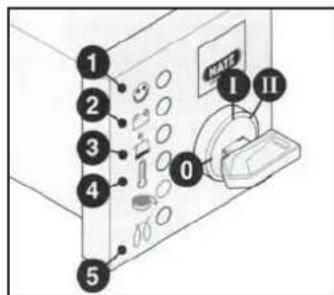

Hatz Diesel Engine (Electric Start)

1. With the decompression lever in position '0', insert the key and turn to position 'I' (Battery charge and oil pressure warning lights but light up)
2. Turn start key to position 'II'
3. As soon as the engine runs, release the start key. It must return to position 'I' by itself and remain in this position during operation. The battery charge and oil pressure warning lights must go out immediately after starting. Indicator light '1' is on when the engine is in operation.
4. If anything seems to be incorrect, stop the engine immediately and rectify the fault. (See the Troubleshooting Guide)
5. The engine temperature display '4' (additional equipment) lights up if the temperature at the cylinder head is too high. Switch off the engine and trace the cause of the problem.

HATS I II 0 1 2 3 4 5

CAUTION

Never operate the electric starter when the engine is running or coasting to a standstill. There is a risk of broken starter pinion or ring gear teeth. Never stop the engine by moving the decopression lever. During breaks in work or at the end of the working period, keep the starting handle and starting key in a safe place, out of reach of unauthorised persons.

1. Always turn the start key back to position '0' before re-starting the engine. The repeat lock prevents the starter motor from engaging and possibly being damaged whilst the engine is still running.
2. Move speed control lever to '1' back to the STOP position.
3. On engines with the lower engine speeds not accessible, move speed control lever '1' back, then move stop lever '2' in the STOP direction. Hold it there until the engine has stopped.
4. Release the stop lever '2' when the engine has stopped, making sure that the lever returns to its normal position. (The charge and oil pressure lights will come on)
5. Turn the key to the 0 position and pull it out. The lights must then go out.

• Take the compactor to where it is required.

Where it is necessary to use lifting equipment to position the compactor, make sure the lifting equipment has a WLL (Working Load Limit) suitable for the compactors weight (see Technical Data section or the machine serial plate). Attach suitable chains or slings ONLY to the lifting point on the top of the compactor.

- Having carried out the checks listed in the 'Pre start' section, you may start the engine.

The Altrad Belle 'RPC' range of compactors are fitted with a centrifugal clutch, this allows the engine to run at idle without driving the gearbox.

As the engine speed is increased the clutch will engage and will drive the gearbox. For correct operation, the engine speed should be set to maximum.

- Set the throttle to maximum and use the control handle for direction and to steer or turn the compactor.

The control handle has been designed so that when it is being used in reverse and the operator lets go for any reason, the handle automatically moves into forward mode. This is a significant safety feature of the machine.

During normal operation you should not have to push the compactor but allow it to travel at its own pace.

The speed of travel will be determined by the condition of the surface being compacted.

Caution must be used when operating the compactor in reverse. Ensure that there are no obstructions or trip hazards when operating in reverse.

If the surface to be compacted is on a slope, great care must be taken when controlling the compactor's direction of travel. If necessary, use a suitable rope attached to the compactor at a low point on the chassis, to allow a helper to take part of the compactor's weight. Work up and down a slope not across.

• Work the compactor over the surface in an organised pattern until the required compaction has been achieved.

Where there are a number of different layers to be compacted on top of each other, compact each layer individually.

• To stop the compactor vibrating, set the throttle to idle. To stop the engine refer to the relevant start / stop procedure.

Trouble Shooting Guide

Problem	Cause	Remedy
Engine will not start. No fuel.	Open fuel tap.
Fill fuel tank.
Engine switched off. Switch	engine on.
Spark plug fouled. Clean and reset plug gap.
Engine cold. Close choke.
	Engine flooded.	Honda, open choke, fully open throttle, pull recoil starter until engine fires.
Hatz, move speed control to stop, pull recoil starter 5 times then repeat start procedure.
Engine still will not start.	Major Fault.	Contact Agent or Altrad Belle.
Unit will not move.	Engine speed too slow.	Set engine speed control to fast.
Drive belt tension loose.	Adjust belt tension
	Air filter blocked.	Clean or renew air filter.
Worn or Damaged Clutch.	Repair or Replace as necessary.
Drive failure.	Contact Agent or Altrad Belle.
Gearbox failure.	Contact Agent or Altrad Belle.
Forward speed too slow.	Too much oil in hydraulic head.	Reduce oil level.
Wrong adjustment of control system	Contact Agent or Altrad Belle.
Reverse speed too slow.	Not enough oil in hydraulic head.	Fill and bleed system.
Air in control system.	Bleed control system.
Wrong adjustment of control system	Contact Agent or Altrad Belle.
Loss of Hydraulic Oil.	Connectors leaking.	Reseal connectors.
Defective hydraulic hose.	Replace hose.
Piston seal in gearbox defective.	Contact Agent or Altrad Belle.
Machine operates erratically.	Shock mounts damaged.	Replace all four mounts.

Service & Maintenance

The Altrad Belle 'RPC' range of Reversible Plate Compactors are designed to give many years of trouble free operation. It is, however, important that the simple regular maintenance listed in this section is carried out. It is recommended that an approved Altrad Belle dealer carries out all major maintenance and repairs. Always use genuine Altrad Belle replacement parts, the use of spurious parts may void your warranty.

Before any maintenance is carried out on the machine, switch off the engine. If working on a diesel engine, make sure that the stop switch is in the stop position.

Always set the compactor on level ground to ensure any fluid levels will be correctly read. Only use recommended oils (see chart on following page).

Running In Period

When the compactor is first used from new, the engine oil must be changed after the initial running in period (see engine manufacturer's manual for full detail). The belt tension should be checked after 4 hours use.

Drive Belt

Remove the belt guard then check the belt tension by placing light finger pressure on the top of the belt, as near central between the engine drive and gearbox pulley. The belt should deflect by approx. 10 to 15mm. If the belt tension requires adjustment, loosen the setscrew on the Belt Tensioning device and slide to the right. Once set, retighten the setscrew and check belt tension a second time. Finally, replace the belt guard ensuring it is correctly and securely fitted.

Routine Maintenance Every 8 First month / 150 250 500			hours		50Hours
Engine Oil	Check Level	√
	Change		√		√
Air Filter	Check Condition/Clean		√
	Replace when necessary / Every 12 months
Gearbox Oil	Change					√
Drive Belt	Tension		√		√

Oil / Fuel Type & Quantity - Spark Plug Type

	Oil type	Quantity (Litre)	Fuel Type	Capacity (Litre)	Spark Plug Type	Electrode Gap (mm)
Honda GX270	S.A.E. 10W 30	0.6	Unleaded	3.6	BM6ES or BPR6ES	0.6 - 0.7
Hatz 1B30	S.A.E. 10W 30	0.9	Diesel (BS2869)	Refer to Manual	N/A	N/A

Oil Type & Quantity

Component	Oil type	Honda GX270	Hatz 1B30
Gearbox	S.A.E. 75W-90	1.2 Litres	1.2 Litres
Hydraulic Control	Shell Tellus 32	0.2 Litres	0.2 Litres
	Fuchs Renolin MR520	0.2 Litres	0.2 Litres

CAUTION

WHILST RUNNING THIS MACHINE DURING THIS PROCEDURE, IT IS ADVISABLE TO PUT THE MACHINE ONTO A RUBBER MAT OR EQUIVALENT TO ABSORB SOME OF THE VIBRATION.

Bleeding the Hydraulic System

1. Ensure the machine is in a stationary position, and situated on level ground.
2. Remove the filler cap, and fill the control pump head with oil. Stop once you have reached the maximum level indicator, which is within the head.
3. Slowly pump the control handle from the 'Forward Motion' position, to the 'Reverse Motion' position, until the oil level drops.
4. Re-fill the control pump head up to the maximum level. Continue to pump the handle until resistance is felt, and the handle locks in the 'Reverse Motion' position.
5. Again, re-fill the control pump head up to the maximum level.
6. Re-fit the Filler Bung, and test the machine.

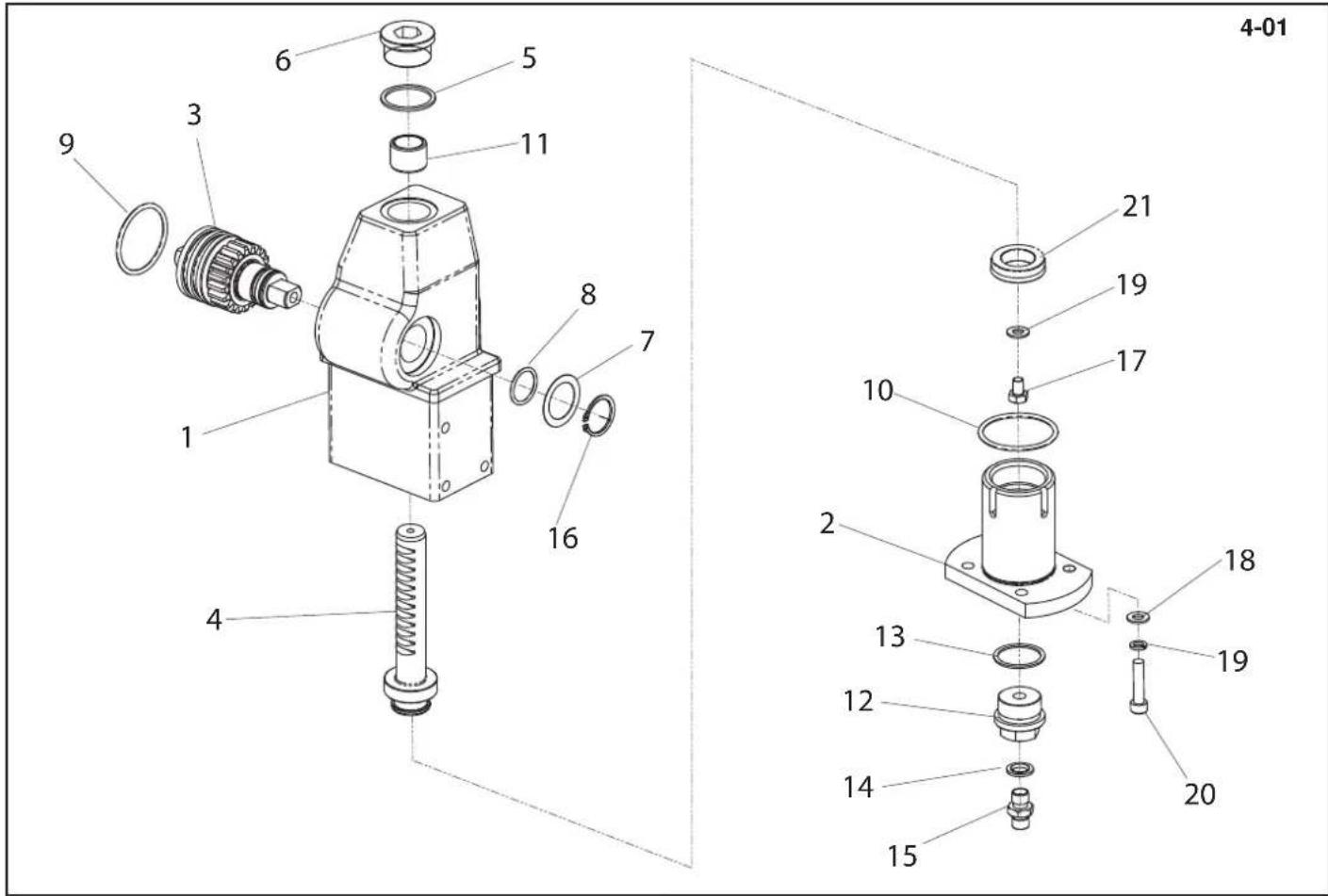

Assembly of the Control Pump

1. Carefully clean the housing with compressed air on the inside. Check for scratches on sliding bores for O Rings and there are no sharp edges.
2. Press the Bushing in to Housing.
3. Lubricate the Lip Seal with Hydraulic Oil and slip it on the Rack (open side away from the rack).
4. Lubricate the Rack with Hydraulic Oil and slide it into the Housing until the Lip Seal is in the groove, making sure the teeth are in the right position. When the Lip Seal is in the Groove this represents forward motion.

CAUTION In reverse motion the Control Handles run parallel with the Housing in the direction of the operator.

1. After lubricating the Pinion (without O Rings), insert it into the Housing and Rack. Check the movement of the Rack from Forward to Reverse. (See CAUTION).
   6 Take the Pinion out and fit the two O Rings, making sure they are not damaged.
2. Lubricate the Pinion and O Rings with hydraulic oil and carefully insert in to the Housing. Make sure the Rack is in the right position and this is easiest when in reverse motion.
3. Fit the Shim and Retaining Ring. It may be necessary to push the Pinion from the opposite side to get them assembled.
4. Place the Housing on the filler side and fit the O Rings to the bottom face. LOCTITE seal 518 is recommended.
5. Assemble the Hydraulic Connector and Dowty Washer using LOCTITE 243.
6. Assemble the Bracket and fix with 4 screws and washers using LOCTITE 243.
7. Loosely fit the Plug Screw and Washer DO NOT TIGHTEN.

Warranty

Your new Altrad Belle ‘RPC’ plate compactor is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase.

The Altrad Belle warranty is against defects in design, materials and workmanship.

The following are not covered under the Altrad Belle warranty:

1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly, operation or user maintenance instructions.
2. Alterations, additions or repairs carried out by persons other than Altrad Belle or their recognised agents.
3. Transportation or shipment costs to and from Altrad Belle or their recognised agents, for repair or assessment against a warranty claim, on any machine.
4. Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.

The following components are not covered by warranty.

• Drivebelt/s
• Engine Air Filter
  • Engine Spark Plug

Altrad Belle and/or their recognised agents, directors, employees or insurers will not be held liable for consequential or other damages, losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.

Warranty Claims

All warranty claims should firstly be directed to Altrad Belle or Altrad Belle Inc., either by telephone, by Fax, by E-mail, or in writing

For Warranty claims:

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Tel: [phone] Fax: [phone]

Email : [e-mail]

How To Use This Manual

This manual has been written to help you operate and service the 'RPC' safely. This manual is intended for dealers and operators of the 'RPC'.

Foreword

The ‘Machine Description’ section helps you to familiarise yourself with the machine’s layout and controls.

The 'Environment' section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way.

The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the general public.

The 'Start and Stop Procedure' helps you with starting and stopping the machine.

The ‘Trouble Shooting Guide’ helps you if you have a problem with your machine.

The ‘Service & Maintenance’ section is to help you with the general maintenance and servicing of your machine.

The 'Warranty' Section details the nature of the warranty cover and the claims procedure.

The ‘Declaration of conformity’ section shows the standards that the machine has been built to.

Directives with regard to the notations.

Text in this manual to which special attention must be paid are shown in the following way:

CAUTION

The product can be at risk. The machine or yourself can be damaged or injured if procedures are not carried out in the correct way.

WARNING

The life of the operator can be at risk.

WARNING

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

KNOW how to safely use the unit's controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the machine off before you switch on, in case you get into difficulty.)

ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): [phone]

Contents

How To Use This Manual 13

Warning 13

Machine Description....14

Technical Data....14

Environment 14

General Safety 14

Health and Safety....15

Pre-Start Checks 15

Reasons For Compaction....15

Start and Stop Procedure....16

Operating Instructions 17

Trouble Shooting Guide ....17

Service & Maintenance 18 - 19

Warranty 19

1275 839 450 600 1 9 8 7 6 5 4 3 2

1. Throttle lever.
2. Recoil Starter Handle.
3. Fuel Tank.
4. Lifting Point.
5. Handle Release Catch.
6. Forward / Reverse Control Handle.
7. Main Handle.
8. Belt Guard.
9. Key Start

Technical Data

Model 45/60
Engine - Honda GX270 Petrol (kW)	6.7
Engine - Hatz 1B30 Diesel (kW)	4.7
Weight - Honda GX270 Petrol (lbs)	606
Weight - Hatz 1B30 Diesel (lbs)	641.5
Weight - Hatz 1B30 E/S Diesel (lbs)	668
Engine RPM - Honda 3600
Engine RPM - Hatz 3000
Centrifugal Force (kN) 45
Frequency (Hz) 70
Maximum Travel Speed (ft/min)	>
Sound Power (dB(A))	108

Environment

Safe Disposal.

Instructions for the protection of the environment. The machine contains valuable materials. Take the discarded apparatus and accessories to the relevant recycling facilities.

Component	Material
Handle	Steel
Front cover	HDPE
Main frame	Steel
Baseplate	Steel
Hand Grips	Polyurethane Foam
Engine	Aluminium
Flexible Mounts	Steel and Rubber
Various Parts	Steel and Aluminium

Reasons For Compaction

Soil, which has been disturbed or new infill, subbase and blacktop, will have small voids or air pockets which, if not compacted, will lead to one or more problems occurring.

1. As traffic crosses the surface of an uncompacted area, the material is compressed. This leads to subsidence of the top surface as the material fills the voids.
2. A similar situation occurs with static loads on uncompacted ground. The load (e.g. a building) will sink.
3. Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to building foundations and normally leads to the structure requiring underpinning.

Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore reduces the risk of subsidence, expansion and contraction, due to ingress of water.

General Safety

For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the 'RPC', consult your supervisor or Altrad Belle.

CAUTION

Improper maintenance can be hazardous. Read and Understand this section before you perform any maintenance, service or repairs.

• This equipment is heavy and must not be lifted single-handedly, either GET HELP or use suitable lifting equipment.
• Cordon off the work area and keep members of the public and unauthorised personnel at a safe distance.
• Personal Protective Equipment (PPE) must be worn by the operator whenever this equipment is being used (see Health & Safety).
• Make sure you know how to safely switch this machine OFF before you switch it ON in case you get into difficulty.
• Always switch OFF the engine before transporting, moving it around the site or servicing it.
- During use the engine becomes very hot, allow the engine to cool before touching it. Never leave the engine running and unattended.
- Never remove or tamper with any guards fitted, they are there for your protection. Always check guards for condition and security, if any are damaged or missing, DO NOT USE THE COMPACTOR until the guard has been replaced or repaired.
- Do not operate the Compactor when you are ill, feeling tired, or when under the influence of alcohol or drugs.

CAUTION

Fuel is flammable. It may cause injury and property damage. Shut down the engine, extinguish all open flames and do not smoke while filling the fuel tank. Always wipe up any spilled fuel.

Fuel Safety.

• Before refuelling, switch off the engine and allow it to cool.
- When refuelling, DO NOT smoke or allow naked flames in the area.
- Spilt fuel must be made safe immediately, using sand. If fuel is spilt on your clothes, change them.
- Store fuel in an approved, purpose made container away from heat and ignition sources.

Health & Safety

Vibration

Some vibration from the compaction operation is transmitted through the handle to the operator's hands. The Altrad Belle RPC range has been specifically designed to reduce hand/arm vibration levels. Refer to specifications & technical data for vibration levels and usage times (recommended maximum daily exposure time). DO NOT exceed the maximum usage times.

PPE (Personal Protective Equipment)

Suitable PPE must be worn when using this equipment i.e. Safety Goggles, Gloves, Ear Defenders, Dust Mask and Steel Toe capped footwear. Wear clothing suitable for the work you are doing. Tie back long hair and remove any jewellery which may catch in the equipment's moving parts. Always protect skin from contact with concrete.

Dust

The compacting process will occasionally produce dust, which may be hazardous to your health. Always wear a mask that is suited to the type of dust being produced.

Fuel

Do not ingest fuel or inhale fuel vapours and avoid contact with your skin. Wash fuel splashes immediately. If you get fuel in your eyes, irrigate with copious amounts of water and seek medical attention as soon as possible.

Exhaust Fumes

Do not operate the compactor indoors or in a confined space, make sure the work area is adequately ventilated.

WARNING

The exhaust fumes produced by this equipment are highly toxic and can kill!

Pre-Start Checks

Pre start-up inspection

The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use, whichever is first. Please refer to the service section for detailed guidance. If any fault is discovered, the compactor must not be used until the fault is rectified.

1. Thoroughly inspect the compactor for signs of damage. Check components are present and secure. Pay special attention to the belt guard.
2. Check the engine oil and hydraulic oil level and top up as necessary.
3. Check the engine fuel level and top up as necessary.
4. Check for fuel, oil and hydraulic leaks.

Honda Petrol Engine

1. Open the fuel tap by moving the fuel ON / OFF lever fully to the right.
2. If starting the engine from cold, set the choke ON by moving the choke lever fully to the left. If restarting a warm engine, the choke is usually not required, however, if the engine has cooled to a degree, partial choke may be required.
3. Turn the engine ON / OFF switch clockwise to the 'I' position.
4. Set the throttle to the idle position by moving the throttle lever fully to the right. Do not start the engine on full throttle, as the compactor will vibrate as soon as the engine starts.
5. Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with the other. Pull the recoil starter until engine resistance is felt, then let starter return.
6. Taking care not to pull the starter's rope fully out, pull the starter handle briskly.
7. Repeat until the engine fires.
8. Once the engine fires gradually set the choke lever to the OFF position by moving it to the right.
9. If the engine fails to fire after several attempts, follow the troubleshooting guide.
10. To stop the engine, set the throttle to idle and turn the engine ON / OFF switch anticlockwise to the '0' position.
11. Turn the fuel off.

Throttle Choke Fuel ON/ OFF

Hatz Diesel Engine

1. Turn ON the fuel by moving the fuel ON/OFF lever fully to the right.
2. Set the engine speed control to start.
3. Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with the other. Pull the handle until engine resistance is felt, then let the starter return.
4. Taking care not to pull the starter's rope fully out, pull the starter handle briskly with both hands.
5. Repeat this procedure until the engine fires.
6. If the engine fails to start after several attempts, Follow the troubleshooting guide.
7. To stop the engine, set the throttle control to idle, then press and hold the red stop button until the engine stops.

Stop 1/2 Start

Hatz Diesel Engine (Electric Start)

1. With the decompression lever in position '0', insert the key and turn to position 'I' (Battery charge and oil pressure warning lights but light up)
2. Turn start key to position 'II'
3. As soon as the engine runs, release the start key. It must return to position 'I' by itself and remain in this position during operation. The battery charge and oil pressure warning lights must go out immediately after starting. Indicator light '1' is on when the engine is in operation.
4. If anything seems to be incorrect, stop the engine immediately and rectify the fault. (See the Troubleshooting Guide)
5. The engine temperature display '4' (additional equipment) lights up if the temperature at the cylinder head is too high. Switch off the engine and trace the cause of the problem.

1 2 3 4 5 0 I II

CAUTION

Never operate the electric starter when the engine is running or coasting to a standstill. There is a risk of broken starter pinion or ring gear teeth.

Never stop the engine by moving the decopression lever. During breaks in work or at the end of the working period, keep the starting handle and starting key in a safe place, out of reach of unauthorised persons

1. Always turn the start key back to position '0' before re-starting the engine. The repeat lock prevents the starter motor from engaging and possibly being damaged whilst the engine is still running.
2. Move speed control lever to '1' back to the STOP position.
3. On engines with the lower engine speeds not accessible, move speed control lever '1' back, then move stop lever '2' in the STOP direction. Hold it there until the engine has stopped.
4. Release the stop lever '2' when the engine has stopped, making sure that the lever returns to its normal position. (The charge and oil pressure lights will come on)
5. Turn the key to the 0 position and pull it out. The lights must then go out.

Operating Instructions

• Take the compactor to where it is required.

Where it is necessary to use lifting equipment to position the compactor, make sure the lifting equipment has a WLL (Working Load Limit) suitable for the compactors weight (see Technical Data section or the machine serial plate). Attach suitable chains or slings ONLY to the lifting point on the top of the compactor.

- Having carried out the checks listed in the 'Pre start' section, you may start the engine.

The Altrad Belle 'RPC' range of compactors are fitted with a centrifugal clutch, this allows the engine to run at idle without driving the gearbox.

As the engine speed is increased the clutch will engage and will drive the gearbox. For correct operation, the engine speed should be set to maximum.

- Set the throttle to maximum and use the control handle for direction and to steer or turn the compactor.

The control handle has been designed so that when it is being used in reverse and the operator lets go for any reason, the handle automatically moves into forward mode. This is a significant safety feature of the machine.

During normal operation you should not have to push the compactor but allow it to travel at its own pace.

The speed of travel will be determined by the condition of the surface being compacted.

Caution must be used when operating the compactor in reverse. Ensure that there are no obstructions or trip hazards when operating in reverse.

If the surface to be compacted is on a slope, great care must be taken when controlling the compactor's direction of travel. If necessary, use a suitable rope attached to the compactor at a low point on the chassis, to allow a helper to take part of the compactor's weight. Work up and down a slope not across.

• Work the compactor over the surface in an organised pattern until the required compaction has been achieved.

Where there are a number of different layers to be compacted on top of each other, compact each layer individually.

• To stop the compactor vibrating, set the throttle to idle. To stop the engine refer to the relevant start / stop procedure.

Trouble Shooting Guide

Problem	Cause	Remedy
Engine will not start. No fuel.	Open fuel tap.
Fill fuel tank.
Engine switched off. Switch	engine on.
Spark plug fouled. Clean and reset plug gap.
Engine cold. Close choke.
	Engine flooded.	Honda, open choke, fully open throttle, pull recoil starter until engine fires.
Hatz, move speed control to stop, pull recoil starter 5 times then repeat start procedure.
Engine still will not start.	Major Fault.	Contact Agent or Altrad Belle.
Unit will not move.	Engine speed too slow.	Set engine speed control to fast.
Drive belt tension loose.	Adjust belt tension
	Air filter blocked.	Clean or renew air filter.
Worn or Damaged Clutch.	Repair or Replace as necessary.
Drive failure.	Contact Agent or Altrad Belle.
Gearbox failure.	Contact Agent or Altrad Belle.
Forward speed too slow.	Too much oil in hydraulic head.	Reduce oil level.
Wrong adjustment of control system	Contact Agent or Altrad Belle.
Reverse speed too slow.	Not enough oil in hydraulic head.	Fill and bleed system.
Air in control system.	Bleed control system.
Wrong adjustment of control system	Contact Agent or Altrad Belle.
Loss of Hydraulic Oil.	Connectors leaking.	Reseal connectors.
Defective hydraulic hose.	Replace hose.
Piston seal in gearbox defective.	Contact Agent or Altrad Belle.
Machine operates erratically.	Shock mounts damaged.	Replace all four mounts.

The Altrad Belle 'RPC' range of Reversible Plate Compactors are designed to give many years of trouble free operation. It is, however, important that the simple regular maintenance listed in this section is carried out. It is recommended that an approved Altrad Belle dealer carries out all major maintenance and repairs. Always use genuine Altrad Belle replacement parts, the use of spurious parts may void your warranty.

Before any maintenance is carried out on the machine, switch off the engine. If working on a diesel engine, make sure that the stop switch is in the stop position.

Always set the compactor on level ground to ensure any fluid levels will be correctly read. Only use recommended oils (see chart on following page).

Running In Period

When the compactor is first used from new, the engine oil must be changed after the initial running in period (see engine manufacturer's manual for full detail). The belt tension should be checked after 4 hours use.

Drive Belt

Remove the belt guard then check the belt tension by placing light finger pressure on the top of the belt, as near central between the engine drive and gearbox pulley. The belt should deflect by approx. 10 to 15mm. If the belt tension requires adjustment, loosen the setscrew on the Belt Tensioning device and slide to the right. Once set, retighten the setscrew and check belt tension a second time. Finally, replace the belt guard ensuring it is correctly and securely fitted.

Routine Maintenance Every 8 First month / 150 250 500			hours		50Hours
Engine Oil	Check Level	√
	Change		√		√
Air Filter	Check Condition/Clean		√
	Replace when necessary / Every 12 months
Gearbox Oil	Change					√
Drive Belt	Tension		√		√

Oil / Fuel Type & Quantity - Spark Plug Type

	Oil type	Quantity (Pints)	Fuel Type	Capacity (Pints)	Spark Plug Type	Electrode Gap (in)
Honda GX270	S.A.E. 10W 30	1.3	Unleaded	7.6	BM6ES or BPR6ES	0.02 - 0.03
Hatz 1B30	S.A.E. 10W 30	1.9	Diesel (BS2869)	Refer to Manual	N/A	N/A

Oil Type & Quantity

Component	Oil type	Honda GX270	Hatz 1B30
Gearbox	S.A.E. 75W-90	2.53 Pints	2.53 Pints
Hydraulic Control	Shell Tellus 32	0.42 Pints	0.42 Pints
	Fuchs Renolin MR520	0.42 Pints	0.42 Pints

CAUTION

WHILST RUNNING THIS MACHINE DURING THIS PROCEDURE, IT IS ADVISABLE TO PUT THE MACHINE ONTO A RUBBER MAT OR EQUIVALENT TO ABSORB SOME OF THE VIBRATION.

Bleeding the Hydraulic System

1. Ensure the machine is in a stationary position, and situated on level ground.
2. Remove the filler cap, and fill the control pump head with oil. Stop once you have reached the maximum level indicator, which is within the head.
3. Slowly pump the control handle from the 'Forward Motion' position, to the 'Reverse Motion' position, until the oil level drops.
4. Re-fill the control pump head up to the maximum level. Continue to pump the handle until resistance is felt, and the handle locks in the 'Reverse Motion' position.
5. Again, re-fill the control pump head up to the maximum level.
6. Re-fit the Filler Bung, and test the machine.

Service & Maintenance

Assembly of the Control Pump

1. Carefully clean the housing with compressed air on the inside. Check for scratches on sliding bores for O Rings and there are no sharp edges.
2. Press the Bushing in to Housing.
3. Lubricate the Lip Seal with Hydraulic Oil and slip it on the Rack (open side away from the rack).
4. Lubricate the Rack with Hydraulic Oil and slide it into the Housing until the Lip Seal is in the groove, making sure the teeth are in the right position. When the Lip Seal is in the Groove this represents forward motion.

CAUTION In reverse motion the Control Handles run parallel with the Housing in the direction of the operator.

1. After lubricating the Pinion (without O Rings), insert it into the Housing and Rack. Check the movement of the Rack from Forward to Reverse. (See CAUTION).
   6 Take the Pinion out and fit the two O Rings, making sure they are not damaged.
2. Lubricate the Pinion and O Rings with hydraulic oil and carefully insert in to the Housing. Make sure the Rack is in the right position and this is easiest when in reverse motion.
3. Fit the Shim and Retaining Ring. It may be necessary to push the Pinion from the opposite side to get them assembled.
4. Place the Housing on the filler side and fit the O Rings to the bottom face. LOCTITE seal 518 is recommended.
5. Assemble the Hydraulic Connector and Dowty Washer using LOCTITE 243.
6. Assemble the Bracket and fix with 4 screws and washers using LOCTITE 243.
7. Loosely fit the Plug Screw and Washer DO NOT TIGHTEN.

Warranty

Your new Altrad Belle 'RPC' plate compactor is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase.

The Altrad Belle warranty is against defects in design, materials and workmanship.

The following are not covered under the Altrad Belle warranty:

1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly, operation or user maintenance instructions.
2. Alterations, additions or repairs carried out by persons other than Altrad Belle or their recognised agents.
3. Transportation or shipment costs to and from Altrad Belle or their recognised agents, for repair or assessment against a warranty claim, on any machine.
4. Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.

The following components are not covered by warranty.

• Drivebelt/s
• Engine Air Filter
  • Engine Spark Plug

Altrad Belle and/or their recognised agents, directors, employees or insurers will not be held liable for consequential or other damages, losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.

Warranty Claims

All warranty claims should firstly be directed to Altrad Belle or Altrad Belle Inc., either by telephone, by Fax, by E-mail, or in writing

For Warranty claims:

Altrad Belle Inc.

3959 Electric Road, Roanoke

VA, 24018

USA

Tel: [phone]

Fax: [phone]

E-mail: [e-mail]

1 2 3 4 5 0 I II

ATTENTION

Email : [e-mail]

Prière d'écrire à :

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Uso de este manual

1 2 3 4 5 0 I II

PRECAUCIÓN

Email : [e-mail]

Escriban a:

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Technical line drawing of a mechanical component with no visible text or symbols

Estrangulador Crontrolo da Mistura Alavanca Ligado/ Desligado de Combustivel

Motor Hatz Gasóleo

1 2 3 4 5 0 I II

CUIDADO

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Tel: [phone] Fax: [phone]

Email : [e-mail]

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Tel: [phone] Fax: [phone]

Email : [e-mail]

1 2 3 4 5 0 I II

FORSIGTIG

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Tel: [phone] Fax: [phone]

Email : [e-mail]

1 2 3 4 5 0 I II

WARNEN

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Tel: [phone] Fax: [phone]

Email : [e-mail]

I

1 2 3 4 5 0 I II

ATTENZIONE

Email : [e-mail]

Scrivere a;

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

Inghilterra.

1 2 3 4 5 0 I II

SE UPP

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Tel: [phone] Fax: [phone]

Email : [e-mail]

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Tel: [phone] Fax: [phone]

Email : [e-mail]

1 2 3 4 5 0 I II

VAARA

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Tel: [phone] Fax: [phone]

Email : [e-mail]

Procedura Start & Stop....93

Praca Ubijarki 94

Procedura Start i Stop

Technical line drawing of a mechanical component with no visible text or symbols

Estrangulador Crontrolo da Mistura Alavanca Ligado/ Desligado de Combustivel

Hatz Silnik Diesla

1 2 3 4 5 0 I II

UWAGA

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Tel: [phone]

Fax: [phone]

Email : [e-mail]

1 2 3 4 5 0 I II

ВНИМАНИЕ

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

Англия

1 2 3 4 5 0 I II

ETTEVAATUST

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Tel: [phone] Fax: [phone]

Email : [e-mail]

Technical line drawing of a mechanical assembly with no visible text or symbols

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Tel: [phone] Fax: [phone]

Email : [e-mail]

Technical line drawing of a mechanical assembly with no visible text or symbols

Droselio svirtis.
Droselinés sklendés svirtis.
Kuro jjungimo/ išjungimo (ON/OFF) svirtis.

Dyzelinis Hatz variklis

1 2 3 4 5 0 I II RATS

ATSARGIAI

Technical line drawing of a mechanical component with no visible text or symbols

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Тел: [phone] Факс: [phone]

Email : [e-mail]

1 2 3 4 5 0 I II

NEBEZPEČÍ

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Tel: [phone] Fax: [phone]

Email : [e-mail]

Email : [e-mail]

vagy írjon:

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

1 2 3 4 5 0 I II

UPOZORENJE

Altrad Belle Warranty Department,

Sheen, No Buxton

Derbyshire

SK17 0EU

England

Tel: [phone] Fax: [phone]

Email : [e-mail]

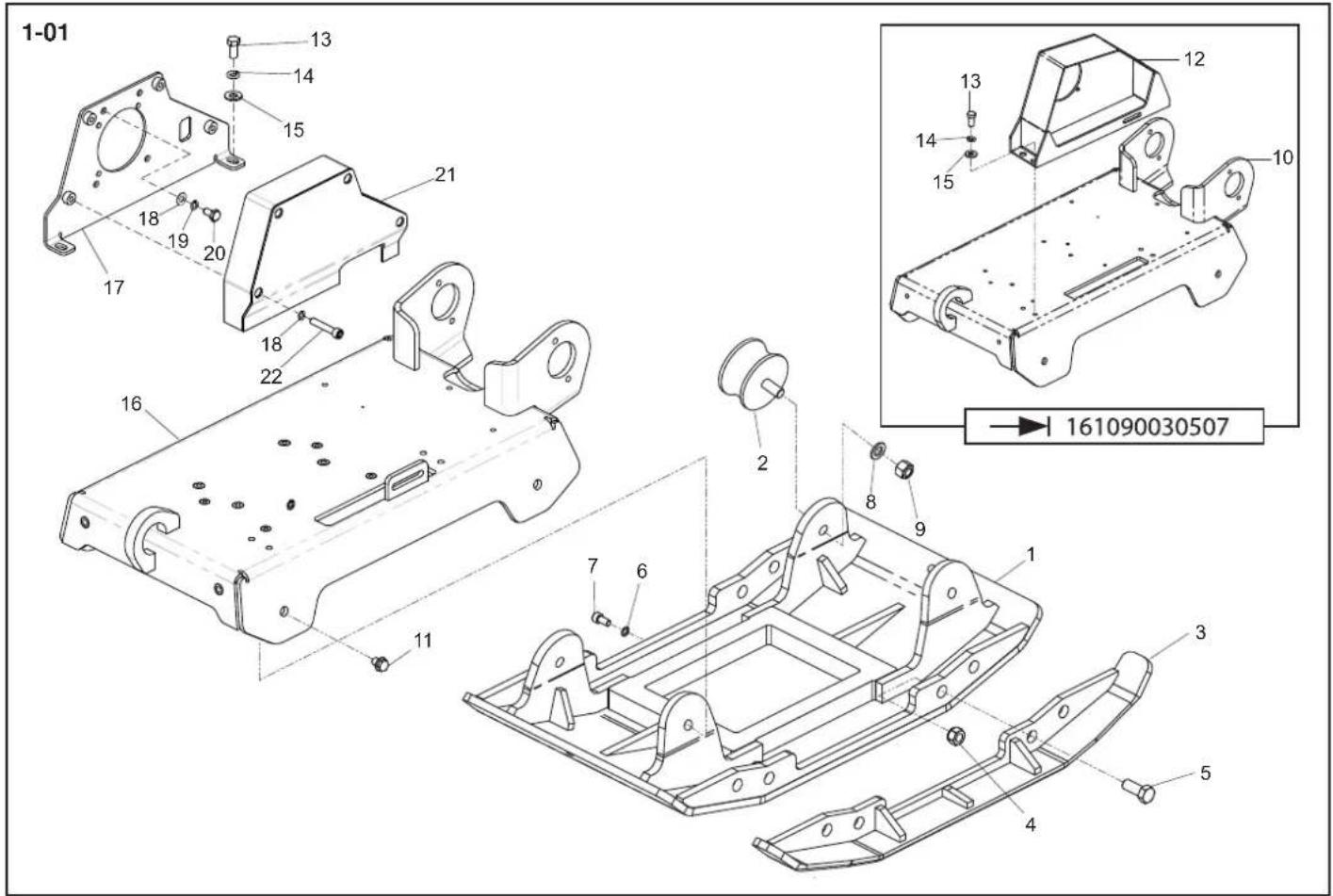

1-01 13 14 15 18 19 20 21 17 18 22 16 11 2 8 9 7 6 1 3 5 4 161090030507

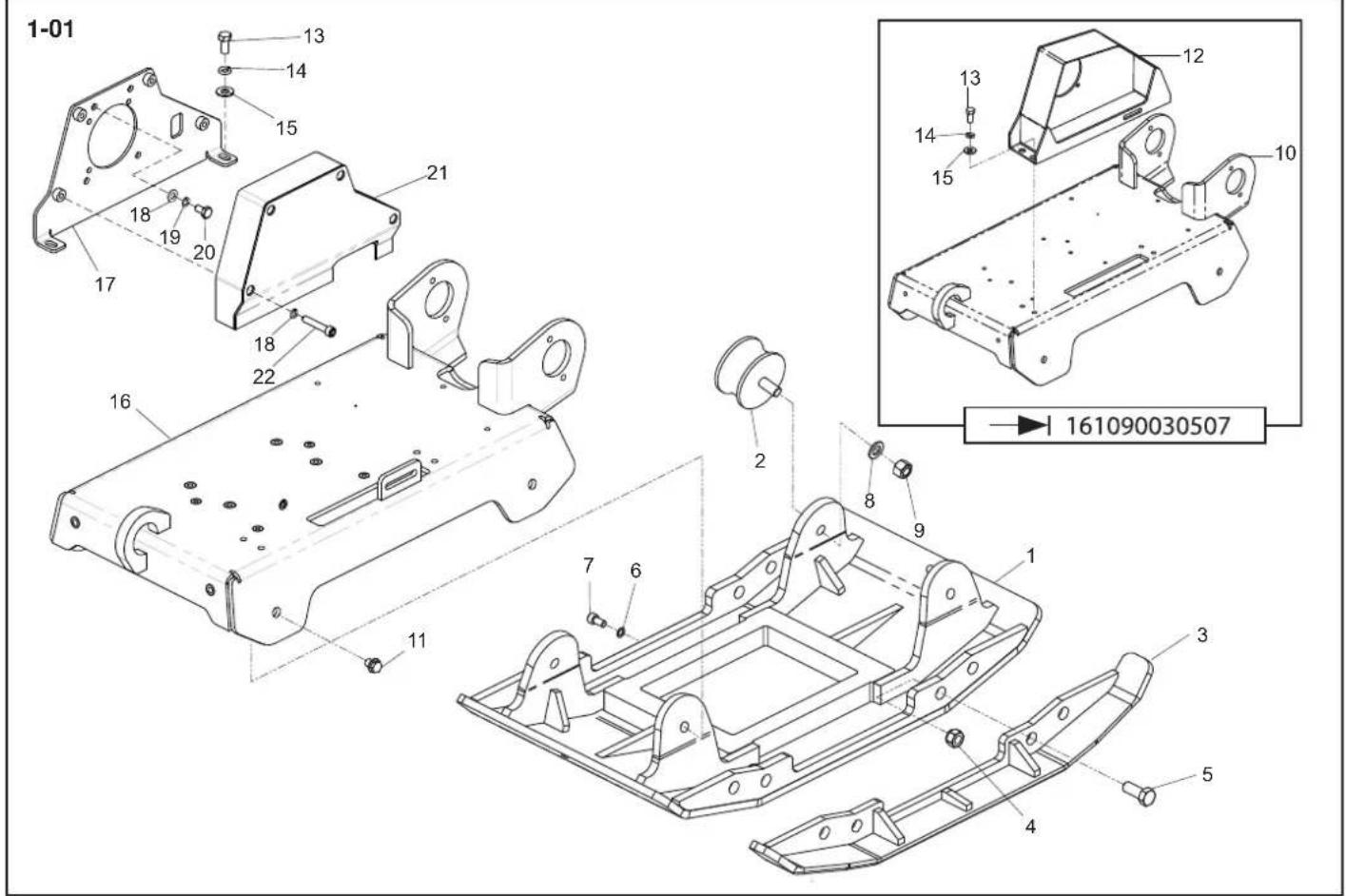

Baseplate Assembly, Plaque d'embase, Cto. Placa base, Conj. da Placa de Base

1-01

1	161/05800	Baseplate	Plaque d'embase	Placa de base	Placa de Base	→1022107	1
1	161/09800	Baseplate	Plaque d'embase	Placa de base	Placa de Base	→1022108	1
2	21/0139	Anti-Vibration Mount	Tampon antivibratoire	Montura antivibratoria	Bloco Anti-vibração		4
3	161/05900	Baseplate Extension	Plaque d'embase - Extension	Placa de base - Extensión	Placa de base - Extensão		2
4	8/20003	Nut	Ecrou	Tuerca	Porca	M20	8
5	9/20002	Screw	Vis	Tornillo	Parafuso	M20 x 50	8
6	4/1008	Washer	Rondelle	Arandela	Anilha	M10	1
7	7/10018	Screw	Vis	Tornillo	Parafuso	M10 x 20	1
8	4/1601	Washer	Rondelle	Arandela	Anilha	M16	4
9	8/16005	Nut	Ecrou	Tuerca	Porca	M16 x 30	4
10	161/06000	Bedplate	Plaque d'assise	Placa de base	Placa de Apoio		1
11	9/16007	Bolt	Boulon	Perno	Perno	M16 x 20	4
12	161/02000	Belt Guard	Capot de courroie	Protector de la correa	Guarda da Cinta	Honda	1
12	161/06800	Belt Guard	Capot de courroie	Protector de la correa	Guarda da Cinta	Hatz	1
13	7/12004	Screw	Vis	Tornillo	Parafuso	M12 x 25	6
14	4/1202	Washer	Rondelle	Arandela	Anilha	M12	6
15	4/1201	Washer	Rondelle	Arandela	Anilha	M12	6
16	161/09300	Bedplate	Plaque d'assise	Placa de base	Placa de Apoio		1
17	161/08900	Backplate	Plaque arrière	Placa trasera	Placa de Apoio		1
18	4/8006	Washer	Rondelle	Arandela	Anilha	Honda	4
18	4/1005	Washer	Rondelle	Arandela	Anilha	Hatz	4
19	4/8003	Washer	Rondelle	Arandela	Anilha	Honda	4
19	4/1003	Washer	Rondelle	Arandela	Anilha	Hatz	8
20	02.3.020	Screw	Vis	Tornillo	Parafuso	Honda	4
20	7/10004	Screw	Vis	Tornillo	Parafuso	Hatz	4
21	161/10200	Belt Guard	Capot de courroie	Protector de la correa	Guarda da Cinta		1
22	7/10037	Screw	Vis	Tornillo	Parafuso	M10 x 55	4

1-01 13 14 15 18 19 20 21 17 18 22 16 2 8 9 1 3 5 4 1 161090030507

Vloerplaat, Rüttelplatten-Zsb., Bundplade, Gruppo piastra di base

1-01

1	161/05800	Vloerplaat	Rüttelplatten	Bundplade	Piastra di Base	→022107	1
1	161/09800	Vloerplaat	Rüttelplatten	Bundplade	Piastra di Base	→022108	1
2	21/0139	Anti-trilbevestiging	Schwingungsdämpfer	Antivibrationsophæng	Supporto antivibrazioni		4
3	161/05900	Bundplade - Tiltagende	Grundplatte - Verlängerung	Vloerplaat - Achtervoegsel	Piastra base - Estensione		2
4	8/20003	Moer	Mutter	Motrik	Dado	M20	8
5	9/20002	Schroef	Schraube	Skrue	Vite	M20 x 50	8
6	4/1008	Afdichtring	Scheibe	Spændeskive	Rondella	M10	1
7	7/10018	Schroef	Schraube	Skrue	Vite	M10 x 20	1
8	4/1601	Afdichtring	Scheibe	Spændeskive	Rondella	M16	4
9	8/16005	Moer	Mutter	Motrik	Dado	M16 x 30	4
10	161/06000	Grondplaat	Sohlplatte	Fundamentplade	Piastra di base		1
11	9/16007	Schroef	Schraube	Skrue	Vite	M16 x 20	4
12	161/02000	Riembeschermkap	Treibriemen-Schutzabdeckung	Rembeskyttelse	Protezione della cinghia	Honda	1
12	161/06800	Riembeschermkap	Treibriemen-Schutzabdeckung	Rembeskyttelse	Protezione della cinghia	Hatz	1
13	7/12004	Schroef	Schraube	Skrue	Vite	M12 x 25	4
14	4/1202	Afdichtring	Scheibe	Spændeskive	Rondella	M12	4
15	4/1201	Afdichtring	Scheibe	Spændeskive	Rondella	M12	4
16	161/09300	Grondplaat	Sohlplatte	Fundamentplade	Piastra di base		1
17	161/08900	Achterplaat	Rückwand	Bagplade	Piastra di rinforzo		1
18	4/8006	Afdichtring	Scheibe	Spændeskive	Rondella	Honda	4
18	4/1005	Afdichtring	Scheibe	Spændeskive	Rondella	Hatz	4
19	4/8003	Afdichtring	Scheibe	Spændeskive	Rondella	Honda	4
19	4/1003	Afdichtring	Scheibe	Spændeskive	Rondella	Hatz	8
20	02.3.020	Schroef	Schraube	Skrue	Vite	Honda	4
20	7/10004	Schroef	Schraube	Skrue	Vite	Hatz	4
21	161/10200	Riembeschermkap	Treibriemen-Schutzabdeckung	Rembeskyttelse	Protezione della cinghia		1
22	7/10037	Schroef	Schraube	Skrue	Vite	M10 x 55	4

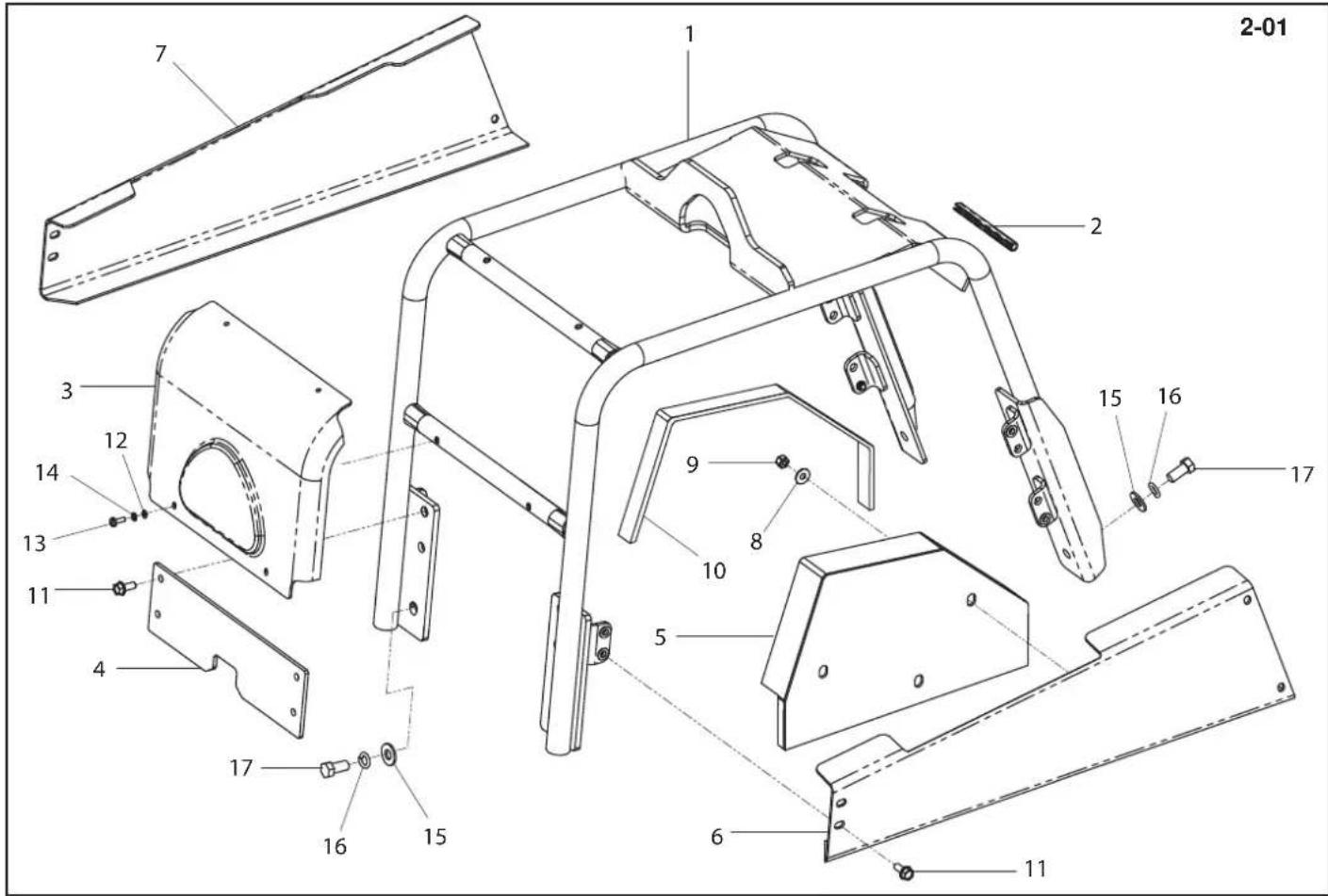

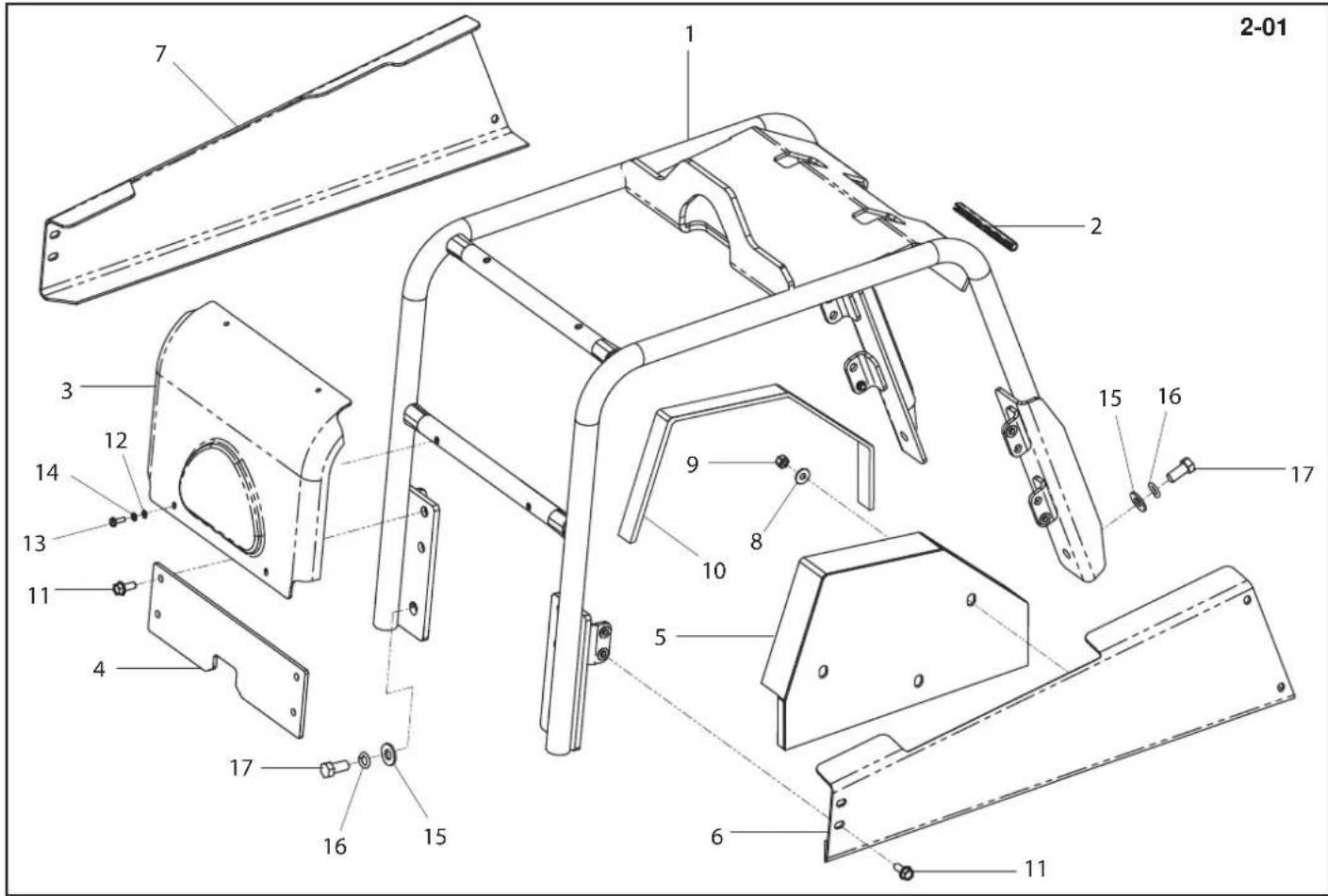

2-01 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 15 16 17

Frame Assembly, Ensemble Châssis, Conjunto de Estructura, Conjunto da Estrutura →1 030507

2-01

1	161/01000	Frame	Châssis	Estructura	Estrutura	1
2	161.0.332	Edging Strip	Gaine Protection	Banda Protectora	Fita de rebordo	x
3	161.0.289	Front Cover - Orange	Capot Avant - Orange	Cubierta Delantera - Naranja	Tampa Frontal - Laranja	1
3	161.0.431	Front Cover - Green	Capot Avant - Vert	Cubierta Delantera - Verde	Tampa Frontal - Verde	1
3	161.0.432	Front Cover - Yellow	Capot Avant - Jaune	Cubierta Delantera - Amarillo	Tampa Frontal - Amarelo	1
3	161.0.433	Front Cover - Blue	Capot Avant - Bleu	Cubierta Delantera - Azul	Tampa Frontal - Azul	1
4	161/99569	Cover - Orange	Couvercle - Orange	Cubierta - Naranja	Tampa - Laranja	1
4	161/99570	Cover - Green	Couvercle - Grun	Cubierta - Verde	Tampa - Verde	1
4	161/99571	Cover - Yellow	Couvercle - Jaune	Cubierta - Amarillo	Tampa - Amarelo	1
4	161/99572	Cover - Blue	Couvercle - Bleu	Cubierta - Azul	Tampa - Azul	1
5	161.0.287	Belt Guard	Capot de courroie	Protector de la correa	Guarda da Cinta	1
6	161.0.417	Cover - Orange (Left)	Couvercle - Orange (Gauche)	Cubierta - Naranja (Iqzuierda)	Tampa - Laranja (Lado Esquerdo)	1
6	161.0.418	Cover - Green (Left)	Couvercle - Grun (Gauche)	Cubierta - Verde (Iqzuierda)	Tampa - Verde (Lado Esquerdo)	1
6	161.0.419	Cover - Yellow (Left)	Couvercle - Jaune (Gauche)	Cubierta - Amarillo (Iqzuierda)	Tampa - Amarelo (Lado Esquerdo)	1
6	161.0.420	Cover - Blue (Left)	Couvercle - Bleu (Gauche)	Cubierta - Azul (Iqzuierda)	Tampa - Azul (Lado Esquerdo)	1
7	161.0.421	Cover - Orange (Right)	Couvercle - Orange (Droit)	Cubierta - Naranja (Derecha)	Tampa - Laranja (Lado Direito)	1
7	161.0.422	Cover - Green (Right)	Couvercle - Grun (Droit)	Cubierta - Verde (Derecha)	Tampa - Verde (Lado Direito)	1
7	161.0.423	Cover - Yellow (Right)	Couvercle - Jaune (Droit)	Cubierta - Amarillo (Derecha)	Tampa - Amarelo (Lado Direito)	1
7	161.0.424	Cover - Blue (Right)	Couvercle - Bleu (Droit)	Cubierta - Azul (Derecha)	Tampa - Azul (Lado Direito)	1
8	4/8007	Washer	Rondelle	Arandela	Anilha	M8
9	8/8008	Nut	Ecrou	Tuerca	Porca	M8
10	21.0.337	Edging Strip	Gaine Protection	Banda Protectora	Fita de rebordo	x
11	7/8037	Screw	Vis	Tornillo	Parafuse	M8 x 20
12	4/5002	Washer	Rondelle	Arandela	Anilha	M5
13	07.0.403	Screw	Vis	Tornillo	Parafuse	M5 x 16
14	05.3.017	Washer	Rondelle	Arandela	Anilha	M5
15	4/1201	Washer	Rondelle	Arandela	Anilha	M12
16	4/1202	Washer	Rondelle	Arandela	Anilha	M12
17	7/12013	Screw	Vis	Tornillo	Parafuse	M12 x 35

2-01 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 15 16 17

Frame, Rahmen kpl., Hovedstel Og Dæksel, Gruppo Telaio

2-01

030507

1	161.01000	Frame	Rahmen	Hovedstel	Telai	1
2	161.0.332	Kantstrip	Kantenschutz	Käntband	Gaina Protettiv	x
3	161.0.289	Voordeksel - Oranje	Frontabdeckung- Orange	Forreste kappe - Orange	Copertura anteriore - Arancione	1
3	161.0.431	Voordeksel - Groen	Frontabdeckung - Grün	Forreste kappe - Grön	Copertura anteriore- Verde	1
3	161.0.432	Voordeksel - Geel	Frontabdeckung - Gelb	Forreste kappe - Gul	Copertura anteriore - Giallo	1
3	161.0.433	Voordeksel - Blauw	Frontabdeckung - Blau	Forreste kappe - Blå	Copertura anteriore - Blu	1
4	161-99569	Deksel - Oranje	Abdeckung - Orange	Dæk - Orange	Coperchio - Arancione	1
4	161-99570	Deksel - Groen	Abdeckung - Grün	Dæk - Grön	Coperchio - Verde	1
4	161-99571	Deksel - Geel	Abdeckung - Gelb	Dæk - Gul	Coperchio - Giallo	1
4	161-99572	Deksel - Blauw	Abdeckung - Blau	Dæk - Blå	Coperchio - Blu	1
5	161.0.287	Riembeschermkap	Treibriemen-Schutzabdeckung	Rembeskyttelse	Protezione della cinghia	1
6	161.0.417	Deksel - Oranje(Links)	Abdeckung - Orange (Links)	Dæk - Orange (Venstre)	Coperchio - Arancione (Lato sinistro)	1
6	161.0.418	Deksel - Groen (Links)	Abdeckung - Grün (Links)	Dæk - Grön (Venstre)	Coperchio - Verde (Lato sinistro)	1
6	161.0.419	Deksel - Geel (Links)	Abdeckung - Gelb (Links)	Dæk - Gul (Venstre)	Coperchio - Giallo (Lato sinistro)	1
6	161.0.420	Deksel - Blauw (Links)	Abdeckung - Blau (Links)	Dæk - Blå(Venstre)	Coperchio - Blu (Lato sinistro)	1
7	161.0.421	Deksel - Oranje (Rechts)	Abdeckung - Orange (Rechts)	Dæk - Orange (Højre)	Coperchio -Arancione(Lato destro)	1
7	161.0.422	Deksel - Groen (Rechts)	Abdeckung - Grün (Rechts)	Dæk - Grön (Højre)	Coperchio - Verde (Lato destro)	1
7	161.0.423	Deksel - Geel(Rechts)	Abdeckung - Gelb (Rechts)	Dæk - Gul (Højre)	Coperchio -Giallo (Lato destro)	1
7	161.0.424	Deksel - Blauw (Rechts)	Abdeckung - Blau (Rechts)	Dæk - Blå (Højre)	Coperchio - Blu (Lato destro)	1
8	4/8007	Afdichtring	Scheibe	Spændeskive	Rondella	M8
9	8/8008	Moer	Mutter	Motrik	Dado	M8
10	21.0.337	Kantstrip	Kantenschutz	Käntband	Gaina Protettiv	x
11	7/8037	Schroef	Schraube	Skrue	Vite	M8 x 20
12	4/5002	Afdichtring	Scheibe	Spændeskive	Rondella	M5
13	07.0.403	Schroef	Schraube	Skrue	Vite	M5 x 16
14	05.3.017	Afdichtring	Scheibe	Spændeskive	Rondella	M5
15	4/1201	Afdichtring	Scheibe	Spændeskive	Rondella	M12
16	4/1202	Afdichtring	Scheibe	Spændeskive	Rondella	M12
17	7/12013	Schroef	Schraube	Skrue	Vite	M12 x 35

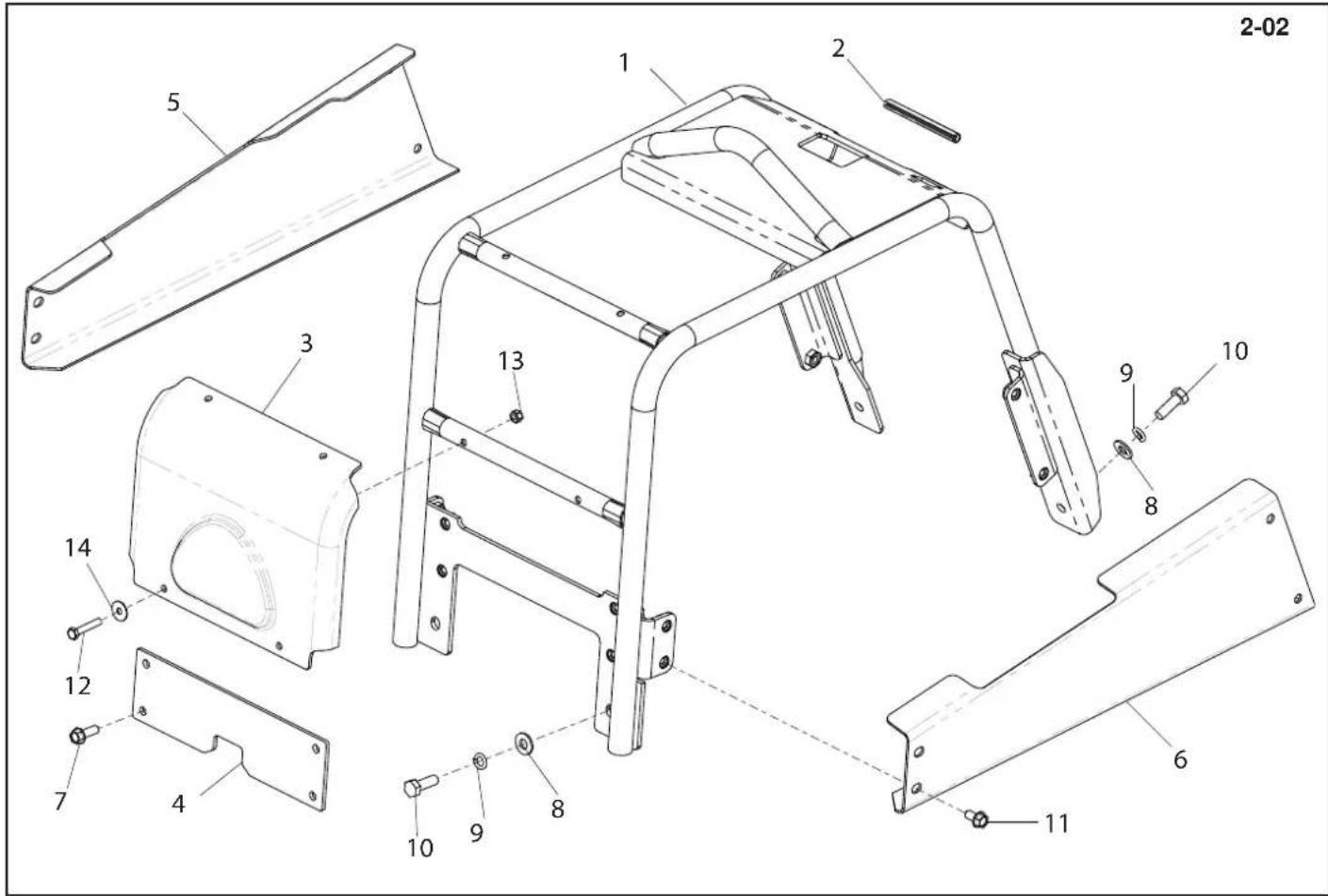

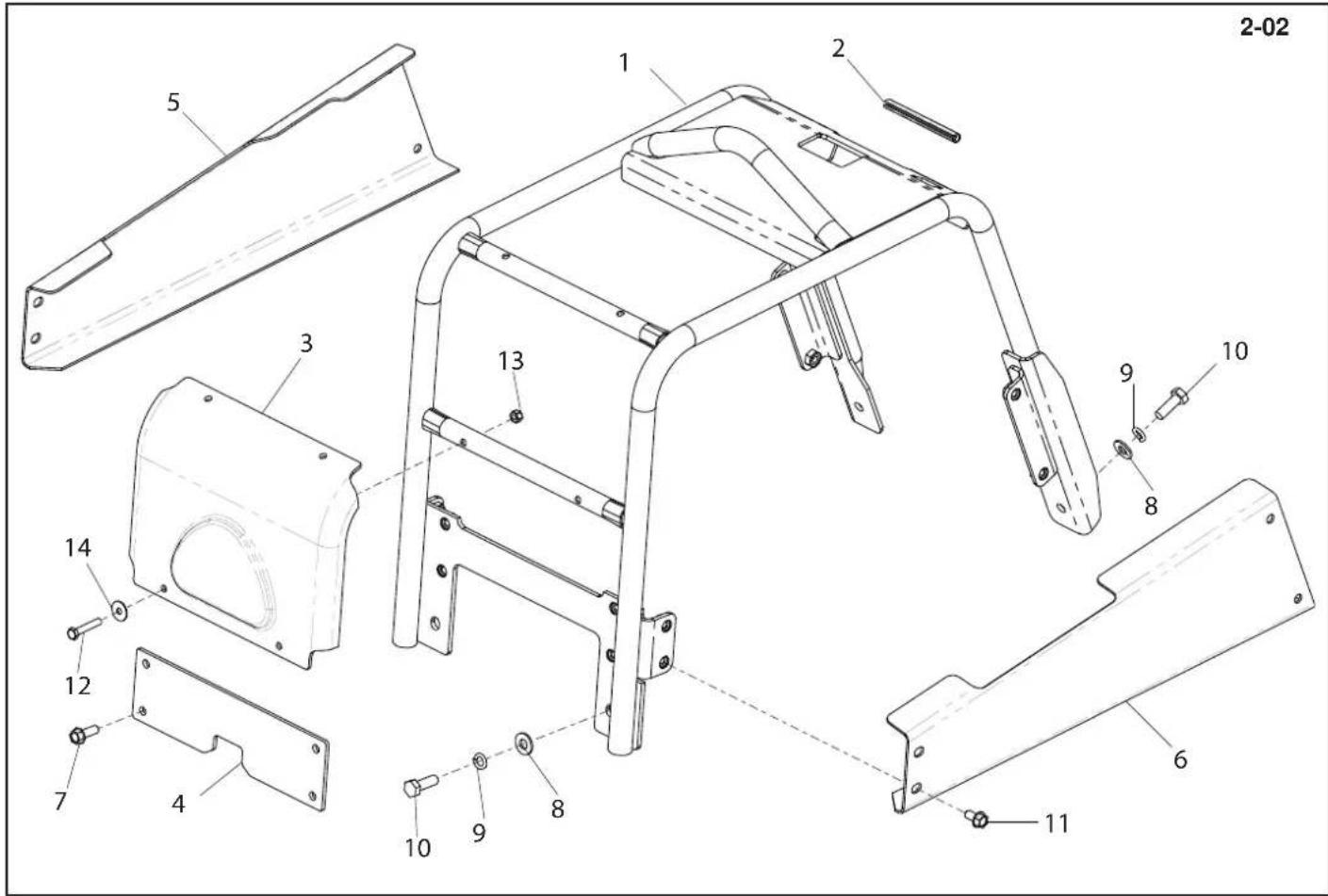

2-02 1 2 5 3 13 9 10 8 14 12 7 4 10 9 8 6 11

Frame Assembly, Ensemble Châssis, Conjunto de Estructura, Conjunto da Estrutura

2-02

030508

1	161/26300	Frame	Châssis	Estructura	Estrutura	1
2	161.0.332	Edging Strip	Gaine Protection	Banda Protectora	Fita de rebordo	1
3	161/99680S	Cover - Orange	Couvercle - Orange	Cubierta - Naranja	Tampa - Laranja	1
3	161/99680G	Cover - Green	Couvercle - Grun	Cubierta - Verde	Tampa - Verde	1
3	161/99680Y	Cover - Yellow	Couvercle - Jaune	Cubierta - Amarillo	Tampa - Amarelo	1
3	161/9968B	Cover - Blue	Couvercle - Bleu	Cubierta - Azúl	Tampa - Azul	1
3	161/99680R	Cover - Red	Couvercle - Rouge	Cubierta - Roja	Tampa - Vermelho	1
4	161/99681S	Front Cover - Orange	Couvercle Avant - Orange	Cubierta Delantera - Naranja	Tampa Frontal - Laranja	1
4	161/99681G	Front Cover - Green	Couvercle Avant - Grun	Cubierta Delantera - Verde	Tampa Frontal - Verde	1
4	161/99681Y	Front Cover - Yellow	Couvercle Avant - Jaune	Cubierta Delantera - Amarillo	Tampa Frontal - Amarelo	1
4	161/99681B	Front Cover - Blue	Couvercle Avant - Bleu	Cubierta Delantera - Azúl	Tampa Frontal - Azul	1
4	161/99681R	Front Cover - Red	Couvercle Avant - Rouge	Cubierta Delantera - Roja	Tampa Frontal - Vermelho	1
4	161/99681W	Front Cover - White	Couvercle Avant - Blanc	Cubierta Delantera - Blanco	Tampa Frontal - Branco	1
5	161/99670S	Right Cover - Orange	Couvercle Droite - Orange	Cubierta Derecha - Naranja	Tampa Lado Direito - Laranja	1
5	161.99670G	Right Cover - Green	Couvercle Droite - Grun	Cubierta Derecha - Verde	Tampa Lado Direito - Verde	1
5	161.99670Y	Right Cover - Yellow	Couvercle Droite - Jaune	Cubierta Derecha - Amarillo	Tampa Lado Direito - Amarelo	1
5	161.99670B	Right Cover - Blue	Couvercle Droite - Bleu	Cubierta Derecha - Azúl	Tampa Lado Direito - Azul	1
5	161.99670R	Right Cover - Red	Couvercle Droite - Rouge	Cubierta Derecha - Roja	Tampa Lado Direito - Vermelho	1
5	161.99670W	Right Cover - White	Couvercle Droite - Blanc	Cubierta Derecha - Blanco	Tampa Lado Direito - Branco	1
6	161.99671S	Left Cover - Orange	Couvercle Gauche - Orange	Cubierta Iqzuierda - Naranja	Tampa Lado Esquerdo - Laranja	1
6	161.99671G	Left Cover - Green	Couvercle Gauche - Grun	Cubierta Iqzuierda - Verde	Tampa Lado Esquerdo - Verde	1
6	161.99671Y	Left Cover - Yellow	Couvercle Gauche - Jaune	Cubierta Iqzuierda - Amarillo	Tampa Lado Esquerdo - Amarelo	1
6	161.99671B	Left Cover - Blue	Couvercle Gauche - Bleu	Cubierta Iqzuierda - Azúl	Tampa Lado Esquerdo - Azul	1
6	161.99671R	Left Cover - Red	Couvercle Gauche - Rouge	Cubierta Iqzuierda - Roja	Tampa Lado Esquerdo - Vermelho	1
6	161.99671W	Left Cover - White	Couvercle Gauche - Blanc	Cubierta Iqzuierda - Blanco	Tampa Lado Esquerdo - Branco	1
7	7/10024	Screw	Vis	Tornillo	Parafuse	M10 x 30
8	4/1201	Washer	Rondolle	Arandela	Anilha	M12
9	4/1202	Washer	Rondolle	Arandela	Anilha	M12
10	7/12013	Bolt	Boulon	Perno	Perno	M8 x 55
11	7/10039	Screw	Vis	Tornillo	Parafuse	M10 x 30
12	9/8017	Bolt	Boulon	Perno	Perno	M8 x 45
13	8/8008	Nut	Ecrou	Tuerca	Porca	M8
14	4/8008	Washer	Rondolle	Arandela	Anilha	5/16" x 1"

2-02 1 2 5 3 13 9 10 8 14 12 7 4 10 9 8 6 11

Frame, Rahmen kpl., Hovedstel Og Dæksel, Gruppo Telaio

2-02

030508

1	161/26300	Frame	Rahmen	Hovedstel	Telai	1
2	161.0.332	Kantstrip	Kantenschutz	Käntband	Gaina Protettiv	1
3	161/99680S	Deksel - Oranje	Abdeckung - Orange	Dæk - Orange	Coperchio - Arancione	1
3	161/99680G	Deksel - Groen	Abdeckung - Grün	Dæk - Grøn	Coperchio - Verde	1
3	161/99680Y	Deksel - Geel	Abdeckung - Blau	Dæk - Gul	Coperchio - Giallo	1
3	161/99680B	Deksel - Blauw	Abdeckung - Gelb	Dæk - Blå	Coperchio - Blu	1
3	161/99680R	Deksel - Rood	Abdeckung - Rot	Dæk - Rød	Coperchio - Rosso	1
4	161/99681S	Voordeksel - Oranje	Frontabdeckung - Orange	Forreste kappe - Orange	Copertura anteriore - Arancione	1
4	161/99681G	Voordeksel - Groen	Frontabdeckung - Grün	Forreste kappe - Grøn	Copertura anteriore - Verde	1
4	161/99681Y	Voordeksel - Geel	Frontabdeckung - Gelb	Forreste kappe - Gul	Copertura anteriore - Giallo	1
4	161/99681B	Voordeksel - Blauw	Frontabdeckung - Blau	Forreste kappe - Blå	Copertura anteriore - Blu	1
4	161/99681R	Voordeksel - Rood	Frontabdeckung - Rot	Forreste kappe - Rød	Copertura anteriore - Rosso	1
4	161/99681W	Voordeksel - Wit	Frontabdeckung - Weiß	Forreste kappe - Hvid	Copertura anteriore - Bianco	1
5	161.99670S	Rechts Deksel - Oranje	Rechts Abdecken - Orange	Højre Dæk - Orange	Coperchio Lato Destro - Arancione	1
5	161.99670G	Rechts Deksel - Groen	Rechts Abdecken - Grün	Højre Dæk - Grøn	Coperchio Lato Destro - Verde	1
5	161.99670Y	Rechts Deksel - Geel	Rechts Abdecken - Gelb	Højre Dæk - Gul	Coperchio Lato Destro - Giallo	1
5	161.99670B	Rechts Deksel - Blauw	Rechts Abdecken - Blau	Højre Dæk - Blå	Coperchio Lato Destro - Blu	1
5	161.99670R	Rechts Deksel - Rood	Rechts Abdecken - Rot	Højre Dæk - Rød	Coperchio Lato Destro - Rosso	1
5	161.99670W	Rechts Deksel - Wit	Rechts Abdecken - Weiß	Højre Dæk - Hvid	Coperchio Lato Destro - Bianco	1
6	161.99671S	Linker Deksel - Oranje	Links Abdecken - Orange	Venstre Dæk - Orange	Coperchio Lato sinistro - Arancione	1
6	161.99673G	Linker Deksel - Groen	Links Abdecken - Grün	Venstre Dæk - Grøn	Coperchio Lato sinistro - Verde	1
6	161.99673Y	Linker Deksel - Geel	Links Abdecken - Gelb	Venstre Dæk - Gul	Coperchio Lato sinistro - Giallo	1
6	161.99673B	Linker Deksel - Blauw	Links Abdecken - Blau	Venstre Dæk - Blå	Coperchio Lato sinistro - Blu	1
6	161.99673R	Linker Deksel - Rood	Links Abdecken - Rot	Venstre Dæk - Rød	Coperchio Lato sinistro - Rosso	1
6	161.99673W	Linker Deksel - Wit	Links Abdecken - Weiß	Venstre Dæk - Hvid	Coperchio Lato sinistro - Bianco	1
7	7/10024	Schroef	Schraube	Skrue	Vite	M10 x 30
8	4/1201	Afdichtring	Scheibe	Spændeskive	Rondella	M12
9	4/1202	Afdichtring	Scheibe	Spændeskive	Rondella	M12
10	7/12013	Bouten	Bolzen	Skruebolte	Bullone	M8 x 55
11	7/10039	Schroef	Schraube	Skrue	Vite	M10 x 30
12	9/8017	Bouten	Bolzen	Skruebolte	Bullone	M8 x 45
13	8/8008	Moer	Mutter	Møtrik	Dado	M8
14	4/8008	Afdichtring	Scheibe	Spændeskive	Rondella	5/16" x 1"

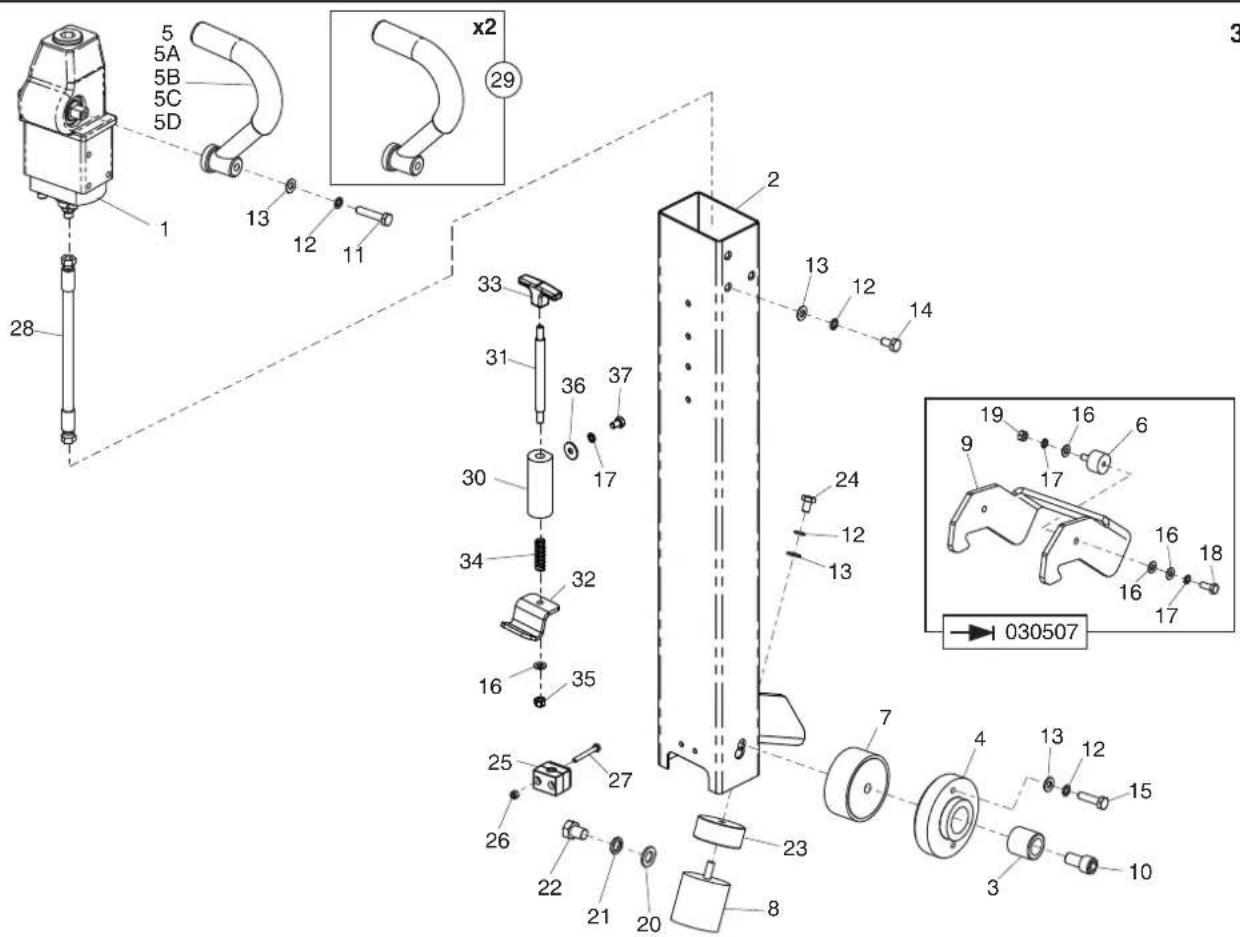

5 5A 5B 5C 5D 13 12 11 x2 29 28 33 31 36 37 30 17 34 32 16 35 24 12 13 25 27 26 22 21 20 8 7 4 13 12 15 3 10 16 17 18 19 16 6 9 17 16 17 030507

Handle Assembly, Ensemble poignée, Conjunto de manillar, Conjunto do Punho

3-01

093553

1	4-01	Pump	Ressort	Muelle	Mola	1
2	161/00900	Handle	Guidon	Manillar	Punho	1030507
2	161/23900	Handle	Guidon	Manillar	Punho	1030508
3	161/99544	Pin	Goupille	Pasador	Pino	2
4	161/99543	Bush	Douille	Buje	Bucha	2
5	161/99658	Handle - Grey	Guidon - Gris	Manillar - Gris	Punho - Cinzento	2
5A	Item 29	Handle - Orange	Guidon - Orange	Manillar - Naraja	Punho - Laranja	2
5B	Item 29	Handle - AP Green	Guidon - Grun	Manillar - Verde	Punho - Verde	2
5C	Item 29	Handle - Yellow	Guidon - Jaune	Manillar - Azúl	Punho - Azul	2
5D	Item 29	Handle - Blue	Guidon - Bleu	Manillar - Amarillo	Punho - Amarelo	2
6	21/0141	Anti-Vibration Mount	Tampon antivibratoire	Montura antivibratoria	Bloco Anti-vibração	2
7	21/0140	Anti-Vibration Mount	Tampon antivibratoire	Montura antivibratoria	Bloco Anti-vibração	2
8	21/0142	Anti-Vibration Mount	Tampon antivibratoire	Montura antivibratoria	Bloco Anti-vibração	1
9	161/99545	Latch	Verrou	Cerrojo	Trinco	1
10	7/16005	Screw	Vis	Tornillo	Parafuse	M16 x 30
11	9/10007	Screw	Vis	Tornillo	Parafuse	M10 x 50
12	4/1003	Washer	Rondelle	Arandela	Anilha	M10
13	4/1005	Washer	Rondelle	Arandela	Anilha	M10
14	7/10004	Screw	Vis	Tornillo	Parafuse	M10 x 20
15	7/10009	Screw	Vis	Tornillo	Parafuse	M10 x 40
16	4/8006	Washer	Rondelle	Arandela	Anilha	M8
17	4/8003	Washer	Rondelle	Arandela	Anilha	M8
18	7/8011	Bolt	Boulon	Perno	Perno	M8 x 20
19	8/8001	Nut	Ecrou	Tuerca	Porca	M8
20	4/1601	Washer	Rondelle	Arandela	Anilha	M16
21	05.1.009	Washer	Rondelle	Arandela	Anilha	M16
22	7/16007	Screw	Vis	Tornillo	Parafuse	M8
23	161/99614	Spacer	Entretoise	Espaciador	Espaçador	1
24	7/10013	Screw	Vis	Tornillo	Parafuse	M10 x 16
25	3/7039	Clamp	Bride	Mordaza	Grampo	1/4"
26	8/6007	Nut	Ecrou	Tuerca	Porca	M6
27	02.0.020	Screw	Vis	Tornillo	Parafuse	M6 x 50
28	30/0082	Hose	Durit	Flexible	Tubagem	1
29	161/07700	Handle Kit	Kit de Guidon	Kit Manillar	Kit do Punho	1
30	161.0.240	Latch	Verrou	Cerrojo	Trinco	1
31	161/27300	Threaded Rod	Tube fileté	Tubo roscado	Tubo roscado	1
32	161.0.238	Bracket	Patte de montage	Escuadra	Suporte	1
33	19.0.843	Handle	Guidon	Manillar	Punho	1
34	19.0.095	Spring	Ressort	Resorte	Mola	1
35	8/8008	Nut	Ecrou	Tuerca	Porca	M8
36	4/8004	Washer	Rondelle	Arandela	Anilha	8 x 25 x 2
37	02.0.086	Screw	Vis	Tornillo	Parafuse	M8 x 12

5 5A 5B 5C 5D 13 12 11 x2 29 28 33 31 36 37 30 17 34 32 16 35 24 12 13 25 27 26 22 21 20 8 7 4 13 12 15 3 10 16 17 18 19 16 6 9 17 16 17 030507

Hendel, Griff-Zsb., Hovedstel Og Dæksel, Gruppo Impugnatura

3-01

093553

1	4-01	Pomp	Pumpe	Kontrolpumpeenhed	Pompa	1
2	161/00900	Hendel	Griff	Hovedstel	Impugnatura	1
2	161/23900	Hendel	Griff	Hovedstel	Impugnatura	1
3	161/99544	Pen	Zapfen	Stift	Perno	2
4	161/99543	Bus	Busche	Bøsning	Boccola	2
25	161/99658	Hendel - Grijs	Griff - Grau	Manillar - Grå	Punho - Grigio	2
25A	Item 32	Hendel - Oranje	Griff - Orange	Håndtag - Orange	Impugnatura - Arancione	2
25B	Item 32	Hendel - Groen	Griff - Grün	Håndtag - Gron	Impugnatura - Verde	2
25C	Item 32	Hendel - Geel	Griff - Gelb	Håndtag - Gul	Impugnatura - Giallo	2
25D	Item 32	Hendel - Blauw	Griff - Blau	Håndtag - Blå	Impugnatura - Blu	2
6	21/0141	Anti-trilbevestiging	Schwingungsdämpfer	Antivibrationsophæng	Supporto Antivibrazioni	2
7	21/0140	Anti-trilbevestiging	Schwingungsdämpfer	Antivibrationsophæng	Supporto Antivibrazioni	2
8	21/0142	Anti-trilbevestiging	Schwingungsdämpfer	Antivibrationsophæng	Supporto Antivibrazioni	1
9	161/99545	Grendel	Riegel	Sicherheits	Saliscendi	1
10	7/16005	Schroef	Schraube	Skrue	Vile	M16 x 30
11	9/10007	Schroef	Schraube	Skrue	Vite	M10 x 50
12	4/1003	Afdichtring	Scheibe	Spændeskive	Rondella	M10
13	4/1005	Afdichtring	Scheibe	Spændeskive	Rondella	M10
14	7/10004	Schroef	Schraube	Skrue	Vite	M10 x 20
15	7/10009	Schroef	Schraube	Skrue	Vite	M10 x 40
16	4/8006	Afdichtring	Scheibe	Spændeskive	Rondella	M8
17	4/8003	Afdichtring	Scheibe	Spændeskive	Rondella	M8
18	7/8011	Schroef	Schraube	Skrue	Vite	M8 x 20
19	8/8001	Moer	Mutter	Møtrik	Dado	M8
20	4/1601	Afdichtring	Scheibe	Spændeskive	Rondella	M16
21	05.1.009	Afdichtring	Scheibe	Spændeskive	Rondella	M16
22	7/16007	Schroef	Schraube	Skrue	Vite	M8
23	161/99614	Afstandsstuk	Distanzstück	Afstandsstykke	Distanziale	1
24	7/10013	Schroef	Schraube	Skrue	Vite	M10 x 16
25	3/7039	Klem	Schelle	Klemme	Morsetto	1/4"
26	8/6007	Moer	Mutter	Møtrik	Dado	M6
27	02.0.020	Schroef	Schraube	Skrue	Vite	M6 x 50
28	30/0082	Slang	Schlauchstück	Slange	Flessibile	1
29	161/07700	Hendelset	Griffsatz	Håndtagskit	Kit Impugnatura	1
30	161.0.240	Grendel	Riegel	Sicherheits	Saliscendi	1
31	161/27300	Draadbuis	Gewinderohr	Gevindskåret Rør	Tubo Filettato	1
32	161.0.238	Steun	Halterung	Beslag	Staffe	1
33	19.0.843	Hendel	Griff	Håndtag	Impugnatura	1
34	19.0.095	Veer	Feder	Fjeder	Molla	1
35	8/8008	Moer	Mutter	Møtrik	Dado	M8
36	4/8004	Afdichtring	Scheibe	Spændeskive	Rondella	8 x 25 x 2
37	02.0.086	Schroef	Schraube	Skrue	Vite	M8 x 12

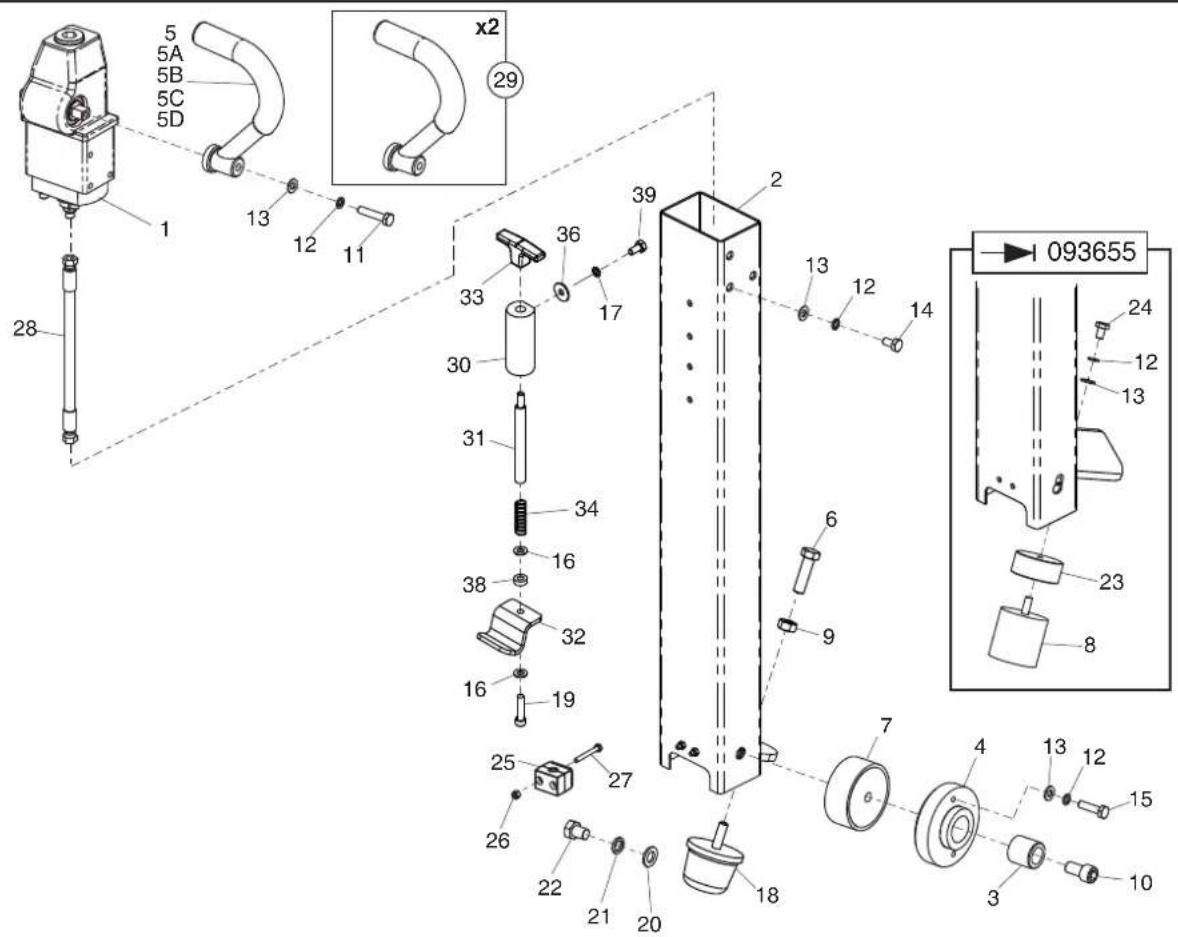

5 5A 5B 5C 5D 13 12 11 x2 29 28 33 36 39 2 17 13 12 14 30 31 34 16 38 32 16 19 6 9 25 27 26 22 21 20 18 7 4 13 12 15 3 10 23 8 093655

3-02

Handle Assembly, Ensemble poignée, Conjunto de manillar, Conjunto do Punho

3-02

093554

1	4-01	Pump	Ressort	Muelle	Mola	1
2	161/23900	Handle	Guidon	Manillar	Punho	1093644
2	161/23800	Handle	Guidon	Manillar	Punho	1093645
3	161/99544	Pin	Goupille	Pasador	Pino	2
4	161/99543	Bush	Douille	Buje	Bucha	2
5	161/99658	Handle - Grey	Guidon - Gris	Manillar - Gris	Punho - Cinzento	2
5A	Item 29	Handle - Orange	Guidon - Orange	Manillar - Naraja	Punho - Laranja	2
5B	Item 29	Handle - AP Green	Guidon - Grun	Manillar - Verde	Punho - Verde	2
5C	Item 29	Handle - Yellow	Guidon - Jaune	Manillar - Azúl	Punho - Azul	2
5D	Item 29	Handle - Blue	Guidon - Bleu	Manillar - Amarillo	Punho - Amarelo	2
6	161/99725	Screw	Vis	Tornillo	Parafuse	1
7	21/0140	Anti-Vibration Mount	Tampon antivibratoire	Montura antivibratoria	Bloco Anti-vibração	2
8	21/0142	Anti-Vibration Mount	Tampon antivibratoire	Montura antivibratoria	Bloco Anti-vibração	1
9	8/2001	Nut	Ecrou	Tuerca	Porca	M20
10	7/16005	Screw	Vis	Tornillo	Parafuse	M16 x 30
11	9/10007	Screw	Vis	Tornillo	Parafuse	M10 x 50
12	4/1003	Washer	Rondelle	Arandela	Anilha	M10
13	4/1005	Washer	Rondelle	Arandela	Anilha	M10
14	7/10004	Screw	Vis	Tornillo	Parafuse	M10 x 20
15	7/10009	Screw	Vis	Tornillo	Parafuse	M10 x 40
16	4/8006	Washer	Rondelle	Arandela	Anilha	M8
17	4/8003	Washer	Rondelle	Arandela	Anilha	M8
18	21/0283	Buffer	Butoir	Parachoques	Amortecedor	1
19	7/10047	Screw	Vis	Tornillo	Parafuse	M10
20	4/1601	Washer	Rondelle	Arandela	Anilha	M16
21	05.1.009	Washer	Rondelle	Arandela	Anilha	M16
22	7/16007	Screw	Vis	Tornillo	Parafuse	M16
23	161/99614	Spacer	Entretoise	Espaciador	Espaçador	1
24	7/10013	Screw	Vis	Tornillo	Parafuse	M10 x 16
25	3/7039	Clamp	Bride	Mordaza	Grampo	1/4"
26	8/6007	Nut	Ecrou	Tuerca	Porca	M6
27	02.0.020	Screw	Vis	Tornillo	Parafuse	M6 x 50
28	30/0082	Hose	Durit	Flexible	Tubagem	1
29	161/07700	Handle Kit	Kit de Guidon	Kit Manillar	Kit do Punho	1
30	161.0.240	Latch	Verrou	Cerrojo	Trinco	1
31	161/99806	Threaded Rod	Tube Fileté	Tubo Roscado	Tubo Roscado	1
32	161.0.238	Bracket	Patte de montage	Escuadra	Suporte	1
33	19.0.843	Handle	Guidon	Manillar	Punho	1
34	19.0.095	Spring	Ressort	Resorte	Mola	1
35	8/8008	Nut	Ecrou	Tuerca	Porca	M8
36	4/8004	Washer	Rondelle	Arandela	Anilha	8 x 25 x 2
37	7/8008	Screw	Vis	Tornillo	Parafuse	M8 x 12
38	161/99805	Spacer	Entretoise	Espaciador	Espaçador	1

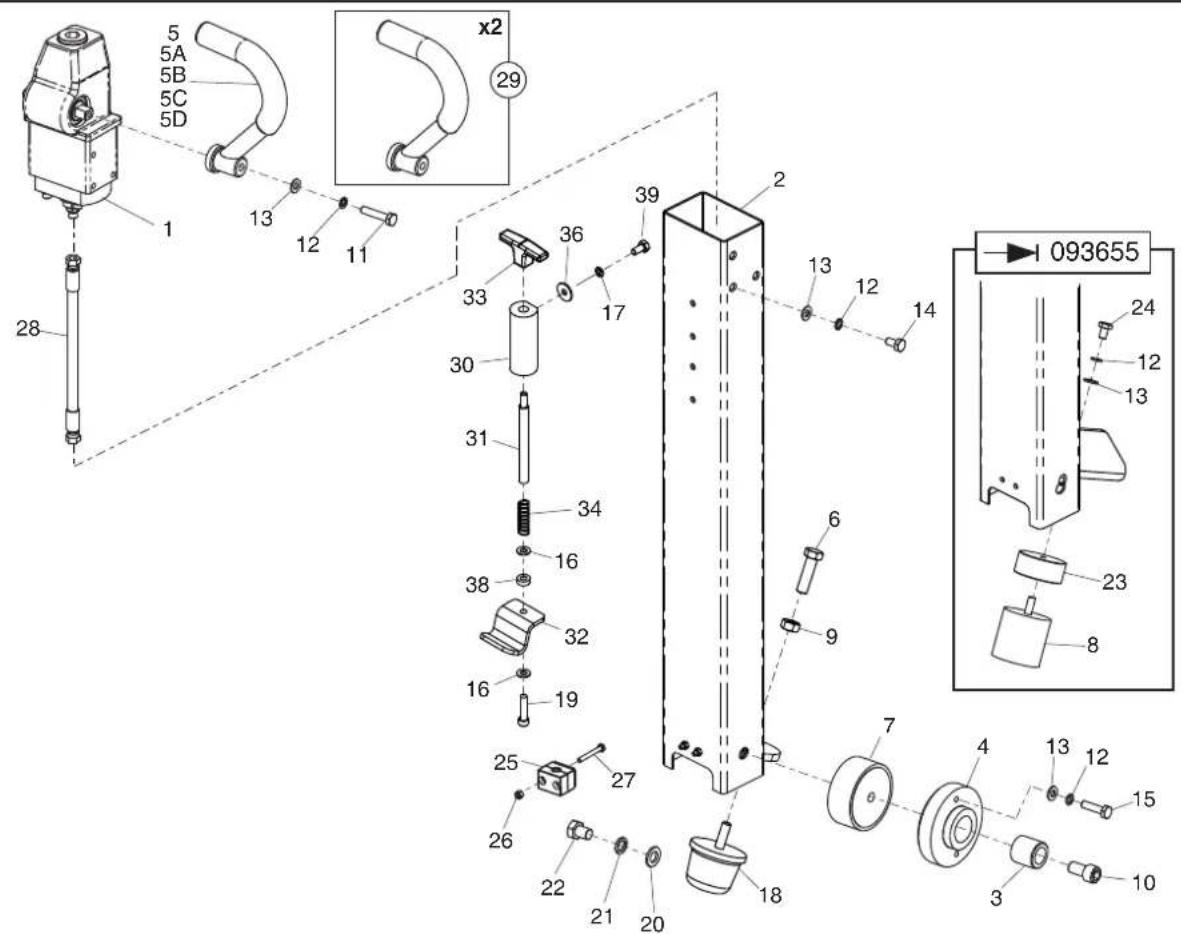

5 5A 5B 5C 5D 1 13 12 11 x2 29 28 33 36 39 2 17 13 12 14 30 31 34 16 38 32 16 19 25 27 26 22 21 20 18 6 9 7 4 13 12 15 3 10 23 24 12 13 093655

3-02

Hendel, Griff-Zsb., Hovedstel Og Dæksel, Gruppo Impugnatura

3-02

093554

1	4-01	Pomp	Pumpe	Kontrolpumpeenhed	Pompa	1
2	161/23900	Hendel	Griff	Hovedstel	Impugnatura	1
2	161/23800	Hendel	Griff	Hovedstel	Impugnatura	1
3	161/99544	Pen	Zapfen	Stift	Perno	2
4	161/99543	Bus	Busche	Bosning	Boccola	2
25	161/99658	Hendel - Grijs	Griff - Grau	Manillar - Grå	Punho - Grigio	2
25A	Item 32	Hendel - Oranje	Griff - Orange	Håndtag - Orange	Impugnatura - Arancione	2
25B	Item 32	Hendel - Groen	Griff - Grün	Håndtag - Gron	Impugnatura - Verde	2
25C	Item 32	Hendel - Geel	Griff - Gelb	Håndtag - Gul	Impugnatura - Giallo	2
25D	Item 32	Hendel - Blauw	Griff - Blau	Håndtag - Blå	Impugnatura - Blu	2
6	161/99725	Schroef	Schraube	Skrue	Vite	2
7	21/0140	Anti-trilbevestiging	Schwingungsdämpfer	Antivibrationsophæng	Supporto Antivibrazioni	2
8	21/0142	Anti-trilbevestiging	Schwingungsdämpfer	Antivibrationsophæng	Supporto Antivibrazioni	1
9	8/2001	Moer	Mutter	Møtrik	Dado	M20
10	7/16005	Schroef	Schraube	Skrue	Vite	M16 x 30
11	9/10007	Schroef	Schraube	Skrue	Vite	M10 x 50
12	4/1003	Afdichtring	Scheibe	Spændeskive	Rondella	M10
13	4/1005	Afdichtring	Scheibe	Spændeskive	Rondella	M10
14	7/10004	Schroef	Schraube	Skrue	Vite	M10 x 20
15	7/10009	Schroef	Schraube	Skrue	Vite	M10 x 40
16	4/8006	Afdichtring	Scheibe	Spændeskive	Rondella	M8
17	4/8003	Afdichtring	Scheibe	Spændeskive	Rondella	M8
18	21/0283	Buffer	Puffer	Kofanger	Respingente	1
19	7/10047	Schroef	Schraube	Skrue	Vite	M10
20	4/1601	Afdichtring	Scheibe	Spændeskive	Rondella	M16
21	05.1.009	Afdichtring	Scheibe	Spændeskive	Rondella	M16
22	7/16007	Schroef	Schraube	Skrue	Vite	M16
23	161/99614	Afstandsstuk	Distanzstück	Afstandsstykke	Distanziale	1
24	7/10013	Schroef	Schraube	Skrue	Vite	M10 x 16
25	3/7039	Klem	Schelle	Klemme	Morsetto	1/4"
26	8/6007	Moer	Mutter	Møtrik	Dado	M6
27	02.0.020	Schroef	Schraube	Skrue	Vite	M6 x 50
28	30/0082	Slang	Schlauchstück	Slange	Flessibile	1
29	161/07700	Hendelset	Griffsatz	Håndtagskit	Kit Impugnatura	1
30	161.0.240	Grendel	Riegel	Sicherheits	Saliscendi	1
31	161/99806	Draadbuis	Gewinderohr	Gevindskåret Rør	Tubo Filettato	1
32	161.0.238	Steun	Halterung	Beslag	Staffe	1
33	19.0.843	Hendel	Griff	Håndtag	Impugnatura	1
34	19.0.095	Veer	Feder	Fjeder	Molla	1
35	8/8008	Moer	Mutter	Møtrik	Dado	M8
36	4/8004	Afdichtring	Scheibe	Spændeskive	Rondella	8 x 25 x 2
37	7/8008	Schroef	Schraube	Skrue	Vite	M8 x 16
38	161/99805	Afstandsstuk	Distanzstück	Afstandsstykke	Distanziale	1

4-01 21 19 17 10 2 18 19 13 12 14 20 15 4 1 6 5 3 9 11 8 7 1 4

Pump Assembly, Pompa, Bomba, Conj. Bomba

4-01

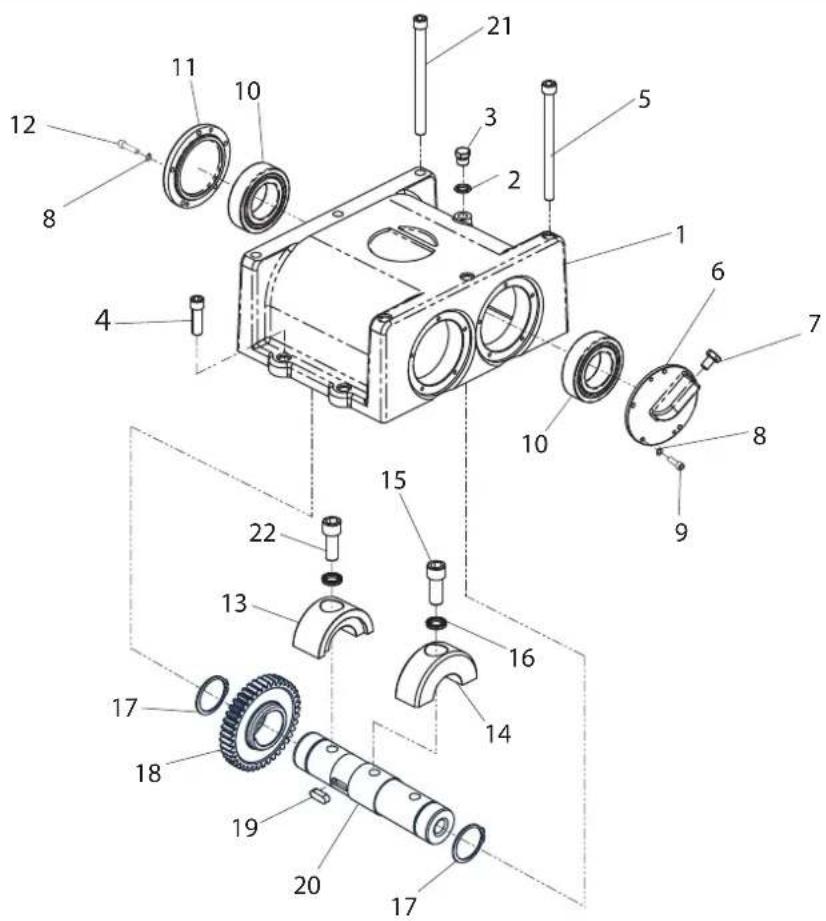

Exploded view diagram of a mechanical assembly with numbered components for identification

5-01

Gearbox Assembly, Ensemble boîte de vitesses, Conjunto de caja de engranajes, Conjunto da Caixa de Engrenagens

5-01

1	161/99527	Gearbox Casing	Carter de boîte de vitesses	Envoltura de la transmisión	Estojo da caixa de engrenagens	→022107	1
1	161/99675	Gearbox Casing	Carter de boîte de vitesses	Envoltura de la transmisión	Estojo da caixa de engrenagens	→022108	1
2	15.0.102	Washer	Rondelle	Arandela	Anilha	1/4"	1
3	14.0.108	Plug	Bougie	Tapón	Bujão	1/4"	1
4	7/12010	Screw	Vis	Tornillo	Parafuse	→022107	2
4	7/14015	Screw	Vis	Tornillo	Parafuse	→022108	2
5	7/12025	Screw	Vis	Tornillo	Parafuse	→022107	3
5	7/14013	Screw	Vis	Tornillo	Parafuse	→022108	3
6	161/99532	End Cover	Carter d'extrémité	Tapa de fondo	Tampa de extremidade		1
7	161/99513	Screw	Vis	Tornillo	Parafuse	M10 x 20	1
8	4/6005	Washer	Rondelle	Arandela	Anilha	M6	5
9	7/6003	Screw	Vis	Tornillo	Parafuse	M6 x 25	10
10	53/0017	Bearing	Roulement	Cojinete	Rolamanto		2
11	161/99525	End Cover	Carter d'extrémité	Tapa de fondo	Tampa de extremidade		1
12	7/6013	Screw	Vis	Tornillo	Parafuse	M6 x 25	5
13	161/99520	Weight 35	Poids 35	Peso 35	Peso 35		2
14	161/99648	Weight 45	Poids 45	Peso 45	Peso 45		1
15	7/16015	Screw	Vis	Tornillo	Parafuse	M16 x 55	1
16	05.3.069	Washer	Rondelle	Arandela	Anilha	M10	3
17	3/9012	Circlip	Circlip	Resorte circular	Grampo circular		2
18	161/99521	Gear	Pignon	Engranaje	Engrenagen		1
19	161/99523	Key	Clavette	Chaveta	Chave	M10 x 8 x 18	1
20	161/99530	Shaft	Axe	Eje	Veio		1
21	7/12026	Screw	Vis	Tornillo	Parafuse	→022107	3
21	7/14014	Screw	Vis	Tornillo	Parafuse	→022108	3
22	7/16014	Screw	Vis	Tornillo	Parafuse	M16 x 40	2

Exploded view diagram of a mechanical assembly with numbered components for identification

5-01

Exploded view diagram of a mechanical assembly with numbered parts for identification

5-02

Gearbox Assembly, Ensemble boîte de vitesses,

Exploded view diagram of a mechanical assembly with numbered parts for identification

5-02

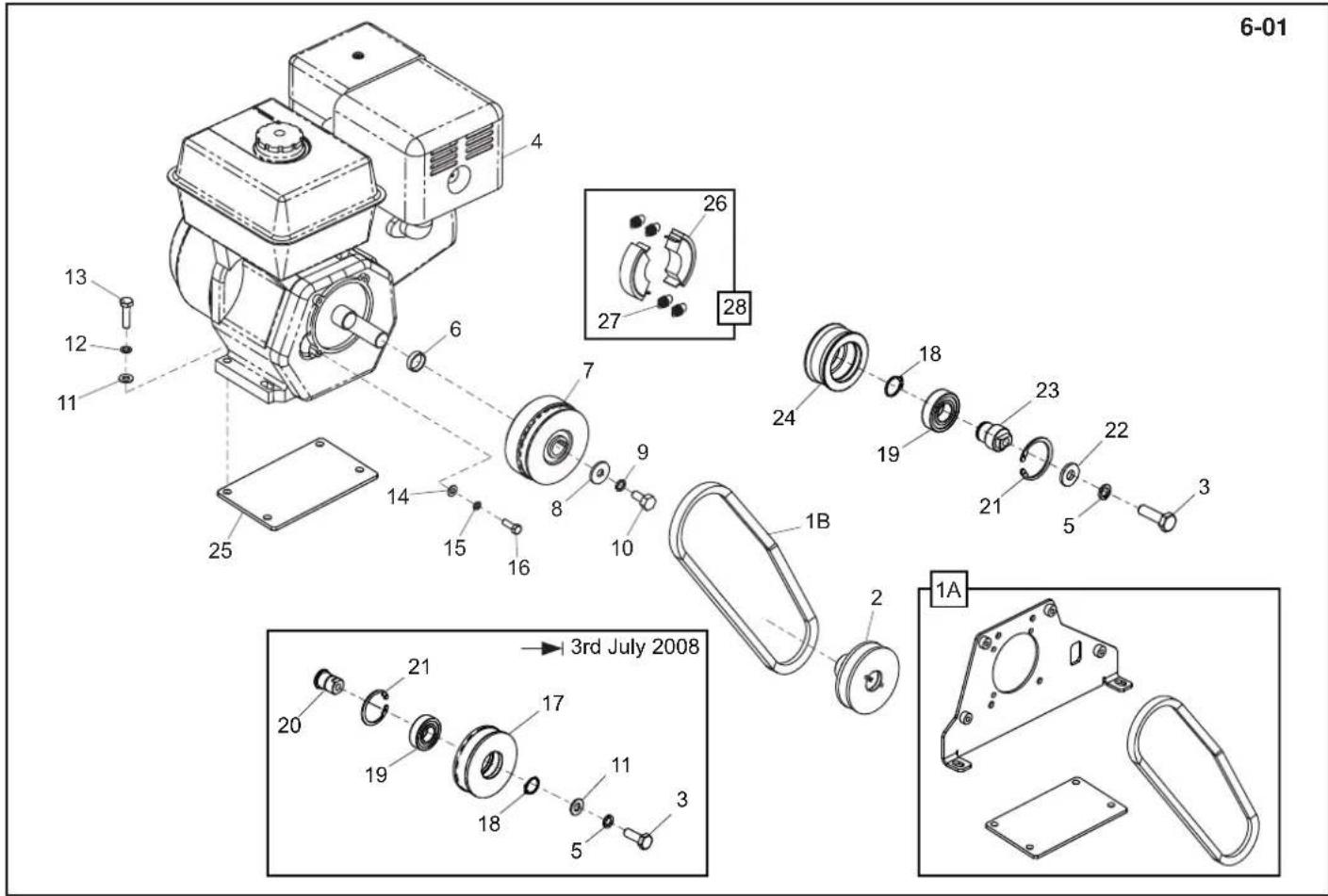

6-01 13 12 11 4 6 26 27 28 24 18 19 23 22 21 5 3 1B 2 1A 17 18 11 3 5 20 21 19 20 15 16 8 9 10 25 3rd July 2008

Motor and Drive Kit (Honda), Moteur et Kit d'entraînement (Honda), Motor y Kit Transmision (Honda), Motor e Kit de Transmissão (Honda)

6-01

1A	161/28000	Belt Kit	Kit de Courroie	Kit de Correa	Kit de Cinta	→ 096355	1
1B	21/0356	Belt	Courroie	Correa	Cinta	→ 096356	1
2	161/99536	Pulley	Poulie	Polia	Polia		1
3	7/10003	Screw	Vis	Tornillo	Parafuso	M10 x 30	1
4	20/0106	Engine	Moteur	Motor	Motor		1
5	4/1003	Washer	Rondelle	Arandela	Anilha	M10	1
6	161/99594	Spacer	Entretoise	Espaciador	Espaçador		2
7	21/0145	Clutch	Embrayage	Embrague	Embraiagem		1
8	160.0.101	Washer	Rondelle	Arandela	Anilha		1
9	05.5.004	Washer	Rondelle	Arandela	Anilha	7/16"	1
10	02.3.051	Screw	Vis	Tornillo	Parafuso	7/16" x 1"	1
11	4/1005	Washer	Rondelle	Arandela	Anilha	M10	5
12	4/1003	Washer	Rondelle	Arandela	Anilha	M10	4
13	7/10009	Screw	Vis	Tornillo	Parafuso	M10 x 40	4
14	4/8006	Washer	Rondelle	Arandela	Anilha	M8	4
15	4/8003	Washer	Rondelle	Arandela	Anilha	M8	4
16	02.3.020	Screw	Vis	Tornillo	Parafuso	5/16" x 1"	4
17	161/26100	Pulley	Poulie	Polia	Polia		1
18	3/9003	Circlip	Circlip	Resorte circular	Grampo circular		1
19	53/0016	Bearing	Roulement	Cojinete	Rolamanto		1
20	161/26100	Pin	Goupille	Pasador	Pino		1
21	MS22	Circlip	Circlip	Resorte circular	Grampo circular		1
22	4/1013	Washer	Rondelle	Arandela	Anilha	M10	1
23	161/99750	Pin	Goupille	Pasador	Pino		1
24	161/99747	Pulley	Poulie	Polia	Polia		1
25	161/99816	Spacer - Orange	Entretoise - Orange	Espaciador - Naraja	Espaçador - Laranja	→ 096396	1
25	161/99816GR	Spacer - Grey	Entretoise - Gris	Espaciador - Gris	Espaçador - Cinzento	→ 096396	1
26	21/0361	Spring	Ressort	Resorte	Mola		4
27	21/0366	Clutch Lining	Doublure embrayage	Guarnición de embrague	Iona de embreagem		2
28	21/0145KIT	Clutch Kit	Kit d'embrayage	Kit de embrague	Kit de embraiagem		1

6-01 13 12 11 4 6 26 27 28 24 18 19 23 22 21 5 3 1B 2 1A 17 18 11 3 5 20 21 19 18 20 → 3rd July 2008

Motor en Aandrijfset (Honda), Motor und antriebsbausatz (Honda), Motor og gearkit (Honda), Motore e Kit trasmissione (Honda)

6-01

1A	161/28000	Riem	Zahnriemensatz	Tandremssæt	Kit di Cinghia	→096355	1
1B	21/0356	Riem	Riemen	Remmen	Cinghia	→096356	1
2	161/99536	Poelie	Riemenscheibe	Remskive	Puleggia		1
3	7/10003	Schroef	Schraube	Skrue	Vite	M10 x 30	1
4	20/0106	Motor	Motor	Motor	Motore		1
5	4/1003	Afdichtring	Dichtung	Tætning	Tenuta	M10	1
6	161/99594	Afstandsstuk	Distanztück	Afstandsstykke	Distanziale		2
7	21/0145	Koppeling	Kupplung	Kobling	Frizione		1
8	160.0.101	Afdichtring	Scheibe	Spændeskive	Rondella		1
9	05.5.004	Afdichtring	Scheibe	Spændeskive	Rondella	7/16"	1
10	02.3.051	Schroef	Schraube	Skrue	Vite	7/16" x 1"	1
11	4/1005	Afdichtring	Scheibe	Spændeskive	Rondella	M10	5
12	4/1003	Afdichtring	Scheibe	Spændeskive	Rondella	M10	4
13	7/10009	Schroef	Schraube	Skrue	Vite	M10 x 40	4
14	4/8006	Afdichtring	Scheibe	Spændeskive	Rondella	M8	4
15	4/8003	Afdichtring	Scheibe	Spændeskive	Rondella	M8	4
16	02.3.020	Schroef	Schraube	Skrue	Vite	5/16" x 1"	4
17	161/26100	Poelie	Riemenscheibe	Remskive	Puleggia		1
18	3/9003	Borgveer	Sprengring	Låsering	Anello Elastico		1
19	53/0016	Lager	Lager	Leje	Cuscinetto		1
20	161/26100	Pen	Zapfen	Stift	Perno		1
21	MS22	Borgveer	Sprengring	Låsering	Anello Elastico		1
22	4/1013	Afdichtring	Scheibe	Spændeskive	Rondella	M10	1
23	161/99750	Pen	Zapfen	Stift	Perno		1
24	161/99747	Poelie	Riemenscheibe	Remskive	Puleggia		1
25	161/99816	Afstandsstuk - Oranje	Distanztück - Orange	Afstandsstykke - Orange	Distanziale - Arancione	→096396	1
25	161/99816GR	Afstandsstuk - Grijs	Distanztück - Grau	Afstandsstykke - Grå	Distanziale - Grigio	→096396	1
26	21/0361	Veer	Feder	Fjeder	Molla		4
27	21/0366	Koppeling Voering	Kupplungsbelag	Koblingslining	Fodera Frizione		2
28	21/0145KIT	Koppeling Kit	Kupplungssatz	Koblingssæt	Kit Frizione		1

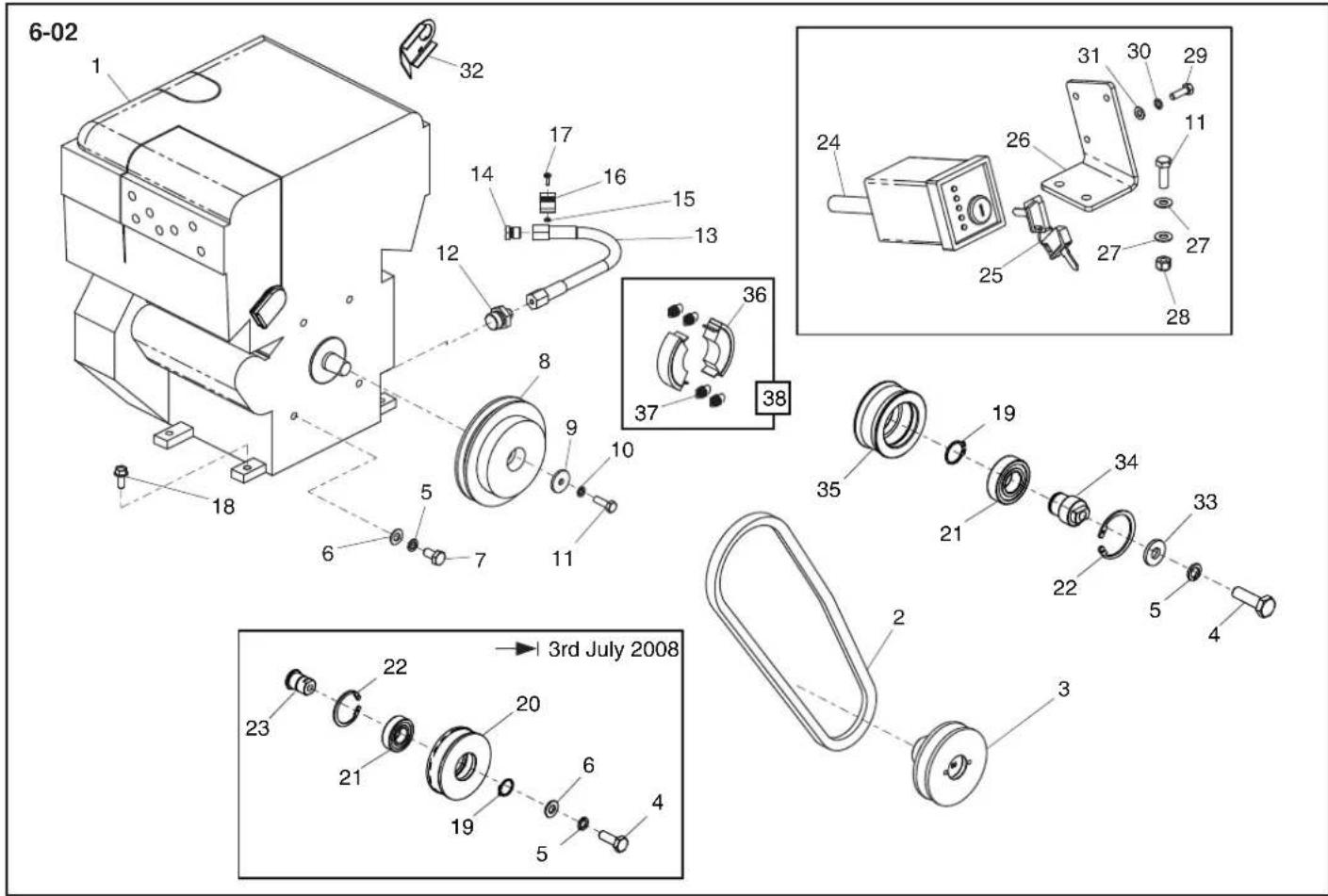

6-02 1 32 14 17 16 15 13 12 18 8 9 10 11 5 7 6 32 17 16 15 13 36 37 38 24 26 31 30 29 25 27 27 28 35 19 21 34 33 22 5 4 23 22 20 19 6 4 5 3rd July 2008

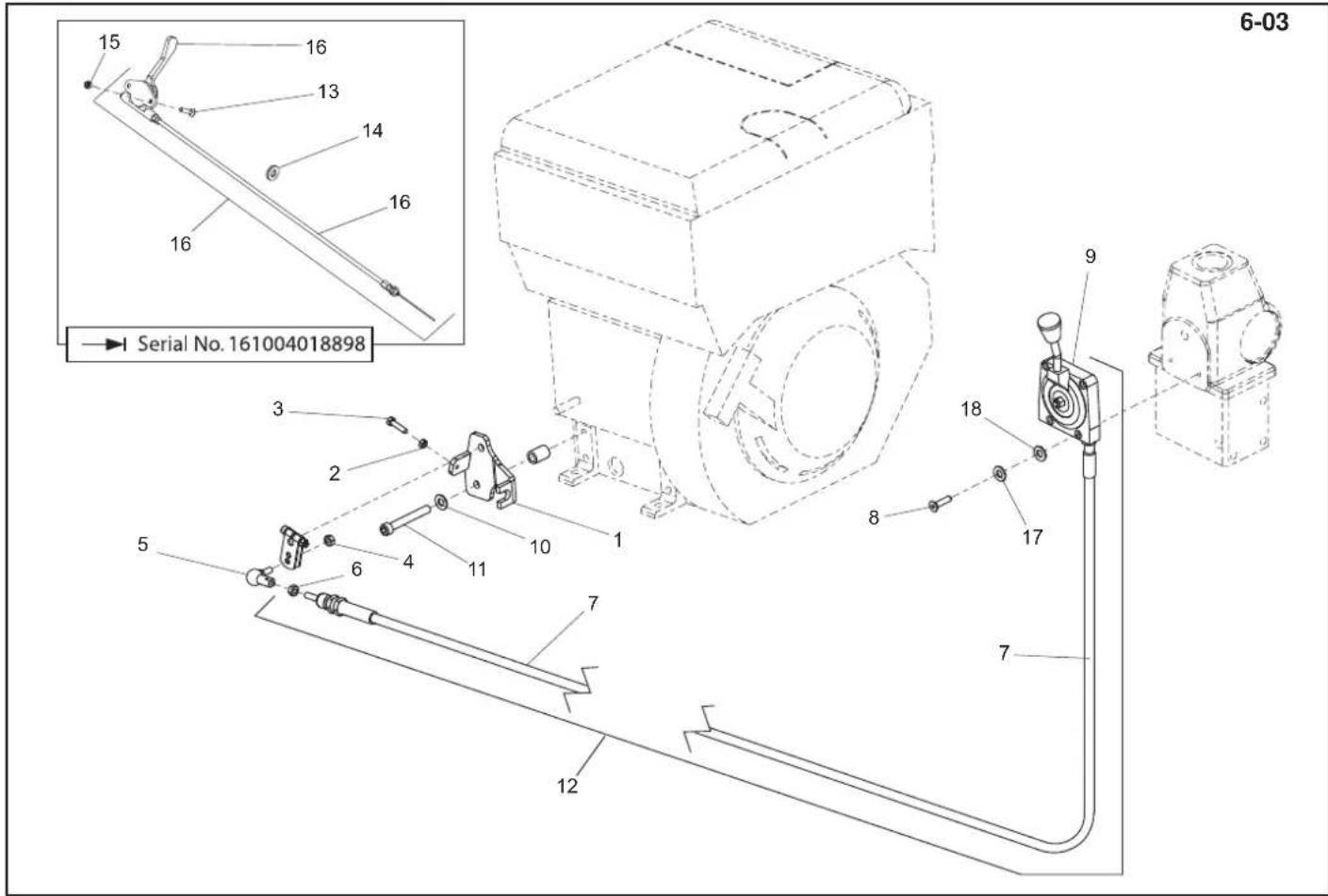

6-03 Serial No. 161004018898

Throttle Cable (Hatz), Câble d'accélérateur (Hatz), Cable de aceleración (Hatz), Cabo do estrangulador (Hatz)

6-03

1	161/08400	Bracket	Patte de montage	Escuadra	Suporte		1
2	8/5001	Nut	Ecrou	Tuerca	Porca	M5	1
3	7/5003	Screw	Vis	Tornillo	Parafuso	M5 x 20	1
4	8/6001	Screw	Vis	Tornillo	Parafuso	M6	1
5	3/5044	Adaptor	Adapteur	Adaptador	Adaptador	M5	1
6	8/6001	Nut	Ecrou	Tuerca	Porca	M6	1
7	161/08201	Throttle Cable	Câble d'accélérateur	Cable de aceleración	Cabo do estrangulador	Non EPA Only	1
8	7/6012	Screw	Vis	Tornillo	Parafuso	Non EPA Only (M6 x 25)	2
8	7/6039	Screw	Vis	Tornillo	Parafuso	EPA Only (M6 x 30)	2
9	161/08102	Throttle Lever	Manette d'accélérateur	Palanca de aceleración	Alavanca do estrangulado	Non EPA Only	1
10	4/8006	Washer	Rondelle	Arandela	Anilha	M8	1
11	7/8024	Screw	Vis	Tornillo	Parafuso	M8 x 60	1
12	161/08200	Throttle Lever	Manette d'accélérateur	Palanca de aceleración	Alavanca do estrangulado	Non EPA Only	1
12	21/0354	Throttle Lever	Manette d'accélérateur	Palanca de aceleración	Alavanca do estrangulado	EPA Only	1
13	07.0.140	Screw	Vis	Tornillo	Parafuso	M5 X 20	2
14	21.0.313	Grommet	Passe-fil	Anillo	Anel Isolante		1
15	8/5002	Nut	Ecrou	Tuerca	Porca	M8	2
16	161/08500	Throttle Lever	Manette d'accélérateur	Palanca de aceleración	Alavanca do estrangulado		1
17	4/6005	Washer	Rondelle	Arandela	Anilha	EPA Only (M8)	2
18	4/6001	Washer	Rondelle	Arandela	Anilha	EPA Only (M8)	2

6-03 Serial No. 161004018898

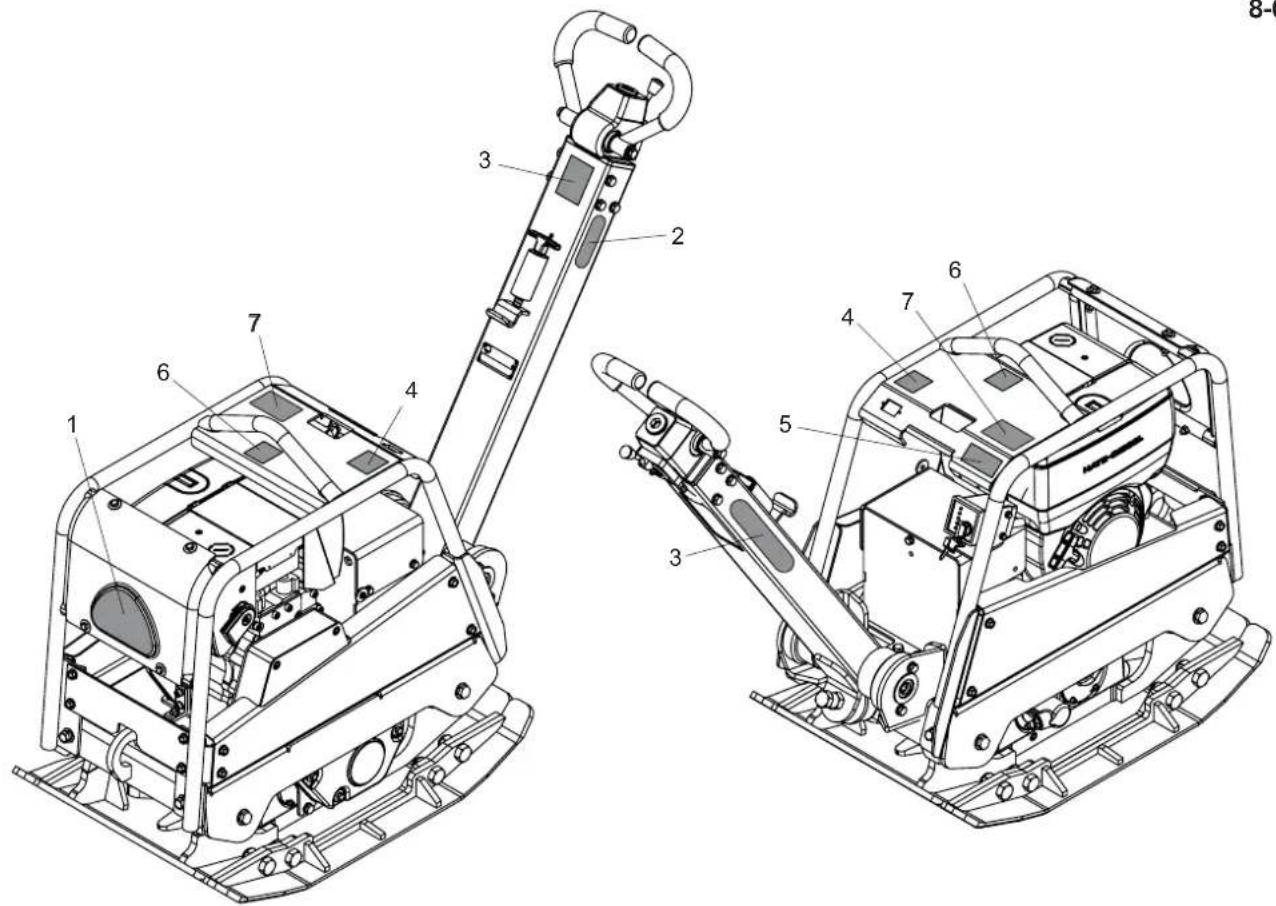

8-01 1 2 3 4 5 6 7 8-01

Decals, Autocollant, Rótulo, Decalque

8-01

1	800/99985	Decal	Autocollant	Rótulo	Decalque	RPC 45/60	1
2	800/99985	Decal	Autocollant	Rótulo	Decalque	RPC 45/60	1
3	161.0.293	Decal - Control	Autocollant - Controller	Rótulo - Control	Decalque - Controle		1
4	01154	Decal - Noise	Autocollant - Bruits	Rótulo - Ruidos	Decalque - Ruido	108dBA	1
5	161.0.293	Decal - Throttle	Autocollant - Accélérateur	Rótulo - Acelerador	Decalque - Estrangulador	Non EPA Only	1
5	800/99505	Decal - Throttle	Autocollant - Accélérateur	Rótulo - Acelerador	Decalque - Estrangulador	EPA Only	1
6	161.0.293	Decal	Autocollant	Rótulo	Decalque		1
7	161.0.293	Decal - Warning	Autocollant - Avertissement	Rótulo - Aviso	Decalque - Aviso		1

8-01

Technical diagram of a mechanical device with numbered components for identification

Label, Abziehbild, Skilt, Decalcomania

8-01

1	800/99985	Label	Abziehbild	Skilt	Decalcomania	RPC 45/60	1
2	800/99985	Label	Abziehbild	Skilt	Decalcomania	RPC 45/60	1
3	161.0.293	Label - Heerschappij	Abziehbild - Bowden	Skilt - Regere	Decalcomania - Controle		1
4	01154	Label - Guluid	Abziehbild - Geräuschpegelschild	Skilt - Skilt Stej	Decalcomania - Sulla rumorosità	108dBA	1
5	161.0.293	Label - Gashendel	Abziehbild - Drossel	Skilt - Gashändtags	Decalcomania - Acceleratore	Non EPA Only	1
5	800/99505	Label - Gashendel	Abziehbild - Drossel	Skilt - Gashändtags	Decalcomania - Acceleratore	EPA Only	1
6	161.0.293	Label	Abziehbild	Skilt	Decalcomania		1
7	161.0.293	Label - Waarschuwing	Abziehbild - Warnung	Skilt - Advarsel	Decalcomania - Avvertenza		1

ALTRAD

Belle GROUP

ALTRAD Belle Head Office

Sheen, Nr. Buxton

Derbyshire.

SK17 OEU

England

Tel: [phone]

Fax: [phone]

email: [e-mail]

www.ALTRAD-Belle.com

www.Belle247.com

No.1 for Light Construction Equipment, Scaffolding, Wheelbarrows

www.ALTRAD-Belle.com

ALTRAD...

Belle...

BarOmix...

FORT...

Limex...

Richard Fraisse...

Plettac

COMPACTING...

MIXING...

CONCRETING...

CUTTING...

BREAKING...

MOVING...

WHEELBARROWS...

SCAFFI
